KC3500 - Manual winch Vevor - Free user manual and instructions

Product Type	Manual Winch
Brand	Vevor
Model	KC3500
Maximum Load Capacity	3500 lb (approx. 1587 kg)
Gear Ratio	4:1 (high speed) / 8:1 (low speed)
Cable Type	Steel Cable
Cable Length	10 m
Color	Black
Mounting Dimensions (center distance)	44 mm x 104 mm
Power Source	Manual (hand crank)
Main Functions	Pulling, towing (do not use for lifting)
Number of Speeds	2 speeds
Crank Type	Quick handle
Maintenance	Grease gears every 6 months, lubricate cable
Safety	Wear gloves, do not overload, do not lift loads
Spare Parts	Hook, cable, crank, ratchet switch
Warranty	Electronic warranty via www.vevor.com/support
Storage	Dry place, out of reach of children

Frequently Asked Questions - KC3500 Vevor

What is the maximum load capacity of the Vevor KC3500 winch?

The maximum load capacity is 3500 lb (approx. 1587 kg). This capacity applies to both gear ratios.

Can I use this winch to lift loads?

No, this winch is designed only for pulling, not lifting. It must not be used for lifting loads or transporting people.

How do I install the Vevor KC3500 winch?

Drill 11 mm holes in the supports according to the base dimensions (44 mm x 104 mm). Secure the winch with at least 3 bolts and 3/8 inch lock nuts. Install the quick handle, then set the ratchet switch to the middle position to unwind the cable.

What maintenance does the KC3500 winch require?

Regularly lubricate the cable and hook with light grease. Grease the gears every 6 months with waterproof grease. Periodically inspect the cable and parts, and replace them if damaged.

Can the steel cable be replaced?

Yes, the 10 meter steel cable can be replaced. Ensure the cable end passes through the 4 holes on the side of the drum and attach a plug to the end to prevent slipping.

How do I use the ratchet switch?

The switch has 3 positions: top position for pulling (winding), bottom position for releasing (unwinding), middle position to move the cable freely without load. Always hold the crank firmly when changing positions.

What safety precautions are important?

Always wear gloves. Do not place your hands near the cable or drum. Do not overload the winch. Do not use under the influence of alcohol or drugs. Do not allow minors to use the device.

Does the winch come with a warranty?

Yes, an electronic warranty is available via the Vevor support website at www.vevor.com/support. Keep your proof of purchase.

What are the mounting dimensions of the base?

The mounting dimensions are: a = 44 mm and b = 104 mm (hole center distance). Use 3/8 inch bolts for mounting.

Can I use the winch to pull loads sideways?

No, do not apply any side force to the load. The winch must be aligned with the load to be pulled to avoid risk of damage or injury.

USER MANUAL KC3500 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

HAND WINCH USER'S MANUAL

Model: KW1200, KW1600, KW2000B, KW3500, KC800, KC3500

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HAND WINCH

Two black manual winch levers shown from different angles, no text or symbols visible

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

GENERAL SAFETY RULES

WARNING

Please read this user manual carefully!

1. Never overload!
2. This winch is designed for pulling, not for lifting!
3. Never put your hand or anything else near the gear, rim and roll cable. Always wear gloves when using the winch
4. Never try to repair or disassemble the winch when there is a pro Ask a machinist or specialist for help.
5. When replacing the cable, make sure that the end of the cable c through the 4 holes on the side of the rim, and tie a knob or of cable, to prevent the cable from coming out.
6. Use grease for axis and gears before depositing for a long time
7. Do not allow minors to use and operate this product

8. Do not use the product when you are tired, or while under the interest of alcohol, prescription medicines or drugs.

9. Safety at work

10. Use both hands when transporting the product.

11. Use proper protective equipment according to the work environment.
12. Keep proper footing at all times and balance.
13. Do not attempt to pull stationary or fix loads.
14. Do not apply any side force on the load.

15. Not for lifting loads and Never transporting persons.

16. Avoid starting the product unintentionally .The ratchet switch should always be fully engaged.

CAUTION: Carefully read instructions and procedures for safe operation SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model	KW1200	KW1600	KW2000B	KW3500	KC800	KC3500
Maximum Load Capacity	1200lbs	1600lbs	2000lbs	3500lbs	800lbs	3500lbs
Gear Ratio	4:1	4:1	4:1	4:1 and 8:1	3.1:1	4:1 and 8:1
Way/ Speed	2Way / 1Speed	2Way / 1Speed	2Way / 1Speed	2Way / 2Speed	2Way / 1Speed	2Way / 2Speed
Rope Type	Polyester Strap	Polyester Strap	Polyester Strap	Polyester Strap	Steel Cable	Steel Cable
Rope Length	7M	10M	7M	10M	10M	10M
Color(s)	Black	Black	Black	Black	Black	Black

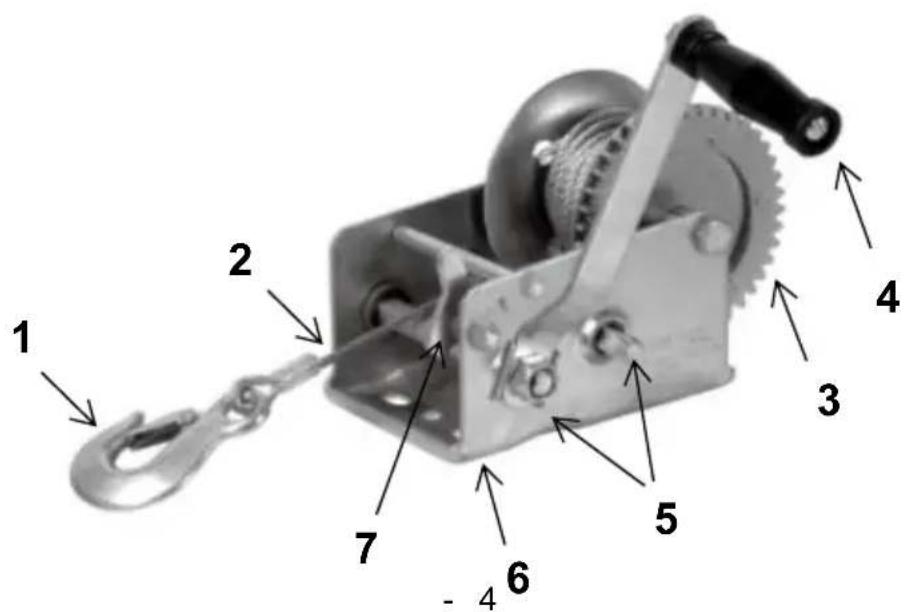

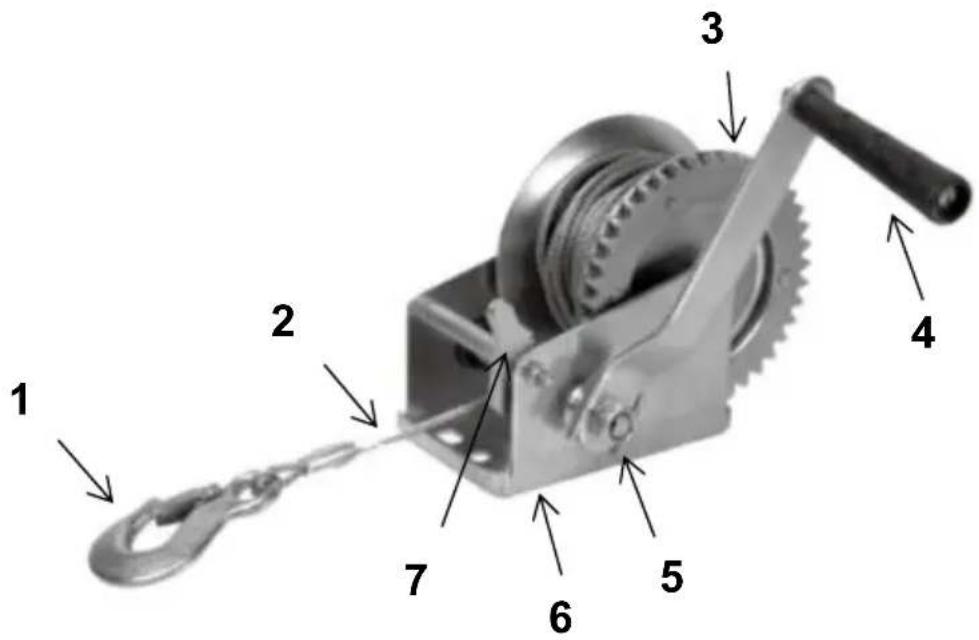

1. Hook 2. Rope 3. Rim 4. Crank 5. Axis Bolt 6. Base 7. Ratchet St

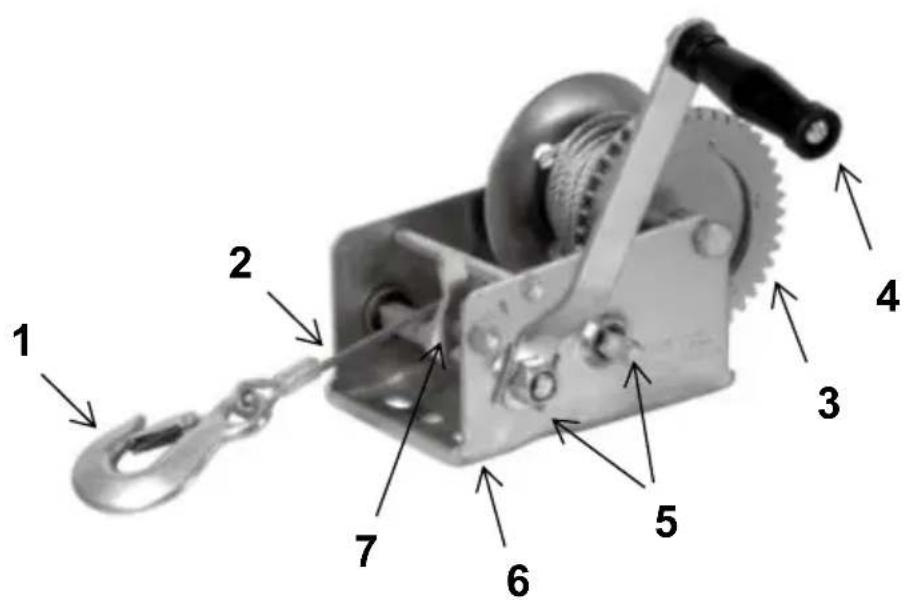

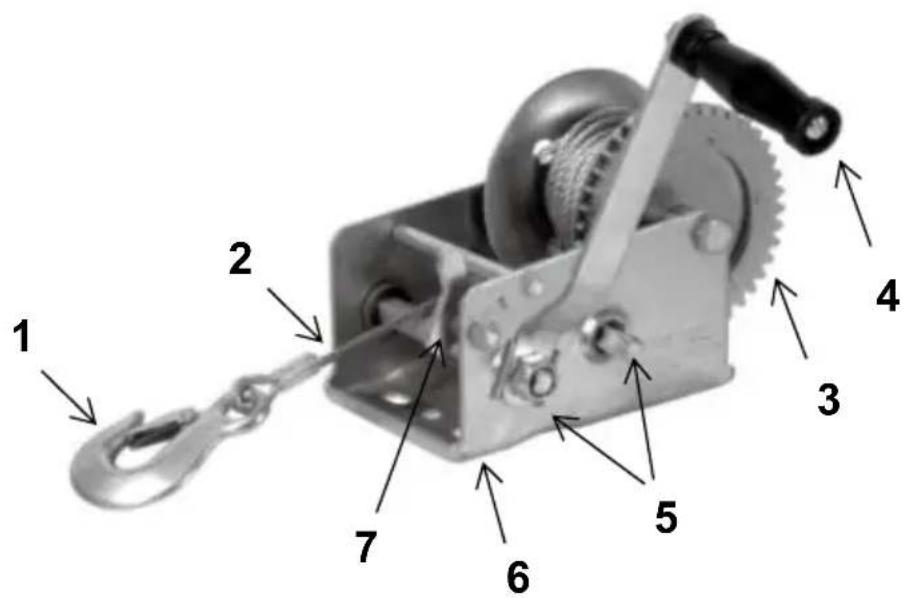

1. Hook 2. Rope 3. Rim 4. Crank 5. Axis Bolt 6. Base 7. Ratchet Swi

Installation Preparation:

1. Please prepare a carpet or mat to protect your floor. You need to out all the accessories.
2. Please prepare gloves to avoid being scratched by sharp parts that occur during installation.
3. Please open all the boxes to check that the accessories are compared and in good condition.
4. If you need to use power tools to install this product, please set speed to low speed in advance.
5. When installing, please align all the holes and do not tighten all screws first; otherwise, it may make the installation difficult.

Installation:

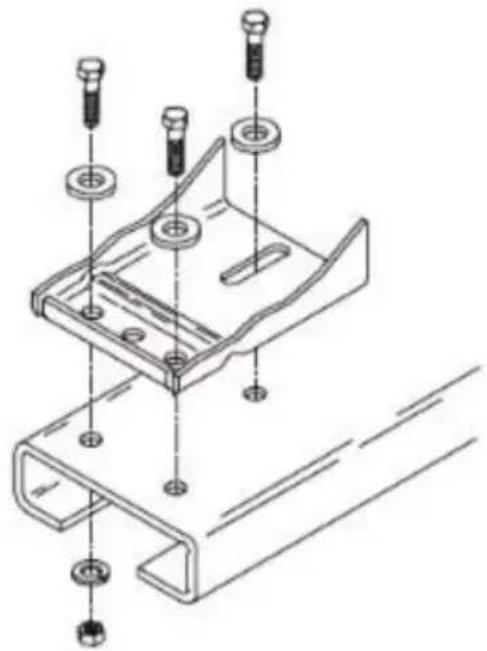

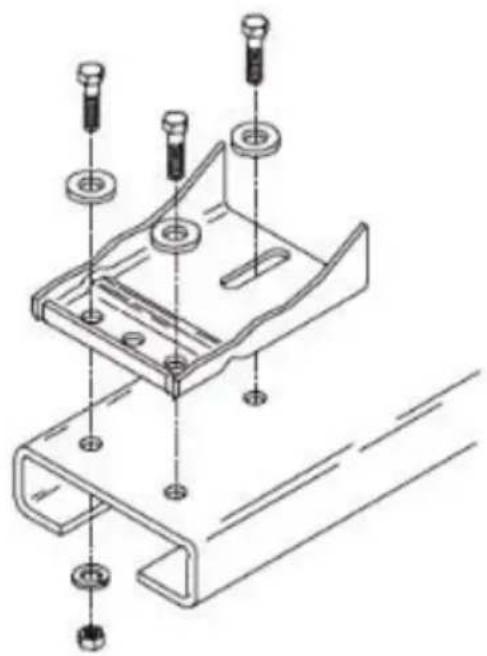

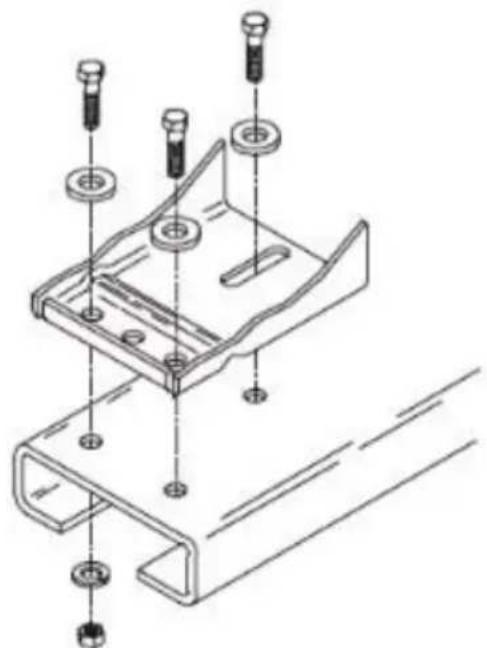

Step1. Drill holes (Φ11mm) in the brackets to be installed, accor to the winch base dimensions.

Install the winch on the brackets and lock it with bolts and nut

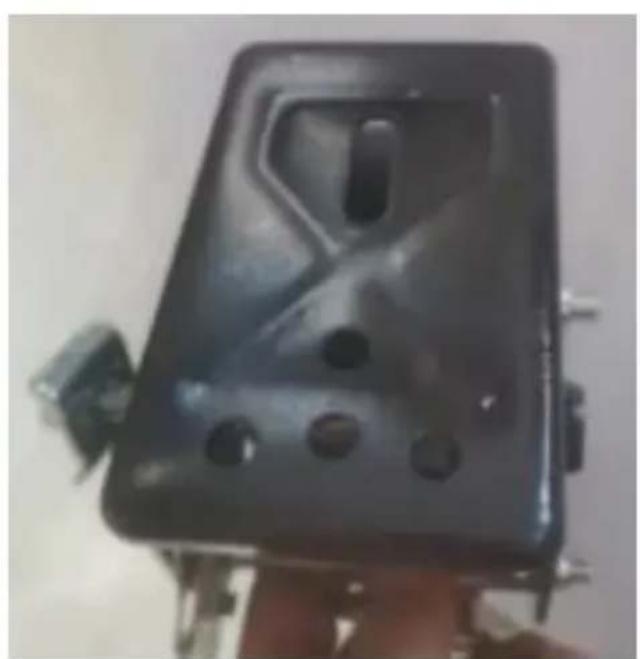

Close-up of a black plastic mechanical component with holes and mounting brackets (no visible text or symbols)

Technical line drawing of a mechanical assembly with multiple bolted components and mounting holes (no text or labels)

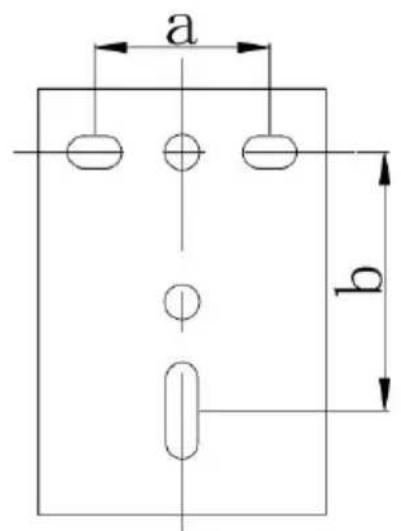

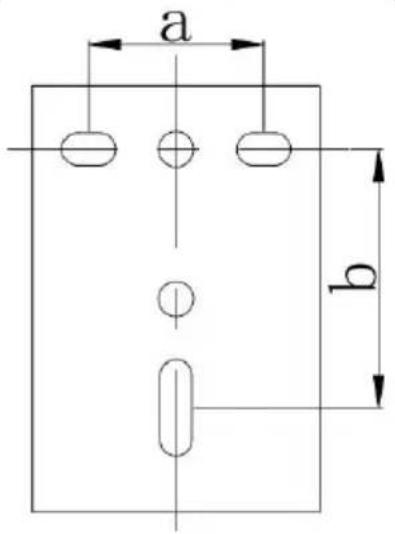

Winch Base Dimension:

Model	KW1200	KW1600	KW2000B	KC800	KW3500/KC3500
a (mm)	50	44	50	44.5	44
b (mm)	85	79	85	74	104

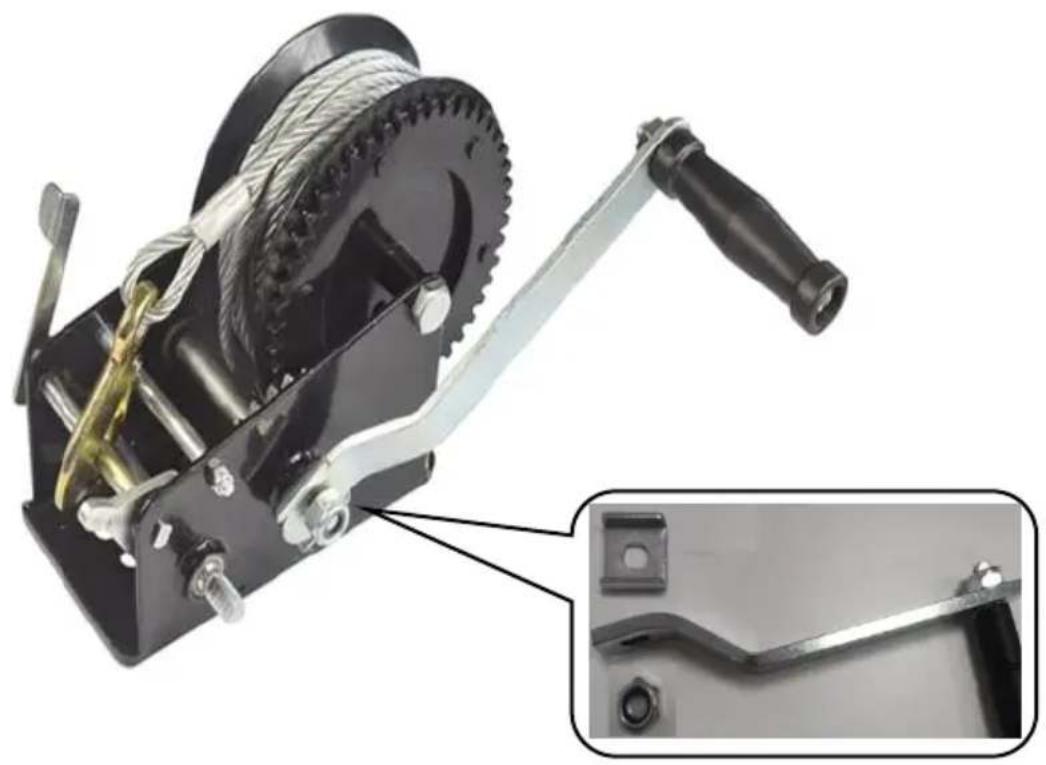

Step2. Install the handle on the shaft and lock the nut, as show

Mechanical winch with attached spring and handle, shown in two views (no text or symbols visible)

Note: Model KW3500 and KC3500 are fast handles, just plug it

Step3. Set the ratchet switch to the middle position, Pull out the and catch the weight.

Then turn the ratchet switch to a high position, Turn the handle slowly clockwise. Pull the weight to the desired position.

Note: The ratchet switch operation is described below.

Winding/unwinding the cable without load

1. Place the ratchet lever in the center position.
2. The cable reel now moves freely in both directions.
3. Pull the cable at the fixed hook until the hook can be attach the load to be moved.
4. Wind back the excessive cable by turning the crank clockwise.

Winding up the cable under load (towing, loading)

1. Hold the crank firmly and push gently to relieve the ratchet lev
2. Place the ratchet lever in position.
3. Turn the crank clockwise to evenly wind up the steel cable.

Unwinding the cable under load (lowering, unloading)

1.Hold the crank firmly and push gently to relieve the ratchet lev
2. Place the ratchet lever in position.
3. The cable should be fully retracted again after use

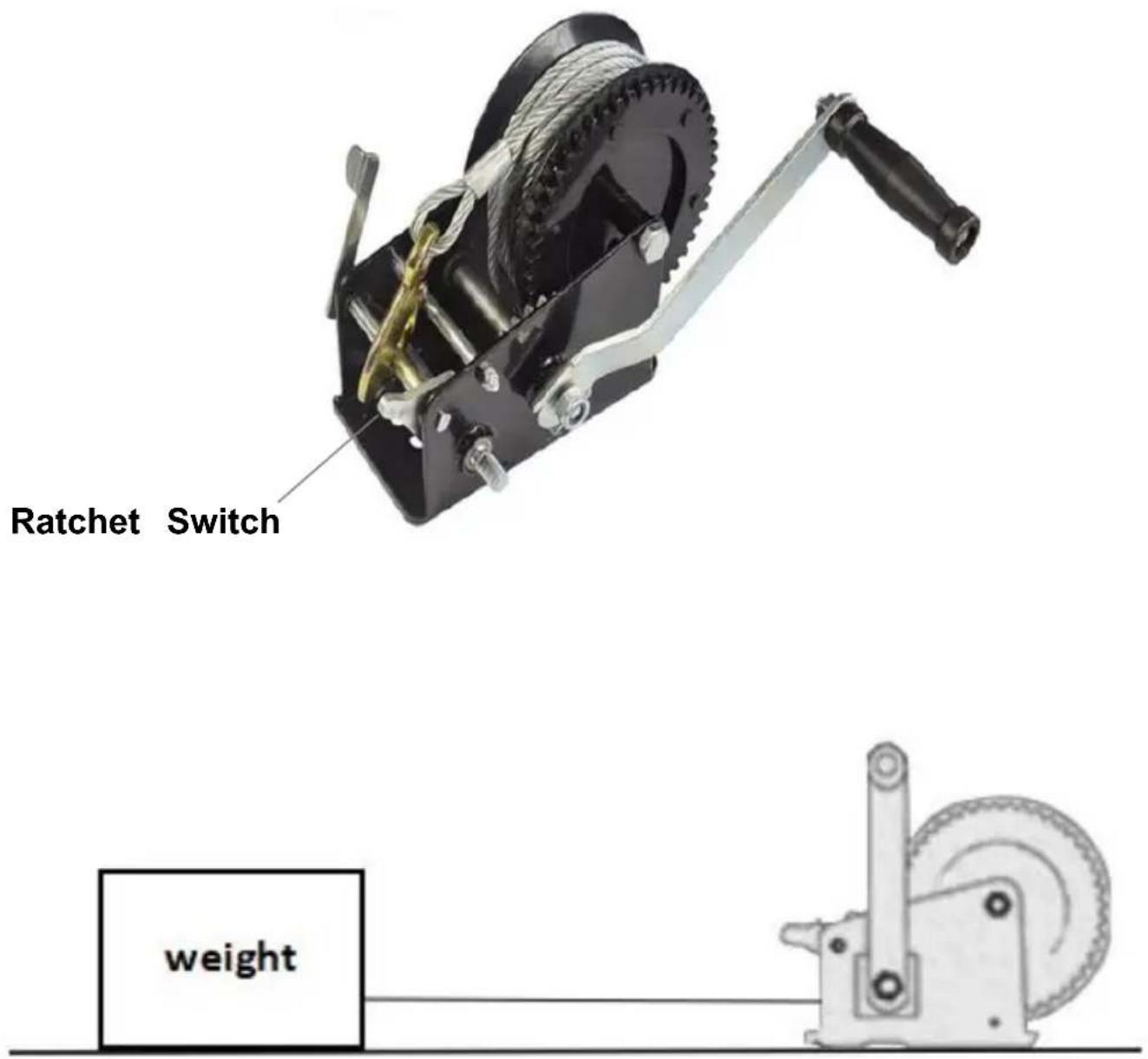

Ratchet switch

1. There are 3 positions for the ratchet switch: The higher position is pulling, the lower position is for releasing, and the middle position is both pulling and releasing, but it can only be used when the winch loaded. Hold the crank handle tightly if you want to change the switch position.

2. Before using, install the winch on a firm and flat surface. To install the ratchet switch in the middle position and pull the cable out until holes on the bottom of the base are visible. Then use at least 3 sec inch bolts and locking nuts, in a triangular pattern, to affix the base surface. Use an extra metal or hardwood board when necessary.

3. Then install the crank handle to the axis bolt with nut.

4. Put the ratchet switch in the higher position and turn the crank h clockwise to pull. Place the ratchet switch in the lower position and t crank handle counterclockwise to release.

5. When finished, attach the hook to the paw bushing.

MAINTENANCE

1. Follow the instructions for lubricating periodically

Lubricate the cable and hook regularly with slight grease.

Grease the gears every 6 months. Use any good quality waterproof grease.

1. Inspect periodically all parts, steel cables, accessories and replace if damaged or used.
2. Have damaged parts replaced by an authorized service center.
3. Check the nuts periodically and tighten them if they are loose.
4. Product must be stored in a dry location. Always lock up product keep them out of reach of children.
5. Keep the product properly maintained and clean for a better and performance.
6. Keep handles dry, clean and free from oil and grease.

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd, Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

UK

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

©

GENERAL SAFETY RULES

WARNING

Close-up of a black plastic electronic device with mounting holes and metal fittings (no visible text or symbols)

Technical line drawing of a mechanical assembly with multiple bolted components and mounting holes (no text or labels)

Mechanical winch with attached spring and handle, shown in two views (no text or symbols visible)

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Fabriqué en Chine

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HAND WINCH

Two black manual winch levers shown from different angles, no text or symbols visible

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

GENERAL SAFETY RULES

WARNING

Close-up of a black plastic electrical connector with mounting holes and a handle (no visible text or symbols)

Technical line drawing of a mechanical assembly with multiple bolted components and mounting holes (no text or labels)

Mechanical winch with attached cable and handle, shown in two views (no text or symbols visible)

Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Modello: KW1200, KW1600, KW2000B, KW3500, KC800, KC3500

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HAND WINCH

Two black manual winch levers shown from different angles, no text or symbols visible

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

GENERAL SAFETY RULES

WARNING

Close-up of a black plastic electrical contactor with four holes and metal fittings (no visible text or symbols)

Technical line drawing of a mechanical assembly with multiple bolted components and mounting holes (no text or labels)

Mechanical winch with attached cable and handle, shown in two views (no text or symbols visible)

Importato in AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HAND WINCH

Two black manual winch levers shown from different angles, no text or symbols visible

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

GENERAL SAFETY RULES

WARNING

1. Gancho 2. Cuerda 3. Borde 4.Manivela 5.Perno del eje 6. Base 7.Interruptor de trinquete

1. Gancho 2. Cuerda 3. Borde 4. Manivela 5. Perno del eje 6. Base

7. Interruptor de trinquete

Close-up of a black plastic electrical connector with mounting holes and metal fittings (no visible text or symbols)

Technical line drawing of a mechanical assembly with multiple bolted components and mounting holes (no text or labels)

Mechanical winch with attached cable and handle, shown in two views (no text or symbols visible)

Importado a AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importado a EE. UU.: Sanven Technology Ltd, Suite 250, 9166 Anah Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Hecho en china

VEVOR®

TOUGH TOOLS, HALF PRICE

Model: KW1200, KW1600, KW2000B, KW3500, KC800, KC3500

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HAND WINCH

Two black manual winch levers shown from different angles, no text or symbols visible

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

GENERAL SAFETY RULES

WARNING

Close-up of a black plastic electronic device with mounting holes and a handle, held by a hand (no visible text or symbols)

Technical line drawing of a mechanical assembly with multiple bolted components and mounting holes (no text or labels)

Mechanical winch with rope and handle, shown in two views: top-down view (no text or symbols)

Import do AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD N 2122 Australia

Import do USA: Sanven Technology Ltd, Suite 250, 9166 Anaheim P Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

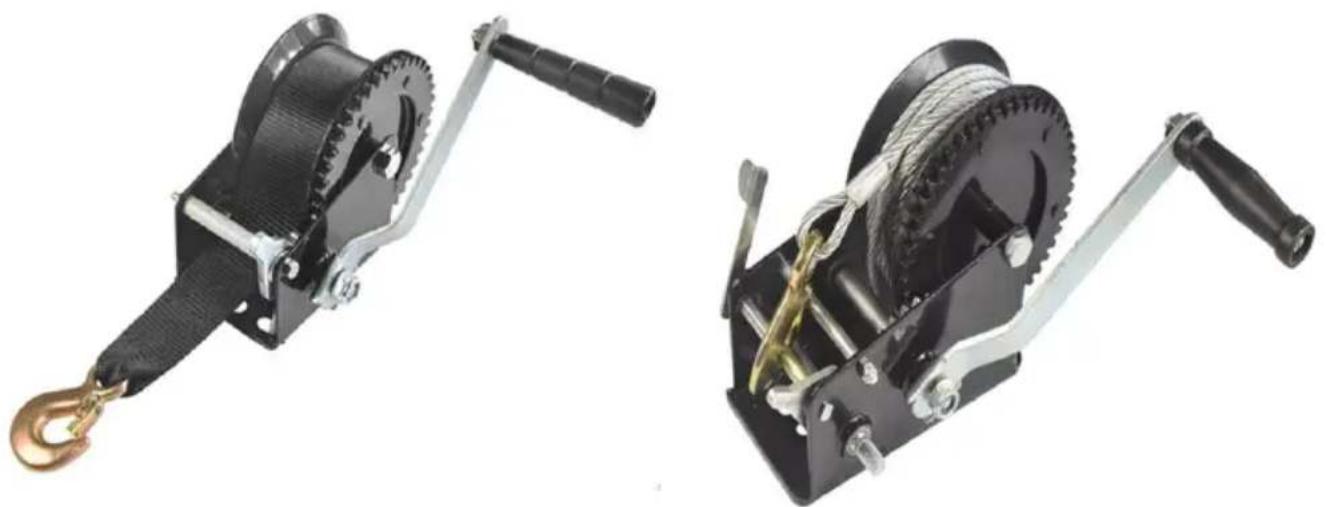

HAND WINCH

Two black manual winch levers shown from different angles, no text or symbols visible

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

GENERAL SAFETY RULES

WARNING

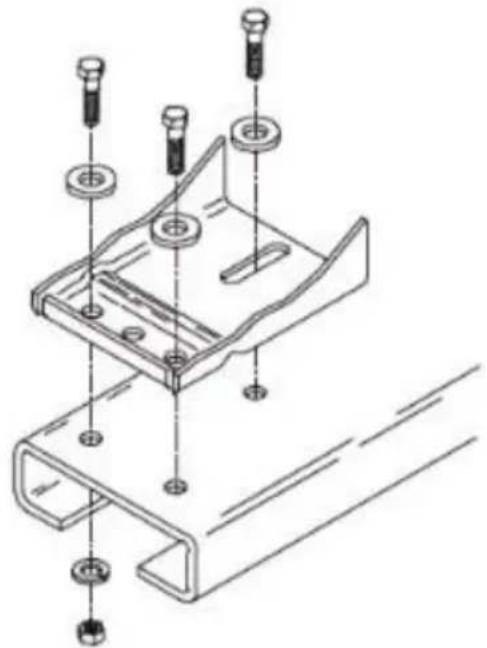

1. Haak 2. Touw 3. Velg 4. Crank 5. Asbout 6. Basis 7. Ratelsch

1.Haak 2. Touw 3. Velg 4.Crank 5.Asbout 6. Basis 7.Ratelschakela

Close-up of a black plastic electrical contactor with four holes and metal fittings (no visible text or symbols)

Technical line drawing of a mechanical assembly with multiple bolted components and mounting holes (no text or labels)

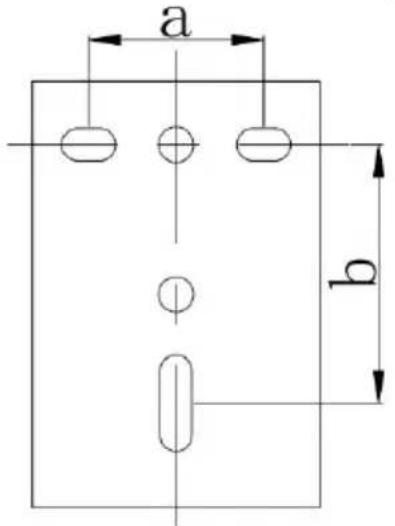

Afmeting lierbasis:

Model	KW1200	KW1600	KW2000B	KC800	KW3500 / KC3500
een (mm)	50	44	50	44,5	44
b (mm)	85	79	85	74	104

Mechanical winch with attached cable and handle, shown in two views (no text or symbols visible)

Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Gemaakt in China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

HANDVINSCH ANVÄNDARMANUAL

Modell: KW1200, KW1600, KW2000B, KW3500, KC800, KC3500

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HAND WINCH

Two black manual winch levers shown from different angles, no text or symbols visible

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

GENERAL SAFETY RULES

WARNING

1. Krok 2. Rep 3. Fälg 4. Vev 5. Axelbult 6. Bas 7. Spärrbrytare

1. Krok 2. Rep 3. Fälg 4. Vev 5. Axelbult 6. Bas 7. Spärrbrytare

Close-up of a black plastic mechanical component with holes and mounting brackets (no visible text or symbols)

Technical line drawing of a mechanical assembly with multiple bolted components and mounting holes (no text or labels)

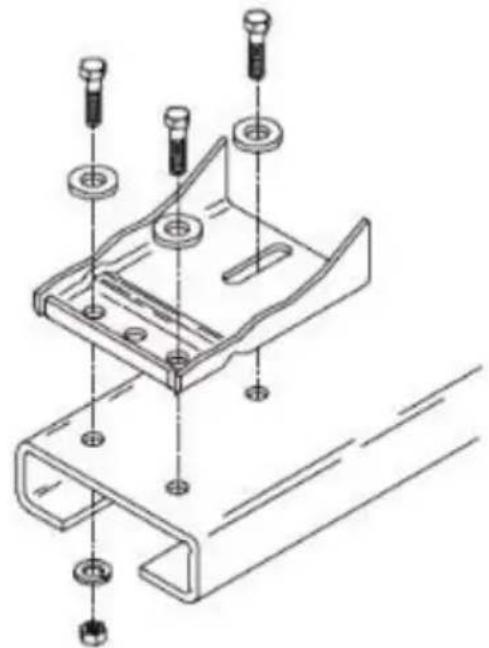

Vinschbasdimension:

Modell	KW1200	KW1600	KW2000B	KC800	KW3500 / KC3500
a (mm)	50	44	50	44,5	44
b (mm)	85	79	85	74	104

Mechanical winch with attached spring and handle, shown in two views (no text or symbols visible)

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Tillverkad i Kina

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
