Product Type	Drywall and panel lift (electric winch)
Brand	Vevor
Model	LG-021
Maximum Load	150 lb (68 kg)
Max. Lifting Height	3350 mm (3.35 m)
Min. Lifting Height	1420 mm (1.42 m)
Net Weight	Approximately 36 kg
Dimensions (L x W x H)	1360 x 1320 x 1420 mm (folded)
Power Supply	Manual (cable winch with steering wheel and brake)
Max. Lifting Capacity	1 panel up to 122 x 488 cm
Main Functions	Lifting and tilting of drywall panels; adjustable cradle with stabilizers
Included Components	Base with wheels, telescopic frame, hoist, cradle, two support arms
Safety Brake	Reverse brake and hoist brake
Safety Lock	Locking arm and locking tab on the support arms
Maintenance and Cleaning Tips	Clean the brake drum before use; store stabilizers retracted
Safety Instructions	Wear a helmet; do not lift more than one board; check cable condition
Operating Conditions	Allow the device to reach room temperature before use to avoid condensation
Spare Parts and Repairability	Support arms, stabilizers, hooks, steering wheel; assistance via www.vevor.com/support
General Information	Use for drywall; do not exceed 68 kg

Frequently Asked Questions - LG-021 Vevor

How to assemble the base of the lift?

Place the base on the ground on its wheels, press the locking ring and rotate the front legs outward until the ring engages in the hole. Lower the reverse brake to lock the base.

How to deploy the hoist (winch)?

Hold the steering wheel and lift the brake lever. Turn the steering wheel slightly forward while lifting the brake. Grasp the strut and pull the hoist out of the frame. Release the lever and engage the locking arm.

What are the maximum and minimum lifting heights?

The maximum lifting height is 3350 mm (3.35 m) and the minimum height (cradle lowered) is 1420 mm (1.42 m).

What is the maximum supported load?

The maximum load is 150 lb (68 kg), i.e., a drywall panel with dimensions up to 122 x 488 cm.

How to use the stabilizers?

Pull the locking pin to extend the stabilizer to the desired length (53 or 84 cm). Never load if the pins are not engaged. Retract the stabilizers before transport.

How to lock the support arms?

Push the conical plates of the arms into the cradle sockets until the locking tab underneath clicks. Check that they are securely fastened.

What to do if the hoist does not retract?

Make sure the brake lever is fully pressed. If the cable is stuck, check that it is not tangled. The locking arm must be disengaged to fold the hoist.

What safety precautions should be followed?

Always wear a helmet, keep the area clear, inspect the cable before use, never lift more than 68 kg, and use the lift only for drywall panels.

How to maintain the lift?

Before each use, clean the brake drum. After use, retract the stabilizers and hooks. Store at room temperature to avoid condensation.

Where to find spare parts or assistance?

Contact technical support via www.vevor.com/support. Parts such as support arms or steering wheel are available from the manufacturer.

USER MANUAL LG-021 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

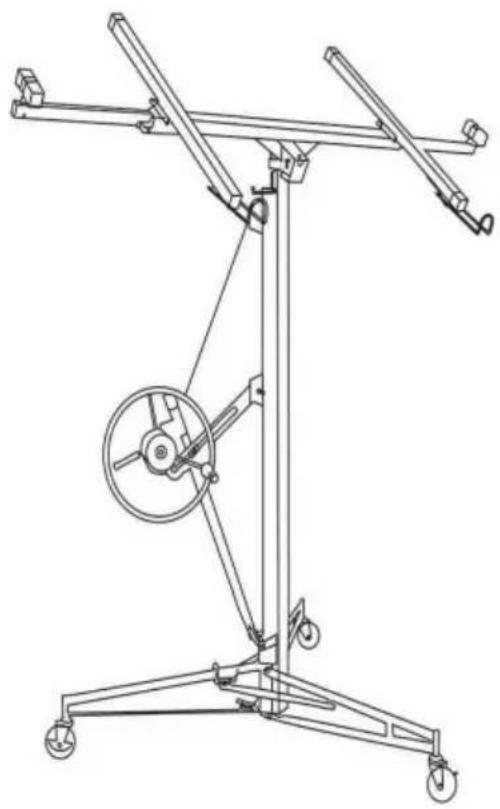

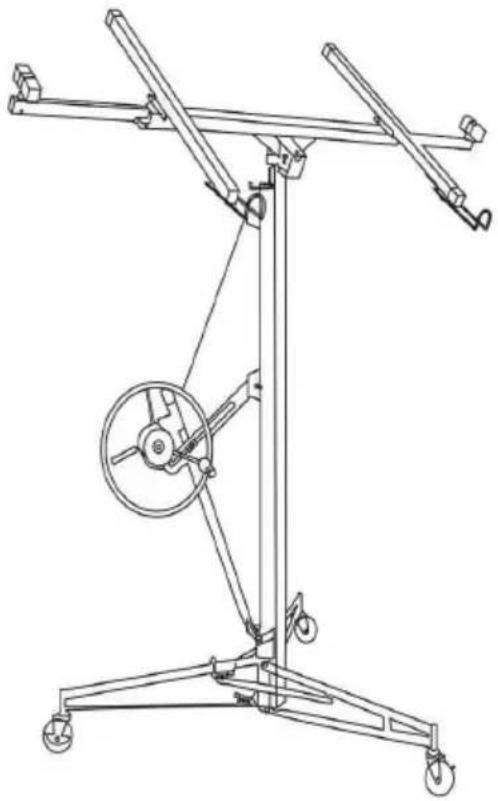

DRYWALL AND PANEL HOIST

MODEL: LG-021/LG-022

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: LG-021/LG-022

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

PARAMETER LIST

Model	LG-021	LG-022
Max. Load(lbs)	150	150
Max. lifting height:	3350	4860
Min. lifting height:	1420	1910
Net Weight:	36	40
Product Size(mm)	1360*1320*1420	1320*1360*1910

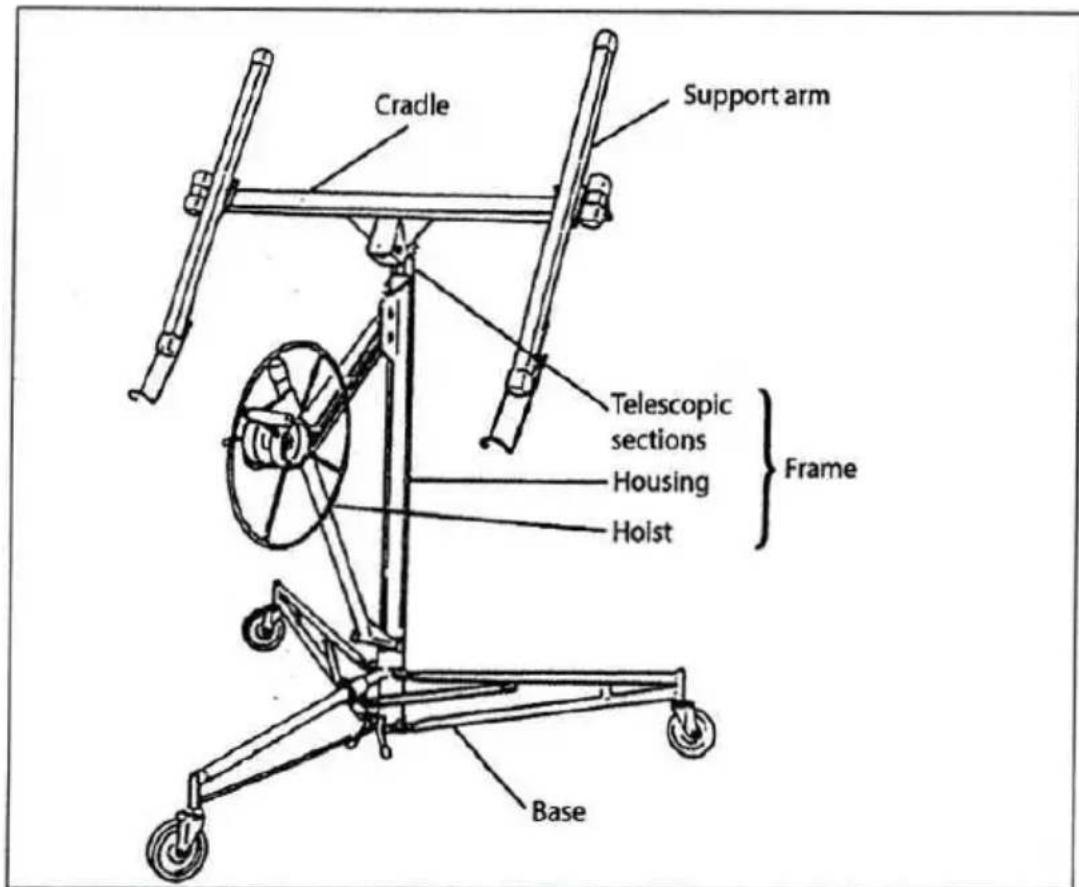

PART LIST

SECURITY & WARNINGS

To get the most out of your new plasterboard lift, please read through instructions and the attached safety instructions before use.

Please also save the instructions in case you need to refer to them

later date.

One person can lift a covering board with a size of up to 122x488 using the plasterboard lift without any additional help. The covering box can be lifted a maximum of 335 cm from the floor to flat ceilings, s walls or other walls when the tilt function is used.

The cradle of the plasterboard lift can be lowered to 138cm from the so that it is easy to load a board onto it. The plasterboard lift can loads up to 68 kg.

These instructions describe how the plasterboard lift is assembled, use and dismantled for transport and storage. Please read these instruction carefully before using the plasterboard lift for the first time.

• ALWAYS read the instructions before use and observe all warnings.
• ALWAYS inspect the plasterboard lift the day before use and pay to the condition of the wire.
• ALWAYS allow the plasterboard lift to reach room temperature before. If you move the plasterboard lift from a cold room to a warm one; condensation may form, which may affect the function of the brake!
• Check the brake drum is clean and dry before use.
• NEVER use the plasterboard lift unless both arms are secured with lock tab.
• ALWAYS keep the work area free of obstructions.
• ALWAYS wear a helmet when using the plasterboard lift.

ALWAYS be aware of obstructions above the plasterboard lift when lif boards.

- NEVER use the plasterboard lift for lifting objects other than plasterboards and similar.

NEVER lift more than one board at a time. Never lift more than 68

OPERATION

Parts

The plasterboard lift is supplied in parts that must be assembled before use:

-Base

• Frame including hoist and 11ft (123cm)/16ft (175cm) telescopic sections - Cradle without removable support arms - Two support arms

Assembly instructions

1. Set the base up:

Place the base on the floor so that it rests on its wheels.

Press the lock ring down. Hold the lock ring down while you swing front legs out so that the lock ring engages with the hole at the bottom of the tube. (See figure 1).

To prevent the base from rolling backwards while assembling it, flip the reverse brake down as shown.

Position the frame on the two V angles on the base and lower it around 2.5 cm until it sits firmly in the angles.

1. Before continuing, make sure that the frame is pushed fully down and that it is secure in the angles.
2. Attach the handle to the handwheel for the hoist. Tighten the nut and then loosen it slightly so that the handwheel rotates freely.
3. Move the hoist to the working position: Hold the handwheel and brake lever as shown in Figure 2.

Turn the handwheel slightly forward while lifting the brake lever to release the brake.

Lift the brake lever up fully. Take hold of the strut by the hoist and brake lever with your thumb. (See Figure 3).

Once the hoist has been drawn completely out (away from the frame), release the brake lever and flip the lock hook away so that it no longer

holds the telescopic sections inside the frame.

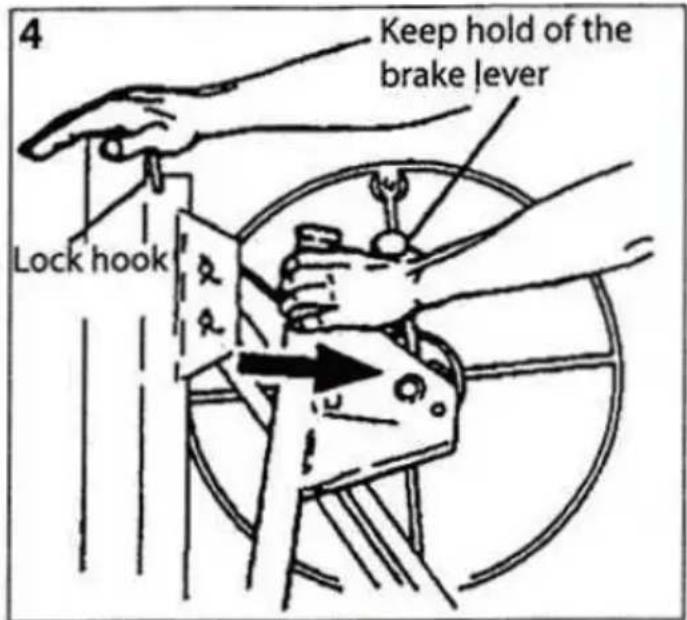

Place your right hand at the top of the frame. Continue to hold the lever to avoid the wire retracting and pull the hoist towards you. (See Figure 4).

1. Press the hoist gently back towards the frame. This allows the lock to engage with the hoist and keep it fully out. (See Figure 5).

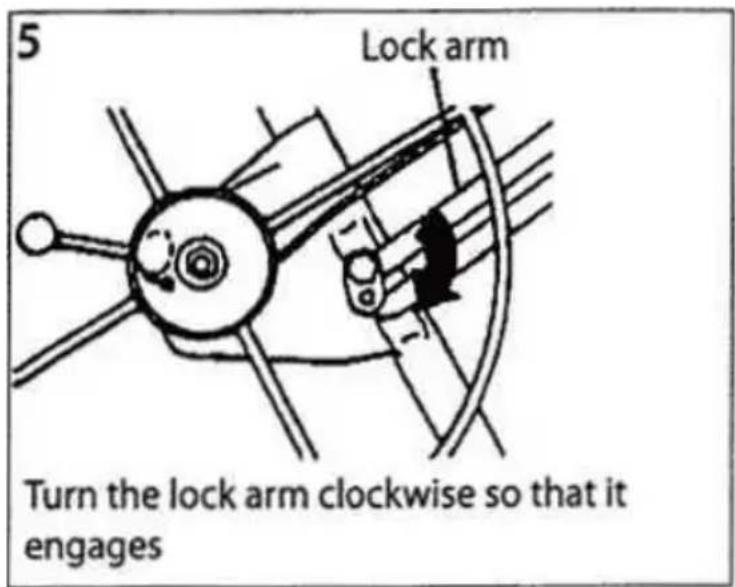

IMPORTANT! Before proceeding, make sure that the lock arm has engaged correctly, i.e. has turned as far clockwise as possible.

WARNING! In order to avoid an accident, the lock arm must be fully engaged when the hoist is pulled out.

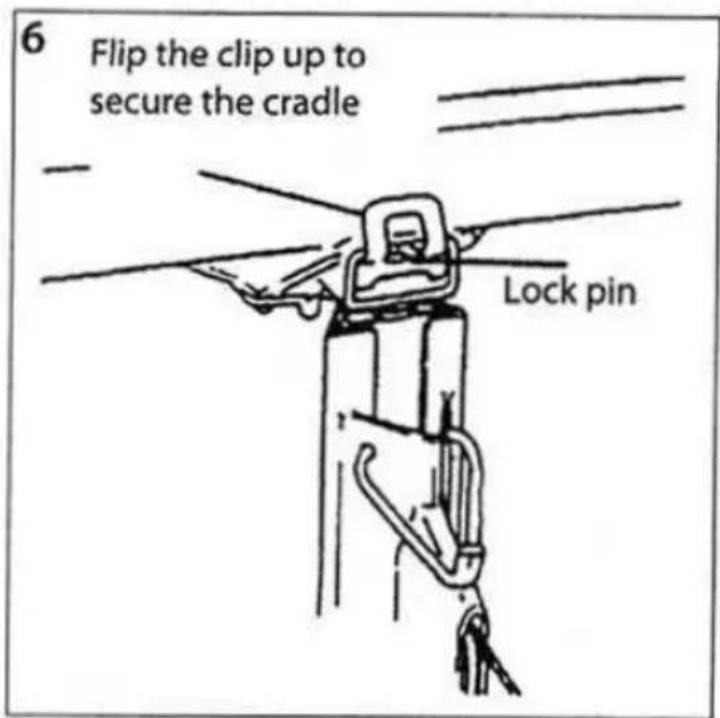

1. Attach the cradle to the frame (Figure 6):

a. Insert the cradle strut into the opening at the top of the frame.

b. Secure the cradle to the frame by pressing the clip up over the lock so that it clamps the cradle tight.

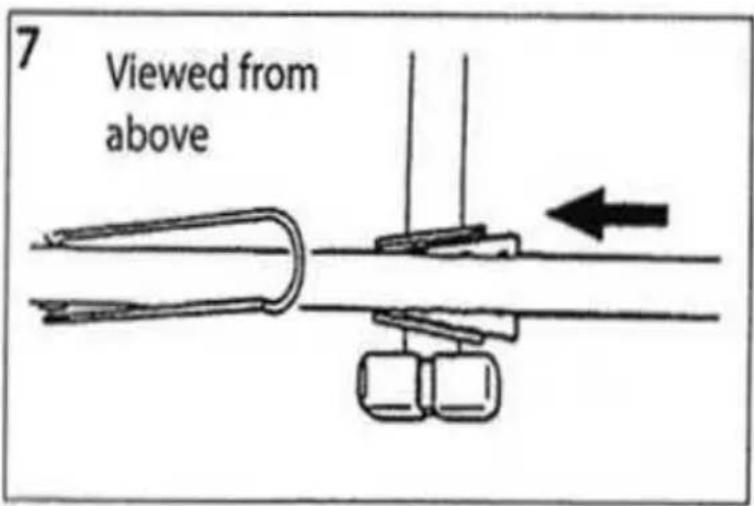

1. Attach the support arms to the cradle: NOTE! The support arms are identical.

a. Push the tapered plates on the support arms into the tapered socket on the cradle. (See Figure 7).

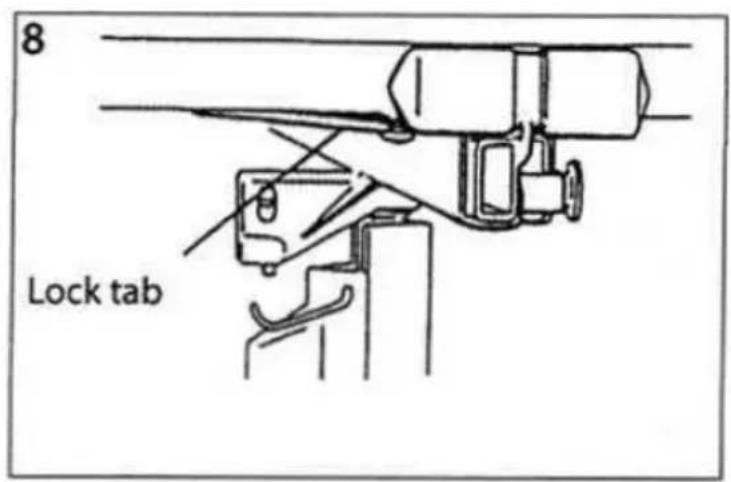

b. Push both support arms into the sockets until the lock tab at the end of each support arm engages. (See Figure 8).

Operating parts

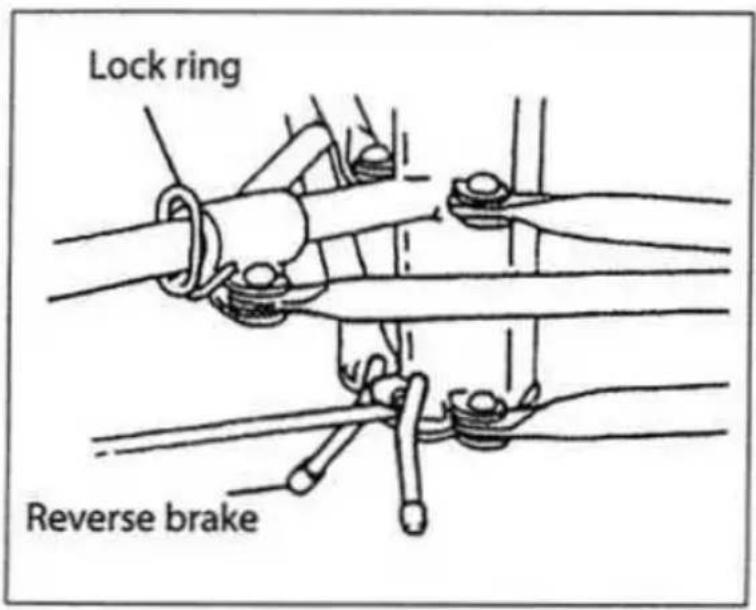

Lock ring

Press the lock ring down to release the two front legs so that they rotate out to the working position or into the storage position. A spring-loaded tab engages with a hole at the bottom of the tube to hold the legs in position.

Reverse brake

Flip the reverse brake down to prevent the base from rolling backward; flip it up to allow it to move freely.

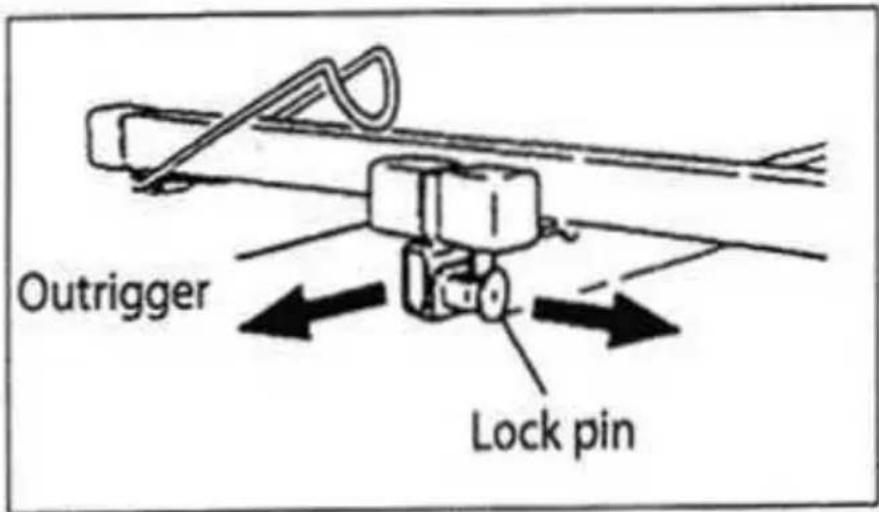

Outriggers

The outriggers on the support arms can be pulled out so that the plasterboard lift can support a larger covering board.

Pull the lock pin with your right hand and pull the outrigger out with your left hand. The lock pin can secure the outrigger in one of three positions: folded in, or extended by 53 or 84 cm.

IMPORTANT! Never load a covering board on the cradle and never lift if the lock pins have not engaged in one of these three positions, or if the outriggers have been pulled out more than 84 cm.

To avoid damaging the outriggers, push them fully in before transporting or storing the plasterboard lift.

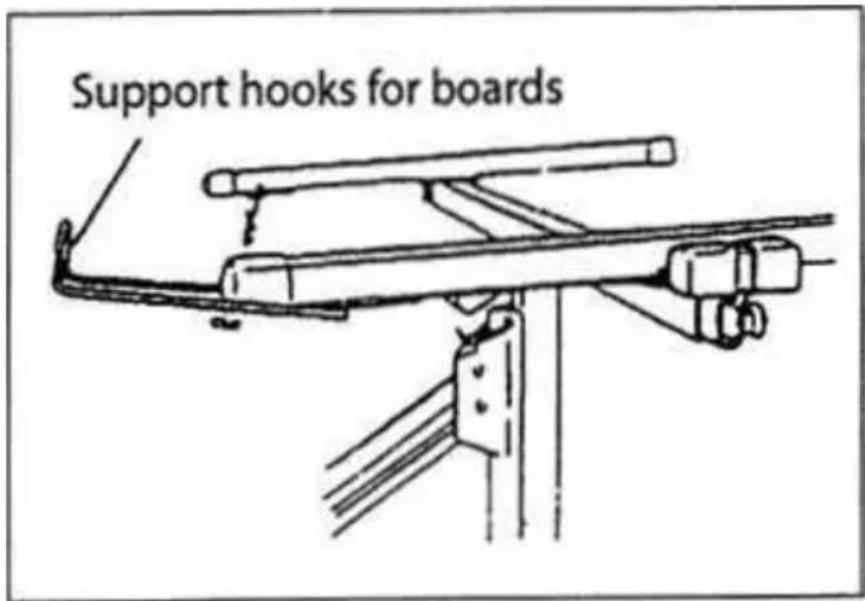

Support hooks for boards

Flip the support hooks on each support arm out to support the covering board when placed on the cradle or when the cradle is tilted.

In order to avoid damaging the support hooks, push them fully in before transporting or storing the plasterboard lift.

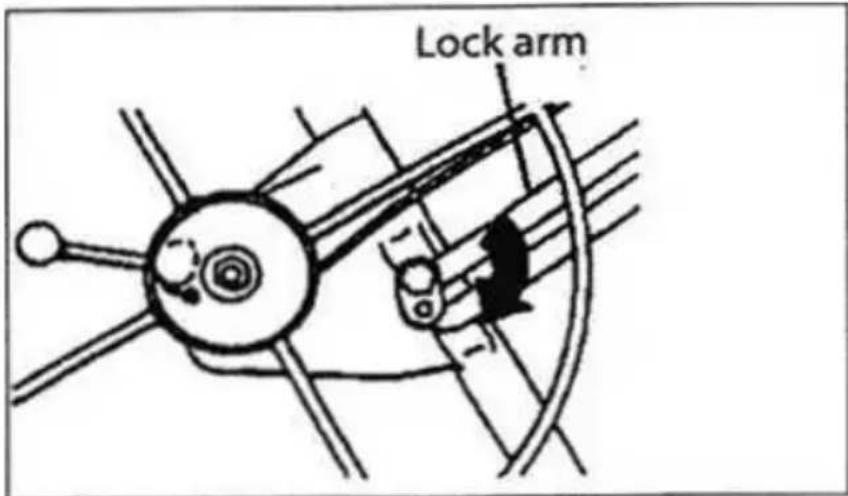

Lock arm

The lock arm keeps the hoist in the working position (fully extended).

To fold the hoist in towards the frame (when dismantling or for transport), turn the hoist anticlockwise while lifting the lock arm. When you reassemble the plasterboard lift, pull the hoist out fully and then push back slightly so that it will automatically engage with the lock arm.

Never tighten the nut on the lock arm, or you will be unable to fold for transport and storage.
