Name: LVA1-95
Brand: Vevor
Rating: 4 (165 reviews)

Find the device manual for free LVA1-95 Vevor in PDF.

📄 48 pages

EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs

View the manual :

Pick your language and provide your email: we'll send you a specifically translated version.

This manual is not available in your language

Desired language Your email address

Product Type	Directional Hydraulic Valve
Brand	Vevor
Model	LVA1-95
Maximum Pressure	3626 psi (250 bar)
Nominal Flow Rate	95 L/min
Number of Spools	1
Number of Handles	1
AB Connection Ports	1/2" NPT
Oil Inlet Port	3/4" NPT
Oil Outlet Port	3/4" NPT
Body Material	Treated Steel
Approximate Dimensions	200 x 150 x 120 mm
Approximate Weight	5.5 kg
Intended Use	Hydraulic flow control in mobile and industrial systems
Maintenance	Regularly check seals, clean ports, avoid leaks
Safety	Depressurize before intervention, wear safety goggles
Spare Parts	O-ring, handle, spool (available from Vevor)
Repairability	Cleaning and seal replacement possible by a qualified technician

Frequently Asked Questions - LVA1-95 Vevor

What is the maximum pressure of the LVA1-95 valve?

The maximum pressure is 3626 psi (250 bar).

What is the nominal flow rate of this hydraulic valve?

The nominal flow rate is 95 L/min.

What are the diameters of the connection ports?

The A and B ports are 1/2" NPT, while the oil inlet and outlet are 3/4" NPT.

How to properly install the LVA1-95 valve?

Make sure the mounting plate is flat and the screws are tightened evenly. Install the inlet and return ports correctly according to the diagram in the manual.

Can I use hoses that are too thin with this valve?

No, hoses that are too thin increase pressure loss and heat. Use hoses suitable for the flow rate of 95 L/min.

What to do in case of a leak at the valve?

Check the seals and fittings. If necessary, replace the O-rings and tighten the connections. Always depressurize the system before any intervention.

Does maintenance of this valve require special skills?

A qualified hydraulic technician should perform maintenance. Regular cleaning and seal replacement are common operations.

Is this valve compatible with an existing hydraulic system?

Check that the pressure and flow of your system do not exceed the valve specifications (3626 psi, 95 L/min). The NPT ports must match.

How to depressurize the system before removing the valve?

Stop the hydraulic pump and operate the valve to neutral position to release residual pressure. Verify no pressure before any intervention.

Where can I find spare parts for the LVA1-95 valve?

Spare parts (seals, handle, spool) are available on the Vevor website or from their technical support at www.vevor.com/support.

User questions about LVA1-95 Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Hydraulic valve in PDF format for free! Find your manual LVA1-95 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. LVA1-95 by Vevor.

USER MANUAL LVA1-95 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

HYDRAULIC VALVE

MODEL: LVA1-95

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

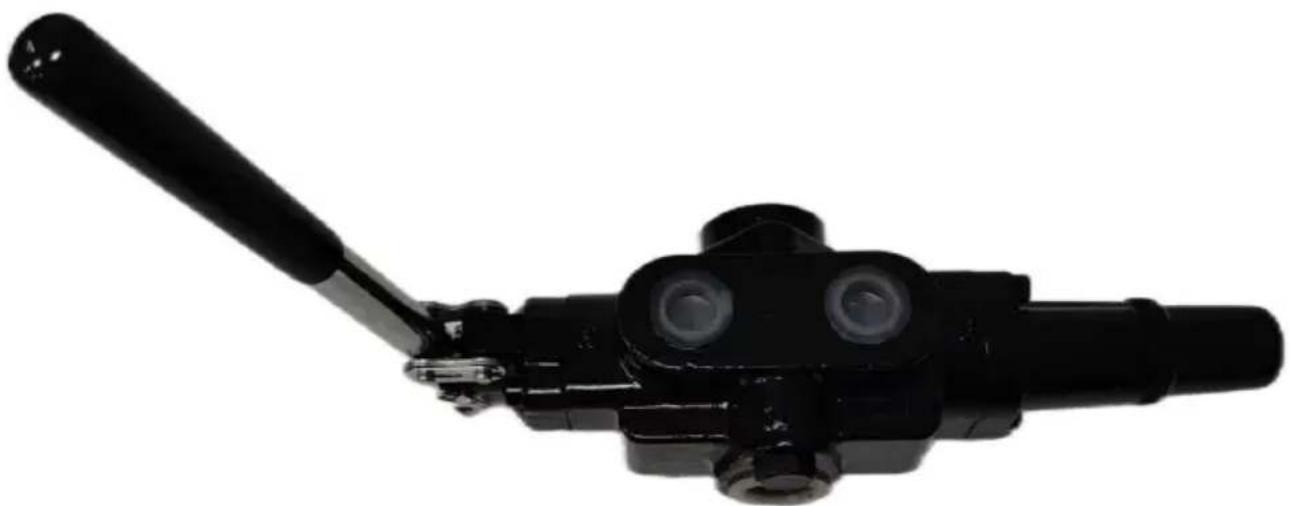

HYDRAULIC VALVE

MODEL: LVA1-95

Close-up of a black mechanical lever handle with a curved lever and two circular components (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Vevor LVA1-95 - NEED HELP? CONTACT US! - 1

WARNING: Study, understand and follow all instructions provided with this product. Read these instructions carefully before installing, operating, servicing or repairing this tool. Keep these instructions in a safe accessible place.

Install the inlet and return ports correctly.
Do not: Inject high-pressure oil into the return oil port to avoid damage to the multichannel valve body.
The system piping should not be too thin to avoid increasing pressure loss and causing the system to heat up.
Before dismantling the pump or the adapter, release the pressure.
Take care when working on running engines. Loose or baggy clothing can be caught in rotating engine parts.

INTENDED USE OF THE PRODUCT

Use as intended only. Always read the instructions carefully before using the tool.
Ensure the working area has adequate lighting.
Keep children and unauthorized persons away from the working area.
Keep the working area clean and tidy, dry and free from unrelated materials. Do not allow untrained persons to use this tool kit. Always wear eye protection that meets OSHA and ANSI Z87.1 standards.
Disposal: Customers should follow local regulations to handle used or waste parts.

SAVE THESE INSTRUCTIONS

PARAMETER LIST

Model	LVA1-95
Max. Pressure (psi)	3626
Working Flow (L/min)	95
Number of valves cores (pcs)	1
Number Of Handle (pcs)	1
AB Connection Port	1/2in NPT
Imported Oil	3/4in NPT
Oil Outlet	3/4in NPT

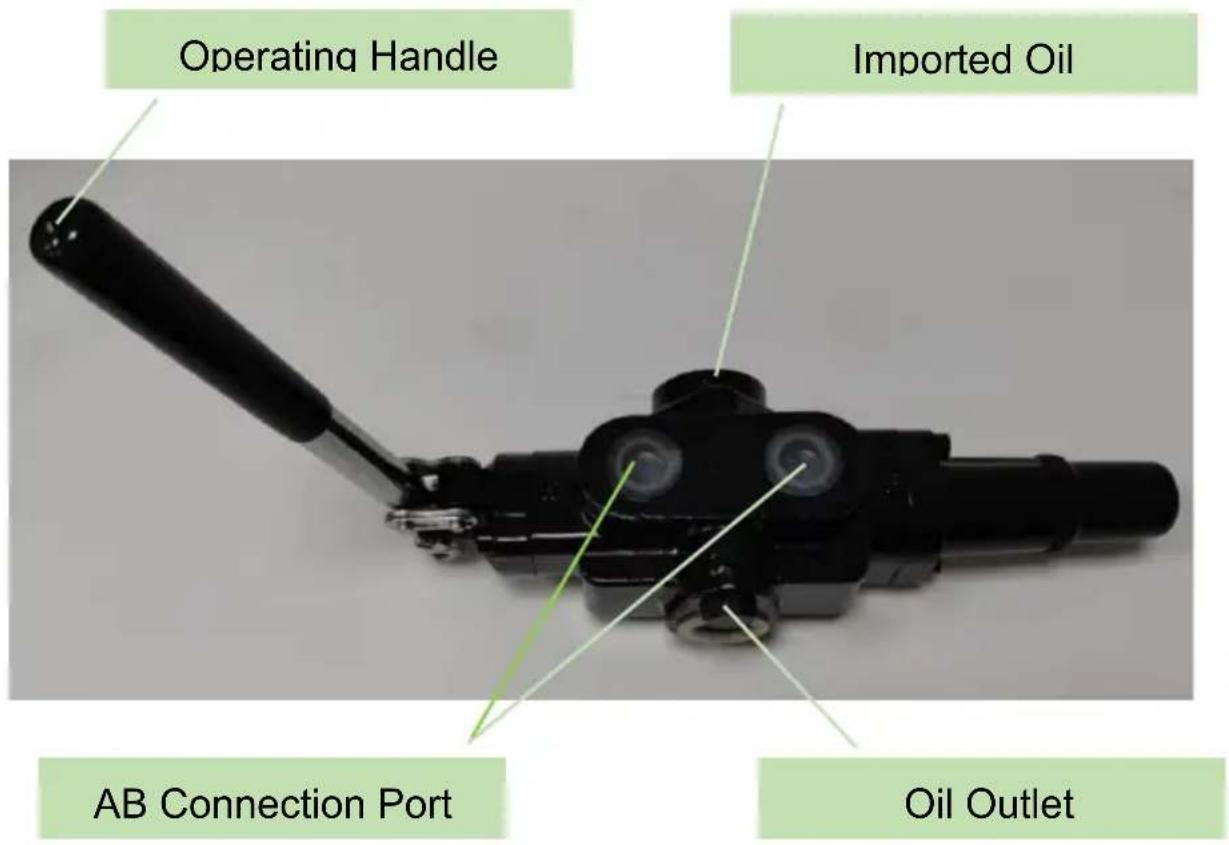

Operating Handle Imported Oil AB Connection Port Oil Outlet

OPERATION

Before use, carefully check the nominal pressure, nominal flow, and slide valve function of the multiway valve to see if they meet the requirements of the hydraulic system.
The mounting plate and support should be flat, the screws should be tightened evenly, and the valve body of the multichannel valve should not be distorted.
When installing the control mechanism outside the valve, ensure that the slide valve can move flexibly without getting stuck.
When installing multiple valves on a severely vibrating machine, vibration reduction measures should be taken.
