USER MANUAL MT-245 Vevor

Technical Support and E-Warranty Certificate www. vvor. com/support

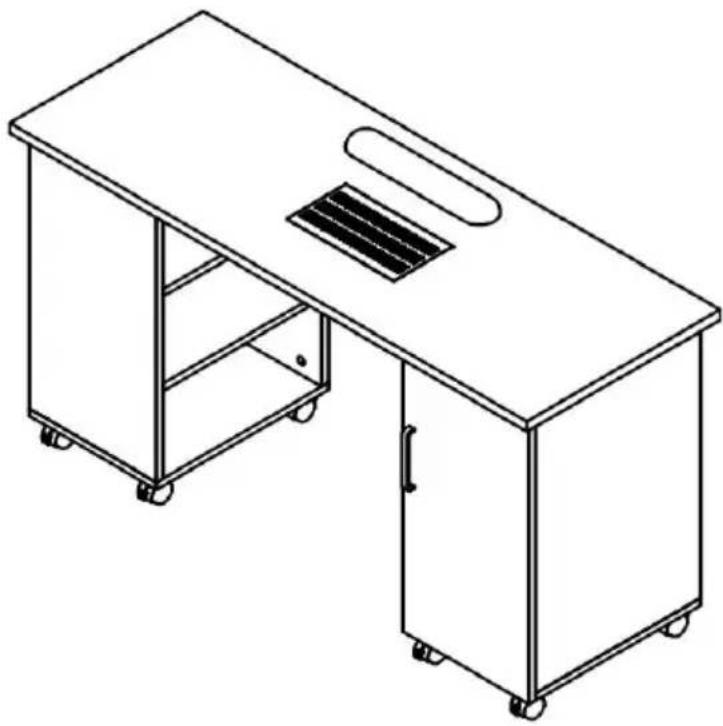

MANICURE TABLE

MODEL: MT-245

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: MT-245

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www. vvor. com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform y if there are any technology or software updates on our product

Warning-To reduce the risk of injury, user must read instructions manual carefully.

Compliance is a EC & UK security certification.

This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cross through indicates that the product requires separate ref collection in the European Union. This applies to the and all accessories marked with this symbol. Products marked as such may not be discarded with normal do waste, but must be taken to a collection point for rec electrical and electronic devices

Wear eye protection. Wear protective gloves.

DO NOT USE POWER TOOLS.

SafetyWarnings and Precautions

Thank you for using this product. In order to make sure that you can operate the machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please be sure to the precautions and safety rules in this page to ensure your safe use manual will outline safety warnings and precautions, operating, maintenance and cleaning. The warnings and instructions reviewed in manual cannot cover all possible conditions and situations that may occur

Caution and common sense are not built into this product, since we that the uses will comply with these codes.

Please read ALL the instructions before using your machine.

1. Make sure the voltage in your outlet is the same as the voltage index on the appliance's rating label.
2. Do not let children, minors, and pets get close to or touch the machine.
3. Use as intended only. Do not stand or sit on the product, and do not p objects on the product.
4. To prevent electrical shock, do not immerse the cord or plug into water or liquids.
5. Do not immerse the appliance in water or any other liquid.
6. Unplug the machine from the outlet when not in use and before cleaning.
7. Do not operate the device with a damaged cord or plug, malfunction, or mechanical damage. Send it to your nearest authorized service center for examination and repair (ONLY technicians should open up the it).
8. Using any accessories or attachments that are not provided or recommend by the manufacturer may cause injury.
9. If the machine is not to be used for a long period of time, unplug it, close cover it and store it in a dry and safe place.
10. Do not leave the power cord hanging over the edge of table or counter come into contact with any hot surfaces.
11. Do not place the unit on or near hot air, electric burners or heaters.
12. Always switch off the power to the socket before plugging in or unplugging Hold the plug instead of pulling on the cord.
13. Do not apply this unit to any other purposes than the indicated usage.
14. Do not place in a damp environment..
15. KEEP IT OUT OF CHILDREN'S REACH.
16. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.
17. Never leave it unattended while in use.
18. INDOOR USE ONLY.
19. Ensure that the power outlet, plug and cord being used are in good wo condition. Damaged components should be repaired by a certified electrician w is qualified to meet local safety and electrical codes. Even if your power cor functioning properly, keep it away from water and avoid letting it run over ca

or heating devices.
20. Avoid using it in the presence of flammable liquids, gases, dust or other explosive situations.
21. Type Y attachment: If the supply cord is damaged, it must be replaced manufacturer, its service agent or similarly qualified persons in order to avoid hazard.
22. People with respiratory diseases or skin diseases are forbidden to use.
23. This appliance is not intended for use by persons (including children) with educated physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
24. The product should be placed on a flat surface.
25. WARNING: Do not place drinks or other liquids on the product. If poured, unplug the power cord immediately.
26. Assemble needs to follow these instructions. Incorrect assembly can be a hazard.
27. Wear safety goggles and heavy-duty work gloves during assembly.
28. Do not assemble when tired or when under the influence of alcohol, drug medication.
29. Weight and other product properties only apply to correctly and completely assembled products.
30. Keep the assembly area clean and well-lit.
31. Keep bystanders out of the area during assembly.
32. This product is not a toy. Do not allow children and pets to play with approach this item.
33. Inspect before every use. Do not use it if parts are loose or damaged.

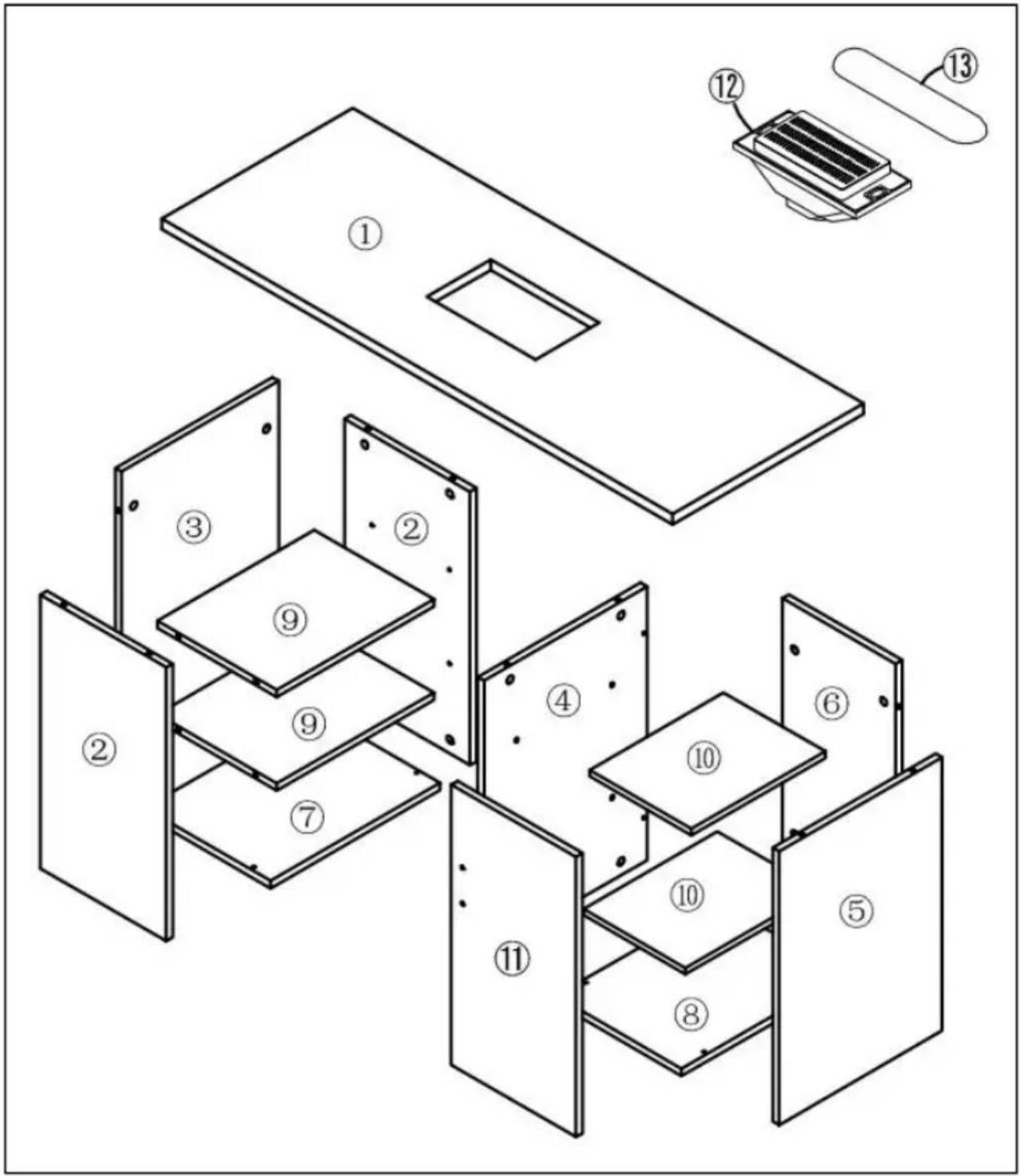

PART Lists

(A) Part lists
1. Table top x1PCS 1200*450*21mm		2. Side-board X2PCS 704*297*15mm		3. Back-board X1PCS 704*368*15mm
4. Side-board x1PCS 704*398*15mm		5. Side-board x1PCS 704*398*15mm		6. Back-board x1PCS 704*265*15mm
7. Bottom x1PCS 400*297*15mm		8. Bottom x1PCS 400*297*15mm		9. Septum x2PCS 368*281*15mm
10. Septum x2PCS 380*264*15mm		11. Door-board x1PCS 716*295*15mm		12. Fan x1PCS
13. Hand pillow x1PCS		Fuse x1PCS

Note: the quantity of parts shown in the manual is the actual usage and the u parts are spare parts.

Attention: When installing accessory "(A) Part lists", gently apply force, Don't use too much force.

Screw pack
A. Eccentric Fittings x32+2PCS		B. Eccentric Fittings x32+2PCS		C. Wheel x8PCS
D.Hinge x2PCS		E.Screws ST3.5x12 X44+10PCS		F. Door knob X1PCS
G.Screws ST4x20 x4+1PCS		H.Screws x2PCS		J. Layer x8+2PCS

Note: the quantity of parts shown in the manual is the actual usage and the u parts are spare parts.

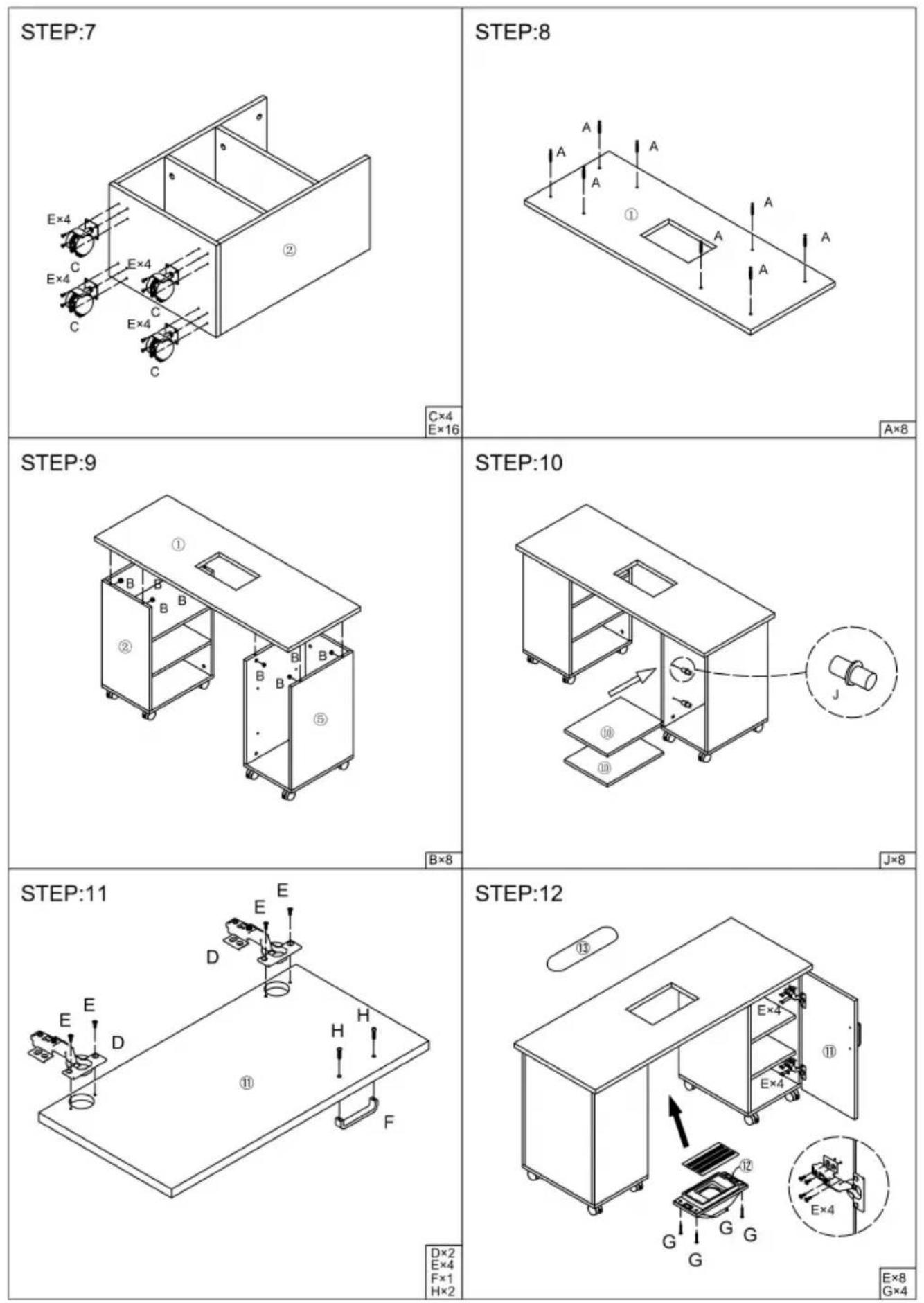

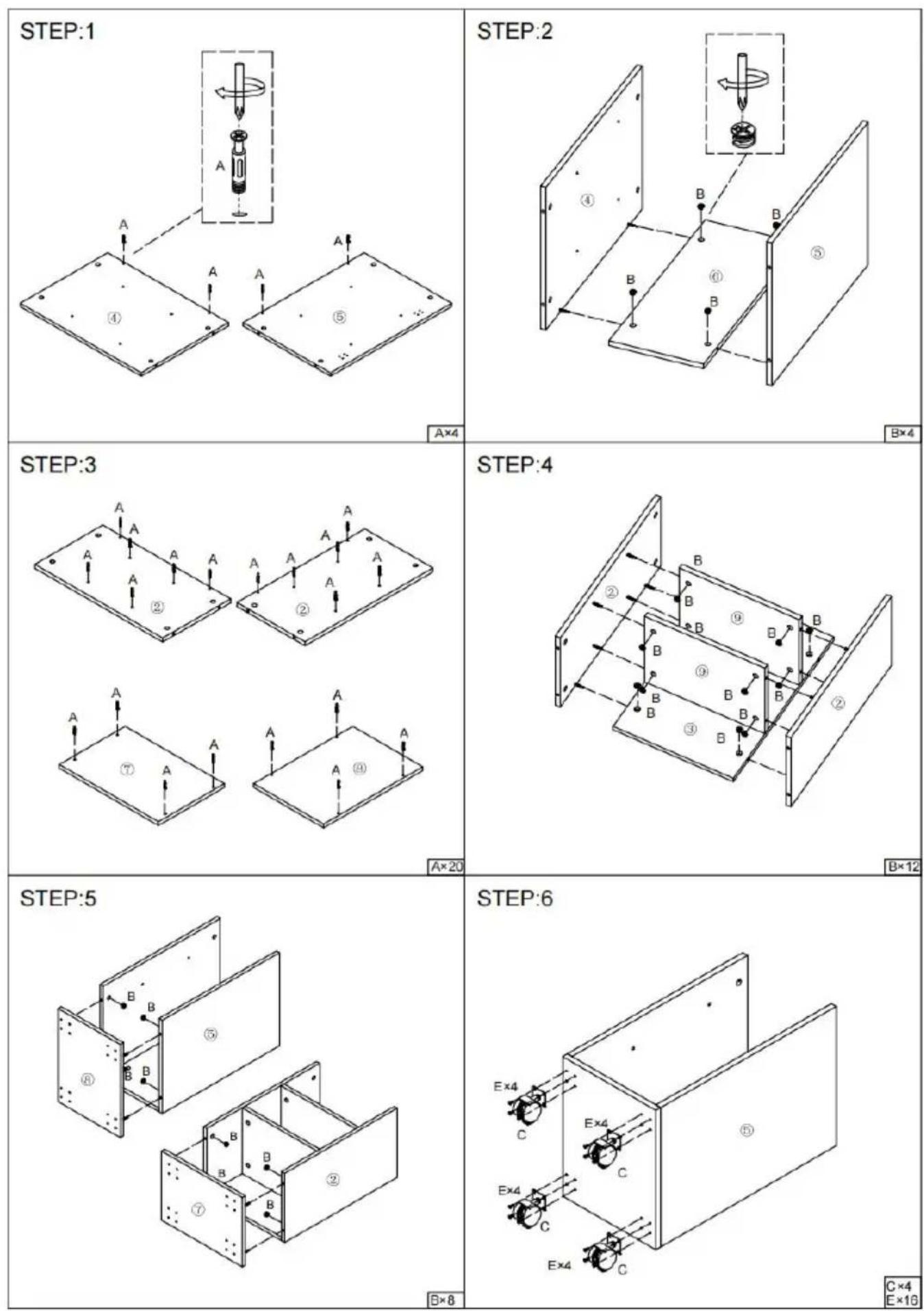

ASSEMBLY STEPS

1. Please dispose of all plastic bags carefully and keep them away from chi and pe$.
2. Check all components provided according to the list in this manual.Make sure you have all of the parts listed.
3. Although paying particular attention when manufacturing this product, you may be careful during the assembly process to avoid being scratched by sharp edges
4. Wear eye-protective goggles and protective gloves during assembly a use.
5. The product should be placed on a flat surface.
6. The product requires two people to assemble.
7. The product requires the use of a Phillips screwdriver (cross screwdriver r to be purchased by oneself).
8. If uneven product gaps are found, they can be disassembled and adjustec

CLEANING AND STORAGE

1. Wipe with a soft, dry cloth. Never use an abrasive cleanser or harsh pad clean with water or other liquids.
2. Be sure to keep the product dry
3. Children are not allowed to wipe the product to avoid tipping and falling
4. Regularly adding industrial grease to the door spindle can reduce noise and extend service life.

TIPS

If the product does not work after being powered on, please check whether fuse is burned out.
