USER MANUAL GT-600 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

MICRO INVERTER

MODEL:GT-600/GT-800/GT-1200

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:GT-600/GT-800/GT-1200

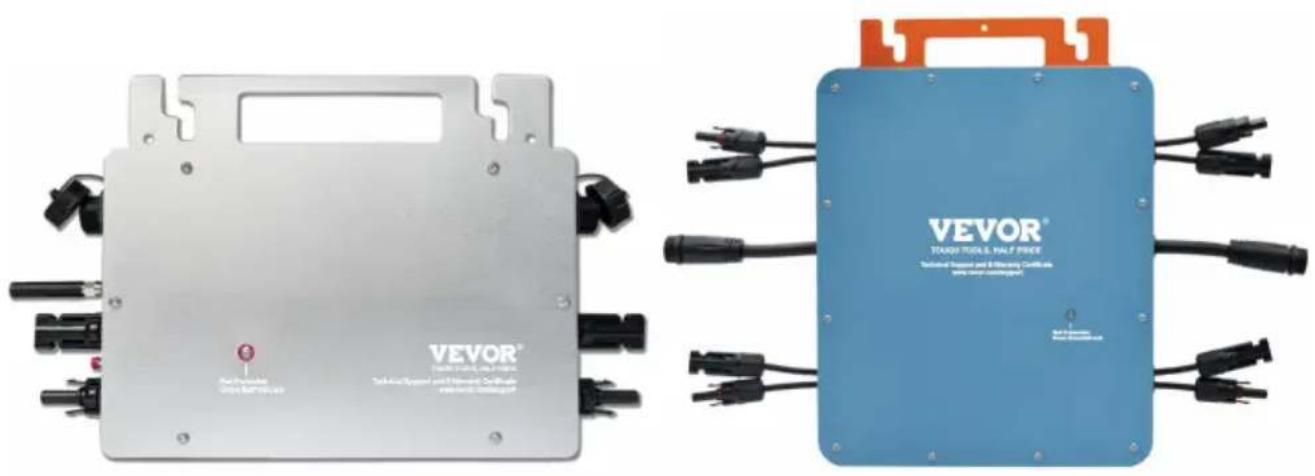

Two VEVOR-based electronic modules: one white and one blue, both with black connectors and cable connectors (no visible text or symbols on the modules themselves)

GT-600/GT-800 GT-1200

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read in manual carefully.

This product is subject to the provision of European Dir 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refus collection in the European Union. This applies to the pr and all accessories marked with this symbol. Products n as such may not be discarded with normal domestic wa must be taken to a collection point for recycling electric electronic devices

WARNING: DANGER OF ELECTRICAL SHOCK

The product is used in combination with a permanent energy source (battery). Even if the equipment is switched off, a dangerous electrical voltage can occur at the input and/or output terminals. Always switch the AC power off and disconnect the battery before performing maintenance.

The product contains no internal user-serviceable parts. Do not remove front panel and do not put the product into operation unless all pane fitted. All maintenance should be performed by qualified personnel.

Never use the product at sites where gas or dust explosions could be referred to the specifications provided by the manufacturer of the battery, ensure that the battery is suitable for use with this product. The battery manufacturer's safety instructions should always be observed.

WARNING: do not lift heavy objects unassisted.

Installation

Read the installation instructions before commencing installation activities. This product is a safety class I device (supplied with a ground terminal safety purposes). Its AC input and/or output terminals must be provided with uninterruptible grounding for safety purposes. An additional ground point is located on the outside of the product. If it can be assumed, grounding protection is damaged, the product should be taken out of

operation and prevented from accidentally being put into operation aga contact qualified maintenance personnel.

Ensure that the connection cables are provided with fuses and circuit breakers. Never replace a protective device by a component of a different type. Refer to the manual for the correct part.

Check before switching the device on whether the available voltage so conforms to the configuration settings of the product as described in manual.

Ensure that the equipment is used under the correct operating condition. Never operate it in a wet or dusty environment.

Ensure that there is always sufficient free space around the product 1 ventilation, and that ventilation openings are not blocked.

Install the product in a heatproof environment. Ensure therefore that tl are no chemicals, plastic parts, curtains or other textiles, etc.

in the immediate vicinity of the equipment.

Transport and storage

On storage or transport of the product, ensure that the mains supply battery leads are disconnected.

No liability can be accepted for damage in transit if the equipment is transported in its original packaging.

Store the product in a dry environment; the storage temperature should range from -40^ to 65^ .

Refer to the battery manufacturer's manual for information on transport storage, charging, recharging and disposal of the battery.

SPECIFICATIONS

You are welcome to choose our micro grid-connected solar inverter products

Specification data	Model
	GT-600	GT-800	GT-1200
Input Data (DC, PV)
Number of Input MC4 Connect	2 sets		4 sets
Operation Voltage Range	DC18V-50V
Maximum input Current	12A*2	14A*2	16A*2
Output Data(AC)
Single-Phase Grid Type	AC230V	AC230V	AC110V or AC230V
Maximum Output Power	600W	800W	1200W
Nominal Output Current	2.6A	3.5A	10.9A or 5.2A
Nominal Output Voltage	AC230V	AC230V	AC110V or AC230V
Output Frequency Range	50Hz	50Hz	60Hz or 50Hz
Power Factor	≥0.99%
Total Harmonic Distortion	THD <5%
Maximum Units per Branch	@230VAC:4units	@230VAC:3units	@110VAC:2units Or @230VAC:3units
Peak Efficiency	95%
Nominal MPPT Efficiency	99.5%
Night Power Consumption	≤1W
Mechanical Data
Operating Ambient Temperature Range	-40°C to +65°C
Storage Temperature Range	-40°C to +85C
Dimensions(W*H *D)	305 * 186 * 44mm		490 * 254 * 50mm
Waterproof Grade	IP67	IP65/IP67(Please refer to the product nameplate information)	IP67
Communication	WIFI(Cloud monitoring)
Protection Functions	Isolated Island Protection,Voltage ProtectionFrequency ProtectionTemperature Protection,Current Protection, etc.

INSTALLATION SCHEMATIC

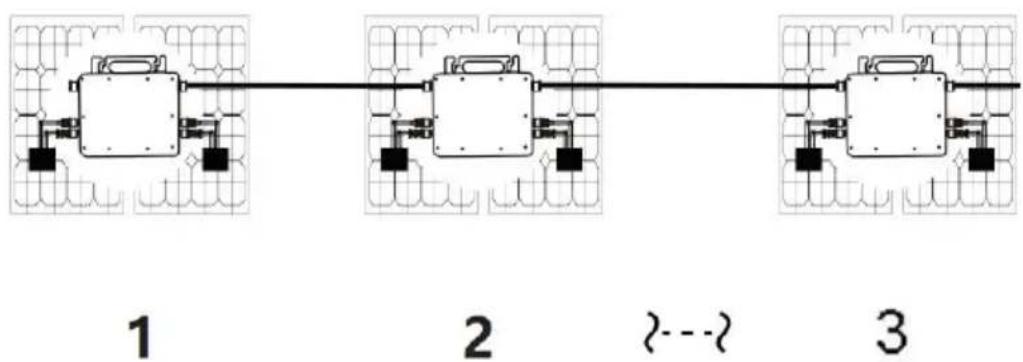

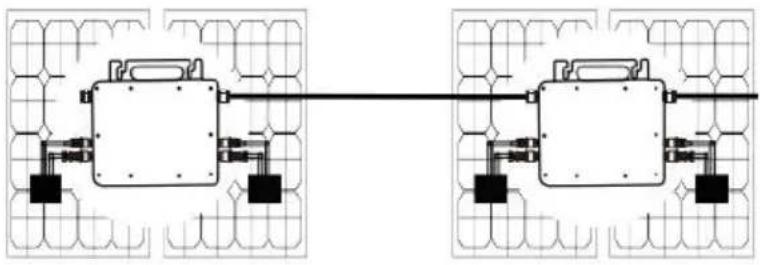

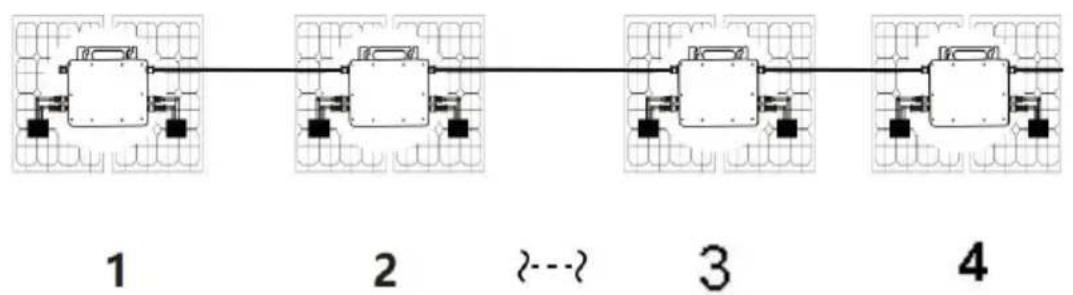

Single-phase parallel assembly method of micro inverter

GT-600

1. @Single-Phase 230V grid Maximum 4 units 600W Micro inverters per bran
2. The max DC input power of each inverter is 600W(the PV module max (power is 2x300W).
3. The VOC of PV modules should not be greater than the max DC input of Micro inverters.

GT-800

1. @Single-Phase 230V grid Maximum 3 units 800W Micro inverters per bran
2. The max DC input power of each inverter is 800W(the PV module max (power is 2x400W).
3. The VOC of PV modules should not be greater than the max DC input of Micro inverters.

GT-1200

Pure schematic diagram of two identical mechanical or electrical components with no text, numbers, or symbols

1
2

1. @Single-Phase 110V grid Maximum 2 units or @Single-Phase 230V grid Maximum 3 units 1200W Micro inverters per branch.
2. The max DC input power of each inverter is 1200W(the PV module max power is 2x600W).
3. The VOC of PV modules should not be greater than the max DC input of Micro inverters.

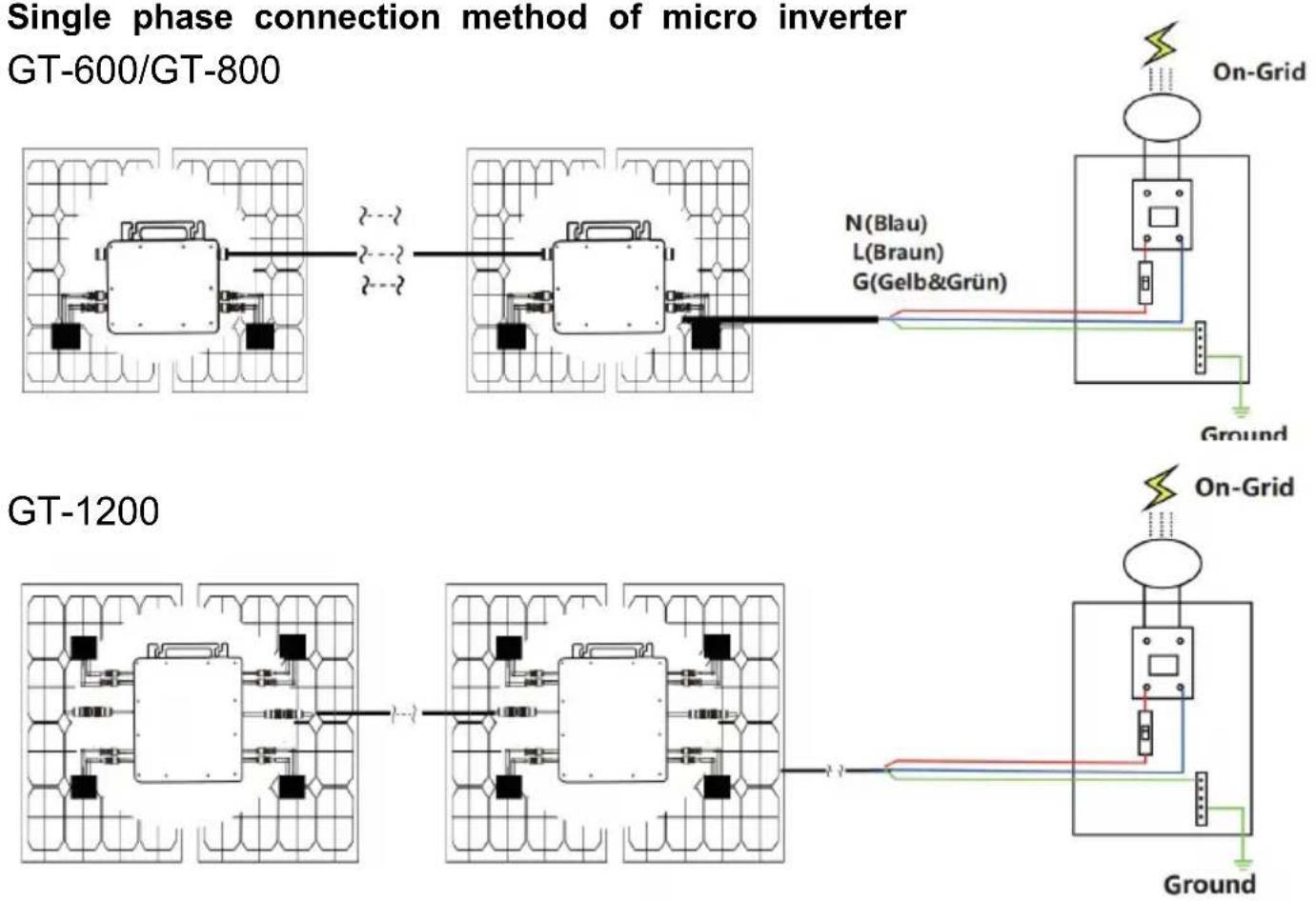

WIRING SCHEMATIC
    end

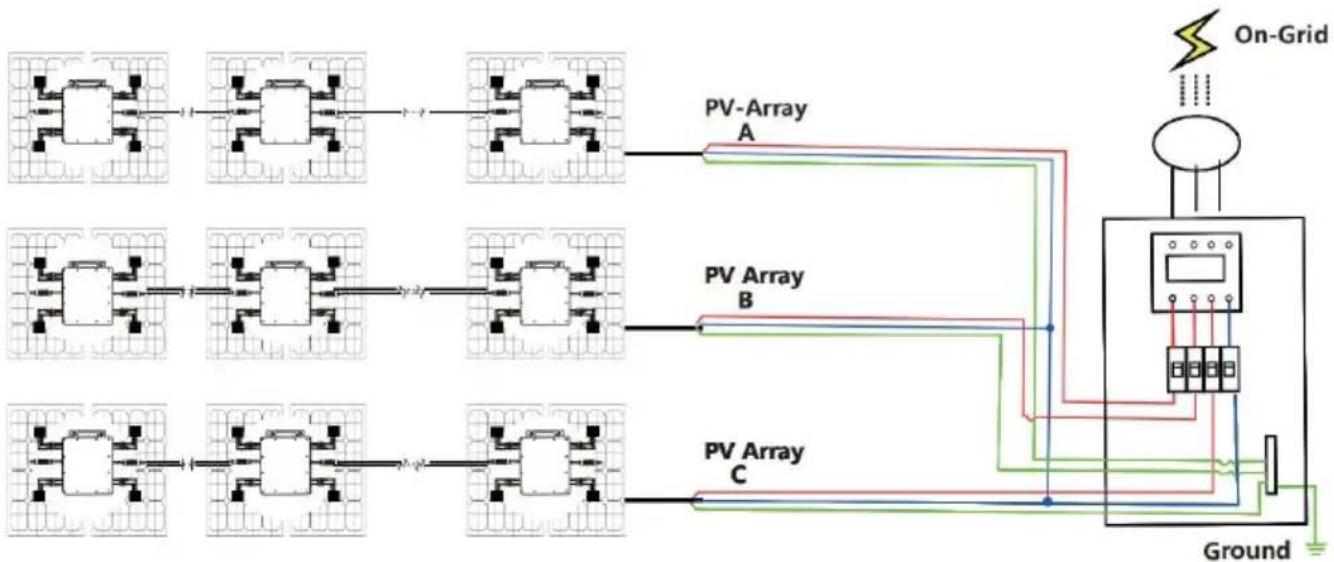

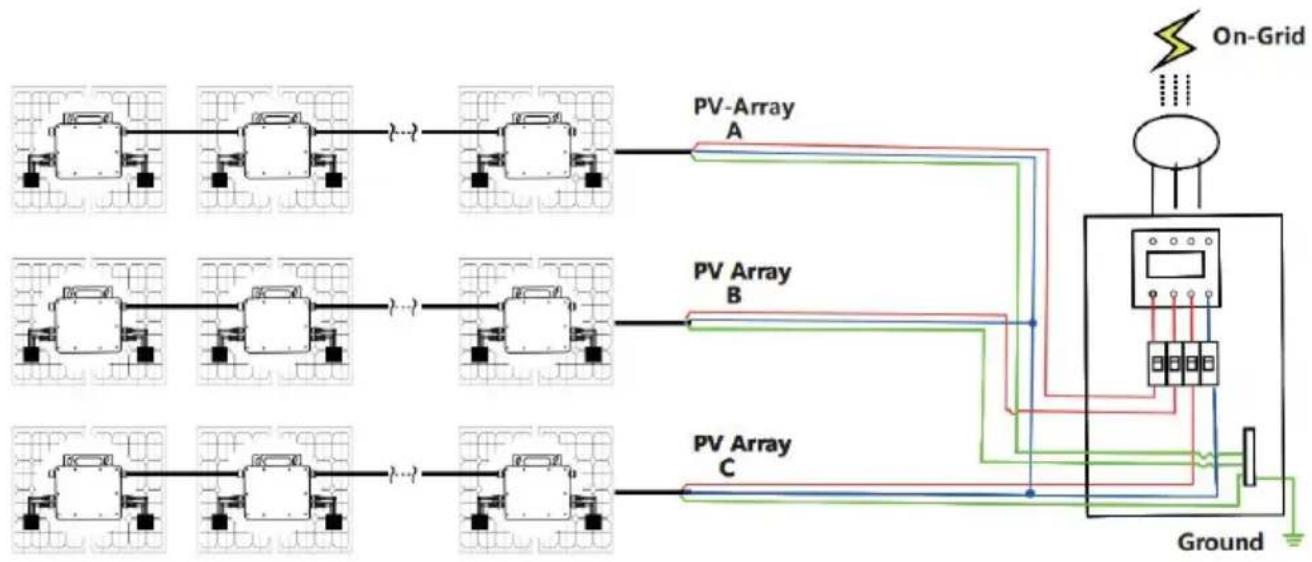

Three phase connection method of micro inverter

GT-600/GT-800

GT-1200

MICRO INVERTER WIFI CLOUD MONITORING

1. Precautions

● Note that there is a risk of electric shock when connecting the micro-inverter!
● The micro-inverter heats up during operation! Protect yourself accordingly from burns!
- Before configuring WiFi cloud monitoring, please correctly install the micro inverter and make it work normally.
- As mart device(smartphone or tablet)with Bluetooth function and Android or is system and a wireless network device eg.wireless router that can provide WiFi and Internet service must be available.
- To configure WLAN cloud monitoring, first switch on the Bluetooth function of the smart device.
- Make sure that your smart device uses the same WiFi network as the micro inverter to be configured and that it can connect to wireless network devices and access the internet in the same location of the micro inverter.
● Make sure that the distance between the wireless network device and the micro-inverter does not exceed 20 m and that there are no or few obstacles.

2. Hardware Description

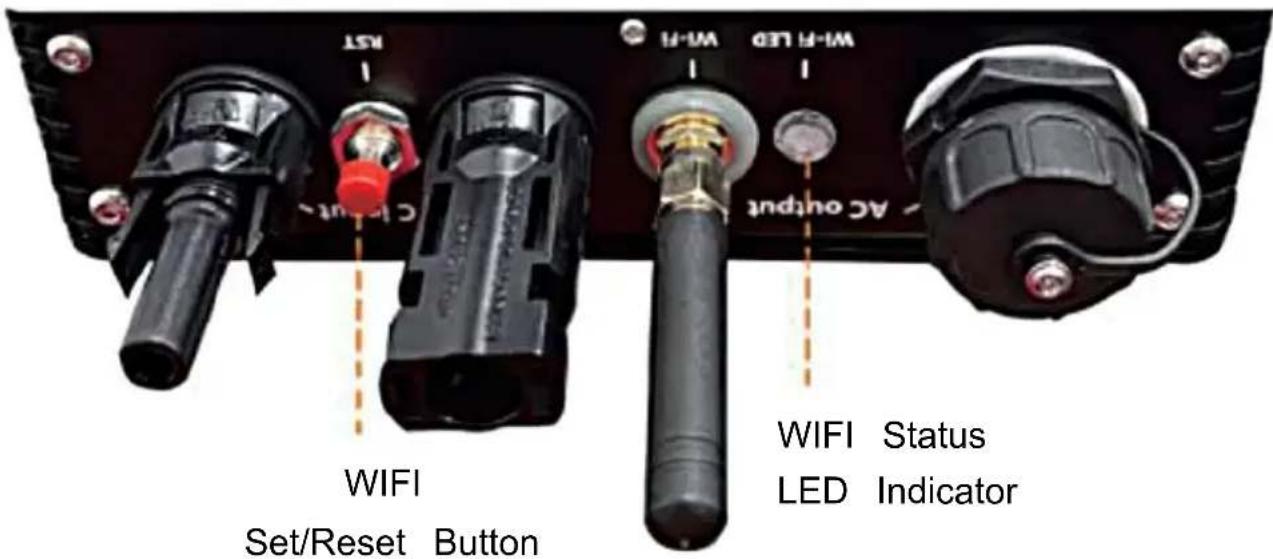

WIFI Set/Reset Button AC output WIFI LED WIFI Status LED Indicator

3. WIFI Status LED

• The blue light flashes after always on = the WiFi cloud monitoring module is waiting for configuration.
• The blue light off after always on = the WiFi cloud monitoring module starts and enters the normal working state.
• The blue light flashes = the network is not configured or the network cannot connect to the wireless network device, or the micro inverter has been deleted in the cloud.
• No light = WiFi cloud monitoring is working normally.

4. Preparation Before Configuration And Use

• Install the micro inverter correctly and make it work normally to generate power.
• Download and install the or "Smart Life" app by searching for it in the corresponding Android or Apple app store.
• Turn on the Bluetooth function of your smart device.
• Check that your wireless network device (such as wireless router) is working properly and connected to the Internet.
• Use your smart device (or "Smart Life" App installed) at the installation location of micro inverter to connect to the wireless network device. If you can access the Internet normally, follow the instructions for configuration and usage on the next page.

Solar panel array with connected devices and a small screen showing a landscape (no text or symbols visible)

Diagram illustrating wireless network architecture with WiFi and Wi-Fi labels, showing houses and wireless connections

5. Configuration Steps Of WIFI Cloud Monitoring.

Hand holding smartphone displaying a smart home app with a QR code, alongside a mobile app interface.

123****3487 Custom Engine System

Pure electrical component outline without any text, numbers, or symbols

Make a copy file with embedded indicators and display icons. All Devices HOLDEN EASED 90%

1

Download in mobile application: smartlife or direct code scanning

2

Register personal account

3

Restore factory settings Press and hold the red key for 5-10 seconds and release it. The blue light is flashing and the instrument is connected successfully

4

Add inverter

HOLD DOOR HOLD DOOR...

AddService Add Service Shopping Services... Add Service

Enter Wi-Fi information Choose Wi-Fi and access accounts + Wi-Fi + https://www.10.1234568 + https://www.10.1234568 + https://www.10.1234568 + https://www.10.1234568

Mobile app screenshot showing a login interface with a green logo and Chinese text '扫码获取成功！'

5

Further add confirmation information

6

Make sure the Bluetooth or wifi in the phone is on

7

Enter your home WIFI account information password

8

Click Next to install and modify the name and account freely

Today Sunny 11:30 31: $1 Dayset Night High Low

9

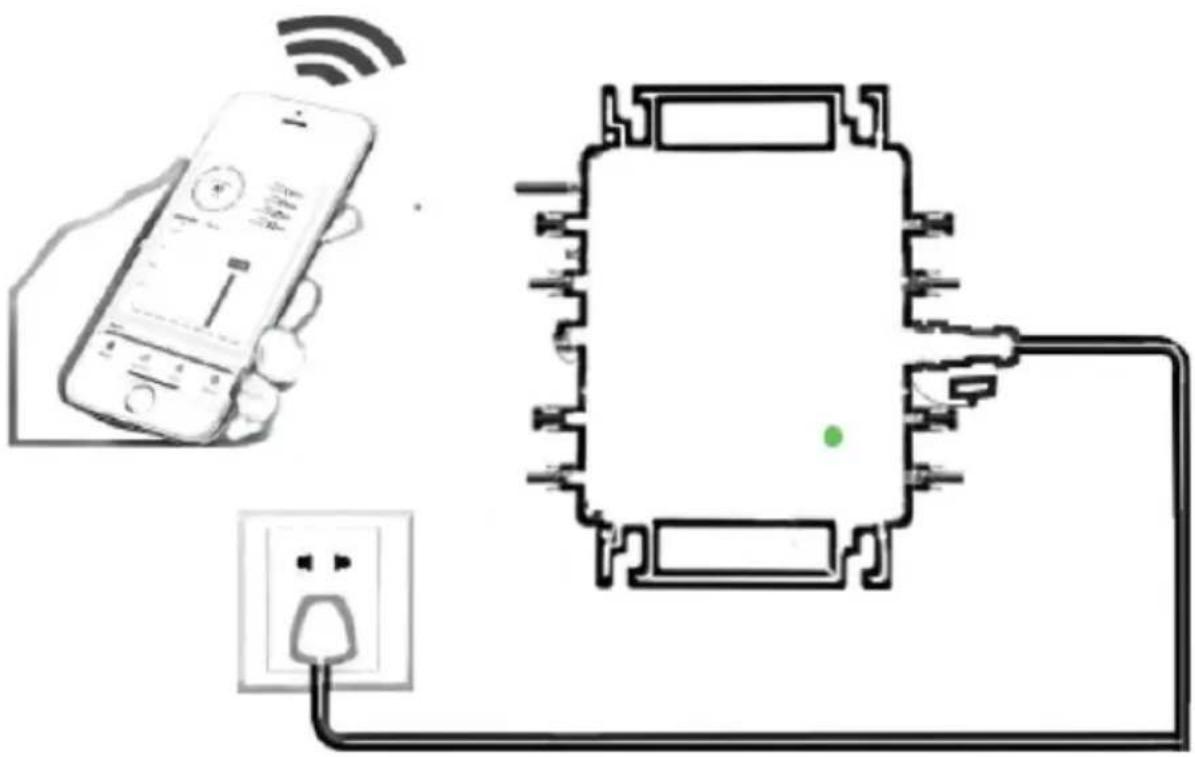

The interface can control the system switch normally. The connection is successful

Pure electrical circuit lines without any symbols

10

10 The connection is successful, and the green light of the inverter is always on in normal operation. Occasionally flashing instrument MPPT is tracking the optimal voltage

6. Usage Of WIFI Cloud Monitoring App.

Modify Device Name

- Click the device to be modified in the device list on the home page to enter the device information details page (Figure 5).

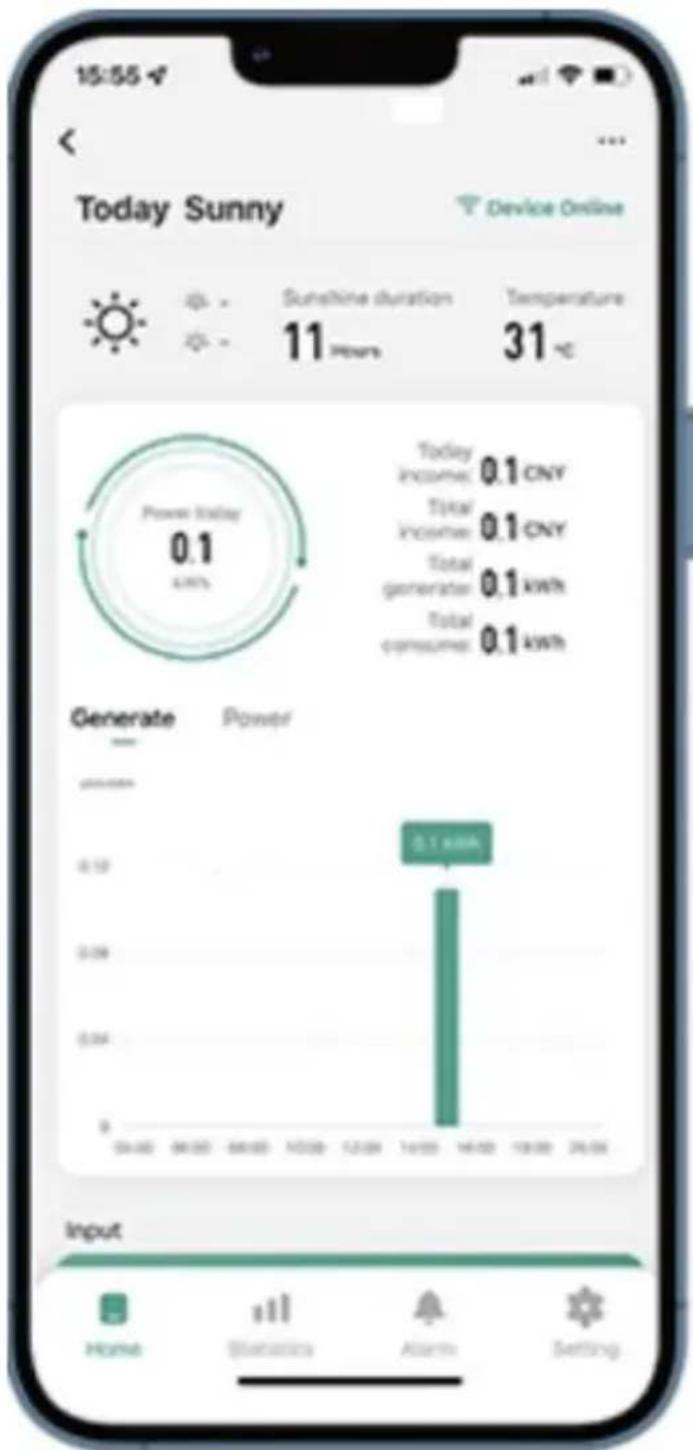

15:55 Today Sunny Device Online Sunshine duration Temperature 11 Hours 31 °C Power today 0.1 kWh Today Income: 0.1 CNY Total Income: 0.1 CNY Total generates: 0.1 kWh Total consumes: 0.1 kWh Generate Power 0.12 0.08 0.04 0 04:00 06:00 08:00 10:00 12:00 14:00 16:00 18:00 20:00 0.1 kWh Input Home Statistics Alarm Setting

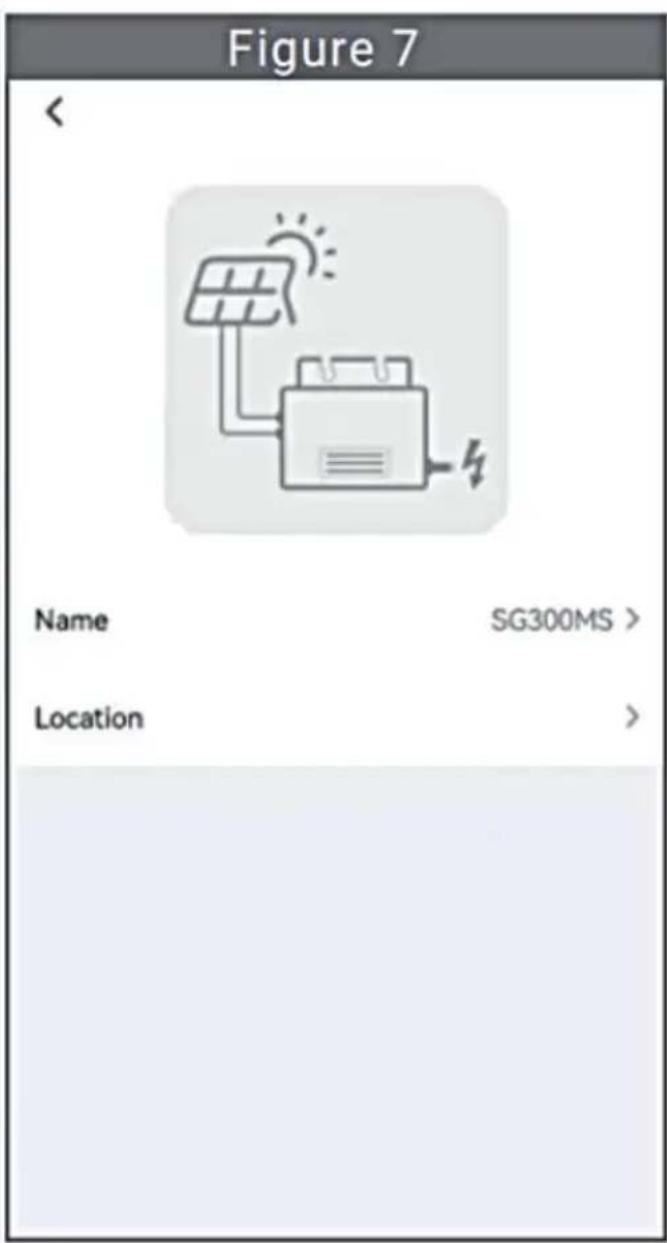

- Click the button in the upper right to enter the device setting page (Figure 6), Continue to click the upper button to the page of name & position (Figure 7) click name item, then enter a new name and save (Figure 8).

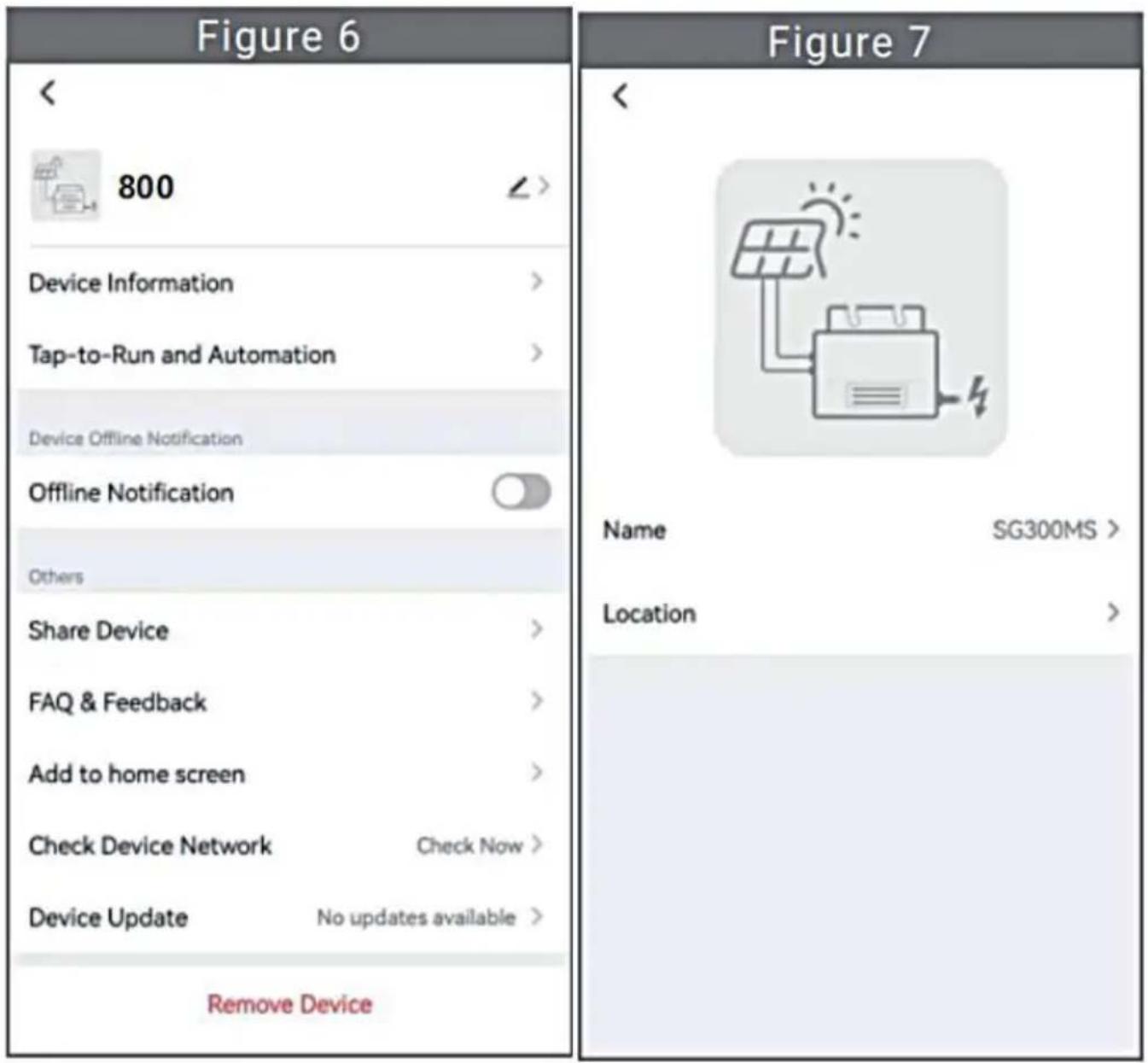

Figure 6 < 800 Device Information > Tap-to-Run and Automation > Device Offline Notification Offline Notification Others Share Device > FAQ & Feedback > Add to home screen > Check Device Network Check Now > Device Update No updates available > Remove Device Figure 7 < Name SG300MS > Location >

Remove Device

• Click the device to be deleted in the device list on the home page to en the device information details page (Figure 5).
• Click the button in the upper right to enter the device setting page (Figure 6).Click "Remove Device" button below (Figure 9), click the "Disconnect" button to remove the device or click the "Disconnect and wipe data" button to remove the device and clear all data saved by the device in the cloud at the same time.

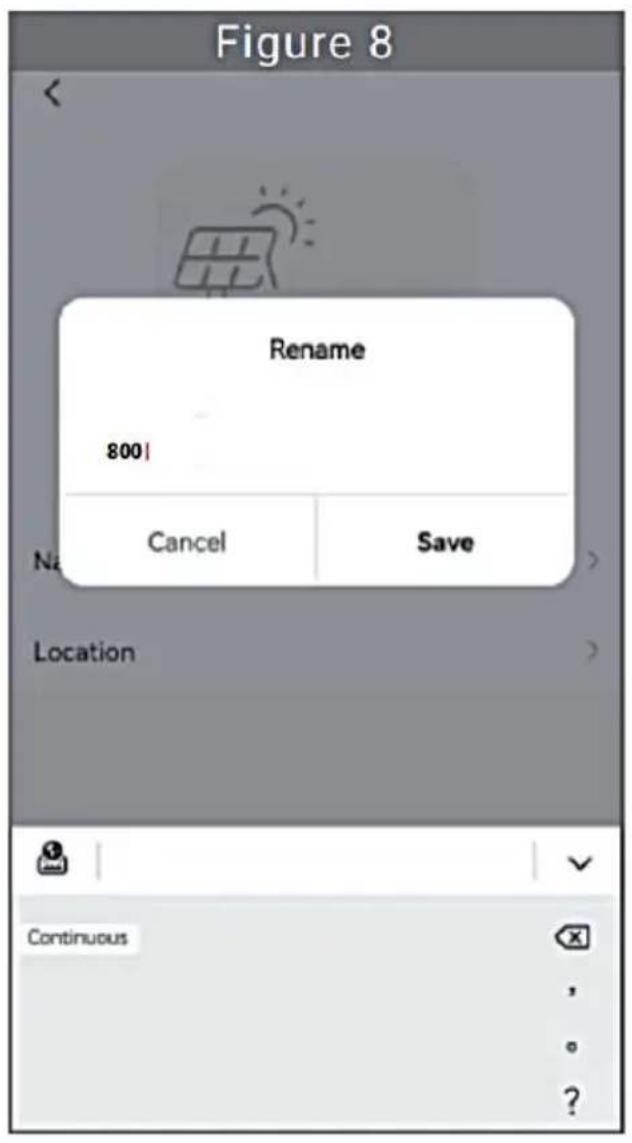

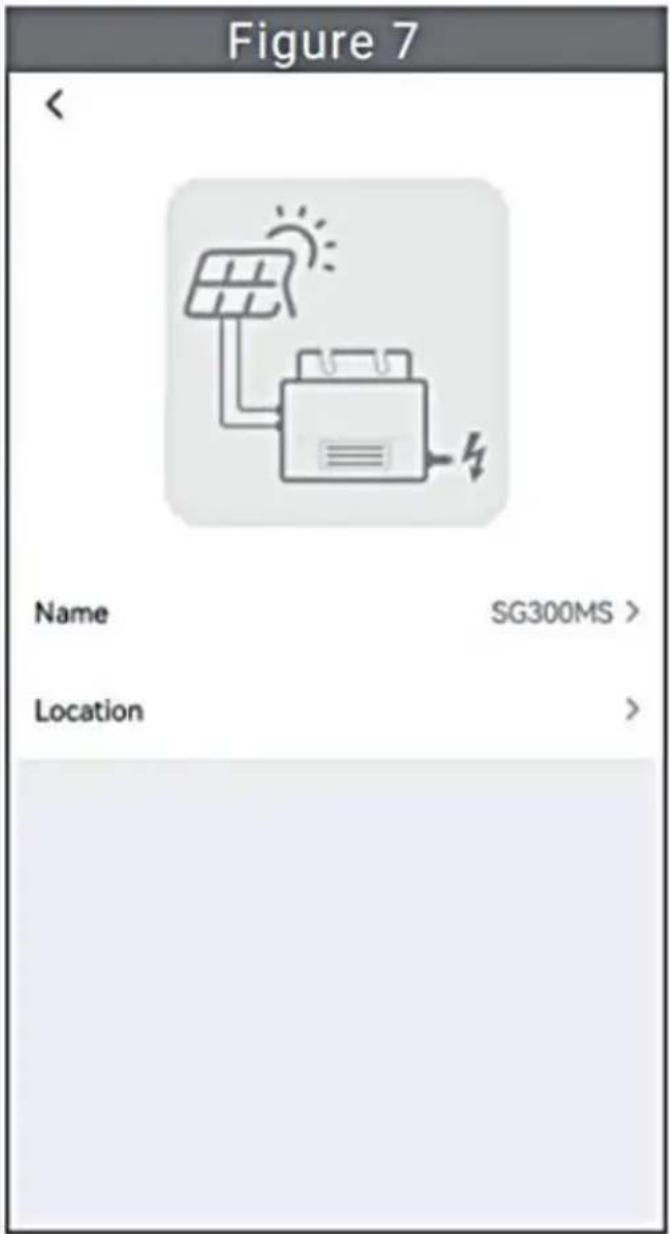

Figure 8 Rename 800 Cancel Save Location Continuous

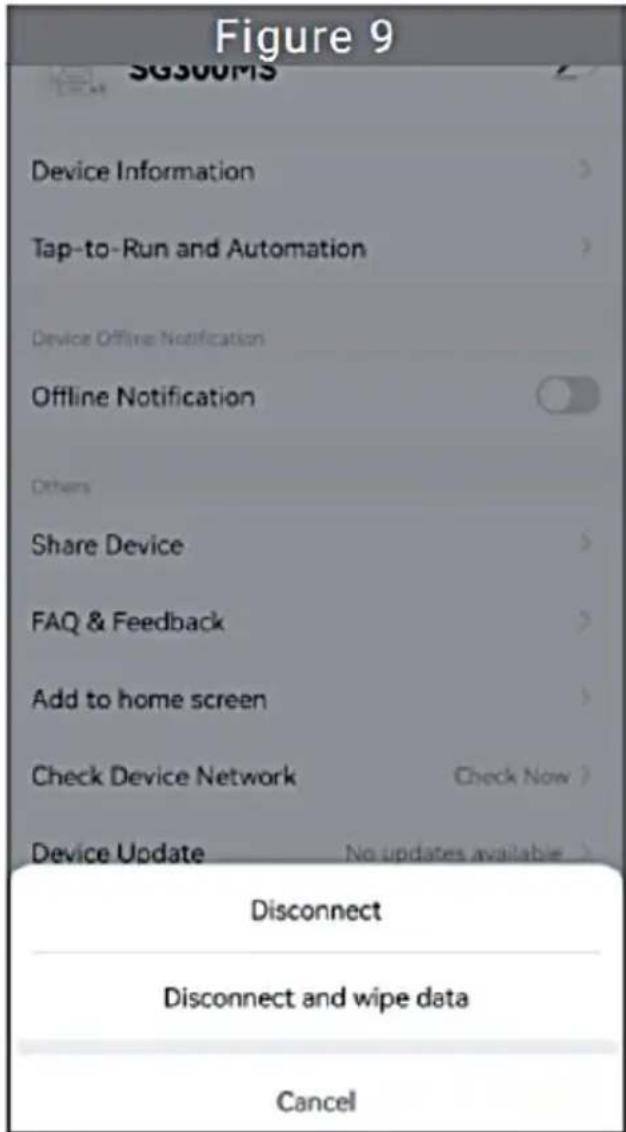

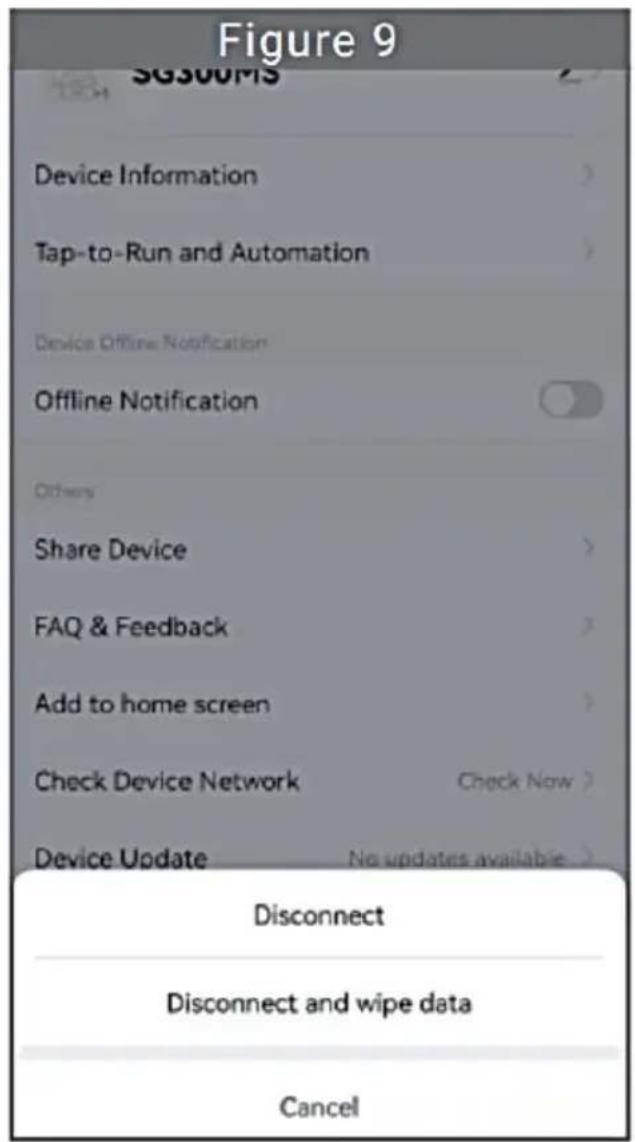

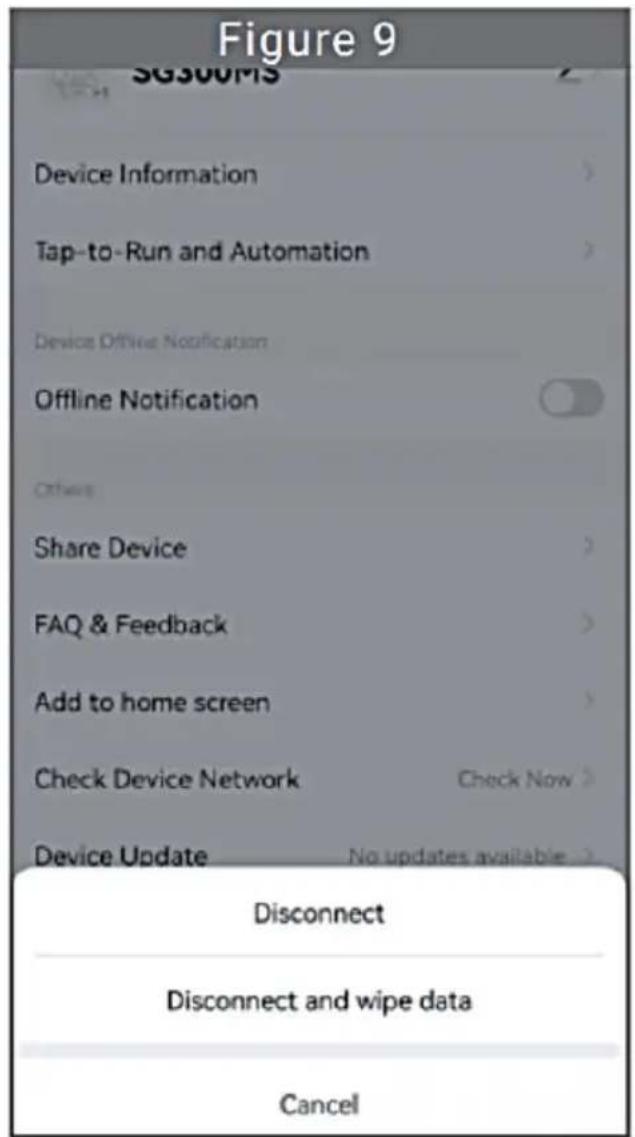

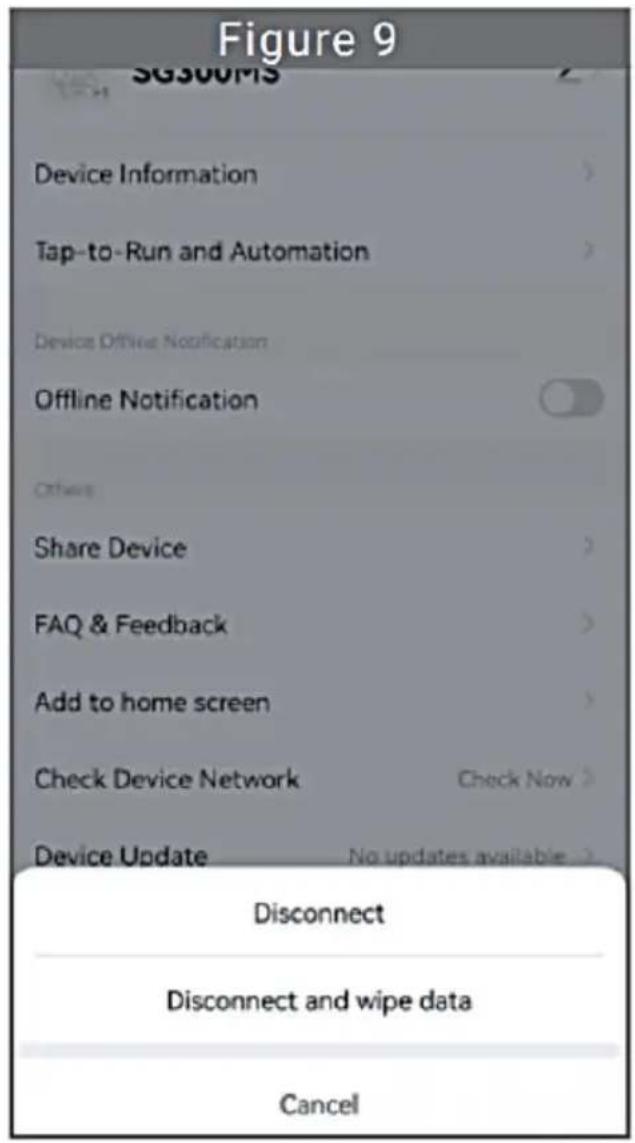

Figure 9 SGS00MS Device Information Tap-to-Run and Automation Device Office Notification Offline Notification Others Share Device FAQ & Feedback Add to home screen Check Device Network Check Now Device Update No updates available Disconnect Disconnect and wipe data Cancel

Share Device With Others

• Click the device to be shared in the device list on the home page to enter the device information details page (Figure 5).
• Click the button in the upper right to enter the device setting page (Figure 6).
• Click the "Share Device" item to enter the device sharing page (Figure 10), click button to enter "Add Sharing"page (Figure 11), and select best sharing way that you think it is most convenient to share the link of micro inverter.

Figure 10 < Share Device When the device is not connected to the network, the person with whom you have shared the device may not be able to control the device. SG300MS has not been shared Device is not shared, add an account to share it Add Sharing

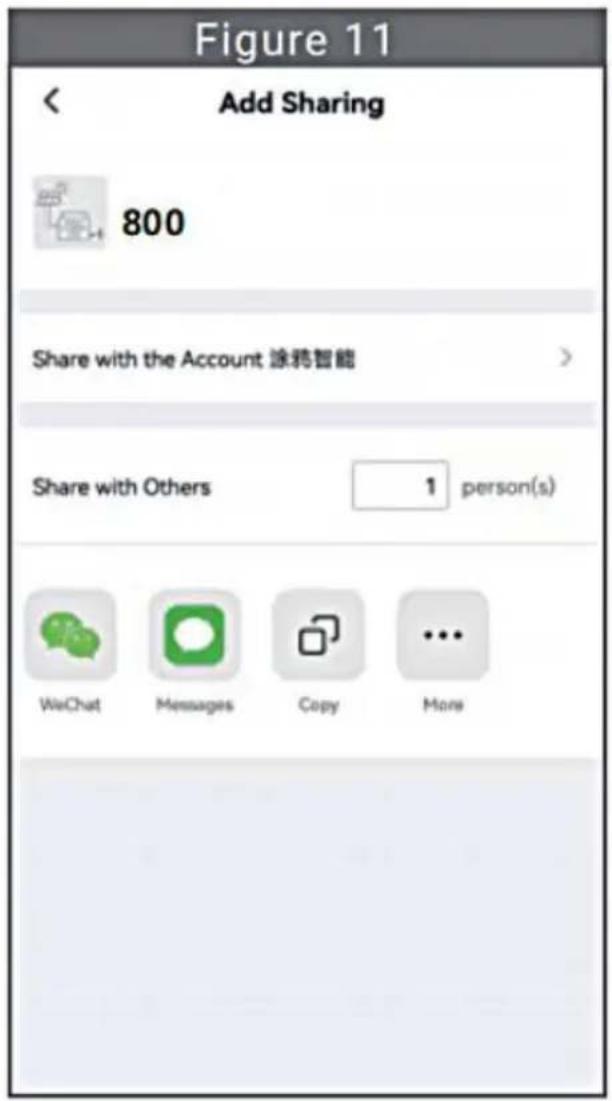

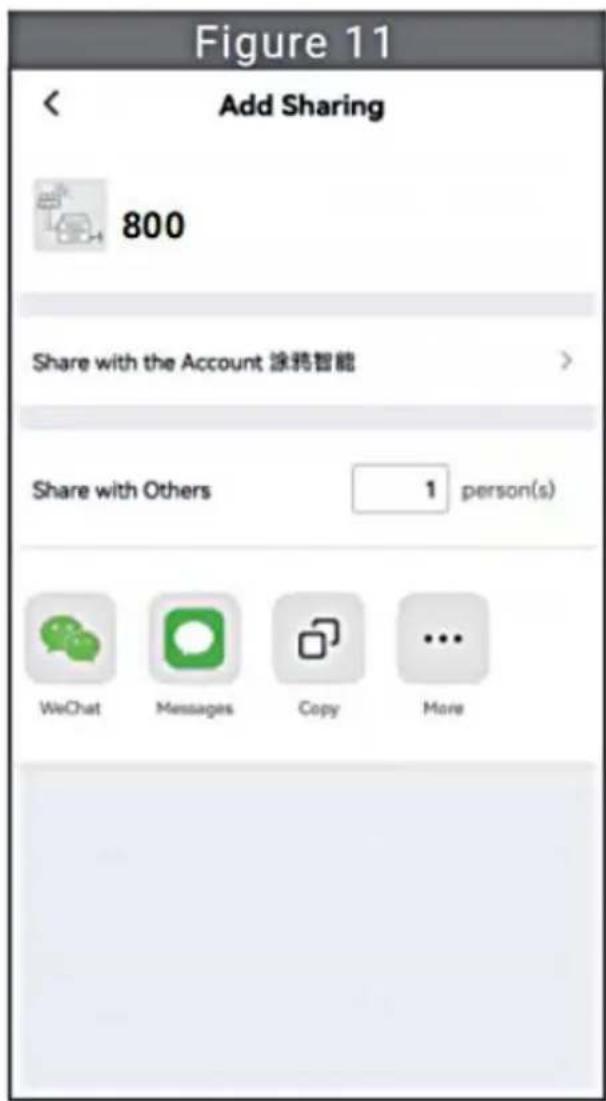

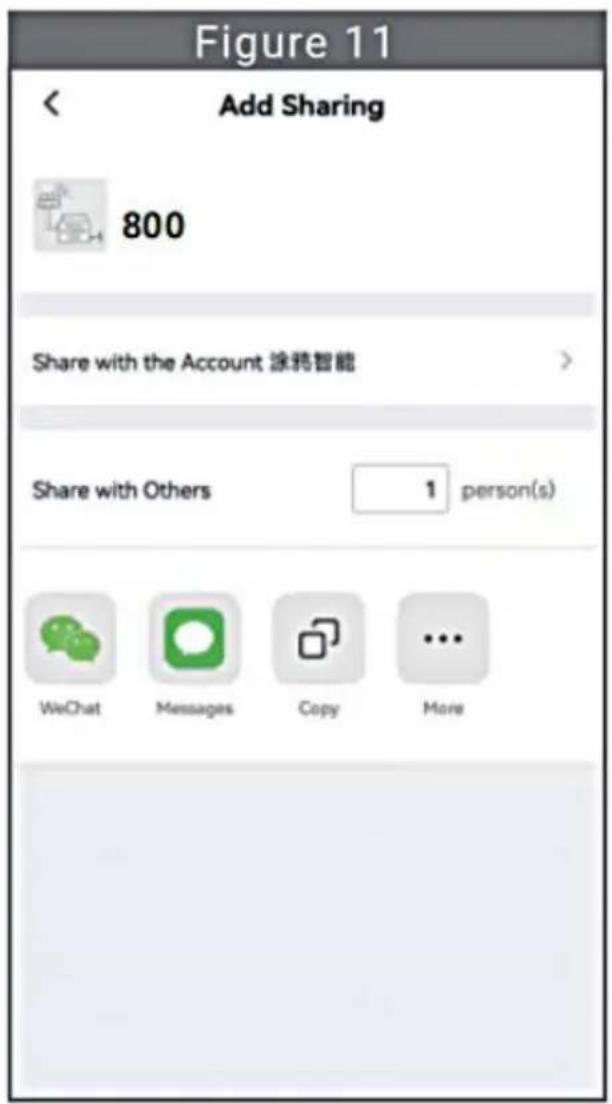

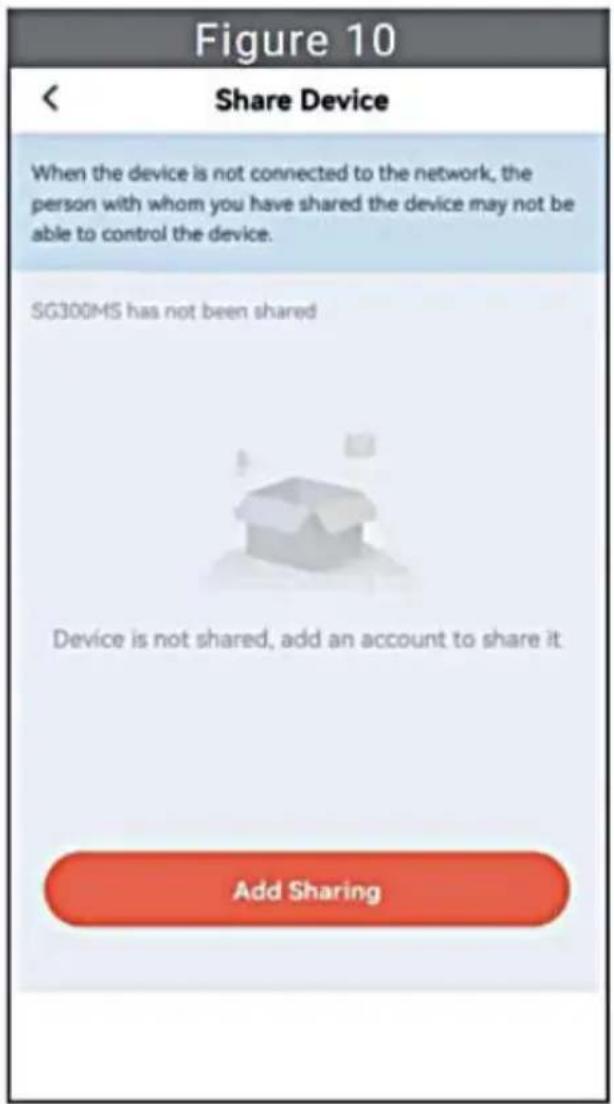

Figure 11 Add Sharing 800 Share with the Account 涂鸦智能 Share with Others 1 person(s) WeChat Messages Copy More

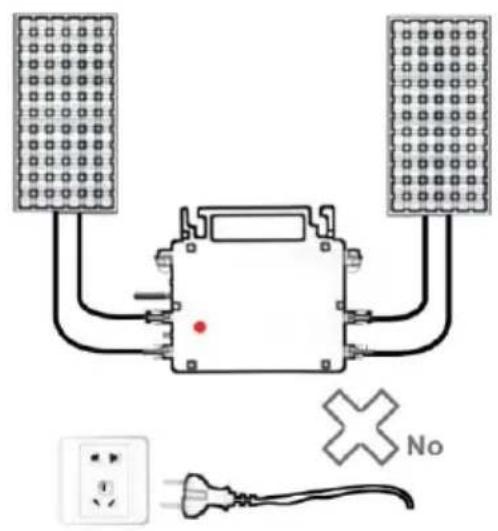

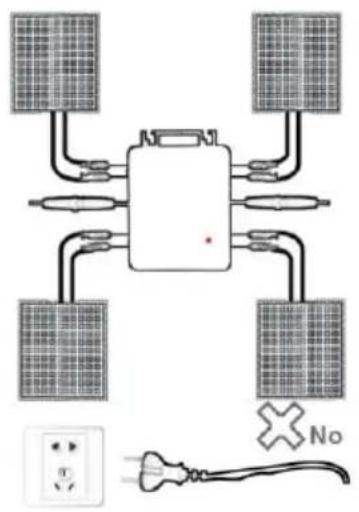

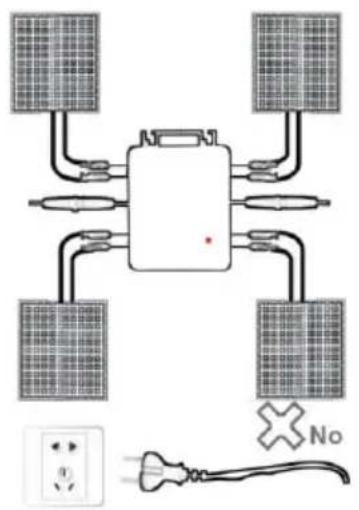

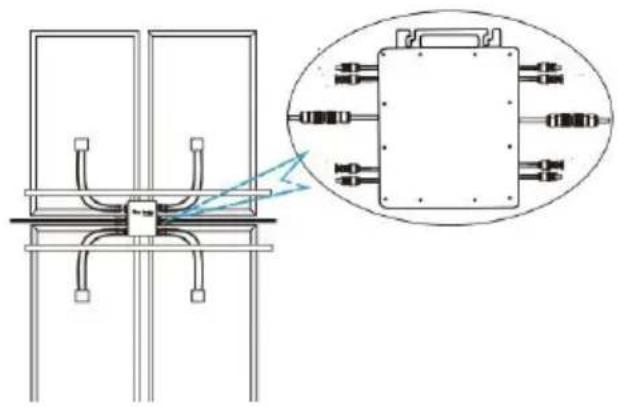

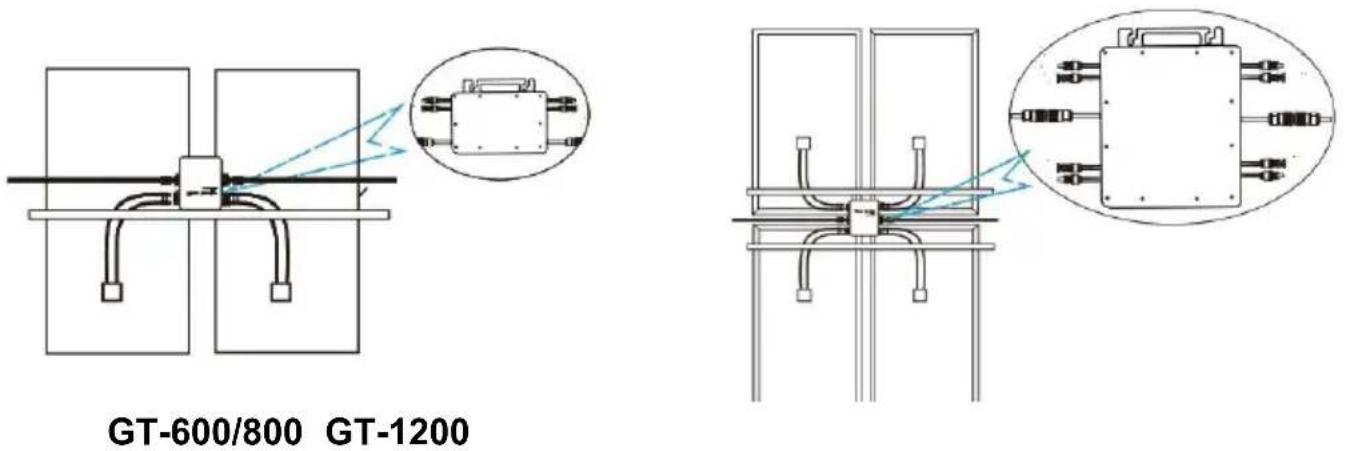

1. The installation process of fixing inverter to PV bracket with mounting screws is as follows:

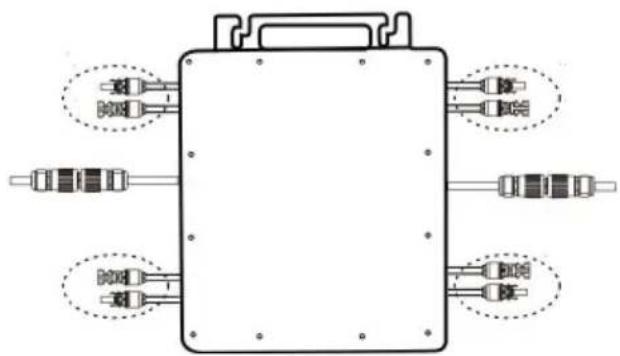

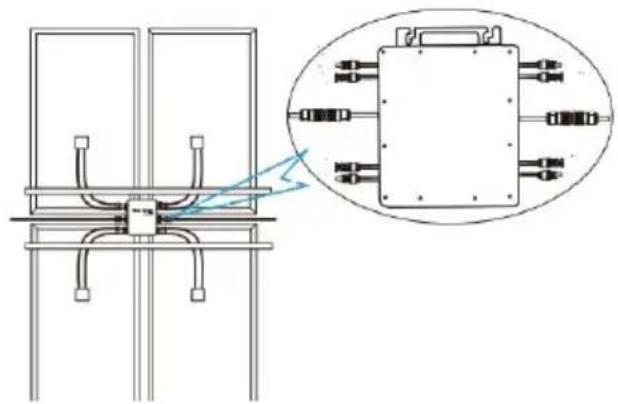

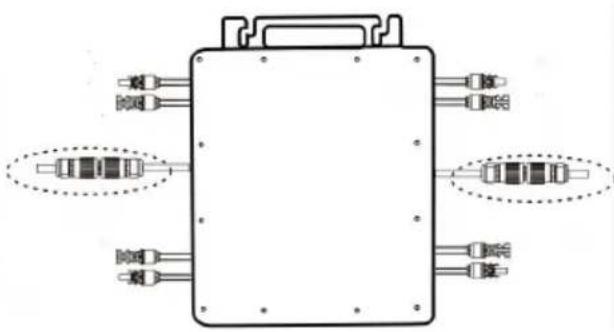

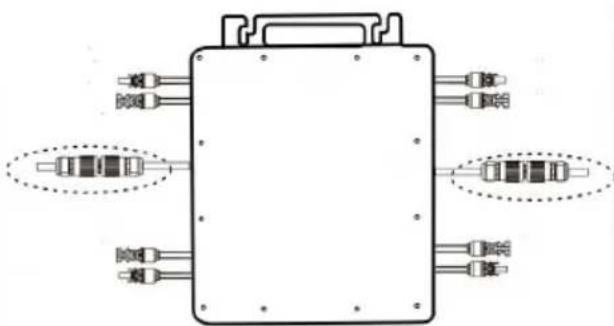

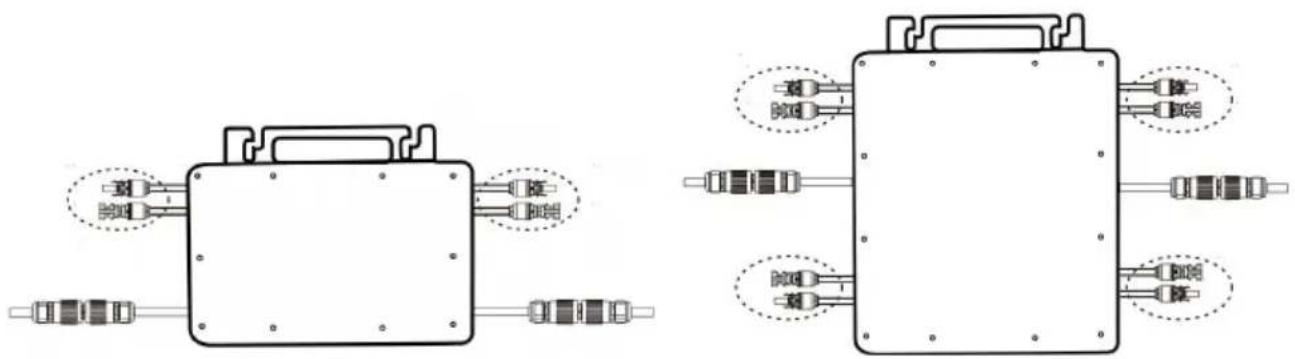

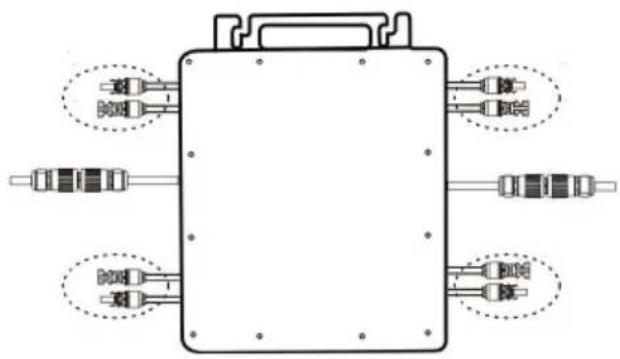

1. Connect the DC of PV to the inverter, and pay attention to distinguish between positive and negative, as shown below:

Technical line drawing of two electronic device modules with connector pins and wiring (no text or symbols)

GT-600/800 GT-1200

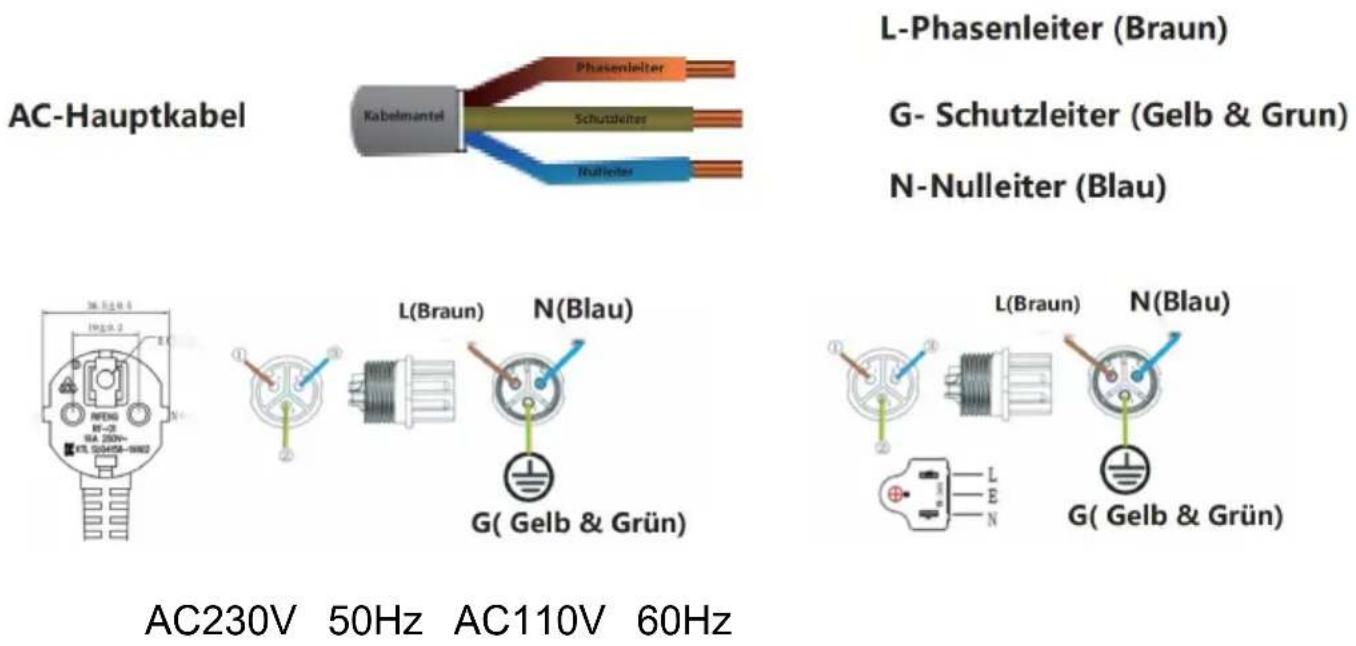

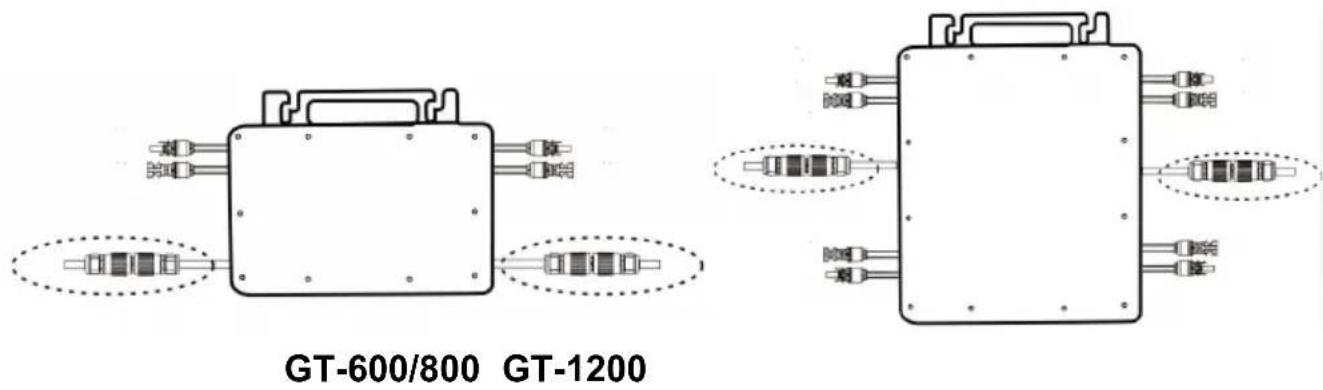

1. Open the waterproof cover on the AC output side of the micro inverter, and then connect it to the AC. As follows:

GT-600/800 GT-1200

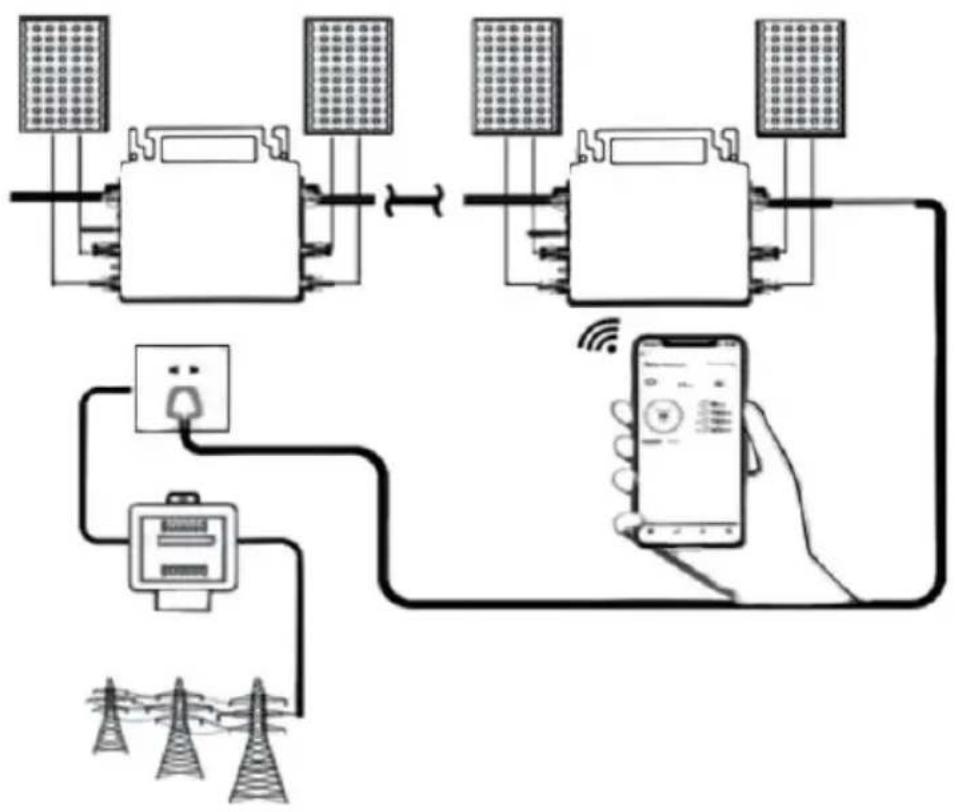

1. Repeat steps 1 to 3 to complete the installation of the micro inverter.
2. Connect multiple inverters through AC output cables.
3. The AC main cable is connected to the power grid.

SCHEMATIC DIAGRAM OF THE COMPLETION OF THE INSTALLAT

yes

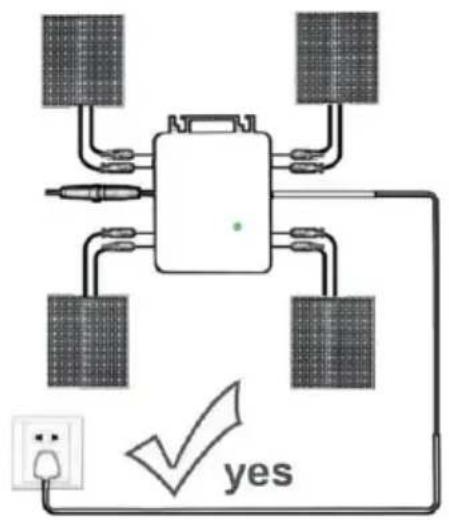

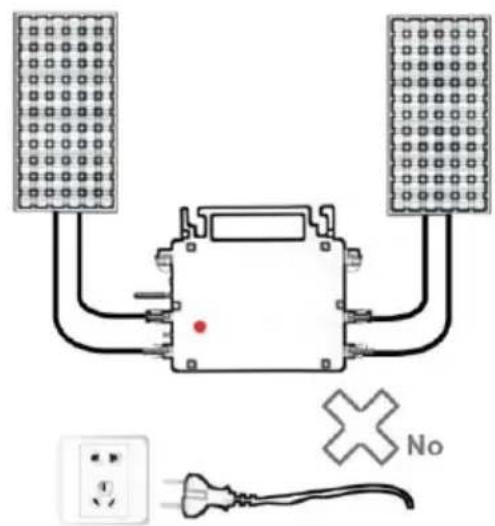

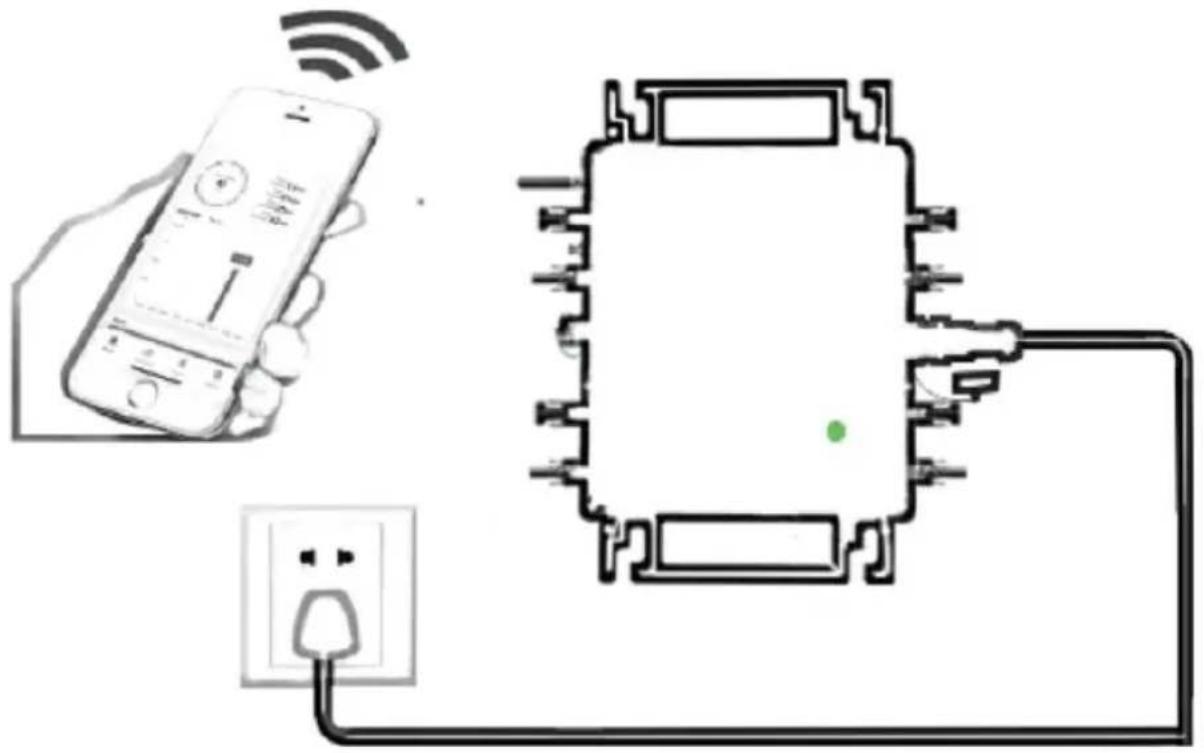

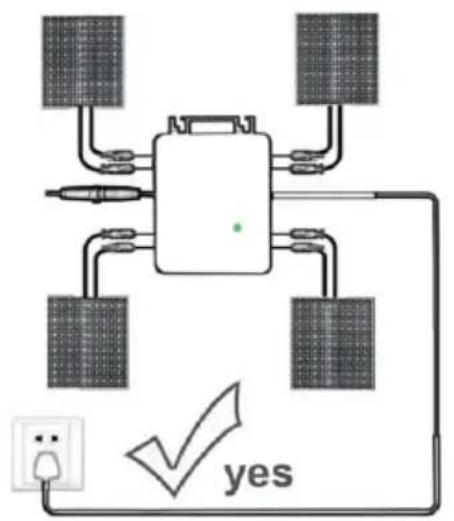

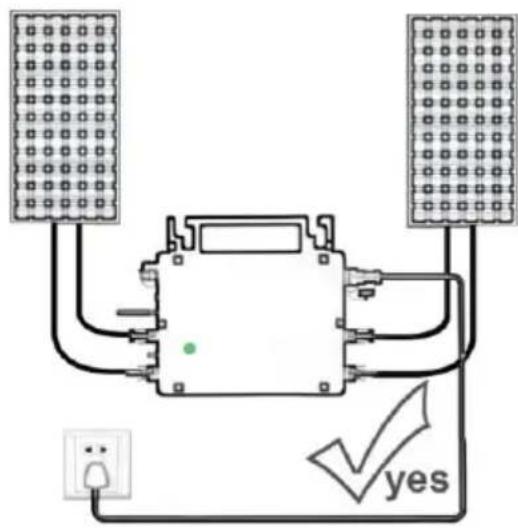

Normal working conditions of the inverter: the 22-50V DC voltage of the solar panel must be connected, and the AC voltage must be connected at the same time, and the indicator light is green
Only the solar panel is connected. When the mains AC is not connected, the red light on the inverter surface is on, and the instrument and machine do not work normally

Diagram showing a device connected to two grid panels, with a red dot indicating a red dot and a 'No' label below.

GT-600/800

Diagram showing a remote control device connected to a smart home with power outlet, wireless signal, and wiring connections.
    note right of B: ✓ yes

Normal working conditions of the inverter: the 22-50V DC voltage of the solar panel must be connected, and the AC voltage must be connected at the same time, and the indicator light is green
Only the solar panel is connected. When the mains AC is not connected, the red light on the inverter surface is on, and the instrument and machine do not work normally

Diagram showing a central device connected to four solar panels, with an electrical plug and 'No' label indicating no power connection.

GT-1200

Note:

When the inverter is purchased for the first time and connected to the mobile phone for monitoring, it is only necessary to switch on the mains A the blue light beside it flashes, and the inverter can be connected through WIFI or Bluetooth pairing. When the inverter can be controlled through the mobile phone, it is indicated that the connection is normal.

1. WHAT TO DO when the Smart-App can't find the micro inverter to be added?

Check the following points:

• Check if the WiFi status indicator of the micro inverter is in the "Blue Flashing" state.
• Check if the Bluetooth function of your smart device is turned on.
• Check if the signal of the wireless network is good.

If all these is the case and the inverter is still not found, press the red r button for more than 5 seconds to reset. After the WiFi indicator light flash blue again, use "Smart Life" App to reconfigure the network.

1. WHAT TO DO if I have multiple micro inverters to configure?

Install all micro inverters properly and make them work normally to generate power, and then operate according to the configuration and steps. The App can search all inverters to be added at one time and configure them at one time.

1. WHAT TO DO if the SSID of my WiFi network or the password is change

Please reconfigure the inverter according to the configuration and us steps.

1. WHAT TO DO if the WiFi status indicator of the inverter goes out, but the device displayed on the app is not online?

This means that you can connect to the wireless network device, b can't connect to the cloud server. It means that your wireless network device can't connect to the Internet. Make sure that your Internet is properly.

1. The installation site of the inverter is temporarily not equipped with a router and no WiFi signal?

- How does App connect the inverter and detect if the inverter is w properly?

- You can use an idle smartphone to open the WiFi sharing of mobile phone signal hotspot for connection, and reconfigure the network connection after installing the router.

1. There are multiple WiFi signals around. Can we connect different WiFi signals?

No, the WiFi connected of the micro inverter and the smart phone be consistent before the network can be configured.

1. Can App configure the micro inverter in different places? Can I view data in different places?

You can't configure the micro inverter in different places, but you view data in different places. The inverter uploads the latest status data the cloud server every 3-5 minute.

1. After checking that there is no problem, the App still cannot find the micro inverter.

2. Press and hold the inverter red button for more than 5 seconds to reset the inverter.

3. After the WiFi indicator flashes again, use App to reconfigure the network.

4. WHAT TO DO if I want to monitor the same inverter on two or no smart devices?

You can share the inverter with another phone using the share device feature.

1. Will App data be saved?

Yes, App data will be stored on cloud server. After the network is successfully configured, you can view the data at any time and place

1. The inverter cannot be connected to the app at night?

At night, because the solar panel does not generate power, the microinverter does not have any power input, so it will offline and it is in

to re-configure the network at night.

ACCESSORIES LIST

1. Operating instructions *1
   2.Grid connected power cord *1
   3.8mm diameter, 28mm long hex socket screw+flat washer+spring washer+nut *2
   4.5mm diameter, 13mm long hex socket screw+nut *2(600W/800W) 4mm diameter, 8mm long hex socket screw *1(1200W)
   5.WiFi antenna *1

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODÈLE : GT-600/GT-800/GT-1200

Two VEVOR-based electronic modules: one white with labeled ports and connectors, the other blue with black cables and connectors (no visible text or symbols on the modules themselves)

GT-600/GT-800 GT-1200

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Pure electrical circuit lines without any symbols

1
2

Solar panel array with connected devices and a smart home icon (no text or symbols)

Hand holding smartphone displaying a mobile app interface with a house icon and QR code, likely for app download or scanning purposes.

123****3487 Custom Engine System

Pure electrical component outline without any text, numbers, or symbols

Make a copy file with embedded indicators and display icons. All Devices HOLDEN EASE ENI.

1

Download in mobile application: smartlife or direct code scanning

2

Register personal account

3

Restore factory settings Press and hold the red key for 5-10 seconds and release it. The blue light is flashing and the instrument is connected successfully

4

Add inverter

HOLD DOOR SOLD DOOR

AddService Add Service Shopping Services... Add Service

Enter Wi-Fi information Choose Wi-Fi and access accounts + Wi-Fi + https://www.10.1234568 + https://www.10.1234568 + https://www.10.1234568 + https://www.10.1234568

Mobile app screenshot showing a login interface with a green logo and Chinese text '扫码获取成功！'

5

Further add confirmation information

6

Make sure the Bluetooth or wifi in the phone is on

7

Enter your home WIFI account information password

8

Click Next to install and modify the name and account freely

Today Sunny 11:30 31: $1 Dayset Night Night Night

9

The interface can control the system switch normally. The connection is successful

Pure electrical circuit lines without any symbols

10

10 The connection is successful, and the green light of the inverter is always on in normal operation. Occasionally flashing instrument MPPT is tracking the optimal voltage

Figure 6 < 800 Device Information > Tap-to-Run and Automation > Device Offline Notification Offline Notification Others Share Device > FAQ & Feedback > Add to home screen > Check Device Network Check Now > Device Update No updates available > Remove Device

Figure 7 < Name SG300MS > Location >

Figure 8 Rename 8001 Cancel Save Location Continuous

Figure 9 SGS00MS Device Information Tap-to-Run and Automation Device Offline Notification Offline Notification Others Share Device FAQ & Feedback Add to home screen Check Device Network Check Now Device Update No updates available Disconnect Disconnect and wipe data Cancel

Figure 10 < Share Device When the device is not connected to the network, the person with whom you have shared the device may not be able to control the device. SG300MS has not been shared Device is not shared, add an account to share it Add Sharing

Figure 11 Add Sharing 800 Share with the Account 涂鸦智能 Share with Others 1 person(s) WeChat Messages Copy More

INSTRUCTIONS FOR INSTALLATION WIRING

Technical diagram showing a mechanical or electrical component with labeled parts and an inset close-up of its internal structure.

Technical diagram showing a mechanical assembly with a magnified inset of a device component (no text or symbols present)

Pure electrical circuit lines without any symbols

GT-600/800 GT-1200

Pure electrical circuit lines without any symbols

Normal working conditions of the inverter: the 22-50V DC voltage of the solar panel must be connected, and the AC voltage must be connected at the same time, and the indicator light is green
Only the solar panel is connected. When the mains AC is not connected, the red light on the inverter surface is on, and the instrument and machine do not work normally

Diagram showing a device connected to two panels with a red dot and a 'No' label, plus an electrical plug below.

GT-600/800

Diagram showing a remote control device connected to a smart home circuit with power outlet and signal waves
    note right of B: ✓ yes

Normal working conditions of the inverter: the 22-50V DC voltage of the solar panel must be connected, and the AC voltage must be connected at the same time, and the indicator light is green
Only the solar panel is connected. When the mains AC is not connected, the red light on the inverter surface is on, and the instrument and machine do not work normally

Diagram showing a central device connected to four solar panels, with an electrical plug and 'No' label indicating no power connection.

GT-1200

Note:

C/O YH Consulting Limited Office 147, Centurion H London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELL: GT-600/GT-800/GT-1200

Two VEVOR-based electronic modules: one white with labeled ports and connectors, the other blue with black cables and connectors (no visible text or symbols on components)

GT-600/GT-800 GT-1200

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNUNG: STROMSCHLAGGEFAHR

Pure electrical circuit lines without any symbols

1
2

Hand holding smartphone displaying a smart home app with a QR code, alongside a QR code icon.

123****3487 Custom Engine System

Pure electrical component outline without any text, numbers, or symbols

Make a copy file with embedded indicators and display icons. All Devices HOLDERS... ADDLES...

1

Download in mobile application: smartlife or direct code scanning

2

Register personal account

3

Restore factory settings Press and hold the red key for 5-10 seconds and release it. The blue light is flashing and the instrument is connected successfully

4

Add inverter

HOLD DOOR HOLD DOOR...

Add Service Add Service Shopping functions... Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service All Subsidiaries All Subsidiaries All Subsidiaries All Subsidiaries All Subsidiaries All Subsidiaries All Subsidiaries All Subsidiaries All Subsidiaries All Subsidiaries All Subsidiaries All Subsidiaries All Subsidiaries All Subsidiaries All Subsidiaries All Subsidiaries All Subsidiaries All SubSidiaries All SubSidiaries All SubSidiaries All SubSidiaries All SubSidiaries All SubSidiaries All SubSidiaries All SubSidiaries All SubSidiaries All SubSidiaries All SubSidiaries All SubSidiaries All SubSidiaries All SubSidiaries All SubSidiaries All SubSidiaries All SubSidiaries Total Subsidiaries Total Subsidiaries Total Subsidiaries Total Subsidiaries Total Subsidiaries Total Subsidiaries Total Subsidiaries

Enter Wi-Fi information Choose Wi-Fi and access accounts + Wi-Fi + https://www.10.1234568 + https://www.10.1234568 + https://www.10.1234568 + https://www.10.1234568

Mobile app screenshot showing a login interface with a green logo and Chinese text '扫码获取成功！'

5

Further add confirmation information

6

Make sure the Bluetooth or wifi in the phone is on

7

Enter your home WIFI account information password

8

Click Next to install and modify the name and account freely

Today Sunny 11:30 31: $1 Dayset Night Night Night

9

The interface can control the system switch normally. The connection is successful

Pure electrical circuit lines without any symbols

10

10 The connection is successful, and the green light of the inverter is always on in normal operation. Occasionally flashing instrument MPPT is tracking the optimal voltage

Figure 6 < 800 Device Information > Tap-to-Run and Automation > Device Offline Notification Offline Notification Others Share Device > FAQ & Feedback > Add to home screen > Check Device Network Check Now > Device Update No updates available > Remove Device

Figure 7 < Name SG300MS > Location >

Gerät entfernen

Figure 8 Rename 8001 Cancel Save Location Continuous

Figure 9 SGS00MS Device Information Tap-to-Run and Automation Device Offline Notification Offline Notification Others Share Device FAQ & Feedback Add to home screen Check Device Network Check Now Device Update No updates available Disconnect Disconnect and wipe data Cancel

Figure 10 < Share Device When the device is not connected to the network, the person with whom you have shared the device may not be able to control the device. SG300MS has not been shared Device is not shared, add an account to share it Add Sharing

Figure 11 Add Sharing 800 Share with the Account 涂範智能 Share with Others 1 person(s) WeChat Messages Copy More

INSTRUCTIONS FOR INSTALLATION WIRING

Pure electrical circuit lines without any symbols

GT-600/800 GT-1200

Technical diagram showing a mechanical assembly with a magnified inset of a device component (no text or symbols present)

Pure electrical circuit lines without any symbols

GT-600/800 GT-1200

Pure electrical circuit lines without any symbols

Electrical component diagram showing three types of connectors with labeled pins (L, E, N) and internal wiring connections.

Normal working conditions of the inverter: the 22-50V DC voltage of the solar panel must be connected, and the AC voltage must be connected at the same time, and the indicator light is green

Only the solar panel is connected. When the mains AC is not connected, the red light on the inverter surface is on, and the instrument and machine do not work normally

Diagram showing a device connected to two panels with a red dot and a 'No' label, plus an electrical plug below.

GT-600/800

Diagram showing a remote control device connected to a smart home with power outlet, wireless signal, and plug connections.

Normal working conditions of the inverter: the 22-50V DC voltage of the solar panel must be connected, and the AC voltage must be connected at the same time, and the indicator light is green

Only the solar panel is connected. When the mains AC is not connected, the red light on the inverter surface is on, and the instrument and machine do not work normally

Diagram showing a central device connected to four solar panels, with a fuse and no power connection indicated.

GT-1200

Notiz:

C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELLO: GT-600/GT-800/GT-1200

Two VEVOR-based electronic modules: one white with labeled ports and connectors, the other blue with black cables and connectors (no visible text or symbols on components)

MODELLI GT-600/GT-800/GT-1200

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Solar panel array with connected devices and a smart home icon (no text or symbols)

Hand holding smartphone displaying a mobile app interface with a house icon and QR code, likely for app download or scanning purposes.

123****3487 Custom Engine System

Pure electrical component diagram without any text, numbers, or symbols

Make a copy file with embedded indicators and display icons. All Devices HOLDERS... ADDLES...

1

Download in mobile application: smartlife or direct code scanning

2

Register personal account

3

Restore factory settings Press and hold the red key for 5-10 seconds and release it. The blue light is flashing and the instrument is connected successfully

4

Add inverter

HOLD DOOR HOLD DOOR...

Add Service Add Service Shopping functions... Add Service

Enter Wi-Fi information Choose Wi-Fi and access accounts + Wi-Fi + https://www.10.1234568 + https://www.10.1234568 + https://www.10.1234568 + https://www.10.1234568

Mobile app interface screenshot showing a login page with a green logo and Chinese text '扫码获取成功！'

5

Further add confirmation information

6

Make sure the Bluetooth or wifi in the phone is on

7

Enter your home WIFI account information password

8

Click Next to install and modify the name and account freely

Today Sunny 11:30 31: $1 Dayset Night Night Night

9

The interface can control the system switch normally. The connection is successful

Pure electrical circuit lines without any symbols

10

10 The connection is successful, and the green light of the inverter is always on in normal operation. Occasionally flashing instrument MPPT is tracking the optimal voltage

Figure 6 < 800 Device Information > Tap-to-Run and Automation > Device Offline Notification Offline Notification Others Share Device > FAQ & Feedback > Add to home screen > Check Device Network Check Now > Device Update No updates available > Remove Device

Figure 7 < Name SG300MS > Location >

Rimuovi dispositivo

Figure 8 Rename 8001 Cancel Save Location Continuous

Figure 9 SGS00MS Device Information Tap-to-Run and Automation Device Offline Notification Offline Notification Others Share Device FAQ & Feedback Add to home screen Check Device Network Check Now Device Update No updates available Disconnect Disconnect and wipe data Cancel

Figure 10 Share Device When the device is not connected to the network, the person with whom you have shared the device may not be able to control the device. SG300MS has not been shared Device is not shared, add an account to share it Add Sharing

Figure 11 Add Sharing 800 Share with the Account 涂鸦智能 > Share with Others 1 person(s) WeChat Messages Copy More

INSTRUCTIONS FOR INSTALLATION WIRING

Technical line drawings of electrical components with no visible text or symbols

Modello GT-600/800 La GT-1200

Technical line drawing of two electronic device modules with connector pins and wiring (no text or symbols)

Modelli GT-600/800/1200

Normal working conditions of the inverter: the 22-50V DC voltage of the solar panel must be connected, and the AC voltage must be connected at the same time, and the indicator light is green

Only the solar panel is connected. When the mains AC is not connected, the red light on the inverter surface is on, and the instrument and machine do not work normally

Diagram showing a device connected to two panels with a red dot and a 'No' label, plus an electrical plug below.

GT-600/800

Diagram showing a remote control device connected to a smart home with power outlet, wireless signal, and plug connections.

Normal working conditions of the inverter: the 22-50V DC voltage of the solar panel must be connected, and the AC voltage must be connected at the same time, and the indicator light is green

Only the solar panel is connected. When the mains AC is not connected, the red light on the inverter surface is on, and the instrument and machine do not work normally

Diagram showing a central device connected to four solar panels, with a fuse and no power connection indicated.

La GT-1200

Nota:

Importato in AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd., Suite 250, 9166 Anahei Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELO: GT-600/GT-800/GT-1200

Two VEVOR-based electronic modules: one white with labeled ports and connectors, the other blue with black cables and connectors (no visible text or symbols on the modules themselves)

GT-600/GT-800 GT-1200

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Pure electrical circuit lines without any symbols

1
2

Hand holding smartphone displaying a mobile app interface with a house icon and QR code, likely for app download or scanning purposes.

123****3487 Custom Engine System

Pure electrical component diagram without any text, numbers, or symbols

New I can't use the website with added linkages and additional links.

1

Download in mobile application: smartlife or direct code scanning

2

Register personal account

3

Restore factory settings Press and hold the red key for 5-10 seconds and release it. The blue light is flashing and the instrument is connected successfully

4

Add inverter

HOLD DOOR HOLD DOOR...

Add Service Add Service Shopping functions... Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service Add Service All Subsidiaries All Subsidiaries All Subsidiaries All Subsidiaries All Subsidiaries All Subsidiaries All Subsidiaries All Subsidiaries All Subsidiaries All Subsidiaries All Subsidiaries All Subsidiaries All Subsidiaries All Subsidiaries All Subsidiaries All Subsidiaries All Subsidiaries All SubSidiaries All SubSidiaries All SubSidiaries All SubSidiaries All SubSidiaries All SubSidiaries All SubSidiaries All SubSidiaries All SubSidiaries All SubSidiaries All SubSidiaries All SubSidiaries All SubSidiaries All SubSidiaries All SubSidiaries All SubSidiaries All SubSidiaries Total Subsidiaries Total Subsidiaries Total Subsidiaries Total Subsidiaries Total Subsidiaries Total Subsidiaries Total Subsidiaries

Enter Wi-Fi information Choose Wi-Fi and access accounts + Wi-Fi + https://www.10.1234568 + https://www.10.1234568 + https://www.10.1234568 + https://www.10.1234568

Mobile app screenshot showing a login interface with a green logo and Chinese text '扫码获取成功！'

5

Further add confirmation information

6

Make sure the Bluetooth or wifi in the phone is on

7

Enter your home WIFI account information password

8

Click Next to install and modify the name and account freely

Today Sunny 11:30 31: $1 Dayset Night Night Night

9

The interface can control the system switch normally. The connection is successful

Pure electrical circuit lines without any symbols

10

10 The connection is successful, and the green light of the inverter is always on in normal operation. Occasionally flashing instrument MPPT is tracking the optimal voltage

Figure 6 < 800 Device Information > Tap-to-Run and Automation > Device Offline Notification Offline Notification Others Share Device > FAQ & Feedback > Add to home screen > Check Device Network Check Now > Device Update No updates available > Remove Device

Figure 7 < Name SG300MS > Location >

Quitar dispositivo

Figure 8 Rename 8001 Cancel Save Location Continuous

Figure 9 SGS00MS Device Information Tap-to-Run and Automation Device Offline Notification Offline Notification Others Share Device FAQ & Feedback Add to home screen Check Device Network Check Now Device Update No updates available Disconnect Disconnect and wipe data Cancel

Figure 10 Share Device When the device is not connected to the network, the person with whom you have shared the device may not be able to control the device. SG300MS has not been shared Device is not shared, add an account to share it Add Sharing

Figure 11 Add Sharing 800 Share with the Account 涂鸦智能 Share with Others 1 person(s) WeChat Messages Copy More

INSTRUCTIONS FOR INSTALLATION WIRING

Pure mechanical diagram showing a lever system with a magnified inset of a component (no text or symbols)

GT-600/800 GT-1200

Technical diagram of a mechanical or electrical component with a magnified inset showing internal components (no text or symbols present)

Pure electrical circuit lines without any symbols

GT-600/800 GT-1200

Pure diagram of a rectangular electronic device with four labeled ports, no text or symbols present

Normal working conditions of the inverter: the 22-50V DC voltage of the solar panel must be connected, and the AC voltage must be connected at the same time, and the indicator light is green

Only the solar panel is connected. When the mains AC is not connected, the red light on the inverter surface is on, and the instrument and machine do not work normally

Diagram showing a device connected to two panels with a red dot and a 'No' label, plus an electrical plug below.

GT-600/800

Diagram showing a remote control device connected to a smart home with power outlet, wireless signal, and plug connections.

Normal working conditions of the inverter: the 22-50V DC voltage of the solar panel must be connected, and the AC voltage must be connected at the same time, and the indicator light is green

Only the solar panel is connected. When the mains AC is not connected, the red light on the inverter surface is on, and the instrument and machine do not work normally

Diagram showing a central device connected to four solar panels, with a fuse and no power connection indicated.

GT-1200

Nota:

Importado a AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importado a EE. UU.: Sanven Technology Ltd., Suite 250, 9166 Anah Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELE: GT-600/GT-800/GT-1200

Two VEVOR brand electronic modules shown side by side, one white and one blue with black connectors (no visible text or symbols on modules)

NAZWA UŻYTKOWNIKA: GT-600/GT-800

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Pure electrical circuit lines without any symbols

1
2

Hand holding smartphone displaying a smart home app with a QR code, alongside a QR code icon.

123****3487 Custom Engine System

Pure electrical component outline without any text, numbers, or symbols

Make a copy file with embedded indicators and display icons. All Devices HOLDEN... ADDEN...

1

Download in mobile application: smartlife or direct code scanning

2

Register personal account

3

Restore factory settings Press and hold the red key for 5-10 seconds and release it. The blue light is flashing and the instrument is connected successfully

4

Add inverter

HOLD DOOR HOLD DOOR...

Add Service Add Service Shopping Services... Add Service

Enter Wi-Fi information Choose Wi-Fi and access accounts + Wi-Fi + https://www.10.1234568 + https://www.10.1234568 + https://www.10.1234568 + https://www.10.1234568

Mobile app screenshot showing a login interface with a green logo and Chinese text '扫码获取成功！'

5

Further add confirmation information

6

Make sure the Bluetooth or wifi in the phone is on

7

Enter your home WIFI account information password

8

Click Next to install and modify the name and account freely

Today Sunny 11:30 31: $1 Dayset Night High Low

9

The interface can control the system switch normally. The connection is successful

Pure electrical circuit lines without any symbols

10

10 The connection is successful, and the green light of the inverter is always on in normal operation. Occasionally flashing instrument MPPT is tracking the optimal voltage

Figure 6 < 800 Device Information > Tap-to-Run and Automation > Device Offline Notification Offline Notification Others Share Device > FAQ & Feedback > Add to home screen > Check Device Network Check Now > Device Update No updates available > Remove Device

Figure 7 < Name SG300MS > Location >

Usuń urządzenie

Figure 8 Rename 8001 Cancel Save Location Continuous

Figure 9 SGS00MS Device Information Tap-to-Run and Automation Device Offline Notification Offline Notification Others Share Device FAQ & Feedback Add to home screen Check Device Network Check Now Device Update No updates available Disconnect Disconnect and wipe data Cancel

Figure 10 < Share Device When the device is not connected to the network, the person with whom you have shared the device may not be able to control the device. SG300MS has not been shared Device is not shared, add an account to share it Add Sharing

Figure 11 Add Sharing 800 Share with the Account 涂鸦智能 Share with Others 1 person(s) WeChat Messages Copy More

INSTRUCTIONS FOR INSTALLATION WIRING

Technical line drawings of electrical components with no visible text or symbols

Normal working conditions of the inverter: the 22-50V DC voltage of the solar panel must be connected, and the AC voltage must be connected at the same time, and the indicator light is green
Only the solar panel is connected. When the mains AC is not connected, the red light on the inverter surface is on, and the instrument and machine do not work normally

Diagram showing a device connected to two panels with a red dot and a 'No' label, plus an electrical plug below.

GT-600/800

Diagram showing a remote control device connected to a smart home circuit with power outlet and signal waves
    note right of B: ✓ yes

Normal working conditions of the inverter: the 22-50V DC voltage of the solar panel must be connected, and the AC voltage must be connected at the same time, and the indicator light is green
Only the solar panel is connected. When the mains AC is not connected, the red light on the inverter surface is on, and the instrument and machine do not work normally

Diagram showing a central device connected to four solar panels, with an electrical plug and 'No' label indicating no power connection.

GT-1200

Notatka:

Importowane do AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWO NSW 2122 Australia

Importowane do USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en E-garantiecertificaat www.vevor.com/support

MICRO-OMVORMER

MODEL: GT-600/GT-800/GT-1200

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: GT-600/GT-800/GT-1200

Two VEVOR-based electronic devices: a silver VEGS device with black connectors and a blue VEGS device with black cables and orange handle (no visible text or symbols on the devices themselves)

GT-600/GT-800 GT-1200

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WAARSCHUWING: GEVAAR VOOR ELEKTRISCHE SCHOK

Pure electrical circuit lines without any symbols

1
2

Solar panel array with a small icon showing a satellite and a tablet, no text or symbols present.

Hand holding smartphone displaying a mobile app interface with a house icon and QR code, likely for app download or scanning purposes.

123****3487 Custom Engine System

Pure electrical component outline without any text, numbers, or symbols

Make a copy file with embedded indicators and display icons. All Devices HOLDEN EASE ENI.

1

Download in mobile application: smartlife or direct code scanning

2

Register personal account

3

Restore factory settings Press and hold the red key for 5-10 seconds and release it. The blue light is flashing and the instrument is connected successfully

4

Add inverter

HOLD DOOR HOLD DOOR...

AddService Add Service Shopping Services... Add Service

Enter Wi-Fi information Choose Wi-Fi and access accounts + Wi-Fi + https://www.10.1234568 + https://www.10.1234568 + https://www.10.1234568 + https://www.10.1234568

Mobile app interface screenshot showing a login prompt with Chinese text and a small logo on the screen.

5

Further add confirmation information

6

Make sure the Bluetooth or wifi in the phone is on

7

Enter your home WIFI account information password

8

Click Next to install and modify the name and account freely

Today Sunny 11:30 31: $1 Dayset Night Night Night

9

The interface can control the system switch normally. The connection is successful

Pure electrical circuit lines without any symbols

10

10 The connection is successful, and the green light of the inverter is always on in normal operation. Occasionally flashing instrument MPPT is tracking the optimal voltage

Figure 6 < 800 Device Information > Tap-to-Run and Automation > Device Offline Notification Offline Notification Others Share Device > FAQ & Feedback > Add to home screen > Check Device Network Check Now > Device Update No updates available > Remove Device

Figure 7 < Name SG300MS > Location >

Figure 8 Rename 8001 Cancel Save Location Continuous

Figure 9 SGS00MS Device Information Tap-to-Run and Automation Device Offline Notification Offline Notification Others Share Device FAQ & Feedback Add to home screen Check Device Network Check Now Device Update No updates available Disconnect Disconnect and wipe data Cancel

Figure 10 Share Device When the device is not connected to the network, the person with whom you have shared the device may not be able to control the device. SG300MS has not been shared Device is not shared, add an account to share it Add Sharing

Figure 11 Add Sharing 800 Share with the Account 涂我智能 Share with Others 1 person(s) WeChat Messages Copy More

INSTRUCTIONS FOR INSTALLATION WIRING

Pure mechanical diagram showing a lever system with a magnified inset of a component (no text or symbols)

GT-600/800 GT-1200

Technical diagram of a mechanical or electrical component with a magnified inset showing internal components (no text or symbols present)

Pure electrical circuit lines without any symbols

GT-600/800 GT-1200

Pure electrical connector diagram without any text, numbers, or symbols

Normal working conditions of the inverter: the 22-50V DC voltage of the solar panel must be connected, and the AC voltage must be connected at the same time, and the indicator light is green

Only the solar panel is connected. When the mains AC is not connected, the red light on the inverter surface is on, and the instrument and machine do not work normally

Diagram showing a device connected to two panels with a red dot and a 'No' label, plus an electrical plug below.

GT-600/800

Diagram showing a remote control device connected to a smart home with power outlet, wireless signal, and plug connections.

Normal working conditions of the inverter: the 22-50V DC voltage of the solar panel must be connected, and the AC voltage must be connected at the same time, and the indicator light is green

Only the solar panel is connected. When the mains AC is not connected, the red light on the inverter surface is on, and the instrument and machine do not work normally

Diagram showing a central device connected to four solar panels, with a fuse and no power connection indicated.

GT-1200

Opmerking:

C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELL: GT-600/GT-800/GT-1200

Two VEVOR-based electronic modules: one white and one blue, both with black connectors and cable connectors (no visible text or symbols on the modules themselves)

GT-600/GT-800 GT-1200

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Pure electrical circuit lines without any symbols

1
2

1. @Enfas 110 V-nät Max 2 enheter eller @Enfas 230V nät

Solar panel array with a small icon showing a satellite and a tablet, no text or symbols present.

Hand holding smartphone displaying a smart home app with a QR code, alongside a mobile app interface.

123****3487 Custom Engine System

Pure electrical component outline without any text, numbers, or symbols

Make a copy file with embedded indicators and display icons. All Devices HOLDEN EASED 90%

1

Download in mobile application: smartlife or direct code scanning

2

Register personal account

3

Restore factory settings Press and hold the red key for 5-10 seconds and release it. The blue light is flashing and the instrument is connected successfully

4

Add inverter

HOLD DOOR HOLD DOOR...

AddService Add Service Shopping Services... Add Service

Enter Wi-Fi information Choose Wi-Fi and access accounts + Wi-Fi + https://www.10.1234568 + https://www.10.1234568 + https://www.10.1234568 + https://www.10.1234568

Mobile app interface screenshot showing a login page with a green logo and Chinese text '中国银行' (Bank of China) displayed.

5

Further add confirmation information

6

Make sure the Bluetooth or wifi in the phone is on

7

Enter your home WIFI account information password

8

Click Next to install and modify the name and account freely

Today Sunny 11:30 31: $1 Dayset Night Night Night

9

The interface can control the system switch normally. The connection is successful

Pure electrical circuit lines without any symbols

10

10 The connection is successful, and the green light of the inverter is always on in normal operation. Occasionally flashing instrument MPPT is tracking the optimal voltage

Figure 6 < 800 Device Information > Tap-to-Run and Automation > Device Offline Notification Offline Notification Others Share Device > FAQ & Feedback > Add to home screen > Check Device Network Check Now > Device Update No updates available > Remove Device

Figure 7 < Name SG300MS > Location >

Ta bort enhet

Figure 8 Rename 800 Cancel Save Location Continuous

Figure 9 SGS00MS Device Information Tap-to-Run and Automation Device Office Notification Offline Notification Others Share Device FAQ & Feedback Add to home screen Check Device Network Check Now Device Update No updates available Disconnect Disconnect and wipe data Cancel

Figure 10 < Share Device When the device is not connected to the network, the person with whom you have shared the device may not be able to control the device. SG300MS has not been shared Device is not shared, add an account to share it Add Sharing

Figure 11 Add Sharing 800 Share with the Account 涂鸦智能 Share with Others 1 person(s) WeChat Messages Copy More

Pure mechanical diagram showing a lever and connecting rod assembly without any text, numbers, or symbols

GT-600/800 GT-1200

Technical diagram of a mechanical or electrical component with a magnified inset showing internal components (no text or symbols present)

Pure electrical circuit lines without any symbols

GT-600/800 GT-1200

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

GT-600/800 GT-1200

Pure electrical connector diagram without any text, numbers, or symbols

Normal working conditions of the inverter: the 22-50V DC voltage of the solar panel must be connected, and the AC voltage must be connected at the same time, and the indicator light is green
Only the solar panel is connected. When the mains AC is not connected, the red light on the inverter surface is on, and the instrument and machine do not work normally

Diagram showing a device connected to two panels with a red dot and a 'No' label, plus an electrical plug below.

GT-600/800

Diagram showing a remote control device connected to a smart home circuit with power outlet and signal waves
    note right of B: ✓ yes

Normal working conditions of the inverter: the 22-50V DC voltage of the solar panel must be connected, and the AC voltage must be connected at the same time, and the indicator light is green
Only the solar panel is connected. When the mains AC is not connected, the red light on the inverter surface is on, and the instrument and machine do not work normally

Diagram showing a central device connected to four solar panels, with an electrical plug and 'No' label indicating no power connection.

GT-1200

Notera:

C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
