SGPE-3000W - Power inverter Vevor - Free user manual and instructions

Brand	Vevor
Model	SGPE-3000W
Product type	Pure sine wave power inverter
Input voltage	12 V DC
Output voltage	120 V AC (North America) / 230 V AC (Europe/Australia)
Output frequency	60 Hz (North America) / 50 Hz (Europe/Australia)
Rated power	3000 W
Surge power	6000 W
Efficiency	≥ 85%
Waveform	Pure sine wave
Protection functions	Overload, short circuit, overheat, undervoltage, overvoltage, reverse polarity
Operating temperature	-10 °C to +45 °C
Cooling	Integrated fan
Display	Optional external display (provided with the SGPE model)
Remote control	Wireless, range up to 100 m
Included accessories	Battery cables, spare fuse, remote control, external display, instruction manual
Maintenance and cleaning	Clean with a dry cloth, check connections regularly, avoid moisture
Safety	Do not reverse connections, do not connect to mains, install in a ventilated area
Repairability	Not user-repairable, contact Vevor support
Warranty	Electronic, register at www.vevor.com/support
Weight and dimensions	Not specified by manufacturer

Frequently Asked Questions - SGPE-3000W Vevor

What is the difference between the SGM and SGPE series?

The SGM models produce a modified wave, while the SGPE (including the SGPE-3000W) produce a pure sine wave, suitable for sensitive devices.

How to connect the inverter to the battery?

Connect the red cable (positive) to the battery's positive terminal and the black cable (negative) to the negative terminal. Make sure the inverter is off before connecting. Do not reverse the polarities.

What to do if the inverter has no output?

Check the load: if it exceeds the rated power, reduce it. If the thermal protection has tripped, let it cool for 15 minutes before restarting. Also check the battery voltage and fuses.

Can I use the inverter with inductive devices (motors, pumps)?

Yes, but the starting power of these devices can be 4 to 6 times their rated power. Make sure the inverter's surge power (6000 W) is sufficient.

What battery should I use?

The inverter works with a 12 V DC battery. The capacity depends on the desired runtime and the power of connected devices. Use a suitable lead-acid or lithium battery.

How to use the wireless remote control?

Unfold the remote control antenna and press button A to turn on the inverter, button B to turn it off. The range is about 100 meters. If it does not work, replace the battery (model 23A 12V).

Can the inverter be connected in parallel with another?

No, it is strictly forbidden to connect this inverter in parallel with another device. This could damage the equipment.

How to install the provided external display?

The external display connects via a dedicated cable (not provided in the manual). Refer to the panel diagram in the manual to correctly connect the display to the corresponding port on the inverter.

What to do if the fuse blows?

Turn off the inverter, disconnect it, then replace the fuse with one of the same rating. Check for any short circuit or reverse polarity before restarting.

Can I plug the inverter into a wall outlet?

No, it is strictly forbidden to connect the inverter to the mains. It is designed to convert 12 V DC to 120/230 V AC from a battery.

USER MANUAL SGPE-3000W Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

POWER INVERTER

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when you are placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

POWER INVERTER

SGPE-1000W SGM-1500W

SGPE-2000W SGM-3000W/SGPE-3000W

(The picture is for reference only, please refer to the actual object)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructi manual carefully.

This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed throu indicates that the product requires separate refuse collection i European Union. This applies to the product and all accesso marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices

INSTRUCTIONS

• Please read this manual carefully before using products.
• Thank you for choosing the power inverter we provide. We hope that our products can bring you the most satisfactory service.
• The load (appliances) power, also known as the output of the inverter, shall not be greater than the rated power, as this could lead the inverter out of v
• The load power of the appliances, also known as the output of the inverter, should not exceed the rated power, as this could cause the inverter malfunction.
• When connected with an inductive or capacitive load, the inverter power should be 4-6 times greater than the load power (i.e., 4-6 times the starting power).
• Red to positive pole, Black to negative pole, please connect it properly. Reversely connection would melt the fuse, it could work normally after replacing the fuse and connecting properly.
• Forbidden plugging the inverter in mains power.

●Product Description.

This high frequency inverter has adopted SPWM technology, and it's highly efficient and reliable. Product has passed ISO9001:2000. However, improper operation or misuse may still cause injury or loss, instruction and information provided in this manual must be followed all the time.

●Technical Parameters.

Model	SGM-1500W	SGM-3000W	SGPE-1000W	SGPE-2000W	SGPE-3000W
Output voltage North America:AC120V Europe/Australia:AC230V
Output frequency North America:60Hz Europe/Australia:50Hz
Input voltage DC12V
Loss when no load	<1.2A DC
Output wave Modified wave Sine wave
Rated power	1500W	3000W	1000W	2000W	3000W
Surge Power	3000W	6000W	2000W	4000W	6000W
Soft Start	YES
Efficiency	≥85%
AC Regulation	THD 6%(Linear Load)
Over voltage shutting	≥15.5V DC
Low voltage shutting	≤10V DC
Over temperature shutting	Greater than 80°C
Ambient temperature	-10°C --- +45°C

Note: Keep the power supply around the ventilation dry, within 1 meters must not have flammable items, strictly prevent the cause of fire.

●Protective Functions.

1. Overload protection: when overloading 125%, the inverter will send alarm, and stop working after 20 seconds.
2. Short circuit protection: When there is a short circuit in the output of the inverter, the inverter will automatically turn off the output until the short circuit problem is resolved, and the output can be restored.
3. Over-temperature protection: When the internal temperature of the inverter reaches 80°C, the red indicator light will turn on. The inverter will stop working. Once the temperature drops to an acceptable level, the inverter will automatically resume working.
4. Low voltage protection: When the battery voltage is below the set level, the inverter will sound an alarm. When the battery voltage keeps dropping to its shutdown level, the inverter will beep, and the red LED will light up. The inverter will stop working. When the battery voltage rises to its restoration level, the inverter will automatically resume working.
5. Over voltage protection: When the input voltage is higher than the set level, the inverter will stop working. When the input voltage returns to normal, it will automatically resume working.
6. Reverse connection protection: In case of reverse connection, the inverter fuse will burn out. In this case, please switch off the inverter, disconnect the power source, and replace the fuse.

Note: Reverse connection is strictly prohibited.

Installation.

1. The function of the inverter is to convert DC 12V voltage into AC 120V/230V. Before connection, please make sure the inverter is switched off.
2. When connecting the inverter to the battery, make sure that the battery voltage matches the inverter's reference voltage!
3. Connect the red cable of the inverter to the positive terminal of the battery, and connect the black cable of the inverter to the negative terminal of the battery. Do not connect the cables in reverse, otherwise the inverter fuse will burn out.
4. Turn on the inverter power switch. At this point, the green (or blue) indicator light will turn on, indicating that the inverter is working properly.
5. Please connect the loads to the AC output of the inverter. Do not overload. In case of overload, the inverter will sound an alarm and stop working. To restart the inverter, first switch it off for 5 seconds, reduce the load, and then switch it on again.

Safety precautions

The inverter has high temperature and pressure. Please read and comply with the safety code and operating instructions before using the inverter; otherwise, it could cause personal injury and equipment damage.

Warning: Our company is not responsible for any violation of safety operation and safety standards.

Different brands and sizes of batteries have different DC voltages. Please make sure the input voltage matches the battery. Please contact the manufacturer if you need more details. Because changing the configuration structure and sub-units of the system could affect performance, please contact the manufacturer before making any changes.

Immediate touching or indirect touching with humid objects can put you in danger.

The inverters are designed, manufactured, and tested according to safety standards. However, as electrical and electronic products, they must be installed, operated, and maintained strictly in accordance with the following safety instructions:

1. Reverse connection between the inverter and battery is strictly prohibited; it will burn the fuse of the inverter.
2. Please double-check that the battery voltage matches the inverter input DC voltage. Mismatched connections between the inverter and battery can cause serious damage.
3. Double-check that the connections are correct and ensure they are tight and secure.
4. Do not extend the inverter power cable.
5. When the inverter is not in use, switch it off and disconnect it from the system.
6. Avoid contact with any foreign objects or fluids. Do not touch the inverter with a wet hand. Keep the product away from children. Avoid using it in dusty, high temperature areas. Do not use this product in a flammable and combustible area.
7. Install the product in a well-ventilated place. Avoid using this product on or near hot objects such as electrical heaters, etc. Do not cover the inverter. Avoid direct sunshine, moisture, and water.
8. This inverter cannot be connected in parallel.
9. It is strictly prohibited to connect this product to the city grid.
10. Do not try to repair the inverter. Once the inverter is opened, the warranty is void.

Troubleshooting.

When there is no output, please check the following:

1. Excessive use of electrical appliances, too heavy load. Solution: Reduce electrical appliances. The total power of the electrical appliances used should be less than the inverter's rated power.
2. Overheat protection. Workaround: Reduce load, cool down, and restart after 15 minutes. (In summer, when the temperature is high or heat dissipation conditions are poor, the total power of electrical appliances used should be appropriately reduced.)
3. After the fuse blows, a fuse of the same capacity must be used as a replacement.
4. Make sure that the cable connecting the battery is firmly and securely connected.
5. Low battery voltage; please charge the battery.
6. Battery exhausted: Please change the battery. The battery can become exhausted over the years.

●Random Accessories.

Products are carefully tested and inspected prior to shipment, but it is still possible to receive damage in transit. Please carefully check the equipment upon installation. If there is any damage, contact the distributor in time.

1. Battery connection cable * 2 2. A copy of the product instruction manual * 1 3. A copy of the car spare fuse:

SGM-1500W * 6

SGM-3000W * 10

SGPE-1000W * 4

SGPE-2000W * 6

SGPE-3000W * 10

1. External screen set (Only the models listed are available):

SGPE-1000W/SGPE-2000W/SGPE-3000W *1

- Panel diagram.

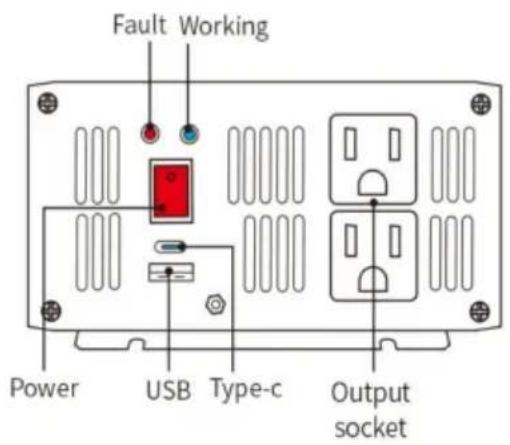

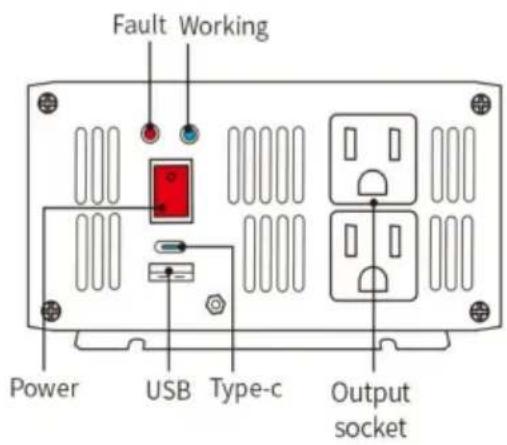

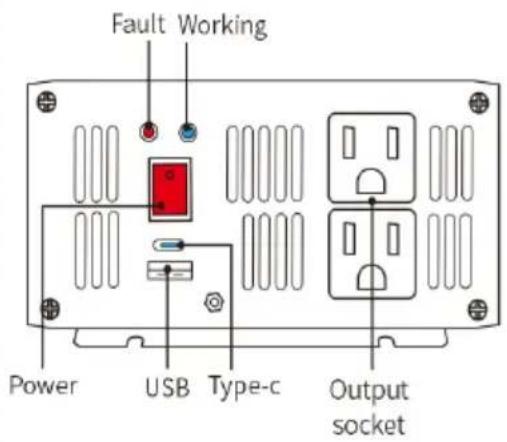

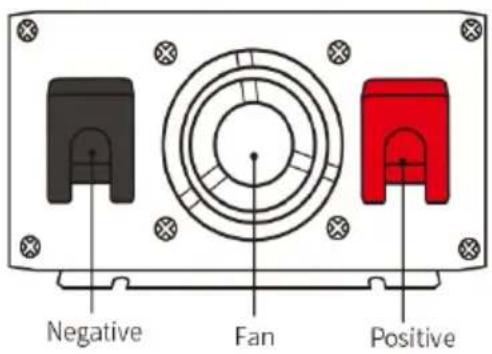

1. 1000W

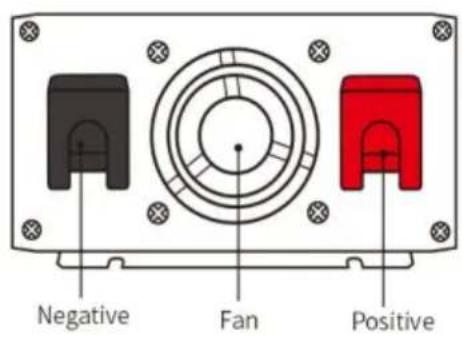

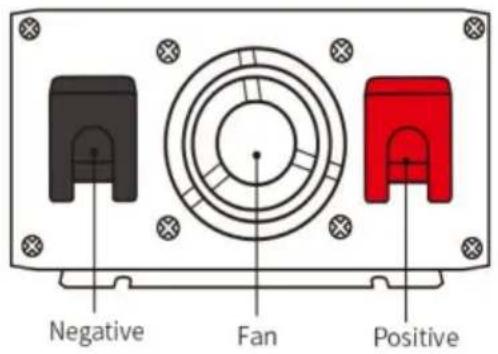

Side panel introduction

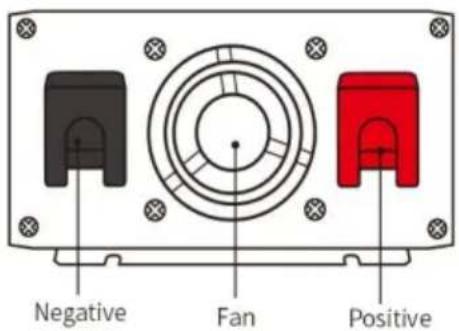

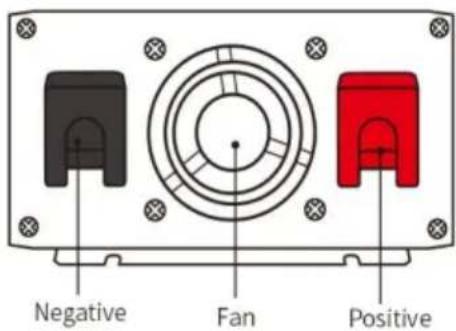

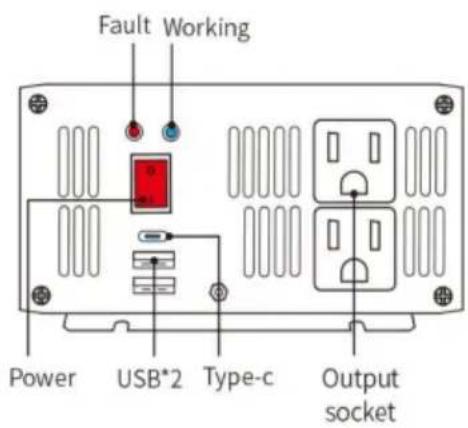

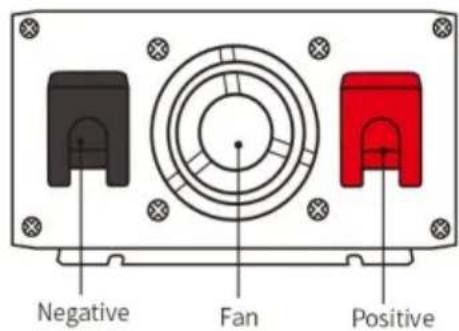

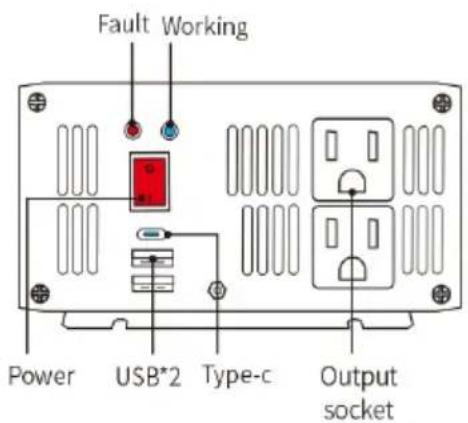

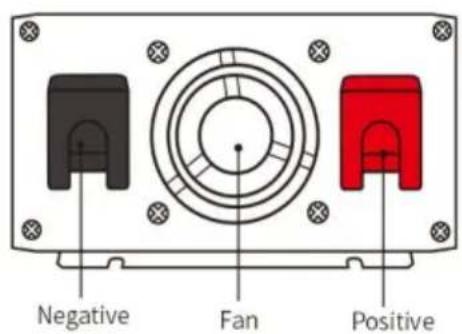

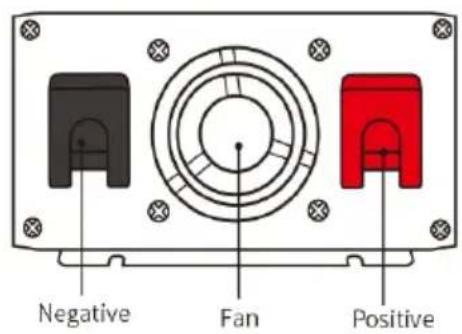

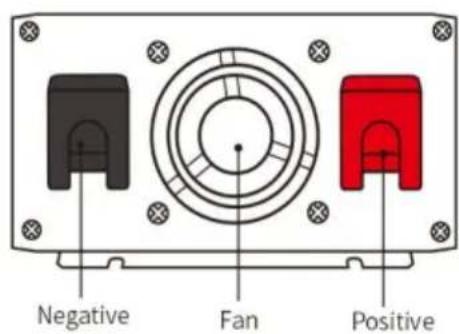

2. 1500W

Side panel introduction

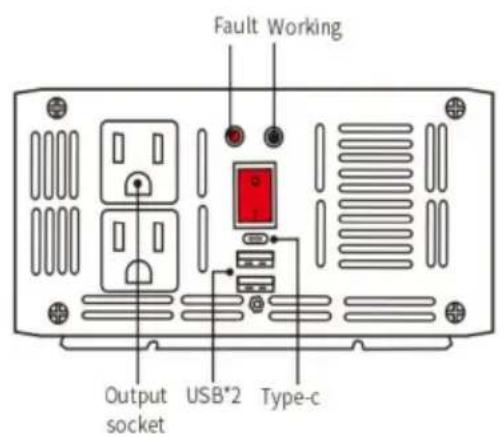

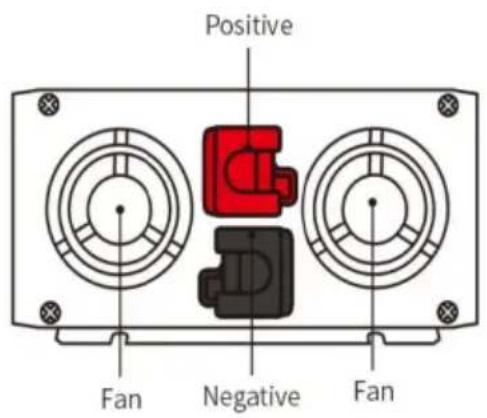

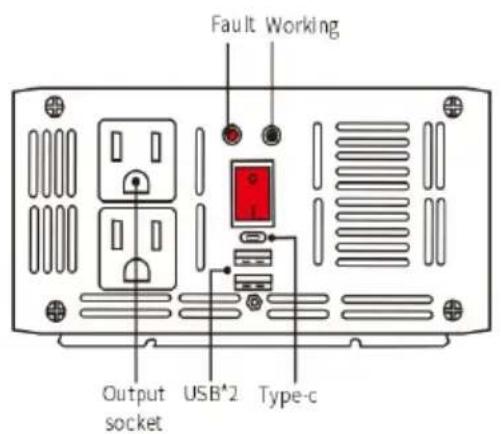

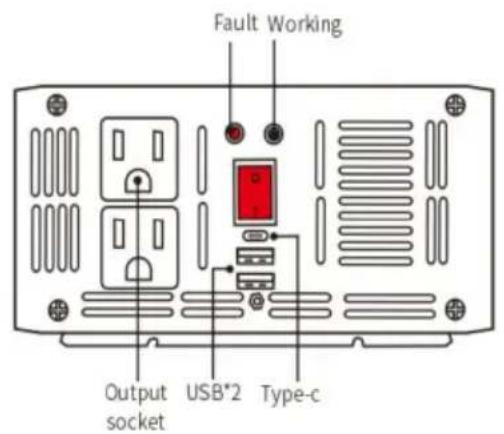

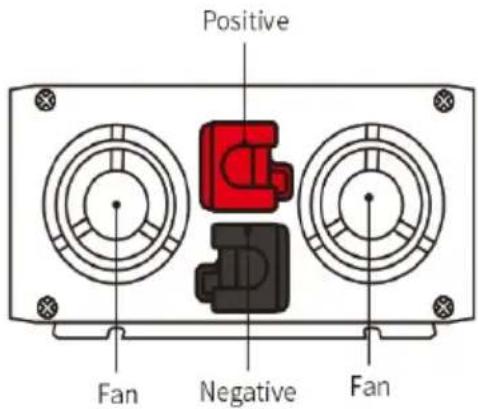

3. 2000W

Side panel introduction

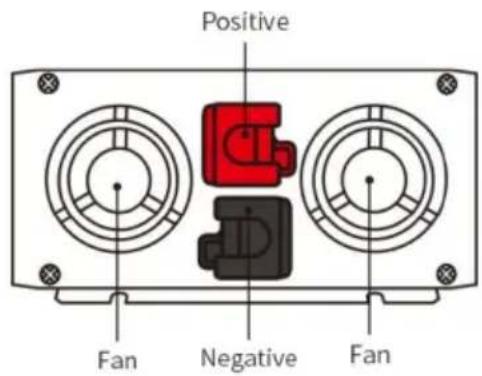

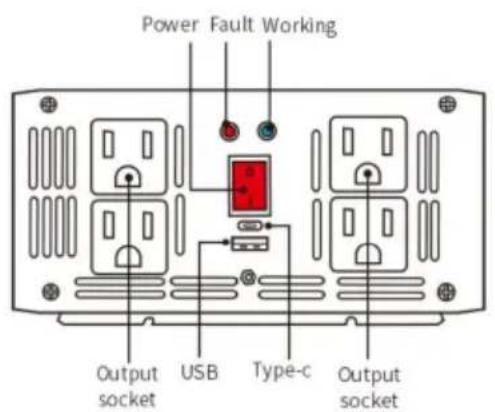

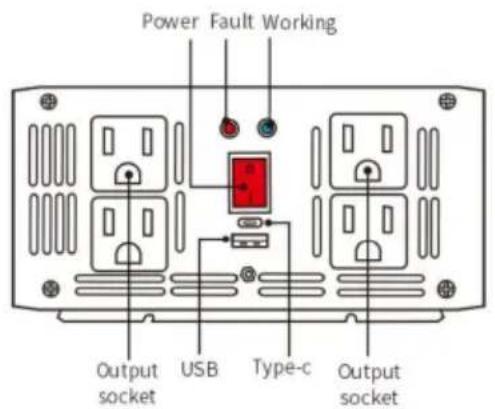

4. 3000W

Side panel introduction

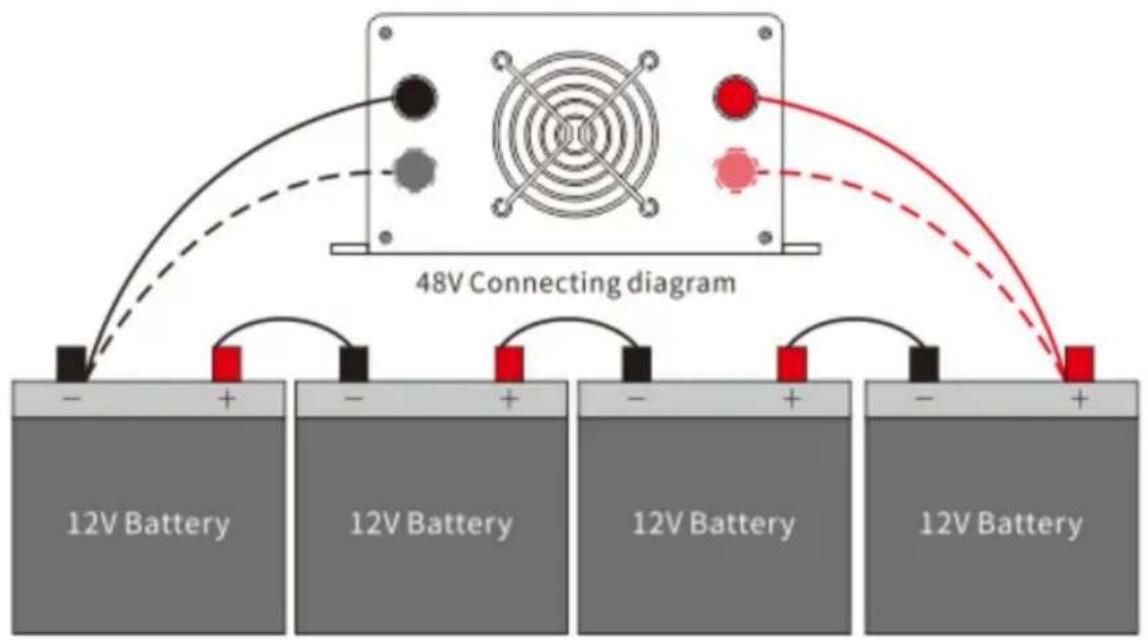

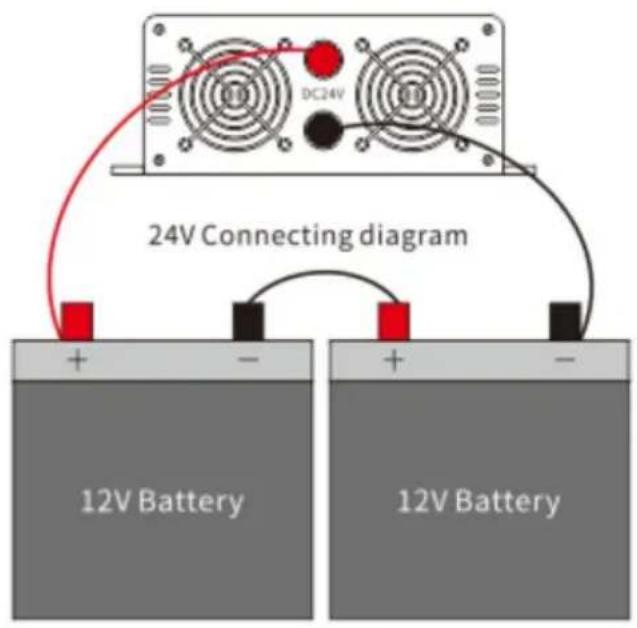

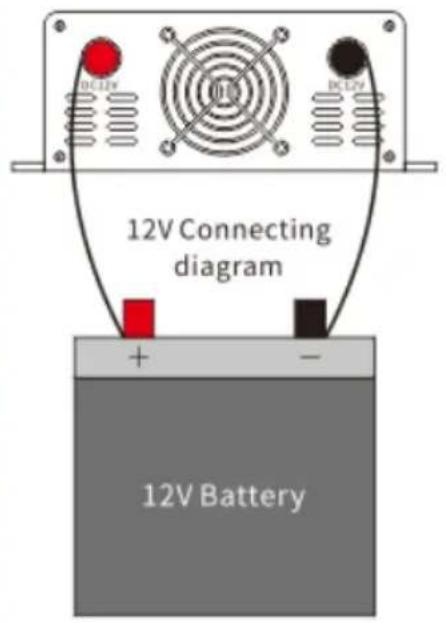

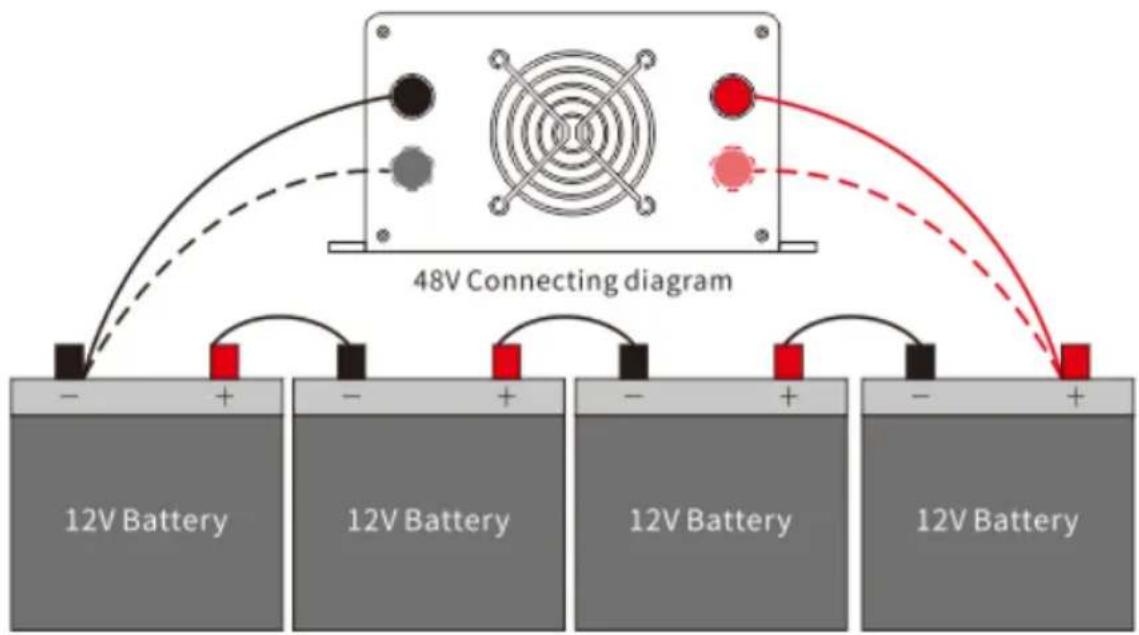

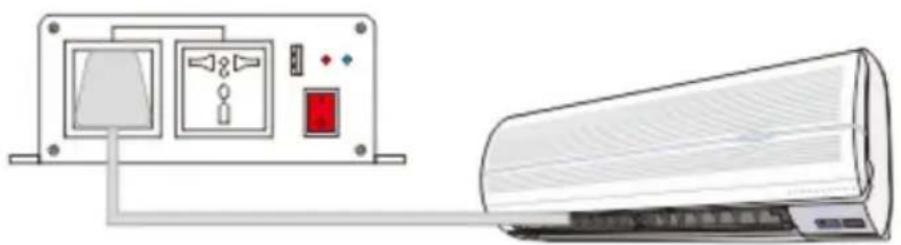

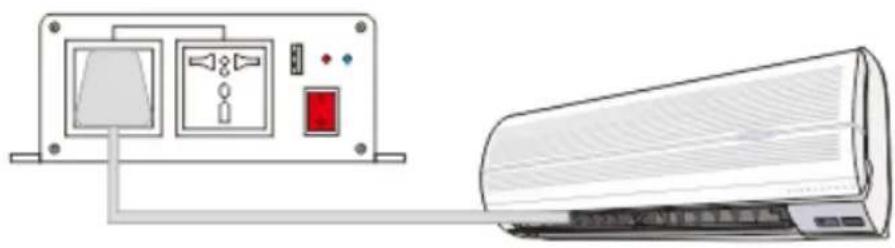

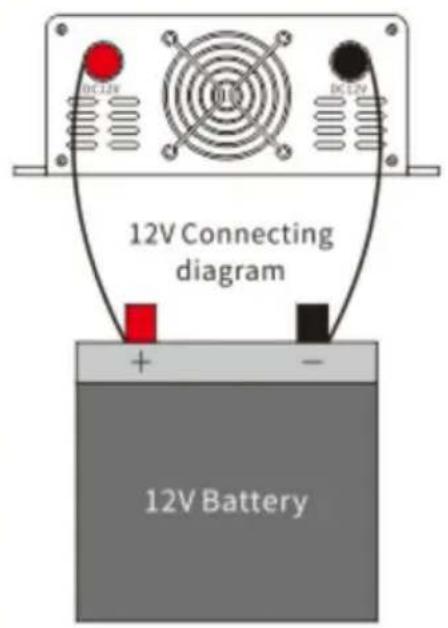

3. Connecting diagram

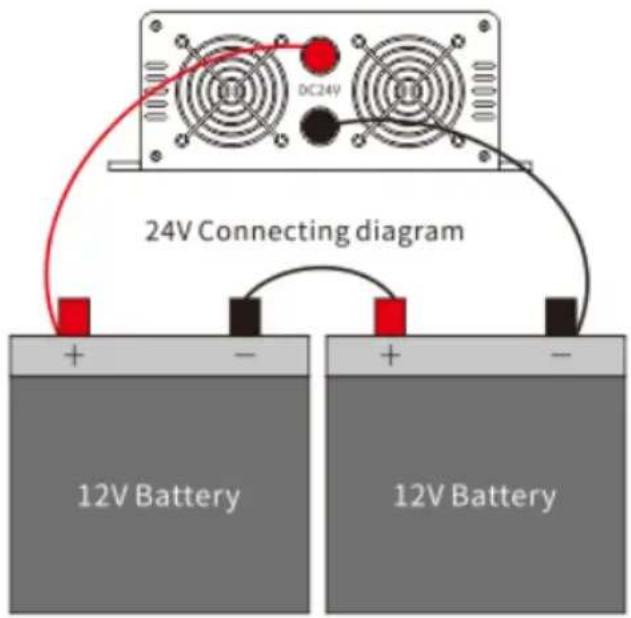

Connecting diagram

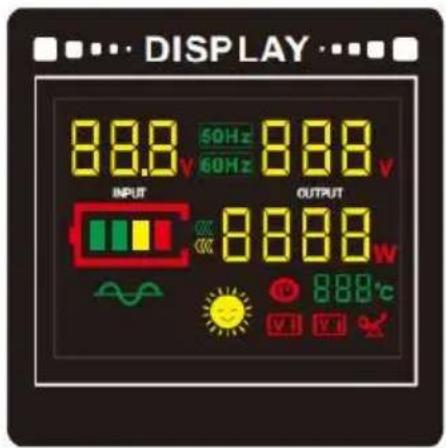

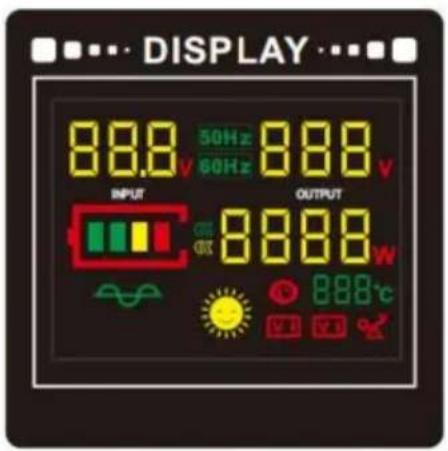

● Display screen

Input voltage

Working temperature

AC output voltage

Low voltage protection

Loads power

Over voltage protection

Battery level

Over temperature protection

Frequency

Overload protection

●Instructions for use of the wireless remote control.

The inverter can be switched on and off remotely via a wireless remote control.

Retract the antenna, pull out all the antennas when in use, and push the antenna when not in use.

Press A to turn on the inverter output.

Button B turns off the inverter output.

Note:

The recommended distance for remote control is 100 meters or less. Please stretch out all the antennas of the remote control during use!

When the remote control does not work, replace the battery inside the remote control.

The internal battery model is: 23A 12V.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical assistance and warranty certificate

SGM-3000W/SGPE-3000W

Side panel introduction

2. 1500 W

Side panel introduction

3. 2000W

Side panel introduction

4. 3000W

Side panel introduction

Display screen

Input voltage

Working temperature

AC output voltage

Low voltage protection

Loads power

Over voltage protection

Battery level

Over temperature protection

Frequency

Overload protection

C/O YH Consulting Limited Bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

WECHSELRICHTER

MODELL: SGM-1500W/SGM-3000W

SGPE-1000W/SGPE-2000W/SGPE-3000W

SGM-3000W/SGPE-3000W

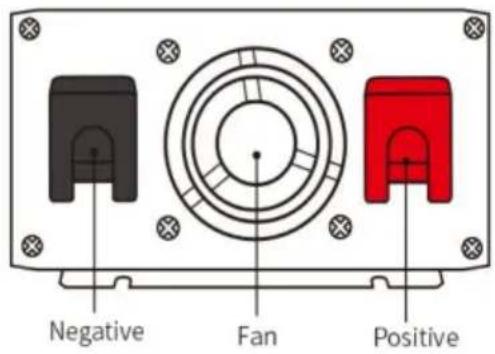

Side panel introduction
