SGPE-2000W - Power inverter Vevor - Free user manual and instructions

Brand	Vevor
Model	SGPE-2000W
Product type	Modified sine wave power inverter
Rated power	2000 W
Surge power	4000 W
Output voltage	AC 230 V (Europe/Australia)
Output frequency	50 Hz
Input voltage	DC 12 V
Output wave	Modified sine wave
Efficiency	≥ 85%
No load loss	1.2 A DC
Voltage regulation (THD)	< 6 % (linear load)
Soft start	Yes
Overload protection	Shutdown at 125% after 20s
Short circuit protection	Yes
Overheat protection	Shutdown at >80°C
Low voltage protection	Alarm at ≤10V DC, auto shutdown
Over voltage protection	Shutdown at ≥15.5V DC
Reverse connection protection	Built-in fuse
Wireless remote control	Yes, range ≤100m
Remote control battery	23A 12V
Operating temperature	-10°C to +45°C
Included accessories	Battery cables, spare fuse, manual, remote control
Certification	ISO 9001:2000

Frequently Asked Questions - SGPE-2000W Vevor

How to connect the inverter to the battery?

Connect the red cable to the battery's positive (+) terminal and the black cable to the negative (-) terminal. Ensure the battery voltage matches 12V. Reversing the cables will blow the fuse.

What is the maximum power the inverter can handle?

The rated power is 2000W, with a maximum surge power of 4000W. Do not exceed the rated power for continuous use.

The inverter sounds an alarm and shuts down, what should I do?

This may be due to overload, overheating, or low battery voltage. Reduce the load, let it cool down, or recharge the battery. The inverter will automatically restart once the condition is corrected.

Can I use the inverter with inductive loads (motor, compressor)?

Yes, but the inverter power must be 4 to 6 times the appliance's rated power to handle the startup current.

How to use the wireless remote control?

Unfold the remote control antenna. Press button A to turn on the output, and button B to turn it off. Maximum range is 100 meters in open space.

What to do if the inverter fuse blows?

Unplug the inverter, replace the fuse with a fuse of the same rating (6 pieces provided for SGPE-2000W). Check connections are correct before powering on.

Can the inverter be connected to mains power?

No, it is strictly forbidden to connect the inverter to the household electrical grid. This would damage the device and pose a danger.

How to clean and maintain the inverter?

Unplug the device before any maintenance. Clean with a dry cloth, avoid water and solvents. Ensure adequate ventilation and keep it away from humidity and dust.

Can I repair the inverter myself?

No, do not attempt to repair the inverter yourself. Any opening voids the warranty. Contact Vevor technical support via www.vevor.com/support.

What to do if the remote control stops working?

Replace the internal battery (model 23A 12V). Ensure the antenna is unfolded and you are within 100 meters.

USER MANUAL SGPE-2000W Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

POWER INVERTER

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

POWER INVERTER

SGPE-1000W SGM-1500W

Exterior view of a black BEVOR industrial power supply unit (no visible text or symbols on body)

SGPE-2000W SGM-3000W/SGPE-3000W

(The picture is for reference only, please refer to the actual object)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructi manual carefully.

This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed throu indicates that the product requires separate refuse collection i European Union. This applies to the product and all accesso marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices

INSTRUCTIONS

• Please read this manual carefully before using products.

• Thank you for choosing the power inverter we provide. We hope that our products can bring you the most satisfactory service.

• The load (appliances) power aka the output of inverter shall not be greater than the rated power, which could lead the inverter out of v

• The load power of the appliances, also known as the output of the inverter, should not exceed the rated power, as this could cause the invert malfunction.

• When connected with an inductive or capacitive load, the inverter power should be 4-6 times greater than the load power (aka 4-6 times the startir power).
• Red to positive pole, Black to negative pole, please connect it properly. Reversely connection would melt the fuse, it could work normally after replace the fuse and connecting properly.
• Forbidden plugging the inverter in mains power.

●Product Description.

This high frequency inverter has adopted SPWM technology, and it's highly efficient and reliable. Product has passed ISO9001:2000. However, improper operation or misuse may still cause injury or loss, instruction and information provided in this manual must be followed all the time.

●Technical Parameters.

Model	SGM-1500W	SGM-3000W	SGPE-1000W	SGPE-2000W	SGPE-3000W
Output voltage North America:AC120V Europe/Australia:AC230V
Output frequency North America:60Hz Europe/Australia:50Hz
Input voltage DC12V
Loss when no load	<1.2A DC
Output wave Modified wave Sine wave
Rated power	1500W	3000W	1000W	2000W	3000W
Surge Power	3000W	6000W	2000W	4000W	6000W
Soft Start	YES
Efficiency	≥85%
AC Regulation	THD 6%(Linear Load)
Over voltage shutting	≥15.5V DC
Low voltage shutting	≤10V DC
Over temperature shutting	Greater than 80°C
Ambient temperature	-10°C --- +45°C

Note: Keep the power supply around the ventilation dry, within 1 meters must not have flammable items, strictly prevent the cause of fire.

●Protective Functions.

1. Overload protection: when overloading 125%, the inverter will send alarm, and stop working after 20 seconds.

2. Short circuit protection: When there is a short circuit in the output of the inverter, the inverter will automatically turn off the output until the short circuit problem is resolved, and the output can be restored.

3. Over-temperature protection: when the inside temperature of the inverter reaches 80^ C, the RED indication light will be on. The inverter will stop w once the temperature drops to accepted level, the inverter will automatically resume working.

4. Low voltage protection: when the battery voltage is below the setting level, the inverter will send alarm by beeping. When the battery voltage ke dropping to its shutting level, the inverter will beep, and the RED LED will inverter will stop working, when the battery voltage is increased to its resta level, inverter will automatically resume working.
5. Over voltage protection: when the input voltage is higher than the setting level, the inverter will stop working, when the input voltage is normal, it was automatically resume working.
6. Reverse connection protection: once there is reverse connection, the inverter fuse will be burnt. In this case, please switch off the inverter, disc the power source, change the fuse.

Note: REVERSE CONNECT IS STRICTLY PROHIBITED.

●Installation.

1. The function of inverter is to convert the DC 12V voltage into AC120V/230V, before connection, please make sure the inverter is switched
2. When connecting the inverter to the battery, make sure that the battery voltage is consistent with the inverter reference voltage! ! !
3. Connect the Red cable of the inverter to the Positive pole of battery, Connect the Black cable of the inverter to the Negative pole of battery. Do connect the cable reversely, otherwise the inverter fuse will be burnt.
4. Turn on the inverter power switch, at which point the green (blue) indicator light is on, indicating that the inverter is working properly.
5. Please connect the loads to the AC output of the inverter, please do not overload. In the case of overloading, the inverter will send alarm and stop working. To restart the inverter, please first switch off the inverter for 5 se reduce the load, and switch on again.

SAFETY PRECAUTION

●The inverter inter has high temperature and pressure. Please read the comply with the safe code and operating instruction before using inverter, c would cause personal injury and equipment damaged.

●Warning: our company do not respond on any violate safety operation and the standard of security.

●Different brands and size batteries have different DC voltage. Please make sure the input of voltage is matching with the battery. Please contact manufacturer if you need more details.Because of changing the configuration structure and sub-unit of system would effect on property. Please contact manufacturer before executing this.

- Immediate touching or humid things indirect touching would bring you in Danger.

●The inverters are designed, manufactured and tested as per safety standards. However, as an electrical and electric product, it must be installed, operate and maintained strictly according to the related safety instructions as follows:

1. Reverse connection between the inverter and battery is strictly prohibited, it will burn the fuse of the inverter.

2. Please double check if the voltage of the battery matches the inverter input DC voltage, mismatch connection between the inverter and battery car cause serious damage.

3. Double check if the connections are correct, make sure the connections are tight and firm.

4. Do not extend the inverter power cable.

5. When the inverter is not in use, please switch it off and disconnect inverter from the system.

6. Avoid contact with any foreign objects or fluids. Do not touch the inverter with a wet hand. Keep the product away from children. Avoid using it in dusty, high temperature areas. Do not use this product in a flammable and combustible area.

7. Install the product in well ventilated place, avoid using this product on or nearby hot objects such as electrical heaters, etc. Do not cover the inverter avoid direct sunshine, moisture, and water.

8. This inverter can not be parallel connected.

9. It's strictly prohibited to connect this product to the city grid.
10. Do not try to repair the inverter, Once the inverter is opened, warranty void.

●Troubleshooting.

When there is no output, please check the following:

1. Excessive use of electrical appliances, too heavy load. Solution: Reduce electrical appliances, the use of electrical total power should be less than the inverter rated power.
2. Overheat protection. WORKAROUND: Reduce load cooling and restart after 15 minutes. (Summer temperature is high or the heat dissipation conditions are poor, should be appropriately reduced the use of the total p of electrical appliances.)
3. After the fuse blows, the fuse of the same capacity must be replaced.
4. Make sure that the cable connecting the battery is firmly and securely connected.
5. Low voltage of battery; please charge the battery.
6. Battery exhausted: Please change battery, battery can be exhausted over the years.

●Random Accessories.

Products are carefully tested and inspected prior to shipment, but it is still possible to receive damage in transit, please carefully check the equipment by installation. If there is any damage, contact the distributor in time.

1. Battery connection cable * 2
   2.A copy of the product instruction manual * 1
   3.A copy of the car spare fuse:

SGM-1500W * 6

SGM-3000W * 10

SGPE-1000W * 4

SGPE-2000W * 6

SGPE-3000W * 10

1. External screen set (Only the models listed are available):

SGPE-1000W/SGPE-2000W/SGPE-3000W *1

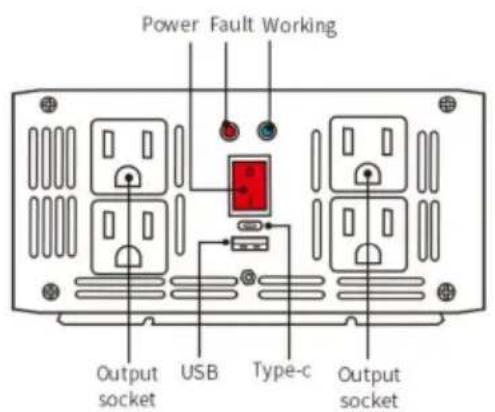

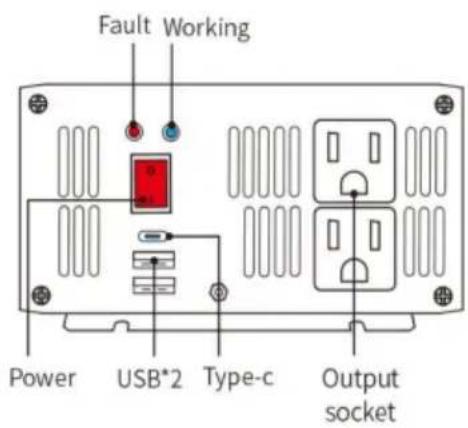

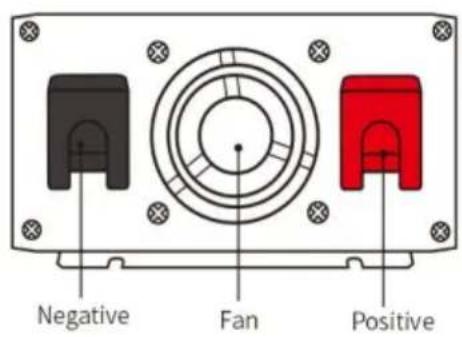

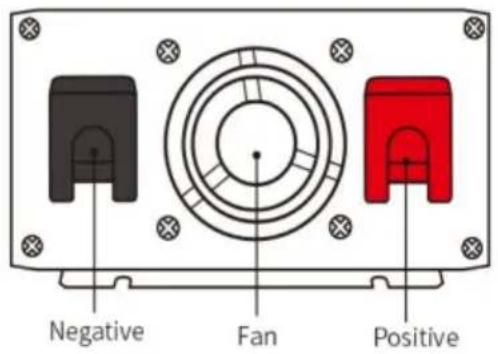

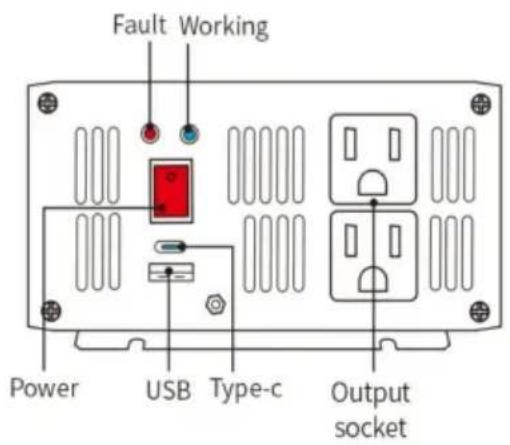

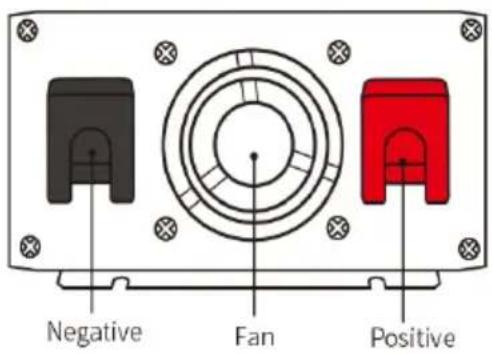

- Panel diagram.

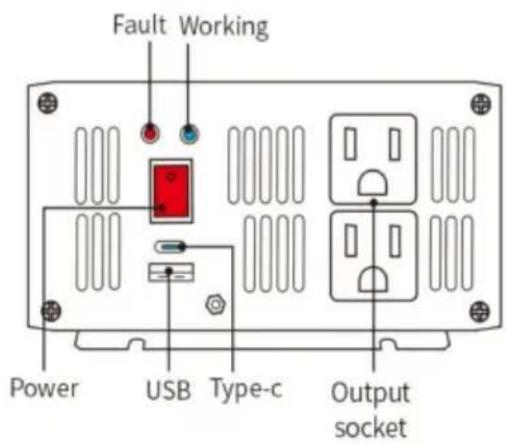

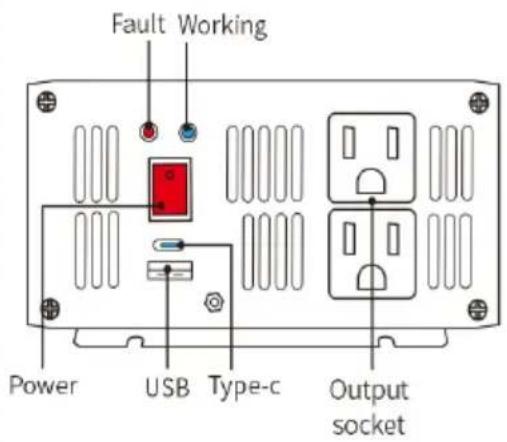

1. 1000W

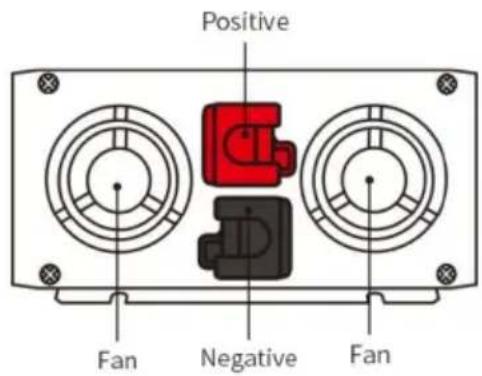

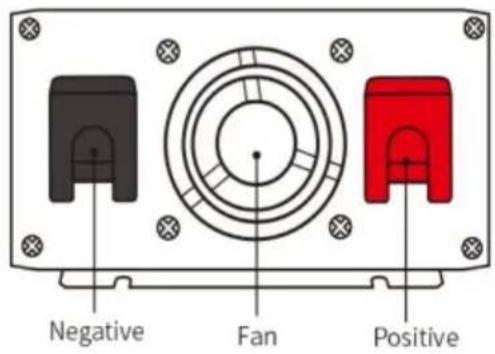

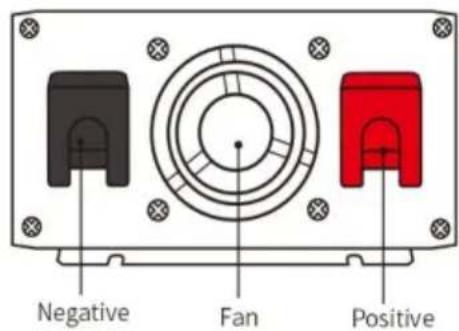

Side panel introduction

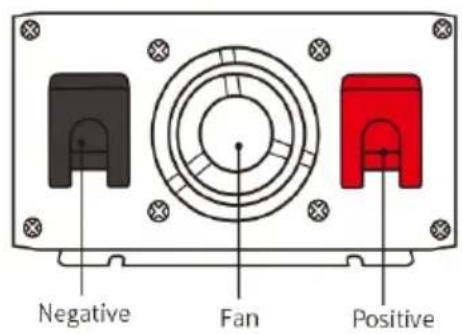

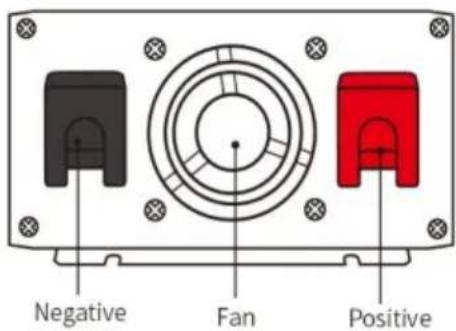

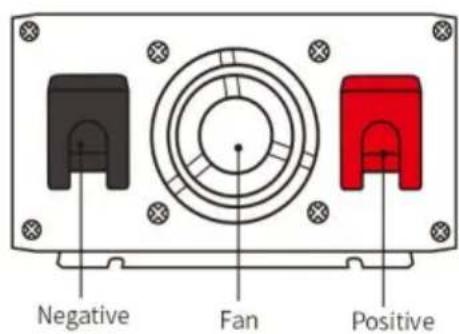

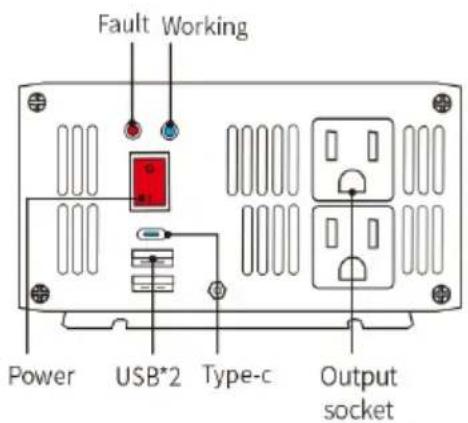

2. 1500W

Side panel introduction

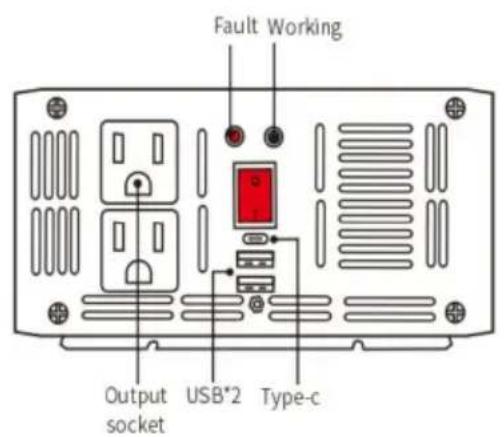

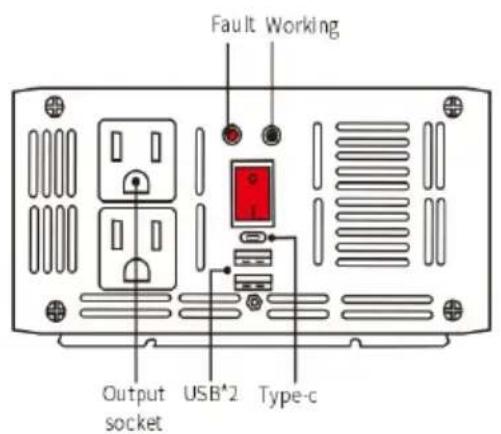

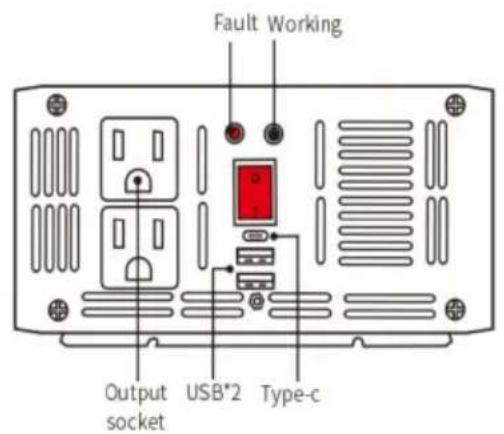

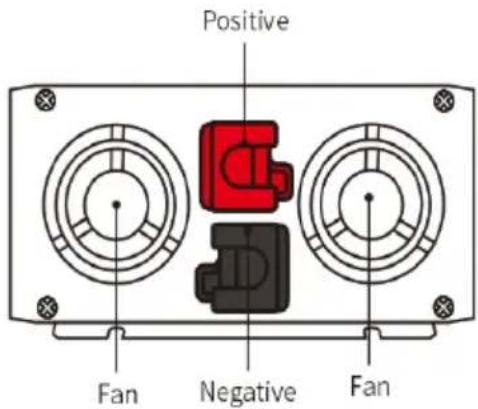

3. 2000W

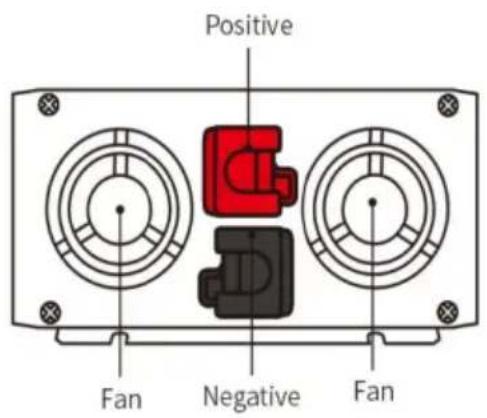

Side panel introduction

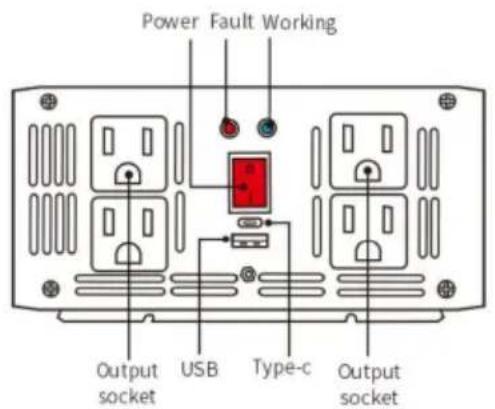

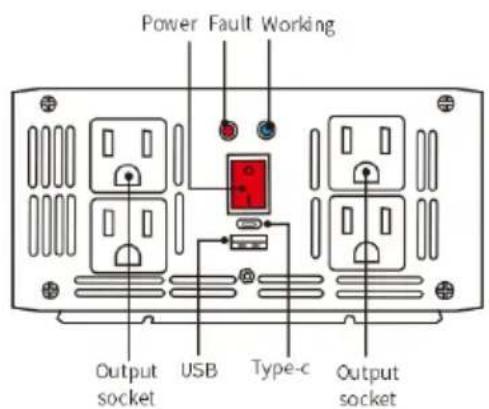

4.3000W

Side panel introduction

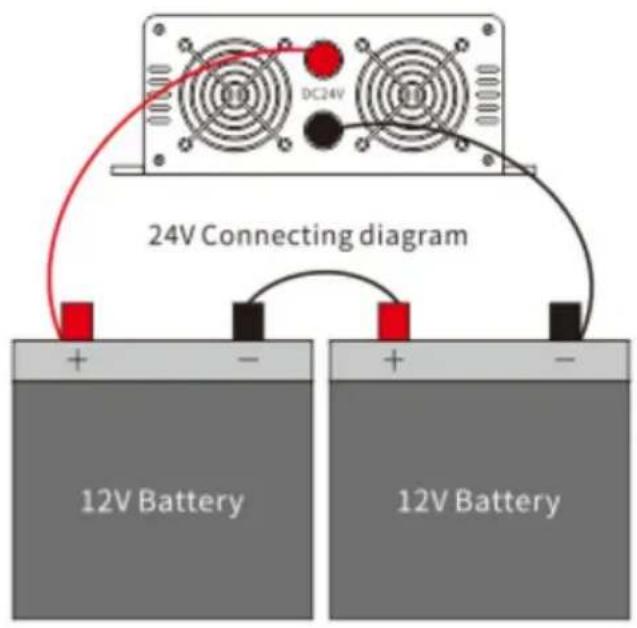

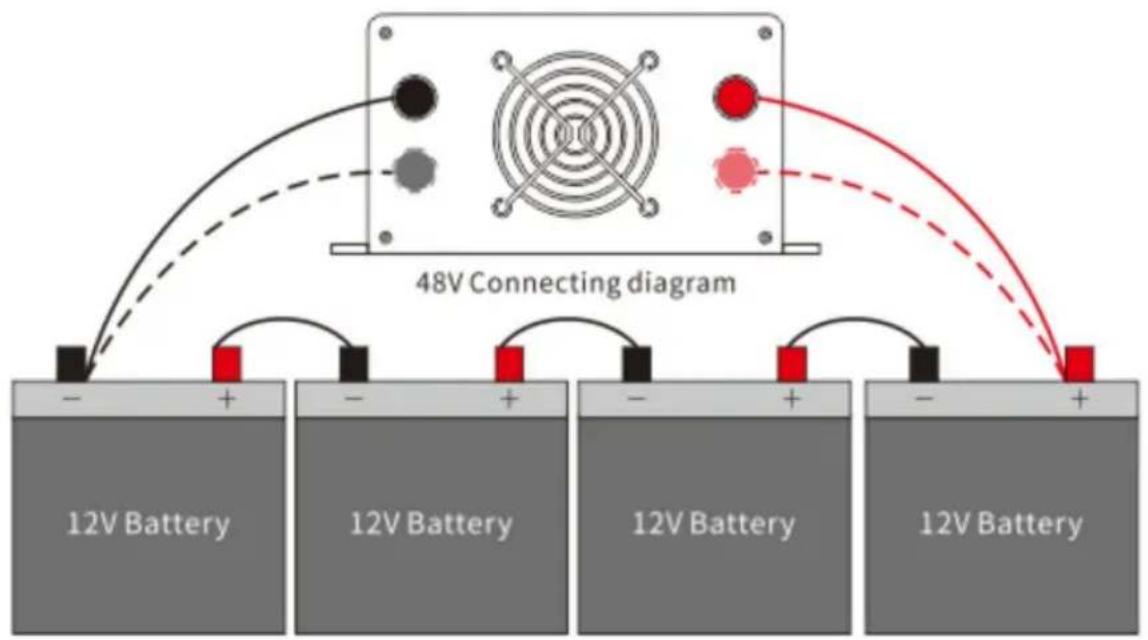

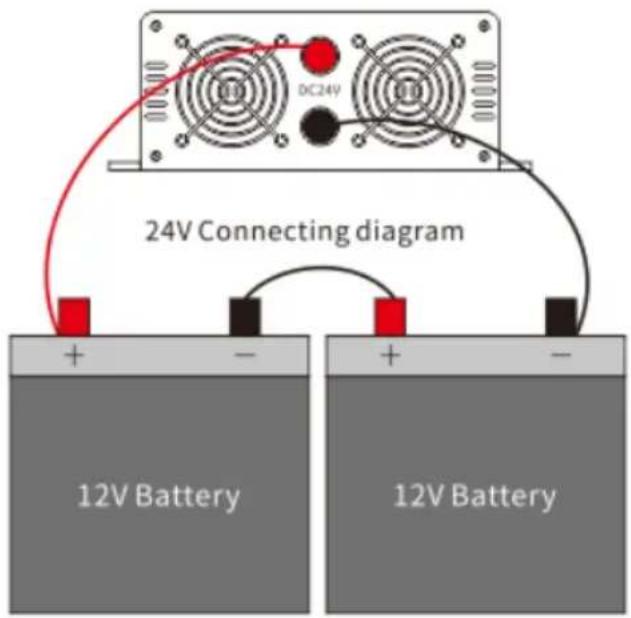

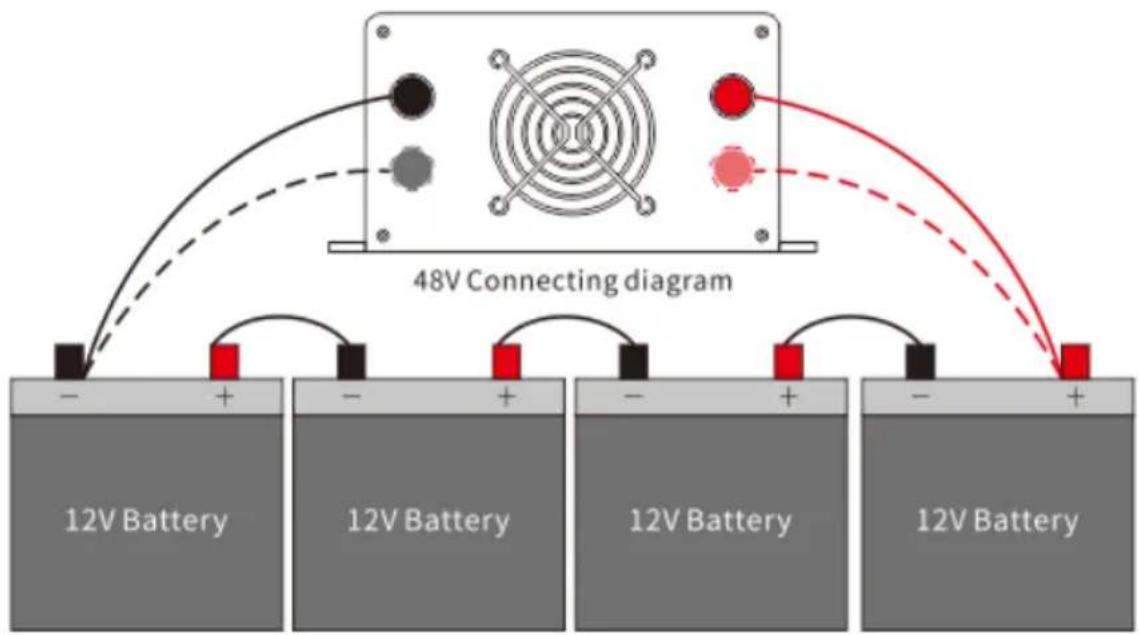

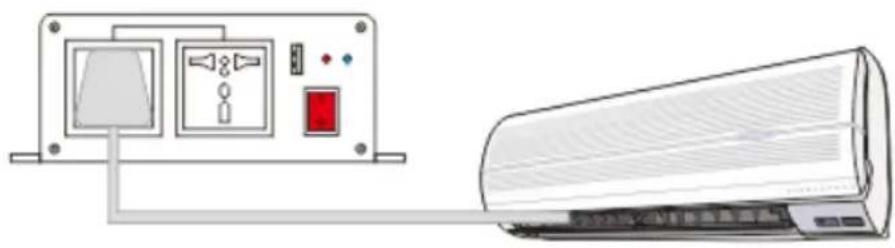

3. Connecting diagram

Connecting diagram

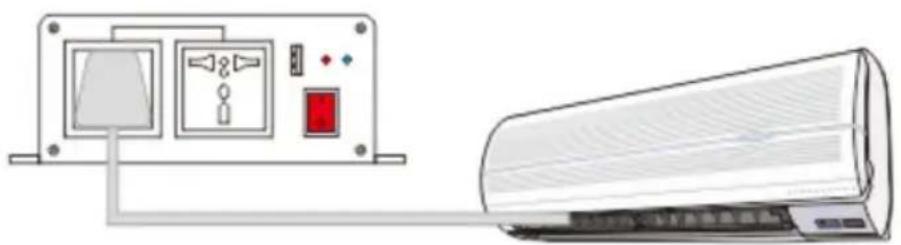

Diagram of an air conditioner unit connected to a wall-mounted air conditioner unit (no text or symbols present)

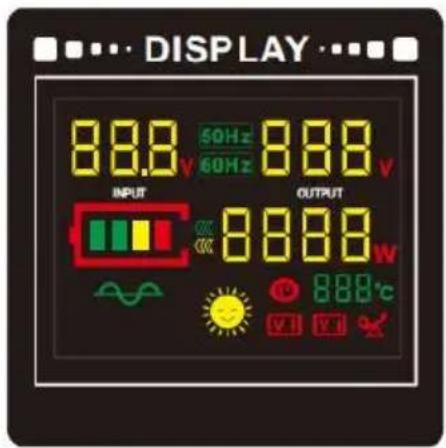

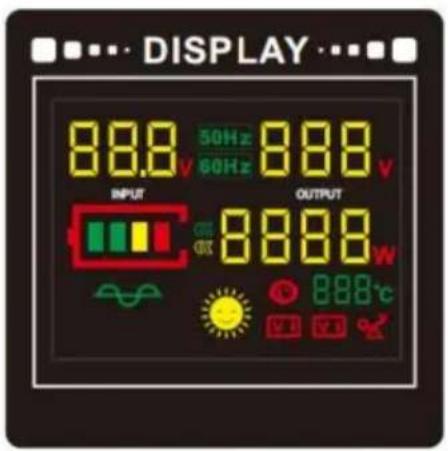

●display screen

Input voltage

AC output voltage

Loads power

Battery level

Frequency

Working temperature

Low voltage protection

Over voltage protection

Over temperature protection

Overload protection

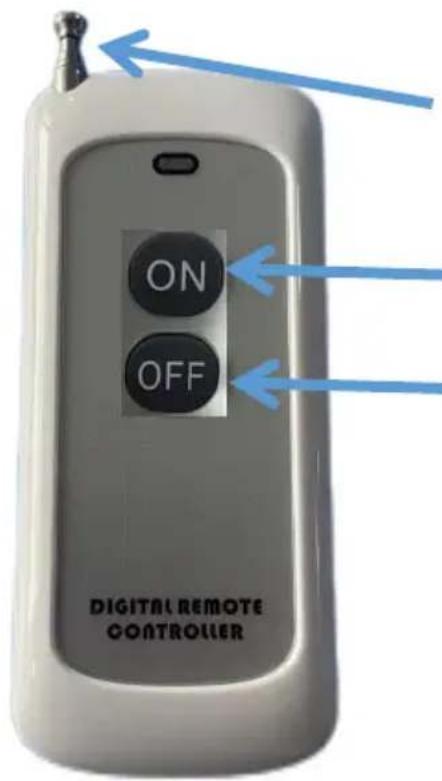

●Instructions for use of the wireless remote control.

The inverter can be switched on and off remotely via a wireless remote co

Retract the antenna, pull out all the antennas whe in use, and push the antenna when not in use.

Press A to turn on the inverter output

- Button B turns off the inverter output

Note:

The recommended distance for remote control is 100 meters or less, please stretch out all the antennas of the remote control during use!

When the remote control does not work, replace the battery inside the rem control.

The internal battery model is: 23A 12V

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4
