USER MANUAL K2E01008 Vevor
DOG GROOMING TUB
MODEL: K2E01008 / K2E01009
MODEL: K2E01008 / K2E01009
This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
IMPORTANT SAFEGUARDS
WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.
- Avoid children using grooming tub. And this product is not a toy.
Do not allow children to play.
- Keep away from sharp points, blades and other items.
- Please wipe the cylinder dry with a cloth after use to extend the life. Assembly precautions
- Assemble only according to these instructions. Improper assembly can create hazards.
- Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
- Keep assembly area clean and well-lit.
- Keep bystanders out of the area during assembly.
- Do not assemble when tired or when under the influence of alcohol, drugs, or medication.
- Product capabilities apply to properly and completely assembled products only.
- For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area. Please keep small spare parts out of children's reach.
SAVE THESE INSTRUCTIONS
Warning! Products are only used for pet bathing.
PREPARATIONS BEFORE INSTALLATION
1. Recommended Tools:
Phillips screwdriver, M4 wrench, spirit level.
2. Necessary safety equipment:
Gloves, goggles.
Caution: Before installing the product, wear gloves and goggles to avoid possible physical damage during installation.
INSTRUCTIONS
Thank you very much for choosing this pet bathtub. Please read all instructions before using it. The information will help you achieve the best possible results.
Parts List:
| | | |
| 1 pc | 1 pc | 1 pc | 1 pc |
| 1: Bottom bracket | 2: Tub | 3: Right side panel | 4: Left side panel |
| | | |
| 1 pc | 2 pcs | 1 pc | 1 pc |
| 5: Door
(Already Installed to the tub) | 6-1: Small Plastic Floo
Grate
6-2: Big Plastic Floor
Grate | 7: Back pane | 8: Faucet switc |
| | W | C |
| 1 pc | 1 pc | 1 pc | 2 pcs (600mm) |
| 9: Storage | 10: Shower | 11: Shower | 12: Inlet pipe |
| basket | head | hose | |
| 13-1
13-2 | | | |
| 1 pc | 4 pcs
(M4*16mm) | 4 pcs (M4) | 2 pcs |
| 13: Strainer
13-1: Drain Pipe
13-2: Transparent
Cover | 14: Screw | 15: Hex flange nut | 16: Nut |
| | | |
| 1 pc | 1 pc | 6 pcs | 2 pcs |
| 17: Shower bracket | 18: Comb | 19: Adjustable foot | 20: Sling |
| | | |
| 2 pcs | 20 pcs
(M6*16mm) | 6 pcs
(M8*16mm) | 1 pair |
| 21: Play ball | 22: Screw | 23: Screw | 24: Plastic Gloves |
| | | |
| 2 pcs | 1 pc | 3 pcs |
| 25: Washer | 26: Crossbar | 27: Stair board |
Installation steps
| | 30-1
30-3
30-2 | |
| 2 pcs | 1 pc | 1 set | 1 pc |
| 28: Nut | 29: Sealing tap | 30: Base
30-1: Down Base
30-2: Up Base
30-3: Anti-slip Mat | 31: Wrench |
| | | |
| 2 pcs | 12 pcs
(M6*35mm) | 1 pair | 1 pc |
| 32-1: Left Ladder
Rod | 33: Screw | 34: Nylon
Gloves | 35: Wiper |
| 32-2:Right Ladder
Rod |
| | | |
| 4 pcs
(M8*20mm) | 1 pc | 2 pcs |
| 36: Screw | 37: Scouring
pad | 38: Adapter
(G1/2 to NPT9/16 |
| 19
1 | ① Install the adjustable feet to H rack.
Caution: Ensure that the depth adjustable feet is not less than 12mm and try to make the foot adjustable feet screw in the sa depth. Please tighten the spare nut during the installation and adjust it later. |
| Left Door Bracket | Right Door Bracket |
| ② Flip the bottom bracket, adjust the height of the feet to m height of water outlet side is 1-2 degrees lower than the other spirit level to show) |
| ③ Use screw to fix the botto bracket and tub |
| ① Install the strainer, Ensure the sealing ring is free of dislocation and wrinkles.
Caution: When installing, please pay attention to whether the sealing ring is placed correctly, avoid water leakage due to incorrect seal installation. And check whether the transparent cover of the drain is tightened. |
| ② Use screw to fix the left a right sideboard, then use screw fix the back panel, last to use screw to fix side board and b board |
| ③ Install the bottom rack to water filter plate |
| ⑦ Install door and put the wat filter plate to the tub | ⑧ Use screw to fix the stair b and ladder rod, then install the adjustable feet on the bottom of the ladder rod.
Caution: Ensure that the depth adjustable feet is not less than 12mm and try to make the two adjustable feet screw in the sa depth. and tighten the spare n during the installation. |
| ⑨ Install the stairs into the chassis rails | ⑨ Install the stairs into the chassis rails |

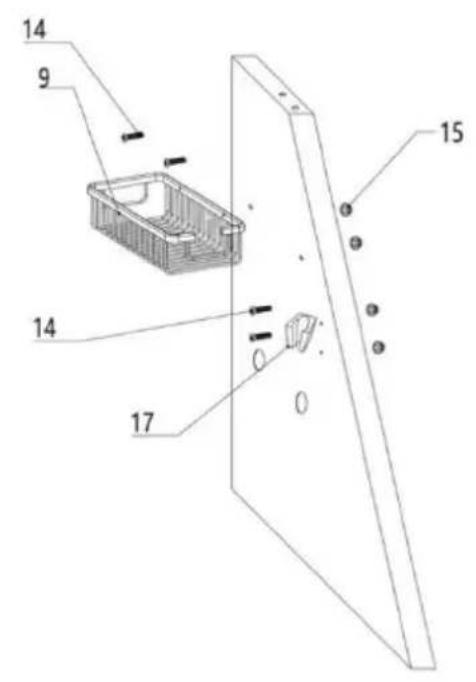

10 Use screw and hex flange install the storage basket and shower bracket to the right-side panel

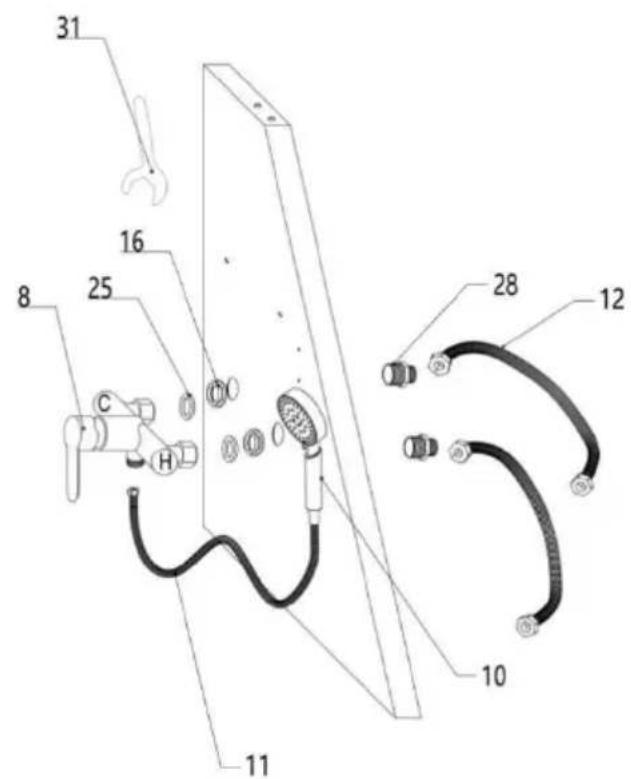

⑪ Install hot and cold shower switch and water inlet.
Caution: Before you do this, make sure that your water source is on the left or right side of the bathtub, and select the direction of installation of the tap switch.
Step1: Pass straight all-copper connector through side panel (1/2"end facing outside), screw nut into the other end of the connector and use wrench screw down.
Step2: Align the faucet switch with the connector, then tighten nuts on the switch, and note that the sealing ring inside the Step3: Connect the hose at the water inlet end and the shower hose at the faucet outlet. Also, when tightening the nut, pay attention to the sealing ring inside the nut is intact. Step4: The other end of the hose is connected to the water source, pay attention to the hot and cold water mark on the faucet switch, represents hot water, and connect the hose on this side to the source, while the other side is connected to the cold, also pay to whether the seal ring inside the hose end nut is intact. Caution: The inlet hose is only 600mm long, if you want to be able to purchase it separately (Caliber:20mm) Caution: Optional use of sealing tape when installing the nut. I make the installation more sealed and help prevent water leaka joint. Caution: Please determine whether to install adapter according to actual water pipe specifications.

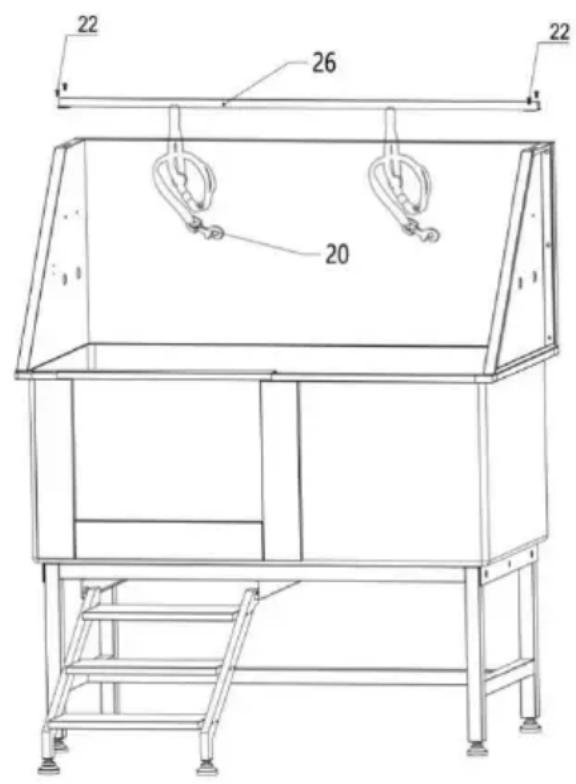

⑬ Use screw to fix the cross the left and right-side panel, then install the sling

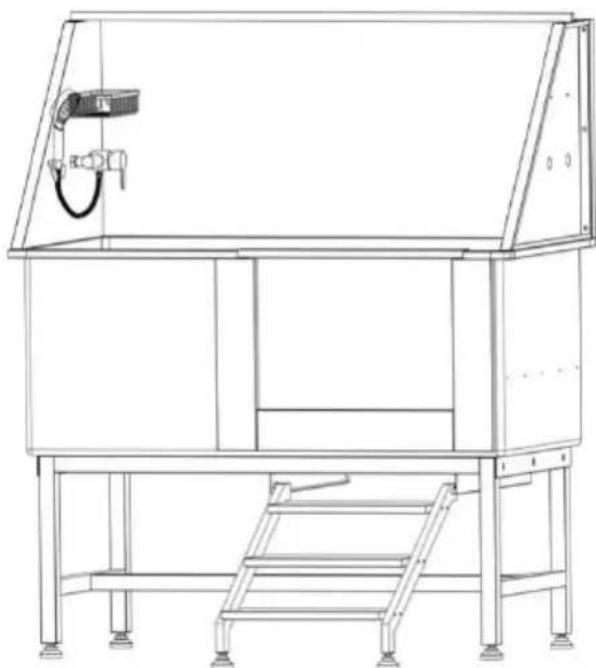

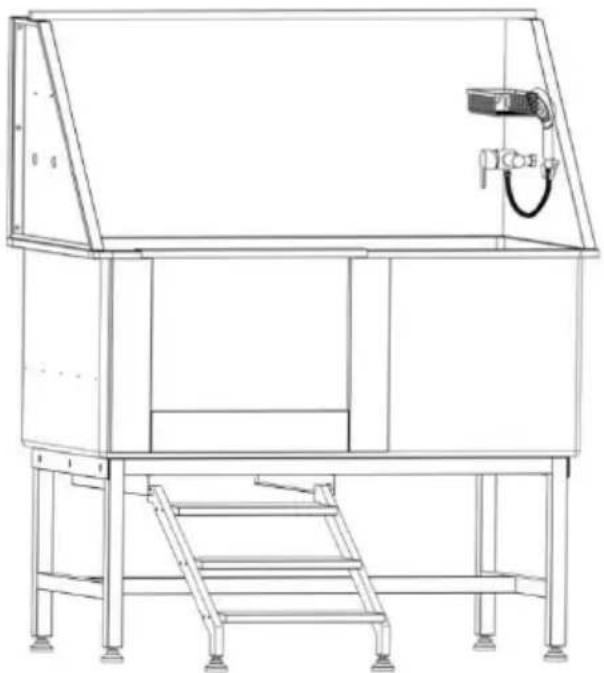

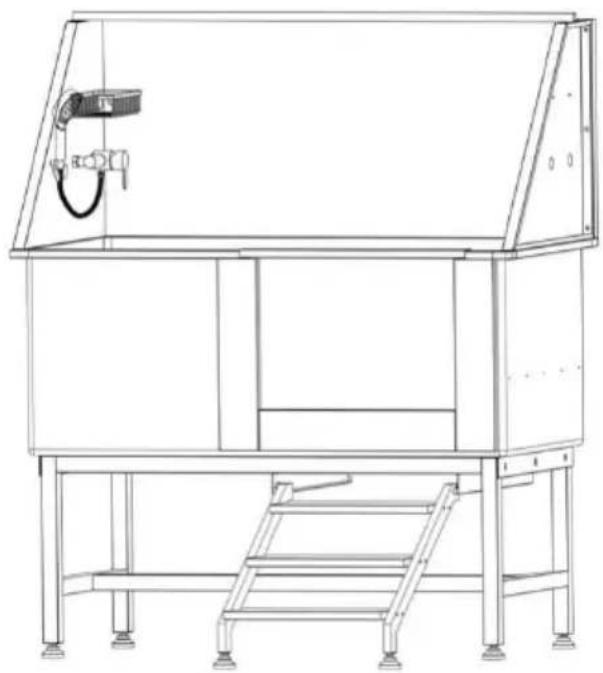

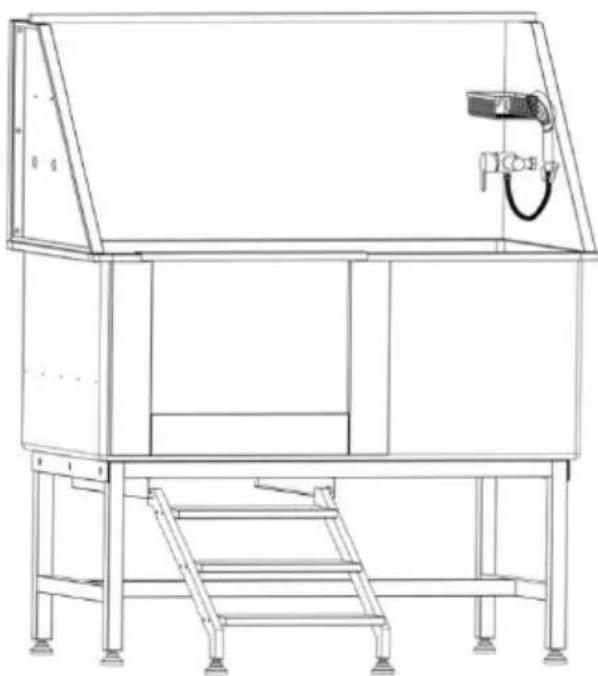

Left Door
Right Door

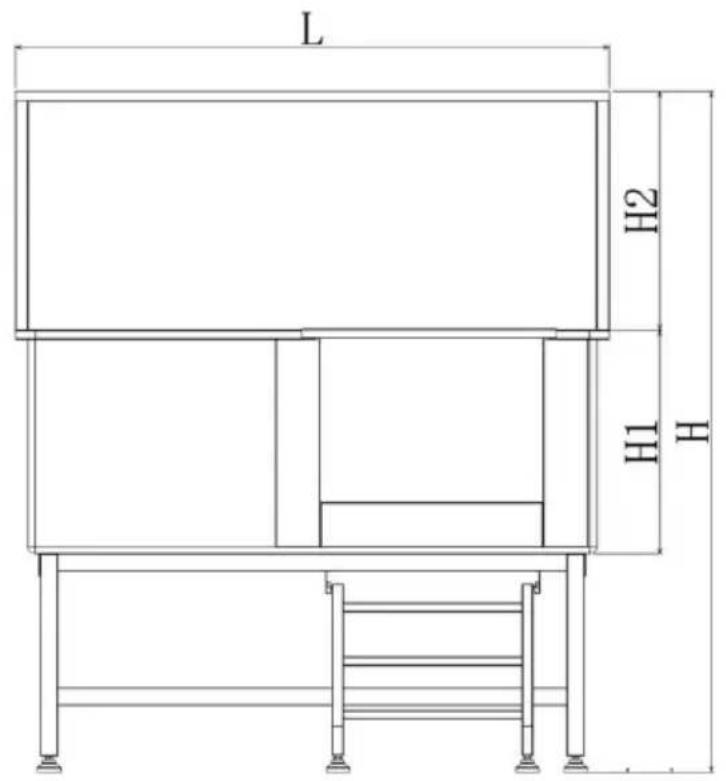

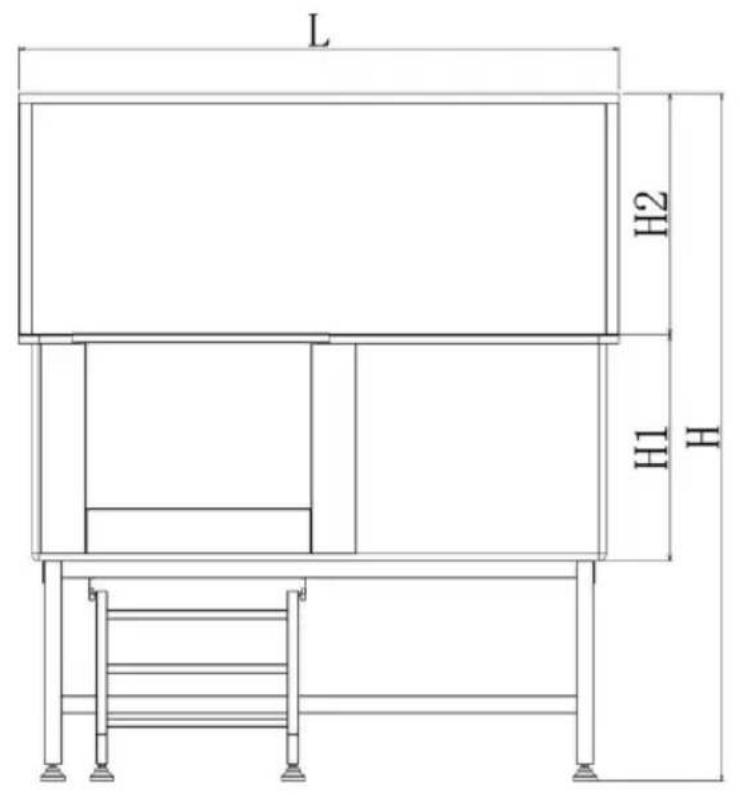

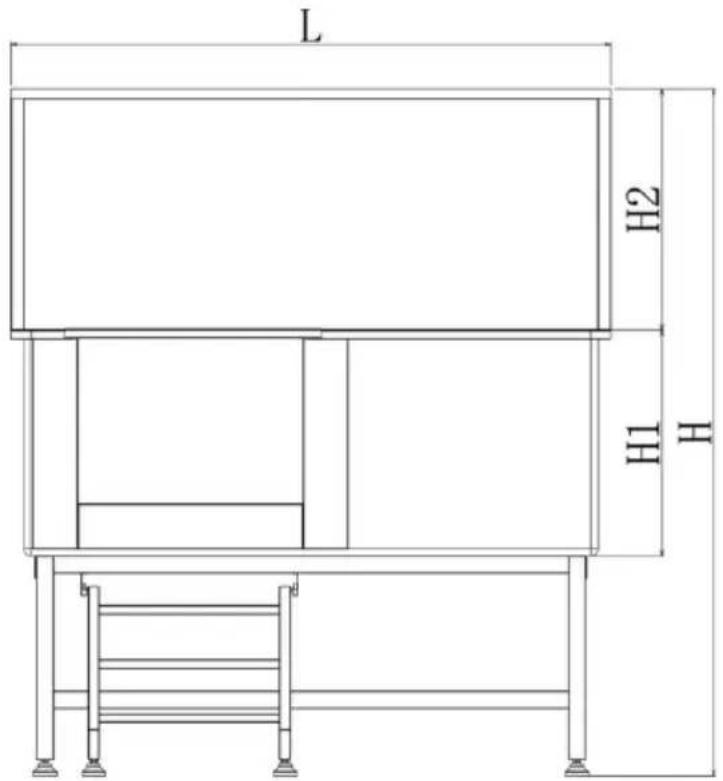

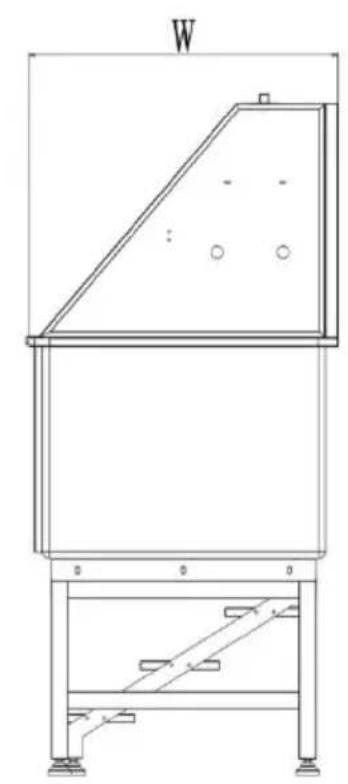

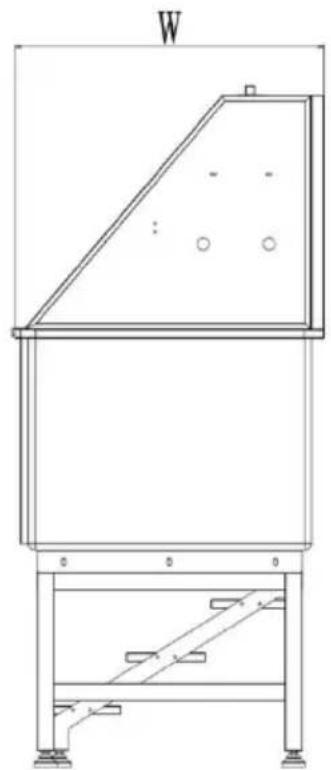

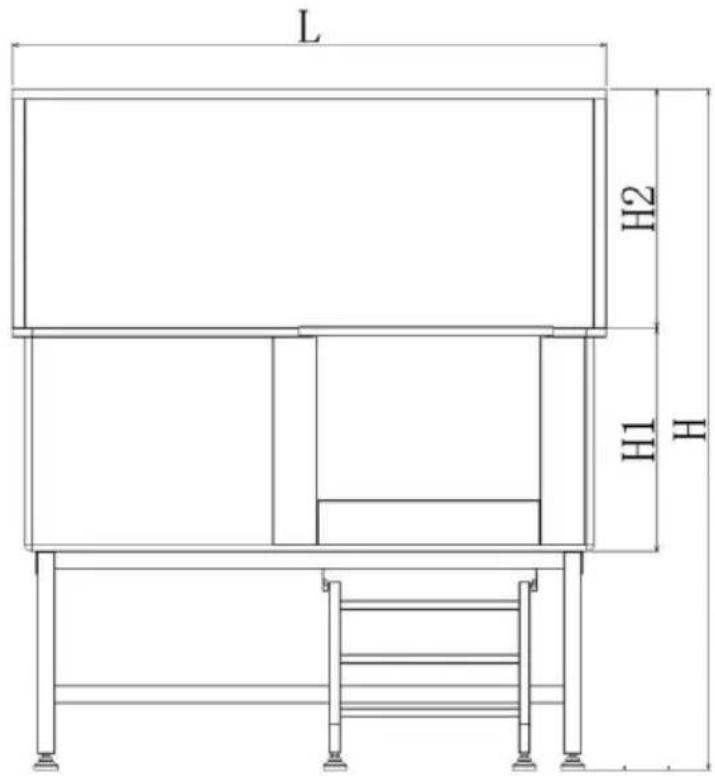

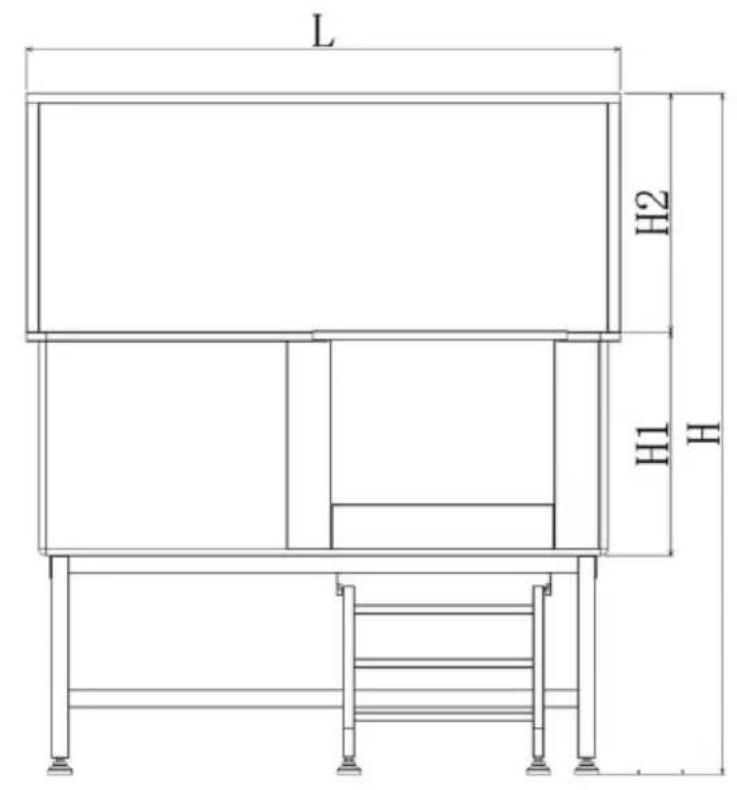

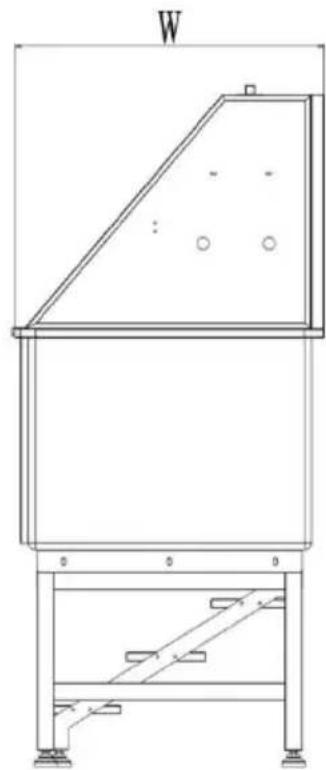

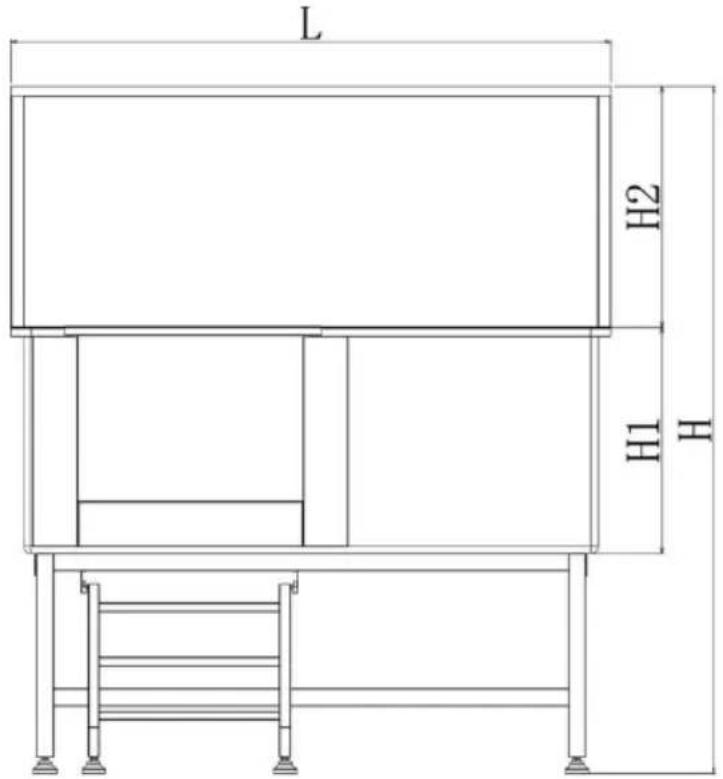

| Model# | L(mm) | H(mm) | H1(mm) | H2(mm) | W(mm) | N.W. (kg) |
| K2E01009 | 1270 | 1491 | 500 | 480 | 700 | 51 |
| K2E01008 | 1270 | 1491 | 500 | 480 | 700 | 51 |
| Model# | Volume (CBM) | Loading Capacity (Ibs) | Recommended pet (in) |
| K2E01009 | 0.75 | 330 | L×W×H:48×25×40 |
| K2E01008 | 0.75 | 330 | L×W×H:48×25×40 |
OPERATION
1.Make sure the water pipe connection is complete and the water is normally. (Connect the hot and cold water pipes according to the hot cold water signs of the faucet switch).
"C": Cold water; "H": Hot water
2.Pull out the stairs and open the door, let the pet walk into the ba itself or hold the pet inside the tub by yourself, then close the door. 3.Start to bath. 4.After the bath, let the water out of the tub and take the animal o 5.Clean the tub with a cloth.
MAINTENANCE
- In between use, the tub should be cleaned with a soft cloth or sponge using a mild cleaning agent. 2. Pay attention to regularly clean the hair from the drain to avoid clogging.

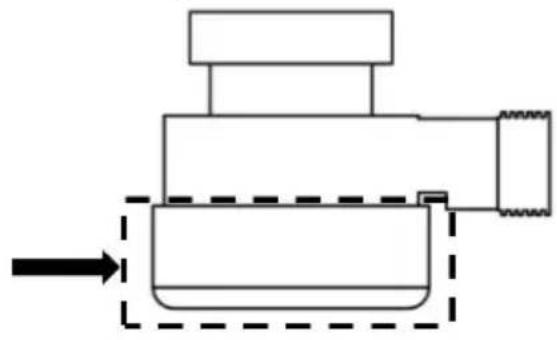

- Please clean the transparent cover of the drain regularly. After
disassembly like a nut, it can be easily cleaned, and be careful not to lose the seal ring when installing it back.
CARE INSTRUCTIONS
Don't put the bathtub on an uneven surface.
Don't drop or mistreat the bathtub.
Don't overload the scale. This will permanently damage it!
COMMON MALFUNCTIONS
If the faucet leaks, please check whether the waterproof rubber plug is installed. If it is damaged, it needs to be replaced in time.
Warning
General Safety Instructions
- Improper installation and/or operation may result in property damage or injury to yourself or your pet. Follow the instructions carefully and contact customer service or a local contractor if any point is confusing, too difficult for you to do on your own, or requires special modification for your situation. Keep these instructions for future reference. Provide them to anyone who will use this device and provide them with this device if it is ever bought or sold to a third party.
- ONLY use this bathtub for its intended purpose, bathing medium-size
pets such as cats and dogs.
- DO NOT use it with pets that exceed this product's weight capacity, whose predisposition becomes violent upon contact with water, or whose physiological features preclude safe regular bathing (e.g., chinchilla rat).
- NEVER use this bathtub for humans, especially children, or allow them to play on or with it.
DO NOT run or allow others to run in the area around this bathtub, allow children or pets to stay under the tub. Restrict access to the area as necessary.
- Ensure all components and fasteners are intact and securely tightened before use. Do not operate this bathtub if any part is damaged or shows signs of malfunction. Repair or replace problematic components before further use. NEVER replace any parts with non-identical ones.
- Consult a veterinarian before use if your pet may have an illness or condition such as skin allergies that might be worsened by bathing. Use only in compliance with the veterinarian's recommendations (e.g., using specially medicated shampoos).
- Be mindful of your pet's mood while using this bathtub. If unwillingness is unavoidable, take precautions to prevent the pet from harming you, themselves, or others during bathing.
Provide a reward afterward.
- NEVER load this bathtub with more than 286 pounds (130 kg).
Particularly for larger animals, be careful to prevent them from jumping or moving in a way that causes violent impacts, as this might exceed the capacity.
DO NOT leave this bathtub unattended during use.
Electrical Safety Instructions
- Ensure all electrical outlets and exposed electrical connections around are at least 10 feet (3 m) away from this bathtub or fully protected from possible splashing during bathing. DO NOT use any chargers or extension cords closer than this distance without similar protection.
- Electrical devices such as electrical transformers, televisions, lights, and
telephones should be at least 6'7" (2 m) away from this bathtub. In particular, never bring a charging cell phone near the bathtub and do not allow any electrical device to be placed or used in such a way that it could fall into the water under any circumstance.
- For extra safety, install this bathtub at least 6'7" (2 m) away from conductive metal surfaces to reduce the risk of electric shock from splashing water. Any metal surface closer than this should be permanently bonded to a dedicated terminal box with a solid copper conductor at gauge (3.3 m) thick.
Water Safety Instructions
- ONLY install this bathtub on firm, level, and nonslip surfaces that can support its weight while filled with your pet and water. The surfaces must be impervious to damage from moisture and the surrounding area must be able to handle the expected humidity created by the water.
- An adequate drainage system should be provided to safely deal with overflow and to permit easy emptying of this bathtub.
- Make sure your water supply for this bathtub is turned off during installation.
- NEVER allow the water level to rise above the level of your pet's during use.
- DO NOT set up or leave this bathtub in temperatures below 32°F. Do not turn on the shower if there is any possibility water in its line frozen.
- DO NOT add chemicals other than standard mild soaps and pet shampoos to the bathing water. After use, only apply nontoxic cleaning agent to the bathtub's internal surface and rinse it away completely. For sterilization, only use pet-safe and nontoxic disinfectants.
- DO NOT allow dirty and stagnant water to remain in this bathtub for long period. Drain, clean, and dry the tub completely after each use.
Heat Safety Instructions
- Adequate ventilation should be provided to safely deal with the expected
heat and humidity.
- The water temperature should be close to your pet's body temperature. Water that is either too cold or too hot will cause discomfort, may irritate your pet's skin, and may even cause injury or illness. Before use, learn about the appropriate water temperatures for bathing your pet. For best results, set your water heater's maximum temperature accordingly if possible. If adding preheated water, make sure it is within the temperature range appropriate for your pet before allowing your pet to enter.
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
YH CONSULTING LIMITED. C/O YH Consulting
Limited Office 147, Centurion House, London
Road, Staines-upon-Thames, Surrey, TW18 4AX
E-CrossStu GmbH
Mainzer Landstr.69,
60329 Frankfurt am Main.
VEVOR
Affordable. Reliable. Home Improvement.
DOG GROOMING BATHTUB
DOG
MODEL: K2E010 08/K2E010 09
MODEL: K2E010 08 / K2E010 09
YH CONSULTING LIMITED. C/O YH Consulting
Limited Office 147, Centurion House, London
Road, Staines-upon-Thames, Surrey, TW18 4AX
E-CrossStu GmbH
Mainzer Landstr.69,
60329 Frankfurt am Main.
VEVOR
Affordable. Reliable. Home Improvement.
HUNDEPFLEGEWANNE
MODELL: K 2 E010 08 / K 2 E010 09
MODELL: K 2 E010 08 / K 2 E010 09
YH CONSULTING LIMITED. C/O YH Consulting
Limited Office 147, Centurion House, London
Road, Staines-upon-Thames, Surrey, TW18 4AX
E-CrossStu GmbH
Mainzer Landstr. 69,
60329 Frankfurt am Main.
VEVOR
Affordable. Reliable. Home Improvement.
DOG GROOMING BATHTUB
MODEL: K2E01008 / K2E01009
C
MODEL: K2E01008 / K2E01009

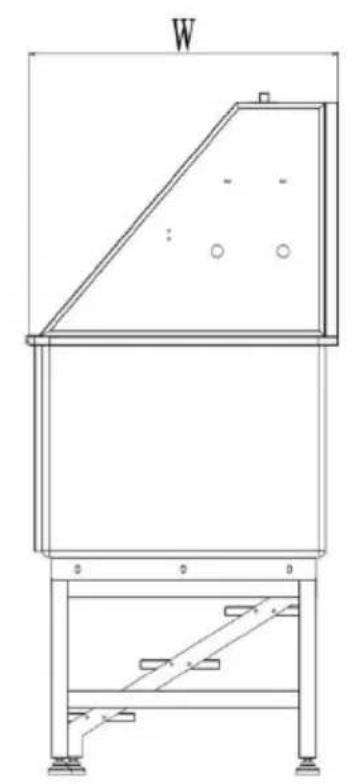

DIMENSIONS AND PARAMETERS
Left door
Right door
YH CONSULTING LIMITED. C/O YH Consulting
Limited Office 147, Centurion House, London
Road, Staines-upon-Thames, Surrey, TW18 4AX
E-CrossStu GmbH
Mainzer Landstr.69,
60329 Frankfurt am Main.
VEVOR
Affordable. Reliable. Home Improvement.
DOG GROOMING BATHTUB
MODEL: K 2 E010 08 / K 2 E010 09
MODEL: K 2 E010 08 / K 2 E010 09
Offer a reward afterwards.
YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
Affordable. Reliable. Home Improvement.
DOG GROOMING BATHTUB
MODEL: K 2 E010 08 / K 2 E010 09
MODEL: K 2 E010 08 / K 2 E010 09

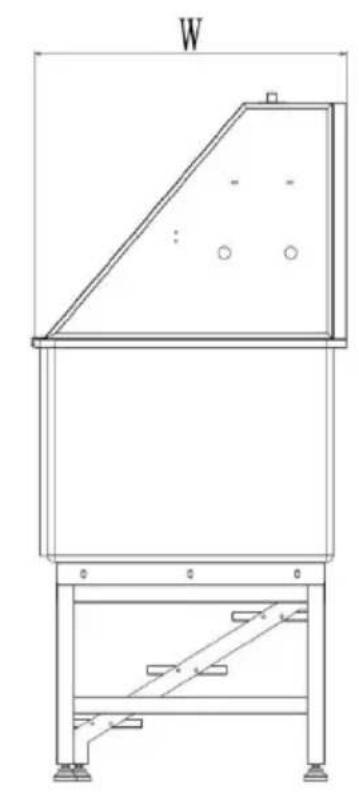

DIMENSIONS AND PARAMETERS
Left door
Front door
YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
Affordable. Reliable. Home Improvement.
HONDENTRIMBAK
MODEL: K 2 E010 08 / K 2 E010 09
MODEL: K 2 E010 08 / K 2 E010 09
"C": Cold water; "H": Hot water
YH CONSULTING LIMITED. C/O YH Consulting
Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
Affordable. Reliable. Home Improvement.
HUNDTRIMNINGSBADKAR
MODEL: K2 E010 08 / K2 E010 09
MODEL: K2 E010 08 / K2 E010 09

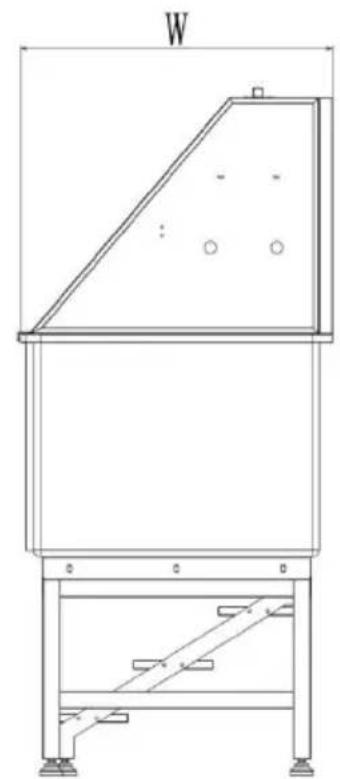

DIMENSIONS AND PARAMETERS
