USER MANUAL HR-001 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
CABLE RAILING POST
MODEL:HR-001/HR-002/HR-003/HR-004/HR-005/HR-006/HR-007/HR-008/HR-009/HR-010/HR-011/HR-012/HR-013/HR-014 HR-015/HR-016/HR-017/HR-018/HR-019/HR-020/HR-021/ HR-022/HR-023
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offer are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
MODEL:HR-001/HR-002/HR-003/HR-004/HR-005/HR-006/HR-007/HR-008/HR-009/HR-010/HR-011/HR-012/HR-013/HR-014 HR-015/HR-016/HR-017/HR-018/HR-019/HR-020/HR-021/ HR-022/HR-023

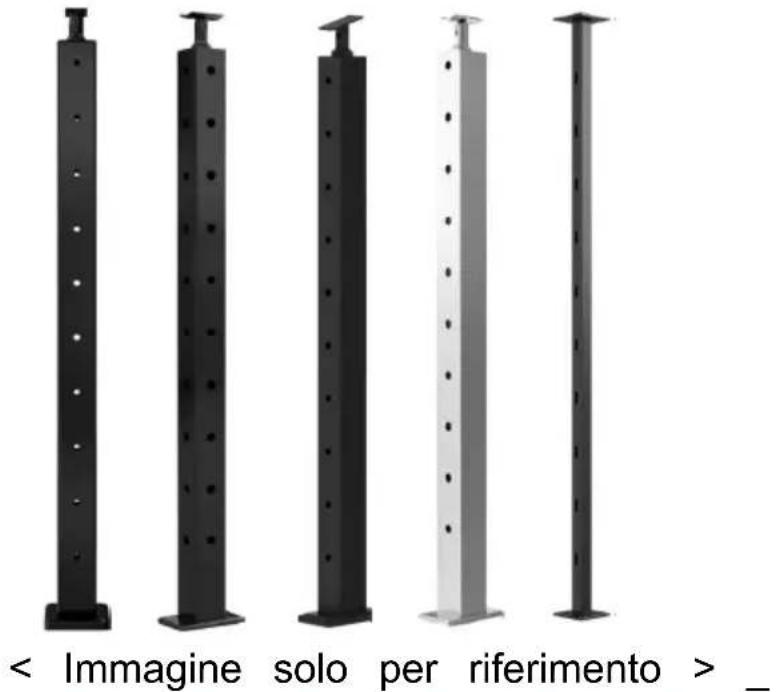

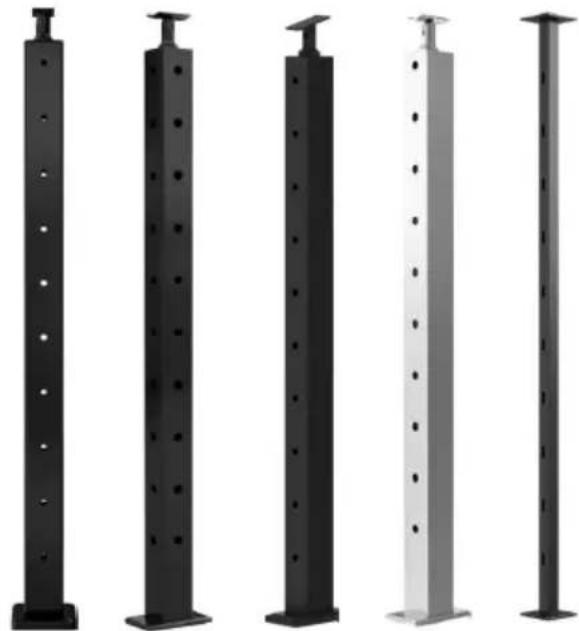

Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
IMPORTANT SAFEGUARDS
WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.
- The warning indicates that appropriate action should be taken to avoid the potential danger of personal injury.
- Product capabilities apply to properly and completely assembled product only.
- Please keep small spare parts out of children's reach, it is not a toy not allow children to play.
- For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area.
SAVE THESE INSTRUCTIONS
MAIN FEATRUES
This product is mainly used for column installation of wire functions a decorative accessories.
VEVOR's Cable Railing Post is made of all stainless steel materials, has great resistance to rust and corrosion. It will work for long life t interior and exterior railings with low maintenance. Please note that it recommended for coastal projects.
We work with every effort to provide quality products and professional service, and make VEVOR a reliable brand.
INSTALLATION INSTRUCTION
Installation indication and Applicable post
Applicable to all engineering installation scenarios.
Note: This product only includes the column and its installation fasten excluding wire rope, Cable Railing Kit, handrail.
| Model | Drilled | Height (mm) | Drilled number | Hole diameter (mm) | Pitch of holes (mm) | Section size (mm) | Color | Include (pcs) |
| HR-001 | level | 1067 | 12 | 10.5 | 80 | 50*50 | Black | 4 |
| HR-002 | level | 914 | 10 | 10.5 | 80 | 50*50 | Black | 4 |
| HR-003 | level | 1067 | 12 | 8 | 80 | 30*50 | Black | 4 |
| HR-004 | level | 914 | 10 | 8 | 80 | 30*50 | Black | 4 |
| HR-005 | 30° | 1067 | 12 | 10.5×15 | 80 | 50*50 | Silver | 1 |
| HR-006 | 30° | 1067 | 12 | 10.5×15 | 80 | 50*50 | Black | 1 |
| HR-007 | L | 1067 | 12 | 10.5 | 80 | 50*50 | Black | 1 |
| HR-008 | Non | 914 | / | / | / | 50*50 | Black | 1 |
| HR-009 | level | 914 | 10 | 10.5 | 80 | 50*50 | Black | 1 |
| HR-010 | 30° | 914 | 10 | 10.5×15 | 80 | 50*50 | Black | 1 |
| HR-011 | L | 914 | 10 | 10.5 | 80 | 50*50 | Black | 1 |
| HR-012 | level | 914 | 10 | 10.5 | 80 | 50*50 | Silver | 1 |
| HR-013 | 30° | 1067 | 12 | 8×13 | 80 | 30*50 | Black | 1 |
| HR-014 | L | 1067 | 12 | 8 | 80 | 30*50 | Black | 1 |
| HR-015 | 30° | 914 | 10 | 8×13 | 80 | 30*50 | Black | 1 |
| HR-016 | L | 914 | 10 | 8 | 80 | 30*50 | Black | 1 |
| HR-017 | Non | 914 | / | / | / | 38*38 | Black | 1 |
| HR-018 | level | 1067 | 12 | 8 | 80 | 30*50 | Black | 1 |
| HR-019 | Non | 1067 | / | / | / | 50*50 | Black | 1 |
| HR-020 | level | 914 | 10 | 8 | 80 | 30*50 | Black | 1 |
| HR-021 | level | 1067 | 12 | 10.5 | 80 | 50*50 | Black | 1 |
| HR-022 | level | 914 | 10 | 8 | 80 | 30*50 | Silver | 1 |
| HR-023 | level | 1067 | 12 | 10.5 | 80 | 50*50 | Silver | 1 |


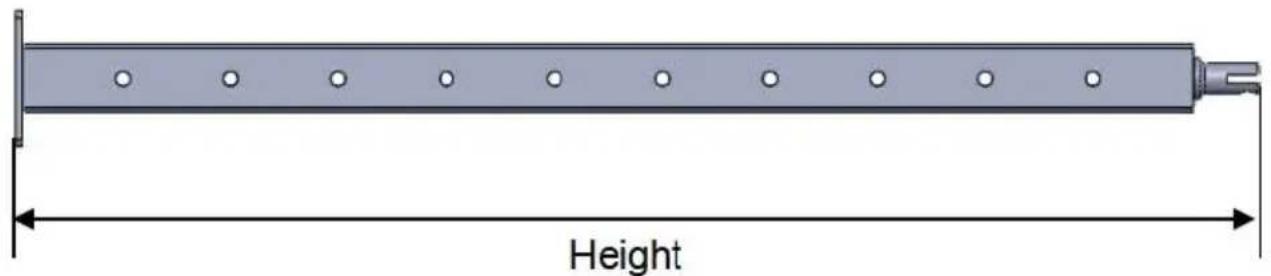

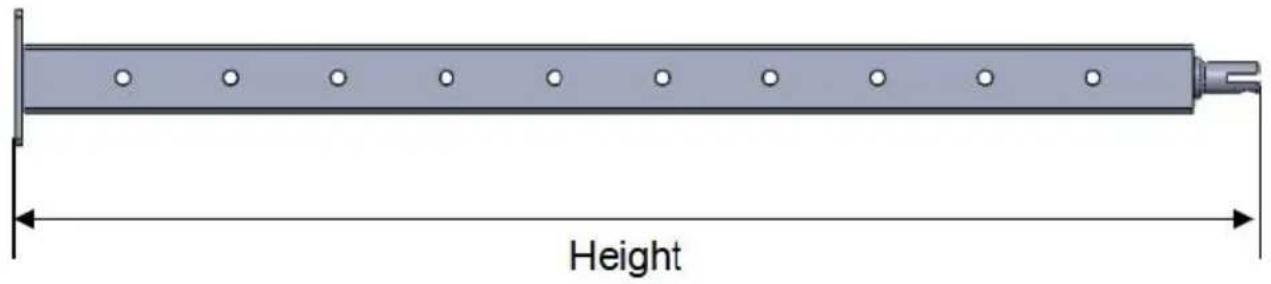

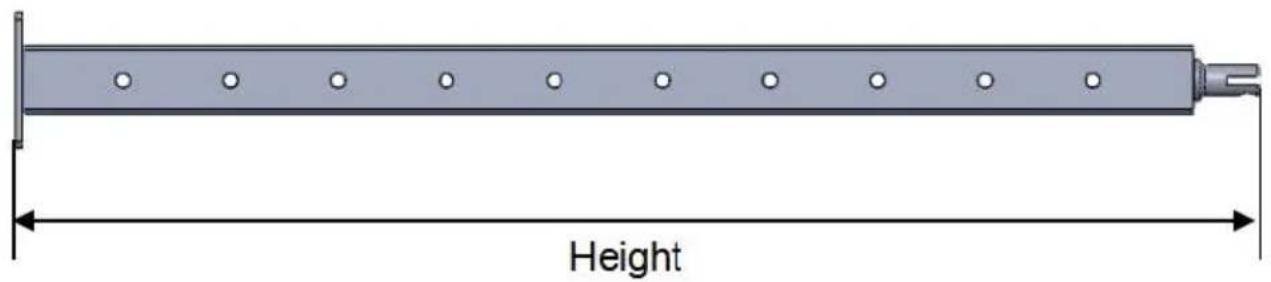

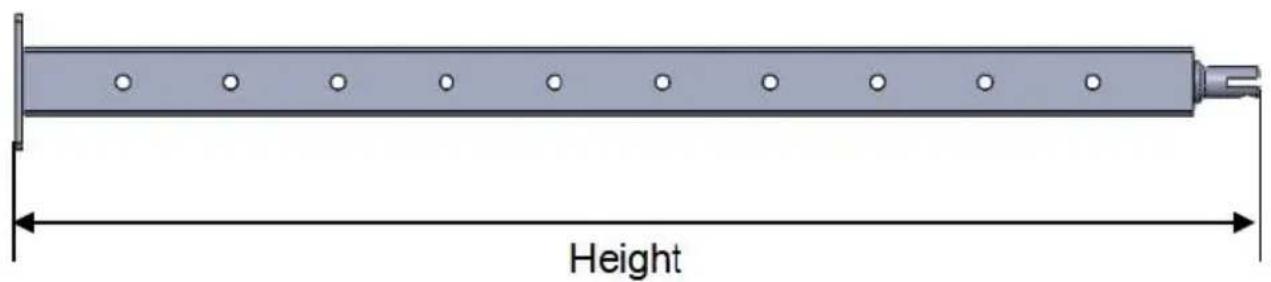

HeightPACKAGE INCLUDE
| No | Components | Picture | QTY | ||||
| Fit model | |||||||
| HR-001/HR-002 | HR005~HR012/HR-019/HR-021/HR-023/ | HR-003/HR-004 | HR-013~HR-016/HR-018/HR-020/HR-022/ | HR-017 | |||
| 1 | post |  | 4 | 1 | 4 | 1 | / |
 | / | / | / | / | 1 | ||
| 2 | Square cover |  | 4 | 1 | / | / | / |
| 3 | Rectangular cover |  | / | / | 4 | 1 | / |
| 4 | anchor bolt |  | 16 | 4 | 16 | 4 | 4 |
| 5 | Curved bracket |  | 4 | 1 | 4 | 1 | / |
| 6 | Horizontal bracket |  | 4 | 1 | 4 | 1 | / |
| 7 | hex wrench |  | 4 | 1 | 4 | 1 | 1 |
| 8 | Open end wrench |  | 4 | 1 | 4 | 1 | 1 |
| 9 | Tapping screw |  | 8 | 2 | 8 | 2 | 4 |
| 10 | Plastic cover |  | / | / | / | / | 1 |

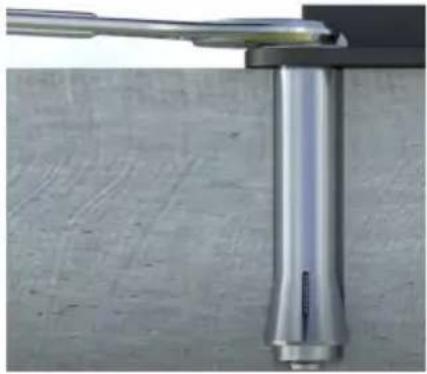

INSTALLATION
For concrete or wood floor
 |  |  |
| Step1.Mark the drillin points at the appropriate installation locations. | Step2.use a hammer drill to make a hole ∅ 12 at the mark points. | Step3.Hammer the anchor screw into the drilled hole. |
 |  |
| Step4.Tighten the screws | Step5.Close the lid and finish fixing the |
Note: Ensure that the column is upright when fixing the bottom plan the post.

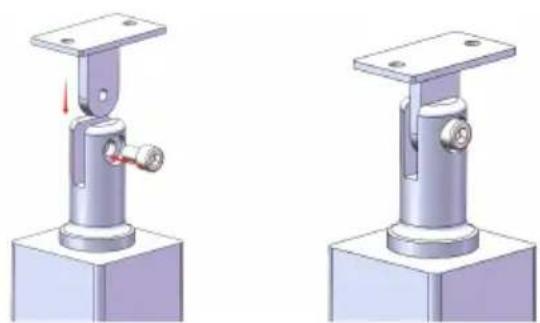

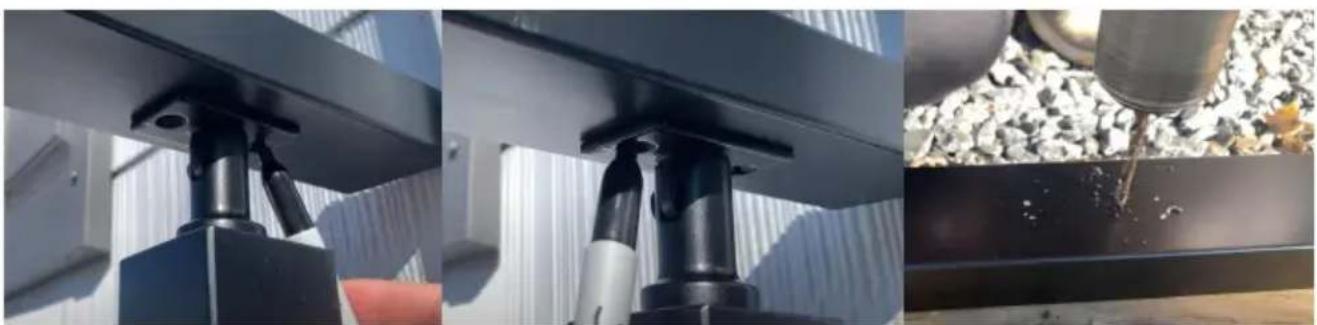

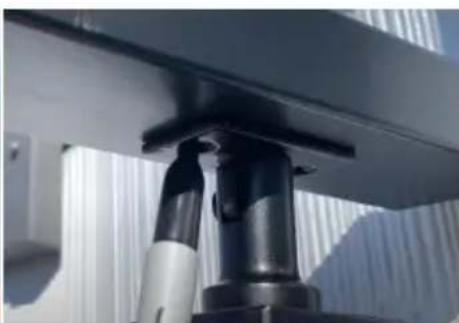

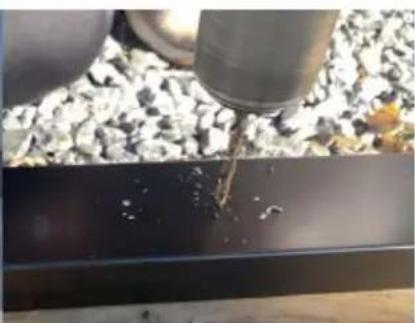

Mount with handrail(horizontal)
Step1: Fixed bracket


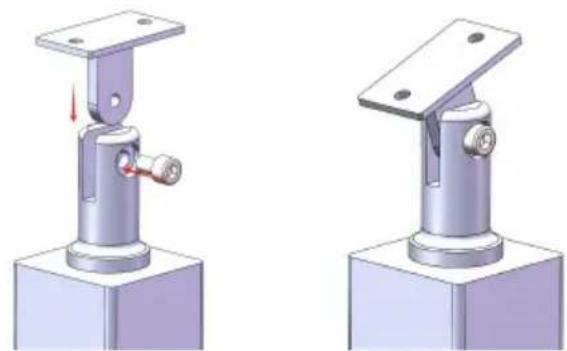

Mount with handrail(gradient)

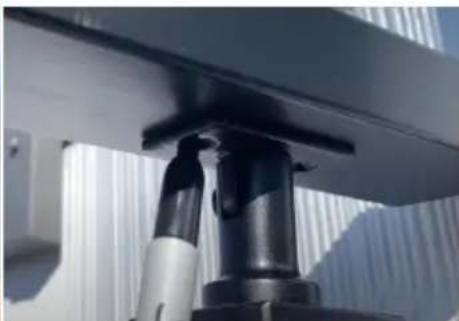

Step1: Fixed bracket


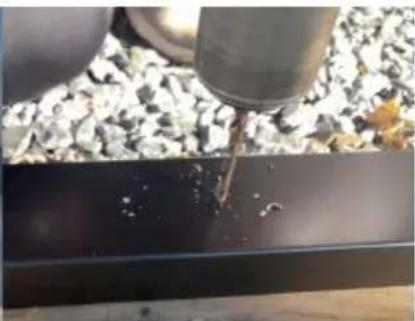

Note: The handrail and bracket can be pre-fixed with the help of clamping tools, so that multiple bracket installation points can be marked and positioned at the same time.


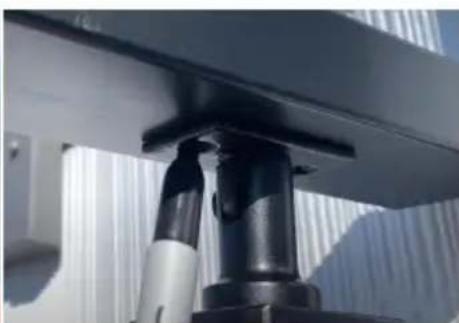

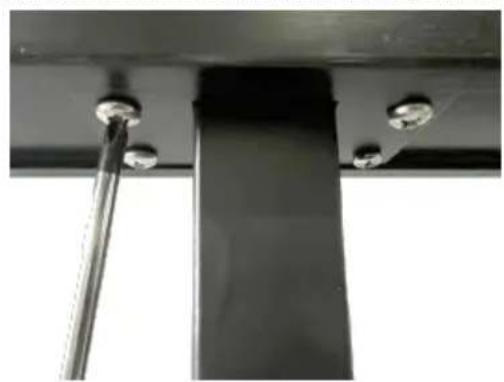

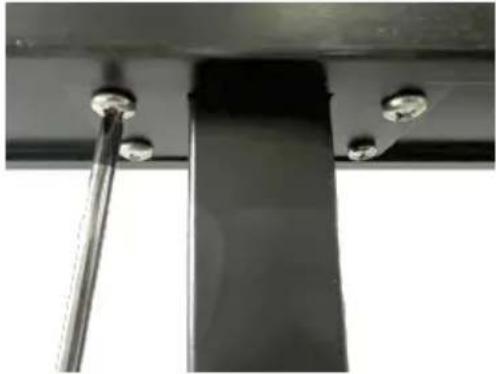

Fix the post and bracket again.
 |  |

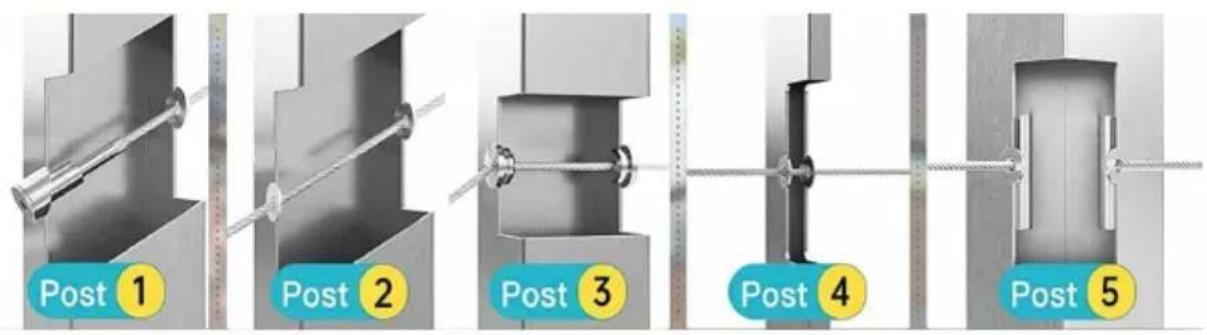

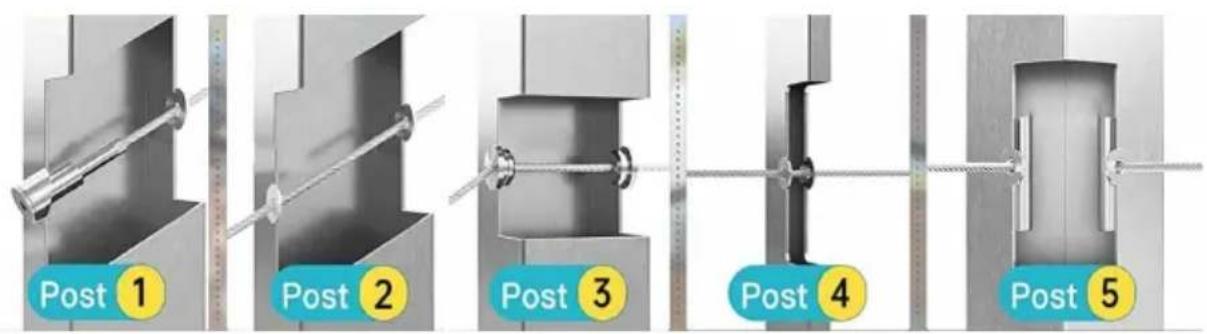

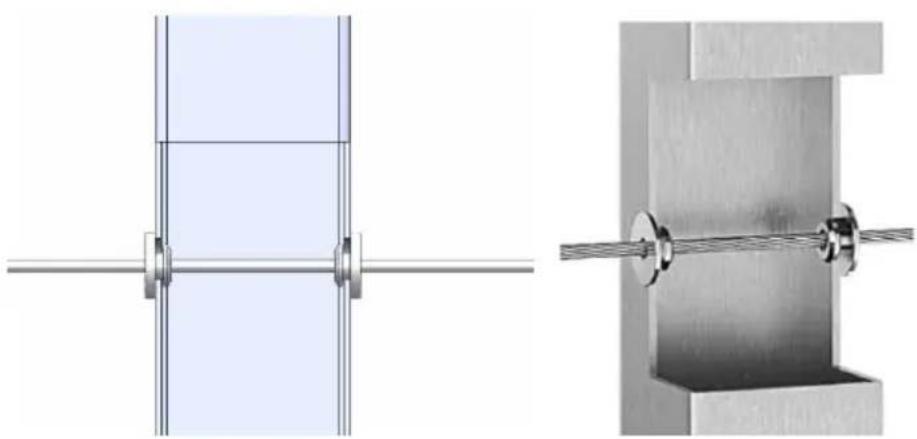

Install with wire rope and fittings
For Level Wheel Protector Sleeve
Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
| UK | REP |
Pooledas Group Ltd
Unit 5 Albert Edward House, The Pavilion
Preston, United Kingdom
| EC | REP |
SHUNSHUN GmbH
Römeräcker 9 Z2021, 76351
Technical Support and E-Warranty Certificate
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only repeat of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
MODÈLE : HR-001/HR-002/HR-003/HR-004/HR-005/HR-006/HR-007/HR-008/HR-009/HR-010/HR-011/HR-012/HR-013/HR-014 HR-0 1 5 /HR-016/HR-017/HR-018/HR-019/HR-020/HR-021/ HR-022/HR-023
