Z BRACKET

MODEL: SF-SS-SKU4 SF-SS-SKU5;

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: SF-SS-SKU4; SF-SS-SKU5

3D mechanical component diagram showing a bolted joint with mounting brackets (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

Thank you very much for choosing this product.

Please read all of the instructions before using it. The information will you achieve the best possible results.

Operation safety

WARNING:

Please read all instructions before using this product

It is the Owner's responsibility to ensure that all users of this product fully aware of all warnings and precautions.

1. Assemble needs to follow these instructions. Incorrect assembly can be a hazard.
2. Safety goggles and work gloves should be worn during assembly.
3. Do not assemble when tired or when under the influence of alcohol, drug medication.
4. Weight capacity and other product capabilities apply to a properly and completely assembled product only.
5. Keep the assembly area clean and well-lit.
6. Keep bystanders out of the area during assembly.
7. This product is not a toy. Do not allow children to play with or approach
8. Do not exceed the listed weight capacity. Tighten all knobs securely before applying load. Be aware of dynamic loading! The sudden load movement may briefly create an excess load, causing product failure.

Disclaimer & conditions of Use

Users of this Product must use this product at their own risk, and in no event the Seller, distributor or manufacturer be liable for indirect, incidental, derivative loss or damage or injury arising directly or indirectly from the use of this Product. For optimal safety and performance, all products must be properly installed and properly used. We do not accept responsibility for any improper use, alteration and installation.

Tools Needed (not included)

6mm hex key

Product introduction

Model	SF-SS-SKU4	SF-SS-SKU5
Color	Silvery white	Silvery white
Material	AL6005-T5	AL6005-T5
Product Size	50 x 45.5x 34.3 mm	50 x 45.5x 34.3 mm
Product Quantity	20 sets	40 sets
Application	Solar panel with frame thickness 30~50mm

NOTE: Please select the appropriate solar panel according to the product size.

3D rendered mechanical component with a cylindrical bore and flange (no text or symbols)

3D rendered mechanical component with a cylindrical bolt and stepped base (no text or symbols)

3D rendered mechanical component with a cylindrical protrusion and stepped base (no text or symbols)

3D rendered mechanical component with stepped base and central bore (no text or symbols)

Adjustable height 30\~50mm

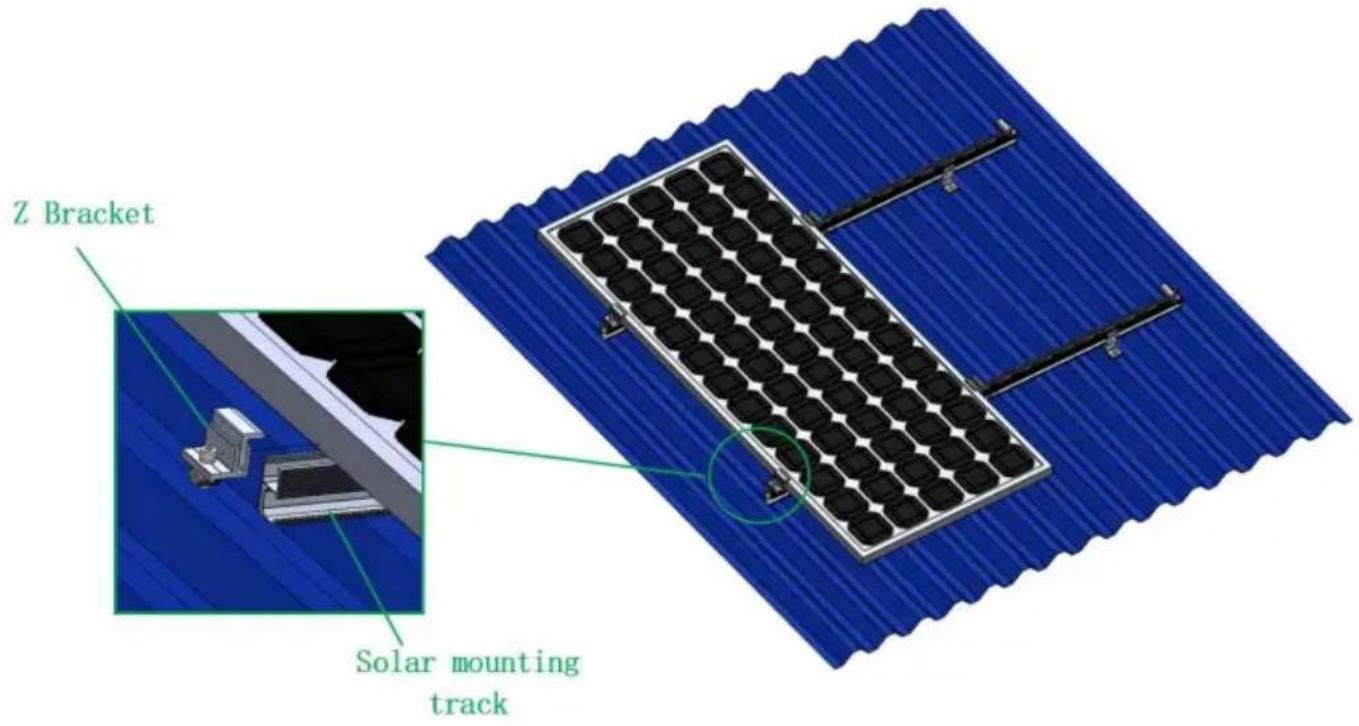

Usage scenario

Z Bracket Solar mounting track
