USER MANUAL HR-021 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CABLE RAILING POST

MODEL:HR-001/HR-002/HR-003/HR-004/HR-005/HR-006/HR-007/HR-008/HR-009/HR-010/HR-011/HR-012/HR-013/HR-014 HR-015/HR-016/HR-017/HR-018/HR-019/HR-020/HR-021/ HR-022/HR-023

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:HR-001/HR-002/HR-003/HR-004/HR-005/HR-006/HR-007/HR-008/HR-009/HR-010/HR-011/HR-012/HR-013/HR-014 HR-015/HR-016/HR-017/HR-018/HR-019/HR-020/HR-021/ HR-022/HR-023

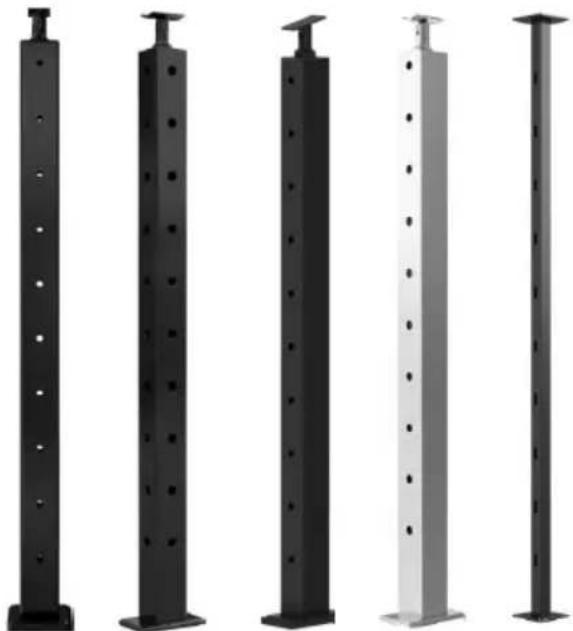

Five vertical metal structural supports with holes, shown in black and white (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

1. The warning indicates that appropriate action should be taken to avoid the potential danger of personal injury.
2. Product capabilities apply to properly and completely assembled product only.
3. Please keep small spare parts out of children's reach, it is not a toy not allow children to play.
4. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area.

SAVE THESE INSTRUCTIONS

MAIN FEATRUES

This product is mainly used for column installation of wire functions a decorative accessories.

VEVOR's Cable Railing Post is made of all stainless steel materials, has great resistance to rust and corrosion. It will work for long life t interior and exterior railings with low maintenance. Please note that it recommended for coastal projects.

We work with every effort to provide quality products and professional service, and make VEVOR a reliable brand.

INSTALLATION INSTRUCTION

Installation indication and Applicable post

Applicable to all engineering installation scenarios.

Note: This product only includes the column and its installation fasteners, excluding wire rope, Cable Railing Kit, handrail.

Level-drilled post L- drilled corner post 30°-drilled stair post Post 1 Post 2 Post 3 Post 4 Post 5

Note: The above figure is only an example of the installation layout display, users need to layout according to their actual needs, matching the structure of the column and wire rope, Cable Railin handrail and other accessories.

PRODUCT INFORMATION

Model	Drilled	H(mm)	Drilled number	Hole diameter (mm)	Pitch of holes (mm)	Section size (mm)	Color	Include (pcs)
HR-001	level	1067	12	φ10.5	84	50*50	Black	4
HR-002	level	914	10	φ10.5	84	50*50	Black	4
HR-003	level	1067	12	φ10.5	84	30*50	Black	4
HR-004	level	914	10	φ10.5	84	30*50	Black	4
HR-005	30°	1067	12	10.5×12	84	50*50	Silver	1
HR-006	30°	1067	12	10.5×12	84	50*50	Black	1
HR-007	L	1067	12	φ10.5	84	50*50	Black	1
HR-008	Non	914	/	/	/	50*50	Black	1
HR-009	level	914	10	φ10.5	84	50*50	Black	1
HR-010	30°	914	10	10.5×12	84	50*50	Black	1
HR-011	L	914	10	φ10.5	84	50*50	Black	1
HR-012	level	914	10	φ10.5	84	50*50	Silver	1
HR-013	30°	1067	12	10.5×12	84	30*50	Black	1
HR-014	L	1067	12	φ10.5	84	30*50	Black	1
HR-015	30°	914	10	10.5×12	84	30*50	Black	1
HR-016	L	914	10	φ10.5	84	30*50	Black	1
HR-017	Non	914	/	/	/	38*38	Black	1
HR-018	level	1067	12	φ10.5	84	30*50	Black	1
HR-019	Non	1067	/	/	/	50*50	Black	1
HR-020	level	914	10	φ10.5	84	30*50	Black	1
HR-021	level	1067	12	φ10.5	84	50*50	Black	1
HR-022	level	914	10	φ10.5	84	30*50	Silver	1
HR-023	level	1067	12	φ10.5	84	50*50	Silver	1

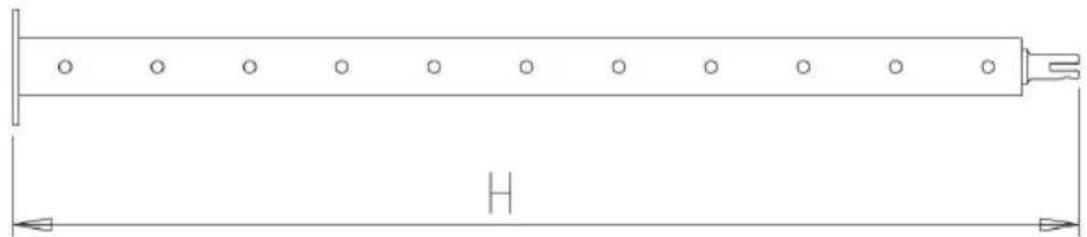

Technical line drawing of a long horizontal rod with circular holes and a protruding outlet, labeled 'H' at the base (no text or symbols on the object itself)

PACKAGE INCLUDE

No	Components	Picture	QTY
			Fit model
			HR-001/ HR-002	HR005~HR0 12/HR-019/H R-021/HR-02 3/	HR-003/ HR-004	HR-013~ HR-016/ HR-018/ HR-020/ HR-022/	HR-0 17
1	post		4	1	4	1	/
			/	/	/	/	1
2	Square cover		4	1	/	/	/
3	Rectangular cover		/	/	4	1	/
4	anchor bolt		16	4	16	4	4
5	Curved bracket		4	1	4	1	/
6	Horizontal bracket		4	1	4	1	/
7	hex wrench		4	1	4	1	1
8	Open end wrench		4	1	4	1	1
9	Tapping screw		8	2	8	2	4
10	Plastic cover		/	/	/	/	1

INSTALLATION

For concrete or wood floor

Close-up of a black metal bracket with red adhesive tape inserted, showing mounting holes (no text or symbols visible)

Step1.Mark the drilling points at the appropriat installation locations.

Close-up of a yellow and black drill bit with a metal screw, against a plain gray background (no text or symbols visible)

Step2.use a hammer dr to make a hole for the marked points.

Close-up of a hammer striking a black metal object with green pins (no text or symbols visible)

Step3.Hammer the anchor screw into the drilled hole.

Close-up of a metallic cylindrical component mounted on a concrete wall (no text or symbols visible)

Step4. Tighten the screws

Close-up of a black metal bracket with mounting holes and screws (no text or symbols visible)

Step5.Close the lid and finish fixing the pos

Note: Ensure that the column is upright when fixing the bottom of the post.

Mount with handrail(horizontal)

Step1: Fixed bracket

Mechanical assembly diagram showing a lever mechanism with a rotating shaft and mounting base (no text or symbols)

3D rendering of a mechanical assembly with a cylindrical component and mounting base (no text or symbols visible)

Step2: Determine the installation position of the handrail, and then make the position under the handrail and bracket holes, then drill holes.

★If the installation is a wooden handrail, you can directly screw tapping screws.

Three-panel photo collage showing mechanical assembly steps: top view of a black metal frame, side view of a mechanical component with a tool, and bottom view of a metallic tool pouring liquid into a granular material.

Step3: Use the self-tapping screws in the accessory to fix the handra the support.

Three-panel black-and-white photo showing mechanical components: a metallic bracket with bolts, a black plate with a rod, and a metallic bracket with bolts (no visible text or symbols)

It is also suitable for the installation of arc handrails and brackets.

Mount with handrail(gradient)

Step1: Fixed bracket

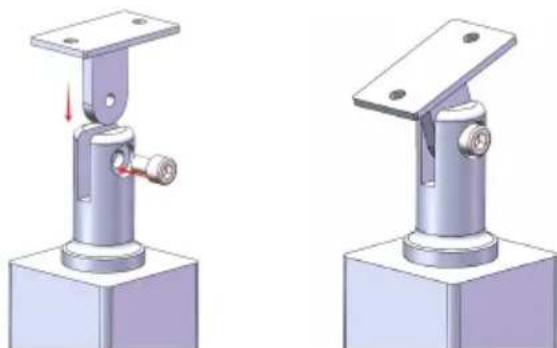

Mechanical assembly diagrams showing two configurations of a mechanical clamp or bracket with no visible text or symbols

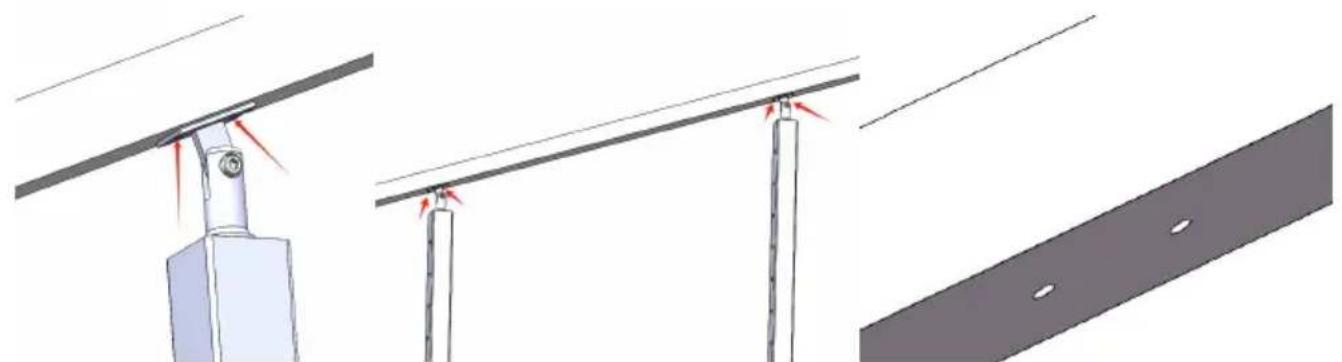

Step2: Adjust the Angle of the bracket to fit the underside of the handrail. Determine the installation position of the handrail, and then make the position under the handrail and bracket holes, then drill holes.

★If the installation is a wooden handrail, you can directly screw tapping screws.

Note: The handrail and bracket can be pre-fixed with the help of clamping tools, so that multiple bracket installation points can be marked and positioned at the same time.

Technical illustration showing three different installation methods: a vertical support structure, a horizontal support column, and a flat beam with mounting holes (no text or symbols present)

Step3: Remove the bracket from the post and then use the self-tapping screws in the accessory to fix the bracket to the handrail. Fix the post and bracket again.

Technical illustration of three mechanical components mounted on a pole, shown from different angles (no text or symbols present)

It is also suitable for the instal of arc handrails and brackets	For model HR-017

Install with wire rope and fittings

For Level Wheel Protector Sleeve

Technical diagram showing two mechanical assembly configurations with metal components and connecting rods (no text or symbols)

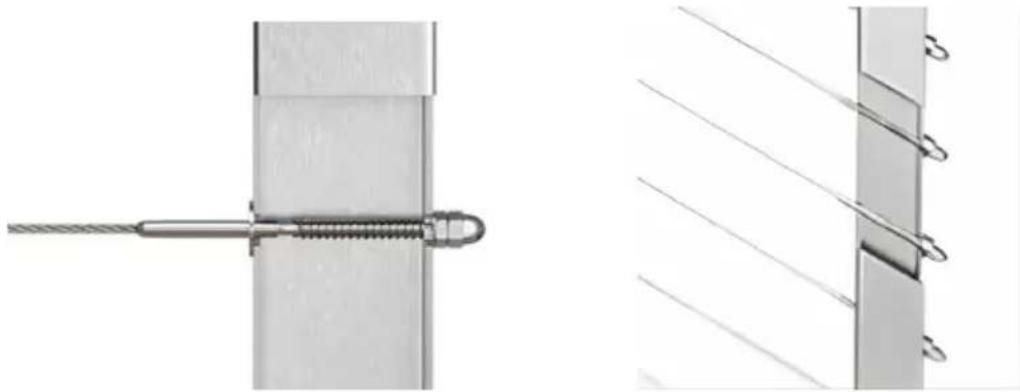

For Stud Tensioner Horizontal mounting and Angle

Technical illustration of a mechanical assembly with threaded rod and spring, alongside a close-up of a coiled spring attached to a panel (no text or symbols)

Caution: When installing the posts, adjust the position of the posts the step's tread, so that the wire is close to the position of the and it is generally recommended that the spacing is less than 5m As shown below.

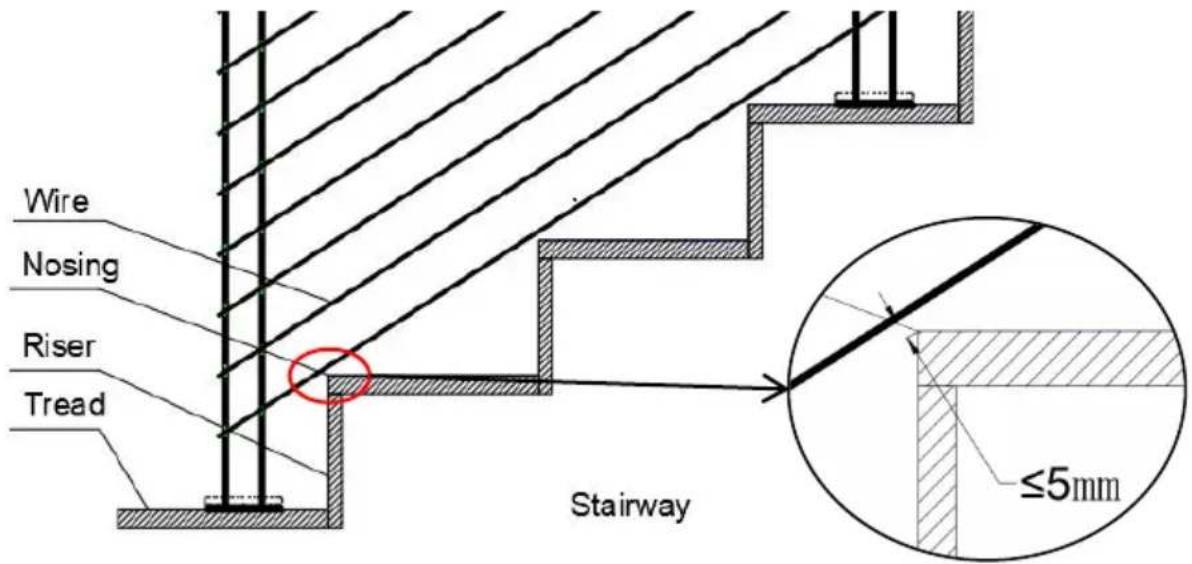

Wire Nosing Riser Tread Stairway ≤5mm

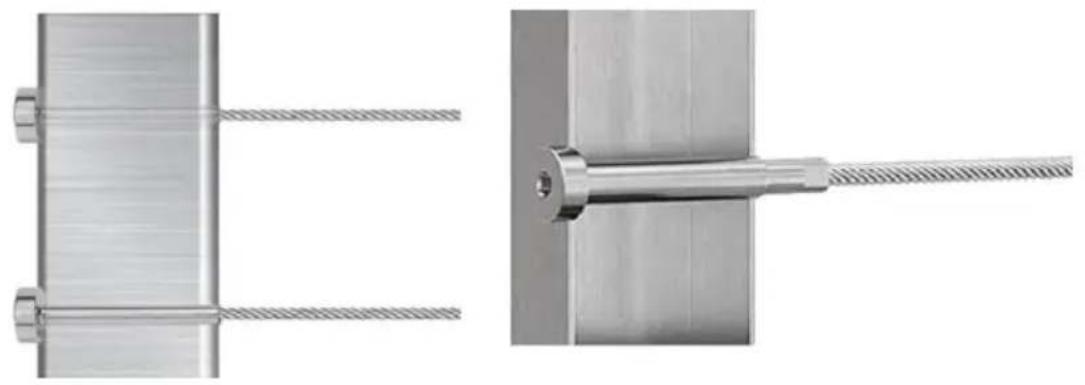

For Turnbuckle Tensioner and Fixed Terminal

Technical illustration of two metallic mechanical components with coiled wires, shown from different angles (no text or symbols)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Five vertical metal structural supports with holes, shown in black and white (no text or symbols)

Level-drilled post L- drilled corner post 30°-drilled stair post Post 1 Post 2 Post 3 Post 4 Post 5

INFORMATIONS SUR LE PRODUIT

Modèle percé		H(mm)	Foré nombre	Trou diamètre(mm)	Hauteur de trous(mm)	Section taille(mm)	Couleur	Inclure(pièces)
HR-001 niveau 1067			12	10,5	84	50*50 Noir		4
HR-002 niveau 914			10	10,5	84	50*50 Noir		4
HR-003 niveau 1067			12	10,5	84	30*50 Noir		4
HR-004 niveau 914			10	10,5	84	30*50 Noir		4
HR-005 30°	1067		12	10,5×12 84		50*50 Argent		1
HR-006 30°	1067		12	10,5×12 84		50*50 Noir		1
HR-007	L	1067	12	10,5	84	50*50 Noir		1
HR-008 Non 914			/	/	/	50*50 Noir		1
HR-009 niveau 914			10	10,5	84	50*50 Noir		1
HR-010 30°		914	10	10,5×12 84		50*50 Noir		1
HR-011	L	914	10	10,5	84	50*50 Noir		1
			10	10,5	84	50*50 ArgentHR-012 niveau 91
HR-013 30°	1067		12	10,5×12 84		30*50 Noir		1
HR-014	L	1067	12	10,5	84	30*50 Noir		1
HR-015 30°		914	10	10,5×12 84		30*50 Noir		1
HR-016	L	914	10	10,5	84	30*50 Noir		1
HR-017 Non 914			/	/	/	38*38 Noir		1
HR-018 niveau 1067			12	10,5	84	30*50 Noir		1
HR-019 Non 1067			/	/	/	50*50 Noir		1
HR-020 niveau 914			10	10,5	84	30*50 Noir		1
HR-021 niveau 1067			12	10,5	84	50*50 Noir		1
HR-022 niveau 914			10	10,5	84	30*50 Argent		1
HR-023 niveau 1067			12	10,5	84	50*50 Argent		1

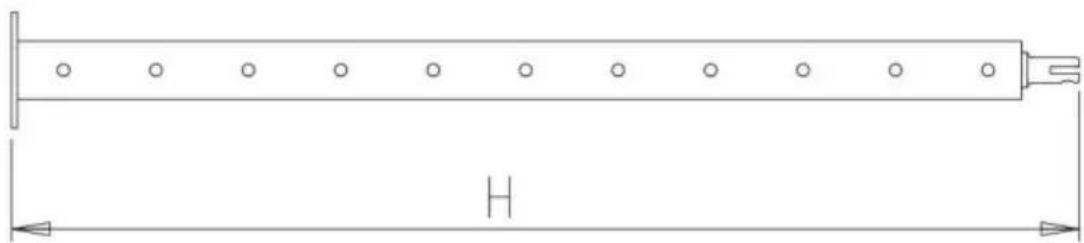

Technical line drawing of a long rectangular object with circular holes and a protruding port, labeled 'H' at the base (no text or symbols on the object itself)

LE FORFAIT COMPREND

Non	II compose nts	Image	Qté
			Modèle d'ajustement
			HR-001/ HR-002	HR005~HR0 12/HR-019/H R-021/HR-02 3/	HR-003/ HR-004	HR-013~ HR-016/ HR-018/ HR-020/ HR-022/	HR-0 17
1	poste		4	1	4	1	/
			/	/	/	/	1
2	Carré couverture		4	1	/	/	/
3	Le rectangle couverture ar		/	/	4	1	/
4	ancre boulon		16	4	16	4	4
5	Courbé support		4	1	4	1	/
6	Horizontal support		4	1	4	1	/
7	hexagone clé		4	1	4	1	1
8	Extrémilé ouverte clé		4	1	4	1	1
9	Tapotement vis		8	2	8	2	4
10	Plastique couverture		/	/	/	/	1

INSTALLATION

Close-up of a black metal bracket with red adhesive tape inserted, showing mounting holes (no text or symbols visible)

Close-up of a yellow and black drill bit on a textured surface with red star markers (no text or symbols visible)

Close-up of a hammer striking a black metal object with green pins (no text or symbols visible)

Close-up of a metallic mechanical component against a textured gray background (no visible text or symbols)

Close-up of a black rectangular electronic component with four metallic pins (no text or symbols visible)

Mechanical assembly diagram showing a lever mechanism with a bracket and base (no text or symbols)

Mechanical assembly diagram showing a cylindrical component mounted on a base (no text or symbols visible)

Three-panel photo collage showing industrial equipment components: a black mechanical device, a black cylindrical component with a handle, and a metallic pipe pouring liquid into a dark metal surface (no visible text or symbols)

Three-panel photo showing mechanical assembly components: a black rod with bolts, a metallic bracket with bolts, and a metallic frame (no text or symbols visible)

Mechanical assembly diagrams showing two configurations of a mechanical clamp or bracket with no visible text or symbols

Diagram showing three different installation methods: a vertical support structure, a horizontal support column, and a flat panel with mounting holes (no text or symbols present)

Technical illustration of three mechanical components mounted on a pole, shown from different angles (no text or symbols present)

Technical diagram showing two mechanical assembly configurations with metal rods and structural supports (no text or symbols)

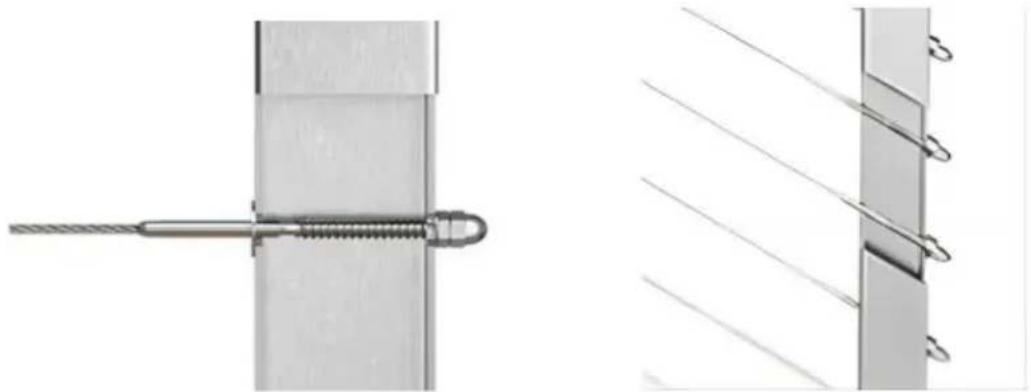

Technical illustration of a mechanical assembly with threaded rod and spring, alongside a separate view of a coiled spring (no text or symbols)

Wire Nosing Riser Tread Stairway ≤5mm

Two views of a metallic mechanical assembly: one with a rectangular plate and two connected rods, the other showing a cylindrical rod inserted into a housing (no text or symbols visible)

Fabricant: Shanghaimuxinmuyeyouxiangongsi Adresse:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importé en Australie : SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australie

YH CONSULTING LIMITED. C/O YH Consulting Limited Bureau 147, Centurion House, London Road, Staines- upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

Five vertical metal structural supports with holes, shown in black and white (no text or symbols)

Level-drilled post L- drilled corner post 30°-drilled stair post Post 1 Post 2 Post 3 Post 4 Post 5

PRODUKTINFORMATIONEN

Modell gebohrt		H(mm)	Gebohrt Nummer	Loch Durchmesser(mm)	Tonhöhe von Löcher(mm)	AbschnittGröße(mm)	Farbe	Enthalten(Stück)
HR-001	Ebene 1067		12	ÿ10,5	84	50*50 Schwarz	Schwarz	4
HR-002	Ebene 914		10	ÿ10,5	84	50*50 Schwarz	Schwarz	4
HR-003	Ebene 1067		12	ÿ10,5	84	30*50 Schwarz	Schwarz	4
HR-004	Ebene 914		10	ÿ10,5	84	30*50 Schwarz	Schwarz	4
HR-005	30° 1067		12	10,5×12 84		50*50 Silber	Silber	1
HR-006	30° 1067		12	10,5×12 84		50*50 Schwarz	Schwarz	1
HR-007	M	1067	12	ÿ10,5	84	50*50 Schwarz	Schwarz	1
HR-008	N9 914		/	/	/	50*50 Schwarz	Schwarz	1
HR-009	Ebene 914		10	ÿ10,5	84	50*50 Schwarz	Schwarz	1
HR-010	30°	914	10	10,5×12 84		50*50 Schwarz	Schwarz	1
HR-011	M	914	10	ÿ10,5	84	50*50 Schwarz	Schwarz	1
			10	ÿ10,5	84	50*50 SilberHR-012 Ebene	SilberHR-012 Ebene	914
HR-013	30° 1067		12	10,5×12 84		30*50 Schwarz	Schwarz	1
HR-014	M	1067	12	ÿ10,5	84	30*50 Schwarz	Schwarz	1
HR-015	30°	914	10	10,5×12 84		30*50 Schwarz	Schwarz	1
HR-016	M	914	10	ÿ10,5	84	30*50 Schwarz	Schwarz	1
HR-017	N9 914		/	/	/	38*38 Schwarz	Schwarz	1
HR-018	Ebene 1067		12	ÿ10,5	84	30*50 Schwarz	Schwarz	1
HR-019	N9 1067		/	/	/	50*50 Schwarz	Schwarz	1
HR-020	Ebene 914		10	ÿ10,5	84	30*50 Schwarz	Schwarz	1
HR-021	Ebene 1067		12	ÿ10,5	84	50*50 Schwarz	Schwarz	1
HR-022	Ebene 914		10	ÿ10,5	84	30*50 Silber	Silber	1
HR-023	Ebene 1067		12	ÿ10,5	84	50*50 Silber	Silber	1

Technical line drawing of a long rectangular object with circular holes and a protruding port, labeled 'H' at the base (no text or symbols on the object itself)

PAKET BEINHALTET

NEIN	Es komponiert nts	Bild	Menge
			Modell anpassen
			HR-001/ HR-002	HR005~HR0 12/HR-019/H R-021/HR-02 3/	HR-003/ HR-004	HR-013~ HR-016/ HR-018/ HR-020/ HR-022/	HR-0 17
1	Post		4	1	4	1	/
			/	/	/	/	1
2	Quadrat Abdeckung		4	1	/	/	/
3	Das Rechteck AR-Abdeckung		/	/	4	1	/
4	Anker Bolzen		16	4	16	4	4
5	Gebogen Halterung		4	1	4	1	/
6	Horizontal Halterung		4	1	4	1	/
7	verhexen Schlüssel		4	1	4	1	1
8	Offenes Ende Schlüssel		4	1	4	1	1
9	Tippen schrauben		8	2	8	2	4
10	Plastik Abdeckung		/	/	/	/	1

INSTALLATION

Mechanical assembly diagram showing a lever mechanism with a central pivot and mounting base (no text or symbols)

3D rendering of a mechanical assembly with a cylindrical component and mounting base (no text or symbols visible)

Three-panel photo collage showing industrial equipment components: a black metal frame, a mechanical clamp, and a metallic tool with residue (no visible text or symbols)

Three-panel photo showing mechanical assembly components: a black base with bolts, a metallic bracket with bolts, and a metallic frame (no text or symbols visible)

Mechanical assembly diagrams showing two configurations of a mechanical clamp or bracket with no visible text or symbols

Diagram showing three different installation methods: a vertical support structure, a horizontal support column, and a flat panel with mounting holes (no text or symbols present)

Technical illustration of three mechanical components mounted on a pole, showing different angles and mounting features (no text or symbols present)

Technical diagram showing two mechanical assembly configurations with metal rods and structural supports (no text or symbols)

Technical illustration of a mechanical assembly with threaded rod and spring, alongside a separate view of a coiled spring (no text or symbols)

Wire Nosing Riser Tread Stairway ≤5mm

Two views of a metallic mechanical assembly: one with a rectangular plate and two connected rods, the other showing a cylindrical rod inserted into a housing (no text or symbols visible)

Hersteller: Shanghaimuxinmuyeyouxiangongsi Adresse:

Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Nach AUS importiert: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importiert in die USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Five vertical metal structural beams with holes, shown in black and white (no text or symbols)

Level-drilled post L- drilled corner post 30°-drilled stair post Post 1 Post 2 Post 3 Post 4 Post 5

Technical line drawing of a long cylindrical object with circular holes and a protruding port, labeled 'H' at the base (no text or symbols on the object itself)

IL PACCHETTO INCLUDE

Mechanical assembly diagram showing a lever mechanism with a central pivot and mounting base (no text or symbols)

3D rendering of a mechanical assembly with a cylindrical component mounted on a base (no text or symbols visible)

Three-panel photo collage showing industrial equipment components: a black mechanical device, a black cylindrical component with a handle, and a metallic pipe pouring liquid into a dark metal surface (no visible text or symbols)

Three-panel photo showing mechanical assembly components: a black metal frame with bolts, a black square base, and a metallic bracket with bolts (no visible text or symbols)

Mechanical assembly diagrams showing two configurations of a mechanical clamp or bracket with mounting base (no text or symbols)

Diagram showing three different installation methods: a vertical support structure, a horizontal support column, and a flat panel with mounting holes (no text or symbols present)

Technical illustration of three mechanical components with diagonal lines, no text or symbols present

Technical diagram showing two mechanical assembly configurations with metal rods and structural supports (no text or symbols)

Technical illustration of a mechanical assembly with threaded rod and spring, alongside a separate view of a coiled spring (no text or symbols)

Wire Nosing Riser Tread Stairway ≤5mm

Two views of a metallic mechanical assembly: one with a rectangular plate and two connected rods, the other showing a cylindrical rod inserted into a housing (no text or symbols visible)

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

RAPPRESENTANZA DEL REGNO UNITO

YH CONSULTING LIMITED. C/O YH Consulting Limited Ufficio 147, Centurion House, London Road, Staines- upon-Thames, Surrey, TW18 4AX

Five vertical metal structural supports with holes, shown in black and white (no text or symbols)

Level-drilled post L- drilled corner post 30°-drilled stair post Post 1 Post 2 Post 3 Post 4 Post 5

Technical line drawing of a long cylindrical object with circular holes and a protruding port, labeled 'H' at the base (no text or symbols on the object itself)

EL PAQUETE INCLUYE

No	Se component	Imagen	CANTIDAD
			Modelo de ajuste
			HR-001/ HR-002	HR005 ~ HR0 12/HR-019/H R-021/HR-02 3/	HR-003/ HR-004	HR-013~ HR-016/ HR-018/ HR-020/ HR-022/	HR-0 17
1	correo		4	1	4	1	/
			/	/	/	/	1
2	Cuadrado cubrir		4	1	/	/	/
3	El rectángulo cubierta de ar		/	/	4	1	/
4	ancla tornillo		16	4	16	4	4
5	Curvo soporte		4	1	4	1	/
6	Horizontal soporte		4	1	4	1	/
7	maleficio llave inglesa		4	1	4	1	1
8	Extremo abierto llave inglesa		4	1	4	1	1
9	Tocando tornillo		8	2	8	2	4
10	Plástico cubrir		/	/	/	/	1

INSTALACIÓN

Close-up of a black metal bracket with red adhesive tape inserted, mounted on a black base with two circular holes (no text or symbols visible)

Close-up of a yellow and black drill bit on a concrete surface with red markers (no text or symbols visible)

Close-up of a hammer striking a black metal object with green pins (no text or symbols visible)

Close-up of a metallic mechanical component with a curved arm and flange, mounted on a textured surface (no visible text or symbols)

Close-up of a black rectangular electronic component with four metallic pins (no text or symbols visible)

Mechanical assembly diagram showing a lever mechanism with a bracket and base (no text or symbols)

Mechanical assembly diagram showing a cylindrical component mounted on a base (no text or symbols visible)

Three-panel photo collage showing industrial equipment components: a black mechanical bracket, a black tool holder, and a metallic pipe with residue (no visible text or symbols)

Three-panel photo showing mechanical assembly components: a black metal frame with bolts, a black square base, and a metallic bracket with bolts (no visible text or symbols)

Mechanical assembly diagrams showing two configurations of a mechanical clamp or bracket with no visible text or symbols

Diagram showing three different installation methods: a vertical support structure, a horizontal support column, and a flat panel with mounting holes (no text or symbols present)

Technical illustration of three mechanical components mounted on a pole, shown from different angles (no text or symbols present)

Technical diagram showing two mechanical assembly configurations with metal rods and structural supports (no text or symbols)

Technical illustration of a mechanical assembly with threaded rod and spring, alongside a separate view of a coiled spring (no text or symbols)

Wire Nosing Riser Tread Stairway ≤5mm

Two views of a metallic mechanical assembly: one with a rectangular plate and two connected rods, the other showing a cylindrical rod inserted into a housing (no text or symbols visible)

Road, Staines-upon-Thames, Surrey, TW18 4AX

REPRESENTANTE CE

E-CrossStu GmbH

Mainzer Landstr.69,

Five vertical metal structural supports with holes, shown in black and white (no text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIE Z NAMI!

Level-drilled post L- drilled corner post 30°-drilled stair post Post 1 Post 2 Post 3 Post 4 Post 5

Technical line drawing of a long cylindrical component with circular holes and a protruding port, labeled 'H' at the base (no text or symbols on the object itself)

ZAWARTOŚĆ PAKIETU

Mechanical assembly diagram showing a lever mechanism with a central shaft and base (no text or symbols)

3D rendering of a mechanical assembly with a cylindrical component mounted on a base (no text or symbols visible)

Three-panel photo collage showing industrial equipment components: a black mechanical device, a black cylindrical component with a handle, and a metallic pipe pouring liquid into a dark metal surface (no visible text or symbols)

Three-panel photo showing mechanical assembly components: a black metal frame with bolts, a black square base, and a metallic bracket with bolts (no visible text or symbols)

Mechanical assembly diagrams showing two configurations of a mechanical clamp or bracket with no visible text or symbols

Diagram showing three different installation methods: a mechanical support, a vertical rod with red arrows indicating force or direction, and a flat panel with circular holes (no text or symbols present)

Technical illustration of three mechanical components mounted on a pole, shown from different angles (no text or symbols present)

Technical diagram showing two mechanical assembly configurations with metal rods and structural supports (no text or symbols)

Technical illustration of a mechanical assembly with threaded rod and spring, alongside a separate view of a coiled spring (no text or symbols)

Wire Nosing Riser Tread Stairway ≤5mm

Technical illustration of two metallic mechanical components with coiled wires, shown from different angles (no text or symbols)

Producent: Shanghaimuxinmuyeyouxiangongsi Adres:

Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Szanghaj 200000 CN.

Importowane do AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importowane do USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REP WIELKIEJ BRYTANII

YH CONSULTING LIMITED. C/O YH Consulting Limited Biuro

147, Centurion House, London Road, Staines-upon-

Thames, Surrey, TW18 4AX

Przedstawiciel UE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

Five vertical metal structural supports with holes, shown in black and white (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

www.vevor.com/support

Level-drilled post L- drilled corner post 30°-drilled stair post Post 1 Post 2 Post 3 Post 4 Post 5

Technical line drawing of a long rectangular object with circular holes and a protruding port, labeled 'H' at the base (no text or symbols on the object itself)

PAKKET INBEGREPEN

Nee	Het componeert nt's	Afbeelding	Hoeveelheid
			Pasmodel
			HR-001/ HR-002	HR005~HR0 12/UUR-019/U R-021/HR-02 3/	HR-003/ HR-004	HR-013~ HR-016/ HR-018/ HR-020/ HR-022/	HR-0 17
1	na		4	1	4	1	/
			/	/	/	/	1
2	Vierkant omslag		4	1	/	/	/
3	De rechthoek ar-cover		/	/	4	1	/
4	anker bout		16	4	16	4	4
5	Gebogen beugel		4	1	4	1	/
6	Horizontaal beugel		4	1	4	1	/
7	zeshoek moersleutel		4	1	4	1	1
8	Open einde moersleutel		4	1	4	1	1
9	Tikken schroef		8	2	8	2	4
10	Plastic omslag		/	/	/	/	1

INSTALLATIE

Mechanical assembly diagram showing a lever mechanism with a central shaft and base (no text or symbols)

3D rendering of a mechanical assembly with a cylindrical component and mounting base (no text or symbols visible)

Three-panel photo collage showing industrial equipment components: a mechanical clamp, a vertical support structure, and a metal pipe pouring liquid into a granular material (no visible text or symbols)

Three-panel photo showing mechanical assembly components: a black rod with bolts, a metallic bracket with bolts, and a metallic frame (no text or symbols visible)

Mechanical assembly diagrams showing two configurations of a mechanical clamp or bracket with no visible text or symbols

Diagram showing three different installation methods: a vertical support structure, a horizontal support column, and a flat panel with mounting holes (no text or symbols present)

Technical illustration of three mechanical components with diagonal lines, no text or symbols present

Technical diagram showing two mechanical assembly configurations with metal rods and structural supports (no text or symbols)

Voor horizontale montage van de spanner en hoekmontage

Technical illustration of a mechanical assembly with threaded rod and spring, alongside a separate view of a coiled spring (no text or symbols)

Wire Nosing Riser Tread Stairway ≤5mm

Two views of a metallic mechanical assembly: one with a rectangular plate and two connected rods, the other showing a cylindrical rod inserted into a housing (no text or symbols visible)

Fabrikant: Shanghaimuxinmuyeyouxiangongsi Adres:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

YH CONSULTING LIMITED. C/O YH Consulting Limited Kantoor 147, Centurion House, London Road, Staines- upon-Thames, Surrey, TW18 4AX

EC-REP

Five vertical metal structural supports with holes, shown in black and white (no text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

Level-drilled post L- drilled corner post 30°-drilled stair post Post 1 Post 2 Post 3 Post 4 Post 5

Technical line drawing of a long rectangular object with circular holes and a protruding port, labeled 'H' at the base (no text or symbols on the object itself)

PAKET INGÅR

Mechanical assembly diagram showing a lever mechanism with a central pivot and base (no text or symbols)

3D rendering of a mechanical assembly with a cylindrical component and mounting base (no text or symbols visible)

Three-panel photo showing industrial equipment components: a black mechanical device, a black cylindrical component with a handle, and a metallic tool tip with residue (no visible text or symbols)

Three-panel photo showing mechanical assembly components: a black bracket with screws, a metallic bracket with bolts, and a metallic frame (no text or symbols visible)

Mechanical assembly diagrams showing two configurations of a mechanical clamp or bracket with mounting base (no text or symbols)

Diagram showing three different installation methods: a vertical support structure, a horizontal support column, and a flat panel with mounting holes (no text or symbols present)

Technical illustration of three mechanical components with mounting brackets and diagonal lines (no text or symbols)

Technical diagram showing two mechanical assembly configurations with metal rods and structural supports (no text or symbols)

Technical illustration of a mechanical assembly with threaded rod and spring, alongside a separate panel with coiled spring (no text or symbols)

Wire Nosing Riser Tread Stairway ≤5mm

Two views of a metallic mechanical assembly: one with a rectangular plate and two connected rods, the other showing a cylindrical rod inserted into a housing (no text or symbols visible)

Tillverkare: Shanghaimuxinmuyeyouxiangongsi Adress:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importerad till AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

www.vevor.com/support
