USER MANUAL JX20 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
VEVOR®
TOUGH TOOLS, HALF PRICE
RATCHET POWER
PULLER

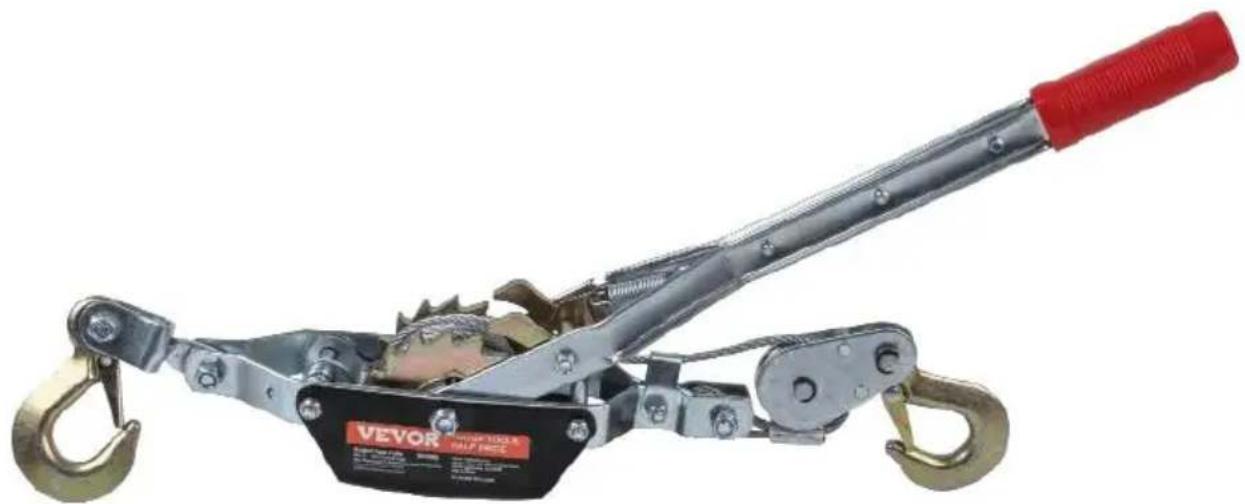

MODEL: JX20
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
SAFETY INSTRUCTIONS
WARNING
- Do not use the ratchet power puller when the vehicle is in gear the "P" (parking brake) position, this may damage the vehicle's transmission.
- Before use, the cable should be straightened out and should not twisted to avoid breaking the rope.
- Keep hands, clothing, hair, and jewelry clear of the cable/gear when using the ratchet power puller.
- Do not wrap the cable around the load and do not hook the load directly onto the cable. This could damage the load and twist or the cable.
- Do not use the ratchet power puller if the cable is frayed, twisted damaged.
- Do not allow anyone to stand near the cable/in the cable pulling line/behind the hand puller while it is on.
- Never pass over hand puller or steel cable during use.
- Against the parameter table, do not overload fracture tension!
- Never use other levers or tubes to put force on the tightener har
- It is prohibited to subject the wire tightener to sudden shock load energy.
- It is prohibited to let the wire rope over/close to or around the sharp corner, which will cause the wire rope to be cut off.
- The product is solely for pulling purposes on loads or to pull tw cables together within the product's own technical specs.
- The product is not intended for hauling floating vessels, nor not professional and/or industrial applications.
- Do not use the ratchet power puller for hoisting or lifting operation for this type of application hoists must comply with particular safe requirements.
- The ratchet power puller shown in this operation manual is not intended for the transportation of persons.
MODEL AND PARAMETERS
| Model | JX20 |
| Max. Capacity | 2T |
| Rope Type | Wire Rope |
| Rope Diameter/Length | Φ5mm/3.65m |
| Description | 2 Hooks&Double Gear |
| Double Rope Span | 0.6-1.9m |
| Breaking Tension | 2.5T |
STRUCTURE DIAGRAM


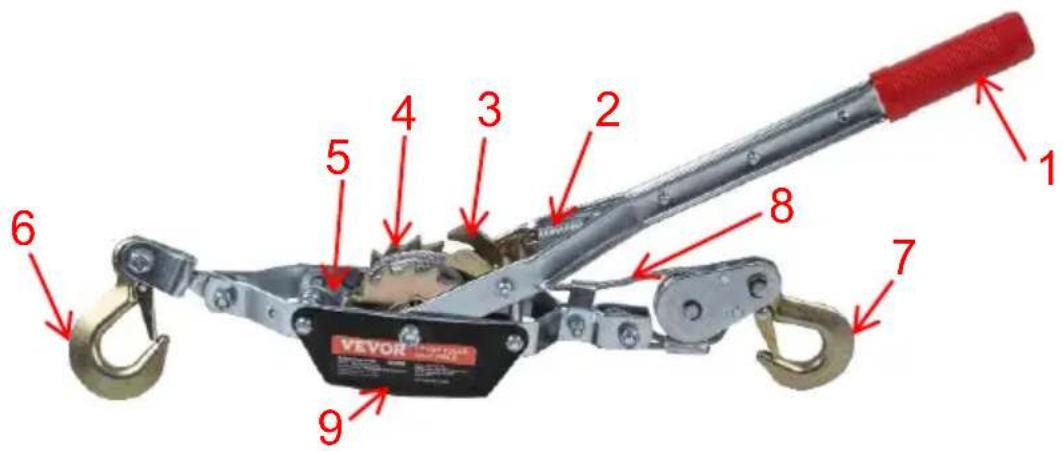

Handle 2. Pawl Spring 3. Drive Pawl 4. Ratchet 5. Stop Pawl Trigger
-
Anchor Hook 7. Load Hook 8. Wire Rope 9. Guard
COMPONENTS
| No. | Pictu re | Name | Qty |
| 1 | ![]() | Ratchet Power Puller | 1 |
| 2 | ![]() | User Manual | 1 |
OPERATION
CHECK THE HAND PULLER CAREFULLY BEFORE USING IT !
Suggestion: The best way to get acquainted with how the hand operates is to carry out a few test runs before you actually use i
Note: It may be difficult to pull out the rope if it is fully packed reserve an appropriate length outside!

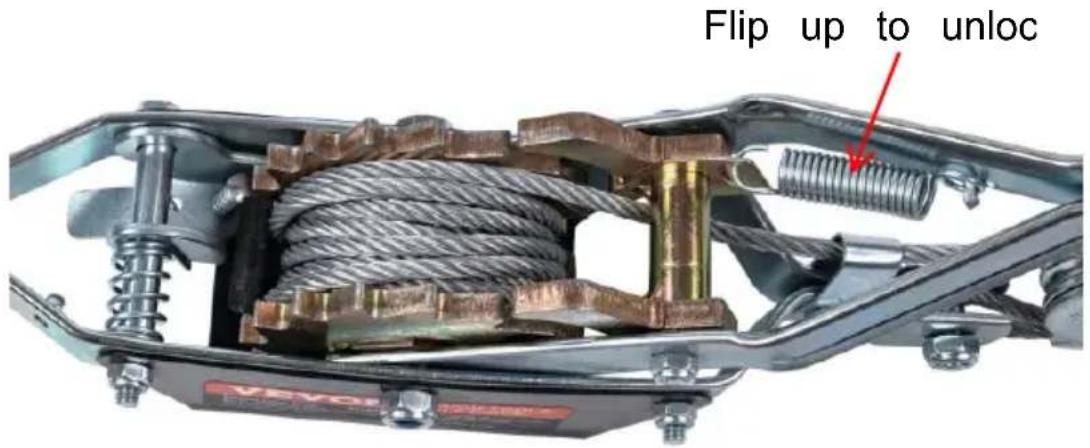

Step 1: Switch the pawl spring to upper unlock position in order to release the pawl.


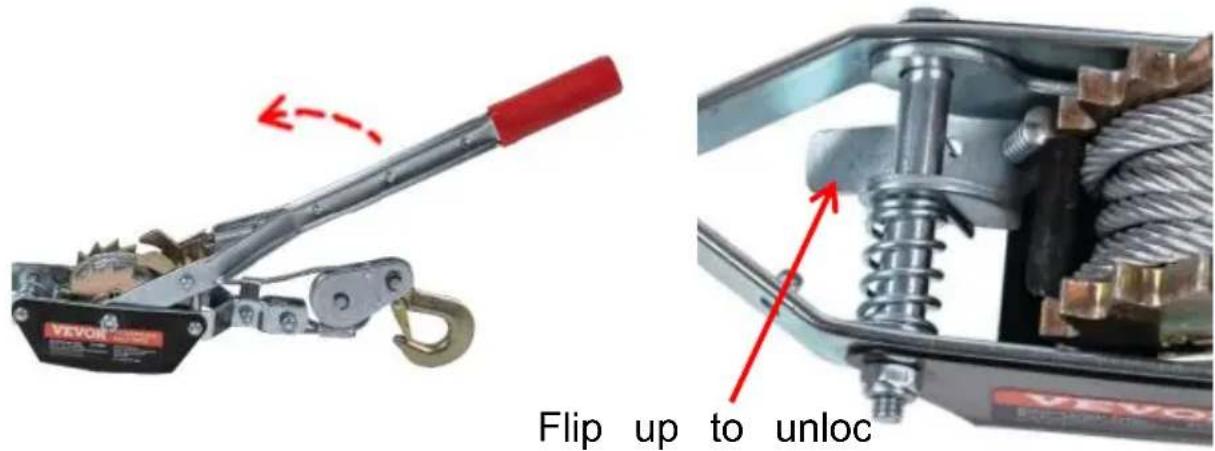

Flip up to unlocStep 2: Flip the handle to the opposite side, hold the trigger simultaneously, the wire rope can be pulled out.


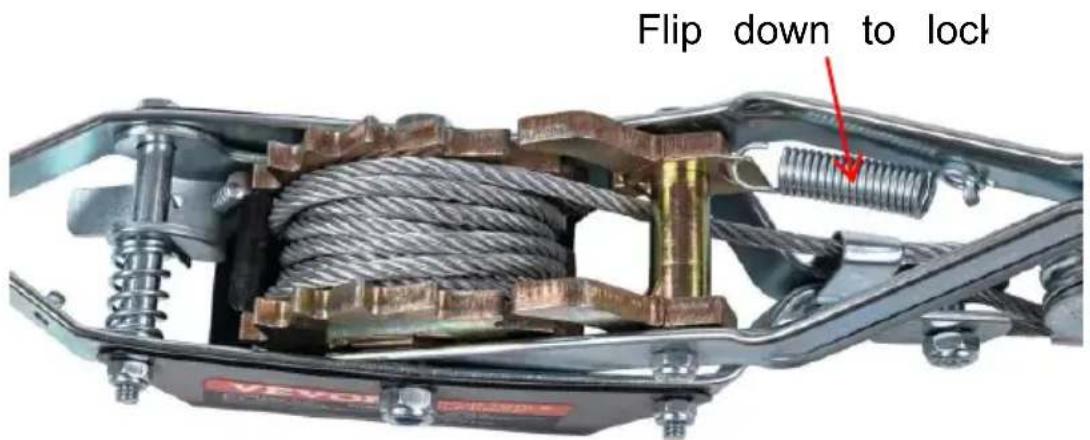

Flip down to lockStep 4: The wire rope will be retracted when you push and pull handle back and forth.


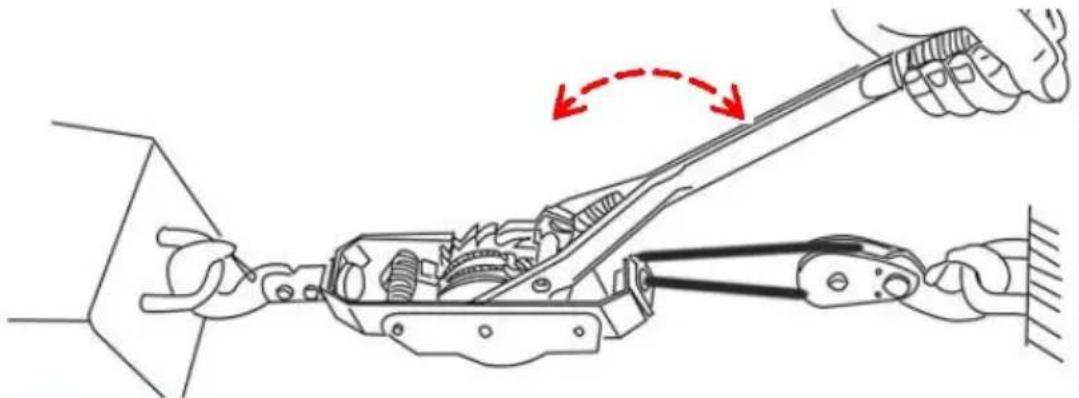

Illustration of a hand using a tool to lift a mechanical component, showing motion direction (no text or symbols)Note: In case of stacking the wire rope on one side, you may use finger to guide the rope while retracting.
MAINTENANCE
- Lubricate the wire rope regularly and check for wear and broken
- Be sure to wipe the product with a dry cloth after use in harsh-ments, such as bad weather or by the sea.
