USER MANUAL EWB7614 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Three wheels-Electric Power Steel Garden Cart

USER MANUAL

Model: EWB7614

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

Model:EWB7614

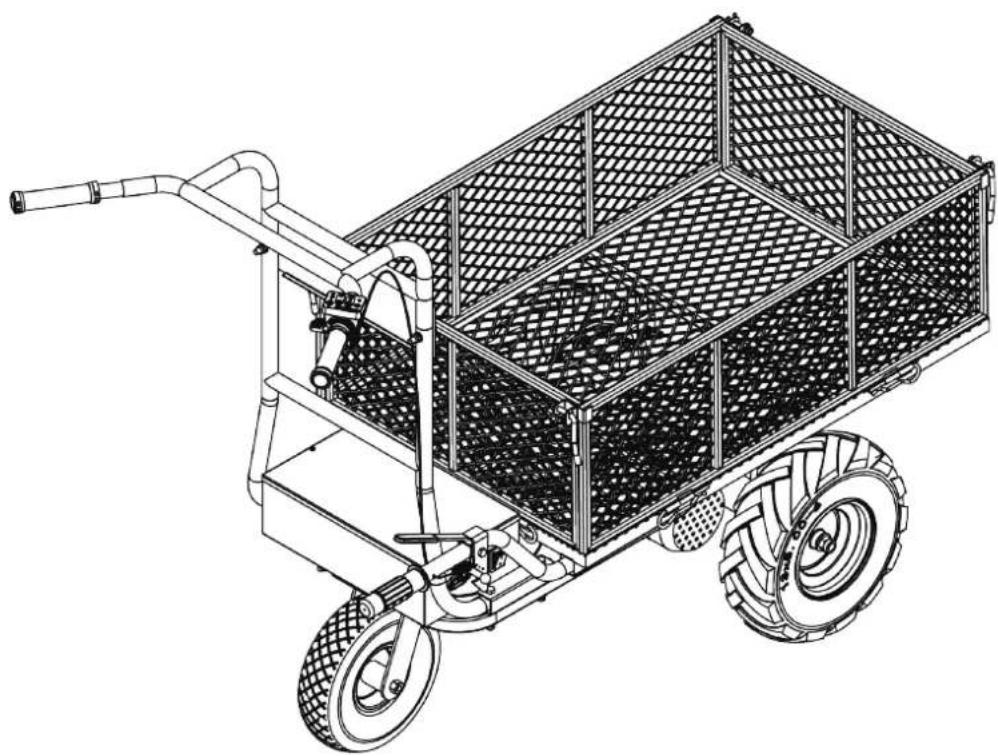

Technical line drawing of a wheeled cart with mesh panel and wheels (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support?

Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there is any technology or software updates on our product.

Safety precautions

WARNING:

Read this instructions before using this product. Failure to do so can result in serious injury. The basic precautions should always be followed, including the following:

1. The three-wheel electric steel garden cart may not be used or stored in hazardous areas. It is not allowed to use the appliance in dangerous locations.
2. The three-wheel electric steel garden cart must be checked to ensure it is in proper working order and operating safely before use. Otherwise, the appliance must not be used.
3. Use as intended only. The three-wheel electric steel garden cart is not suitable for loading corrosive materials.
4. The operator must use the three-wheel electric steel garden cart properly. Please consider the local conditions and pay attention to third parties, in particular children.
5. This three wheels-electric power steel garden cart is not intended for use by persons (including children) with reduced physical, sensory or mental abilities or lacking experience and knowledge, unless they are supervised by a person responsible for their safety or are instructed by these persons on the use of the device. Children should be supervised to ensure that they do not play with the three wheels-electric power steel garden cart.
6. Please use the three-wheel electric steel garden cart according to the weight indicated in the manual. Do not load more than the marked weight, as this will damage the garden cart.

SAVE THESE INSTRUCTIONS

EC-CONFORM: This product complies with EC-directives.

READ THE MANUAL! Read the user and maintenance manual carefully and get familiar with the controls in order to use the machine correctly and to avoid injuries and machine defects.

ATTENTION! Ignoring the safety signs and warnings applied on the machine as well as ignoring the security and operating instructions can cause serious injuries and even lead to death.

Protect from rain, splashing!

Protective clothing!

No smoking, no naked flames, no sparks.

Corrosive (Battery acid).

Explosive gas.

1. SPECIFICATIONS

Item No.	EWB7614
Rated Voltage	36 V DC
Battery Capacity	12Ah
Motorpower	500 W
Max Speed	Forward: 0-5km/hBackward: 0-3.5km/h
Max. Load Capacity	226kg/500bls

2. COMPONENTS

P. N	Descriptions
1	Mesh Tray
2	13x5.00-6 Air rubber wheel
3	Differential motor
4	I/O switch
5	Plug for battery charging cable
6	10 inch swivel brake castor
7	Battery box system
8	Frame
9	Accelerator panel
10	Handle grip

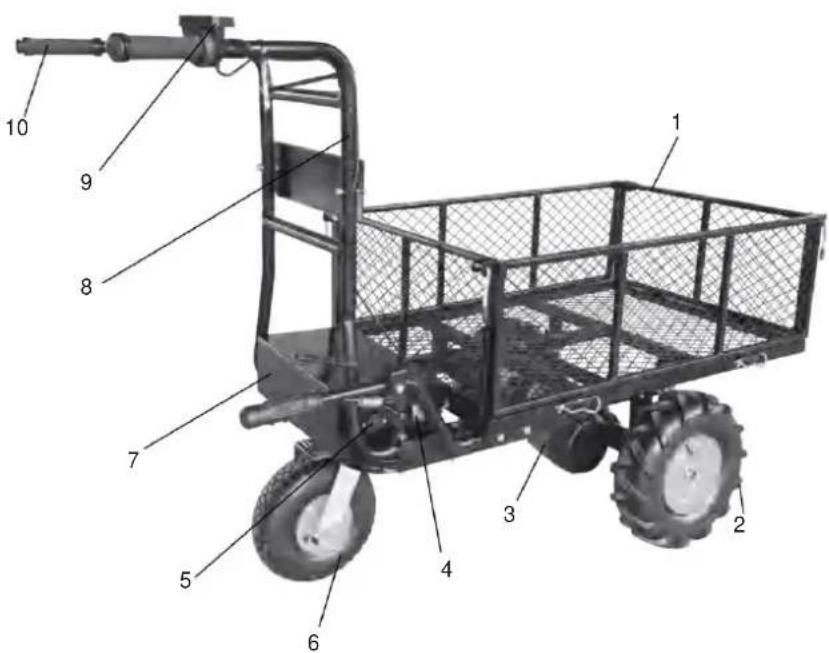

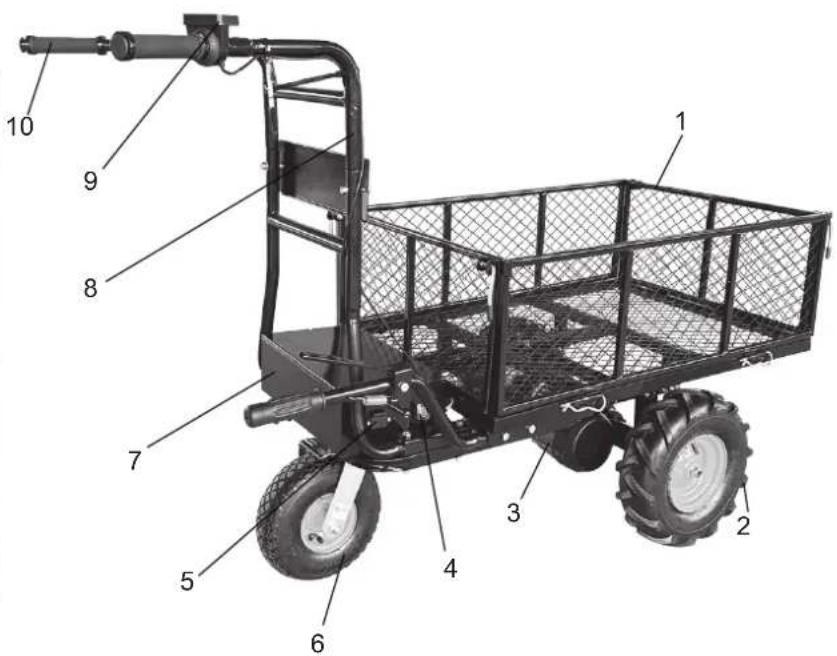

Labeled diagram of a mechanical cart with numbered parts for identification

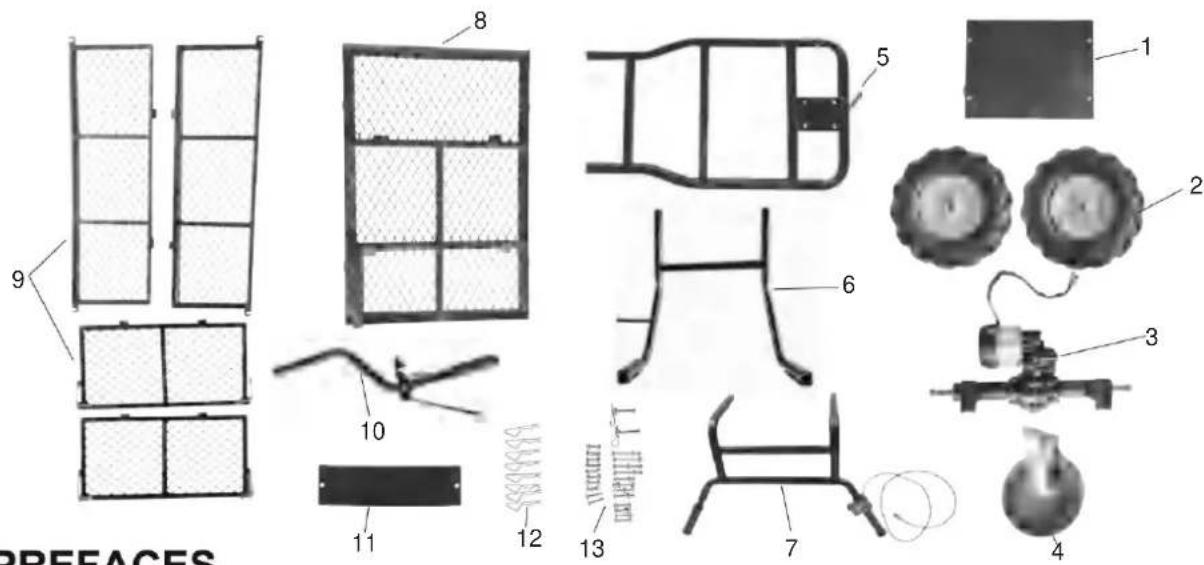

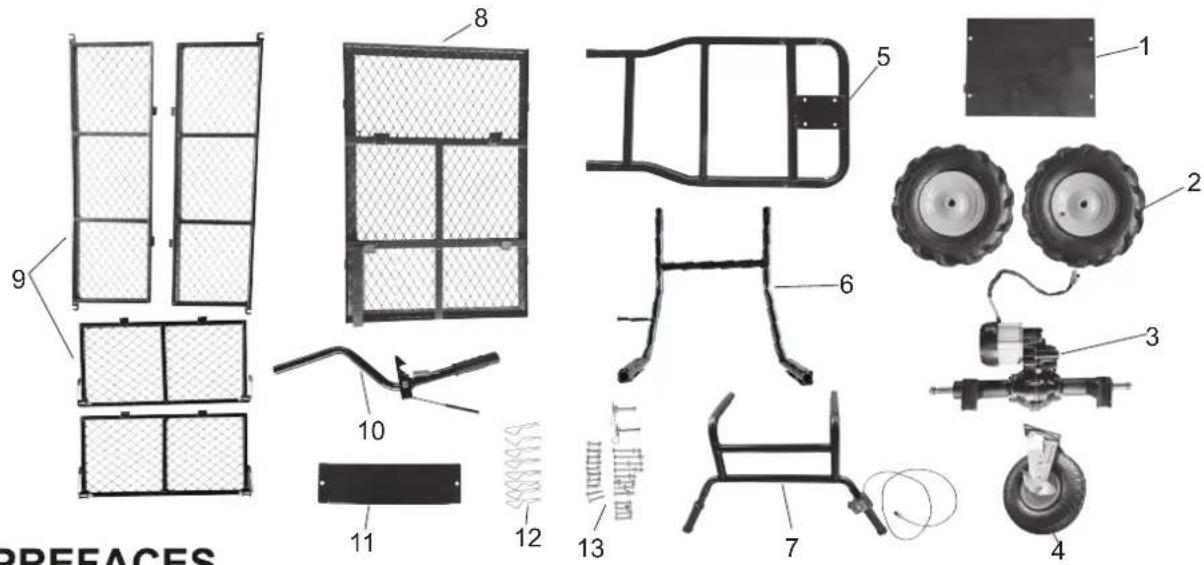

3. DELIVERY CONTENT

P. N	Descriptions	Q'ty
1	Battery box system	1
2	13x5.00-6 Air Rubber wheel	2
3	Differential motor	1
4	10 inch swivel brake castor	1
5	Base frame	1
6	Connection frame	1
7	Guide frame	1

P. N	Descriptions	Q'ty
8	Metal mesh base	1
9	Metal mesh sides	4
10	Tipping handle	1
11	Back plate	1
12	Wave Pin	8
13	Screw kit	1

8 9 10 11 12 5 6 7 4 3 2 1 PREFACES

4. PREFACES

Dear Customer!

This manual contains important information and advice for the correct and safe use and maintenance of the electric wheelbarrow.

Following the usual commercial name of the device (see cover) is substituted in this manual with the name "machine".

The manual is part of the machine and may not be stored separately. Read it profoundly before the first use of the machine and keep it for later reference. When the machine is handed to other persons always put the manual to the machine.

Please follow the security instructions!

Please read the entire manual, to prevent misunderstandings, machine damage or even injuries! Due to continuous development of our products illustrations, pictures might differ slightly. If you however find errors in this manual, please inform us.

5. SAFETY

5.1 Intended Use

The machine must only be used for its intended purpose! Any other use is deemed to be a case of misuse. To use the machine properly you must also observe and follow all safety regulations, the assembly instructions, operating and maintenance instructions lay down in this manual.

All people who use and service the machine have to be acquainted with this manual and must be informed about the machine's potential hazards.

The machine is used for the transportation of goods within the maximum permissible load capacity.

WARNING

The removal or modification of the safety components may result in damage to equipment and serious injury! HIGHEST RISK OF INJURY!

Ambient conditions

The machine may be operated:

Humidity max. 70%

Temperature +5°C to +40°C (+41°F to +104°F)

The machine, especially the battery; may not be exposed to a temperature of about 80^ C. Do not store in the blazing sun or a long time in the trunk of a car.

Prohibited use:

The operation of the machine outside the stated technical limits described in this manual is forbidden.

The operation of the machine without provided protective devices is prohibited.

The use of the machine not being suitable for the use of the machine and not being certified is forbidden

The use of the machine not according to the required dimensions is forbidden.

Any manipulation of the machine and parts is forbidden.

The use of the machine for any purposes other than described in this user-manual is forbidden.

It is not allowed to leave the immediate work area during the work is being performed.

5.2 Security Instructions

Missing or nonreadable security stickers have to be replaced immediately!

The locally applicable laws and regulations may specify the minimum age of the operator and limit the use of this machine!

To avoid malfunction, machine defects and injuries, read the following security instructions

GENERAL:

Use the machine only in good enough light to allow a safe operation can be guaranteed.

In tiredness, decreased concentration or under the influence of alcohol or drugs, the work on the machine is prohibited!

Caution in slippery conditions - slip hazard - risk of injury. When working, robust and non-slip footwear. Slides/stumble/ traps are a major cause of serious injury or death.

The machine must be operated only by trained persons (knowledge and understanding of this manual), which have no limitations of motor skills compared with conventional workers.

Keep the machine in use with both hands.

Unauthorized persons, especially children and not trained personnel must be kept away from the running machine! If you pass the machine to third, these instructions must be attached to the machine.

Before the start, after the failure or shock, be sure to check the device and make sure that it is in good condition. Take special care when work near swimming pools or garden ponds.

Never use the machine when it is raining or in damp, wet areas Unplug battery before all maintenance and settings!

CHARGER:

The charger is designed exclusively to charge the battery of this machine. Charging other battery is not permitted.

Never use the charger in a damp or wet environment

Disconnect cable connections only by pulling the plug. Pulling on the cable could damage the cable and plug and electrical safety would no longer be guaranteed.

Never use the charger if the cord, plug or the appliance itself is damaged by external influences. Attach the charger then to the next workshop.

DO not use the unit near heat sources.

DO not use an extension cord to supply power to the charging station.

DO not place metal objects in the area of the charging contacts of the charger.

DO not open the charger. In case of failure, contact a specialist workshop.

Use to recharge your battery only with the original charger. Use of other charger defects may occur or fire hazard.

BATTERY:

Improper use or the use of damaged batteries leaking vapors. Run to fresh air and seek medical attention in case of complaints. The vapors can irritate the respiratory tract.

FIRE HAZARD! Never charge batteries near acids and flammable materials.

Charge the battery only at an ambient temperature between 0°C to +40°C. Leave to cool down after heavy load.

EXPLOSIVE! Protect the battery from heat and fire.

Use the battery only at an ambient temperature between 0^ C to +45^ C.

SHORT CIRCUIT! For disposal, transport or storage, the battery must (plastic bag, box) or the contacts are packed must be taped.

Never open the battery.

5.3 Remaining Risk Factors

Despite intended use, certain residual risks remain. Due to the design and construction of the machine, hazardous situations may occur which are identified as follows in these operating instructions:

ADANGER

A safety instruction designed in this way indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Such safety instruction indicates a potentially hazardous situation which, if not avoided, may result in serious injury or even death.

△CAUTION

A safety instruction designed in this way indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE

A safety note designed in this way indicates a potentially dangerous situation which, if not avoided, may result in property damage.

Irrespective of all safety regulations, your common sense and your corresponding technical suitability/training are and, will remain the most safety factor for error-free operation of the machine. Safe working depends and foremost on you.

6. ASSEMBLY

Please check the product contents immediately after receipt for any eventual transport damage or missing parts. Claims from transport damage or missing parts must be placed immediately after initial machine receipt and unpacking before putting the machine into operation. Please understand that later claims cannot be accepted anymore.

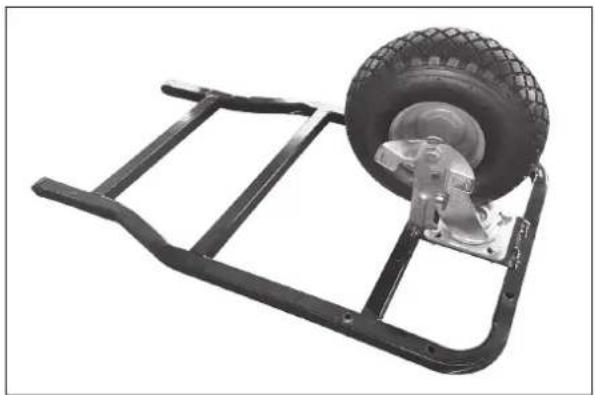

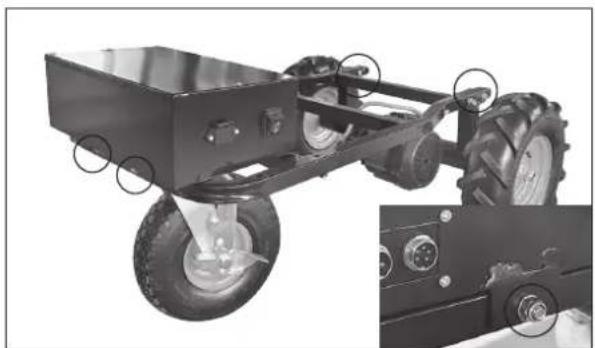

1. Connect the swivel brake castor onto the base frame by using 4 times (M8x25 screws, flange nuts).

Mechanical vehicle chassis frame with a tire and mounting bracket (no text or symbols visible)

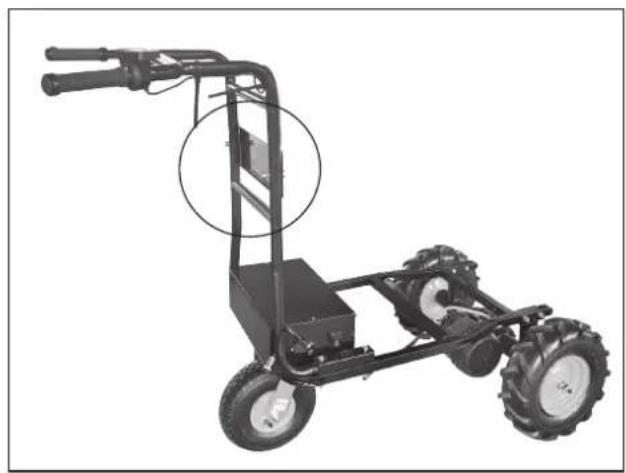

1. Connect step1&2 part, together with battery box system, by using 7 times (M8x45 screws, nuts and washers).

Mechanical component with large tires and wheels, shown in two views (no text or symbols visible)

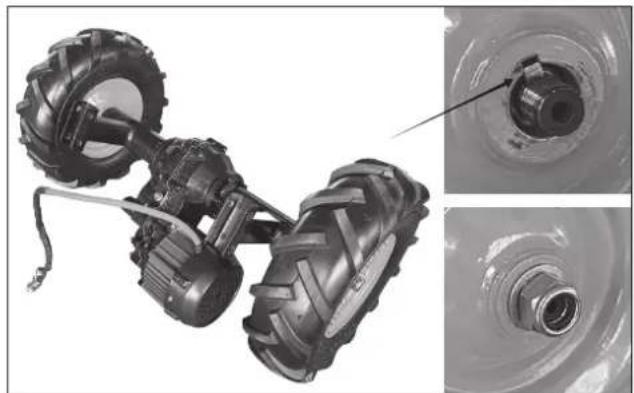

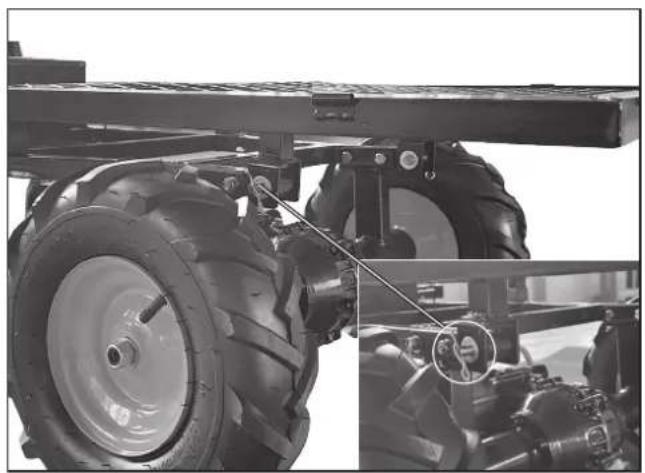

1. Install 2 pcs pneumatic rubber wheels on both sides of differential motor by using 2 times (key-washer-lock nut). Note: The valve needs to be installed outwards; Put the key into the keyway first.

Mechanical assembly of a vehicle with two large tires, shown with close-up details (no text or symbols visible)

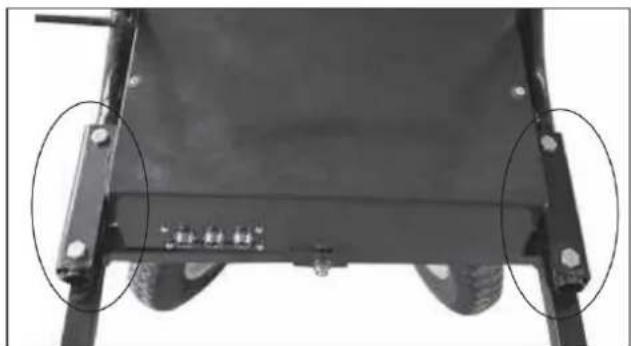

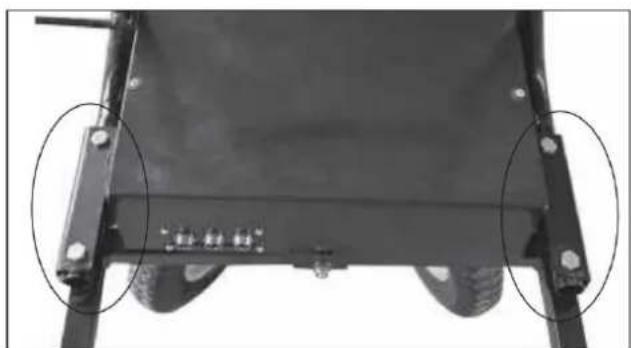

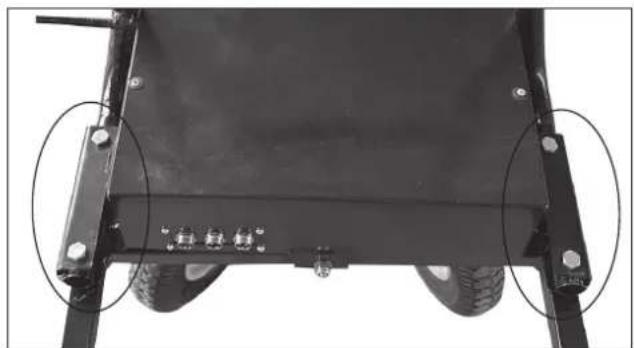

1. Connect the back frame onto the whole base body by using 4 times (M8x70 screws, nuts and washers).

Top-down view of a black wheeled cart with two wheels and mounting holes, no visible text or symbols

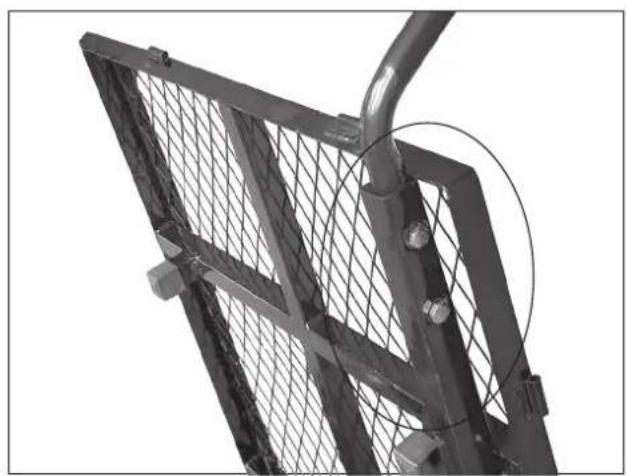

1. Connect the guide frame and back plate onto the back frame by using 2 times (M8x45 screws, nuts and washers).

Mechanical vehicle with three wheels and a handle, no visible text or symbols

1. Connect the Tipping handle by using 2 times (M8x45 screws, nuts and washers).

2. Connect the metal mesh base onto cart by using 2 times (washer & M10x60 cylinder pin with hole & washer & wave pin).

Close-up of a tractor's wheel and suspension system, showing tire tracks and mechanical components (no visible text or symbols)

1. Assemble the metal mesh sides by using 8 times wave pins.

Close-up of a metal frame structure with mesh grid pattern and attached pipe (no text or symbols visible)

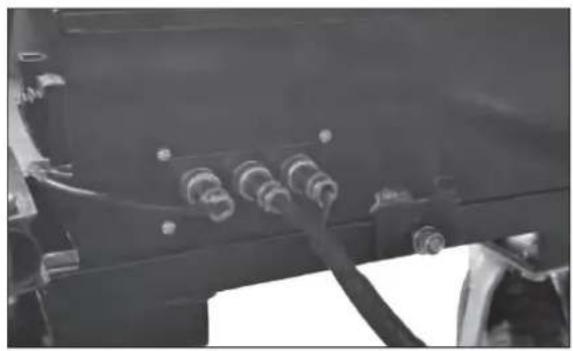

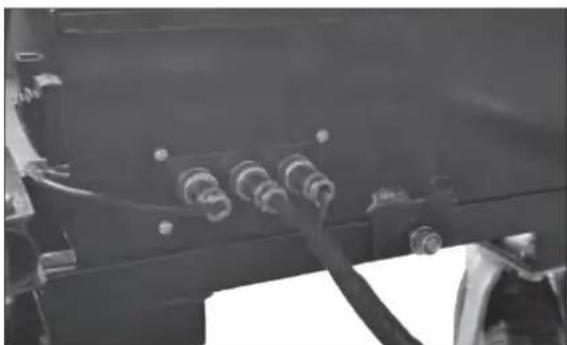

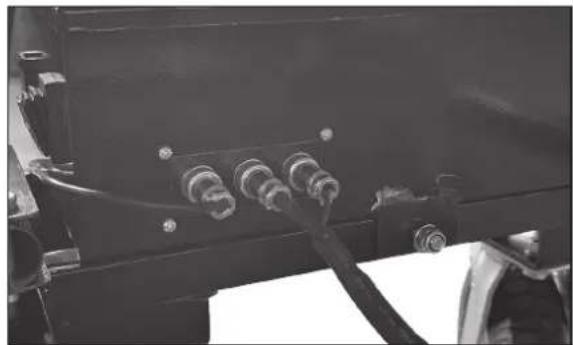

1. Dock all the plugs and tighten the knobs. Use cable ties to hold the line in place, so that the line does not sag and shake.

Black-and-white photo of a wheeled agricultural cart with wheels and a handle (no text or symbols visible)

Close-up of industrial machinery components with bolts and a curved pipe (no visible text or symbols)

7. OPERATION

Device to be operated in a perfect state only. Inspect the device visually every time it is to be used.

Check in particular the safety equipment, electrical controls, electric cables and screwed connection for damage and if tightened properly. Replace any damaged parts before operating the device.

7.1 Operation Instructions

WARNING

Unplug battery before all maintenance and settings! Notice

Never remove the battery while the machine is running. In case of longer standstill, press the shut-down button. Use the electric motor only with sufficient battery charge.

7.2 Operation

7.2.1 Start Electrical Support

Close-up of a black vehicle chassis with attached electrical connectors and a labeled component 'a' (no text or symbols beyond label)

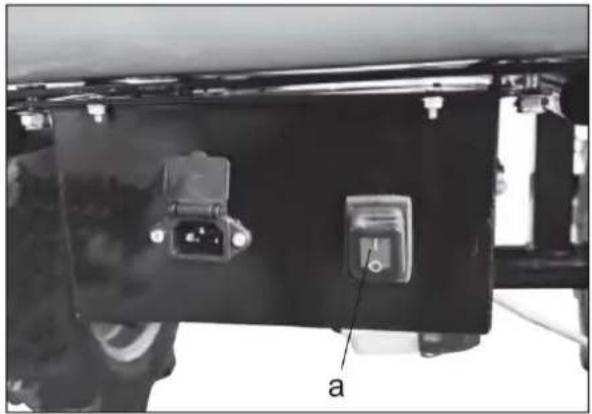

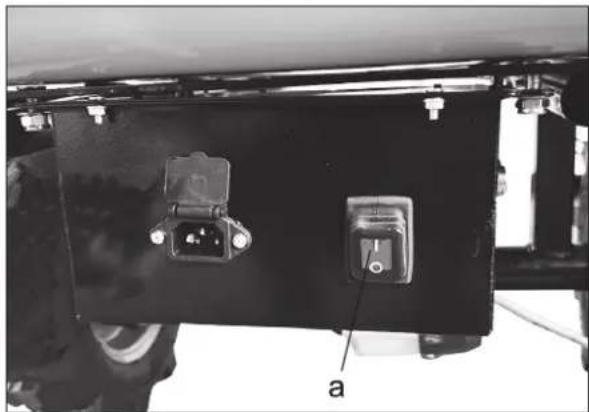

1. Turn switch (a) to I

L1 L2 L3 L4 L5 D ON/OFF P ECO R XSL-10 L6 1

Charger

Charger is integrated in the battery box system.

Charging the battery:

1. Connect the charger to the power supply (AC outlet) 110V/60 Hz and the charger plug.
2. Charge the battery.
3. Once the battery is fully charged (indication on the charger) the charger can be removed.

LED- indication on the control element:

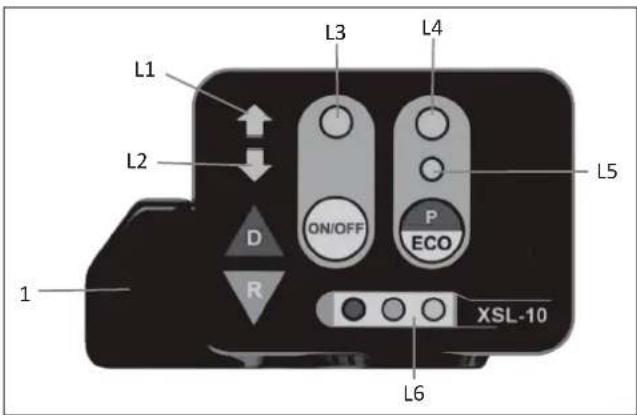

All three LED light up when the red power button is pressed.

When machine is activated by turning the lever following battery capacity is indicated:

1. All three led light up battery capacity 100%-51%.
2. Red and orange light up battery capacity 50%-10%.

3. Only red light up please charge the battery.

4. Press the ON/OFF button, light L3 is on, the wheelbarrow started

5. Press D button, light L1 is on, then press throttle lever 1, the wheelbarrow will go forward; Press R button, light L2 is on, then press throttle lever 1, the wheelbarrow will go backward;
6. Press P/ECO button, light L4 is on, the electric brake can help to stop on slop, the wheelbarrow will not go even though you press the throttle lever; Press this button again, light L5 is on, when you go downhill with heavy load and cannot control the barrow, then this downhill assist function really helps, which will control the barrow to go under a safe speed.
   5.L6- Remaining battery indicator

8. MAINTENANCE

ATTENTION

Unplug battery before all maintenance and settings!

Serious injury due to unintentional or automatic activation of the machine!

The machine does not require extensive maintenance.

If malfunctions and defects occur, let it be serviced by trained persons only.

NOTICE

Clean your machine regularly after every usage - it prolongs the machine's lifespan and is a pre-requisite for a safe working environment.

Repair jobs shall be performed by respectively trained professionals only!

Check regularly the condition of the security stickers. Replace them if required.

Check regularly the condition of the machine.

Store the machine in a closed, dry location.

8.1 Maintenance Plan.

After each work shift: check the cables (tight fit, damage)

8.2 Cleaning

NOTICE

The usage of certain solutions containing ingredients damaging metal surfaces as well as the use of scrubbing agents will damage the machine surface!

Clean the machine surface with a wet cloth soaked in a mild solution.

Never use running water or a high-pressure cleaner to clean the machine.

Clean the outer parts with a damp sponge.

Never clean the electronic parts with water!

Check the machine and remove the deposits and/ or residues with a brush.

8.3 Storage

Clean thoroughly all components before storage.

Store all components separately in a dry area at not less than -10°C.

Charge the battery fully before storing.

NOTICE

During longer standstill but at least after one month charge the battery.

8.4 Disposal

Do not dispose the machine and the battery in residual waste. Contact your local authorities for information regarding the available disposal options. When you buy at your local dealer for a replacement unit, the latter is obliged to exchange your old.

9. TROUBEL SHOTING

BEFORE YOU START WORKING FOR THE ELEIMINATION OF DEFECTS, UNPLUG THE BATTERY.

Trouble	Possible Cause	Solution
No electrical support.	Battery is not charged.	Recharge battery.
	Motor stuck.	Check motor.
	Power switch is damaged.	Check switch.
	Broker or loose cables.	Check cable.
No charging or battery.	Loosen cable.	Check cable connection.

10. PARTS BREAKDOWN

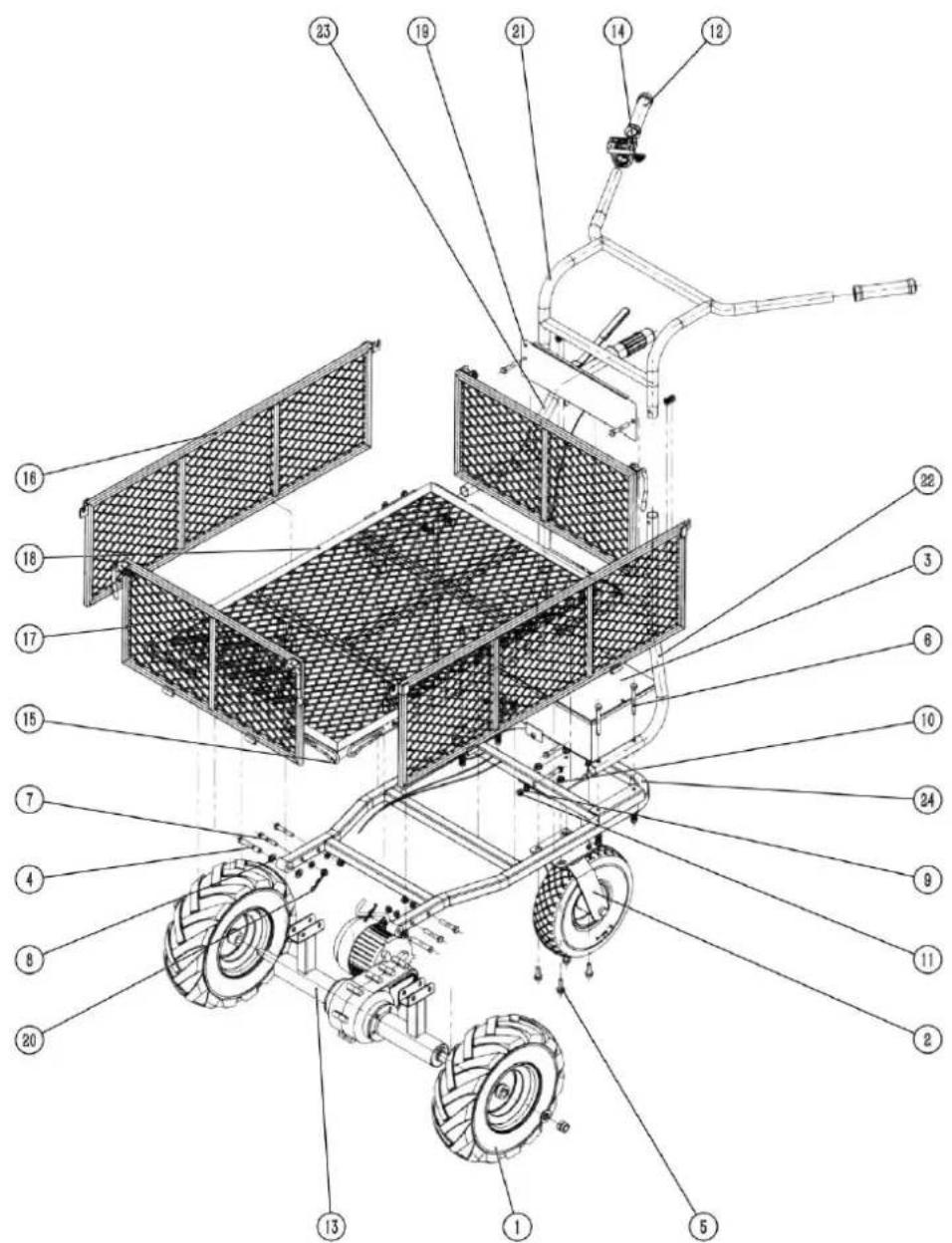

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

Part No.	Description	Q'ty	Part No.	Description	Q'ty
1	13x5.00-6 Pneumatic rubber wheel	2	13	Differential motor 500W	1
2	10 inch swivel brake castor	1	14	Accelerator panel XSL-10	1
3	Battery box system(36V)	1	15	Wavy pin 5.0	8
4	GB_CONNECTING_PIECE_PIN_CPWH 10X60	2	16	Metal mesh sides ( left&right)	2
5	GB_FASTENER_BOLT_HFBB M8X25-N	4	17	Metal mesh sides ( front&rear)	2
6	GB_FASTENER_BOLT_SB A M8X70-N	4	18	Metal mesh base	1
7	GB_FASTENER_BOLT_STBAB A M8X45-N	11	19	Back plate	1
8	GB_FASTENER_WASHER_SMWC 10	4	20	Wavy pin 2	2
9	GB_FASTENER_WASHER_SMWC 8	15	21	Guide frame	1
10	GB_HEXAGON_TYPE12 M8-N	4	22	Connection frame	1
11	GB_HEXAGON_TYPE9 M8-N	15	23	Tipping handle	1
12	Handle grip (Screw-on style)	2	24	Base frame	1

FCC Information:

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules, These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

CORRECT DISPOSAL

This product is subject to the provision of european Directive 2012/19/EU.

The symbol showing a wheelie bin crossed through indicates that the product

requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

Line drawing of a wheeled agricultural cart with mesh backrest and wheels (no text or symbols)

EC-CONFORM: This product complies with EC-directives.

READ THE MANUAL! Read the user and maintenance manual carefully and get familiar with the controls in order to use the machine correctly and to avoid injuries and machine defects.

ATTENTION! Ignoring the safety signs and warnings applied on the machine as well as ignoring the security and operating instructions can cause serious injuries and even lead to death.

Protect from rain, splashing!

Protective clothing!

No smoking, no naked flames, no sparks.

Corrosive (Battery acid).

Explosive gas.

1. SPECIFICATIONS

Item No.	EWB7614
Rated Voltage	36 V DC
Battery Capacity	12Ah
Motorpower	500 W
Max Speed	Vorwärts: 0–5 km/hRückwärts: 0–3,5 km/h
Max. Load Capacity	226 kg/500 Liter

2. COMPONENTS

Labeled diagram of a mechanical cart with numbered parts for identification

3. DELIVERY CONTENT

This manual contains important information and advice for the correct and safe use and maintenance of the electric wheelbarrow.

Following the usual commercial name of the device (see cover) is substituted in this manual with the name "machine".

The manual is part of the machine and may not be stored separately. Read it profoundly before the first use of the machine and keep it for later reference. When the machine is handed to other persons always put the manual to the machine.

Please follow the security instructions!

Please read the entire manual, to prevent misunderstandings, machine damage or even injuries! Due to continuous development of our products illustrations, pictures might differ slightly. If you however find errors in this manual, please inform us.

5. SAFETY

5.1 Intended Use

The machine must only be used for its intended purpose! Any other use is deemed to be a case of misuse. To use the machine properly you must also observe and follow all safety regulations, the assembly instructions, operating and maintenance instructions lay down in this manual.

All people who use and service the machine have to be acquainted with this manual and must be informed about the machine's potential hazards.

The machine is used for the transportation of goods within the maximum permissible load capacity.

WARNING

The removal or modification of the safety components may result in damage to equipment and serious injury! HIGHEST RISK OF INJURY!

Ambient conditions

The machine may be operated:

Humidity max. 70%

Temperature +5°C to +40°C (+41°F to +104°F)

The machine, especially the battery; may not be exposed to a temperature of about 80^ C. Do not store in the blazing sun or a long time in the trunk of a car.

Prohibited use:

The operation of the machine outside the stated technical limits described in this manual is forbidden.

The operation of the machine without provided protective devices is prohibited.

The use of the machine not being suitable for the use of the machine and not being certified is forbidden

The use of the machine not according to the required dimensions is forbidden.

Any manipulation of the machine and parts is forbidden.

The use of the machine for any purposes other than described in this user-manual is forbidden.

It is not allowed to leave the immediate work area during the work is being performed.

5.2 Security Instructions

Missing or nonreadable security stickers have to be replaced immediately!

The locally applicable laws and regulations may specify the minimum age of the operator and limit the use of this machine!

To avoid malfunction, machine defects and injuries, read the following security instructions

GENERAL:

Use the machine only in good enough light to allow a safe operation can be guaranteed.

In tiredness, decreased concentration or under the influence of alcohol or drugs, the work on the machine is prohibited!

Caution in slippery conditions - slip hazard - risk of injury. When working, robust and non-slip footwear. Slides/stumble/ traps are a major cause of serious injury or death.

The machine must be operated only by trained persons (knowledge and understanding of this manual), which have no limitations of motor skills compared with conventional workers.

Keep the machine in use with both hands.

Unauthorized persons, especially children and not trained personnel must be kept away from the running machine! If you pass the machine to third, these instructions must be attached to the machine.

Before the start, after the failure or shock, be sure to check the device and make sure that it is in good condition. Take special care when work near swimming pools or garden ponds.

Never use the machine when it is raining or in damp, wet areas Unplug battery before all maintenance and settings!

CHARGER:

The charger is designed exclusively to charge the battery of this machine. Charging other battery is not permitted.

Never use the charger in a damp or wet environment

Disconnect cable connections only by pulling the plug. Pulling on the cable could damage the cable and plug and electrical safety would no longer be guaranteed.

Never use the charger if the cord, plug or the appliance itself is damaged by external influences. Attach the charger then to the next workshop.

DO not use the unit near heat sources.

DO not use an extension cord to supply power to the charging station.

DO not place metal objects in the area of the charging contacts of the charger.

DO not open the charger. In case of failure, contact a specialist workshop.

Use to recharge your battery only with the original charger. Use of other charger defects may occur or fire hazard.

BATTERY:

Improper use or the use of damaged batteries leaking vapors. Run to fresh air and seek medical attention in case of complaints. The vapors can irritate the respiratory tract.

FIRE HAZARD! Never charge batteries near acids and flammable materials.

Charge the battery only at an ambient temperature between 0°C to +40°C. Leave to cool down after heavy load.

EXPLOSIVE! Protect the battery from heat and fire.

Use the battery only at an ambient temperature between 0^ C to +45^ C.

SHORT CIRCUIT! For disposal, transport or storage, the battery must (plastic bag, box) or the contacts are packed must be taped.

Never open the battery.

5.3 Remaining Risk Factors

Despite intended use, certain residual risks remain. Due to the design and construction of the machine, hazardous situations may occur which are identified as follows in these operating instructions:

ADANGER

A safety instruction designed in this way indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Such safety instruction indicates a potentially hazardous situation which, if not avoided, may result in serious injury or even death.

ACAUTION

A safety instruction designed in this way indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE

A safety note designed in this way indicates a potentially dangerous situation which, if not avoided, may result in property damage. Irrespective of all safety regulations, your common sense and your corresponding technical suitability/training are and, will remain the most safety factor for error-free operation of the machine. Safe working depends and foremost on you.

6. ASSEMBLY

Please check the product contents immediately after receipt for any eventual transport damage or missing parts. Claims from transport damage or missing parts must be placed immediately after initial machine receipt and unpacking before putting the machine into operation. Please understand that later claims cannot be accepted anymore.

Mechanical vehicle chassis frame with tire and mounting bracket (no text or symbols visible)

Close-up of a small off-road vehicle tire with attached engine, shown with close-ups of the wheel and screw (no text or symbols visible)

Mechanical component with visible wheels and mounting holes, shown in two views (no text or symbols)

Close-up of a black metal vehicle chassis with two wheels and mounting brackets, no visible text or symbols

Machine Translated by Google

Mechanical tricycle with three wheels and a handle, shown in black and white (no text or symbols visible)

Close-up of a tractor's wheel and trailer assembly with mechanical components, no visible text or symbols

Close-up of a metal fence structure with mesh pattern and a pipe fitting (no text or symbols visible)

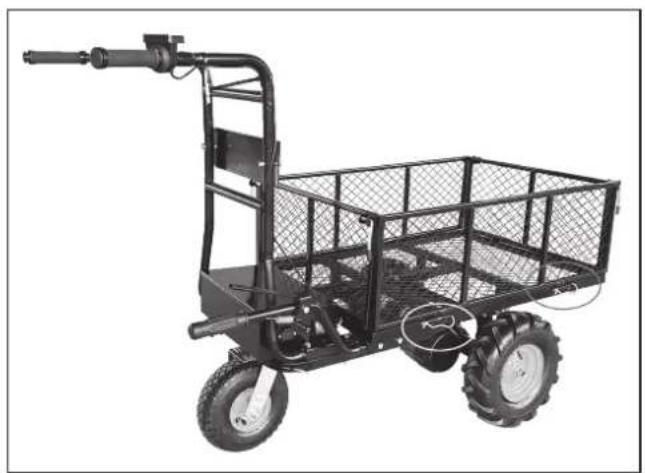

Black-and-white photo of a wheeled agricultural cart with a mesh basket and wheels (no visible text or symbols)

7. OPERATION

Device to be operated in a perfect state only. Inspect the device visually every time it is to be used.

Check in particular the safety equipment, electrical controls, electric cables and screwed connection for damage and if tightened properly. Replace any damaged parts before operating the device.

Close-up of industrial machinery components with bolts and connectors (no visible text or symbols)

7.1 Operation Instructions

WARNING

Unplug battery before all maintenance and settings! Notice

Never remove the battery while the machine is running. In case of longer standstill, press the shut-down button. Use the electric motor only with sufficient battery charge.

7.2 Operation

7.2.1 Start Electrical Support

Close-up of a vehicle's rear panel showing electrical connectors and a labeled component 'a' (no text or symbols beyond label)

Charger is integrated in the battery box system.

Charging the battery:

1. Connect the charger to the power supply (AC outlet) 110V/60 Hz and the charger plug.
2. Charge the battery.
3. Once the battery is fully charged (indication on the charger) the charger can be removed.

LED- indication on the control element:

All three LED light up when the red power button is pressed.

When machine is activated by turning the lever following battery capacity is indicated:

Unplug battery before all maintenance and settings!

Serious injury due to unintentional or automatic activation of the machine!

The machine does not require extensive maintenance.

If malfunctions and defects occur, let it be serviced by trained persons only.

NOTICE

Clean your machine regularly after every usage - it prolongs the machine's lifespan and is a pre-requisite for a safe working environment.

Repair jobs shall be performed by respectively trained professionals only!

Check regularly the condition of the security stickers. Replace them if required.

Check regularly the condition of the machine.

Store the machine in a closed, dry location.

8.1 Maintenance Plan.

After each work shift: check the cables (tight fit, damage)

8.2 Cleaning

NOTICE

The usage of certain solutions containing ingredients damaging metal surfaces as well as the use of scrubbing agents will damage the machine surface!

Clean the machine surface with a wet cloth soaked in a mild solution.

Never use running water or a high-pressure cleaner to clean the machine.

Clean the outer parts with a damp sponge.

Never clean the electronic parts with water!

Check the machine and remove the deposits and/or residues with a brush.

8.3 Storage

Clean thoroughly all components before storage.

Store all components separately in a dry area at not less than -10°C.

Charge the battery fully before storing.

NOTICE

During longer standstill but at least after one month charge the battery.

8.4 Disposal

Do not dispose the machine and the battery in residual waste. Contact your local authorities for information regarding the available disposal options. When you buy at your local dealer for a replacement unit, the latter is obliged to exchange your old.

9. TROUBEL SHOTING

BEFORE YOU START WORKING FOR THE ELEIMINATION OF DEFECTS, UNPLUG THE BATTERY.

Trouble	Possible Cause	Solution
No electrical support.	Battery is not charged.	Recharge battery.
	Motor stuck.	Check motor.
	Power switch is damaged.	Check switch.
	Broker or loose cables.	Check cable.
No charging or battery.	Loosen cable.	Check cable connection.

10. PARTS BREAKDOWN

Technical diagram of a tracked vehicle with numbered components for identification

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

Line drawing of a wheeled agricultural cart with mesh backrest and wheels (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

EC-CONFORM: This product complies with EC-directives.

READ THE MANUAL! Read the user and maintenance manual carefully and get familiar with the controls in order to use the machine correctly and to avoid injuries and machine defects.

ATTENTION! Ignoring the safety signs and warnings applied on the machine as well as ignoring the security and operating instructions can cause serious injuries and even lead to death.

Protect from rain, splashing!

Protective clothing!

No smoking, no naked flames, no sparks.

Corrosive (Battery acid).

Explosive gas.

1. SPECIFICATIONS

Item No.	EWB7614
Rated Voltage	36 V DC
Battery Capacity	12Ah
Motorpower	500 W
Max Speed	En avant: 0-5 km/h Enarrière: 0-3,5 km/h
Max. Load Capacity	226 kg/500 livres

2. COMPONENTS

Labeled diagram of a mechanical cart with numbered parts for identification

3. DELIVERY CONTENT

This manual contains important information and advice for the correct and safe use and maintenance of the electric wheelbarrow.

Following the usual commercial name of the device (see cover) is substituted in this manual with the name "machine".

The manual is part of the machine and may not be stored separately. Read it profoundly before the first use of the machine and keep it for later reference. When the machine is handed to other persons always put the manual to the machine.

Please follow the security instructions!

Please read the entire manual, to prevent misunderstandings, machine damage or even injuries! Due to continuous development of our products illustrations, pictures might differ slightly. If you however find errors in this manual, please inform us.

5. SAFETY

5.1 Intended Use

The machine must only be used for its intended purpose! Any other use is deemed to be a case of misuse. To use the machine properly you must also observe and follow all safety regulations, the assembly instructions, operating and maintenance instructions lay down in this manual.

All people who use and service the machine have to be acquainted with this manual and must be informed about the machine's potential hazards.

The machine is used for the transportation of goods within the maximum permissible load capacity.

WARNING

The removal or modification of the safety components may result in damage to equipment and serious injury! HIGHEST RISK OF INJURY!

Ambient conditions

The machine may be operated:

Humidity max. 70%

Temperature +5°C to +40°C (+41°F to +104°F)

The machine, especially the battery; may not be exposed to a temperature of about 80^ C. Do not store in the blazing sun or a long time in the trunk of a car.

Prohibited use:

The operation of the machine outside the stated technical limits described in this manual is forbidden.

The operation of the machine without provided protective devices is prohibited.

The use of the machine not being suitable for the use of the machine and not being certified is forbidden

The use of the machine not according to the required dimensions is forbidden.

Any manipulation of the machine and parts is forbidden.

The use of the machine for any purposes other than described in this user-manual is forbidden.

It is not allowed to leave the immediate work area during the work is being performed.

5.2 Security Instructions

Missing or nonreadable security stickers have to be replaced immediately!

The locally applicable laws and regulations may specify the minimum age of the operator and limit the use of this machine!

To avoid malfunction, machine defects and injuries, read the following security instructions

GENERAL:

Use the machine only in good enough light to allow a safe operation can be guaranteed.

In tiredness, decreased concentration or under the influence of alcohol or drugs, the work on the machine is prohibited!

Caution in slippery conditions - slip hazard - risk of injury. When working, robust and non-slip footwear. Slides/stumble/ traps are a major cause of serious injury or death.

The machine must be operated only by trained persons (knowledge and understanding of this manual), which have no limitations of motor skills compared with conventional workers.

Keep the machine in use with both hands.

Unauthorized persons, especially children and not trained personnel must be kept away from the running machine! If you pass the machine to third, these instructions must be attached to the machine.

Before the start, after the failure or shock, be sure to check the device and make sure that it is in good condition. Take special care when work near swimming pools or garden ponds.

Never use the machine when it is raining or in damp, wet areas Unplug battery before all maintenance and settings!

CHARGER:

The charger is designed exclusively to charge the battery of this machine. Charging other battery is not permitted.

Never use the charger in a damp or wet environment

Disconnect cable connections only by pulling the plug. Pulling on the cable could damage the cable and plug and electrical safety would no longer be guaranteed.

Never use the charger if the cord, plug or the appliance itself is damaged by external influences. Attach the charger then to the next workshop.

DO not use the unit near heat sources.

DO not use an extension cord to supply power to the charging station.

DO not place metal objects in the area of the charging contacts of the charger.

DO not open the charger. In case of failure, contact a specialist workshop.

Use to recharge your battery only with the original charger. Use of other charger defects may occur or fire hazard.

BATTERY:

Improper use or the use of damaged batteries leaking vapors. Run to fresh air and seek medical attention in case of complaints. The vapors can irritate the respiratory tract.

FIRE HAZARD! Never charge batteries near acids and flammable materials.

Charge the battery only at an ambient temperature between 0°C to +40°C. Leave to cool down after heavy load.

EXPLOSIVE! Protect the battery from heat and fire.

Use the battery only at an ambient temperature between 0^ C to +45^ C.

SHORT CIRCUIT! For disposal, transport or storage, the battery must (plastic bag, box) or the contacts are packed must be taped.

Never open the battery.

5.3 Remaining Risk Factors

Despite intended use, certain residual risks remain. Due to the design and construction of the machine, hazardous situations may occur which are identified as follows in these operating instructions:

ADANGER

A safety instruction designed in this way indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Such safety instruction indicates a potentially hazardous situation which, if not avoided, may result in serious injury or even death.

ACAUTION

A safety instruction designed in this way indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE

A safety note designed in this way indicates a potentially dangerous situation which, if not avoided, may result in property damage.

Irrespective of all safety regulations, your common sense and your corresponding technical suitability/training are and, will remain the most safety factor for error-free operation of the machine. Safe working depends and foremost on you.

6. ASSEMBLY

Please check the product contents immediately after receipt for any eventual transport damage or missing parts. Claims from transport damage or missing parts must be placed immediately after initial machine receipt and unpacking before putting the machine into operation. Please understand that later claims cannot be accepted anymore.

Mechanical vehicle chassis frame with tire and mounting bracket (no text or symbols visible)

Mechanical assembly of a vehicle with three large tires, shown with close-up insets (no text or symbols visible)

Mechanical component with visible wheels and mounting holes, shown in two views (no text or symbols)

Close-up of a black metal vehicle chassis with two wheels and mounting brackets (no visible text or symbols)

Machine Translated by Google

Mechanical tricycle with three wheels and a handle, shown in black and white (no text or symbols visible)

Close-up of a tractor's wheel and suspension system, showing tire tracks and mechanical components (no visible text or symbols)

Close-up of a metal fence structure with mesh pattern and a pipe fitting (no text or symbols visible)

Black-and-white photo of a wheeled agricultural cart with a mesh basket and attached lever (no visible text or symbols)

Close-up of industrial machinery components with bolts and wiring (no visible text or symbols)

7. OPERATION

Device to be operated in a perfect state only. Inspect the device visually every time it is to be used.

Check in particular the safety equipment, electrical controls, electric cables and screwed connection for damage and if tightened properly. Replace any damaged parts before operating the device.

7.1 Operation Instructions

WARNING

Unplug battery before all maintenance and settings! Notice

Never remove the battery while the machine is running. In case of longer standstill, press the shut-down button. Use the electric motor only with sufficient battery charge.

7.2 Operation

7.2.1 Start Electrical Support

Close-up of a black vehicle's front panel with labeled components (no readable text or symbols)

Charger is integrated in the battery box system.

Charging the battery:

1. Connect the charger to the power supply (AC outlet) 110V/60 Hz and the charger plug.
2. Charge the battery.
3. Once the battery is fully charged (indication on the charger) the charger can be removed.

LED- indication on the control element:

All three LED light up when the red power button is pressed.

When machine is activated by turning the lever following battery capacity is indicated:

Unplug battery before all maintenance and settings!

Serious injury due to unintentional or automatic activation of the machine!

The machine does not require extensive maintenance.

If malfunctions and defects occur, let it be serviced by trained persons only.

NOTICE

Clean your machine regularly after every usage - it prolongs the machine's lifespan and is a pre-requisite for a safe working environment.

Repair jobs shall be performed by respectively trained professionals only!

Check regularly the condition of the security stickers. Replace them if required.

Check regularly the condition of the machine.

Store the machine in a closed, dry location.

8.1 Maintenance Plan.

After each work shift: check the cables (tight fit, damage)

8.2 Cleaning

NOTICE

The usage of certain solutions containing ingredients damaging metal surfaces as well as the use of scrubbing agents will damage the machine surface!

Clean the machine surface with a wet cloth soaked in a mild solution.

Never use running water or a high-pressure cleaner to clean the machine.

Clean the outer parts with a damp sponge.

Never clean the electronic parts with water!

Check the machine and remove the deposits and/or residues with a brush.

8.3 Storage

Clean thoroughly all components before storage.

Store all components separately in a dry area at not less than -10°C.

Charge the battery fully before storing.

NOTICE

During longer standstill but at least after one month charge the battery.

8.4 Disposal

Do not dispose the machine and the battery in residual waste. Contact your local authorities for information regarding the available disposal options. When you buy at your local dealer for a replacement unit, the latter is obliged to exchange your old.

9. TROUBEL SHOTING

BEFORE YOU START WORKING FOR THE ELEIMINATION OF DEFECTS, UNPLUG THE BATTERY.

Trouble	Possible Cause	Solution
No electrical support.	Battery is not charged.	Recharge battery.
	Motor stuck.	Check motor.
	Power switch is damaged.	Check switch.
	Broker or loose cables.	Check cable.
No charging or battery.	Loosen cable.	Check cable connection.

10. PARTS BREAKDOWN

Technical diagram of a tracked vehicle with numbered components for identification

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

Line drawing of a two-wheeled cart with mesh backrest and wheels, no text or symbols present

HULP NODIG? NEEM CONTACT MET ONS OP!

EC-CONFORM: This product complies with EC-directives.

READ THE MANUAL! Read the user and maintenance manual carefully and get familiar with the controls in order to use the machine correctly and to avoid injuries and machine defects.

ATTENTION! Ignoring the safety signs and warnings applied on the machine as well as ignoring the security and operating instructions can cause serious injuries and even lead to death.

Protect from rain, splashing!

Protective clothing!

No smoking, no naked flames, no sparks.

Corrosive (Battery acid).

Explosive gas.

1. SPECIFICATIONS

Item No.	EWB7614
Rated Voltage	36 V DC
Battery Capacity	12Ah
Motorpower	500 W
Max Speed	Vooruit: 0-5 km/uAchteruit: 0-3,5 km/u
Max. Load Capacity	226kg/500bls

2. COMPONENTS

Labeled diagram of a mechanical cart with numbered parts for identification

3. DELIVERY CONTENT

This manual contains important information and advice for the correct and safe use and maintenance of the electric wheelbarrow.

Following the usual commercial name of the device (see cover) is substituted in this manual with the name "machine".

The manual is part of the machine and may not be stored separately. Read it profoundly before the first use of the machine and keep it for later reference. When the machine is handed to other persons always put the manual to the machine.

Please follow the security instructions!

Please read the entire manual, to prevent misunderstandings, machine damage or even injuries! Due to continuous development of our products illustrations, pictures might differ slightly. If you however find errors in this manual, please inform us.

5. SAFETY

5.1 Intended Use

The machine must only be used for its intended purpose! Any other use is deemed to be a case of misuse. To use the machine properly you must also observe and follow all safety regulations, the assembly instructions, operating and maintenance instructions lay down in this manual.

All people who use and service the machine have to be acquainted with this manual and must be informed about the machine's potential hazards.

The machine is used for the transportation of goods within the maximum permissible load capacity.

WARNING

The removal or modification of the safety components may result in damage to equipment and serious injury! HIGHEST RISK OF INJURY!

Ambient conditions

The machine may be operated:

Humidity max. 70%

Temperature +5°C to +40°C (+41°F to +104°F)

The machine, especially the battery; may not be exposed to a temperature of about 80^ C. Do not store in the blazing sun or a long time in the trunk of a car.

Prohibited use:

The operation of the machine outside the stated technical limits described in this manual is forbidden.

The operation of the machine without provided protective devices is prohibited.

The use of the machine not being suitable for the use of the machine and not being certified is forbidden

The use of the machine not according to the required dimensions is forbidden.

Any manipulation of the machine and parts is forbidden.

The use of the machine for any purposes other than described in this user-manual is forbidden.

It is not allowed to leave the immediate work area during the work is being performed.

5.2 Security Instructions

Missing or nonreadable security stickers have to be replaced immediately!

The locally applicable laws and regulations may specify the minimum age of the operator and limit the use of this machine!

To avoid malfunction, machine defects and injuries, read the following security instructions

GENERAL:

Use the machine only in good enough light to allow a safe operation can be guaranteed.

In tiredness, decreased concentration or under the influence of alcohol or drugs, the work on the machine is prohibited! Caution in slippery conditions - slip hazard - risk of injury. When working, robust and non-slip footwear. Slides/stumble/ traps are a major cause of serious injury or death.

The machine must be operated only by trained persons (knowledge and understanding of this manual), which have no limitations of motor skills compared with conventional workers.

Keep the machine in use with both hands.

Unauthorized persons, especially children and not trained personnel must be kept away from the running machine! If you pass the machine to third, these instructions must be attached to the machine.

Before the start, after the failure or shock, be sure to check the device and make sure that it is in good condition. Take special care when work near swimming pools or garden ponds.

Never use the machine when it is raining or in damp, wet areas Unplug battery before all maintenance and settings!

CHARGER:

The charger is designed exclusively to charge the battery of this machine. Charging other battery is not permitted. Never use the charger in a damp or wet environment

Disconnect cable connections only by pulling the plug. Pulling on the cable could damage the cable and plug and electrical safety would no longer be guaranteed.

Never use the charger if the cord, plug or the appliance itself is damaged by external influences. Attach the charger then to the next workshop.

DO not use the unit near heat sources.

DO not use an extension cord to supply power to the charging station.

DO not place metal objects in the area of the charging contacts of the charger.

DO not open the charger. In case of failure, contact a specialist workshop.

Use to recharge your battery only with the original charger. Use of other charger defects may occur or fire hazard.

BATTERY:

Improper use or the use of damaged batteries leaking vapors. Run to fresh air and seek medical attention in case of complaints. The vapors can irritate the respiratory tract.

FIRE HAZARD! Never charge batteries near acids and flammable materials.

Charge the battery only at an ambient temperature between 0°C to +40°C. Leave to cool down after heavy load.

EXPLOSIVE! Protect the battery from heat and fire.

Use the battery only at an ambient temperature between 0^ C to +45^ C.

SHORT CIRCUIT! For disposal, transport or storage, the battery must (plastic bag, box) or the contacts are packed must be taped.

Never open the battery.

5.3 Remaining Risk Factors

Despite intended use, certain residual risks remain. Due to the design and construction of the machine, hazardous situations may occur which are identified as follows in these operating instructions:

ADANGER

A safety instruction designed in this way indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Such safety instruction indicates a potentially hazardous situation which, if not avoided, may result in serious injury or even death.

ACAUTION

A safety instruction designed in this way indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE

A safety note designed in this way indicates a potentially dangerous situation which, if not avoided, may result in property damage.

Irrespective of all safety regulations, your common sense and your corresponding technical suitability/training are and, will remain the most safety factor for error-free operation of the machine. Safe working depends and foremost on you.

6. ASSEMBLY

Please check the product contents immediately after receipt for any eventual transport damage or missing parts. Claims from transport damage or missing parts must be placed immediately after initial machine receipt and unpacking before putting the machine into operation. Please understand that later claims cannot be accepted anymore.

Mechanical vehicle chassis frame with tire and mounting bracket (no text or symbols visible)

Close-up of a small off-road vehicle tire with attached engine, shown with close-ups of the wheel and screw (no text or symbols visible)

Mechanical component with visible wheels and mounting holes, shown in two views (no text or symbols)

Close-up of a black metal vehicle chassis with two wheels and mounting brackets (no visible text or symbols)

Machine Translated by Google

Mechanical tricycle with two wheels and a handle, shown in black and white (no text or symbols visible)

Close-up of a tractor's wheel and suspension system, showing tire and frame structure (no text or symbols visible)

Close-up of a metal fence structure with mesh pattern and a pipe fitting (no text or symbols visible)

Black-and-white photo of a wheeled agricultural cart with a mesh basket and wheels (no visible text or symbols)

Close-up of industrial machinery components with bolts and connectors (no visible text or symbols)

7. OPERATION

Device to be operated in a perfect state only. Inspect the device visually every time it is to be used.

Check in particular the safety equipment, electrical controls, electric cables and screwed connection for damage and if tightened properly. Replace any damaged parts before operating the device.

7.1 Operation Instructions

WARNING

Unplug battery before all maintenance and settings! Notice

Never remove the battery while the machine is running. In case of longer standstill, press the shut-down button. Use the electric motor only with sufficient battery charge.

7.2 Operation

7.2.1 Start Electrical Support

Close-up of a vehicle's rear panel showing electrical connectors and a labeled component 'a' (no text or symbols beyond label)

Charger is integrated in the battery box system.

Charging the battery:

1. Connect the charger to the power supply (AC outlet) 110V/60 Hz and the charger plug.
2. Charge the battery.
3. Once the battery is fully charged (indication on the charger) the charger can be removed.

LED- indication on the control element:

All three LED light up when the red power button is pressed.

When machine is activated by turning the lever following battery capacity is indicated:

Unplug battery before all maintenance and settings!

Serious injury due to unintentional or automatic activation of the machine!

The machine does not require extensive maintenance.

If malfunctions and defects occur, let it be serviced by trained persons only.

NOTICE

Clean your machine regularly after every usage - it prolongs the machine's lifespan and is a pre-requisite for a safe working environment.

Repair jobs shall be performed by respectively trained professionals only!

Check regularly the condition of the security stickers. Replace them if required.

Check regularly the condition of the machine.

Store the machine in a closed, dry location.

8.1 Maintenance Plan.

After each work shift: check the cables (tight fit, damage)

8.2 Cleaning

NOTICE

The usage of certain solutions containing ingredients damaging metal surfaces as well as the use of scrubbing agents will damage the machine surface!

Clean the machine surface with a wet cloth soaked in a mild solution.

Never use running water or a high-pressure cleaner to clean the machine.

Clean the outer parts with a damp sponge.

Never clean the electronic parts with water!

Check the machine and remove the deposits and/or residues with a brush.

8.3 Storage

Clean thoroughly all components before storage.

Store all components separately in a dry area at not less than -10°C.

Charge the battery fully before storing.

NOTICE

During longer standstill but at least after one month charge the battery.

8.4 Disposal

Do not dispose the machine and the battery in residual waste. Contact your local authorities for information regarding the available disposal options. When you buy at your local dealer for a replacement unit, the latter is obliged to exchange your old.

9. TROUBEL SHOTING

BEFORE YOU START WORKING FOR THE ELEIMINATION OF DEFECTS, UNPLUG THE BATTERY.

Trouble	Possible Cause	Solution
No electrical support.	Battery is not charged.	Recharge battery.
	Motor stuck.	Check motor.
	Power switch is damaged.	Check switch.
	Broker or loose cables.	Check cable.
No charging or battery.	Loosen cable.	Check cable connection.

10. PARTS BREAKDOWN

Technical diagram of a tracked vehicle with numbered components for identification

Part No.	Description	Q'ty	Part No.	Description	Q'ty
1	13x5.00-6 Luchtrubberwiel	2	13	Differentieelmotor 500W	1
2	10 inch zwenkwiel met rem	1	14	Versnellerpaneel XSL-10	1
3	Accuboxsysteem (36V)	1	15	Wavy pin 5.0	8
4	GB_VERBINDINGSSTUK_PIN_CPWH 10X60	2	16	Metalen gaas zijkanten (links en rechts)	2
5	GB_BEVESTIGINGSBOUT_HFBB M8X25-N	4	17	Metalen gaas zijkanten (voor en achter)	2
6	GB_BEVESTIGINGSBOLT_SB A M8X70-N	4	18	Metalen gaasbasis	1
7	GB_BEVESTIGINGSBOLT_STBAB A M8X45-N	11	19	Achterplaat	1
8	GB_BEVESTIGINGSRING_SMWC 10	4	20	Wavy pin 2	2
9	GB_BEVESTIGINGSRING_SMWC 8	15	21	Geleidingsframe	1
10	GB_HEXAGON_TYPE12 M8-N	4	22	Verbindingsframe	1
11	GB_HEXAGON_TYPE9 M8-N	15	23	Kantelhendel	1
12	Handvat (schroefmodel)	2	24	Basisframe	1

FCC-informatie:

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

Tre hjul-Electric Power Steel

Trädgårdsvagn

USER MANUAL

Modell: EWB7614

Line drawing of a wheeled agricultural cart with mesh backrest and wheels (no text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

EC-CONFORM: This product complies with EC-directives.

READ THE MANUAL! Read the user and maintenance manual carefully and get familiar with the controls in order to use the machine correctly and to avoid injuries and machine defects.

ATTENTION! Ignoring the safety signs and warnings applied on the machine as well as ignoring the security and operating instructions can cause serious injuries and even lead to death.

Protect from rain, splashing!

Protective clothing!

No smoking, no naked flames, no sparks.

Corrosive (Battery acid).

Explosive gas.

1. SPECIFICATIONS

Item No.	EWB7614
Rated Voltage	36 V DC
Battery Capacity	12Ah
Motorpower	500 W
Max Speed	Framåt: 0-5km/hBakåt: 0-3,5km/h
Max. Load Capacity	226kg/500bls

2. COMPONENTS

P. N	Descriptions
1	Mesh bricka
2	13x5.00-6 Luftgummihjul
3	Differentialmotor
4	I/O-omkopplare
5	Plugg för batteriladdningskabel
6	10 tums svängbara bromshjul
7	Batteriboxystem
8	Ram
9	Acceleratorpanel
10	Handtagsgrepp

Labeled diagram of a mechanical cart with numbered parts for identification

3. DELIVERY CONTENT

P. N	Descriptions	Q'ty
1	Batteriboxystem	1
2	13x5.00-6 Air Rubber hjul	2
3	Differentialmotor	1
4	10 tums svängbara bromshjul	1
5	Basram	1
6	Anslutningsram	1
7	Styrram	1

P. N	Descriptions	Q'ty
8	Metallnätbas	1
9	Sidor i metallnät	4
10	Tipphandtag	1
11	Bakplatta	1
12	Vågstift	8
13	Skruvsats	1

8 9 10 11 12 5 6 L. filter 13 7 4 2 3 1

4. PREFACES

Dear Customer!

This manual contains important information and advice for the correct and safe use and maintenance of the electric wheelbarrow.

Following the usual commercial name of the device (see cover) is substituted in this manual with the name "machine".

The manual is part of the machine and may not be stored separately. Read it profoundly before the first use of the machine and keep it for later reference. When the machine is handed to other persons always put the manual to the machine.

Please follow the security instructions!

Please read the entire manual, to prevent misunderstandings, machine damage or even injuries! Due to continuous development of our products illustrations, pictures might differ slightly. If you however find errors in this manual, please inform us.

5. SAFETY

5.1 Intended Use

The machine must only be used for its intended purpose! Any other use is deemed to be a case of misuse. To use the machine properly you must also observe and follow all safety regulations, the assembly instructions, operating and maintenance instructions lay down in this manual.

All people who use and service the machine have to be acquainted with this manual and must be informed about the machine's potential hazards.

The machine is used for the transportation of goods within the maximum permissible load capacity.

WARNING

The removal or modification of the safety components may result in damage to equipment and serious injury! HIGHEST RISK OF INJURY!

Ambient conditions

The machine may be operated:

Humidity max. 70%

Temperature +5°C to +40°C (+41°F to +104°F)

The machine, especially the battery; may not be exposed to a temperature of about 80^ C. Do not store in the blazing sun or a long time in the trunk of a car.

Prohibited use:

The operation of the machine outside the stated technical limits described in this manual is forbidden.

The operation of the machine without provided protective devices is prohibited.

The use of the machine not being suitable for the use of the machine and not being certified is forbidden

The use of the machine not according to the required dimensions is forbidden.

Any manipulation of the machine and parts is forbidden.

The use of the machine for any purposes other than described in this user-manual is forbidden.

It is not allowed to leave the immediate work area during the work is being performed.

5.2 Security Instructions

Missing or nonreadable security stickers have to be replaced immediately!

The locally applicable laws and regulations may specify the minimum age of the operator and limit the use of this machine!

To avoid malfunction, machine defects and injuries, read the following security instructions

GENERAL:

Use the machine only in good enough light to allow a safe operation can be guaranteed.

In tiredness, decreased concentration or under the influence of alcohol or drugs, the work on the machine is prohibited!

Caution in slippery conditions - slip hazard - risk of injury. When working, robust and non-slip footwear. Slides/stumble/ traps are a major cause of serious injury or death.

The machine must be operated only by trained persons (knowledge and understanding of this manual), which have no limitations of motor skills compared with conventional workers.

Keep the machine in use with both hands.

Unauthorized persons, especially children and not trained personnel must be kept away from the running machine! If you pass the machine to third, these instructions must be attached to the machine.

Before the start, after the failure or shock, be sure to check the device and make sure that it is in good condition. Take special care when work near swimming pools or garden ponds.

Never use the machine when it is raining or in damp, wet areas Unplug battery before all maintenance and settings!

CHARGER:

The charger is designed exclusively to charge the battery of this machine. Charging other battery is not permitted.

Never use the charger in a damp or wet environment

Disconnect cable connections only by pulling the plug. Pulling on the cable could damage the cable and plug and electrical safety would no longer be guaranteed.

Never use the charger if the cord, plug or the appliance itself is damaged by external influences. Attach the charger then to the next workshop.

DO not use the unit near heat sources.

DO not use an extension cord to supply power to the charging station.

DO not place metal objects in the area of the charging contacts of the charger.

DO not open the charger. In case of failure, contact a specialist workshop.

Use to recharge your battery only with the original charger. Use of other charger defects may occur or fire hazard.

BATTERY:

Improper use or the use of damaged batteries leaking vapors. Run to fresh air and seek medical attention in case of complaints. The vapors can irritate the respiratory tract.

FIRE HAZARD! Never charge batteries near acids and flammable materials.

Charge the battery only at an ambient temperature between 0°C to +40°C. Leave to cool down after heavy load.

EXPLOSIVE! Protect the battery from heat and fire.

Use the battery only at an ambient temperature between 0^ C to +45^ C.

SHORT CIRCUIT! For disposal, transport or storage, the battery must (plastic bag, box) or the contacts are packed must be taped.

Never open the battery.

5.3 Remaining Risk Factors

Despite intended use, certain residual risks remain. Due to the design and construction of the machine, hazardous situations may occur which are identified as follows in these operating instructions:

ADANGER

A safety instruction designed in this way indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Such safety instruction indicates a potentially hazardous situation which, if not avoided, may result in serious injury or even death.

ACAUTION

A safety instruction designed in this way indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE

A safety note designed in this way indicates a potentially dangerous situation which, if not avoided, may result in property damage.

Irrespective of all safety regulations, your common sense and your corresponding technical suitability/training are and, will remain the most safety factor for error-free operation of the machine. Safe working depends and foremost on you.

6. ASSEMBLY

Please check the product contents immediately after receipt for any eventual transport damage or missing parts. Claims from transport damage or missing parts must be placed immediately after initial machine receipt and unpacking before putting the machine into operation. Please understand that later claims cannot be accepted anymore.

Mechanical vehicle chassis frame with tire and mounting bracket (no text or symbols visible)

Close-up of a small off-road vehicle tire with attached engine, shown with close-ups of the wheel and screw (no text or symbols visible)

Mechanical component with visible wheels and mounting holes, shown in two views (no text or symbols)

Close-up of a black metal vehicle chassis with two wheels and mounting brackets, no visible text or symbols

Machine Translated by Google

Mechanical tricycle with two wheels and a handle, shown in black and white (no text or symbols visible)

Close-up of a tractor's wheel and trailer assembly with mechanical components, no visible text or symbols

Close-up of a metal fence structure with mesh pattern and a pipe fitting (no text or symbols visible)

Black-and-white photo of a wheeled agricultural cart with a mesh basket and wheels (no visible text or symbols)

Close-up of industrial machinery components with bolts and connectors (no visible text or symbols)

7. OPERATION

Device to be operated in a perfect state only. Inspect the device visually every time it is to be used.

Check in particular the safety equipment, electrical controls, electric cables and screwed connection for damage and if tightened properly. Replace any damaged parts before operating the device.

7.1 Operation Instructions

WARNING

Unplug battery before all maintenance and settings! Notice

Never remove the battery while the machine is running. In case of longer standstill, press the shut-down button. Use the electric motor only with sufficient battery charge.

7.2 Operation

7.2.1 Start Electrical Support

Close-up of a black vehicle's front panel with labeled components (no readable text or symbols)

Charger is integrated in the battery box system.

Charging the battery:

1. Connect the charger to the power supply (AC outlet) 110V/60 Hz and the charger plug.
2. Charge the battery.
3. Once the battery is fully charged (indication on the charger) the charger can be removed.

LED- indication on the control element:

All three LED light up when the red power button is pressed.

When machine is activated by turning the lever following battery capacity is indicated:

1. All three led light up battery capacity 100%-51%.
2. Red and orange light up battery capacity 50%-10%.
3. Only red light up please charge the battery.

Unplug battery before all maintenance and settings!

Serious injury due to unintentional or automatic activation of the machine!

The machine does not require extensive maintenance.

If malfunctions and defects occur, let it be serviced by trained persons only.

NOTICE

Clean your machine regularly after every usage - it prolongs the machine's lifespan and is a pre-requisite for a safe working environment.

Repair jobs shall be performed by respectively trained professionals only!

Check regularly the condition of the security stickers. Replace them if required.

Check regularly the condition of the machine.

Store the machine in a closed, dry location.

8.1 Maintenance Plan.

After each work shift: check the cables (tight fit, damage)

8.2 Cleaning

NOTICE

The usage of certain solutions containing ingredients damaging metal surfaces as well as the use of scrubbing agents will damage the machine surface!

Clean the machine surface with a wet cloth soaked in a mild solution.

Never use running water or a high-pressure cleaner to clean the machine.

Clean the outer parts with a damp sponge.

Never clean the electronic parts with water!

Check the machine and remove the deposits and/or residues with a brush.

8.3 Storage

Clean thoroughly all components before storage.

Store all components separately in a dry area at not less than -10°C.

Charge the battery fully before storing.

NOTICE

During longer standstill but at least after one month charge the battery.

8.4 Disposal

Do not dispose the machine and the battery in residual waste. Contact your local authorities for information regarding the available disposal options. When you buy at your local dealer for a replacement unit, the latter is obliged to exchange your old.

9. TROUBEL SHOTING

BEFORE YOU START WORKING FOR THE ELEIMINATION OF DEFECTS, UNPLUG THE BATTERY.

Trouble	Possible Cause	Solution
No electrical support.	Battery is not charged.	Recharge battery.
	Motor stuck.	Check motor.
	Power switch is damaged.	Check switch.
	Broker or loose cables.	Check cable.
No charging or battery.	Loosen cable.	Check cable connection.

10. PARTS BREAKDOWN

Technical diagram of a tracked vehicle with numbered components for identification

Part No.	Description	Q'ty	Part No.	Description	Q'ty
1	13x5,00-6 Pneumatiskt gummihjul	2	13	Differentialmotor 500W	1
2	10 tums svängbara bromshjul	1	14	Acceleratorpanel XSL-10	1
3	Batteriboxystem (36V)	1	15	Wavy pin 5.0	8
4	GB_CONNECTING_PIECE_PIN_CPWH 10X60	2	16	Metallnätsidor (vänster och höger)	2
5	GB_FASTENER_BOLT_HFBB M8X25-N	4	17	Metallnätsidor (fram & bak)	2
6	GB_FASTENER_BOLT_SB A M8X70-N	4	18	Metallnätbas	1
7	GB_FASTENER_BOLT_STBAB A M8X45-N	11	19	Bakplatta	1
8	GB_FASTENER_WASHER_SMWC 10	4	20	Wavy pin 2	2
9	GB_FASTENER_WASHER_SMWC 8	15	21	Styrram	1
10	GB_HEXAGON_TYPE12 M8-N	4	22	Anslutningsram	1
11	GB_HEXAGON_TYPE9 M8-N	15	23	Tipphandtag	1
12	Handtag (påskruvad stil)	2	24	Basram	1

FCC-information:

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

Tres ruedas-Electric Power Steel

Carrito de jardín

USER MANUAL

Modelo: EWB7614

Line drawing of a two-wheeled cart filled with mesh panels, no text or symbols present

EC-CONFORM: This product complies with EC-directives.

READ THE MANUAL! Read the user and maintenance manual carefully and get familiar with the controls in order to use the machine correctly and to avoid injuries and machine defects.

ATTENTION! Ignoring the safety signs and warnings applied on the machine as well as ignoring the security and operating instructions can cause serious injuries and even lead to death.

Protect from rain, splashing!

Protective clothing!

No smoking, no naked flames, no sparks.

Corrosive (Battery acid).

Explosive gas.

1. SPECIFICATIONS

Item No.	EWB7614
Rated Voltage	36 V DC
Battery Capacity	12Ah
Motorpower	500 W
Max Speed	Adelante: 0-5 km/hAtrás: 0-3,5 km/h
Max. Load Capacity	226 kg/500 lb

2. COMPONENTS

Labeled diagram of a mechanical tricycle with numbered parts for identification

3. DELIVERY CONTENT

This manual contains important information and advice for the correct and safe use and maintenance of the electric wheelbarrow.

Following the usual commercial name of the device (see cover) is substituted in this manual with the name "machine".

The manual is part of the machine and may not be stored separately. Read it profoundly before the first use of the machine and keep it for later reference. When the machine is handed to other persons always put the manual to the machine.

Please follow the security instructions!

Please read the entire manual, to prevent misunderstandings, machine damage or even injuries! Due to continuous development of our products illustrations, pictures might differ slightly. If you however find errors in this manual, please inform us.

5. SAFETY

5.1 Intended Use

The machine must only be used for its intended purpose! Any other use is deemed to be a case of misuse. To use the machine properly you must also observe and follow all safety regulations, the assembly instructions, operating and maintenance instructions lay down in this manual.

All people who use and service the machine have to be acquainted with this manual and must be informed about the machine's potential hazards.

The machine is used for the transportation of goods within the maximum permissible load capacity.

WARNING

The removal or modification of the safety components may result in damage to equipment and serious injury! HIGHEST RISK OF INJURY!

Ambient conditions

The machine may be operated:

Humidity max. 70%

Temperature +5°C to +40°C (+41°F to +104°F)

The machine, especially the battery; may not be exposed to a temperature of about 80^ C. Do not store in the blazing sun or a long time in the trunk of a car.

Prohibited use:

The operation of the machine outside the stated technical limits described in this manual is forbidden.

The operation of the machine without provided protective devices is prohibited.

The use of the machine not being suitable for the use of the machine and not being certified is forbidden

The use of the machine not according to the required dimensions is forbidden.

Any manipulation of the machine and parts is forbidden.

The use of the machine for any purposes other than described in this user-manual is forbidden.

It is not allowed to leave the immediate work area during the work is being performed.

5.2 Security Instructions

Missing or nonreadable security stickers have to be replaced immediately!

The locally applicable laws and regulations may specify the minimum age of the operator and limit the use of this machine!

To avoid malfunction, machine defects and injuries, read the following security instructions

GENERAL:

Use the machine only in good enough light to allow a safe operation can be guaranteed.

In tiredness, decreased concentration or under the influence of alcohol or drugs, the work on the machine is prohibited! Caution in slippery conditions - slip hazard - risk of injury. When working, robust and non-slip footwear. Slides/stumble/ traps are a major cause of serious injury or death.

The machine must be operated only by trained persons (knowledge and understanding of this manual), which have no limitations of motor skills compared with conventional workers.

Keep the machine in use with both hands.

Unauthorized persons, especially children and not trained personnel must be kept away from the running machine! If you pass the machine to third, these instructions must be attached to the machine.

Before the start, after the failure or shock, be sure to check the device and make sure that it is in good condition. Take special care when work near swimming pools or garden ponds.

Never use the machine when it is raining or in damp, wet areas Unplug battery before all maintenance and settings!

CHARGER:

The charger is designed exclusively to charge the battery of this machine. Charging other battery is not permitted. Never use the charger in a damp or wet environment

Disconnect cable connections only by pulling the plug. Pulling on the cable could damage the cable and plug and electrical safety would no longer be guaranteed.

Never use the charger if the cord, plug or the appliance itself is damaged by external influences. Attach the charger then to the next workshop.

DO not use the unit near heat sources.

DO not use an extension cord to supply power to the charging station.

DO not place metal objects in the area of the charging contacts of the charger.

DO not open the charger. In case of failure, contact a specialist workshop.

Use to recharge your battery only with the original charger. Use of other charger defects may occur or fire hazard.

BATTERY:

Improper use or the use of damaged batteries leaking vapors. Run to fresh air and seek medical attention in case of complaints. The vapors can irritate the respiratory tract.

FIRE HAZARD! Never charge batteries near acids and flammable materials.

Charge the battery only at an ambient temperature between 0°C to +40°C. Leave to cool down after heavy load.

EXPLOSIVE! Protect the battery from heat and fire.

Use the battery only at an ambient temperature between 0^ C to +45^ C.

SHORT CIRCUIT! For disposal, transport or storage, the battery must (plastic bag, box) or the contacts are packed must be taped.

Never open the battery.

5.3 Remaining Risk Factors

Despite intended use, certain residual risks remain. Due to the design and construction of the machine, hazardous situations may occur which are identified as follows in these operating instructions:

ADANGER

A safety instruction designed in this way indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Such safety instruction indicates a potentially hazardous situation which, if not avoided, may result in serious injury or even death.

ACAUTION

A safety instruction designed in this way indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE

A safety note designed in this way indicates a potentially dangerous situation which, if not avoided, may result in property damage.

Irrespective of all safety regulations, your common sense and your corresponding technical suitability/training are and, will remain the most safety factor for error-free operation of the machine. Safe working depends and foremost on you.

6. ASSEMBLY

Please check the product contents immediately after receipt for any eventual transport damage or missing parts. Claims from transport damage or missing parts must be placed immediately after initial machine receipt and unpacking before putting the machine into operation. Please understand that later claims cannot be accepted anymore.

Mechanical vehicle chassis frame with tire and mounting bracket (no text or symbols visible)

Close-up of a small off-road vehicle tire with attached engine, shown alongside with close-ups of the wheel and screw (no text or symbols visible)

Mechanical component with visible wheels and mounting holes, shown in two views (no text or symbols)

Close-up of a black metal cart with two wheels and mounting brackets, no visible text or symbols

Machine Translated by Google

Mechanical tricycle with three wheels and a handle, shown in black and white (no text or symbols visible)

Close-up of a tractor's wheel and suspension frame with mechanical components, showing tire alignment and close-up inset (no text or symbols)

Close-up of a metal fence structure with mesh pattern and a pipe fitting (no text or symbols visible)

Black metal wheeled cart with chain-link fence and wheels, no visible text or symbols

7. OPERATION

Device to be operated in a perfect state only. Inspect the device visually every time it is to be used.

Check in particular the safety equipment, electrical controls, electric cables and screwed connection for damage and if tightened properly. Replace any damaged parts before operating the device.

Close-up of industrial machinery components with bolts and wiring (no visible text or symbols)

7.1 Operation Instructions

WARNING

Unplug battery before all maintenance and settings! Notice

Never remove the battery while the machine is running. In case of longer standstill, press the shut-down button. Use the electric motor only with sufficient battery charge.

7.2 Operation

7.2.1 Start Electrical Support

Close-up of a black vehicle's front panel with two labeled components (a and a), no visible text or symbols beyond labels.

1. Gire el interruptor (a) a I

L1 L2 D ON/OFF P ECO L4 L5 L6 XSL-10 1

Charger

Charger is integrated in the battery box system.

Charging the battery:

1. Connect the charger to the power supply (AC outlet) 110V/60 Hz and the charger plug.
2. Charge the battery.
3. Once the battery is fully charged (indication on the charger) the charger can be removed.

LED- indication on the control element:

All three LED light up when the red power button is pressed.

When machine is activated by turning the lever following battery capacity is indicated:

Unplug battery before all maintenance and settings!

Serious injury due to unintentional or automatic activation of the machine!

The machine does not require extensive maintenance.

If malfunctions and defects occur, let it be serviced by trained persons only.

NOTICE

Clean your machine regularly after every usage - it prolongs the machine's lifespan and is a pre-requisite for a safe working environment.

Repair jobs shall be performed by respectively trained professionals only!

Check regularly the condition of the security stickers. Replace them if required.

Check regularly the condition of the machine.

Store the machine in a closed, dry location.

8.1 Maintenance Plan.

After each work shift: check the cables (tight fit, damage)

8.2 Cleaning

NOTICE

The usage of certain solutions containing ingredients damaging metal surfaces as well as the use of scrubbing agents will damage the machine surface!

Clean the machine surface with a wet cloth soaked in a mild solution.

Never use running water or a high-pressure cleaner to clean the machine.

Clean the outer parts with a damp sponge.

Never clean the electronic parts with water!

Check the machine and remove the deposits and/or residues with a brush.

8.3 Storage

Clean thoroughly all components before storage.

Store all components separately in a dry area at not less than -10°C.

Charge the battery fully before storing.

NOTICE

During longer standstill but at least after one month charge the battery.

8.4 Disposal

Do not dispose the machine and the battery in residual waste. Contact your local authorities for information regarding the available disposal options. When you buy at your local dealer for a replacement unit, the latter is obliged to exchange your old.

9. TROUBEL SHOTING

BEFORE YOU START WORKING FOR THE ELEIMINATION OF DEFECTS, UNPLUG THE BATTERY.

Trouble	Possible Cause	Solution
No electrical support.	Battery is not charged.	Recharge battery.
	Motor stuck.	Check motor.
	Power switch is damaged.	Check switch.
	Broker or loose cables.	Check cable.
No charging or battery.	Loosen cable.	Check cable connection.

10. PARTS BREAKDOWN

Technical diagram of a tracked vehicle with numbered components for identification

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

Tre ruote - Electric Power Steel

Line drawing of a wheeled agricultural cart with mesh backrest and wheels (no text or symbols)

EC-CONFORM: This product complies with EC-directives.

READ THE MANUAL! Read the user and maintenance manual carefully and get familiar with the controls in order to use the machine correctly and to avoid injuries and machine defects.

ATTENTION! Ignoring the safety signs and warnings applied on the machine as well as ignoring the security and operating instructions can cause serious injuries and even lead to death.

Protect from rain, splashing!

Protective clothing!

No smoking, no naked flames, no sparks.

Corrosive (Battery acid).

Explosive gas.

1. SPECIFICATIONS

Item No.	EWB7614
Rated Voltage	^36 V DC
Battery Capacity	12Ah
Motorpower	500 W
Max Speed	Avanti: 0-5 km/h Indietro:0-3,5 km/h
Max. Load Capacity	226 kg/500 libbre

2. COMPONENTS

Labeled diagram of a mechanical cart with numbered parts for identification

3. DELIVERY CONTENT

This manual contains important information and advice for the correct and safe use and maintenance of the electric wheelbarrow.

Following the usual commercial name of the device (see cover) is substituted in this manual with the name "machine".

The manual is part of the machine and may not be stored separately. Read it profoundly before the first use of the machine and keep it for later reference. When the machine is handed to other persons always put the manual to the machine.

Please follow the security instructions!

Please read the entire manual, to prevent misunderstandings, machine damage or even injuries! Due to continuous development of our products illustrations, pictures might differ slightly. If you however find errors in this manual, please inform us.

5. SAFETY

5.1 Intended Use

The machine must only be used for its intended purpose! Any other use is deemed to be a case of misuse. To use the machine properly you must also observe and follow all safety regulations, the assembly instructions, operating and maintenance instructions lay down in this manual.

All people who use and service the machine have to be acquainted with this manual and must be informed about the machine's potential hazards.

The machine is used for the transportation of goods within the maximum permissible load capacity.

WARNING

The removal or modification of the safety components may result in damage to equipment and serious injury! HIGHEST RISK OF INJURY!

Ambient conditions

The machine may be operated:

Humidity max. 70%

Temperature +5°C to +40°C (+41°F to +104°F)

The machine, especially the battery; may not be exposed to a temperature of about 80^ C. Do not store in the blazing sun or a long time in the trunk of a car.

Prohibited use:

The operation of the machine outside the stated technical limits described in this manual is forbidden.

The operation of the machine without provided protective devices is prohibited.

The use of the machine not being suitable for the use of the machine and not being certified is forbidden

The use of the machine not according to the required dimensions is forbidden.

Any manipulation of the machine and parts is forbidden.

The use of the machine for any purposes other than described in this user-manual is forbidden.

It is not allowed to leave the immediate work area during the work is being performed.

5.2 Security Instructions

Missing or nonreadable security stickers have to be replaced immediately!

The locally applicable laws and regulations may specify the minimum age of the operator and limit the use of this machine!

To avoid malfunction, machine defects and injuries, read the following security instructions

GENERAL:

Use the machine only in good enough light to allow a safe operation can be guaranteed.

In tiredness, decreased concentration or under the influence of alcohol or drugs, the work on the machine is prohibited!

Caution in slippery conditions - slip hazard - risk of injury. When working, robust and non-slip footwear. Slides/stumble/ traps are a major cause of serious injury or death.

The machine must be operated only by trained persons (knowledge and understanding of this manual), which have no limitations of motor skills compared with conventional workers.

Keep the machine in use with both hands.

Unauthorized persons, especially children and not trained personnel must be kept away from the running machine! If you pass the machine to third, these instructions must be attached to the machine.

Before the start, after the failure or shock, be sure to check the device and make sure that it is in good condition. Take special care when work near swimming pools or garden ponds.

Never use the machine when it is raining or in damp, wet areas Unplug battery before all maintenance and settings!

CHARGER:

The charger is designed exclusively to charge the battery of this machine. Charging other battery is not permitted.

Never use the charger in a damp or wet environment

Disconnect cable connections only by pulling the plug. Pulling on the cable could damage the cable and plug and electrical safety would no longer be guaranteed.

Never use the charger if the cord, plug or the appliance itself is damaged by external influences. Attach the charger then to the next workshop.

DO not use the unit near heat sources.

DO not use an extension cord to supply power to the charging station.

DO not place metal objects in the area of the charging contacts of the charger.

DO not open the charger. In case of failure, contact a specialist workshop.

Use to recharge your battery only with the original charger. Use of other charger defects may occur or fire hazard.

BATTERY:

Improper use or the use of damaged batteries leaking vapors. Run to fresh air and seek medical attention in case of complaints. The vapors can irritate the respiratory tract.

FIRE HAZARD! Never charge batteries near acids and flammable materials.

Charge the battery only at an ambient temperature between 0°C to +40°C. Leave to cool down after heavy load.

EXPLOSIVE! Protect the battery from heat and fire.

Use the battery only at an ambient temperature between 0^ C to +45^ C.

SHORT CIRCUIT! For disposal, transport or storage, the battery must (plastic bag, box) or the contacts are packed must be taped.

Never open the battery.

5.3 Remaining Risk Factors

Despite intended use, certain residual risks remain. Due to the design and construction of the machine, hazardous situations may occur which are identified as follows in these operating instructions:

ADANGER

A safety instruction designed in this way indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Such safety instruction indicates a potentially hazardous situation which, if not avoided, may result in serious injury or even death.

ACAUTION

A safety instruction designed in this way indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE

A safety note designed in this way indicates a potentially dangerous situation which, if not avoided, may result in property damage. Irrespective of all safety regulations, your common sense and your corresponding technical suitability/training are and, will remain the most safety factor for error-free operation of the machine. Safe working depends and foremost on you.

6. ASSEMBLY

Please check the product contents immediately after receipt for any eventual transport damage or missing parts. Claims from transport damage or missing parts must be placed immediately after initial machine receipt and unpacking before putting the machine into operation. Please understand that later claims cannot be accepted anymore.

Mechanical vehicle chassis frame with tire and mounting bracket (no text or symbols visible)

Close-up of a small off-road vehicle tire with attached engine, shown with close-ups of the wheel and screw (no text or symbols visible)

Mechanical component with visible wheels and mounting holes, shown in two views (no text or symbols)

Close-up of a black metal vehicle chassis with two wheels and mounting brackets (no visible text or symbols)

Machine Translated by Google

Mechanical tricycle with three wheels and a handle, shown in black and white (no text or symbols visible)

Close-up of a tractor's wheel and suspension system with mechanical components, showing tire alignment and close-up detail (no text or symbols visible)

Close-up of a metal fence structure with mesh pattern and a circular annotation (no text or symbols)

Black metal wheeled cart with four wheels and a handle, no visible text or symbols

Close-up of industrial machinery components with bolts and wiring (no visible text or symbols)

7. OPERATION

Device to be operated in a perfect state only. Inspect the device visually every time it is to be used.

Check in particular the safety equipment, electrical controls, electric cables and screwed connection for damage and if tightened properly. Replace any damaged parts before operating the device.

7.1 Operation Instructions

WARNING

Unplug battery before all maintenance and settings! Notice

Never remove the battery while the machine is running. In case of longer standstill, press the shut-down button. Use the electric motor only with sufficient battery charge.

7.2 Operation

7.2.1 Start Electrical Support

Close-up of a black mechanical component with labeled parts (a), no visible text or symbols beyond the label.

Charger is integrated in the battery box system.

Charging the battery:

1. Connect the charger to the power supply (AC outlet) 110V/60 Hz and the charger plug.
2. Charge the battery.
3. Once the battery is fully charged (indication on the charger) the charger can be removed.

LED- indication on the control element:

All three LED light up when the red power button is pressed.

When machine is activated by turning the lever following battery capacity is indicated:

Unplug battery before all maintenance and settings!

Serious injury due to unintentional or automatic activation of the machine!

The machine does not require extensive maintenance.

If malfunctions and defects occur, let it be serviced by trained persons only.

NOTICE

Clean your machine regularly after every usage - it prolongs the machine's lifespan and is a pre-requisite for a safe working environment.

Repair jobs shall be performed by respectively trained professionals only!

Check regularly the condition of the security stickers. Replace them if required.

Check regularly the condition of the machine.

Store the machine in a closed, dry location.

8.1 Maintenance Plan.

After each work shift: check the cables (tight fit, damage)

8.2 Cleaning

NOTICE

The usage of certain solutions containing ingredients damaging metal surfaces as well as the use of scrubbing agents will damage the machine surface!

Clean the machine surface with a wet cloth soaked in a mild solution.

Never use running water or a high-pressure cleaner to clean the machine.

Clean the outer parts with a damp sponge.

Never clean the electronic parts with water!

Check the machine and remove the deposits and/or residues with a brush.

8.3 Storage

Clean thoroughly all components before storage.

Store all components separately in a dry area at not less than -10°C.

Charge the battery fully before storing.

NOTICE

During longer standstill but at least after one month charge the battery.

8.4 Disposal

Do not dispose the machine and the battery in residual waste. Contact your local authorities for information regarding the available disposal options. When you buy at your local dealer for a replacement unit, the latter is obliged to exchange your old.

9. TROUBEL SHOTING

BEFORE YOU START WORKING FOR THE ELEIMINATION OF DEFECTS, UNPLUG THE BATTERY.

Trouble	Possible Cause	Solution
No electrical support.	Battery is not charged.	Recharge battery.
	Motor stuck.	Check motor.
	Power switch is damaged.	Check switch.
	Broker or loose cables.	Check cable.
No charging or battery.	Loosen cable.	Check cable connection.

10. PARTS BREAKDOWN

Technical diagram of a tracked vehicle with numbered components for identification

Part No.	Description	Q'ty	Part No.	Description	Q'ty
1	Ruota pneumatica in gomma 13x5.00-6	2	13	Motore differenziale 500W	1
2	Ruota girevole con freno da 10 pollici	1	14	Pannello acceleratore XSL-10	1
3	Sistema di batterie (36 V)	1	15	Wavy pin 5.0	8
4	GB_PEZZO_DI_CONNESSIONE_PIN_CPWH 10X60	2	16	Lati in rete metallica (sinistra e destra)	2
5	GB_FASTENER_BOLT_HFBB M8X25-N	4	17	Lati in rete metallica (anteriore e posteriore)	2
6	GB_FASTENER_BOLT_SB A M8X70-N	4	18	Base in rete metallica	1
7	GB_FASTENER_BOLT_STBAB A M8X45-N	11	19	Piastra posteriore	1
8	GB_FASTENER_WASHER_SMWC 10	4	20	Wavy pin 2	2
9	GB_FASTENER_WASHER_SMWC 8	15	21	Telaio guida	1
10	GB_HEXAGON_TYPE12 M8-N	4	22	Telaio di collegamento	1
11	GB_HEXAGON_TYPE9 M8-N	15	23	Maniglia di ribaltamento	1
12	Impugnatura (stile a vite)	2	24	Telaio di base	1

Informazioni FCC:

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

Trzy koła-Electric Power Steel

Wózek ogrodowy

USER MANUAL

Model: EWB7614

Line drawing of a two-wheeled cart with mesh backrest and wheels, no text or symbols present

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

EC-CONFORM: This product complies with EC-directives.

READ THE MANUAL! Read the user and maintenance manual carefully and get familiar with the controls in order to use the machine correctly and to avoid injuries and machine defects.

ATTENTION! Ignoring the safety signs and warnings applied on the machine as well as ignoring the security and operating instructions can cause serious injuries and even lead to death.

Protect from rain, splashing!

Protective clothing!

No smoking, no naked flames, no sparks.

Corrosive (Battery acid).

Explosive gas.

1. SPECIFICATIONS

Item No.	EWB7614
Rated Voltage	^36 V DC
Battery Capacity	12Ah
Motorpower	500 W
Max Speed	Do przodu: 0-5 km/hDo tyłu: 0-3,5 km/h
Max. Load Capacity	226 kg/500 funtów

2. COMPONENTS

Labeled diagram of a mechanical tricycle with numbered parts for identification

3. DELIVERY CONTENT

This manual contains important information and advice for the correct and safe use and maintenance of the electric wheelbarrow.

Following the usual commercial name of the device (see cover) is substituted in this manual with the name "machine".

The manual is part of the machine and may not be stored separately. Read it profoundly before the first use of the machine and keep it for later reference. When the machine is handed to other persons always put the manual to the machine.

Please follow the security instructions!

Please read the entire manual, to prevent misunderstandings, machine damage or even injuries! Due to continuous development of our products illustrations, pictures might differ slightly. If you however find errors in this manual, please inform us.

5. SAFETY

5.1 Intended Use

The machine must only be used for its intended purpose! Any other use is deemed to be a case of misuse. To use the machine properly you must also observe and follow all safety regulations, the assembly instructions, operating and maintenance instructions lay down in this manual.

All people who use and service the machine have to be acquainted with this manual and must be informed about the machine's potential hazards.

The machine is used for the transportation of goods within the maximum permissible load capacity.

WARNING

The removal or modification of the safety components may result in damage to equipment and serious injury! HIGHEST RISK OF INJURY!

Ambient conditions

The machine may be operated:

Humidity max. 70%

Temperature +5°C to +40°C (+41°F to +104°F)

The machine, especially the battery; may not be exposed to a temperature of about 80^ C. Do not store in the blazing sun or a long time in the trunk of a car.

Prohibited use:

The operation of the machine outside the stated technical limits described in this manual is forbidden.

The operation of the machine without provided protective devices is prohibited.

The use of the machine not being suitable for the use of the machine and not being certified is forbidden

The use of the machine not according to the required dimensions is forbidden.

Any manipulation of the machine and parts is forbidden.

The use of the machine for any purposes other than described in this user-manual is forbidden.

It is not allowed to leave the immediate work area during the work is being performed.

5.2 Security Instructions

Missing or nonreadable security stickers have to be replaced immediately!

The locally applicable laws and regulations may specify the minimum age of the operator and limit the use of this machine!

To avoid malfunction, machine defects and injuries, read the following security instructions

GENERAL:

Use the machine only in good enough light to allow a safe operation can be guaranteed.

In tiredness, decreased concentration or under the influence of alcohol or drugs, the work on the machine is prohibited! Caution in slippery conditions - slip hazard - risk of injury. When working, robust and non-slip footwear. Slides/stumble/ traps are a major cause of serious injury or death.

The machine must be operated only by trained persons (knowledge and understanding of this manual), which have no limitations of motor skills compared with conventional workers.

Keep the machine in use with both hands.

Unauthorized persons, especially children and not trained personnel must be kept away from the running machine! If you pass the machine to third, these instructions must be attached to the machine.

Before the start, after the failure or shock, be sure to check the device and make sure that it is in good condition. Take special care when work near swimming pools or garden ponds.

Never use the machine when it is raining or in damp, wet areas Unplug battery before all maintenance and settings!

CHARGER:

The charger is designed exclusively to charge the battery of this machine. Charging other battery is not permitted. Never use the charger in a damp or wet environment

Disconnect cable connections only by pulling the plug. Pulling on the cable could damage the cable and plug and electrical safety would no longer be guaranteed.

Never use the charger if the cord, plug or the appliance itself is damaged by external influences. Attach the charger then to the next workshop.

DO not use the unit near heat sources.

DO not use an extension cord to supply power to the charging station.

DO not place metal objects in the area of the charging contacts of the charger.

DO not open the charger. In case of failure, contact a specialist workshop.

Use to recharge your battery only with the original charger. Use of other charger defects may occur or fire hazard.

BATTERY:

Improper use or the use of damaged batteries leaking vapors. Run to fresh air and seek medical attention in case of complaints. The vapors can irritate the respiratory tract.

FIRE HAZARD! Never charge batteries near acids and flammable materials.

Charge the battery only at an ambient temperature between 0°C to +40°C. Leave to cool down after heavy load.

EXPLOSIVE! Protect the battery from heat and fire.

Use the battery only at an ambient temperature between 0^ C to +45^ C.

SHORT CIRCUIT! For disposal, transport or storage, the battery must (plastic bag, box) or the contacts are packed must be taped.

Never open the battery.

5.3 Remaining Risk Factors

Despite intended use, certain residual risks remain. Due to the design and construction of the machine, hazardous situations may occur which are identified as follows in these operating instructions:

ADANGER

A safety instruction designed in this way indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Such safety instruction indicates a potentially hazardous situation which, if not avoided, may result in serious injury or even death.

ACAUTION

A safety instruction designed in this way indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE

A safety note designed in this way indicates a potentially dangerous situation which, if not avoided, may result in property damage. Irrespective of all safety regulations, your common sense and your corresponding technical suitability/training are and, will remain the most safety factor for error-free operation of the machine. Safe working depends and foremost on you.

6. ASSEMBLY

Please check the product contents immediately after receipt for any eventual transport damage or missing parts. Claims from transport damage or missing parts must be placed immediately after initial machine receipt and unpacking before putting the machine into operation. Please understand that later claims cannot be accepted anymore.

Mechanical vehicle chassis frame with tire and mounting bracket (no text or symbols visible)

Close-up of a small off-road vehicle tire with attached engine, shown alongside with close-ups of the wheel and screw (no text or symbols visible)

Mechanical component with visible wheels and mounting holes, shown in two views (no text or symbols)

Close-up of a black metal vehicle chassis with two wheels and mounting brackets (no visible text or symbols)

Machine Translated by Google

Mechanical tricycle with three wheels and a handle, shown in black and white (no text or symbols visible)

Close-up of a tractor's wheel and suspension system, showing tire tracks and mechanical components (no visible text or symbols)

Close-up of a metal frame structure with mesh pattern and a curved pipe, no visible text or symbols

Black-and-white photo of a wheeled agricultural cart with a mesh basket and attached lever (no visible text or symbols)

7. OPERATION

Device to be operated in a perfect state only. Inspect the device visually every time it is to be used.

Check in particular the safety equipment, electrical controls, electric cables and screwed connection for damage and if tightened properly. Replace any damaged parts before operating the device.

Close-up of industrial machinery components with bolts and wiring (no visible text or symbols)

7.1 Operation Instructions

WARNING

Unplug battery before all maintenance and settings! Notice

Never remove the battery while the machine is running. In case of longer standstill, press the shut-down button. Use the electric motor only with sufficient battery charge.

7.2 Operation

7.2.1 Start Electrical Support

Close-up of a vehicle's rear panel showing electrical connectors and a labeled component 'a' (no text or symbols beyond label)

Charger is integrated in the battery box system.

Charging the battery:

1. Connect the charger to the power supply (AC outlet) 110V/60 Hz and the charger plug.
2. Charge the battery.
3. Once the battery is fully charged (indication on the charger) the charger can be removed.

LED- indication on the control element:

All three LED light up when the red power button is pressed.

When machine is activated by turning the lever following battery capacity is indicated:

Unplug battery before all maintenance and settings!

Serious injury due to unintentional or automatic activation of the machine!

The machine does not require extensive maintenance.

If malfunctions and defects occur, let it be serviced by trained persons only.

NOTICE

Clean your machine regularly after every usage - it prolongs the machine's lifespan and is a pre-requisite for a safe working environment.

Repair jobs shall be performed by respectively trained professionals only!

Check regularly the condition of the security stickers. Replace them if required.

Check regularly the condition of the machine.

Store the machine in a closed, dry location.

8.1 Maintenance Plan.

After each work shift: check the cables (tight fit, damage)

8.2 Cleaning

NOTICE

The usage of certain solutions containing ingredients damaging metal surfaces as well as the use of scrubbing agents will damage the machine surface!

Clean the machine surface with a wet cloth soaked in a mild solution.

Never use running water or a high-pressure cleaner to clean the machine.

Clean the outer parts with a damp sponge.

Never clean the electronic parts with water!

Check the machine and remove the deposits and/or residues with a brush.

8.3 Storage

Clean thoroughly all components before storage.

Store all components separately in a dry area at not less than -10°C.

Charge the battery fully before storing.

NOTICE

During longer standstill but at least after one month charge the battery.

8.4 Disposal

Do not dispose the machine and the battery in residual waste. Contact your local authorities for information regarding the available disposal options. When you buy at your local dealer for a replacement unit, the latter is obliged to exchange your old.

9. TROUBEL SHOTING

BEFORE YOU START WORKING FOR THE ELEIMINATION OF DEFECTS, UNPLUG THE BATTERY.

Trouble	Possible Cause	Solution
No electrical support.	Battery is not charged.	Recharge battery.
	Motor stuck.	Check motor.
	Power switch is damaged.	Check switch.
	Broker or loose cables.	Check cable.
No charging or battery.	Loosen cable.	Check cable connection.

10. PARTS BREAKDOWN

Technical diagram of a tracked vehicle with numbered components for identification

Technical Support and E-Warranty Certificate

www.vevor.com/support
