USER MANUAL HZB-45 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ICE MACHINE

MODEL:HZB-45

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:HZB-45

Line drawing of a laboratory ice cream oven with control panel and ventilation slots (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must re instructions manual carefully.
	This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cros through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices

IMPORTANT SAFETY----3

SPECIFICATION----7

General Information----9

Operating procedure & maintenance----16

ELECTRICAL REQUIREMENT & CONNECTIONS----18

CLEAND AND MAINENANCE 32

WIRING DIAGRAM----41

NORMAL TROUBLE SHOOTING----42

When using electrical appliances, basic safety precautions should followed to reduce the risk of fire, electric shock, and injury to persons or property. Read all instructions before using any appliance.

Use this appliance only for its intended purpose as described in this owner's manual.

This ice-maker must be properly installed in accordance with the installation instructions before it is used.

This unit must be positioned so that the plug is accessible. Do not over carpeting or other heat insulators. Do not cover the cord. Keep away from traffic areas, and do not submerge in water. No other app should be plugged into the same outlet, and be sure that the plug is inserted into the receptacle.

We do not recommend the use of extension cord as it may overheat cause a risk of fire.

For machines exported to the United States, if extension cords are necessary, please use extension cords with a minimum size of 14AWa a rated power of not less than 1875 watts.

For machines exported to Europe, if extension cords are necessary, p use a plug-in extension cord with a minimum size of 1.5mm2 and a voltage of not less than 16A/250V\~.

If the supply cord is damaged, it must be replaced by the manufacture of its service agent or a similarly qualified person in order to avoid a long disconnect the mains plug from the supply socket when not in use for long term, where supply connection is via mains plug.

Remove power plug or disconnect from the mains before cleaning or servicing the appliance. NOTE: If for any reason this product requires service, we strongly recommend that a certified technician perform the service.

Never unplug you unit by pulling on the power cord. Always grasp the firmly and pull straight out from the outlet.

Do not use your unit outdoors. Keep the unit away from direct sunlight make sure that there is at least 6 inches of space between the back unit and wall and keep the front free. Keep ventilation opening in the appliance enclosure or in the built-in structure, clear of obstruction.

Do not tip over the unit which will cause abnormal noisy and make ice-cube size abnormal. And seriously, it may cause water leakage from the unit.

If the unit is brought in from outside in the winter season, give it a to warm up to room temperature before plugging it in.

Do not use other liquid to make the ice-cube other than water.

Do not clean your ice maker with flammable fluids. The fumes can cause fire hazard or explosion.

• WARNING: This appliance must be earthed. Use the proper power source according to the nameplate.
• WARNING: Keep ventilation openings, in the appliance enclosure or the built-in structure, clear of obstruction.
• WARNING: Do not damage the refrigerant circuit.
• WARNING: This appliance is not intended for use by persons (include children) with reduced physical, sensory or mental capabilities, or lack experience and knowledge, unless they have been given supervision of instruction concerning use of the appliance by a person responsible for their safety.
• WARNING: Children should be supervised to ensure that they do n with the appliance.
• WARNING: This appliance must be earthed. And use the 110-120V/earthed power supply.
• WARNING: Do not store explosive substances such as aerosol cans, a flammable propellant in this appliance.
• DANGER – Risk Of Fire or Explosion. Flammable Refrigerant Used. Not Use Mechanical Devices To Defrost Ice Maker. Do Not Puncture Refrigerant Tubing.

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

DANGER – Risk Of Fire Or Explosion. Flammable

Refrigerant Used. To Be Repaired Only By Trained Service Personnel. Not Puncture Refrigerant Tubing.

- CAUTION – Risk Of Fire Or Explosion. Flammable Refrigerant Use Consult Repair Manual/Owner's Guide Before Attempting To Install or Service This Product. All Safety Precautions Must be Followed.

- CAUTION – Risk Of Fire Or Explosion. Dispose Of Property In Accordance With Federal Or Local Regulations. Flammable Refrigerant Used .

- CAUTION -Risk Of Fire Or Explosion Due To Puncture Of Refrigeration Tubing;Follow Handling Instructions Carefully. Flammable Refrigerant Used.

- The ice maker should be installed in accordance with the safety st for Refrigeration Systems, ASHRAE15. The ice maker shall not be ins in corridors or hallways of public buildings.

- If the unit is with problem need to be maintained, that replacing w components and that servicing shall be done by factory authorized se personnel, so as to minimize the risk of possible ignition due to inco parts or improper service.

- WARNING: Keep ventilation openings, in the appliance enclosure or the built-in structure, clear of obstruction.

- WARNING: This appliance is intended to be used in household and similar applications such as

Eg. staff kitchen areas in shops, offices and other working environments; Eg. farm houses and by clients in hotels, motels and other residential environments;

Eg.bed and breakfast type environments;

Eg. catering and similar non-retail applications.

IMPORTANT(Export to the United States):

The wires in this mains lead are colored in accordance with the follc code:

Green or Green with a strip yellow: Grounding

White: Neutral

Black: Live

To avoid a hazard due to instability of the appliance, it must be pla even or flat surface.

IMPORTANT(Export to Europe):

The wires in this mains lead are colored in accordance with the follc code:

Green and yellow: Earth

Blue: Neutral

Brown: Live

As the color of the wires in the mains lead of the appliance may not correspond with the colored markings identifying the terminal in your p proceed as follows:

The wire which is colored green-and-yellow must be connected to the terminal in the plug which is marked with the letter E, G or by sym

or colored green or green-and-yellow.

The wire which is colored blue must be connected to the terminal w marked with the letter N. The wire which is colored brown must be connected to the terminal which is marked with letter L.

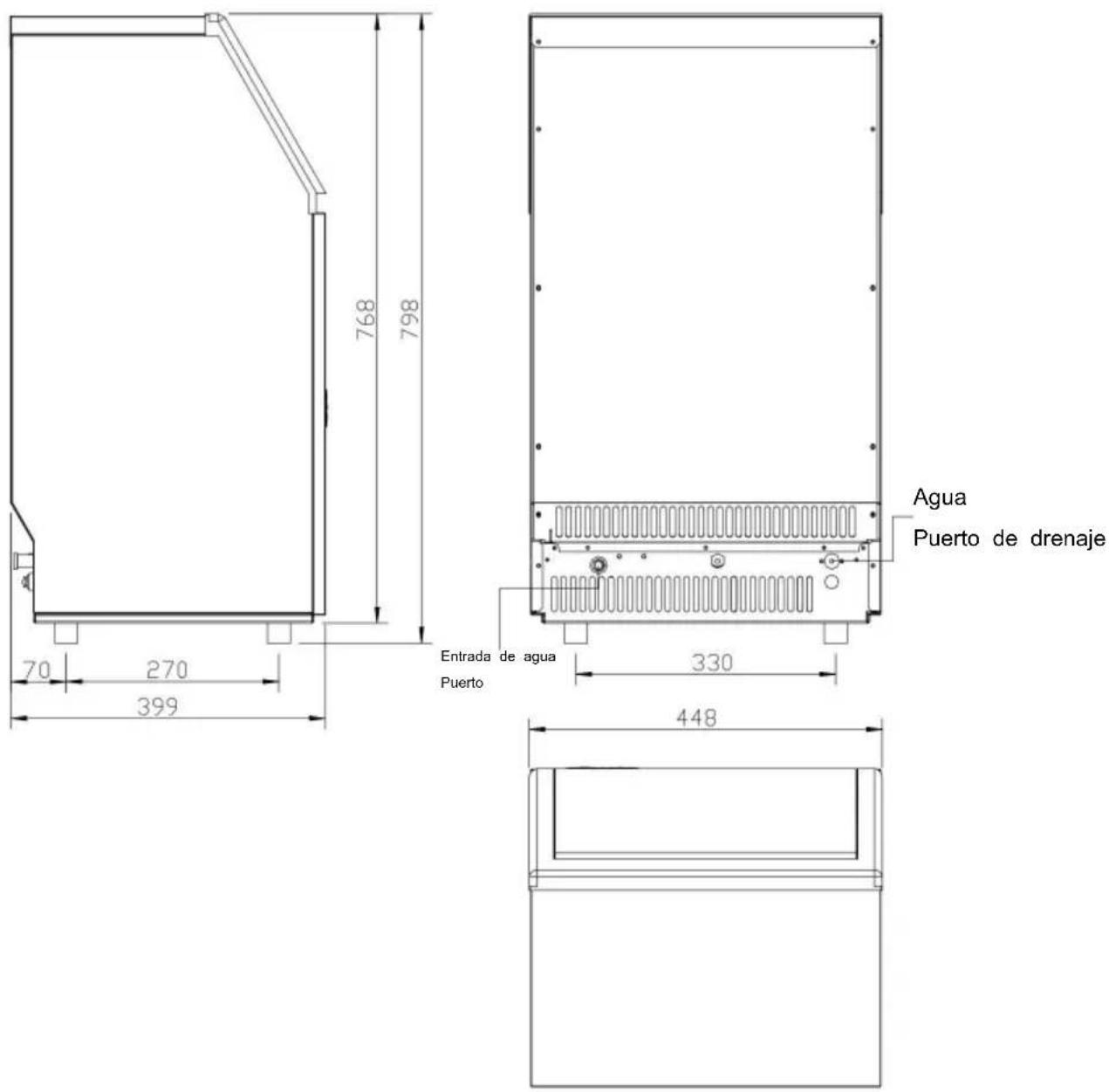

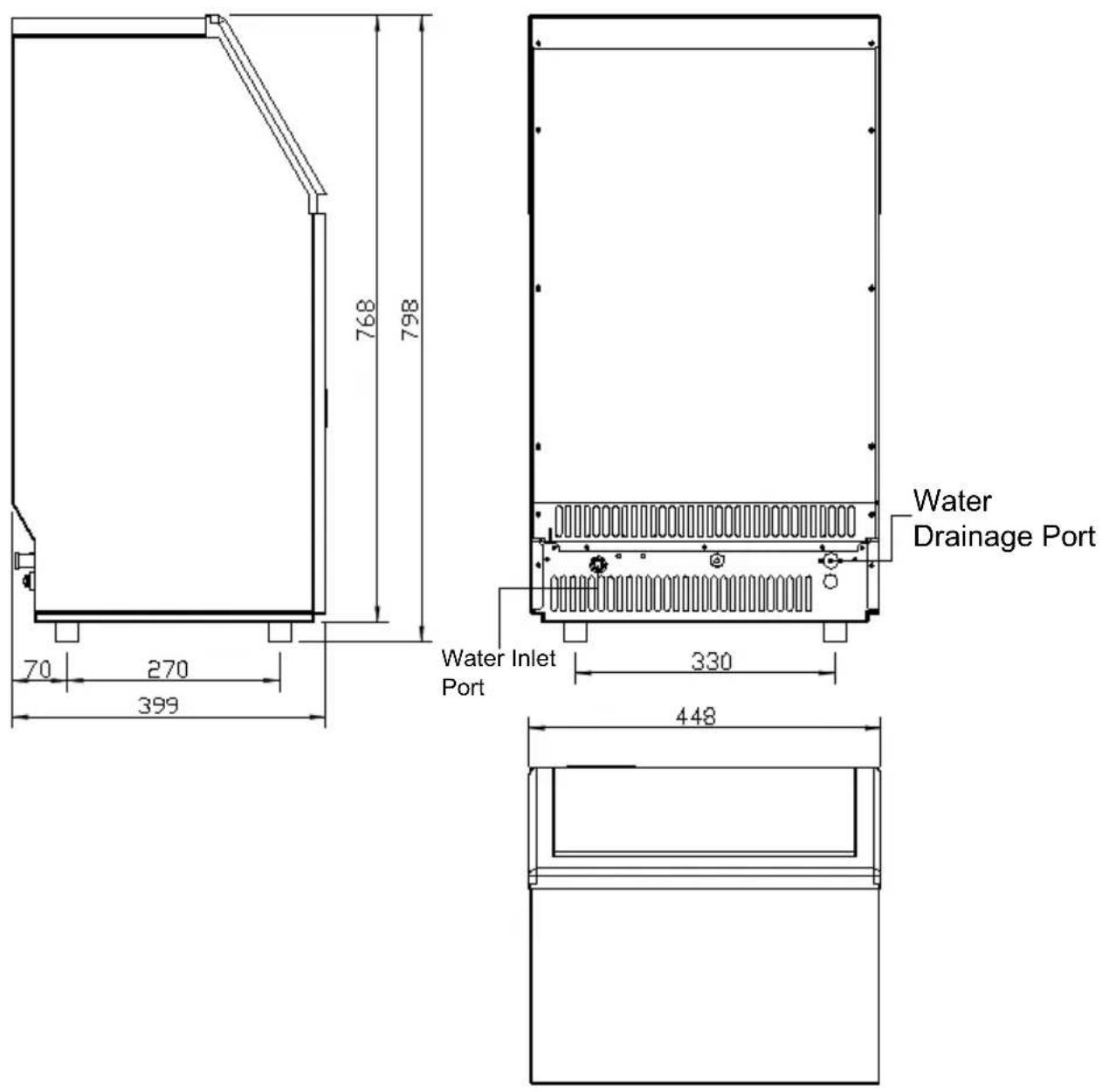

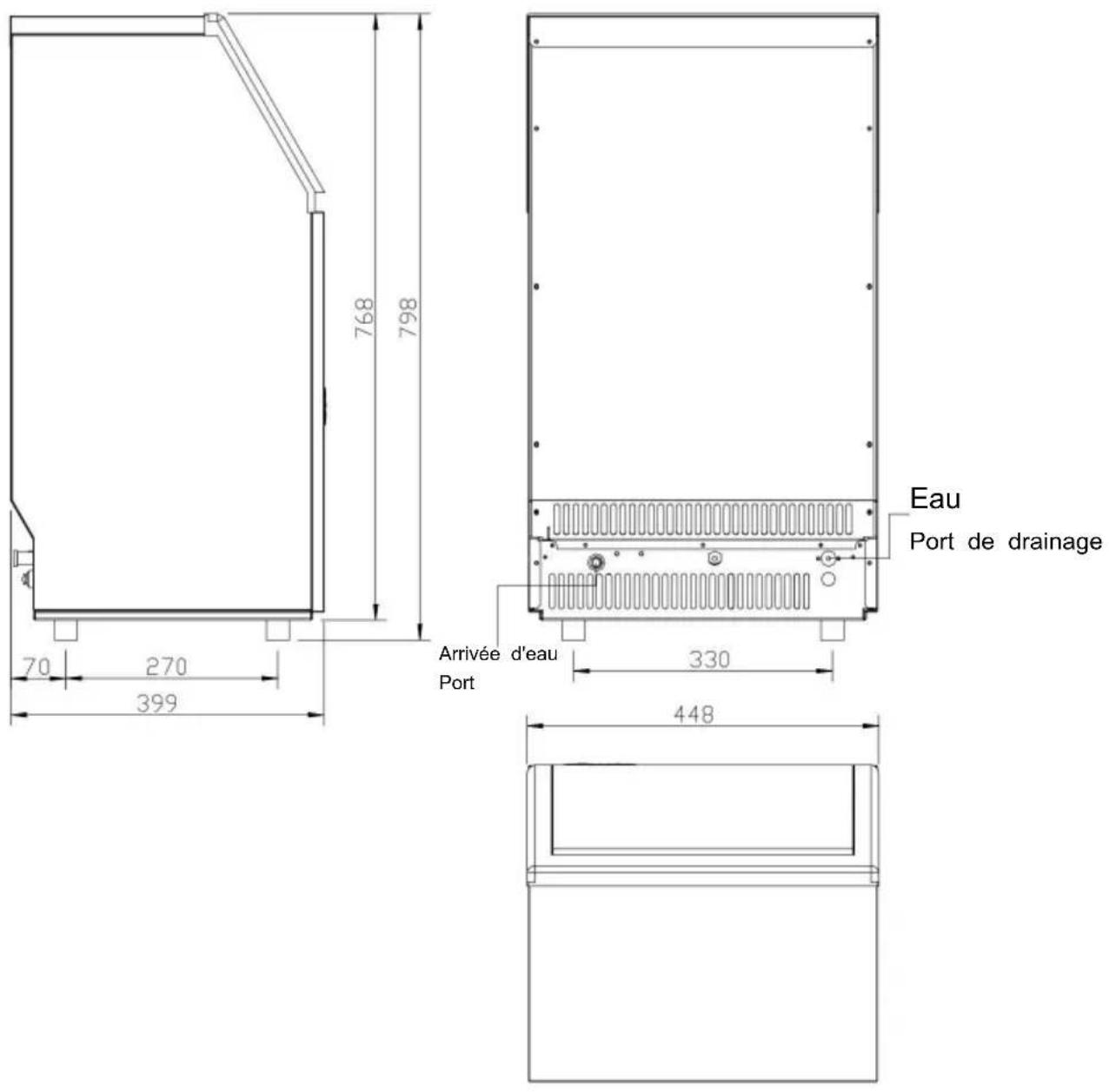

1) DIMENSIONS/CONNECTIONS

2) Rating

NOTE *: TESTED AT 70 Fahrenheit ROOM TEMPERATURE AND 50 Fahrenheit WATER TEMPERATURE.

MODEL	HZB-45
POWER SUPPLY VOLTAGE	See nameplate
CLAIMATE CLASS	10-40°C
ELECTRICAL PROTECTIONCLASS	SPECIFICATIONSI
ICE MAKING RATING (Amps)	2.2Amp
ICE HARVEST RATING (Amp)	2.5Amp
ICE MAKING CAPACITY(KG/24H)	45kg/24Hour *
REFRIGERANT CHARGE	R290 1.86Oz / 95g
NET WEIGHT(lbs)	59 lbs
VESICANT	C5H10
UNIT DIMENSIONS(W X D X(mm))	448 x 400 x 798
WATER CONSUMPTION(L/24H)	50L
MAX ICE STORAGECAPACITY(lbs/kg)	33lbs/15kg
ACCESSORIES	SHOVEL, INSTALLATION KITS
RUNNING CONDITIONS	ROOM TEMP 50-110Fahrenheit/10-38°CWATER SUPPLY TEMP 41-95Fahrenheit/5-35°CWATER SUPPLY PRESSURE0.04-0.6 MPa

GENERAL INFORMATION

1) Main Unit Construction

Technical diagram of an appliance with numbered parts for identification and assembly reference.

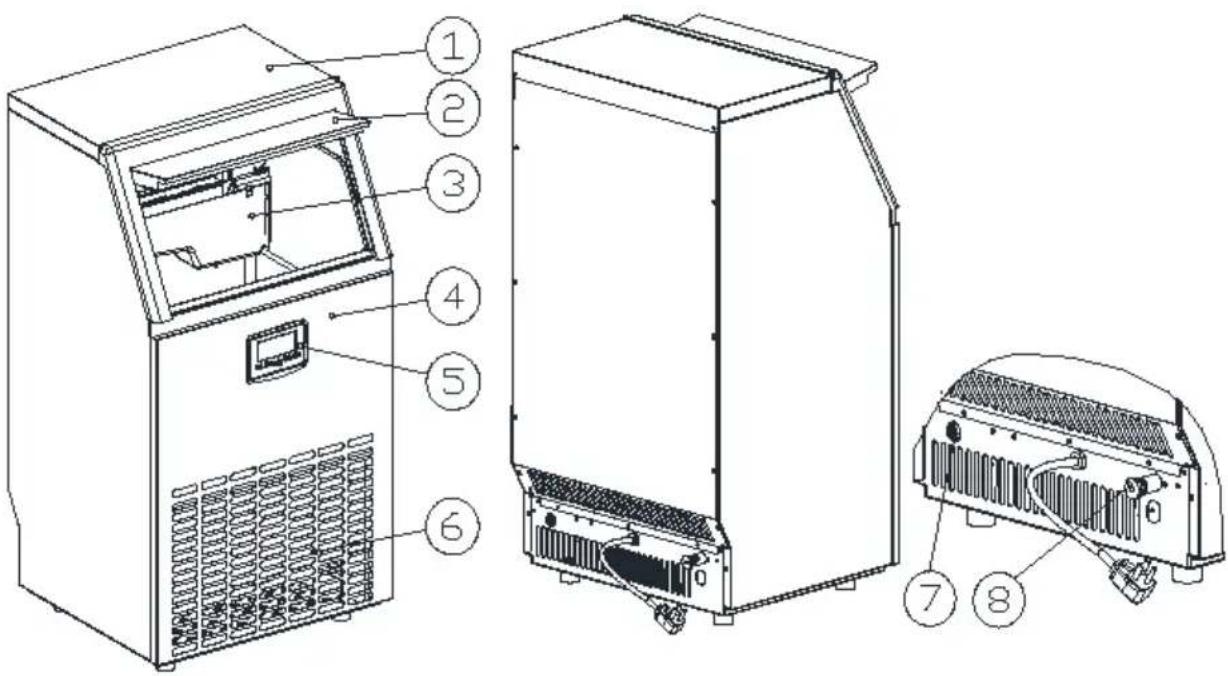

1. Top cover

2. Door for ice taking

3. Ice-making & its water tank assembly: Including ice-making evaporator, water tank, water pump and some detecting parts

4. Front panel

5. Operation panel

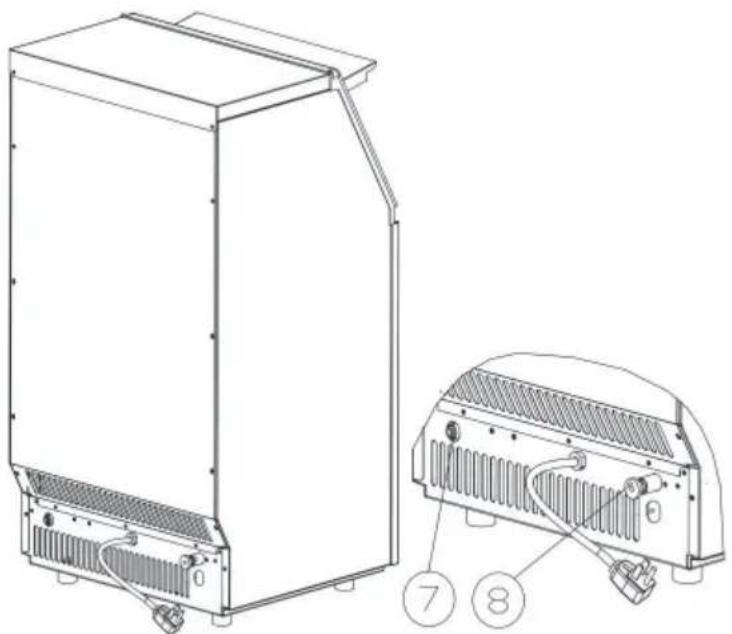

6. Air outlet: Must keep the air circulate smoothly, hot air will when unit running.

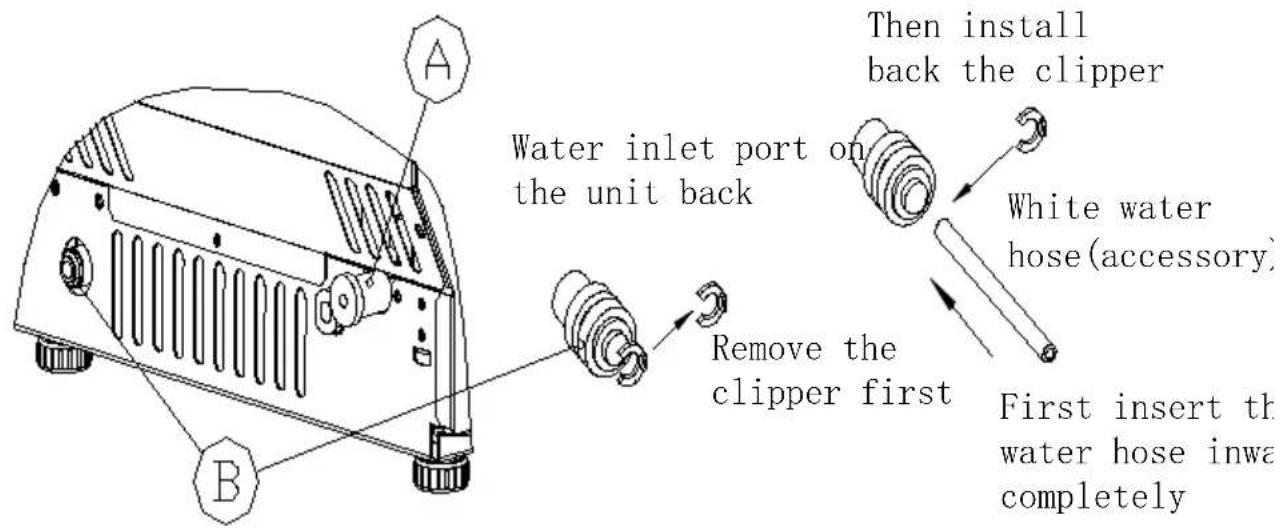

7. Water inlet port for water supply: Use to connect the water pipe.

8. Water draining port: Normal plugged with the cap. When ne the water, unplug the cap. And connect the drain pipe.

Accessory: 2 meters long and water drain pipe, water quick connector

the water faucet, 6.35mm diameter and white color water supply pipe (meters long)

2) Ice-making and its water tank parts

Technical schematic diagram of a mechanical or electrical device with labeled components A through J

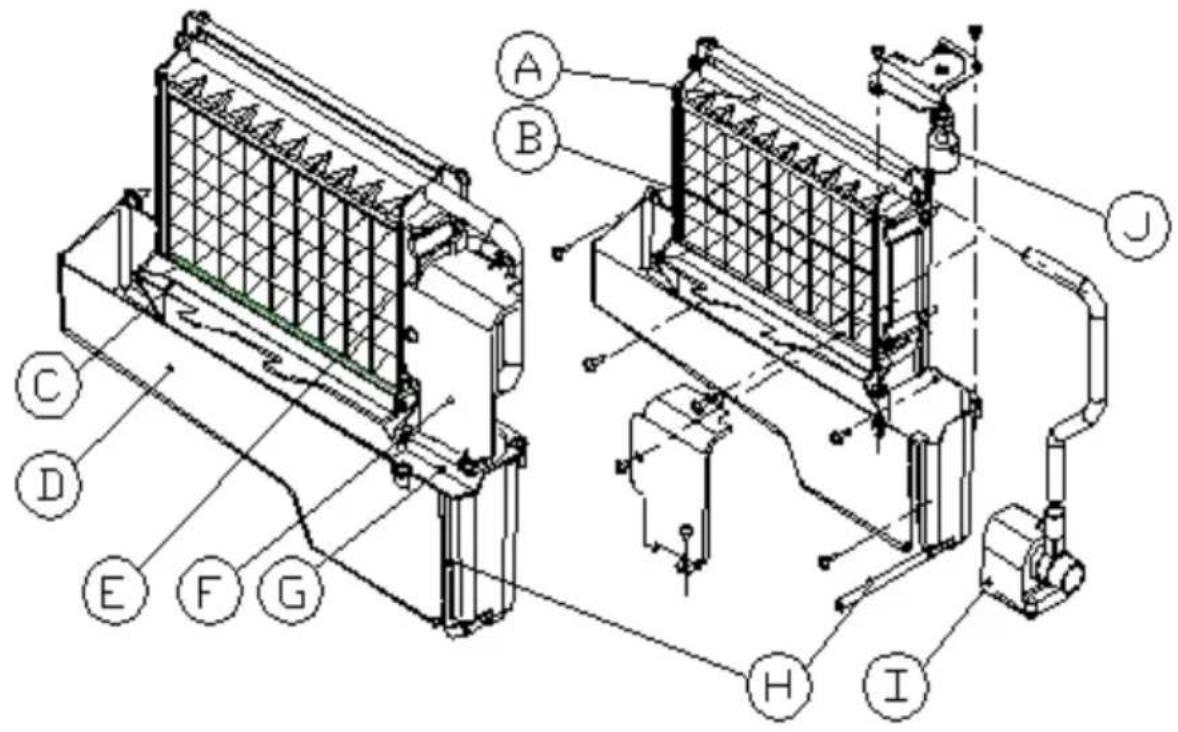

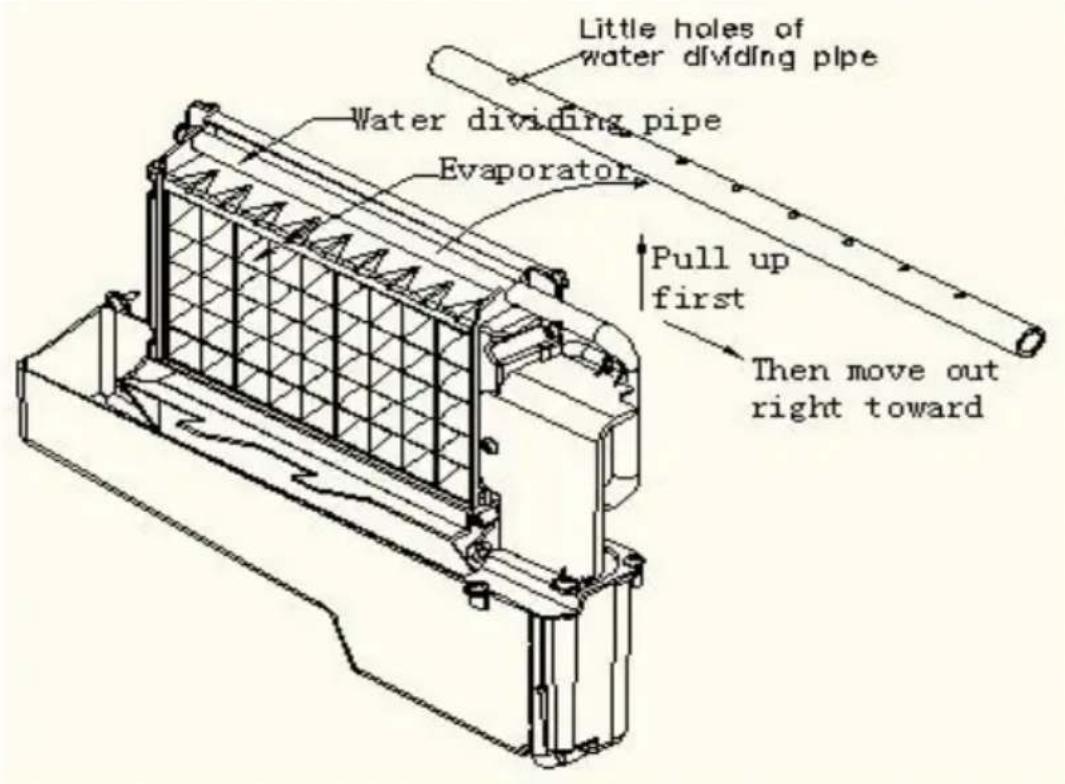

A.Water dividing pipe: with nine little holes, water will flow out little holes. And if no water flows out, can be disassembled an

B.Evaporator (ice-making module)

C. Ice full detecting board: Use to detect the inner cabinet is not, and to check the the ice-harvest process is over or not.

D.Water tank.

E.Water supplying pipe.

Cover board on the right side of the evaporator.

Water level switch installing plate.

Water drain pipe of the water tank: when ice-making, this pipe clamped in the slot of the water tank wall; And when draining,should be pulled out.

I.Water pump.

J.Water level detecting switch.

3) Operation panel

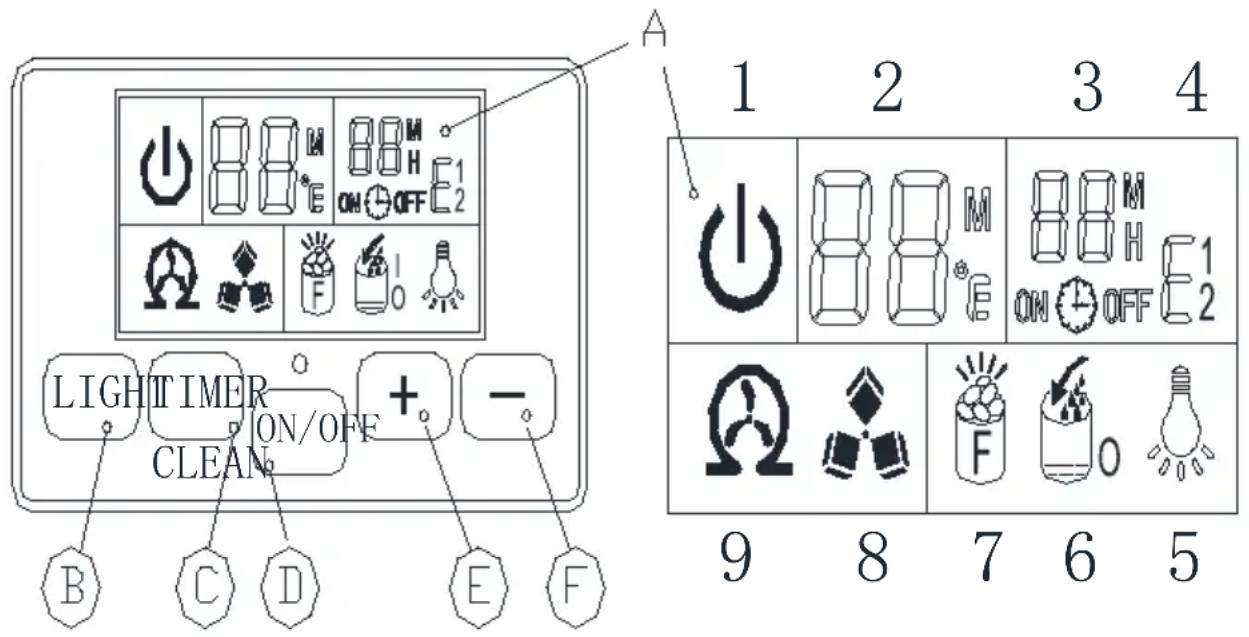

LIGHTIMER ON/OFF CLEAN B C D E F 1 2 3 4 9 8 7 6 5

A.LCD display window:

1. Unit ON or OFF state symbol: When the unit is turned off(standby this symbol flashes, and when the unit is working, the symbol will ke lighting on;
2. Ambient temperature and ice-making countdown time display;
3. Ice-making setting and Timer setting display;
4. Error code: E1 means that the ambient temperature sensor is faulted; E2 means that ice-making process is abnormal;
5. Light symbol: When this symbol displays, the LED light inside the c will be on;
6. Water flowing and water absence symbol: If the arrow of this symbol flashes, means the water is flow in from main water supply; And if the whole symbol keeps on, means there is no water from main water s 7. Ice-full display: When the ice storing cabinet is full of the ice cube,

symbol will display, and the unit will stop ice-making process;

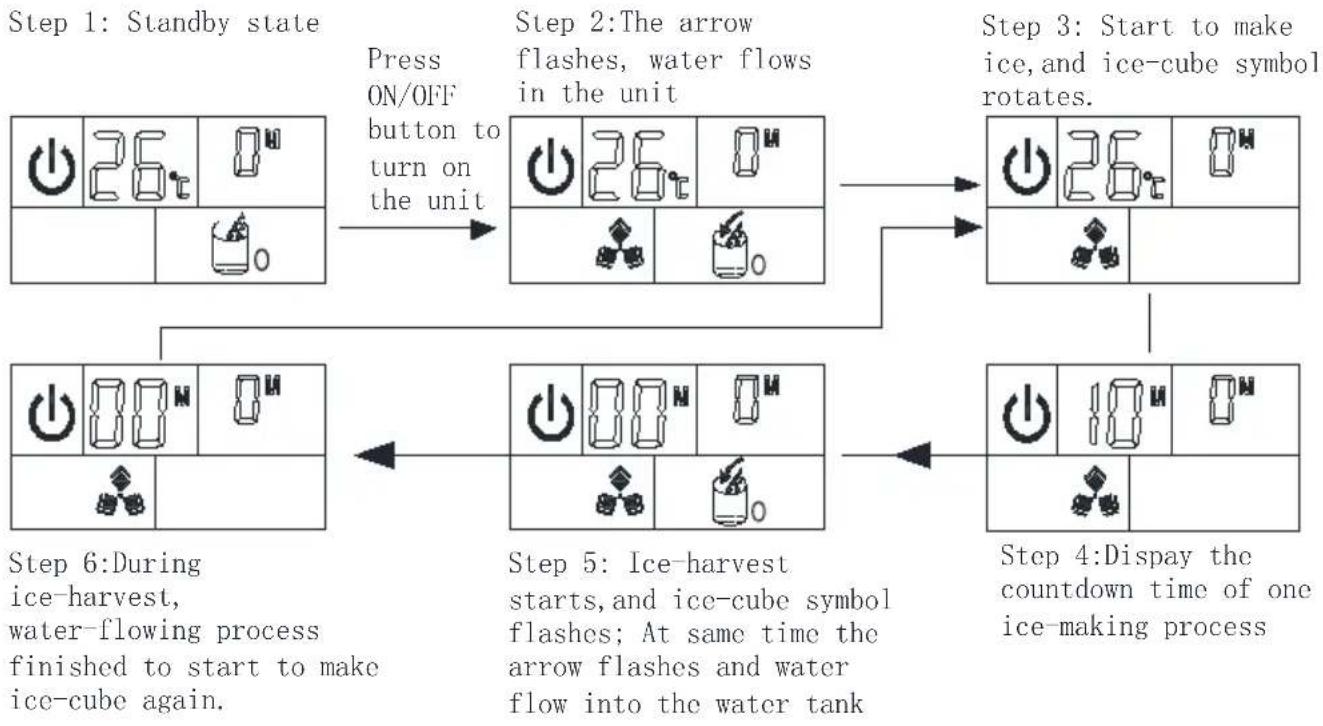

1. Ice making and harvest display: When the ice cube symbol keep ro means the unit is making the ice; And if the symbol flashes, means unit is during the ice harvest process;

2. Self-cleaning display;

B."LED light" button:

To turn on or turn off the internal LED light;

Note: Keep pressing this button for more than 5 seconds, it is to ch the ambient temperature unit between Fahrenheit degree and Centigrac degree.

C. "Timer/Clean" button:

Quickly press this button once, to enter the Timer setting program; A press this button for more than 5 seconds, to let the unit enter the Self-Cleaning program.

D. "ON/OFF" button:

When the unit is off, press this button to turn on the unit; And during automatic-cleaning program, or normal ice-making state, press this button to turn off the unit at once; And also if the unit is set with the Timer this button to cancel the Timer setting.

When the unit is making the ice cube, press this button for more than seconds, the unit will switch to ice harvest process by force.

E/F.“+”,“-”button:

Use to adjust the ice-making process duration period length, the default setting is zero, 1 minute adding or decreasing per each pressing of button. Also to adjust the delay time of the timer, the default setting is 1 hour adding or decreasing per each pressing of “+” or “-” button.

4) EXPLOSIVE DRAWINGS

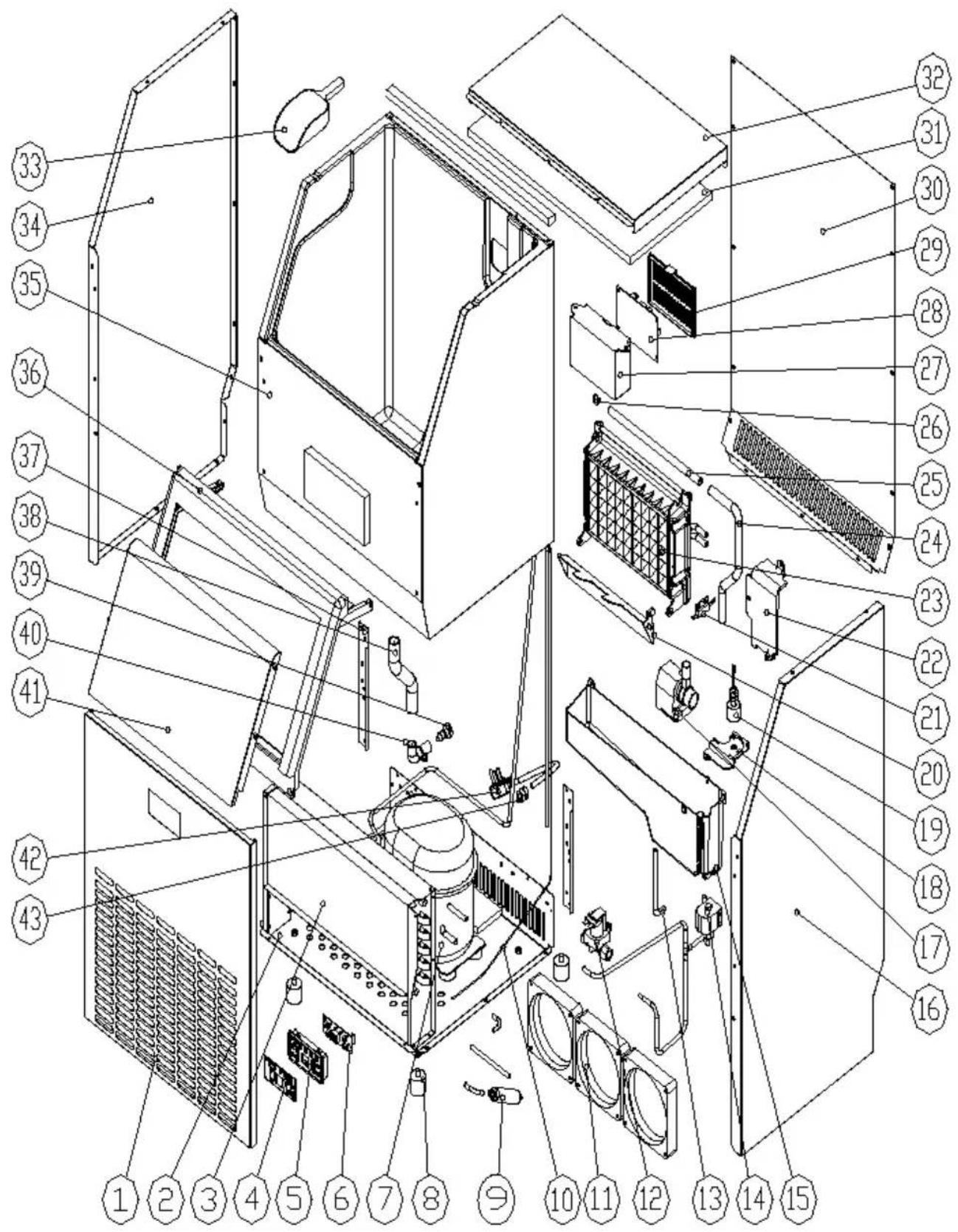

Exploded view diagram of a refrigerator with numbered parts for identification

No	Parts Name	Material	Qty.
1	Front panel	Stainless steel	1
2	Bottom plate	Zinc-plated steel board	1
3	Condenser	Copper tube and aluminum fin	1
4	Operation panel paper	PET	1
5	Operation panel PCB be	ABS	1
6	Operation panel PCB	Electrical and Electronic parts	1
7	Compressor	R290	1
8	Adjustable foot	ABS and bolts	4
9	Dry filter	Copper	1
10	Capillary	Copper	1
11	DC fan	DC12V, Electrical parts	3
12	Water inlet valve	DC12V Electrical parts	1
13	Water drainage pipe of the water tank	Silicone pipe	1
14	Ice-harvesting Electro-magnetic valve	Electrical parts	1
15	Water tank	ABS	1
16	Right side plate	430 stainless steel	1
17	Water circulation pump	Electrical parts	1
18	Cover of the water tar	ABS	1
19	Water level detecting switch	DC5V, Electrical parts	1
20	Ice-full detecting plate	ABS	1
21	Magnetic control switch	DC5V, Electrical parts	4
22	Cover board on the rig side of the evaporator	ABS	1
23	Evaporator and its fram	Copper plated with nickle and ABS frame	1
24	Water supplying pipe	Silicone pipe	1
25	Water dividing pipe, with nine holes	ABS	1
26	Cap of the water divided pipe	Silicone	1
27	Electrical PCB box	ABS, fire-retardant	1
28	Main control PCB	PCB, Electrical parts	1
29	Cover of the main con PCB	ABS, fire-retardant	1
30	Rear plate	Zinc-pated steel	1
31	Insulation sponge of the top cover	PE	1
32	Top cover	Stainless steel	1
33	Ice shovel	ABS	1
34	Left side plate	430 Stainless steel,(Option)	1
35	Foaming inner cabinet, Ice storing bin	HIPS and Cyclopentane foaming	1
36	Door frame	ABS	1
37	Back strength plate	Zinc-plated steel	1
38	Water outlet pipe of the inner cabinet	Silicone pipe	1
39	Water drainage cap	Rubber	1
40	Water drainage port	ABS	1
41	Door for ice taking	ABS	1
42	Power cord	Electrical parts	1
43	Clipper of the power c	PP, fire-retardant	1
44	Wiring	Electrical parts	1

1. Remove the exterior and interior packaging. Check if all the access including instruction manual, ice scoop, white water inlet pipe, 4 ways ways water quick connector and the water draining pipe, etc., are ins not. If any parts are missing, please contact our customer service.
2. Remove the tapes for fixing the door and inned cabinet, ice scoop, Roughly clean the inner cabinet & ice scoop with wet clothe.
3. Put the ice maker on a level & flat floor, without direct sunlight and sources of heat (i.e.: stove, furnace, radiator). Maker sure that there least 20cm gap between the air outlet and the obstacles, and at least between Left/Right side and the wall.
4. Allow 4 hours for the refrigerant fluid to settle before plugging the maker in if the unit may be fall upside down during shipping or transportation.
5. The appliance must be positioned so that the plug is accessible.

WARNING: connect to the potable water supplying only. Only use drin water.

INSTALLATION LOCATION REQUIREMENT

a) This unit is not for outdoor use. Keep the proper room temperature inlet water temperature according to above specification table. Otherwise will affect the ice making performance.
b) This unit should not be located near any heat resource.
c) The unit should be located on a firm & level foundation at normal top height.
d) There must be at least 5CM clearance at rear side for connection

CM clearance in front to open the door and keep good air circulation e) Do not put anything on the top of the ice maker.

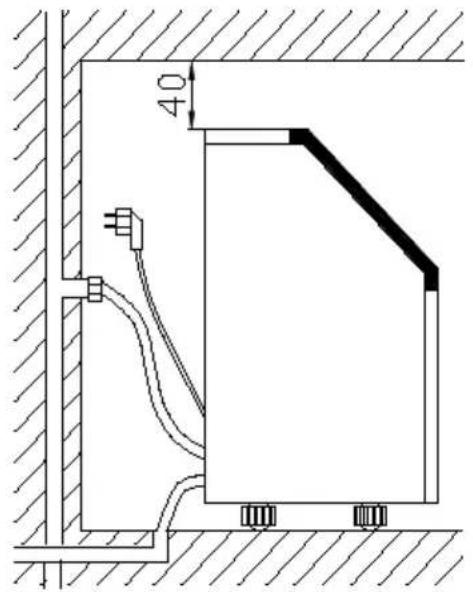

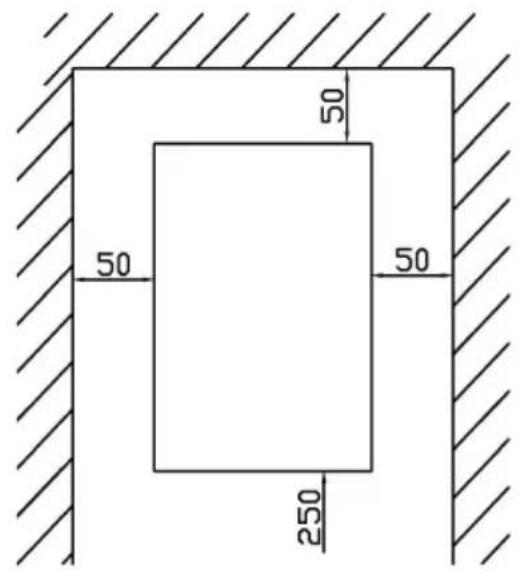

Installation clearance top view (1:10) (mm) Side view (mm)

50 50 50 250

40

To ensure proper ventilation for your ice maker, the front of the unit completely unobstructed (at least 20CM free space). Allow at least 50 clearance at rear, and 50 mm at top and sides for proper air circula. The installation should allow the ice maker to be pulled forward for servicing if necessary.

When installing the ice maker under a counter, follow the recommended spacing dimensions shown above. Place electrical and water supplies in drain fixtures in the recommended locations as shown.

Choose a well-ventilated area with temperatures above 10^ C and below 32^ C. This unit MUST be installed in an area protected from the elel such as wind, rain, water spray or drips.

The ice maker requires a continuous water supply with pressure 1-8 required in above specification table. The temperature of the water feed into the ice maker should be between 5^ and 25^ for proper operation

ELECTRICAL REQUIREMENT & CONNECTIONS

WARNING: THIS UNIT MUST BE EARTHED.

Electrical Shock Hazard

Plug into a grounding wall outlet.

Never remove the ground prong.

Use separate power supply or receptacle.

Never use an adapter.

Never use an extension cord.

Failure to follow these instructions can result in death, fire, or shock.

Before you move your ice maker into its final location, it is important to make sure you have the proper electrical connection.

It is recommended that a separate circuit, serving only your ice make provided. Use receptacles that cannot be turned off by a switch or p chain. If the supply cord or plug to be replaced, it should be done qualified service engineer.

Exported to the United States, This appliance requires a standard 110-120Volt, 60Hz electrical outlet with good grounding means.

Exported to the Europe, This appliance requires a standard 220-240vo 50Hz electrical outlet with three-prong ground.

Recommended grounding method

For your personal safety, this appliance must be properly grounded. The appliance is equipped with a power supply cord having a grounding point. To minimize possible shock hazard, the cord must be plugged into a grounding-type wall receptacle, grounded in accordance with the National Electrical Code and local codes and ordinances. If a mating wall receivable is not available, it is the personal responsibility of the customer to have properly grounding wall receptacle installed by a qualified electrician.

CLEANING YOUR ICE MAKER BEFROE FIRST USING

Before using your ice maker, it is strongly recommended to clean it thoroughly.

1. Open the ice getting door.
2. Clean with diluted detergent, warm water and a soft cloth.
3. Repeatedly clean the water contacting inner parts, use the water or wet clothe to scrub the relevant parts, then use the dry clothe to dr
4. you can pull the Water drain pipe of the water tank indicating “H” illustration to drain the cleaned water in the water tank, then next to inner ice-storing cabinet, till all of inner parts are cleanly, then drain of the cleaned water from the water drain port located at unit back indicating “8” in above illustration. And must to reinstall back the water pipe of the water tank and the cap of the unit water drain port, oth the unit will not make the ice normally. And suggest that you should discard the ice-cube made by the first ice making cycle after cle
5. The outside of the ice maker should be cleaned regularly with a m detergent solution and warm water.
6. Dry the interior and exterior with a clean soft cloth.

OPERATION YOUR UNIT

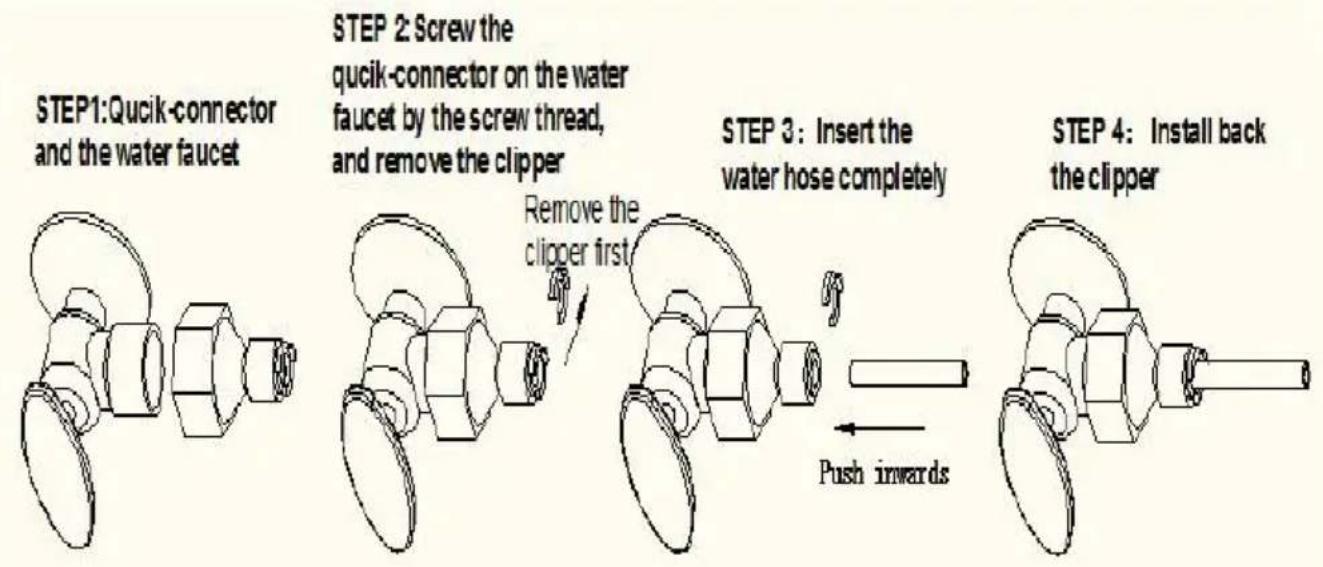

WATER CONNECTION FOR YOUR ICE MAKER

Important: Be sure to use the new hose-sets supplied with the application to connect to water mains and that old hose-sets should not be reused.

1. Connect the water supplying hose to the unit

Step 1: First remove the tape on the water inlet port for water support (indicated in the following illustration "B") located at unit back, then use your other hand's finger to press the out circle Step 2: Insert the or end of the white water hose into the water inlet port, and push inward completely, and install back the clipper, then water hose connection is completed.

Unit Back View ^STEP 1 : Remove the ^STEP 2 : Insert the tape first water hose

A B Water inlet port on the unit back Then install back the clipper White water hose (accessory) Remove the clipper first First insert th water hose inwa completely

2. Connecting the water drainage pipe

Pull out the water drainage cap with black color (iAdinatadove illustration), then connect the white drainage pipe included in accessory again connect the other end of this drainage to the main water drain pipeline. Make sure not to set the drainage pipe too high.

3. Connect the water hose to the water faucet of the water main supply system

First, install the supplied water quick-connector(from 1/4 to 1/2 inch, w black sealing circle) to the water faucet by screw thread; Second, rer the clipper from the water quick-connector, insert the another end of water hose into this quick-connector port completely, then install back clipper, also this step is completed. Note: The water faucet should be supplied by the customer himself.

Important: The water pressure of main water supply system must be 0.04-0.6 MPa

Ice making program is explained in following chart:

Automatic water supplying symbol Arrow of symbol flashes,

means the water is flowing into the water tank. If this whole symbol keeps displaying, means no main water supplying at present.

Ice-cube symbol, when it rotate, means unit is making the ice and it flashes, means the unit is in ice harvest process.

F Fahrenheit(ambient temperature)

H unit of hour (setting the timer)

M unit of minute(ice-making setting and countdown time)

—After completing the connection of the main water supplying hose with unit, plug on the main power supply plug. Then press “ON/OFF” button the control panel to begin the ice making cycle. The unit ON/OFF st symbol will keep lighting on, the left number in the LCD display wind displays the present ambient temperature, and the right number displays the present ice-making setting, and the ice-cube symbol rotates. When left number change to flash, then the number means the countdown is complete one ice making cycle.

—Each ice making cycle will last about 11 to 20 minutes, depending ambient temperature and the water temperature. And for the first time according to the initial water temperature, ice-making last time will be little longer.

- When the ice-making process is over, then switch to ice-harvest process. During the ice-harvest process, the ICE cube symbol change rotating flash. At same time, the arrow on the manual filling water symbol will to flash, the water will flow into the water tank again till the floating water level switch rises up to the highest position, then the water stop flowing and the whole manual filling water symbol will disappear.

When the ice-harvest finish, the Ice-full detecting plate will rotate downward once, then recover to the original position and enter to the ice-making process.

If after the rotation of the Ice-full detecting plate, it is pressed by the cube and can't recover to the original position, means the ice sto

bin is full of the ice cube and it will stop making the ice automatica 4.When the “ICE-FULL” symbol display is on, the unit stops running. you move away the ice cube, the unit will start to make the ice cul But it will restart only after 3 minutes interval of compressor running. 5.During the ice-making process, press the “+” or “-” button to adjust ice-making process duration period length, then to change the thickness the ice cube. Press the “+” or “-” button, the right digit will flash, the default setting is zero, 1 minute will add or decrease to each ice ma process per each pressing of “+” or “-” button. After 5 second of se new setting will be remembered by the system.

1. The bad water quality will cause the bad quality of ice cube, and the transparency of the ice cube.

Automatic self-cleaning program

Start the self-cleaning program: After connecting all of the water pipe, on the main power supply plug, then press “TIMER /CLEAN” button or control panel for more than 5 seconds, to enter the Self-Cleaning pro

And the symbol will always be on during this period, the left digit indicate the left time. The total duration time is 20 minutes for one self-cleaning program.

Cancel the self-cleaning program: It takes about 20 minutes to complete one self-cleaning program. When the program is over, the system will standby mode automatically. And also you can press the “ON/OFF” button on control panel to cancel the self-cleaning program by force.

Timer setting operation

Delay time range: 1-24 hours, Default time: 1 hour

How to set the ON-Timer: During the unit is in standby mode, press

"TIMER/CLEAN" button to set the ON-Timer. The " " symbol will start to be on, the number "1" above the symbol will flash to display delay time. During the number flashing, press+","-”button to change the

delay time of the timer, 1 hour increasing or decreasing per each price of “+” or “-” button. Five seconds after setting, your desired setting was remembered.

How to cancel the ON-Timer: Press the "TIMER/TIMER" button, the number above the ON Symbol will flash to display the present delay time of your ON-Timer, and press this button once again to cancel t Timer setting, also the ON symbol and the number will disappear.

And the second easy way to cancel the ON-Timer is to press the "O button, it will cancel the ON-TIMER setting by force.

How to set the OFF-Timer: When the unit is working, press the "TIMER/CLEAN" button to set the OFF-Timer. The "OFF" symbol will start to be on, the number "1" above the symbol will flash to display setting delay time. During the number flashing, press+”、“-”button to change

the delay time of the timer, 1 hour increasing or decreasing per each pressing of “+” or “-” button. Five seconds after setting, your desired will be remembered.

How to cancel the OFF-Timer: Press the "TIMER/TIMER" button, the number above the OFF symbol will flash to display the present delay time of your OFF-Timer, and press this button once again to cancel Timer setting, also the OFF and the above number will disappear;

And also the second easy way to cancel the OFF-Timer is to press "ON/OFF" button, it will cancel the ON-TIMER setting by force, also v turn off the unit.

Internal LED light operation

When the unit is plugged on, press the "LIGHT" button on the opera

panel once to lighten the LED light inside the ice bin and the “” symbol on the LCD display window will also be on. Press this button again, the LED light and the “” symbol will be off at same time.

NOTE: If you press the “LIGHT” button for more than 5 seconds, the ambient can be changed between Centigrade degree and Fahrenheit degree(between ℃ and ℉).

ERROR CODE OF UNIT BREAKDOWN

When the unit is breakdown, the error code will display in the left s LCD display window.

E1 means the sensor of ambient temperature is malfunction.

E2 means that ice making program is abnormal, including too big ice-cube, no ice-cube falling down, or not making ice cube, etc.

NOTE: During the ice cube making process, press “ON/OFF” button for more than 5 seconds, the unit will jump into the ice-harvest process the ice harvest process is completed, the uni will recover to ice make process.

Water Drainage

Make sure the water drainage pipe has correctly connected at the back first.

A. You can drain the the water in ice storage bin through the white pipe connected on the back drainage port. Make sure not to set the drainage pipe too high.

B. For the water in the water tank, you can pull out the silicone pipe right side of the water tank indicating "H" in above illustration to drain the cleaned water in the water tank, till the silicone pipe extend com the water can flow out to ice bin. Then the water can be drained o through the the water drain port at unit back.

Reminding: Clean the water tank frequently, it can improve the ice-cl

quality and the unit and its water circulation pump can work much lc C. For the water in water charging tank, pull out the silicone pipe or right side of the water tank indicating “H” in above illustration, then p the unit, let the unit run at ice-making program or self-cleaning progra the water will flow into the water tank, again through the silicone pip into the ice bin, at last can be drained out the unit through the wat port at unit back.

Normal Sounds

Your new ice maker may make sounds that are not familiar to you. The new sounds are normal. Hard surfaces like the floor, walls and c can make the sounds seem louder than they actually are. The following describes the kinds of sounds that might be new to you and what r making them.

- You will hear a swooshing sound when the control valve opens to water flow into the water tank for each ice-making cycle.

- Rattling noises may come from the flow of the refrigerant or the w Items stored on top of the ice maker can also make noises.

- The high-efficiency compressor may make a pulsating or high-pitched sound.

• Water running from the water tank to the evaporator plate may ma splashing sound.

• Water running from the evaporator to the water tank may make a splashing sound.

- As each cycle ends, you may hear a gurgling sound due to the flowing in your ice maker.

- You may hear air being forced over the condenser by the condens. During the harvest cycle, you may hear the sound of ice cubes falling the ice storage bin.

- When you first start the ice maker, you may hear water running continuously. The ice maker is programmed to run a rinse cycle before begins to make ice.

PREPARING THE ICE MAKER FOR LONG STORAGE

If the ice maker will not be used for a long time, or is to be move another place, it will be necessary to drain out all of the water in the system.

1. Allow all of the ice cubes have been ejected from the evaporator or maker.
2. Turn off the unit, and unplug the power cord.
3. Drain out all of the water inside the unit according to section "Water Drainage". When all of the water has been drained out, to install back water drain pipe of the water tank..
4. Disconnect the water drainage pipe to the main drain pipeline or flc drain, plug on the drain cap again.
5. Drop the door open to allow for circulation and prevent from molding mildewing.
   6.Leave the power cord disconnected until ready to reuse.
6. Dry the interior & wipe the outside of the unit.
7. Put a plastic bag on the unit to resist out dust & dirty.

CLEANING & MAINTENANCE

WARNING: Before carrying out any cleaning or maintenance operations, unplug the ice maker from the main power supply electricity. (EXCEP ^™ Ice maker self-cleaning program).

Do not use any alcohol or fume for cleaning or sanitizing of the ice may cause cracks on the plastic parts.

Ask a trained service person to check and clean the condenser at le once a year, in order to let the unit work properly.

This appliance must be cleaned by use of a water jet.

CAUTION

If the ice maker has been left unused for a long time, before

it must be thoroughly cleaned. Follow carefully any instructions for cleaning or use of sanitizing solution. Do not leave any inside the ice maker after cleaning.

Periodic cleaning and proper maintenance will ensure efficiency, top performance, hygienic, and long life. The maintenance intervals listed are based on normal conditions. You may want to shorten the intervals if have pets, or the unit is used outdoors, or there are other special considerations.

What shouldn't be done

Never keep anything in the ice storage bin that is not ice: objects li and beer bottles are not only unsanitary, but also it's labels may slip obstruct the drain pipe.

Exterior Cleaning

The door and cabinet may be cleaned with a mild detergent and water solution such as 28g of dish washing liquid mixed with 7.5L of water. Do not use solvent-based or abrasive cleaners. Use a soft spot and rinse with clean water. Wipe with a soft clean towel to prevent spotting.

The side steel plate can discolor when exposed to chlorine gas and be cleaned. Clean the steel plate with a mild detergent and warm solution and a damp cloth. Never use abrasive cleaning agents.

Interior Cleaning

For Ice Storage Bin

The ice storage bin should be sanitized occasionally. Clean the bin b the ice maker is used for the first time and reused after stopping fo extended period of time. It is usually convenient to sanitize the bin a ice making system has been cleaned, and the storage bin is empty. 1.Disconnect power to the unit.

1. Open the door and with a clean cloth, wipe down the interior with sanitizing solution made of 28g of household bleach or chlorine and hot water(95°F to 115°F).
2. Rinse thoroughly with clear water. The waste water will be drained through the drain pipe.
3. Reconnect power to the unit.

The ice scoop should be washed regularly. Wash it just like any other container.

WARNING

DO NOT use solvent cleaning agents or abrasives on the interThese cleaners may transmit taste to the ice cubes,or damage or discolor the interior.

Ice Making Parts Cleaning

During the using, periodically to clean these main system of your ice-maker.

1. Repeat above step to clean the water tank and other inner parts of unit.
2. Especially, to the water dividing pipe on the evaporator, when the compressor and the water pump run normally, but if there is no water flowing out from the water dividing pipe or the water flowing is very please discharge this water dividing pipe to clean carefully. Clean each little holes on the water dividing pipe displayed in the following illustration make sure each hole is not clogged by something, then install back original location.
3. The length of cleaning period is related to your water quality. And the water more frequently, the unit and its water pump can work more longer.
4. When there are ice cubes on the surface of the evaporator, but can off easily, do not use the mechanical substance to remove it by force press the "ON/OFF" button for more than 5 seconds, the unit will en

ice melting process, after some while, the

big ice-cubes will fall down, then turn off the unit and unplug the pc to clean the surface of the evaporator.

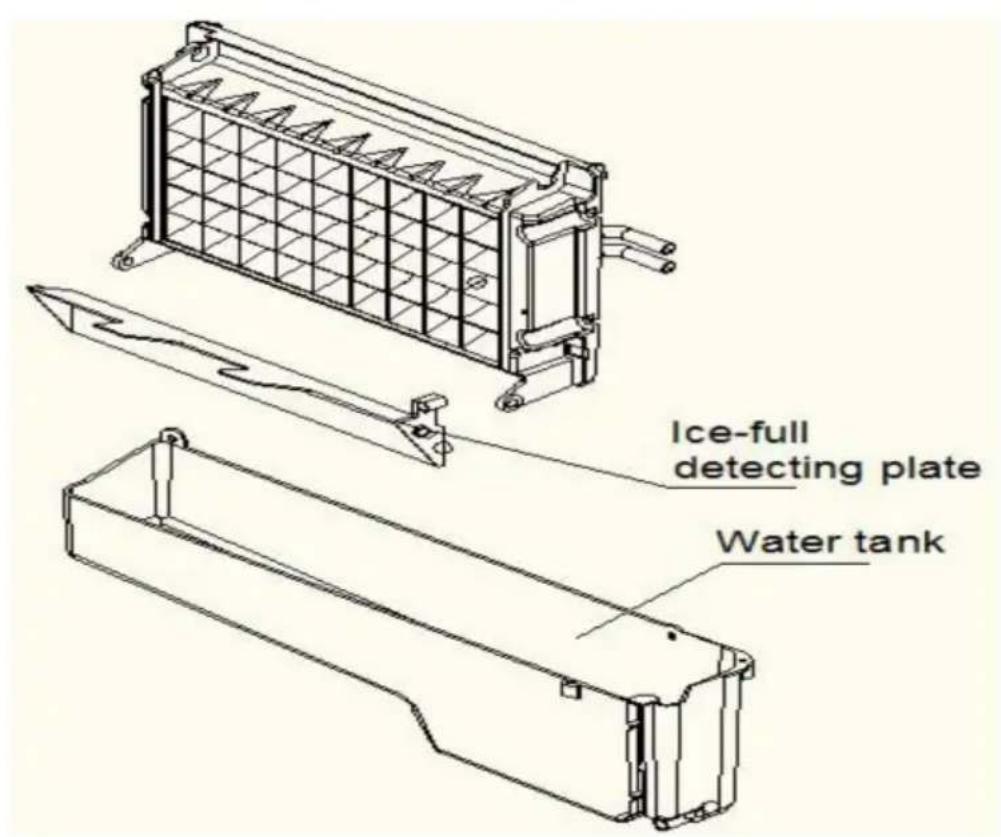

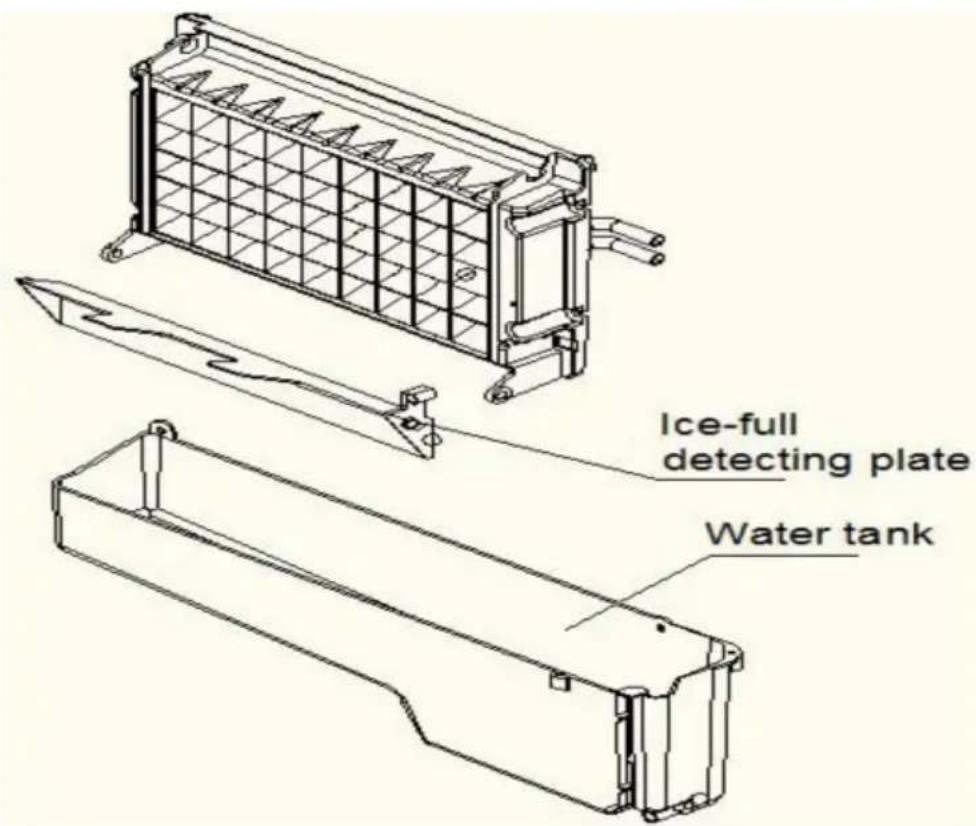

1. For the water tank and ice-full detecting plate

Little holes of water dividing pipe Water dividing pipe Evaporator Pull up first Then move out right toward

Ice-full detecting plate Water tank

Also the water tank and the ice-full detecting plate is very important your ice cube hygienic. Put mixture of neutral cleaner & water into a water jet, then spray to all the inner surface of tank & the ice detect Wipe these surfaces as far as possible with a clean cloth. And then, the surfaces with clean water, wiping with a dry clean cloth. Then dr the cleaned water in the water tank by pulling out the Water drain p the water tank indicating “H” in above illustration. When all of the cle water has been drained out, to install back the water drain pipe of t tank.

Suggestion: After cleaning the interior parts and install back to its respective position, and return machine to work, discard first batch ice.

Ice Making Assembly System Cleaning by Using Nu-Calgon Nickle Safe Ice-machine Cleaner (Better using automatic water supplying)

Minerals that are removed from water during the freezing cycle will eventually form a hard scaly deposit in the water system. Cleaning the system regularly helps remove the mineral scale buildup. How often you need to clean the system depends upon how hard your water is. Wi water of 4 to 5 grains/liter, you may need to clean the system as c every 6 months.

1. Turn off the ice maker. Keep the ice maker connect to the main v supply and drainpipe. But shut off the water faucet of main water su
   2.Open the door and scoop out all of the ice cubes. Either discard save them in an ice chest or cooler.

2. Making the cleaning solution. Please mix the Nu-Calgon Nickle Safe Machine Cleaner with water to make the cleaning solution.

WARNING

Wear rubber gloves and safety goggles(and/or face shield)when handing Ice Machine Cleaner or sanitizer.

Use a plastic or stainless container with more than 4 liters capacity, 300 ml Nu-Calgon Nickle Safe Ice-machine Cleaner with 2.8 liters water about 50-60 °C, Then divide them for 2 shares equally in 2 c better to keep the temperature of each cup of the cleaning solution. Check to be sure that the water drain pipe of the water tank has been installed properly in the slot of the tank wall. Then Pour one cup of Nickel-Safe Ice Maker Cleaning Solution into the water tank. Wait about 5 minutes.

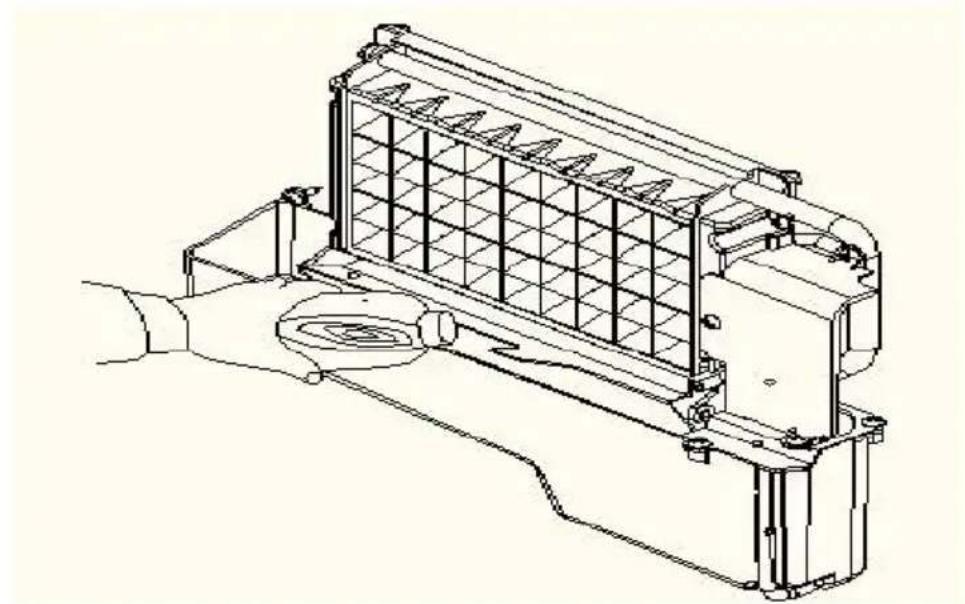

Technical line drawing of a mechanical housing or enclosure with internal grid structure (no text or symbols)

1. Turn on the power to the ice maker, then press "TIMER/ CLEAN" but on control panel for more than 5 seconds, to enter the self-Cleaning program. Same as above explanation, the water pump runs for 8 mir and stops for 3 minutes, one cycle, again one cycle. The total duration is 20 minutes for one self-cleaning program.

During this process, the "symbol will always be on during this period, and the digit window will indicate the left time.

1. After 20 minutes of one self-cleaning program completing, pull out the drain pipe of the water tank, drain the cleaning solution down to the ice storage bin. Shake the unit slightly to drain out all of the cleaning solution completely. Then install back the drain pipe to the slot of the

tank.

6.Repeat steps 4--6 to clean the ice making assembly system again.

WARNING

The ice machine cleaner contains acids.

DO NOT use or mix with any other solvent-based cleaner product Use rubber gloves to protect hands. Carefully read the material instructions on the container of the ice machine cleaner.

DISCARD the first batch of ice introduce after cleaning.

1. Then open the water faucet of the main water supply, Let the water in the unit. And press the "TIMER/CLEAN" button on control panel for n than 5 seconds, to enter the self-Cleaning program. Same as above explanation, the water pump runs for 8 minutes and stops for 3 min one cycle, again one cycle. The total duration time is 20 minutes for

self-cleaning program. During this process, the “” symbol will

always be on during this period, and the digit window will indicate the time. Through this process, It will rinse the water dividing pipe, evaporated water pump, silicone pipe, and water tank, etc..

1. After one self-cleaning program complete, then pull out the drain pipe the water tank, drain the cleaning solution down to the lower ice sto bin, also shake the unit slightly to drain out all of the water complet. Then install back the drain pipe to the water tank slot tightly.

2. Repeat the step 8-9 again for 2 times.

3. Following the above program to clean the ice storage bin .

4. Then this special cleaning program finish, you can return to the re ice making mode. And suggest to discard the first batch of ice cube.

Cleaning Suggestion

1) DAILY CLEANING

The ice shovel, door and the water dividing pipe should be cleaned

yourself per each day. At the end of every day, rinse the ice shovel and wipe the both sides of the door with a clean cloth.

2) SEMI-MONTHLY CLEANING

The ice shovel, ice bin, water tank, the ice-full detecting plate and the surface of the evaporator are to be cleaned by yourself semi-monthly according to interior cleaning program.

3) SEMI-ANNUAL CLEANING

All the components & surfaces exposed to water or ice cubes, like ice storage bin, water tank, door, evaporator, water pump, silicone tube, water dividing pipe, etc. should be cleaned by Using Nu-Calgon Nickle Safe Ice-machine Cleaner per each 6 months. They should be cleaned by the serviceman according to ice making assembly system cleaning program.

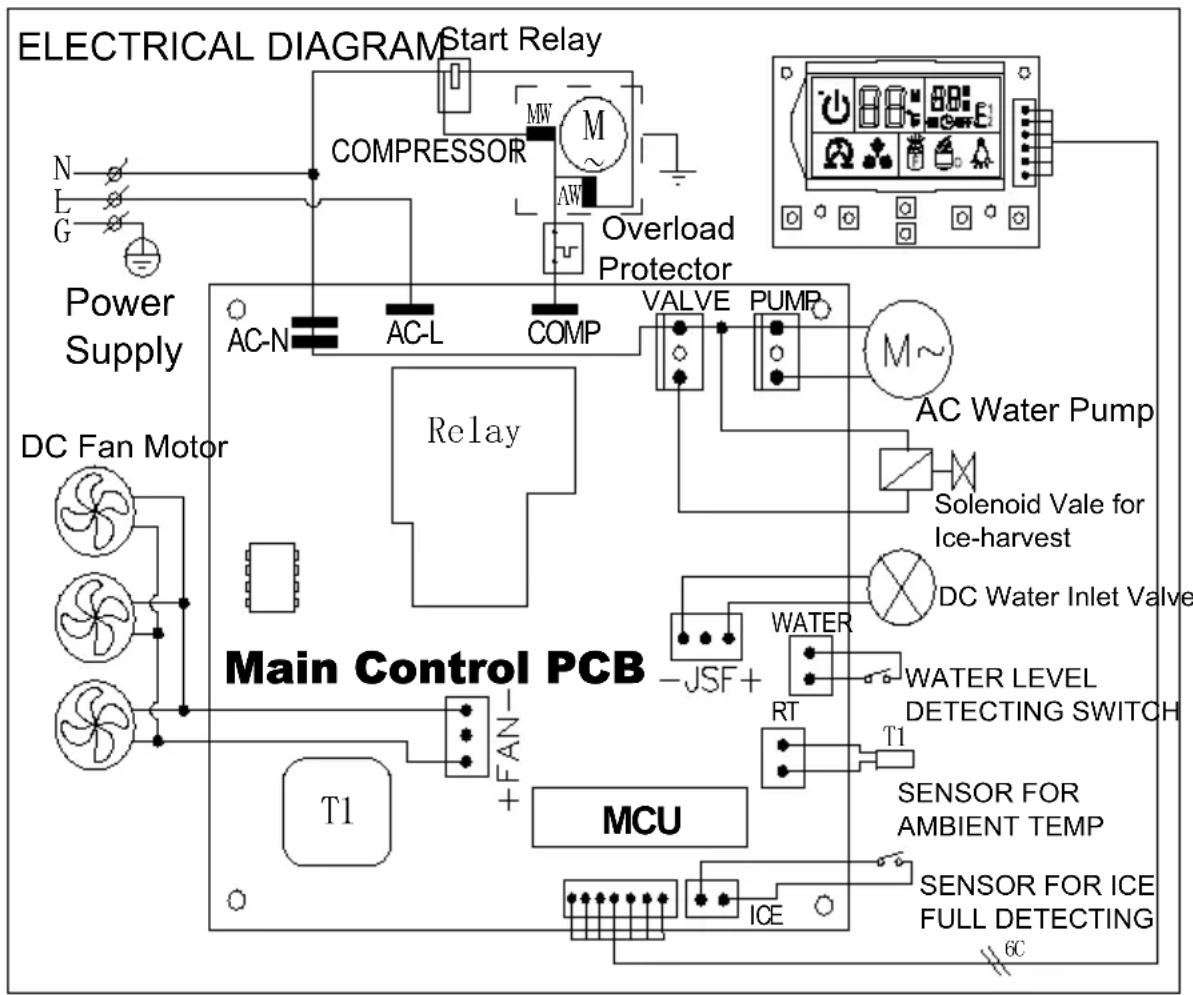

WIRING DIAGRAM

NORMAL TROUBLE SHOOTING

Problem	Possible Cause	Solution
The whole symbol is always on.	No water in un	When automatic water supplying way, maybe the m water pressure is too low or water supplying hose is blocked. Check them and increasing the water pressure and clean the supplying hose.When using manual wat supplying way, maybe there no water in water charging fill the water into the water charging tank to MAX water level.
	Floating ball of the water level detecting switch is blocked, can' be raised up	Clean the water tank and th water level detecting switch.
	Water flows out from the side of the water tank	Place the unit on the level position, not on the slope.
	Water flows out from the water drain pipe of the water tank.	Pull out the pipe and install back to the right side slot of water tank properly.
The unit enter the ice making process, but no water flowing in the unit, and the whole [c6y6] symbol is on.	No water in water charging tank, or the water supplying problem , or the silicone pipe of water tank isn't on the correct position.	When automatic water supplying way, maybe the water pressure is too low or water supplying hose is blocked. Check them and increasing the water pressure and clean the supplying hose. When using manual water supplying way, maybe there no water in water charging to fill the water into the water charging tank to MAX water level.The silicone pipe of water ta should be clamped in the sl the water tank side.
Water pump work but no water flow out from the water dividing pipe	The little holes on the water dividing pipe is blocked.	Clean these little holes.
Water circulation pump doesn't wor	Some special substance in water tank block the pump blade	Clean the water tank and the water pump
The transparency of the ice cube i not very good	Water quality is bad	Use the water filter or water purifier to soften or filter the water.
Ice cube shape is irregular	Water quality is not good or the water tank is very dirty	Clean the water tank, and change with new water..
	The little holes on the water dividing pipe is some blocked	Clean the water dividing pipe make sure all nine holes are unclogged
Ice cube is very thin	Ambient temperature is too high	Move the unit to low temperature space, or length the time of each ice making cycle.
	Air circulation around the unit is not goog	Make sure there is more than 20CM space between the un back & front and the obstac
Ice cube is too thick	Ambient temperature is too low	Reduce the time of each ice making cycle.
“ICE-FULL” symbol is on	The ice storage bin is full of the ice cube.	Take out some ice cube
Ice making cycle normal, but there is no ice cube produced	The temperature of ambient, or water in water tank is too high	Move to the place with temperature lower than 90Fahrenheit,centigrade,and change to the low temperatu water
	Refrigerant leakage, E2 error code display	Need the technical servicema to maintain
	Cooling system tube is clogged	Need the technical servicema to maintain

ERROR INDICATOR

a) Ambient temp sensor breakdown---- Display E1 in digital window.

b) The machine not make ice or the gas leak ----Display E2 in digit window
c) Magnetic control switch cutoff----“Full” light will be on when plugging or just turning on the unit. And it will delete the breakdown display switch is electric shorted.
d) During the ice making process, press the “ON/OFF” button for more 5 seconds, the unit Start to enter the ice harvest program. And after harvest program, it continue to enter the ice making process.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Warning sign depicting a flame symbol with black outline and black border, commonly used in safety or hazard prevention.

1) DIMENSIONS/CONNEXIONS

2) Évaluation

MODÈLE	HZB-45
TENSION D'ALIMENTATION ÉLECTRIQUE	Voir la plaque signalétique
CLASSE DE RÉCLAMATION	10-40
PROTECTION ELECTRIQUE CLASSE	CARACTÉRISTIQUESI
PUISSANCE DE FABRICATION DE GLACE (Amps)	2,2 A
COTE DE RÉCOLTE DE GLACE (Ampères)	2,5 A
CAPACITÉ DE FABRICATION DE GLACE (KG/24H)	45kg/24h*
CHARGE DE RÉFRIGÉRANT	R290 1,86 oz / 95 g
POIDS NET (lb)	59 livres
Cloque	C5H10
DIMENSIONS DE L'UNITÉ (L x P x H) (mm)	448 x 400 x 798
CONSOMMATION D'EAU (L/24H)	50L
STOCKAGE DE GLACE MAXIMUM CAPACITÉ (lb/kg)	33 lb/15 kg
ACCESSOIRES	PELLE, KITS D'INSTALLATION
CONDITIONS DE COURSE	TEMPÉRATURE AMBIANTE 50-110Fahrenheit/10-38TEMPÉRATURE D'ALIMENTATION EN EAU 41-95Fahrenheit/5-35PRESSION D'ALIMENTATION EN EAU 0,04-0,6 MPa

REMARQUE * : TESTÉ À TEMPÉRATURE AMBIANTE DE 70 Fahrenheit ET 50 TEMPÉRATURE DE L'EAU EN Fahrenheit.

INFORMATIONS GÉNÉRALES

Technical diagram of an appliance with numbered parts labeled 1 through 6

Technical line drawing of a refrigerator unit with labeled components (no text or symbols present)

Technical schematic diagram of a mechanical or electrical device with labeled components A through J

Exploded view diagram of a refrigerator internal structure with numbered labels for identification

FONCTIONNEMENT DU PROCESSUS DE FABRICATION DE GLACE

Little holes of water dividing pipe Water dividing pipe Evaporator Pull up first Then move out right toward

Ice-full detecting plate Water tank

Technical line drawing of a mechanical component with internal grid structure and handle (no text or symbols)

www.vevor.com/support

EISMASCHINE

MODELL:HZB-45

Line drawing of a modern ice cream oven with control panel and ventilation grilles (no text or symbols)

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

Technical diagram of an appliance with numbered parts labeled 1 through 6

Technical line drawing of a refrigerator unit with internal components and labeled parts (no text or symbols beyond labels)

Technical schematic diagram of a mechanical or electrical device with labeled components A through J

Exploded view diagram of a refrigerator internal structure with numbered labels for identification

Little holes of water dividing pipe Water dividing pipe Evaporator Pull up first Then move out right toward

Ice-full detecting plate Water tank

Technical line drawing of a mechanical housing or enclosure with internal grid structure (no text or symbols)

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a modern ice cream oven with control panel and ventilation grilles (no text or symbols)

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

Technical diagram of an appliance with numbered parts labeled 1 through 6

Technical line drawing of a rectangular device with internal components and a close-up view showing internal structure (no text or symbols)

Technical schematic diagram of a mechanical or electrical device with labeled components A through J

Exploded view diagram of a refrigerator internal structure with numbered labels for identification.

Little holes of water dividing pipe Water dividing pipe Evaporator Pull up first Then move out right toward

Ice-full detecting plate Water tank

Technical line drawing of a mechanical housing or enclosure with internal grid structure (no text or symbols)

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a modern ice cream oven with control panel and ventilation grilles (no text or symbols)

www.vevor.com/support

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

1) DIMENSIONES/CONEXIONES

2) Calificación

Technical diagram of an appliance with numbered parts labeled 1 through 6

Technical line drawing of a rectangular device with internal components and a close-up view showing internal structure (no text or symbols)

Technical schematic diagram of a mechanical or electrical device with labeled components A through J

Exploded view diagram of a refrigerator internal structure with numbered labels for identification

Little holes of water dividing pipe Water dividing pipe Evaporator Pull up first Then move out right toward

Ice-full detecting plate Water tank

Technical line drawing of a mechanical housing or enclosure with internal grid structure (no text or symbols)

Line drawing of a modern industrial ice cream machine with control panel and ventilation slots (no text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

Technical diagram of an appliance with numbered parts labeled 1 through 6

Technical line drawing of a rectangular device with internal components and a close-up view showing internal structure (no text or symbols)

Technical schematic diagram of a mechanical or electrical device with labeled components A through J

Exploded view diagram of a refrigerator internal structure with numbered labels for identification

OBSŁUGA PROCESU PRODUKCJI LODU

Little holes of water dividing pipe Water dividing pipe Evaporator Pull up first Then move out right toward

Ice-full detecting plate Water tank

Technical line drawing of a mechanical housing or enclosure with internal grid structure (no text or symbols)

Line drawing of a modern ice cream oven with control panel and ventilation grilles (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

Technical diagram of an appliance with numbered parts labeled 1 through 6

Technical line drawing of a rectangular device with internal components and a close-up view showing internal structure (no text or symbols)

Technical schematic diagram of a mechanical or electrical device with labeled components A through J

C.Knop "Timer/Clean":

Exploded view diagram of a refrigerator internal structure with numbered labels for identification

WAARSCHUWING: DEZE UNIT MOET GEAARD WORDEN.

WERKING VAN HET IJSPRODUCTIEPROCES

FOUTCODE VAN EENHEIDSDEFECT

Little holes of water dividing pipe Water dividing pipe Evaporator Pull up first Then move out right toward

Ice-full detecting plate Water tank

Technical line drawing of a mechanical housing or enclosure with internal grid structure (no text or symbols)

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

ISMASKIN

MODELL: HZB-45

Line drawing of a modern ice cream oven with control panel and ventilation slots (no text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

FÖRBEREDAR ISMASKINEN FÖR LÅNGFÖRVARING----31

RENGÖRING OCH UNDERHÅLL 32

KLEDNINGSDIAGRAM----41

NORMAL FELSÖKNING----42

VIKTIG SÄKERHET

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

Technical diagram of an appliance with numbered parts labeled 1 through 6

Technical line drawing of a rectangular device with internal components and a close-up view showing internal structure (no text or symbols)

Technical schematic diagram of a mechanical or electrical device with labeled components A through J

C. "Timer/Clean"-knapp:

Exploded view diagram of a refrigerator internal structure with numbered labels for identification.

ANVÄNDNING ISBILLANDE PROCESSEN

FELKOD FÖR ENHETSUPPLYSNING

FÖRBEREDA ISMASKINEN FÖR LÅNGFÖRVARING

Little holes of water dividing pipe Water dividing pipe Evaporator Pull up first Then move out right toward

Ice-full detecting plate Water tank

Technical line drawing of a mechanical housing or enclosure with internal grid structure (no text or symbols)

www.vevor.com/support
