USER MANUAL JFS-001 Vevor
Technical Support and E-Warranty Certificate
www.vevor.com/support
Over Toilet Storage Rack
MODEL: JFS-001
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
MODEL: JFS-001


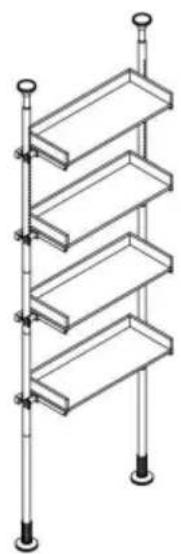

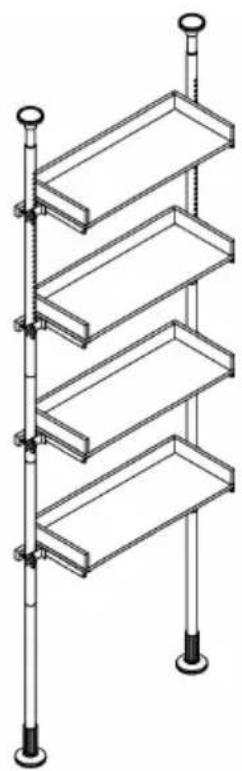

Isometric line drawing of a multi-tiered shelving unit with vertical posts and mounting feet (no text or symbols)NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel from contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
SAFE INSTRUCTIONS
CAUTION: Carefully read instructions and procedures for safe operations. Failu to do so can result in serious injury.

WARNING:
- Before using the storage rack, ensure that the storage rack is securely in to prevent personal injury and accidents.
- When using the storage rack, do not overload the storage rack to avoid personal injury or accident.
- Do not draw, cut, or use sharp objects on the storage rack to avoid dar
- If you need to disassemble the storage rack, please follow the reverse store disassemble and store it properly.
- This product is not a toy. Do not allow children to play with this item.
ASSEMBLY PRECAUTIONS
- Assemble only according to these instructions. Improper assembly can create hazards.
- Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
- Keep assembly area clean and well-lit.
- Keep bystanders out of the area during assembly.
- Do not assemble when tired or under the influence of alcohol, drugs or medication.
- Product capabilities apply to properly and completely assembled products or
- For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate parts in a clean work area.
- For safety reasons, this hardware is recommended to be installed by 2 pc
SAVE THESE INSTRUCTIONS
| Part List | |||
| No. | Picture | Name | QTY. |
| 1 | ![]() | Top Cap | 2 |
| 2 | ![]() | Flexible poles with hole | 2 |
| 3 | ![]() | Long Pole | 4 |
| 4 | ![]() | Short Pole | 2 |
| 5 | ![]() | Foot Cap | 2 |
| 6 | ![]() | Left Bracket | 4 |
| 7 | ![]() | Right Bracket | 4 |
| 8 | ![]() | Bottom Plate | 4 |
| 9 | ![]() | Backboard | 4 |
| 10 | ![]() | Side Baffle | 8 |
| 11 | ![]() | Screw M5*12 | 16+2 |
| 12 | ![]() | Screw ST3.2*34 | 28+4 |
| 13 | ![]() | Hex Key | 1 |
| 14 | ![]() | Crosshead Allen Wrench | 1 |
| 15 | ![]() | Ladder Nut | +2 |
| Tip: “+” is extra spare parts. | |||

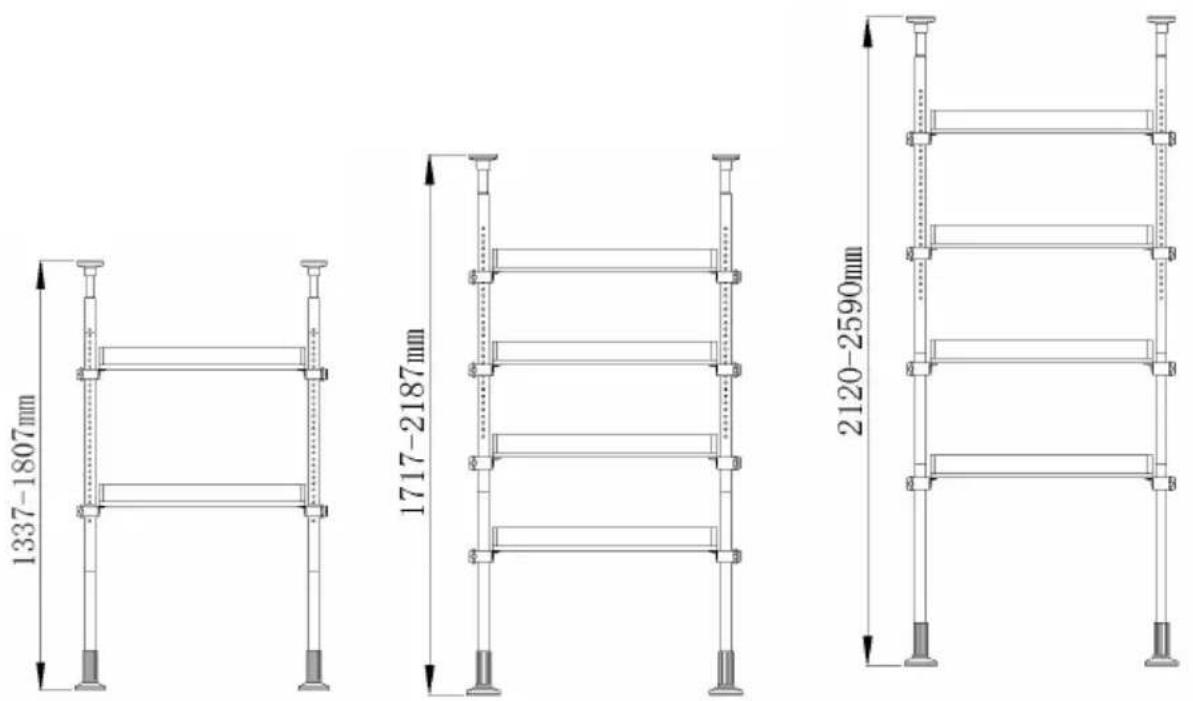

- It can be combined in a variety of forms, choose the height you


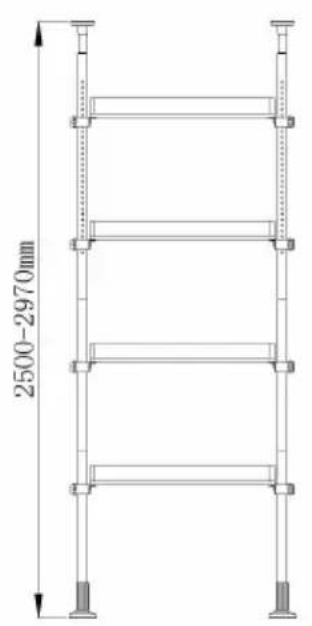

2500-2970mm


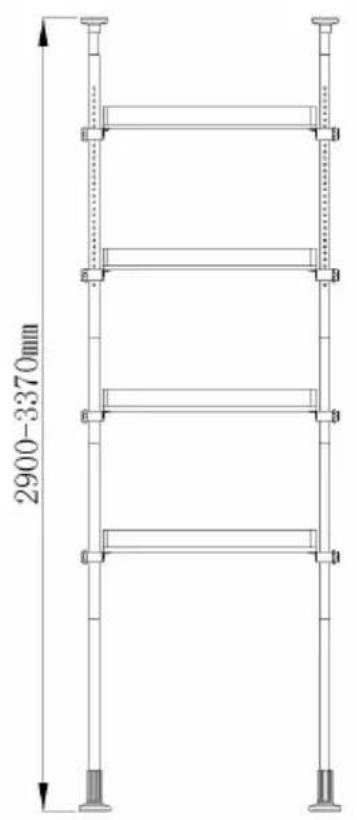

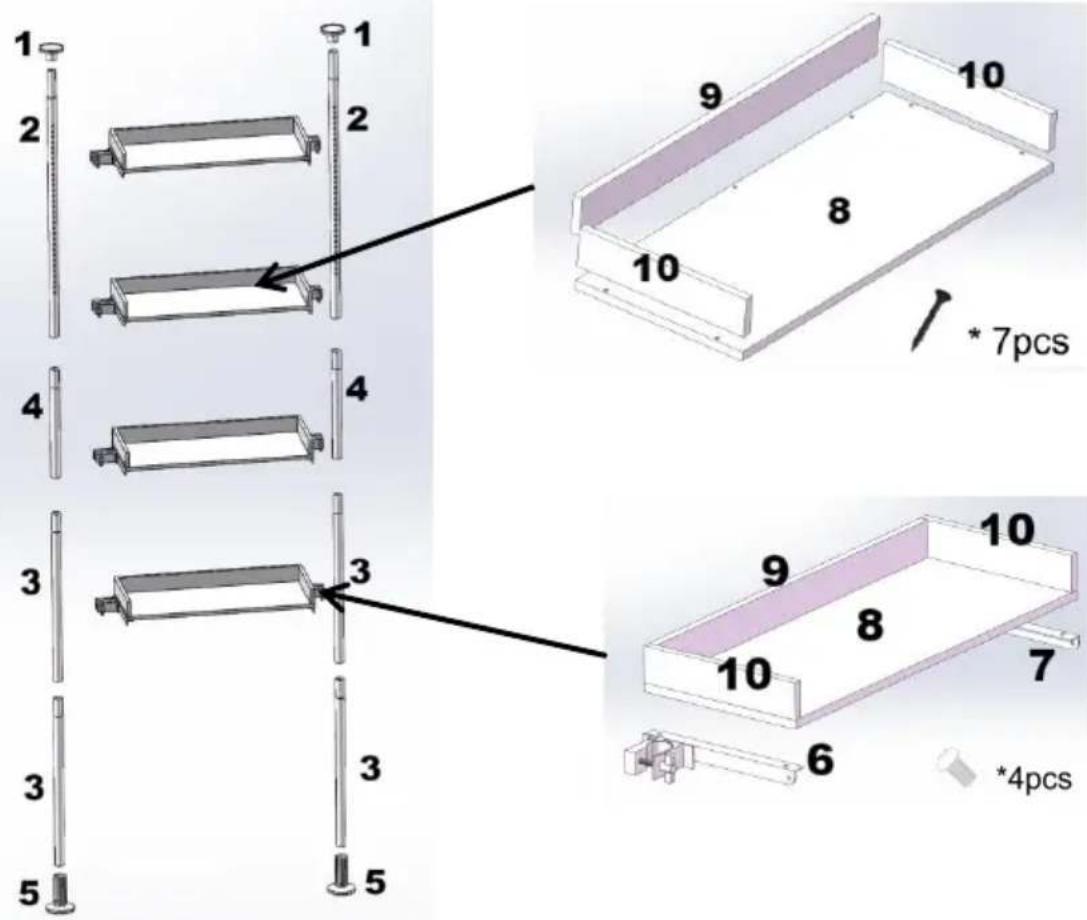

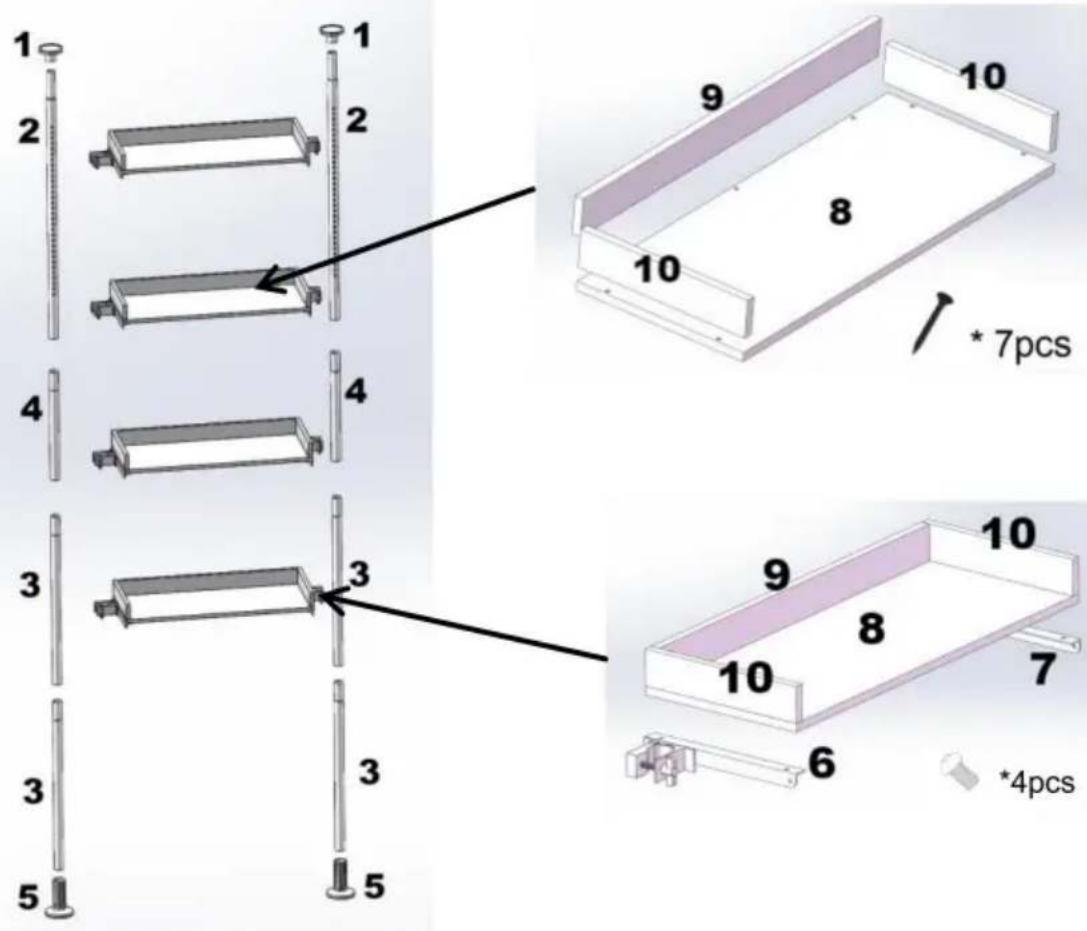

2900-3370mmPRODUCT COMPOSITION


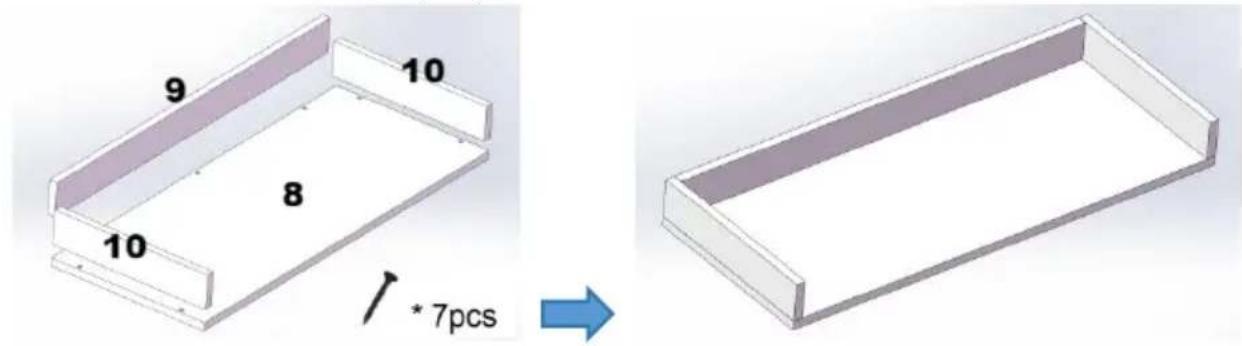

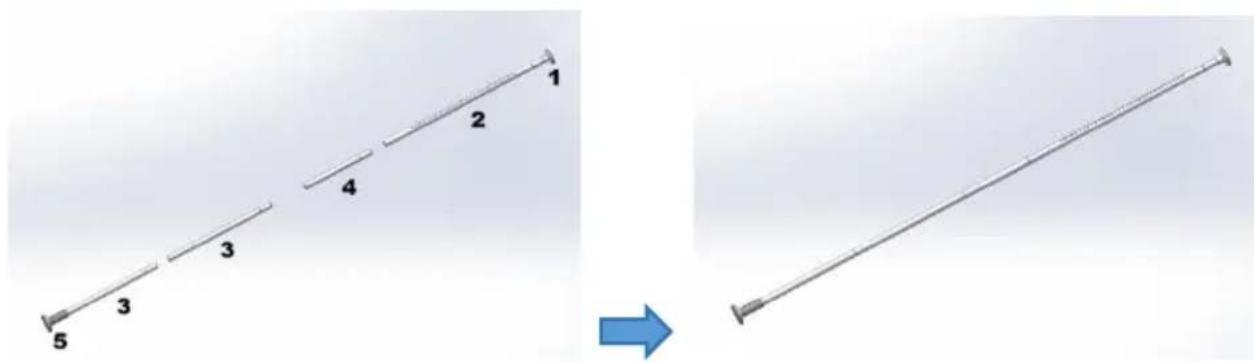

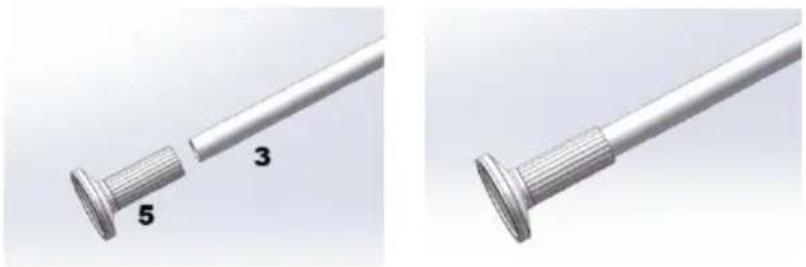

1 2 3 4 5 1 2 3 4 5 9 10 8 10 *7pcs 3 3 3 6 *4pcs 9 10 8 10 7 *4pcsPRODUCT ASSEMBLY
Step1: Assemble Top Cap (1) and Flexible poles with hole(2).


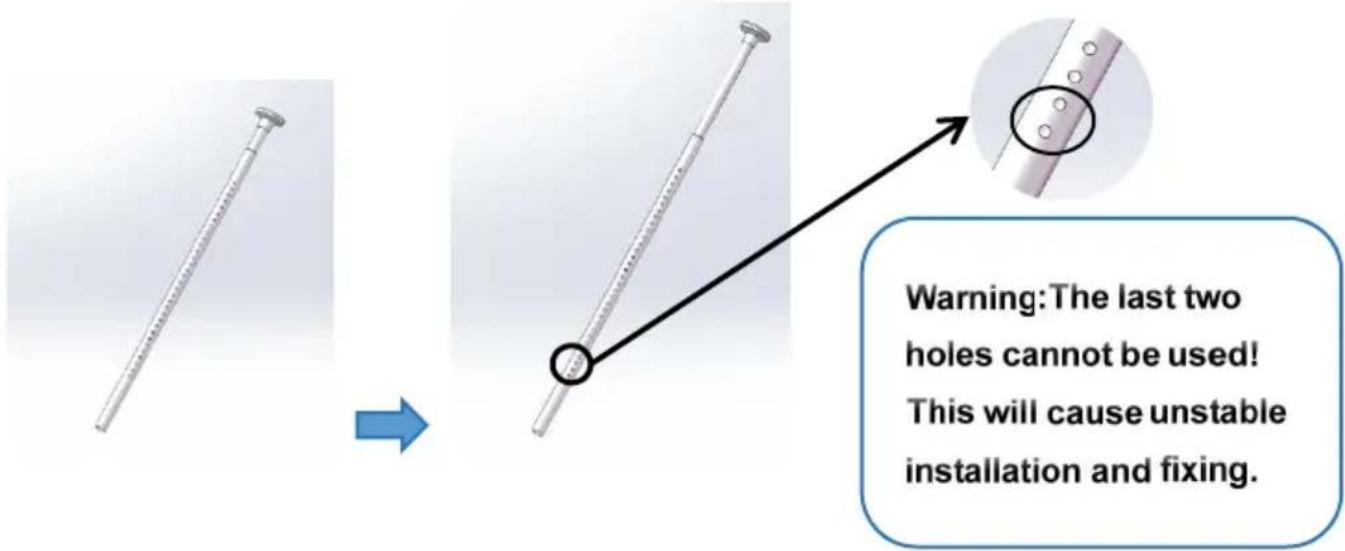

Warning: The last two holes cannot be used! This will cause unstable installation and fixing.Step4: Assemble Side Baffle(9) and Backboard(10) on Bottom Plate(8) with Screw ST3.2*34 (12).


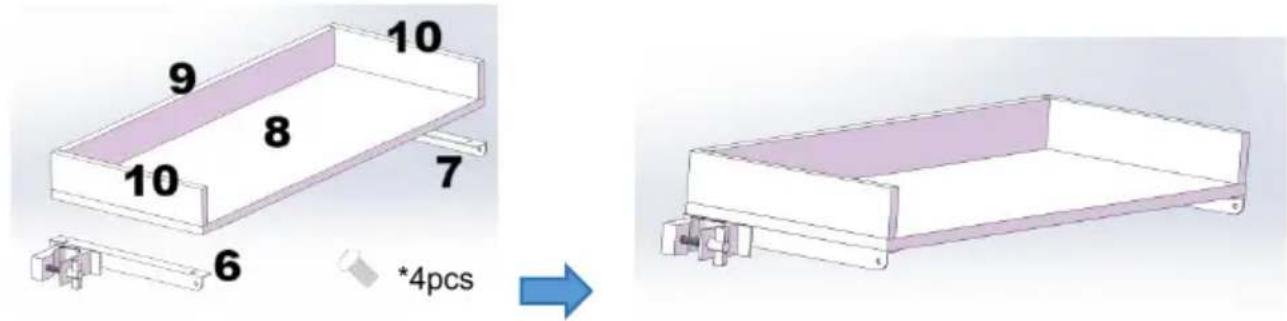

9 10 8 10 7 6 *4pcsStep6:

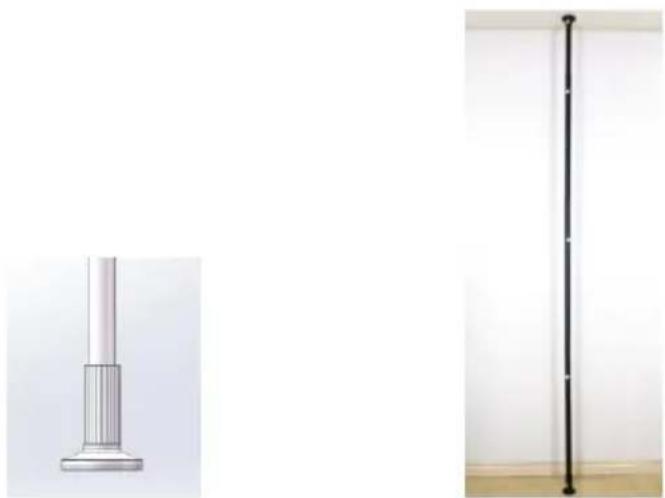

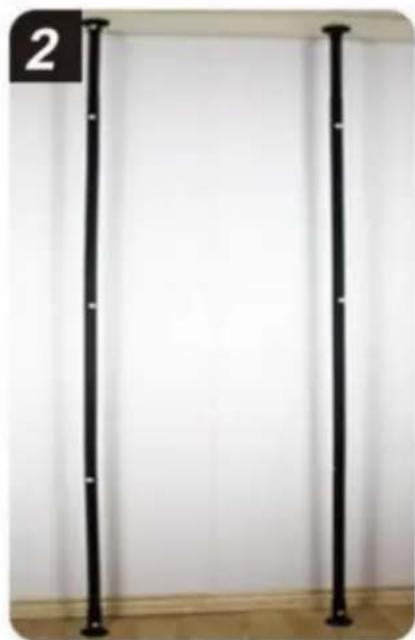

A. Hold on one upright pole. The part of Top Cap (1) is to the roof where you want to install the Over-the-Toilet Storage. Lift up upright pole ar move the Foot Cap (5) to the position to make part of the upright perpendicular to the roof and floor.


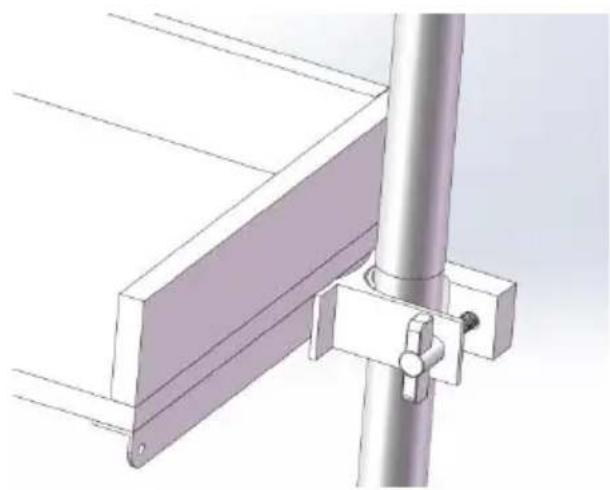

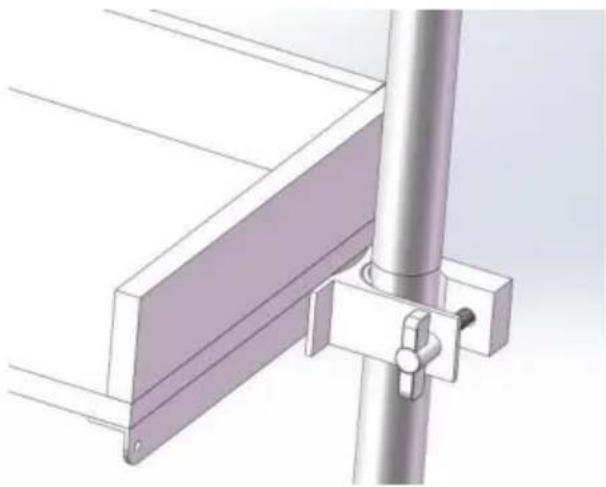

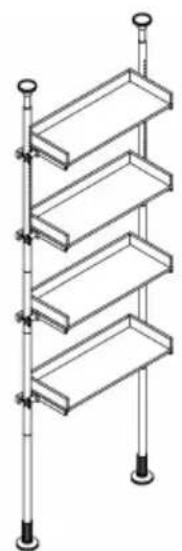

A. Release screw. B. Install the shelves to up right pole.

