Product Type	Foldable stand for table saw
Brand	Vevor
Model	HS6804
Working Height	550 mm (21.7 inches)
Maximum Capacity (tool + workpiece)	160 kg (350 lb)
Compatibility	DEWALT DCS7485, DCS7485T1, DWE7485, DWE7491RS and VEVOR M1H-ZP7-254A-1, WTS210F
Material	Steel
Unfolded Dimensions (approx.)	550 mm height, width adjustable according to saw
Folded Dimensions (approx.)	Not specified in the manual
Weight	Not specified in the manual
Power Supply	None (non-motorized stand)
Main Functions	Foldable table saw stand, height-adjustable legs, adjustable crossbars for different saw sizes
Maintenance and Cleaning	Clean with a dry cloth, regularly check the tightness of fasteners
Safety	Read safety instructions before use; do not overload; do not use as a ladder or scaffolding; always mount the saw securely
Spare Parts and Repairability	Contact Vevor customer service via www.vevor.com/support
General Information	Foldable stand designed for table saws; assembly required; comes with user manual

Frequently Asked Questions - HS6804 Vevor

Which saw models are compatible with the Vevor HS6804 stand?

The stand is compatible with DEWALT DCS7485, DCS7485T1, DWE7485, DWE7491RS table saws and VEVOR M1H-ZP7-254A-1, WTS210F models. It may also fit other brands, but it is recommended to check compatibility in your saw's user manual.

How to assemble the HS6804 stand?

Follow the steps in the manual: start by attaching the adjustable legs following the letters (A, B, C, D), then install the crossbars by choosing the holes suitable for your saw size. Tighten the wing nuts after aligning the holes. Make sure the legs fold outward.

What is the maximum load capacity of the stand?

The maximum combined capacity (tool + workpiece) is 160 kg (350 lb). Do not exceed this limit to avoid any risk of collapse.

Is the stand foldable? How to store it?

Yes, the stand folds easily. To store it, fold it lightly and store it in a dry, lockable place out of reach of children. Make sure all fasteners are tightened before transport.

Can I use the stand as a step ladder or scaffolding?

No, the stand is designed only to support a table saw. Do not stand on it and do not use it as a ladder or scaffolding, as this could cause tipping and injury.

How to adjust the height of the legs?

The adjustable legs have two holes for height adjustment. Loosen the wing nuts, reposition the leg to the desired hole, then retighten. Make sure all four legs are adjusted evenly for optimal stability.

What to do if parts are missing or damaged?

Contact your retailer or Vevor customer service via www.vevor.com/support to obtain replacement parts before assembling the stand.

How to maintain the HS6804 stand?

Clean the stand with a dry cloth to remove dust. Regularly check that all bolts and nuts are tightened to avoid instability. Do not use harsh chemicals.

Can I mount a saw of a brand other than DEWALT or VEVOR?

The stand may fit other brands of table saws, but it is essential to consult your saw's manual to verify fastener and dimension compatibility.

Does the stand require tools for assembly?

Assembly is done mainly with the provided wing nuts and bolts. No additional tools are needed. Refer to the manual for detailed steps.

USER MANUAL HS6804 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

Table Saw Stand USER MANUAL

MODEL:HS6804

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:HS6804

Line drawing of a folding table with four legs and a central support bracket (no text or symbols)

(The picture is for reference only, please refer to the actual obje

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read in manual carefully.

This product is subject to the provision of European Di 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refus collection in the European Union. This applies to the pr and all accessories marked with this symbol. Products r as such may not be discarded with normal domestic wa must be taken to a collection point for recycling electric electronic devices

SAFETY INSTRUCTIONS

WARNING

Read all warnings, instructions, illustrations and specifications provided with folding stand and the tool be mounted onto the stand. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

WARNING

The folding stand is intended for mounting DEWALT table saw DCS7485、DCS7485T1、DWE7485、DWE7491RS and VEVOR table saw M1H-ZP7-254A-1、WTS210F.

- Future DEWALT power tools may be compatible with this stand,It can also adapt to various brands of table saws in the market. Please refer to the power tool's owner manual to confirm compatibility.

- The support legs must have the adjustable legs fully assembled before mounting the tool.

· Assemble the folding stand as instructed before mounting the tool. Prop assembly is important to prevent the risk of a collapse of the stand.

- Do not modify the folding stand or use it for any purpose for which it intended.

- Disconnect the tool from power source before assembling or making adjustments.

. Unintentional activation of the tool is the cause of many accidents.

·Always confirm the tool is mounted securely and is stable before use. Perform a dry run of the cutting operation just to make sure that no problems will occur when the cut is made. If the tool slips on the sta can lead to loss of control and possible injury.

- Before operating the tool, securely fasten the tool to the stand. The er unit must be placed on a solid, level surface.

Do not open or close the stand with tool mounted.

- Keep work area clean and well lit. Cluttered or dark areas invite accid

· Do not overload the stand and do not use it as a ladder or scaffold in Overloading or standing on the stand can lead to tipping over.

· Before operating or transporting, make sure that all fasteners are firmly tightened.

- Loose connections can lead to instability and inaccurate cutting.

- Ensure that long and heavy work pieces do not affect the balance of stand. Long and/or heavy work pieces must be supported at the free

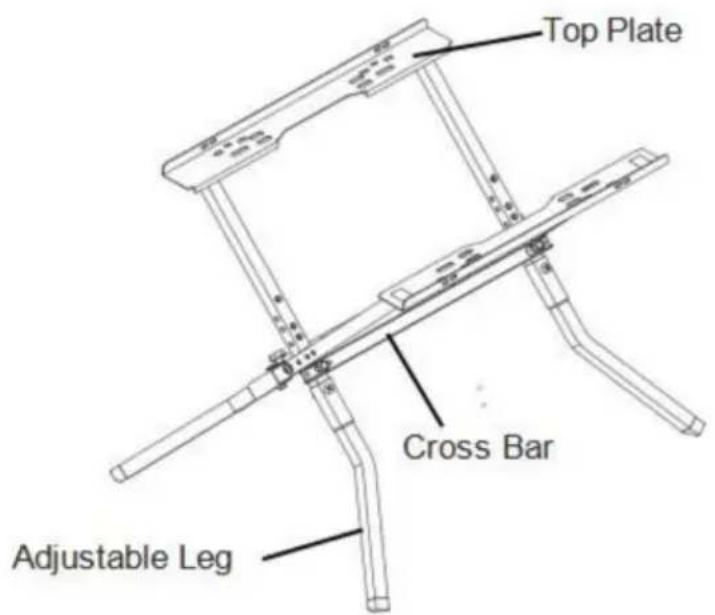

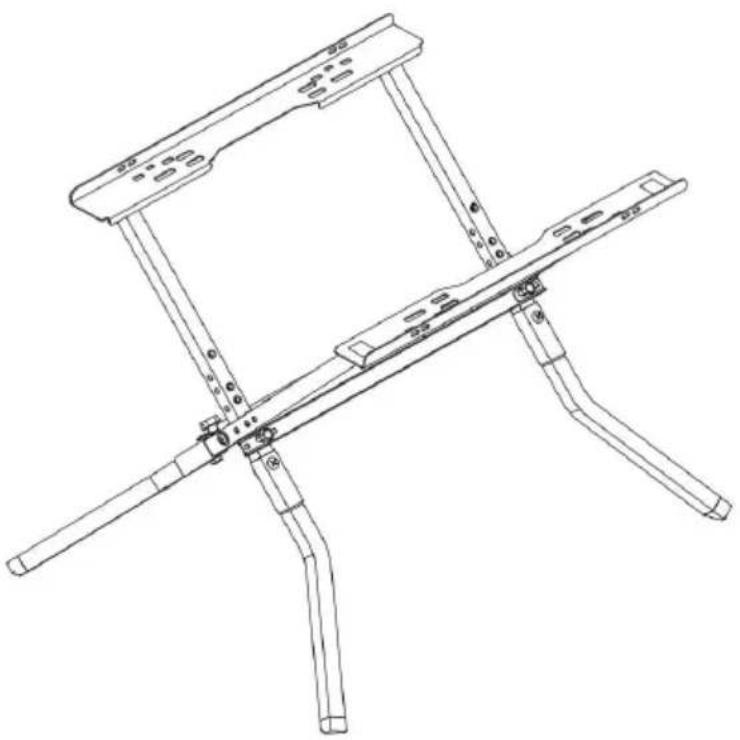

GET TO KNOW YOUR FOLDING STAND (FIG. 1)

Fig. 1

SPECIFICATIONS

Operating height	21.7"(550mm)
Max. capacity (tool + work piec	350 lbs. (160 kg)

UNPACKING

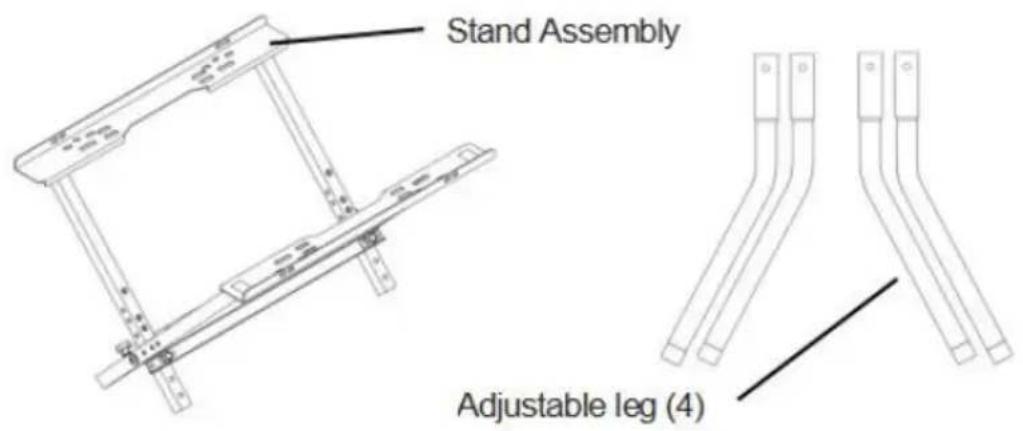

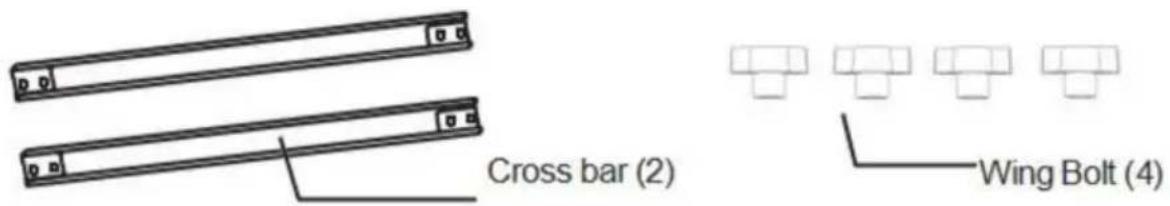

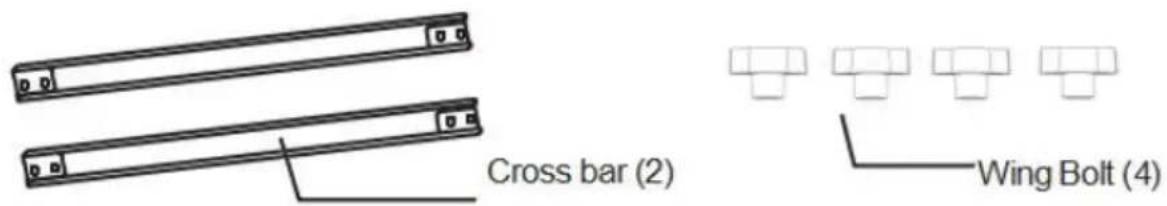

Carefully unpack all parts as illustrated in Fig. 2 from the carton. Examin parts to make sure that parts have not been damaged during shipping. If parts are missing or damaged, contact your dealer to replace them before attempting to assemble the stand.

Fig. 2

ASSEMBLING THE SUPPORT

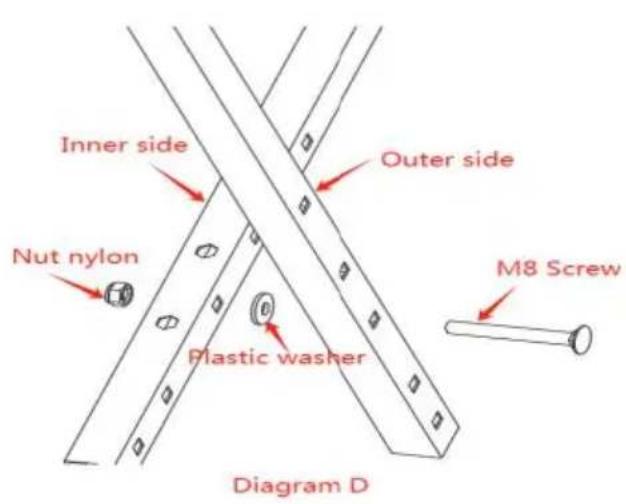

a. Loosen and remove the wing nut- and- bolt sets preinstalled on the latches .The current size of the packaging bracket is shown in Figure

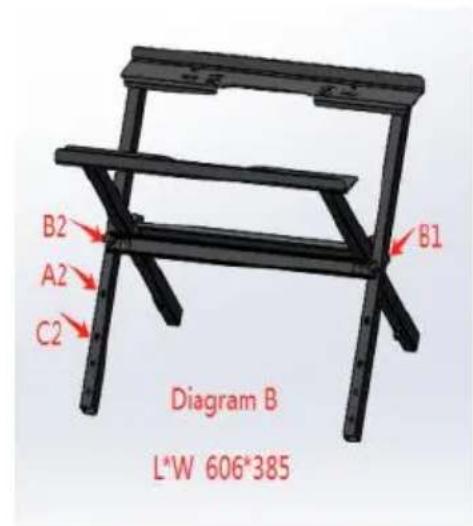

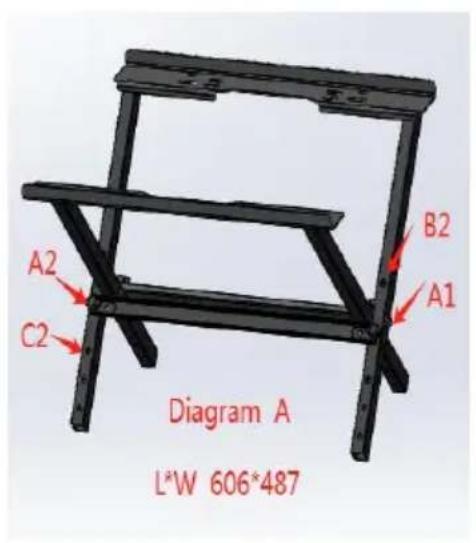

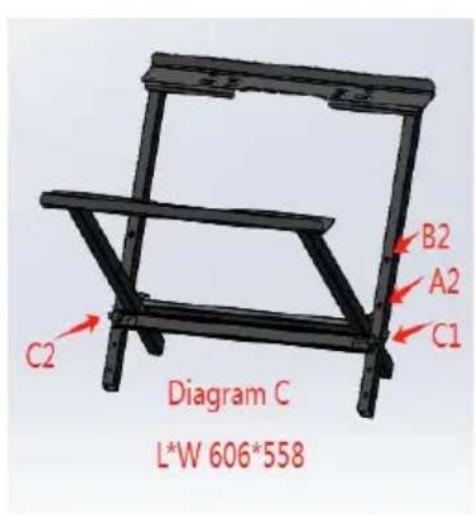

b. There are three sizes for bracket design, as shown in Figure A, Fig and Figure C. Users can choose the appropriate bracket according to specifications of the table saw.

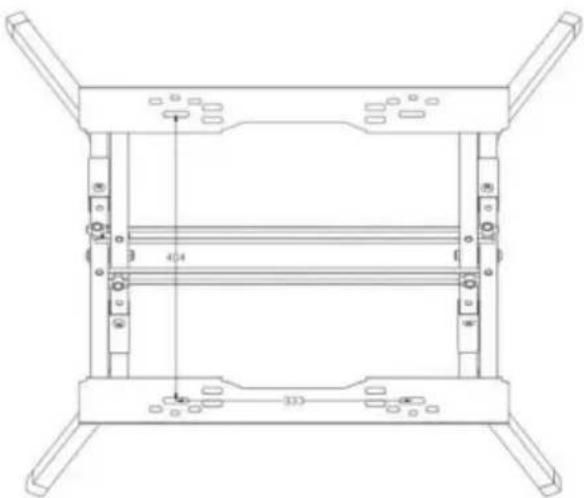

c. If you need to install brackets according to the dimensions shown in Figure B and Figure C, you need to follow these steps: loosen the nut of A1 and remove the plastic washer and M8 screw. Install them hole B1 or C1 according to your needs, first thread the M8 screw th the outer steel pipe, add the plastic washer, and then thread it through inner steel pipe, and tighten the nylon nut(Diagram D).Install the bolt the other side using the same operation.

Select A2/B2/C2 hole positions according to your needs

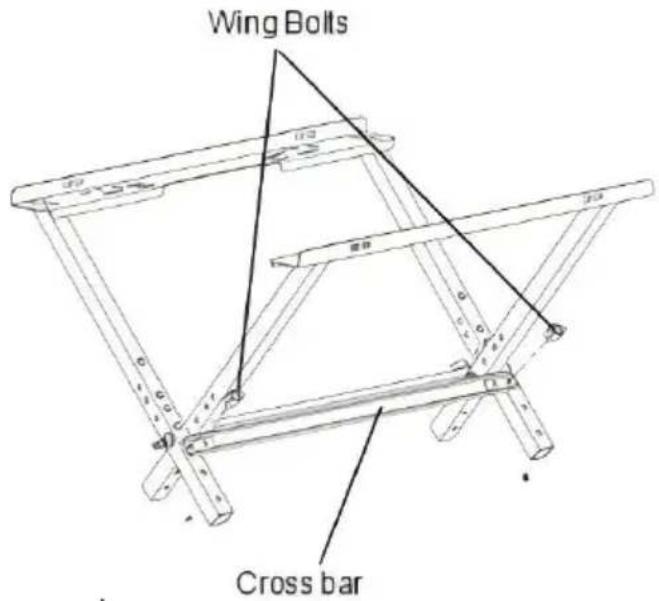

ATTACHING THE CROSS BARS

a. Loosen and remove the wing bolts preinstalled on the stand assembly

b. Place the cross bar onto the stand assembly, Select A2/B2/C2 hole positions according to your needs

c. align the holes on the bars with the holes on the stand assembly Secure the cross bar to the stand assembly using 2 wing bolts.

d. Secure the cross bar to the stand assembly using 2 wing bolts.

e. Flip the stand and attach the other crossbar on the other side in the same way.

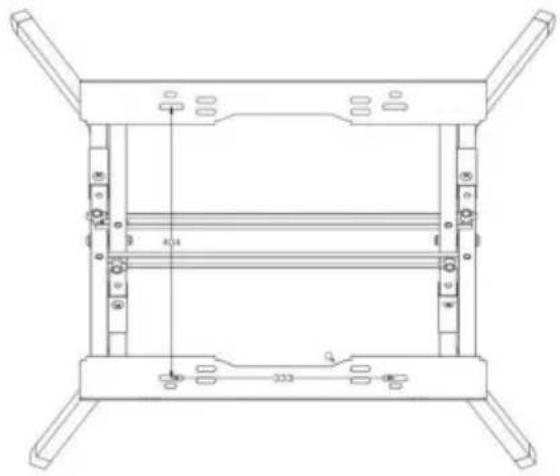

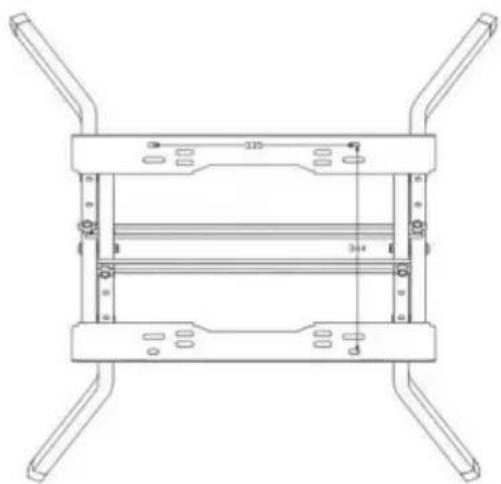

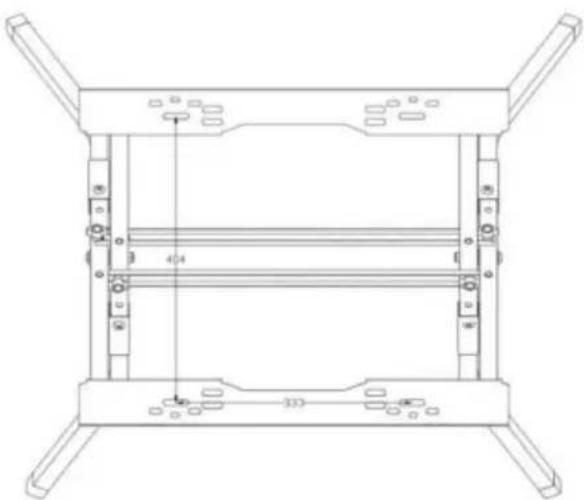

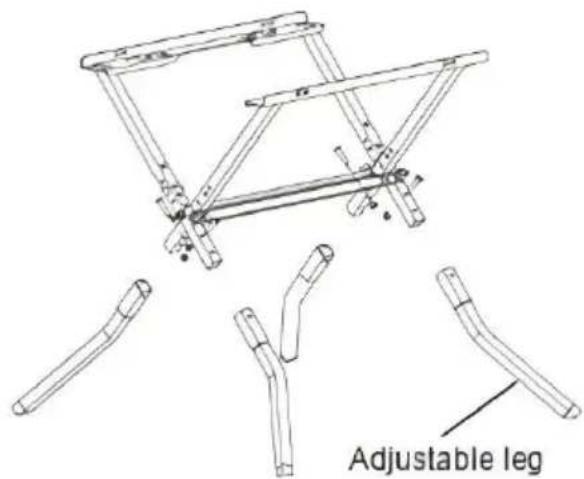

ASSEMBLING THE ADJUSTABLE LEGS

a. Loosen and remove the wing nut-and-bolt sets pre-installed on the star assembly (Fig. 2).

b. Insert the four adjustable legs into the matching opening in the stand assembly. Make sure that the adjustable leg marked 'A' is inserted into the opening marked 'A', 'B' into 'B', 'C' into 'C', and 'D' into 'D'.

NOTICE All four adjustable legs must "bend" outwards.

c. Align the holes on the sides of each adjustable leg with the holes in assembly.

d. Secure each adjustable leg to the stand assembly using the wing nut-and-bolt sets.

NOTE: The bolts have square necks. Make sure the square necks fit into square holes in the stand assembly.

The height of the folding stand can be adjusted using one of the two h each adjustable leg.

TIP: The stand may be uneven at first – do not tighten the wing nuts or legs right away. Securely tighten the four wing nuts once the adjustable legs are all evenly.

MOUNTING DEWALT and VEVOR TABLE SAWTO THE STAND

WARNING

Disconnect the table saw from the power source before ambling or making adjustments.

a. Place the table saw onto the stand. Align the slot in the bracket with hole in the under of the table saw base.
b. Secure the front of the table saw to the stand using the wing nut-a set.
c. Secure the rear of the table saw to the stand using the same wing nut-and-bolt set.

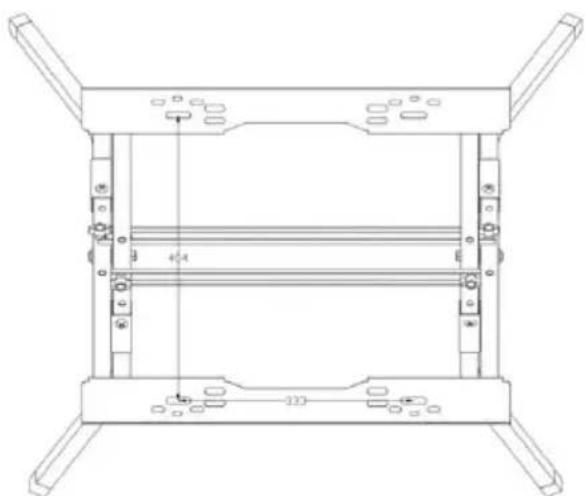

Technical line drawing of a mechanical frame assembly with mounting brackets and internal components (no text or symbols)

DWE7491

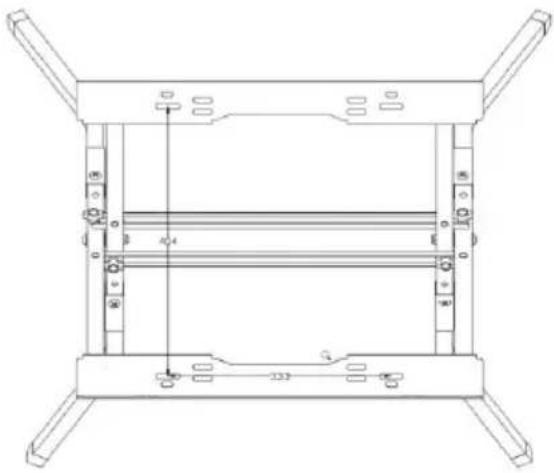

Technical line drawing of a mechanical frame assembly with mounting brackets and internal components (no text or symbols)

DWE7485

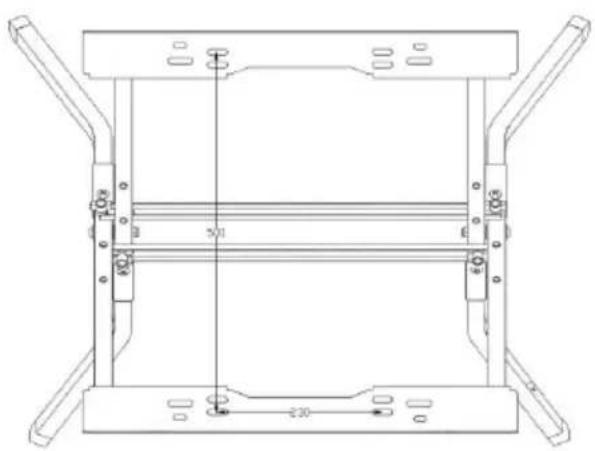

Technical line drawing of a mechanical frame assembly with mounting brackets and central horizontal bar (no text or symbols)

7H254

210F

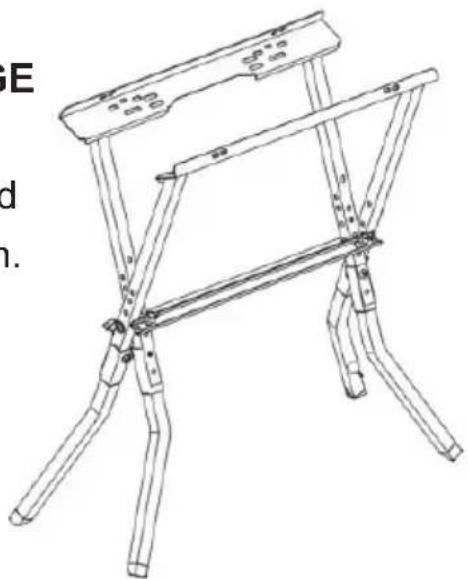

FOLDING THE STAND AND STORAGE

a. Fold the stand slightly.
b. Store the stand indoors in a dry and locked-up place, out of reach of children.

Line drawing of a folding table with four legs and a backrest, no text or symbols present

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Pla Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a folding table with two legs and a central handle (no text or symbols)
