USER MANUAL HR-018 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CABLE RAILING POST

MODEL: HR-001/HR-002/HR-003/HR-004/HR-005/HR-006/HR-007/HR-008/HR-009/HR-010/HR-011/HR-012/HR-013/HR-014/HR-015/HR-016/HR-017/HR-018/HR-019/HR-020/HR-021/HR-022/HR-023

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

MODEL: HR-001/HR-002/HR-003/HR-004/HR-005/HR-006/HR-007/HR-008/HR-009/HR-010/HR-011/HR-012/HR-013/HR-014/HR-015/HR-016/HR-017/HR-018/HR-019/HR-020/HR-021/HR-022/HR-023

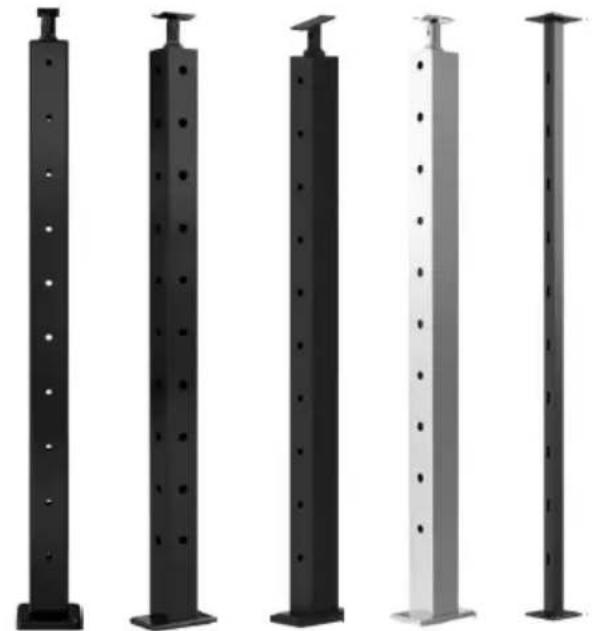

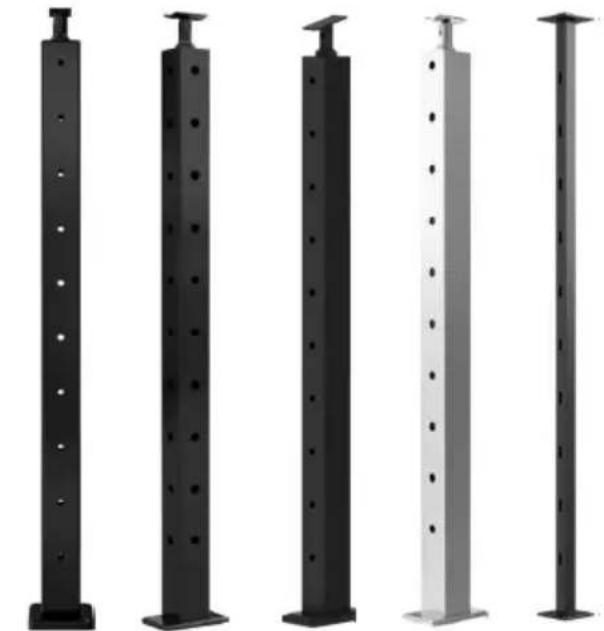

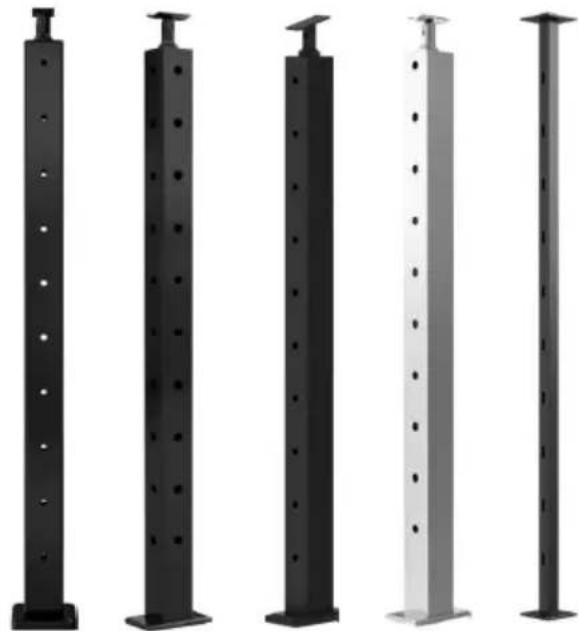

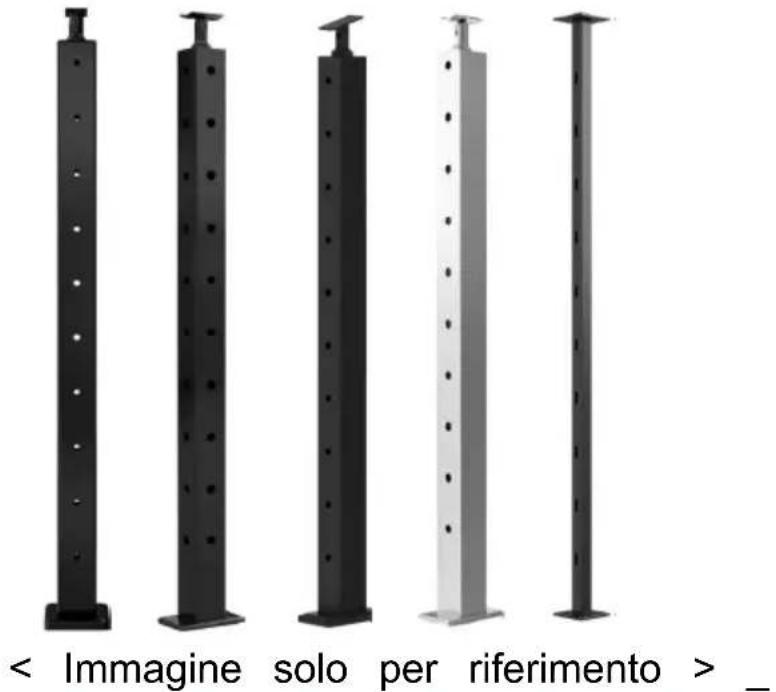

Five vertical metal structural supports with holes, shown in black and white (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

IMPORTANT SAFEGUARDS

Vevor HR-018 - IMPORTANT SAFEGUARDS - 1

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

  1. The warning indicates that appropriate action should be taken to avoid the potential danger of personal injury.
  2. Product capabilities apply to properly and completely assembled product only.
  3. Please keep small spare parts out of children's reach. It is not a toy; do not allow children to play with it.
  4. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area.

SAVE THESE INSTRUCTIONS

MAIN FEATURES

This product is mainly used for column installation of wire functions and decorative accessories.

VEVOR's Cable Railing Post is made of all stainless steel materials, has great resistance to rust and corrosion. It will work for long life in interior and exterior railings with low maintenance. Please note that it is recommended for coastal projects.

We work with every effort to provide quality products and professional service, and make VEVOR a reliable brand.

INSTALLATION INSTRUCTION

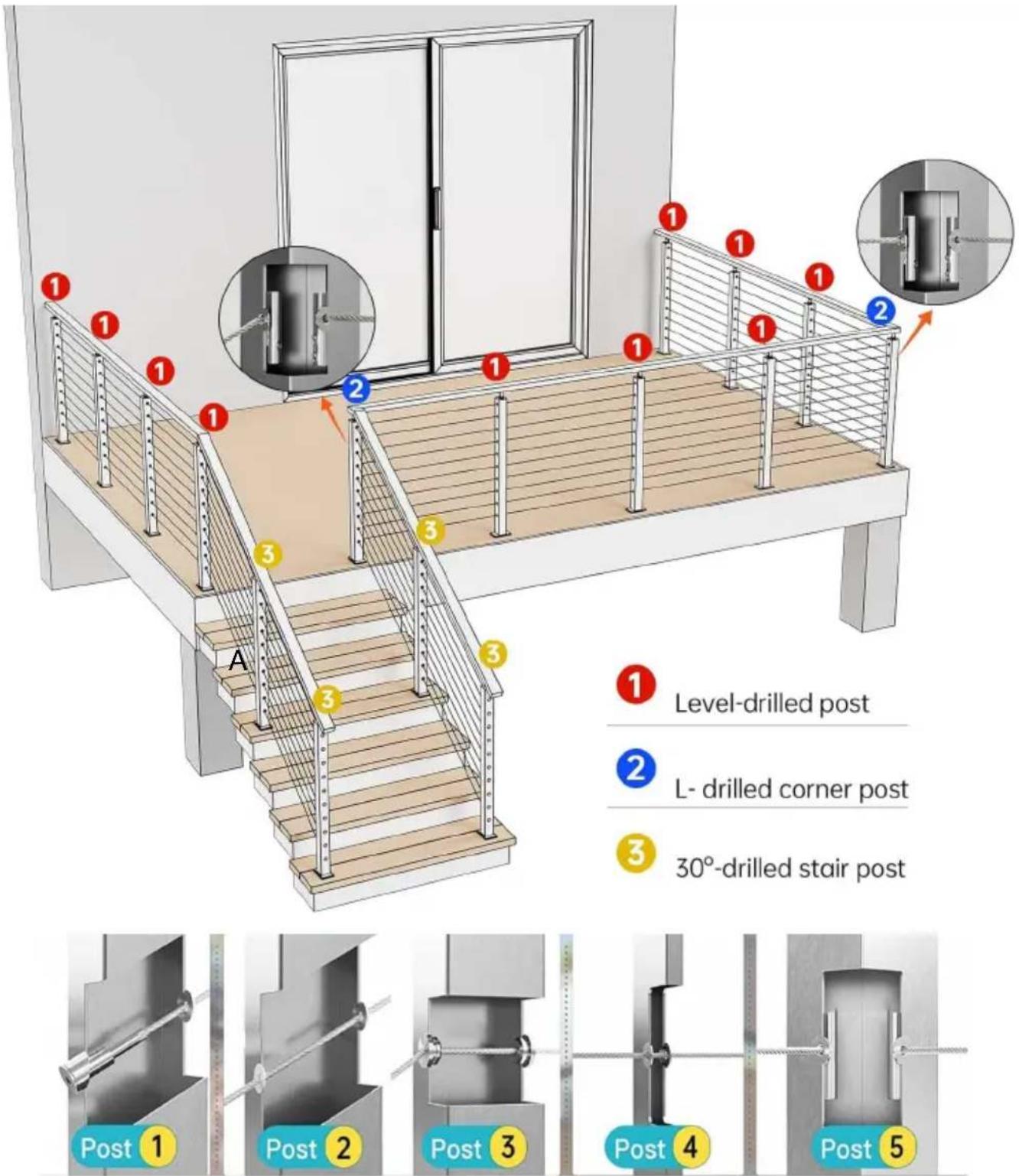

Installation indication and applicable post

Applicable to all engineering installation scenarios.

Note: This product only includes the column and its installation fasteners, excluding wire rope, Cable Railing Kit, handrail.

Level-drilled post, L-drilled corner post, 30°-drilled stair post

PRODUCT INFORMATION

ModelDrilledHeight (mm)Drilled numberHole diameter (mm)Pitch of holes (mm)Section size (mm)ColorInclude (pcs)
HR-001level106712 φ 10.5 8050*50Black4
HR-002level91410 φ 10.5 8050*50Black4
HR-003level106712 φ 8 8030*50Black4
HR-004level91410 φ 8 8030*50Black4
HR-00530°10671210.5×158050*50Silver1
HR-00630°10671210.5×158050*50Black1
HR-007L106712 φ 10.5 8050*50Black1
HR-008Non914///50*50Black1
HR-009level91410 φ 10.5 8050*50Black1
HR-01030°9141010.5×158050*50Black1
HR-011L91410 φ 10.5 8050*50Black1
HR-012level91410 φ 10.5 8050*50Silver1
HR-01330°1067128×138030*50Black1
HR-014L106712 φ 8 8030*50Black1
HR-01530°914108×138030*50Black1
HR-016L91410 φ 8 8030*50Black1
HR-017Non914///38*38Black1
HR-018level106712 8 8030*50Black1
HR-019Non1067///50*50Black1
HR-020level91410 8 8030*50Black1
HR-021level106712 10.5 8050*50Black1
HR-022level91410 8 8030*50Silver1
HR-023level106712 10.5 8050*50Silver1

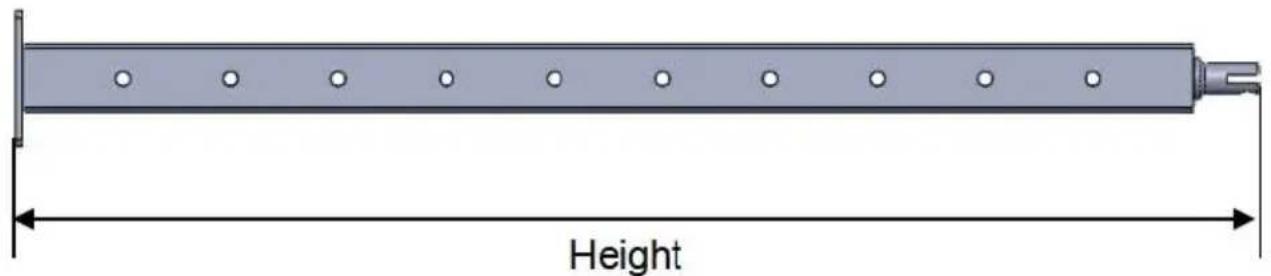

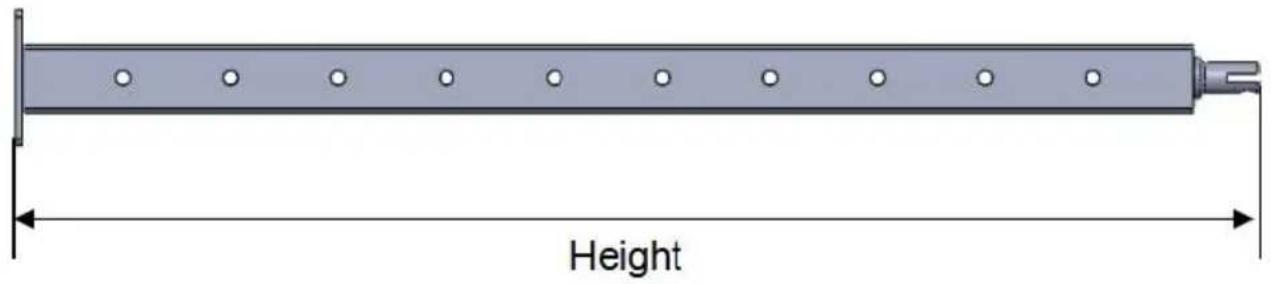

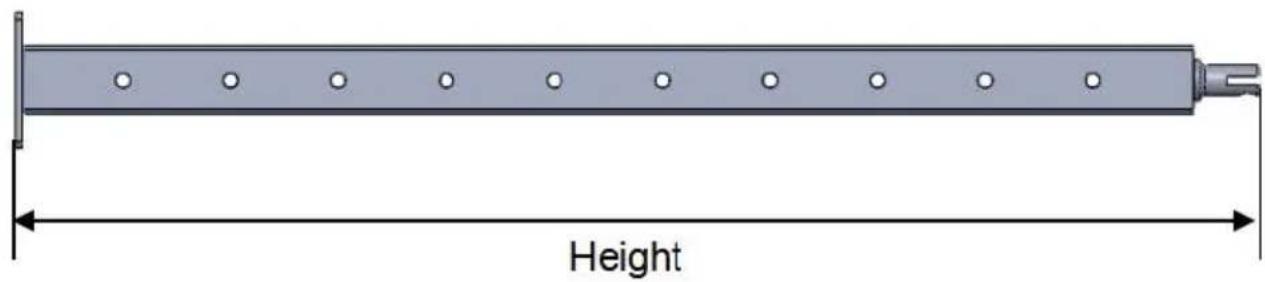

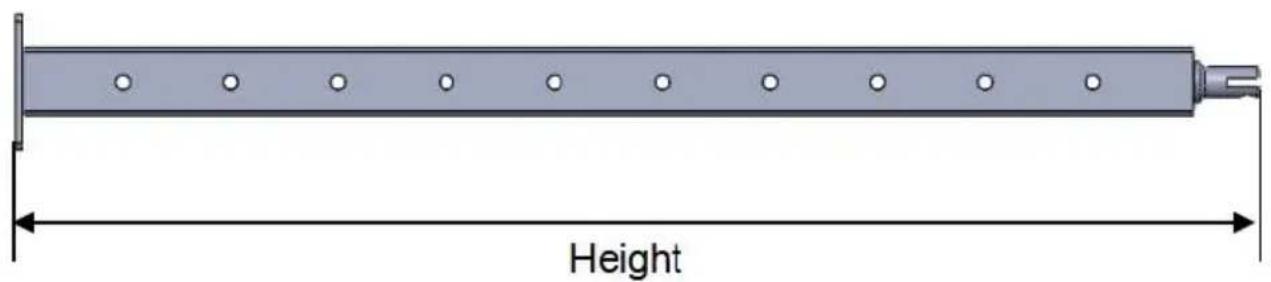

Height

PACKAGE INCLUDE

NoComponentsPictureQTY
Fit model
HR-001/HR-002HR005~HR012/HR-019/HR-021/HR-023/HR-003/HR-004HR-013~HR-016/HR-018/HR-020/HR-022/HR-017
1postVevor HR-018 - PRODUCT INFORMATION - 24141/
Vevor HR-018 - PRODUCT INFORMATION - 3////1
2Square coverVevor HR-018 - PRODUCT INFORMATION - 441///
3Rectangular coverVevor HR-018 - PRODUCT INFORMATION - 5//41/
4anchor boltVevor HR-018 - PRODUCT INFORMATION - 61641644
5Curved bracketVevor HR-018 - PRODUCT INFORMATION - 74141/
6Horizontal bracketVevor HR-018 - PRODUCT INFORMATION - 84141/
7hex wrenchVevor HR-018 - PRODUCT INFORMATION - 941411
8Open end wrenchVevor HR-018 - PRODUCT INFORMATION - 1041411
9Tapping screwVevor HR-018 - PRODUCT INFORMATION - 1182824
10Plastic coverVevor HR-018 - PRODUCT INFORMATION - 12////1

INSTALLATION

For concrete or wood floor

Vevor HR-018 - INSTALLATION - 1Vevor HR-018 - INSTALLATION - 2Vevor HR-018 - INSTALLATION - 3

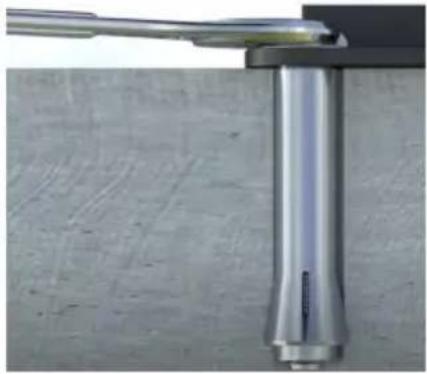

Step1.Mark the drillin points at the appropriate installation locations.Step2.use a hammer drill to make a hole ∅ 12 at the mark points.Step3.Hammer the anchor screw into the drilled hole.
Vevor HR-018 - INSTALLATION - 4Vevor HR-018 - INSTALLATION - 5

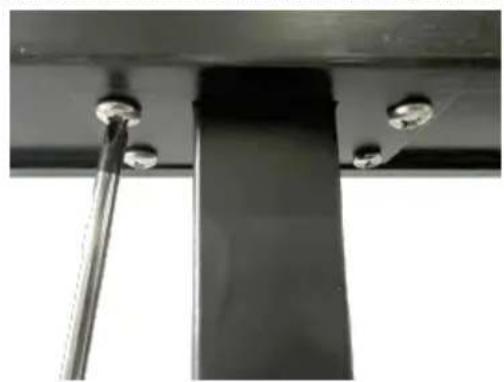

Step4.Tighten the screwsStep5.Close the lid and finish fixing the

Note: Ensure that the column is upright when fixing the bottom plate of the post.

Mount with handrail (horizontal)

Step 1: Fix the bracket.

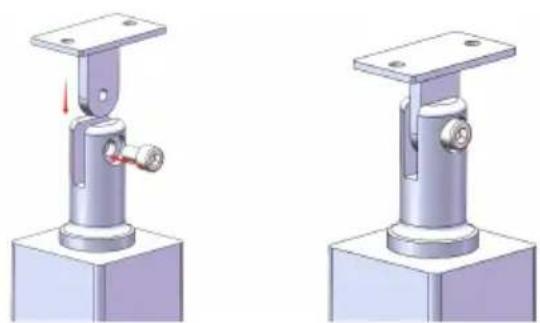

Mechanical assembly diagram showing two identical configurations of a mechanical clamp or bracket with a central pin and base (no text or symbols)

Step 2: Determine the installation position of the handrail, then mark the positions for the handrail and bracket holes, and drill holes with a 5.5-5.6 mm drill.

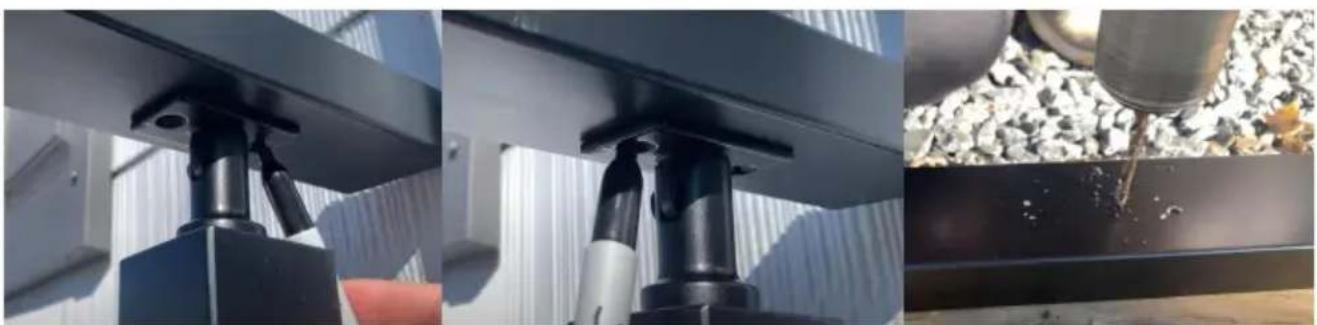

Three-panel photo collage showing industrial equipment components: a black metal frame, a mechanical assembly with a base, and a metallic tool tip pouring liquid into a granular material (no visible text or symbols)

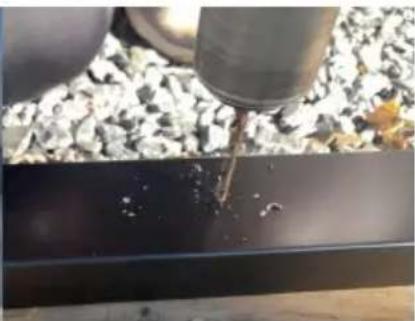

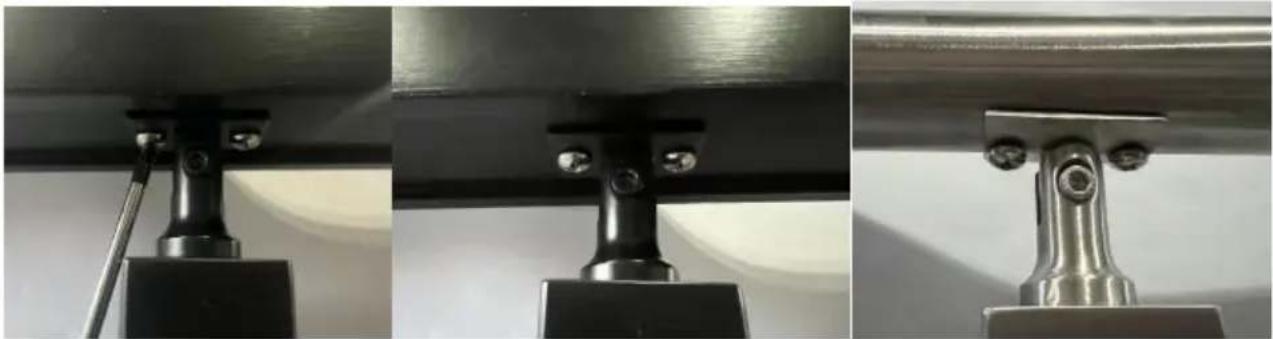

Step 3: Use the self-tapping screws from the accessory kit to fix the handrail to the support.

Three-panel black-and-white photo showing mechanical components: a metallic bracket with bolts, a black base, and a metallic frame (no text or symbols visible)

This method is also suitable for installing curved handrails and brackets.

Mounting with handrail (gradient)

Step 1: Fix the bracket.

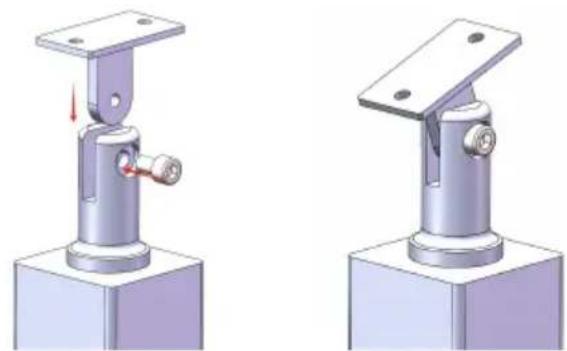

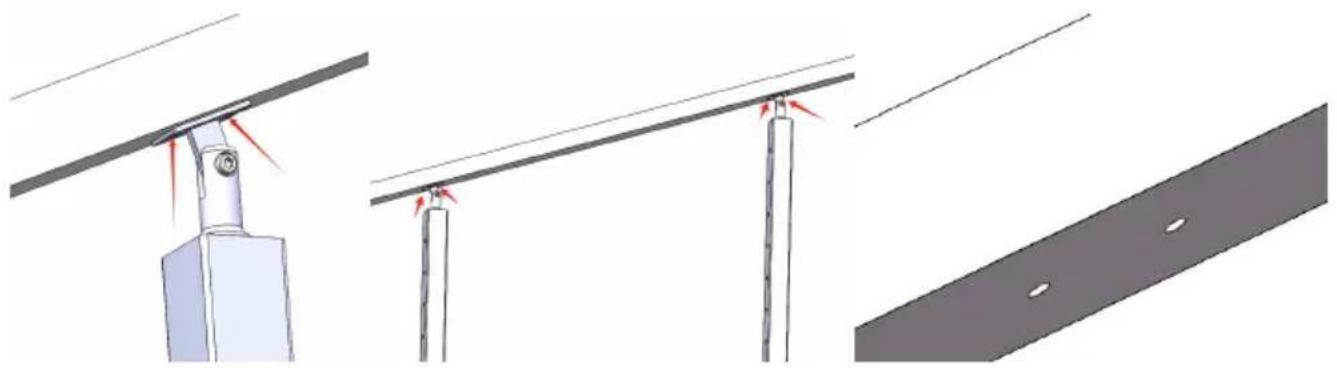

Mechanical assembly diagrams showing two configurations of a mechanical clamp or bracket (no text or symbols present)

Step 2: Adjust the angle of the bracket to fit the underside of the handrail. Determine the installation position of the handrail, then mark the positions for the handrail and bracket holes, and drill holes with a 5.5-5.6 mm drill.

Note: The handrail and bracket can be pre-fixed with the help of clamping tools, so that multiple bracket installation points can be marked and positioned at the same time.

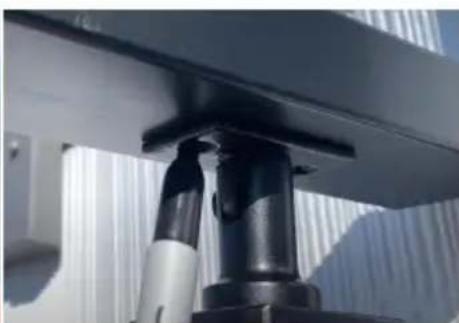

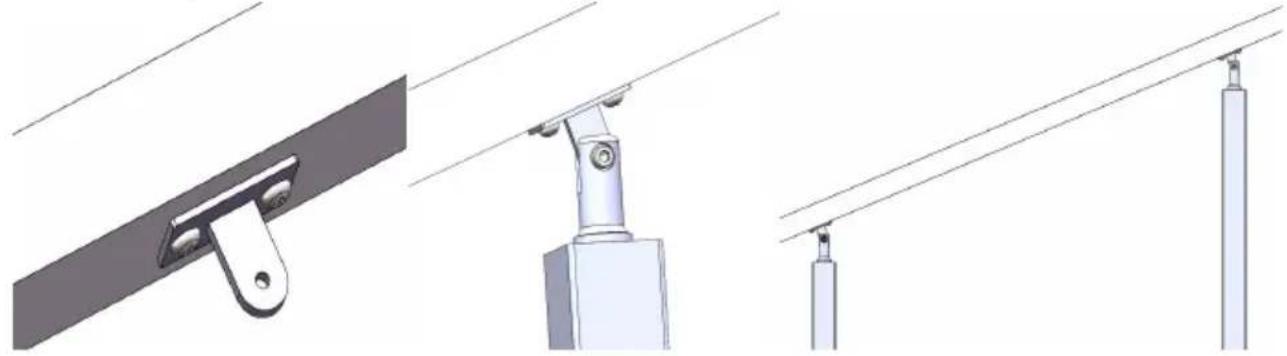

Diagram showing three different installation methods: a vertical support structure, a horizontal support column, and a flat panel with circular holes (no text or symbols present)

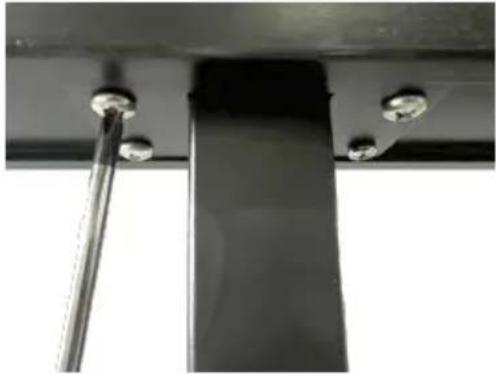

Step 3: Remove the bracket from the post, then use the self-tapping screws from the accessory kit to fix the bracket to the handrail.

Reattach the post and bracket.

Technical illustration of three mechanical components mounted on wires, showing different angles and mounting features (no text or symbols present)

It is also suitable for the instal of arc handrails and bracketsFor model HR-017
Vevor HR-018 - Mounting with handrail (gradient) - 4Vevor HR-018 - Mounting with handrail (gradient) - 5

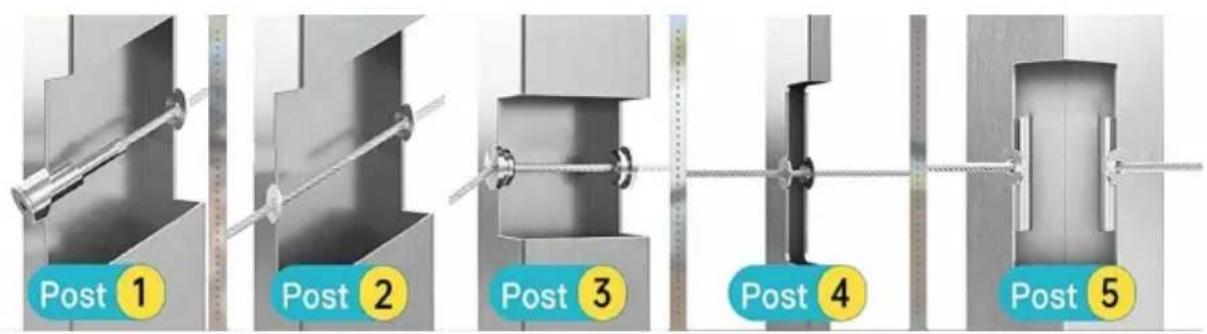

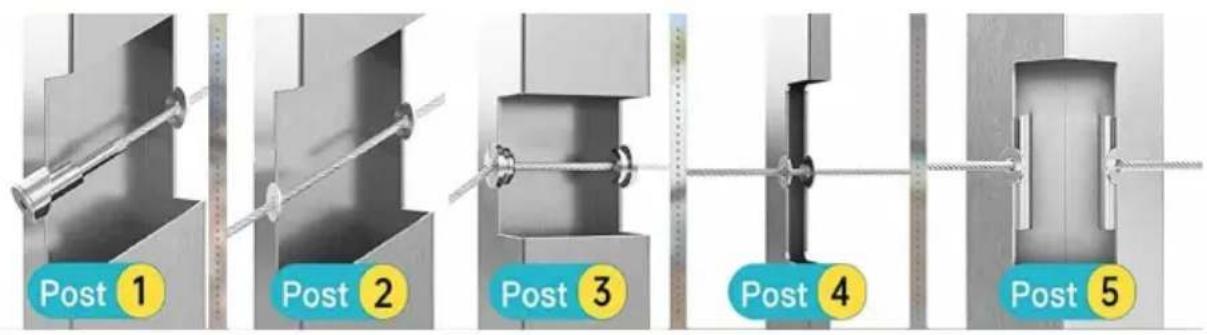

Installation with wire rope and fittings

For level wheel protector sleeve

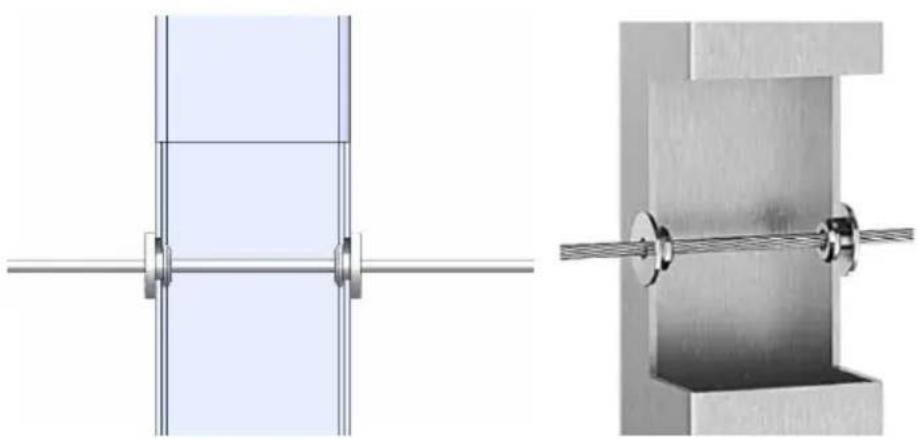

Technical diagram showing two mechanical assembly configurations with metal rods and structural supports (no text or symbols)

For stud tensioner horizontal mounting and angle

Close-up of a metallic mechanical component with a threaded rod inserted into a rectangular housing (no text or symbols visible)

Close-up of a metallic binder clip with coiled metal strips against a plain background (no text or symbols)

For turnbuckle tensioner and fixed terminal

Close-up of a metallic mechanical component with two threaded rods extending outward (no text or symbols visible)

Close-up of a metallic mechanical component with a coiled spring attached, no visible text or symbols

Address: Baoshan District, Shuangcheng Road 803, Lane 11, No. 1602A-1609, Shanghai

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UKREP

Pooledas Group Ltd

Unit 5 Albert Edward House, The Pavilion

Preston, United Kingdom

ECREP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only repeat of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: HR-001/HR-002/HR-003/HR-004/HR-005/HR-006/HR-007/HR-008/HR-009/HR-010/HR-011/HR-012/HR-013/HR-014 HR-015/HR-016/HR-017/HR-018/HR-019/HR-020/HR-021/ HR-022/HR-023

Five vertical metal structural columns with bolt holes, shown in black and white (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

IMPORTANT SAFEGUARDS

Level-drilled post; L-drilled corner post; 30°-drilled stair post

Close-up of a metallic mechanical component with a transparent lever, labeled 'Post 1' (no other text or symbols visible)

Close-up of a metallic mechanical component with a pull rod, labeled 'Post 2' (no other text or symbols)

Close-up of a mechanical component with two metal rods inserted, labeled 'Post 3' (no other text or symbols)

Post 4

Close-up of a metallic mechanical component with threaded fasteners, labeled 'Post 5' in a blue badge (no other text or symbols)

PRODUCT INFORMATION

ModèleForéHauteur (mm)Numéro percéDiamètre du trou (mm)Pas des trous (mm)Taille de section (mm)Coul eurInclure (pièces)
HR-001niveau106712 φ 10,5 8050*50Noir4
HR-002niveau914dix φ 10,5 8050*50Noir4
HR-003niveau106712 φ 8 8030*50Noir4
HR-004niveau914dix φ 8 8030*50Noir4
HR-00530°10671210,5×158050*50Arge nt1
HR-00630°10671210,5×158050*50Noir1
HR-007L106712 φ 10,5 8050*50Noir1
HR-008Non914///50*50Noir1
HR-009niveau914dix φ 10,5 8050*50Noir1
HR-01030°914dix10,5×158050*50Noir1
HR-011L914dix φ 10,5 8050*50Noir1
HR-012niveau914dix φ 10,5 8050*50Arge nt1
HR-01330°1067128×138030*50Noir1
HR-014L106712 φ 8 8030*50Noir1
HR-01530°914dix8×138030*50Noir1
HR-016L914dix 8 8030*50Noir1
HR-017Non914///38*38Noir1
HR-018nive au106712 8 8030*50Noir1
HR-019Non1067///50*50Noir1
HR-020nive au914dix 8 8030*50Noir1
HR-021nive au106712 10,5 8050*50Noir1
HR-022nive au914dix 8 803 0*50Arge nt1
HR-023nive au106712 10,5 8050*50Arge nt1

Height

PACKING LIST

No nComposa ntsImageQTÉ
Modèle adapté
HR-001 / HR-002HR005 ~ HR012/HR-0 19/ HR-0 21/ HR-0 23/HR-00 3/ HR-00 4HR-013 ~ HR-01 6/ HR-018 / HR-0 20/ HR-0 22/HR-0 17
1poste4141/
////1
2Couverture carréeVevor HR-018 - PRODUCT INFORMATION - 241///
3Couverture rectangulaireVevor HR-018 - PRODUCT INFORMATION - 3//41/
4boulond'ancrageVevor HR-018 - PRODUCT INFORMATION - 41641644
5Support incurvéVevor HR-018 - PRODUCT INFORMATION - 54141/
6Support horizontalVevor HR-018 - PRODUCT INFORMATION - 64141/
7clé hexagonaleVevor HR-018 - PRODUCT INFORMATION - 741411
8Clé ouverteVevor HR-018 - PRODUCT INFORMATION - 841411
9TaraudageVevor HR-018 - PRODUCT INFORMATION - 982824
dixCouverture plastiqueVevor HR-018 - PRODUCT INFORMATION - 10////1

INSTALLATION

3D rendering of a mechanical assembly with a cylindrical component and mounting base (no text or symbols visible)

Close-up of a mechanical component with a black cylindrical shaft and metallic housing (no visible text or symbols)

Close-up of a metal cutting machine tool in operation, showing material residue and machining process (no text or symbols visible)

Close-up of a metallic clip or wire attached to a wall, with diagonal lines and a shaded rectangular area, no text or symbols visible.

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported in Australia: SIHAO PTY LTD, 1 ROKEVA STREET, ASTWC NSW 2122 Australia

Anaheim Place, Rancho Cucamonga, CA 91730

UKREP

Pooledas Group Ltd

Unit 5 Albert Edward House, The Pavilion

Preston, United Kingdom

ECREP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of the savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

MODEL: HR-001/HR-002/HR-003/HR-004/HR-005/HR-006/HR-007/HR-008/HR-009/HR-010/HR-011/HR-012/HR-013/HR-014/HR-015/HR-016/HR-017/HR-018/HR-019/HR-020/HR-021/HR-022/HR-023

Five vertical metal structural beams with holes, shown from different angles, no text or symbols visible.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

Close-up of a metallic mechanical component with a transparent lever, labeled 'Post 1', no other text or symbols visible.

Close-up of a metallic mechanical component with a pull rod, labeled 'Post 2', no other text or symbols.

Close-up of a mechanical component with two metal rods inserted, labeled 'Post 3', no other text or symbols.

Post 4.

Close-up of a metallic mechanical component with threaded joints and a blue badge labeled 'Post 5', no readable text or symbols beyond label.

PRODUCT INFORMATION

Model IGeb ohrtHöhe (mm)Gebo hrte Num merLochd urchm esser (mm)Locha bstand (mm)Abschn ittsgröß e (mm)Farb eEins chlie ßen (Stk.)
HR-0 01Ebe ne106712 φ 10,5 8050*50Schw arz4
HR-0 02Ebe ne91410 φ 10,5 8050*50Schw arz4
HR-0 03Ebe ne106712 φ 8 8030*50Schw arz4
HR-0 04Ebe ne91410 φ 8 8030*50Schw arz4
HR-0 0530°10671210,5×1 58050*50Silbe r1
HR-0 0630°10671210,5×1 58050*50Schw arz1
HR-0 07L106712 φ 10,5 8050*50Schw arz1
HR-0 08Nicht914///50*50Schw arz1
HR-0 09Ebe ne91410 φ 10,5 8050*50Schw arz1
HR-0 1030°9141010,5×1 58050*50Schw arz1
HR-0 11L91410 φ 10,5 8050*50Schw arz1
HR-0 12Ebe ne91410 φ 10,5 8050*50Silbe r1
HR-0 1330°1067128×138030*50Schw arz1
HR-0 14L106712 φ 8 8030*50Schw arz1
HR-0 1530°914108×138030*50Schw arz1
HR-016L91410 φ 8 8030*50Schwarz1
HR-017Nicht914///38*38Schwarz1
HR-018Ebe ne106712 φ 8 8030*50Schwarz1
HR-019Nicht1067///50*50Schwarz1
HR-020Ebe ne91410 φ 8 8030*50Schwarz1
HR-021Ebe ne106712 φ 10,5 8050*50Schwarz1
HR-022Ebe ne91410 φ 8 803 0*50Silber1
HR-023Ebe ne106712 φ 10,5 8050*50Silber1

Height.

PACKAGE CONTENTS

NEINKomponentenBildMENGE
Passendes Modell
HR-001/HR-002HR005~HR012/HR-019/HR-0 21/HR-0 23/HR-00 3/HR-00 4HR-013 ~ HR-01 6/HR-018 /HR-0 20/HR-0 22/HR-017
1Post4141/
////1
2Quadratische AbdeckungVevor HR-018 - PRODUCT INFORMATION - 241///
3Rechteckige AbdeckungVevor HR-018 - PRODUCT INFORMATION - 3//41/
4AnkerbolzenVevor HR-018 - PRODUCT INFORMATION - 41641644
5Gebogene HalterungVevor HR-018 - PRODUCT INFORMATION - 54141/
6Horizontale HalterungVevor HR-018 - PRODUCT INFORMATION - 64141/
7Sechskant schlüsselVevor HR-018 - PRODUCT INFORMATION - 741411
8GabelschlüsselVevor HR-018 - PRODUCT INFORMATION - 841411
9BlechschaubeVevor HR-018 - PRODUCT INFORMATION - 982824
10PlastikhülleVevor HR-018 - PRODUCT INFORMATION - 10////1

INSTALLATION

Close-up of a yellow and black screwdriver with red X marks on a textured surface, no text or symbols visible.

Close-up of a hammer striking a black metal object with green pins, no visible text or symbols.

3D rendering of a mechanical assembly with a cylindrical component and mounting base (no text or symbols visible).

Close-up of a metallic binder clip with metal wire, no text or symbols visible.

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Unit 5 Albert Edward House, The Pavilion

Preston, United Kingdom

ECREP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We are kindly reminded to verify carefully when you are placing an order with us to see if you are actually saving half in comparison with the top major brands.

MODEL: HR-001/HR-002/HR-003/HR-004/HR-005/HR-006/HR-007/HR-008/HR-009/HR-010/HR-011/HR-012/HR-013/HR-014/HR-015/HR-016/HR-017/HR-018/HR-019/HR-020/HR-021/HR-022/HR-023

Vevor HR-018 - TOUGH TOOLS, HALF PRICE - 1

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

IMPORTANT NOTICE

Level-drilled post, L-drilled corner post, 30°-drilled stair post.

Post 1, Post 2, Post 3, Post 4, Post 5.

3D rendering of a mechanical assembly with a cylindrical component and mounting base (no text or symbols visible)

Close-up of a metallic paperclip attached to a vertical panel, with diagonal lines extending downward (no text or symbols visible)

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported in AUS: SIHAO PTY LTD, 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Unit 5 Albert Edward House, The Pavilion

Preston, United Kingdom

ECREP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

MODEL: HR-001/HR-002/HR-003/HR-004/HR-005/HR-006/HR-007/HR-008/HR-009/HR-010/HR-011/HR-012/HR-013/HR-014/HR-015/HR-016/HR-017/HR-018/HR-019/HR-020/HR-021/HR-022/HR-023

Five vertical metal structural supports with holes, shown in black and white (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

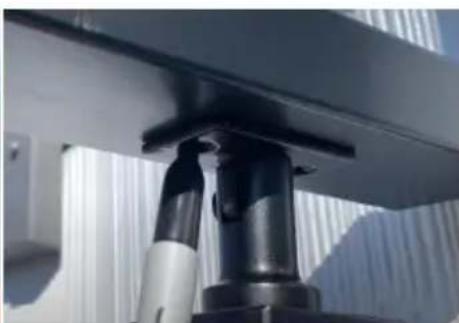

Close-up of a metallic mechanical component mounted on a metal panel, with a ruler and 'Post 1' label (no readable text or symbols in the main image)

Close-up of a metallic pipe joint inside a gray structural block, labeled 'Post 2' (no other text or symbols)

Close-up of a metallic mechanical component with two metal rods inserted, labeled 'Post 3'.

Post 4

Close-up of a mechanical component with metal rods and a label 'Post 5'.

3D rendering of a mechanical assembly with a cylindrical component and mounting base.

Close-up of a mechanical assembly with a black cylindrical component and white shaft, mounted on a metal frame.

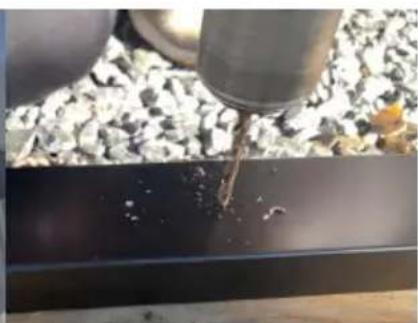

Close-up of a metal cutting machine tool in operation, showing material residue on a dark surface.

Close-up of a metallic binder clip with coiled metal sheets against a plain background (no text or symbols)

Close-up of a metallic mechanical component with a coiled spring attached to a vertical beam (no text or symbols visible)

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anah Place, Rancho Cucamonga, CA 91730

UKREP

Pooledas Group Ltd

Unit 5 Albert Edward House, The Pavilion

Preston, United Kingdom

ECREP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when you are placing an order with us that you are actually saving half in comparison with the top major brands.

MODEL: HR-001/HR-002/HR-003/HR-004/HR-005/HR-006/HR-007/HR-008/HR-009/HR-010/HR-011/HR-012/HR-013/HR-014/HR-015/HR-016/HR-017/HR-018/HR-019/HR-020/HR-021/HR-022/HR-023

Five vertical metal structural columns with holes, shown in black and gray (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

IMPORTANT SAFETY INSTRUCTIONS

Level-drilled post; L-drilled corner post; 30°-drilled stair post

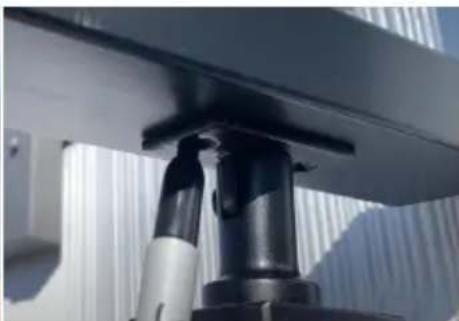

Close-up of a metallic mechanical component with a scale ruler, labeled 'Post 1' (no readable text or symbols on the object itself)

Close-up of a metallic rod inserted into a metal bracket, labeled 'Post 2' (no other text or symbols)

Close-up of a mechanical joint or bracket with two metal rods inserted, labeled 'Post 3' in a yellow circle (no other text or symbols)

Post 4

Post 5

PRODUCT INFORMATION

ModelWier coneWyso kość (mm)Wywi ercon y nume rŚredni ca otworu (mm)Rozsta w otworów (mm)Rozmia r przekro ju (mm)KolorUwz gled nij (szt.)
HR-0 01pozi om106712 φ 10,5 8050*50Czar ny4
HR-0 02pozi om91410 φ 10,5 8050*50Czar ny4
HR-0 03pozi om106712 φ 8 8030*50Czar ny4
HR-0 04pozi om91410 φ 8 8030*50Czar ny4
HR-0 0530°10671210,5×1 58050*50Srebro1
HR-0 0630°10671210,5×1 58050*50Czar ny1
HR-0 07L106712 φ 10,5 8050*50Czar ny1
HR-0 08Nie914///50*50Czar ny1
HR-0 09pozi om91410 φ 10,5 8050*50Czar ny1
HR-0 1030°9141010,5×1 58050*50Czar ny1
HR-0 11L91410 φ 10,5 8050*50Czar ny1
HR-0 12pozi om91410 φ 10,5 8050*50Srebro1
HR-0 1330°1067128×138030*50Czar ny1
HR-0 14L106712 φ 8 8030*50Czar ny1
HR-01530°914108×138030*50Czarny1
HR-016L91410 φ 8 8030*50Czar ny1
HR-017Nie914///38*38Czar ny1
HR-018pozi om106712 φ 8 8030*50Czar ny1
HR-019Nie1067///50*50Czar ny1
HR-020pozi om91410 φ 8 8030*50Czar ny1
HR-021pozi om106712 φ 10,5 8050*50Czar ny1
HR-022pozi om91410 φ 8 803 0*50Srebro1
HR-023pozi om106712 φ 10,5 8050*50Srebro1

Height

PACKAGE INCLUDES

3D rendering of a mechanical assembly with a cylindrical component and mounting base (no text or symbols visible)

Close-up of a mechanical component with a black cylindrical shaft and metallic housing (no visible text or symbols)

Close-up of a metal cutting machine tool in operation, showing material residue and machining process (no text or symbols visible)

Close-up of a metallic wire spring attached to a vertical panel, with no visible text or symbols

Address: Baoshan District, Shuangcheng Road 803, Lane 11, Room 1602A-1609, Shanghai

Importer for AUS: SIHAO PTY LTD, 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Importer for USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim P

Rancho Cucamonga, CA 91730

UKREP

Pooledas Group Ltd

Unit 5 Albert Edward House, The Pavilion

Preston, United Kingdom

ECREP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and e-warranty certificate www.vevor.com/support

CABLE RAILING POST

MODELS: HR-001/HR-002/HR-003/HR-004/HR-005/HR-006/HR-007/HR-008/HR-009/HR-010/HR-011/HR-012/HR-013/HR-014/HR-015/HR-016/HR-017/HR-018/HR-019/HR-020/HR-021/HR-022/HR-023

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

MODELS: HR-001/HR-002/HR-003/HR-004/HR-005/HR-006/HR-007/HR-008/HR-009/HR-010/HR-011/HR-012/HR-013/HR-014/HR-015/HR-016/HR-017/HR-018/HR-019/HR-020/HR-021/HR-022/HR-023

Five vertical metal structural columns with bolt holes, shown in black and white (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

IMPORTANT SAFETY MEASURES

Vevor HR-018 - IMPORTANT SAFETY MEASURES - 1

INSTALLATION INSTRUCTIONS

Post 1; Post 2; Post 3; Post 4; Post 5

PRODUCT INFORMATION

ModelGeb oordHoog te (mm)Gebo ord num merGatdia meter (mm)Gaten afstan d (mm)Sectieg rootte (mm)KleurInclusief (stuk s)
HR-0 01nive au106712 φ 10,5 8050*50Zwart4
HR-0 02nive au91410 φ 10,5 8050*50Zwart4
HR-0 03nive au106712 φ 8 8030*50Zwart4
HR-0 04nive au91410 φ 8 8030*50Zwart4
HR-0 0530°10671210,5×1 58050*50Zilver1
HR-0 0630°10671210,5×1 58050*50Zwart1
HR-0 07L106712 φ 10,5 8050*50Zwart1
HR-0 08Niet914///50*50Zwart1
HR-0 09nive au91410 φ 10,5 8050*50Zwart1
HR-0 1030°9141010,5×1 58050*50Zwart1
HR-0 11L91410 φ 10,5 8050*50Zwart1
HR-0 12nive au91410 φ 10,5 8050*50Zilver1
HR-0 1330°1067128×138030*50Zwart1
HR-0 14L106712 φ 8 8030*50Zwart1
HR-0 1530°914108×138030*50Zwart1
HR-016L91410 φ 8 8030*50Zwart1
HR-017Niet914///38*38Zwart1
HR-018nive au106712 φ 8 8030*50Zwart1
HR-019Niet1067///50*50Zwart1
HR-020nive au91410 φ 8 8030*50Zwart1
HR-021nive au106712 φ 10,5 8050*50Zwart1
HR-022nive au91410 φ 8 803 0*50Zilver1
HR-023nive au106712 φ 10,5 8050*50Zilver1

Height

PACKAGE CONTENTS

Ne eComponentenAfbeeldingAANTAL
Passend model
HR-001 / HR-002HR005~HR0 12/HR-019/ HR-0 21/ HR-0 23/HR-00 3/ HR-00 4HR-013 ~ HR-01 6/ HR-018 / HR-0 20/ HR-0 22/HR-0 17
1na4141/
////1
2Vierkant dekselVevor HR-018 - INSTALLATION INSTRUCTIONS - 341///
3Rechthoek ig dekselVevor HR-018 - INSTALLATION INSTRUCTIONS - 4//41/
4verankeringsboutVevor HR-018 - INSTALLATION INSTRUCTIONS - 51641644
5Gebogen beugelVevor HR-018 - INSTALLATION INSTRUCTIONS - 64141/
6Horizontale beugelVevor HR-018 - INSTALLATION INSTRUCTIONS - 74141/
7inbussleut elVevor HR-018 - INSTALLATION INSTRUCTIONS - 841411
8Steeksleut elVevor HR-018 - INSTALLATION INSTRUCTIONS - 941411
9TapschroefVevor HR-018 - INSTALLATION INSTRUCTIONS - 1082824
10Plastic hoesjeVevor HR-018 - INSTALLATION INSTRUCTIONS - 11////1

INSTALLATION

Close-up of a yellow and black drill bit with a screw, marked with red X marks on a gray surface (no text or symbols)

Close-up of a hammer striking a metal bracket with a yellow-handled tool, no visible text or symbols

Mechanical assembly diagram showing a cylindrical component mounted on a base (no text or symbols visible)

Close-up of a metallic support structure with two screws and a vertical beam (no text or symbols visible)

For stud welder: horizontal mounting and angle

Pure mechanical assembly diagram showing a threaded rod inserted into a rectangular block (no text or symbols)

Close-up of a metallic binder clip with metal wire, no text or symbols visible

Close-up of a metallic mechanical component with a coiled spring attached to a vertical beam (no text or symbols visible)

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Unit 5 Albert Edward House, The Pavilion

Preston, United Kingdom

ECREP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

MODEL: HR-001/HR-002/HR-003/HR-004/HR-005/HR-006/HR-007/HR-008/HR-009/HR-010/HR-011/HR-012/HR-013/HR-014/HR-015/HR-016/HR-017/HR-018/HR-019/HR-020/HR-021/HR-022/HR-023

Five vertical metal structural beams with holes, shown from different angles (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

IMPORTANT SAFETY MEASURES

Level-drilled post L-drilled corner post 30°-drilled stair post Post 1 Post 2 Post 3 Post 4 Post 5

PRODUCT INFORMATION

Model IBorr adHöjd (mm)Borra t num merHåldia meter (mm)Hålstig ning (mm)Sektion sstorlek (mm)FärgInklu dera (st)
HR-001nivå106712 φ 10,5 8050*50Svart4
HR-002nivå91410 φ 10,5 8050*50Svart4
HR-003nivå106712 φ 8 8030*50Svart4
HR-004nivå91410 φ 8 8030*50Svart4
HR-00530°10671210,5×158050*50Silver1
HR-00630°10671210,5×158050*50Svart1
HR-007L106712 φ 10,5 8050*50Svart1
HR-008Ej914///50*50Svart1
HR-009nivå91410 φ 10,5 8050*50Svart1
HR-01030°9141010,5×158050*50Svart1
HR-011L91410 φ 10,5 8050*50Svart1
HR-012nivå91410 φ 10,5 8050*50Silver1
HR-01330°1067128×138030*50Svart1
HR-014L106712 φ 8 8030*50Svart1
HR-01530°914108×138030*50Svart1
HR-016L91410 φ 8 8030*50Svart1
HR-017Ej914///38*38Svart1
HR-018nivå106712 8 8030*50Svart1
HR-019Ej1067///50*50Svart1
HR-020nivå91410 8 8030*50Svart1
HR-021nivå106712 10,5 8050*50Svart1
HR-022nivå91410 8 803 0*50Silver1
HR-023nivå106712 10,5 8050*50Silver1

Height

PACKAGE INCLUDES

3D rendering of a mechanical assembly with a cylindrical component and mounting base (no text or symbols visible)

Close-up of a mechanical assembly with a black cylindrical component mounted on a metallic frame (no visible text or symbols)

Close-up of a metal cutting machine tool in operation on a dark surface, with no visible text or symbols.

Close-up of a metallic binder clip with coiled metal strips against a plain background (no text or symbols)

Close-up of a metallic mechanical component with a coiled spring attached to a vertical rod (no text or symbols visible)

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UKREP

Pooledas Group Ltd

Unit 5 Albert Edward House, The Pavilion Preston, United Kingdom

ECREP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

www.vevor.com/support

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Vevor

Model : HR-018

Category : Fastening accessory
