Product Type	Electric Rear Tailgate Opener
Model	D1304 (compatible models D1206, D3304, D3305, D4806, D2002, YQ53203, D5102, D5801, D5104)
Rated Voltage	12 V DC
Voltage Range	9 V - 16 V DC
Operating Current	≤ 8 A
Stall Current	≤ 25 A
Opening Time	17 - 20 seconds
Closing Time	17 - 20 seconds
Operating Temperature	-30 °C to +80 °C
Working Principle	Electric motor converting rotation into linear motion
Installation	By a qualified professional
Troubleshooting	Use diagnostic tool to clear error codes
Maintenance	Clean the connectors, check cable insulation
Safety	Turn off the engine before installation, support the tailgate
Repairability	Full replacement in case of permanent electrical fault
Warranty	Technical support via www.vevor.com/support
Manufacturer	Shanghaimuxinmuyeyouxiangongsi, Shanghai, China

Frequently Asked Questions - D1304 Vevor

How to install the Vevor D1304 electric tailgate opener?

Installation must be carried out by a qualified professional. Start by removing the interior tailgate panel, disconnect the old strut, then install the new one by securing the clips. Reconnect and use a diagnostic tool to clear error codes. Follow the steps detailed in the manual.

What is the required supply voltage?

The rated voltage is 12 V DC with an operating range of 9 V to 16 V DC.

How to clear error codes after installation?

Use a diagnostic tool like Autel or Launch to connect to the vehicle. Clear inactive or intermittent error codes. Permanent error codes indicate an electrical fault and require replacement of the strut.

Can I install the device myself?

It is strongly recommended to have the installation done by a professional to ensure safety and proper operation. The installation involves delicate electrical and mechanical manipulations.

What to do if the tailgate does not open?

First check the error codes with a diagnostic tool. If the code is inactive, clear it. If the tailgate remains stuck, perform a reset of the control module with the tool or manually close the tailgate to reset the system.

How to maintain the electric tailgate opener?

Regularly clean the connectors and check the cable insulation to avoid short circuits. Ensure that the wiring does not interfere with moving parts. No lubrication is necessary.

Which vehicles are compatible with the D1304 model?

This strut is compatible with many models, including the Porsche Panamera as an example. The list also includes models D1206, D3304, D3305, D4806, D2002, YQ53203, D5102, D5801, D5104. Check compatibility with your vehicle.

What safety precautions should I take?

Always turn off the engine before installation. Remove metal objects to avoid scratches. Support the tailgate to prevent it from falling. Route the cables away from moving parts.

Is there a warranty on this product?

Yes, Vevor offers a warranty and technical support. Contact support via www.vevor.com/support to obtain the electronic warranty certificate.

How to reset the control module?

Use a diagnostic tool (Autel or Launch) to reset the control module. You can also manually close the tailgate to trigger an automatic reset, then press the closing button.

USER MANUAL D1304 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ELECTRIC REAR HATCH LIFT

MODEL: D1206/D3304/D3305/D4806/D2002/YQ53203/D1304/D5102/D5801/D5104

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

1. Product Working Principle and Structure Introduction:

Working Principle:

The Power liftgate is an electric drive device that converts the rotational motion of the motor into the linear reciprocating motion of the push rod. The strut motor is controlled by the tailgate ECU controller module to achieve the up and down extension and retraction of the electric strut, thereby completing the lifting and lowering action of the tailgate.

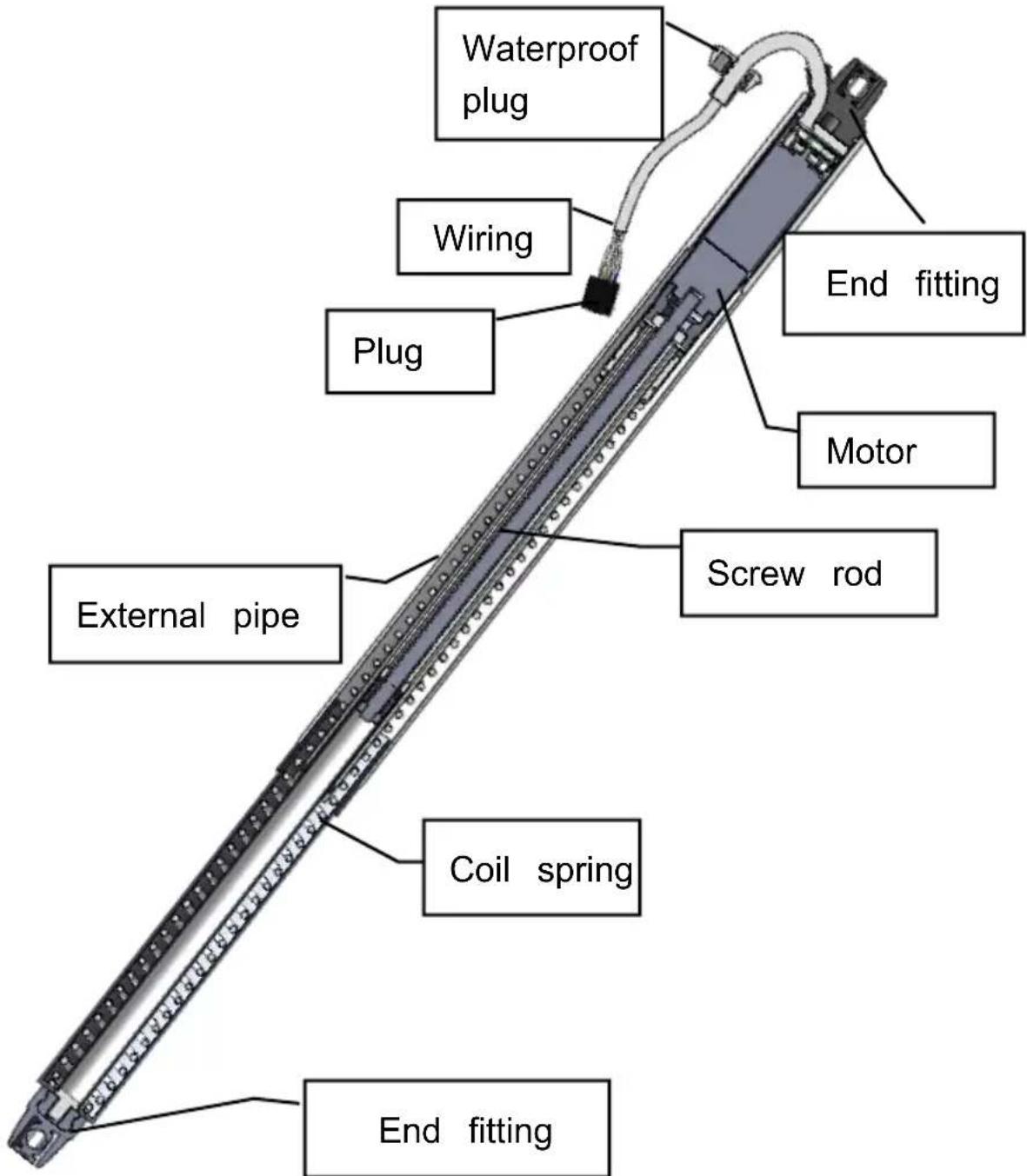

2. Internal Structure and Appearance:

Rated voltage: DC12V Operating voltage: DC9V-DC16V

Working current: ≤8A Stall current: ≤25A

Opening time: 5s-8s Closing time: 5s-8s

Operating temperature: -30°C +80°C

3. Power liftgate installation steps (Porsche Panamera for example)

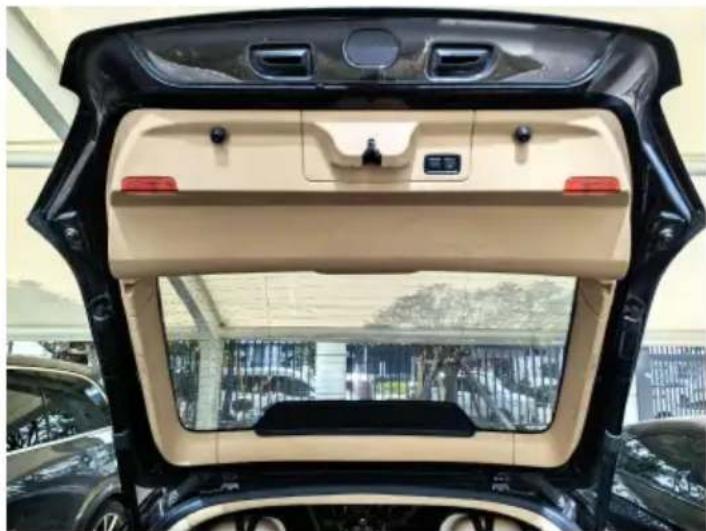

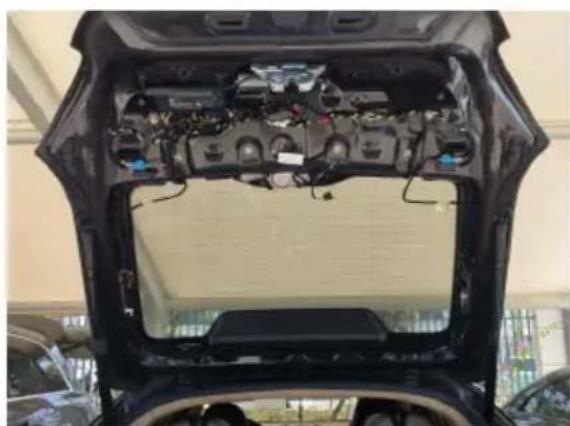

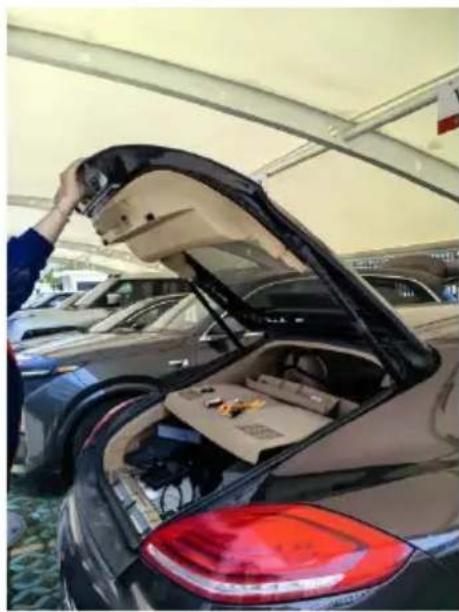

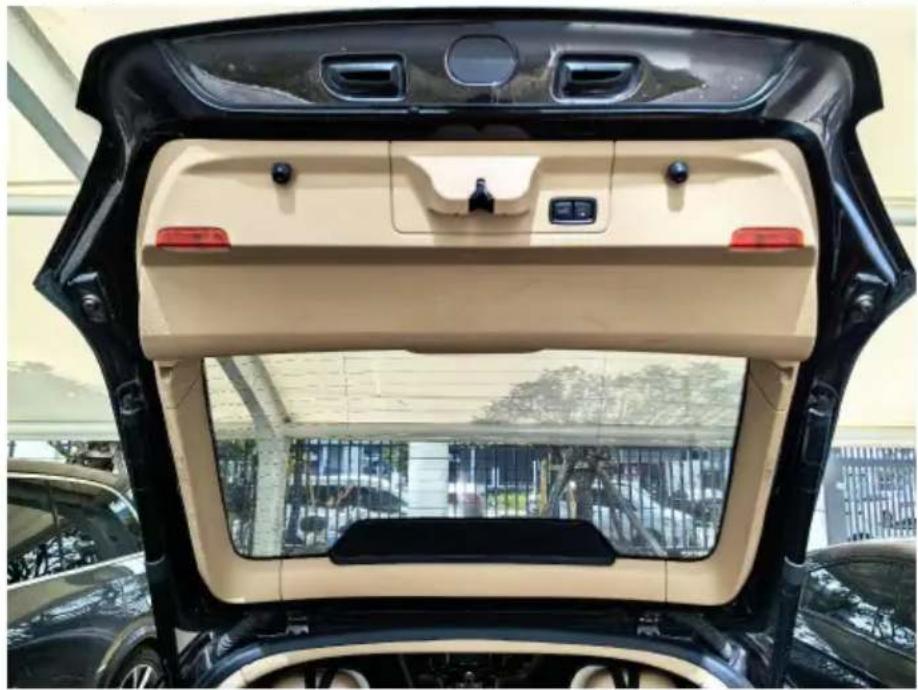

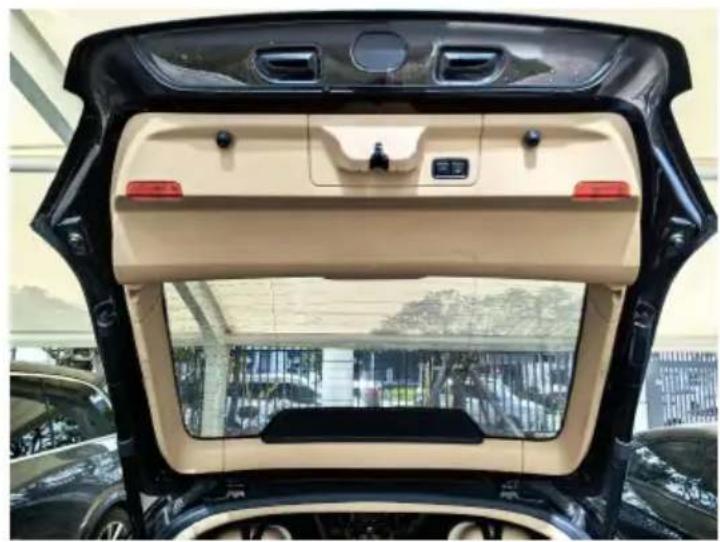

3.1 Remove the interior panel of the vehicle's tailgate.

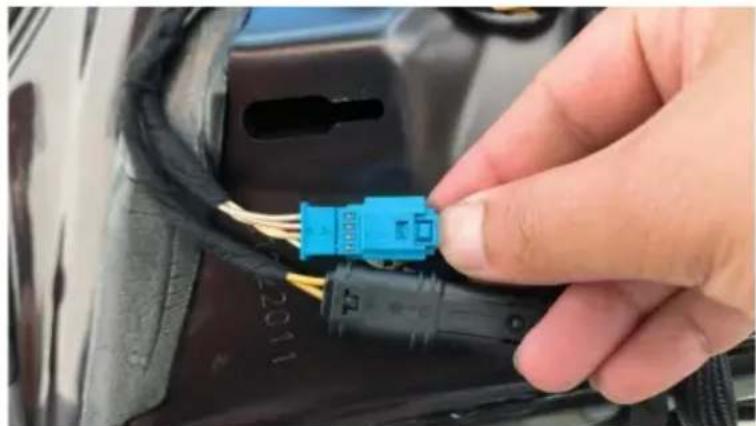

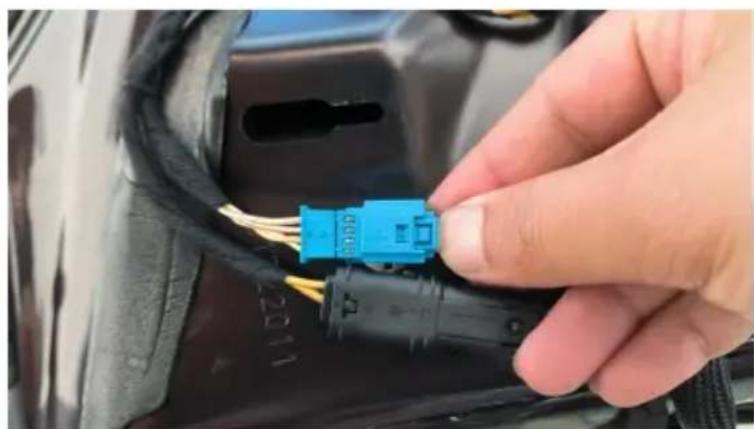

3.2 Then, disconnect the power tailgate plug from the vehicle's connection point.

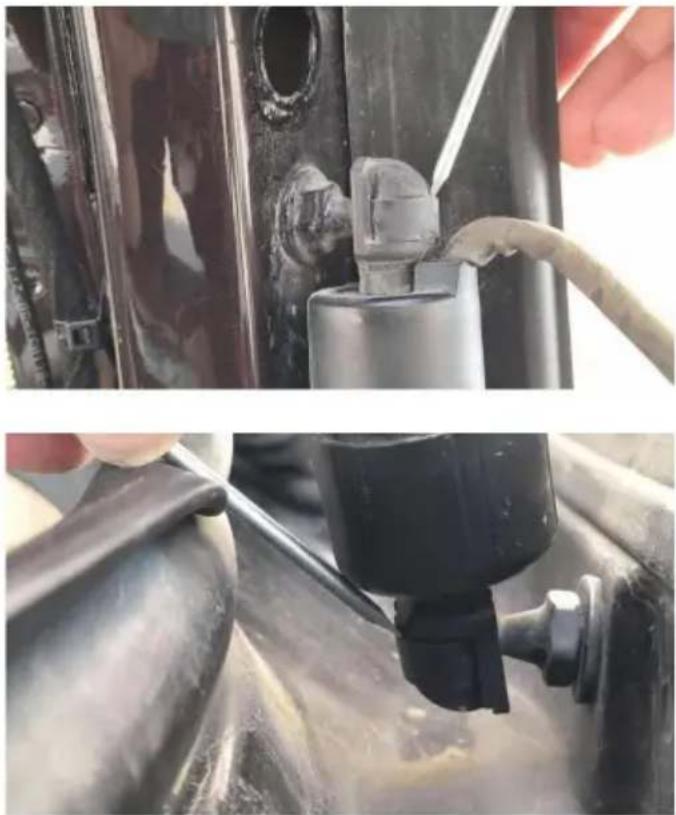

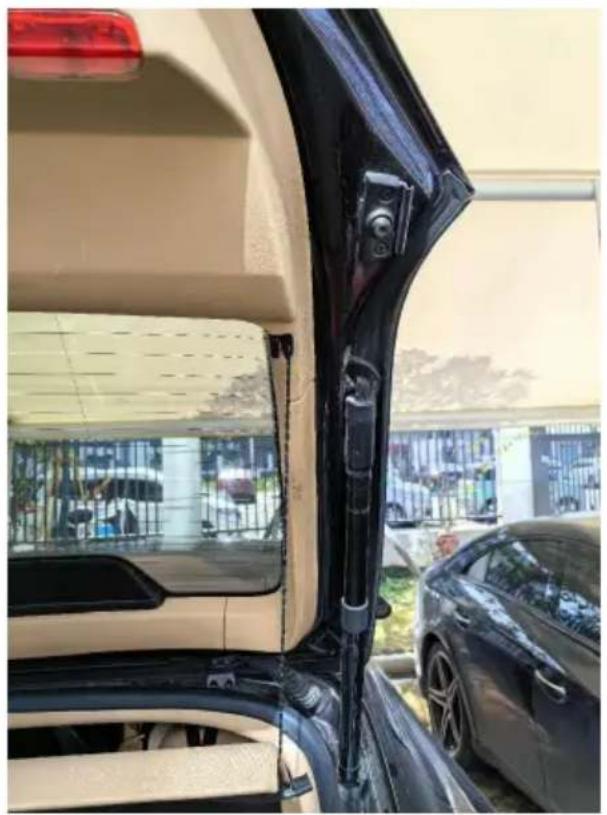

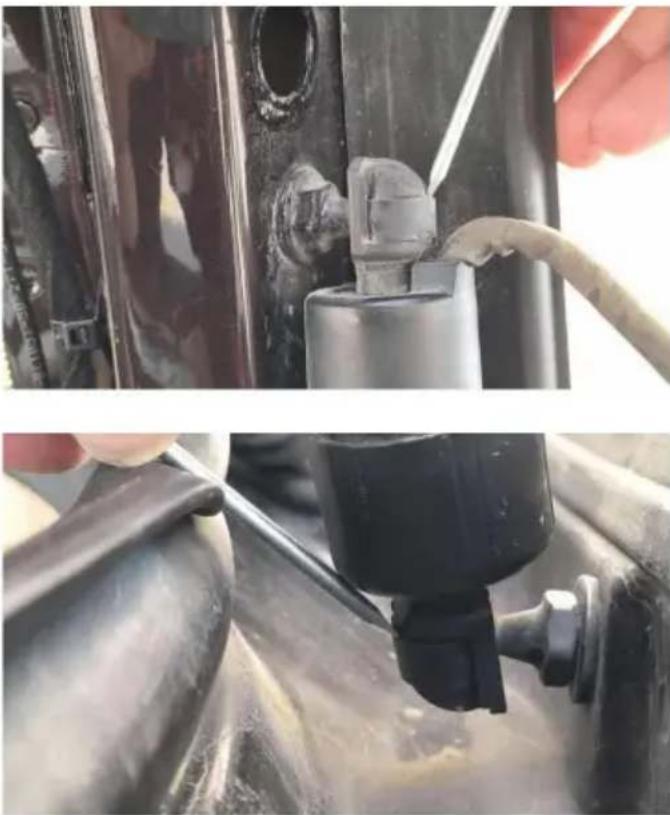

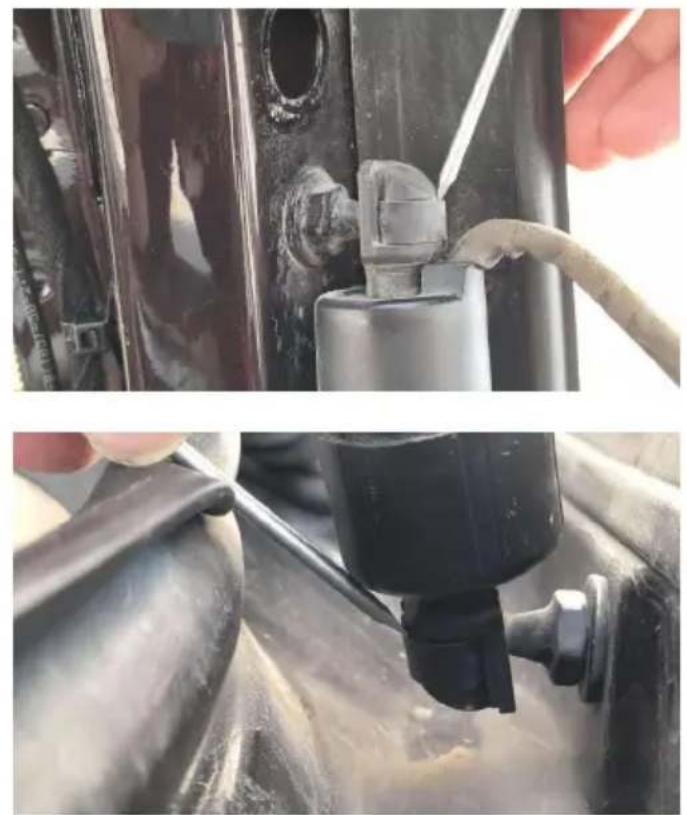

3.3 Using a flat-head screwdriver to remove the clips from the old tailgate, then install the new one. Use the same method for both sides.

3.4 After installing the new tailgate, reinstall the original panel.

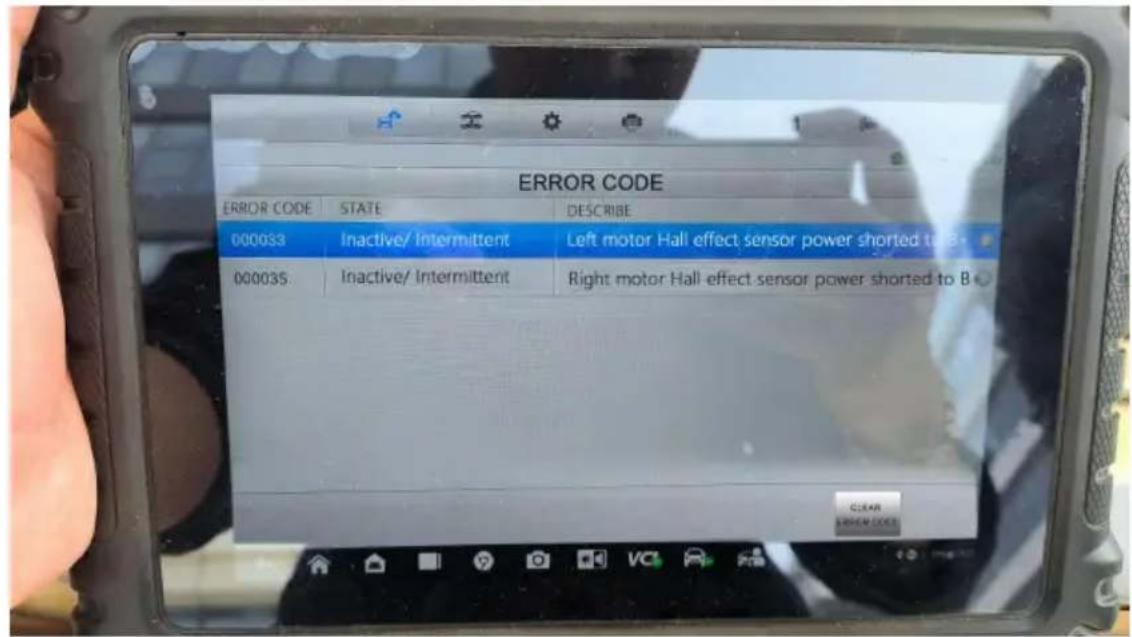

3.5 Use diagnostic tools to connect to the car and clear error codes caused by the replacement of the power tailgate.

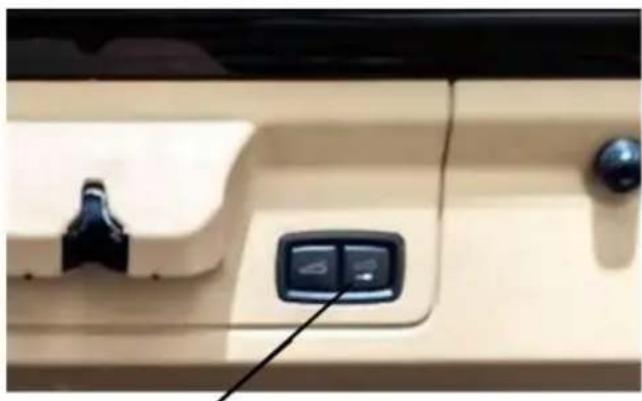

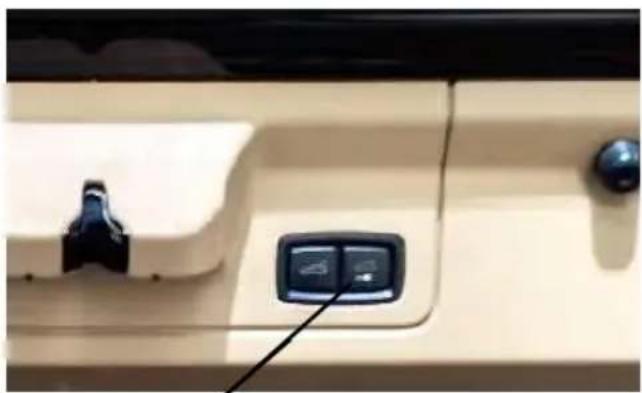

3.6 After clearing the error codes, you can activate the power tailgate closing using the following methods: 3.6.1 Press the tailgate close button directly. 3.6.2 Manually close the tailgate and then press the tailgate open button.

3.6.3 Reset the control module by using diagnostic tools like Autel or Launch, then press the tailgate close button.

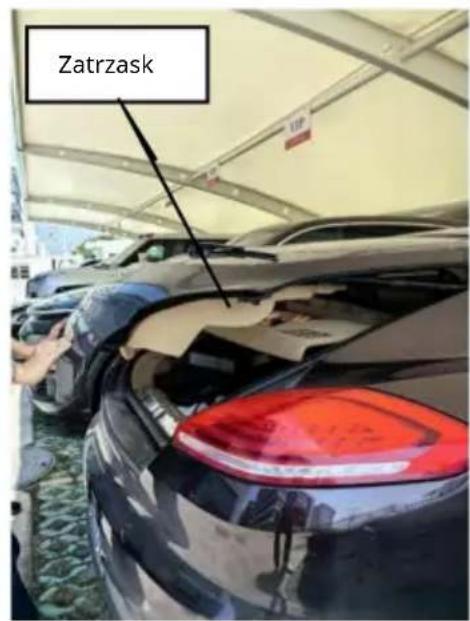

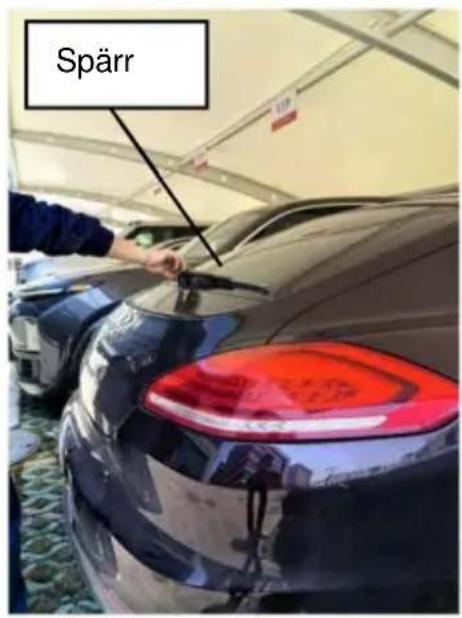

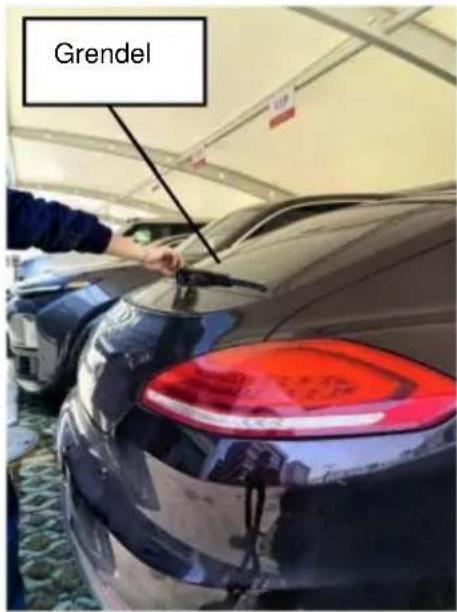

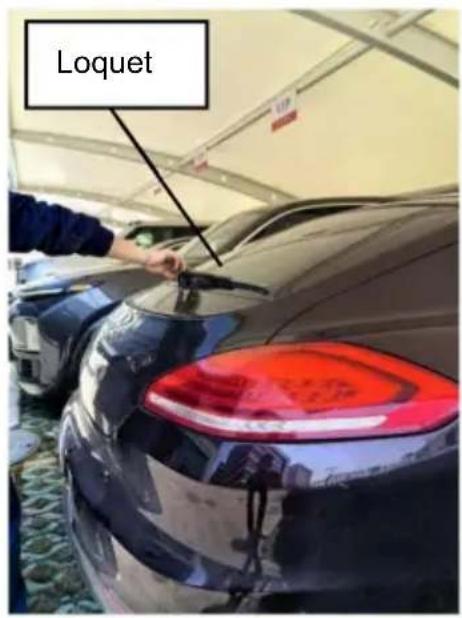

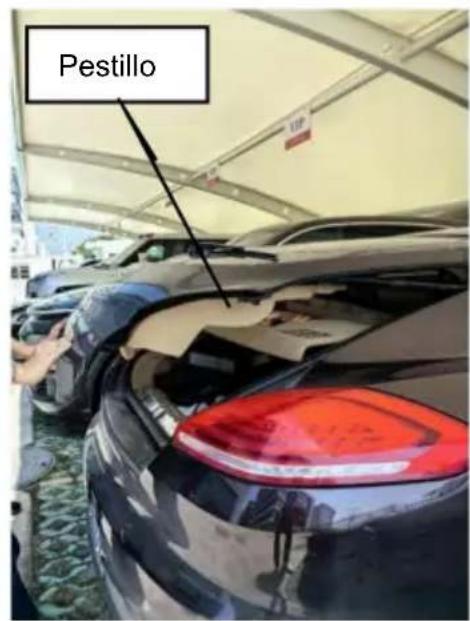

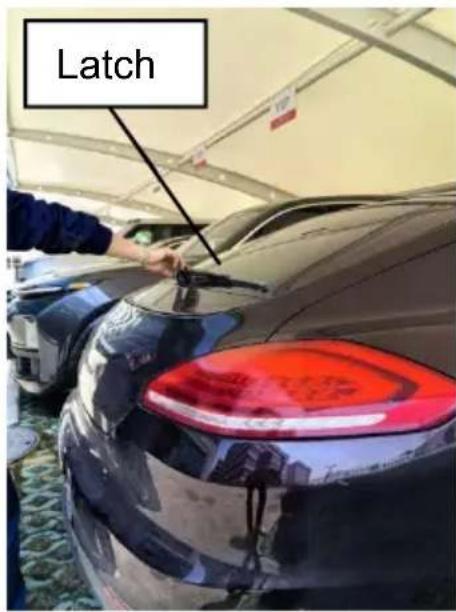

3.7 Manually close the tailgate by holding it with both hands and lowering it slowly until the lock engages with the latch.

Manual closing operation example

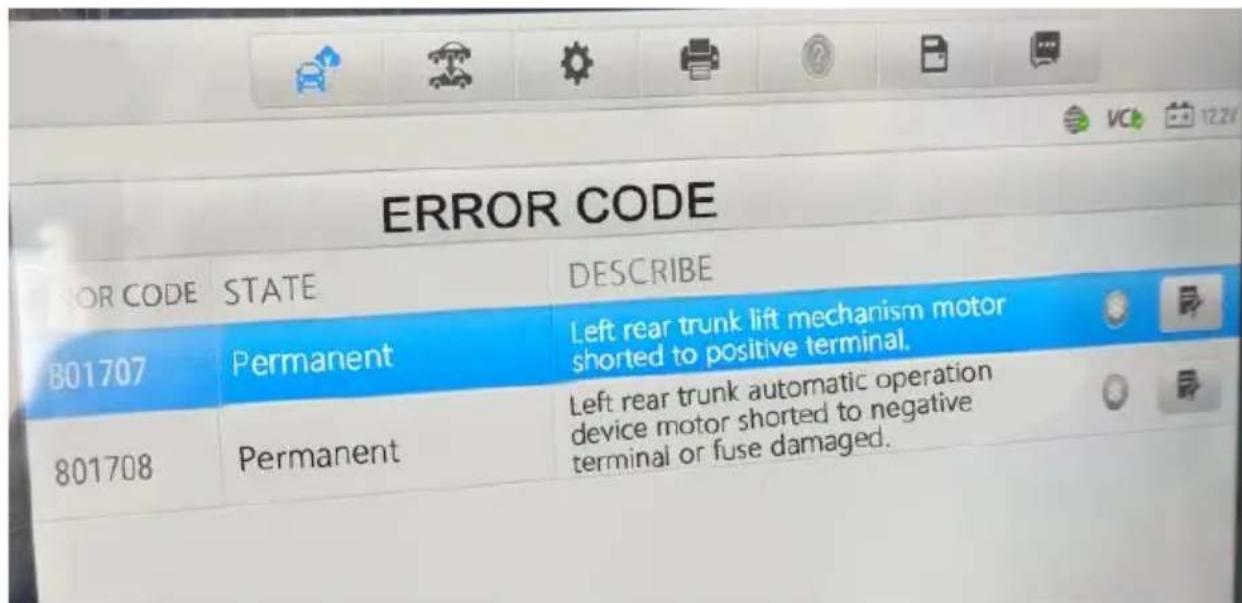

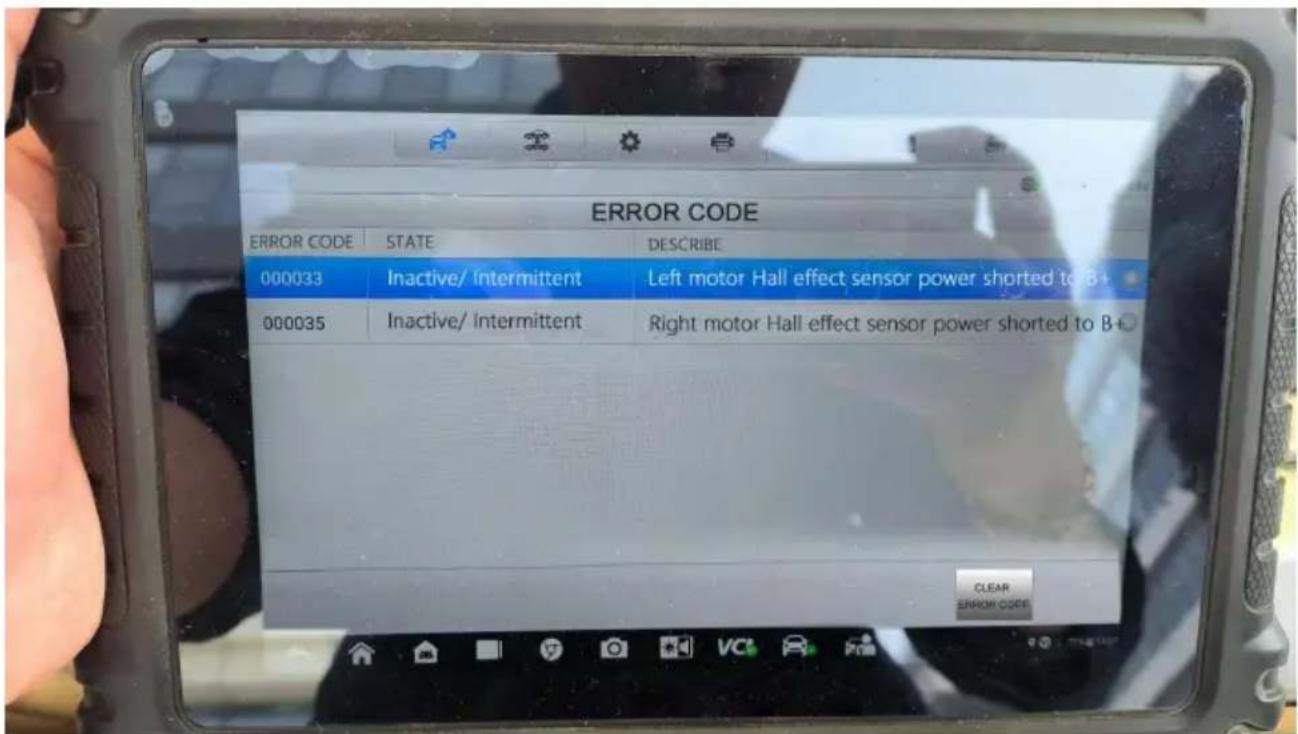

3.8 Troubleshooting: If the error code status is inactive or intermittent, it can be cleared by using the diagnostic tool.

A permanent error code indicates an electrical fault in the tailgate; tailgate replacement is required.

4. Precautions for Installing the Power Tailgate Strut

- To ensure the safety and proper functioning of our products, installation should be performed by qualified professionals. Do not disassemble the product, and avoid forcibly pushing or pulling the tailgate to prevent vehicle damage or safety incidents.

- Before installing the product, check the dashboard display functions, ensure button operations are normal, and inspect for any scratches on the interior and exterior surfaces. Report any issues to the customer immediately.

- Check if the power tailgate strut operates correctly and if the indicator lights are functioning properly.

● Turn off the engine and prepare the necessary tools;

- For Installers: Remove any metal objects and other hard materials from the vehicle to prevent damage or scratches during installation.

- Carefully remove and store car parts to avoid scratching the dashboard. Clean up any wire fragments promptly and ensure connectors are well-insulated to prevent short circuits.

- Route the wiring according to the original vehicle layout. Secure each wire harness to avoid interference with moving parts such as the steering column, accelerator, and brake pedals.

• Connect each wire harness following the original factory wiring scheme, paying attention to the grounding wire.
• Do not replace wires or components while powered. ● After installation, manually close the tailgate to allow the system to initialize.
• Ensure the tailgate is secured during the installation process to prevent it from falling and causing injury.
