USER MANUAL D5102 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ELECTRIC REAR HATCH LIFT

MODEL:D1206/D3304/D3305/D4806/D2002/YQ53203/D1304/D5102/D5801/D5104

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

Black cylindrical object with attached cable and connector, isolated on white background (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

1. Product Working principle and structure introduction:

Working principle:

The Power liftgate is an electric drive device that converts the rotational motion of the motor into the linear reciprocating motion of the push rod. The strut motor controlled by the tailgate ECU controller module to achieve the up and down extension and retraction of the electric strut, thereby completing the lifting and lowering action of the tailgate

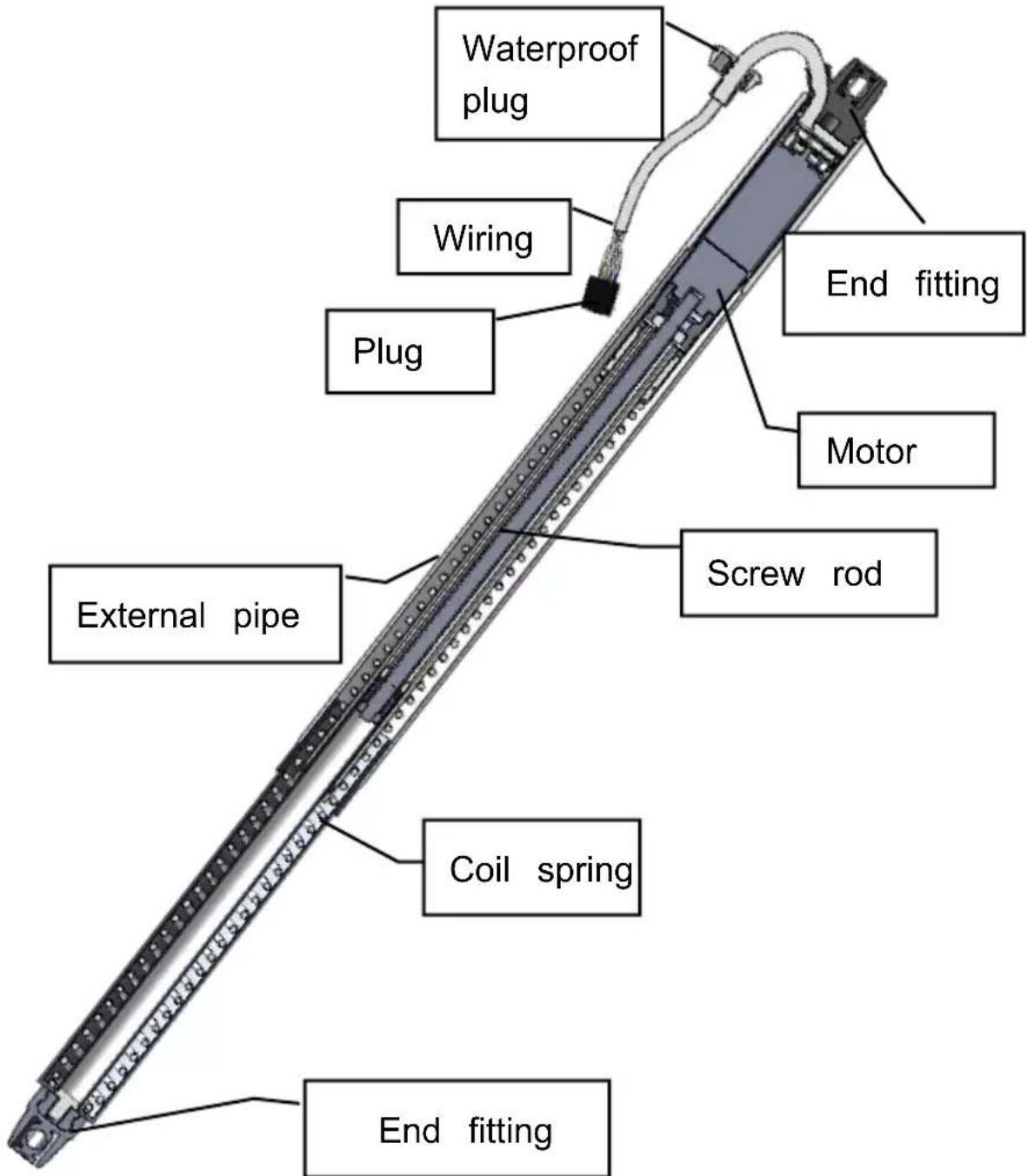

2. Internal structure and appearance:

Waterproof plug Wiring Plug End fitting Motor Screw rod External pipe Coil spring End fitting

Rated voltage: DC12V Operating voltage: DC9V-DC16V

Working current: ≤8A Stall current: ≤25A

Openning hours: 5s-8s Closing hours: 5s-8s

Operating temperature: -30^ +80^

3. Power liftgate installation steps (Porsche Panamera for example)

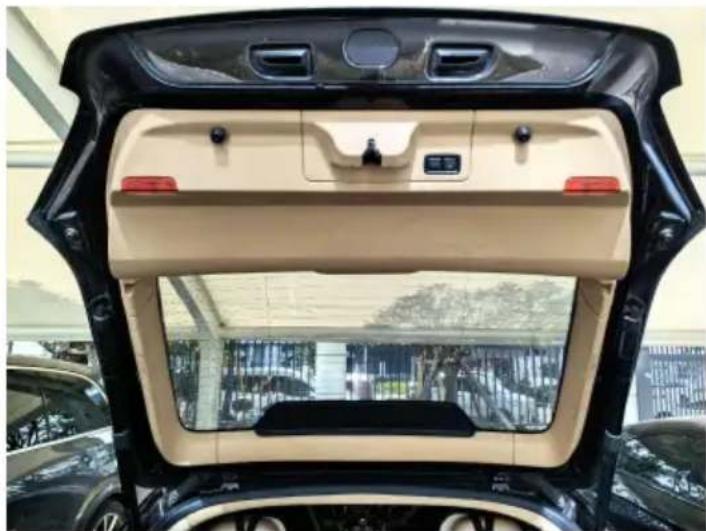

3.1 Remove the interior panel of the vehicle's tailgate.

Back view of a car's rear open cab showing the roof, dashboard, and side-mounted sensors (no visible text or symbols)

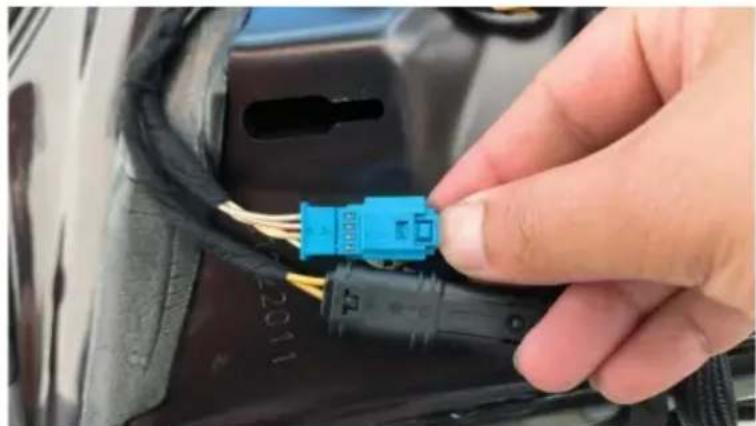

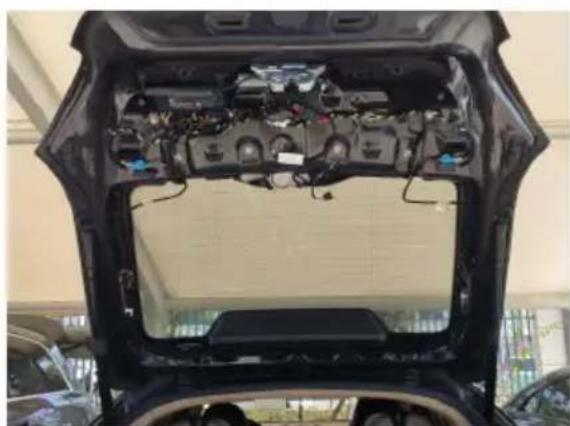

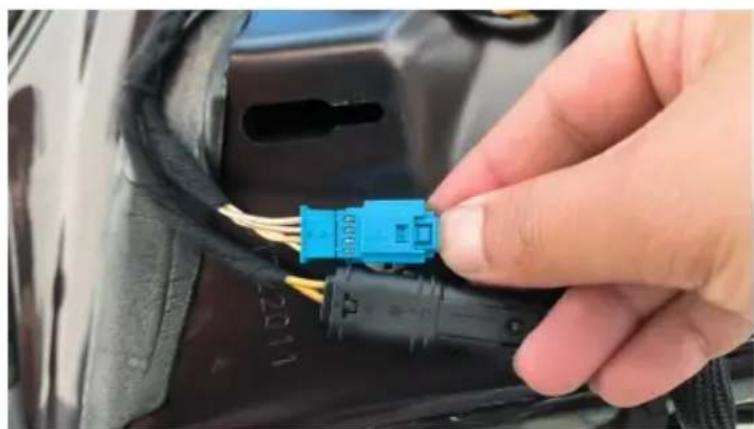

3.2 Then, disconnect the power tailgate plug from the vehicle's connection po

Top-down view of a car's front hood showing internal components and wiring (no visible text or symbols)

Close-up of a hand inserting a blue and black automotive connector into a car body (no visible text or symbols)

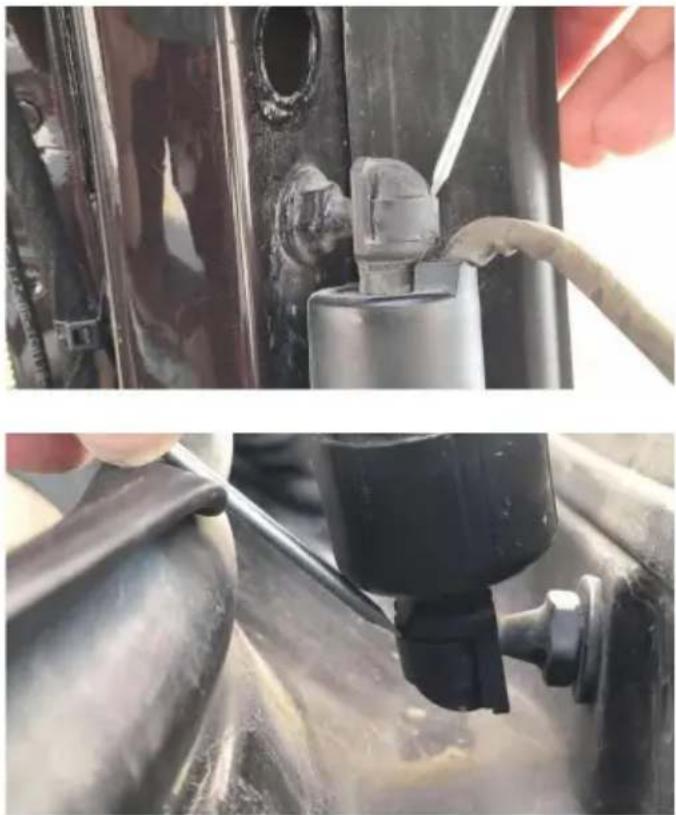

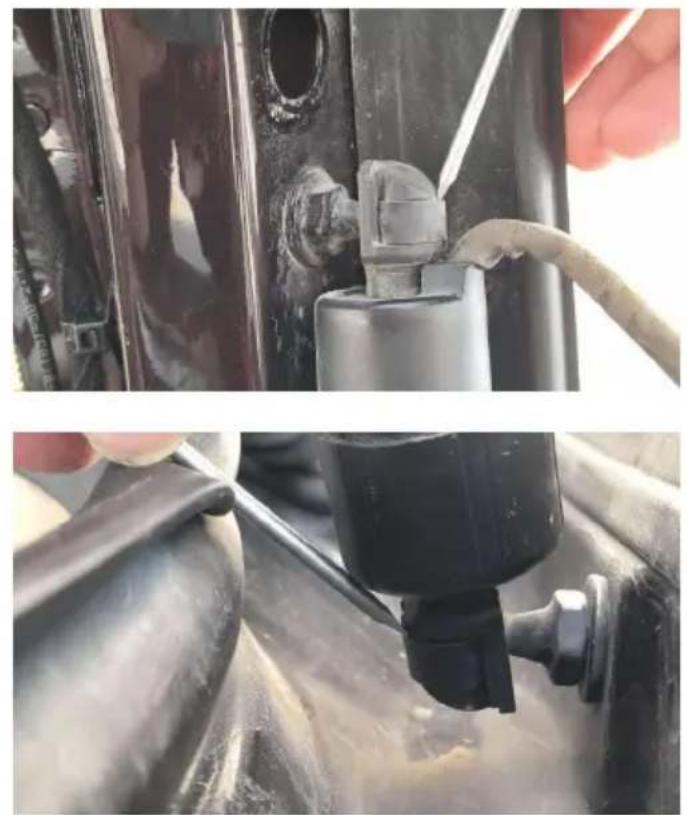

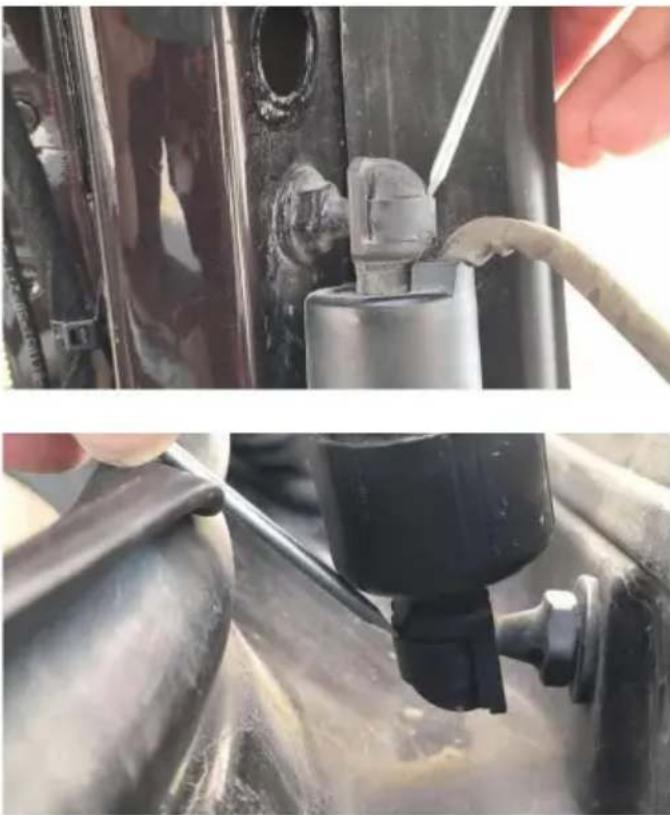

3.3 Using flat-head screwdriver to remove the clips from the old tailgate, then install the new one. Same method for both sides.

Interior view of a car showing the door, seat, and exterior view with parked cars and a fence in the background (no visible text or symbols)

Two-panel photo showing a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

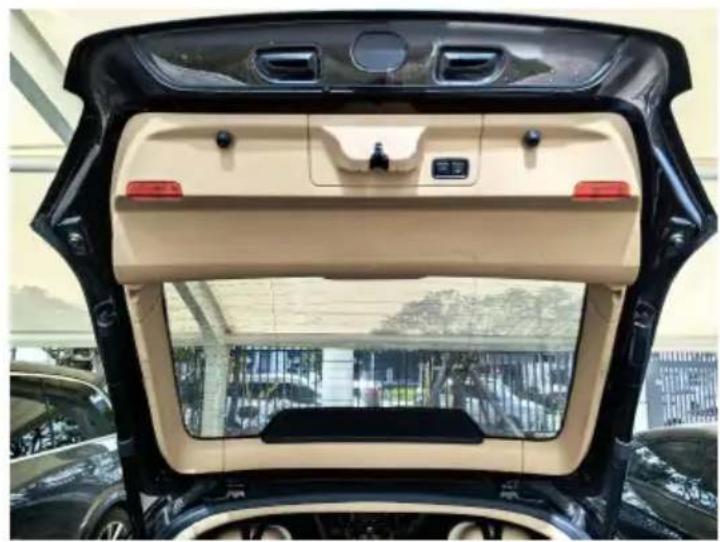

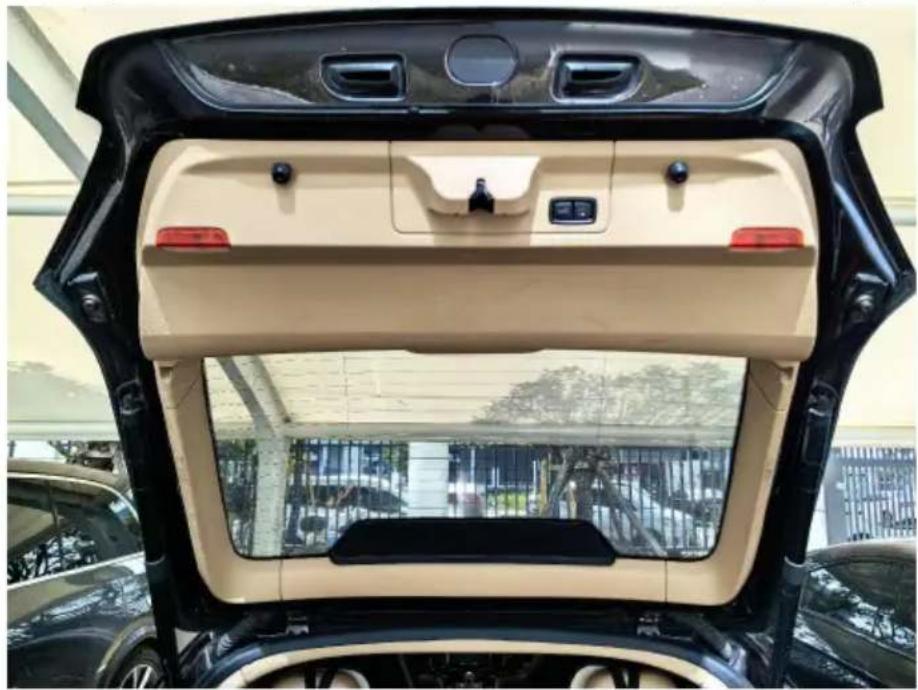

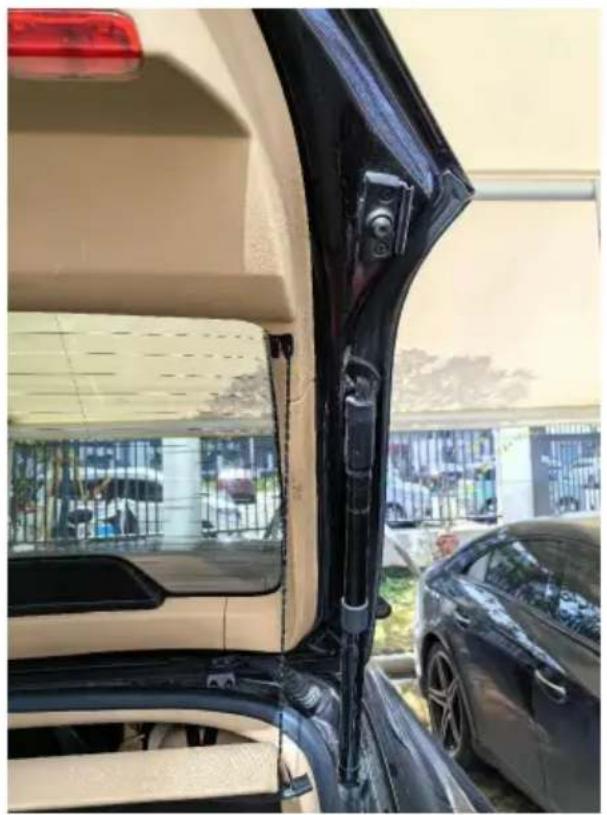

3.4 After installing the new tailgate, reinstall the original panel.

Back view of a black and beige car cab with red LED indicators, reflecting the window (no text or symbols visible)

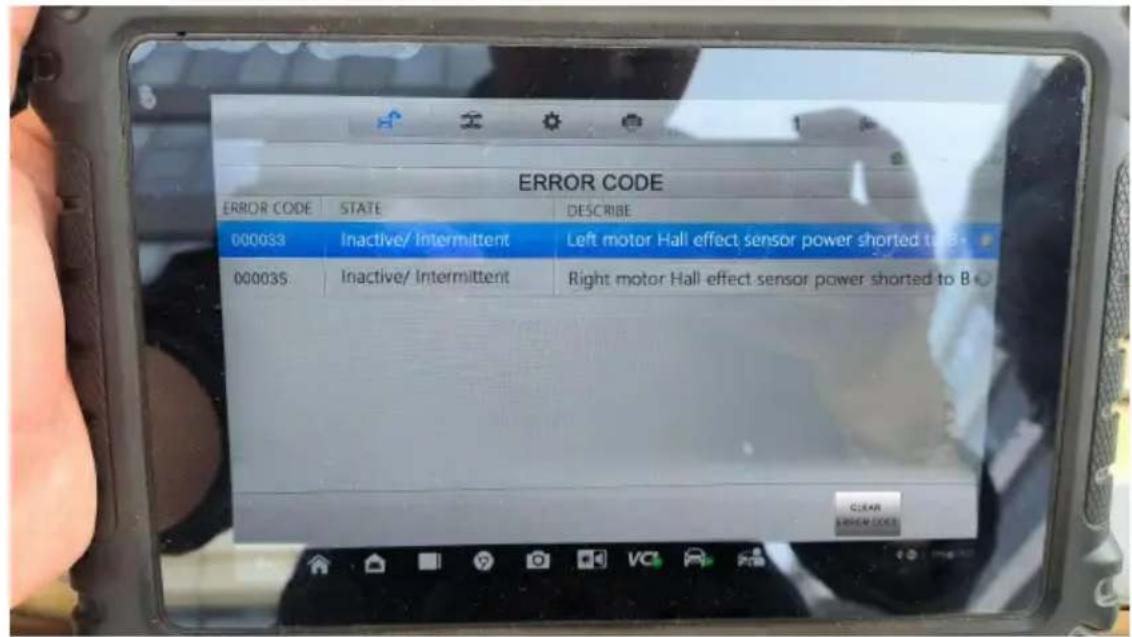

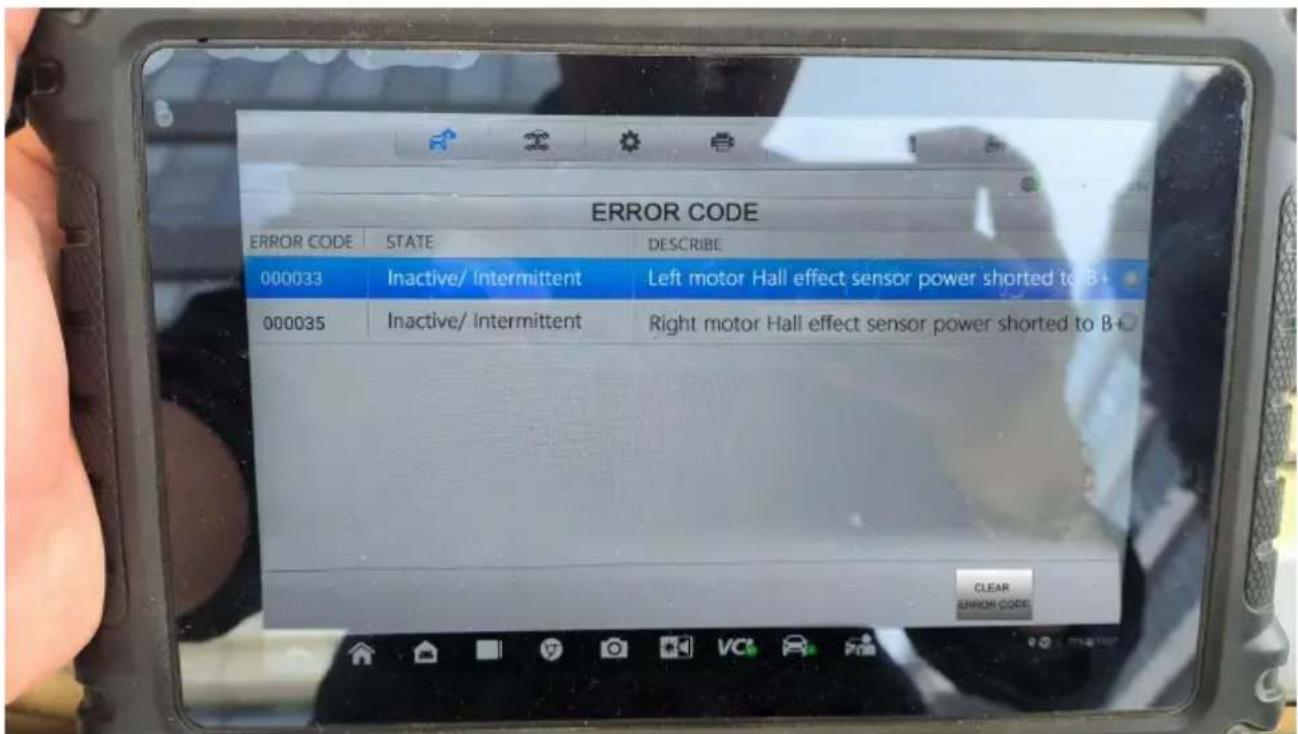

3.5 Use diagnostic tools to connect to the car and clear error codes caused replacement of the power tailgate.

ERROR CODE ERROR CODE STATE DESCRIBE 000033 Inactive/ Intermittent Left motor Hall effect sensor power shorted to B + 000035 Inactive/ Intermittent Right motor Hall effect sensor power shorted to B

3.6 After clearing the error codes, you can activate the power tailgate closing using the following methods:
3.6.1 Press the tailgate close button directly.

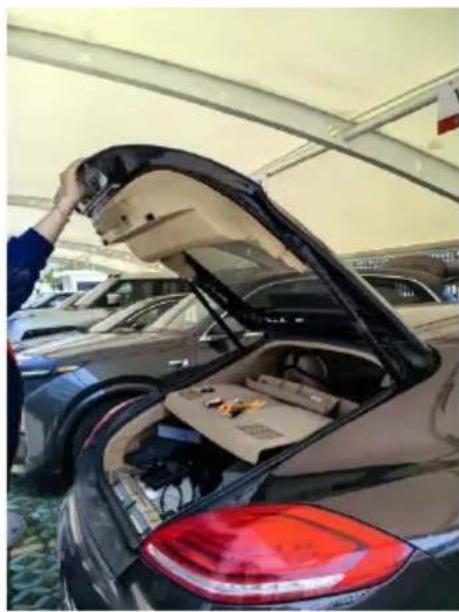

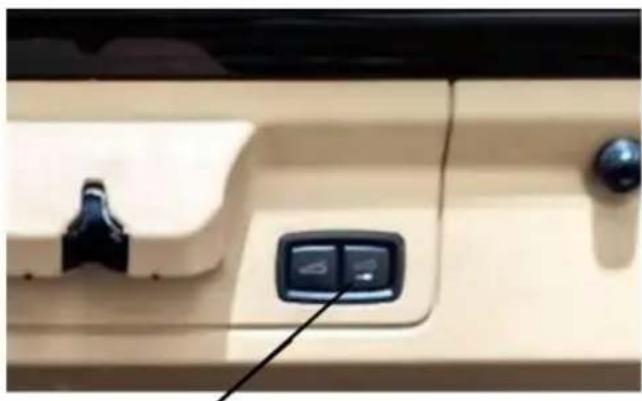

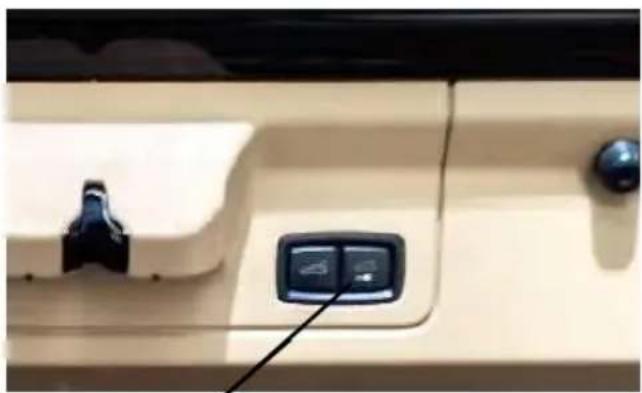

3.6.2 Manually close the tailgate and then press the tailgate open button.

Back view of a car showing the rear open trunk and side rear seats, with no visible text or symbols.

Close-up of a car's side panel showing two buttons and a connector (no text or symbols visible)

Tailgate open butto

3.6.3 Reset the control module by using diagnostic tools like Autel or Launch then press the tailgate close button.

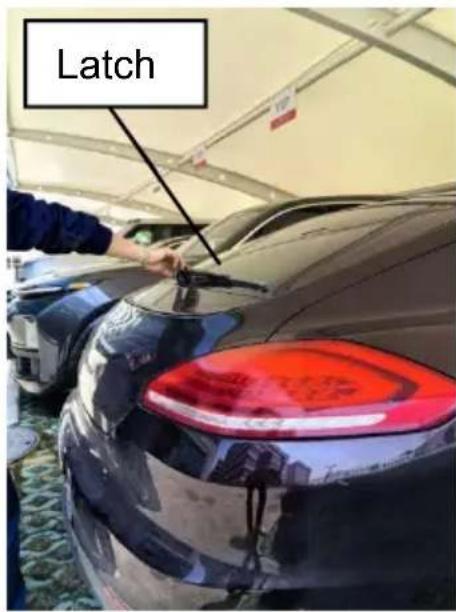

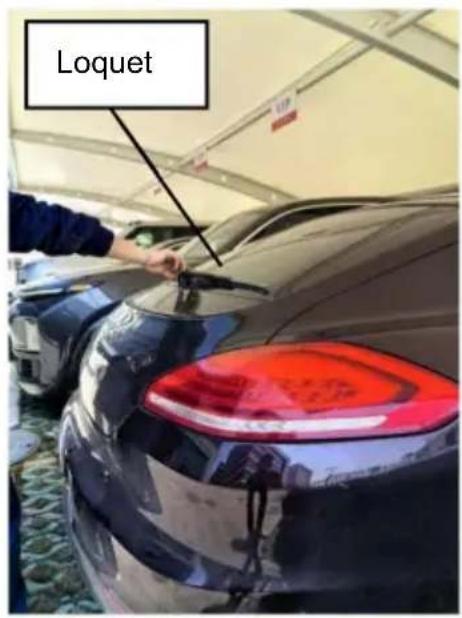

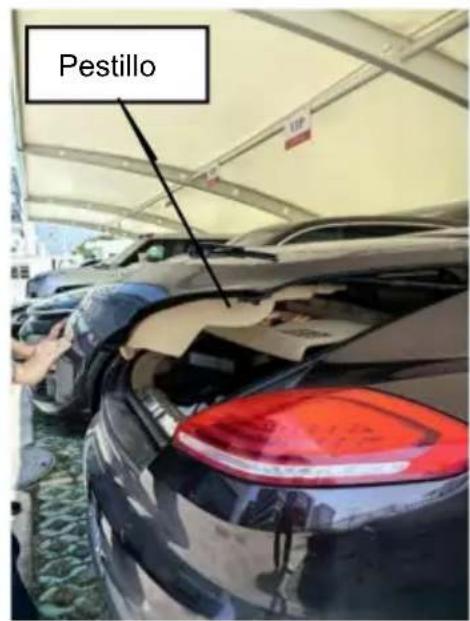

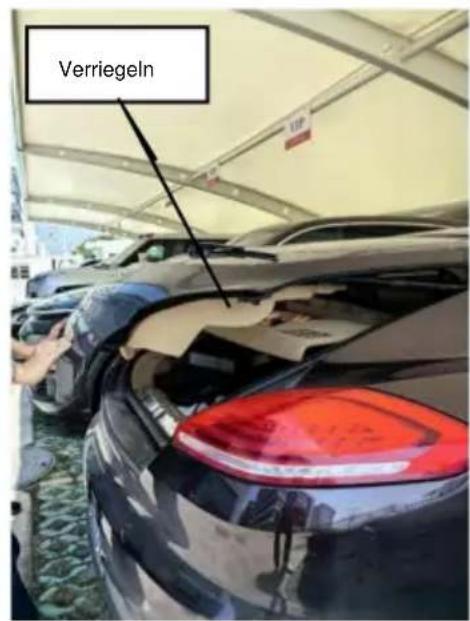

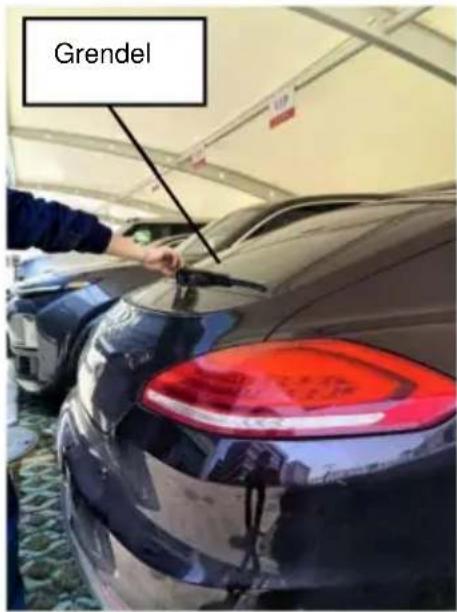

3.7 Manually close the tailgate by holding it with both hands and lowering it slowly until the lock engages with the latch.

Interior view of a car storage lot with open trunk and rear bumper, no visible text or symbols

Latch

Latch

Manual closing operation example

3.8 Troubleshooting: If the error code status is inactive or intermittent, it can cleared by using the diagnostic tool

ERROR CODE ERROR CODE STATE DESCRIBE 000033 Inactive/ Intermittent Left motor Hall effect sensor power shorted to B+ 000035 Inactive/ Intermittent Right motor Hall effect sensor power shorted to B+ CLEAR ERROR CODE

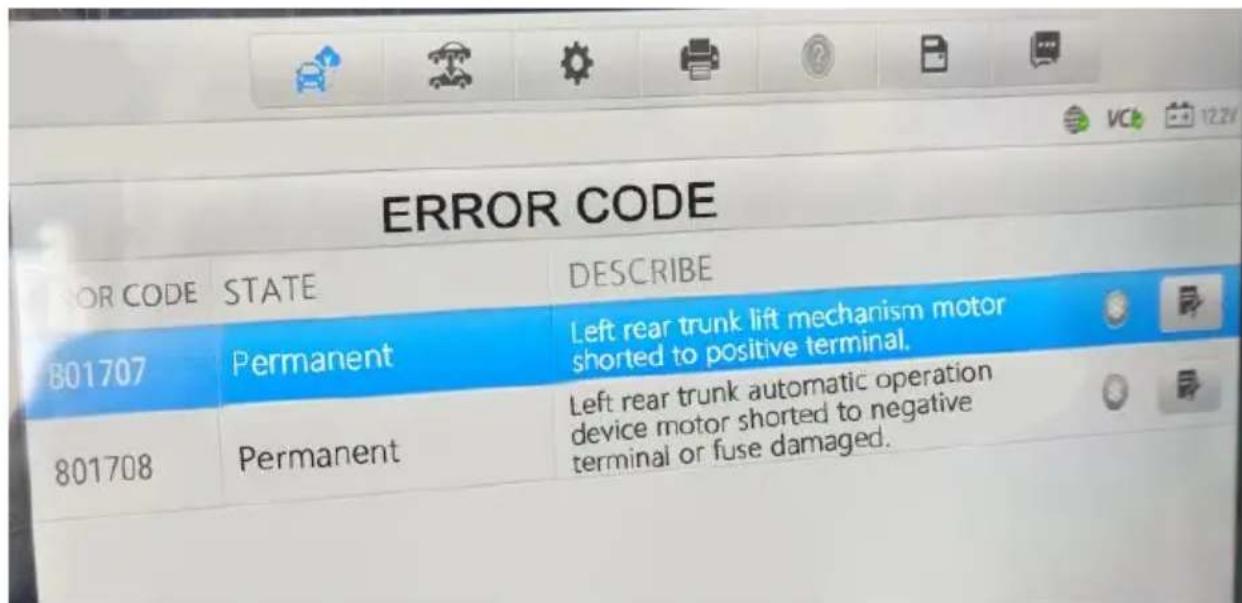

Permanent error code indicates an electrical fault in the tailgate; tailga replacement is required.

ERROR CODE ERROR CODE STATE DESCRIBE 801707 Permanent Left rear trunk lift mechanism motor shorted to positive terminal. 801708 Permanent Left rear trunk automatic operation device motor shorted to negative terminal or fuse damaged.

4. Precautions for Installing the Power Tailgate Stru

- To ensure the safety and proper functioning of our products, installation should be performed by qualified professionals. Do not disassemble the product, and avoid forcibly pushing or pulling the tailgate to prevent vehicle damage or sa incidents;

- Before installing the product, check the dashboard display functions, ensure button operations are normal, and inspect for any scratches on the interior air exterior surfaces. Report any issues to the customer immediately.

- Check if the power tailgate strut operates correctly and if the indicator light are functioning properly.

● Turn off the engine and prepare the necessary tools;

- For Installers: Remove any metal objects and other hard materials from the vehicle to prevent damage or scratches during installation.

- Carefully remove and store car parts to avoid scratching the dashboard. Cl up any wire fragments promptly and ensure connectors are well-insulated to prevent short circuits.

- Route the wiring according to the original vehicle layout. Secure each wire harness to avoid interference with moving parts such as the steering column, accelerator, and brake pedals

• Connect each wire harness following the original factory wiring scheme, paying attention to the grounding wire.
• Do not replace wires or components while powered.
  ● After installation, manually close the tailgate to allow the system to initialize
• Ensure the tailgate is secured during the installation process to prevent it falling and causing injury.
