D3304 - Electric tailgate opener Vevor - Free user manual and instructions

Product Type	Electric Rear Tailgate Opener
Brand	Vevor
Model	D3304
Rated Voltage	12 V DC
Operating Voltage	9 – 16 V DC
Operating Current	≤ 8 A
Stall Current	≤ 25 A
Opening/Closing Time	17 – 20 seconds
Operating Temperature	-30 °C to +80 °C
Operating Principle	Electric motor converting rotary motion into alternating linear motion of the push rod
Materials	Steel, plastic, electronic components
Main Functions	Electric opening and closing of the tailgate, control via button or diagnostic tool
Maintenance and Cleaning	Clean connectors, ensure proper insulation, avoid short circuits
Safety	Installation by a qualified professional, disconnect power before intervention, secure the tailgate during installation
Spare Parts and Repairability	In case of a permanent error code, replace the entire electric actuator
General Information	Compatible models: D1206, D3304, D3305, D4806, D2002, YQ53203, D1304, D5102, D5801, D5104

Frequently Asked Questions - D3304 Vevor

What are the compatible models for this electric actuator?

Compatible models include: D1206, D3304, D3305, D4806, D2002, YQ53203, D1304, D5102, D5801, and D5104.

What is the operating voltage of the D3304?

The operating voltage is 9 to 16 V DC, with a rated voltage of 12 V DC.

How to install the Vevor electric tailgate?

Remove the inner panel of the tailgate, disconnect the old actuator, remove the clips, install the new actuator, reassemble the panel, then use a diagnostic tool to clear error codes.

How to clear error codes after installation?

Use a diagnostic tool like Autel or Launch to connect to the vehicle and clear the error codes. If the code is permanent, the actuator must be replaced.

What to do if the tailgate does not open electrically?

First check the electrical connections and fuses. If the problem persists, use a diagnostic tool to identify error codes. A permanent code indicates an electrical fault requiring replacement.

Can the tailgate be closed manually?

Yes, you can manually close the tailgate by holding it with both hands and lowering it slowly until the latch engages.

What safety precautions should be taken?

Installation must be performed by a qualified professional. Turn off the engine, remove metal objects, route wiring away from moving parts, and secure the tailgate to prevent falls.

How to reset the control module?

Use a compatible diagnostic tool (Autel, Launch) to reset the tailgate ECU control module.

Where can I get technical support or warranty?

Visit www.vevor.com/support for technical support and the electronic warranty certificate.

What tools are needed for installation?

You will need a flathead screwdriver, diagnostic tools (Autel or Launch), and possibly wrenches to remove panels.

USER MANUAL D3304 Vevor

ELECTRIC REAR HATCH LIFT

MODEL: D1206/D3304/D3305/D4806/D2002/YQ53203/D1304/D5102/D5801/D5104

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

1. Product Working Principle and Structure Introduction:

Working Principle:

The Power Liftgate is an electric drive device that converts the rotational motion of the motor into the linear reciprocating motion of the push rod. The strut motor is controlled by the tailgate ECU controller module to achieve the up and down extension and retraction of the electric strut, thereby completing the lifting and lowering action of the tailgate.

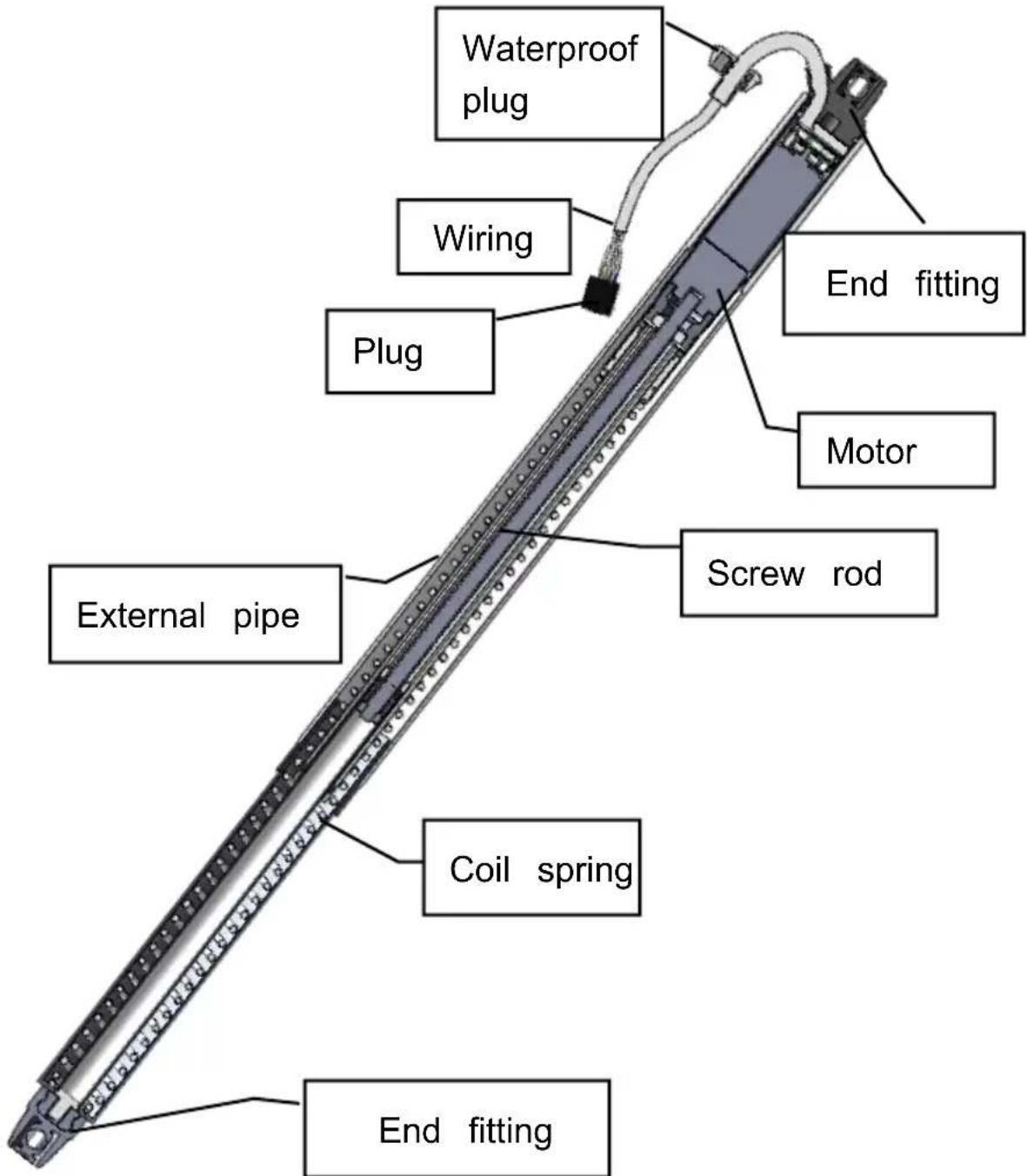

2. Internal Structure and Appearance:

Rated voltage: DC12V Operating voltage: DC9V-DC16V

Working current: ≤8A Stall current: ≤25A

Opening hours: 5s-8s Closing hours: 5s-8s

Operating temperature: -30°C +80°C

3. Power liftgate installation steps (Porsche Panamera for example)

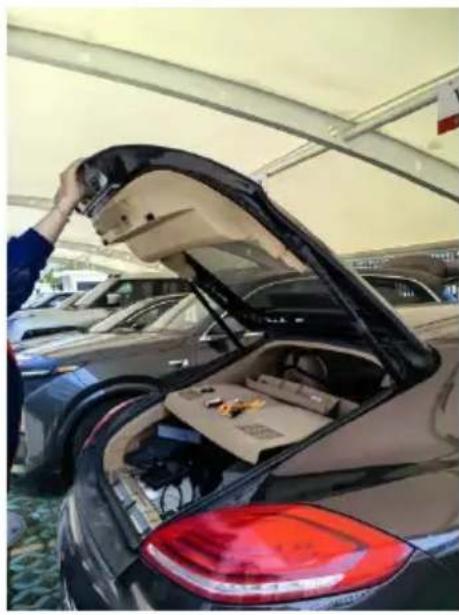

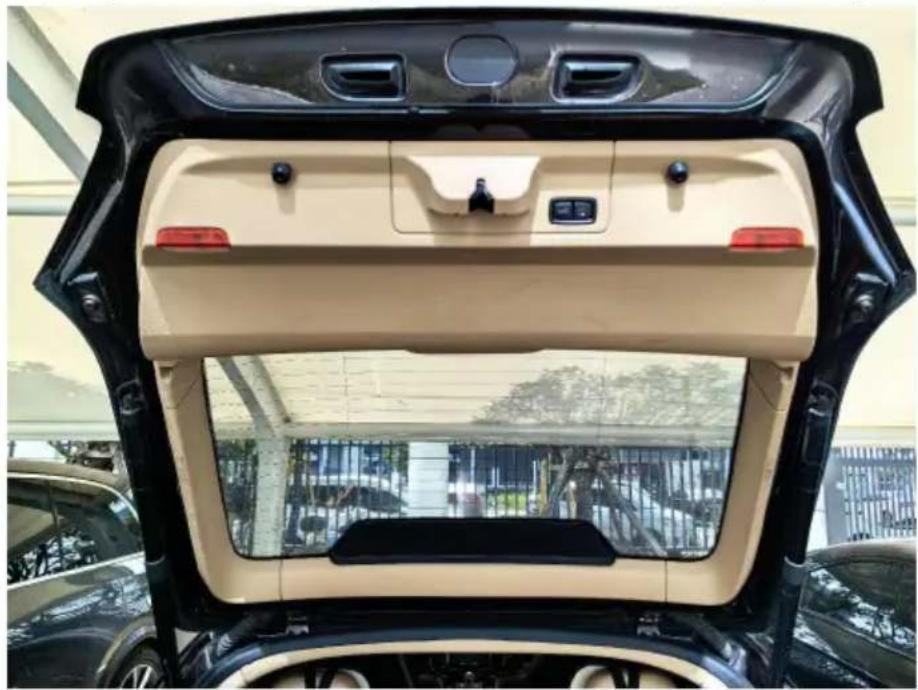

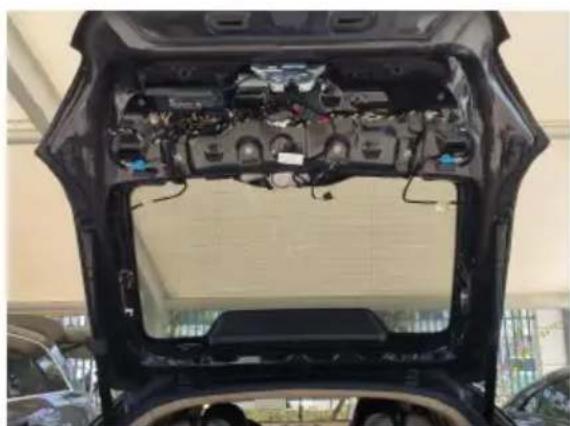

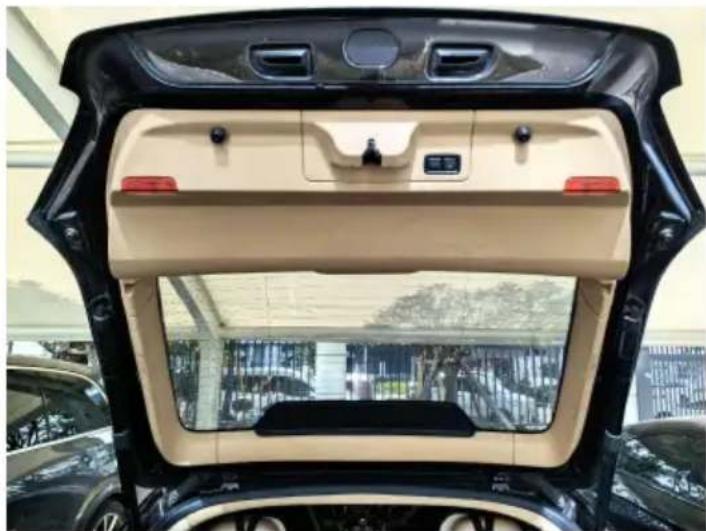

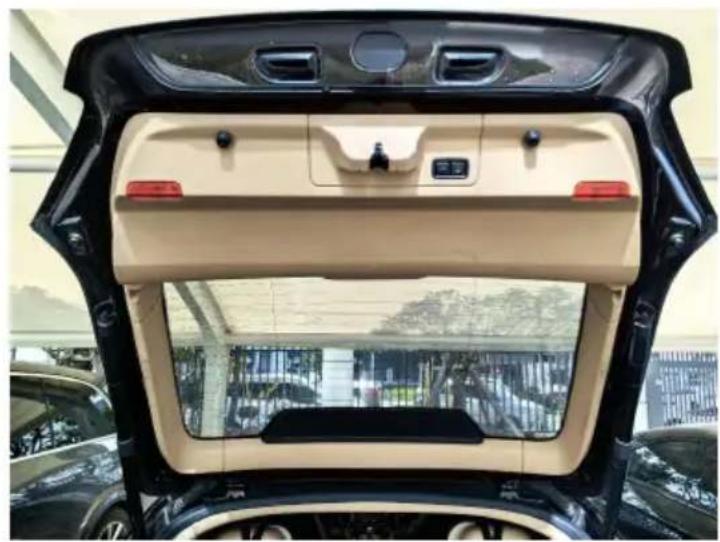

3.1 Remove the interior panel of the vehicle's tailgate.

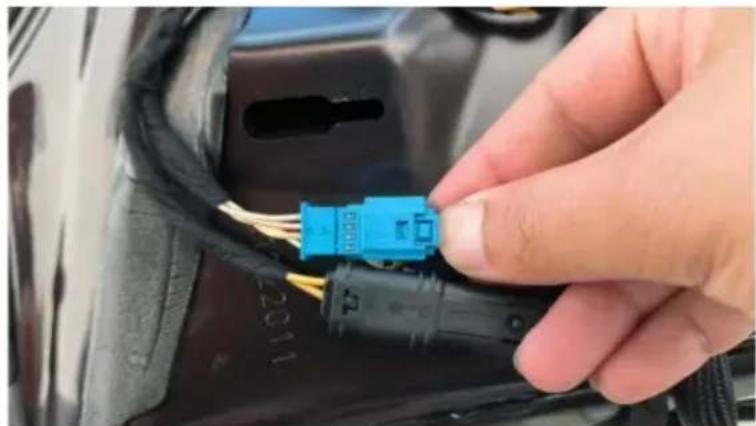

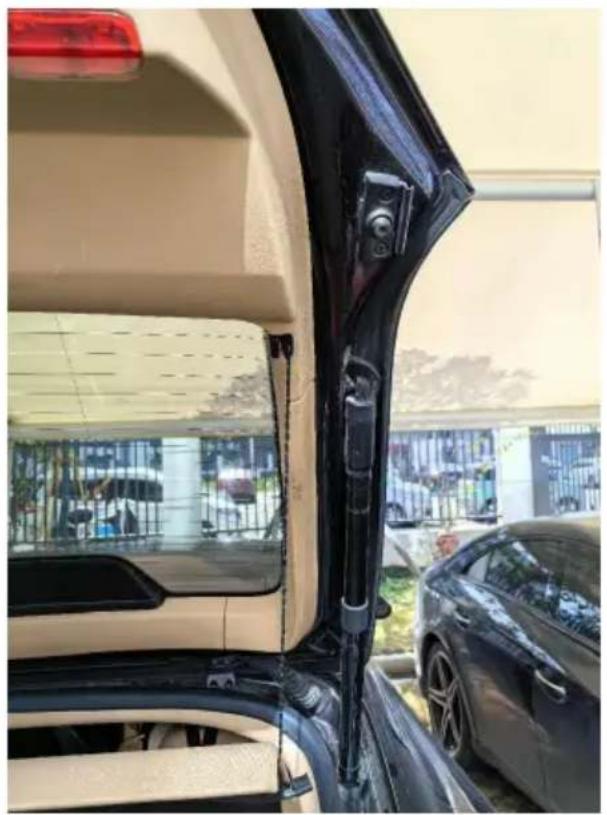

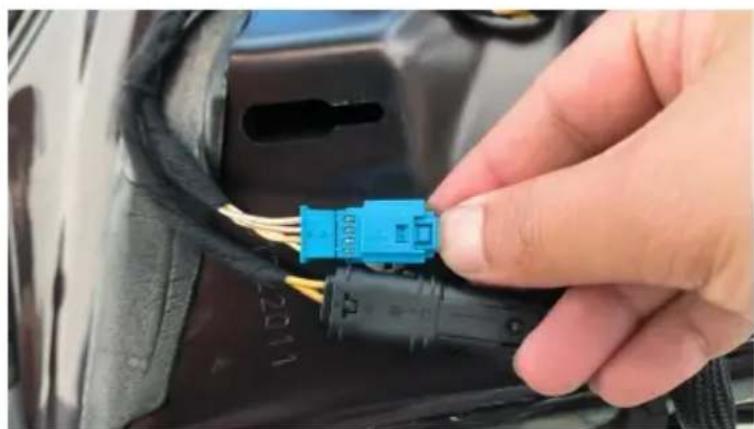

3.2 Then, disconnect the power tailgate plug from the vehicle's connection point.

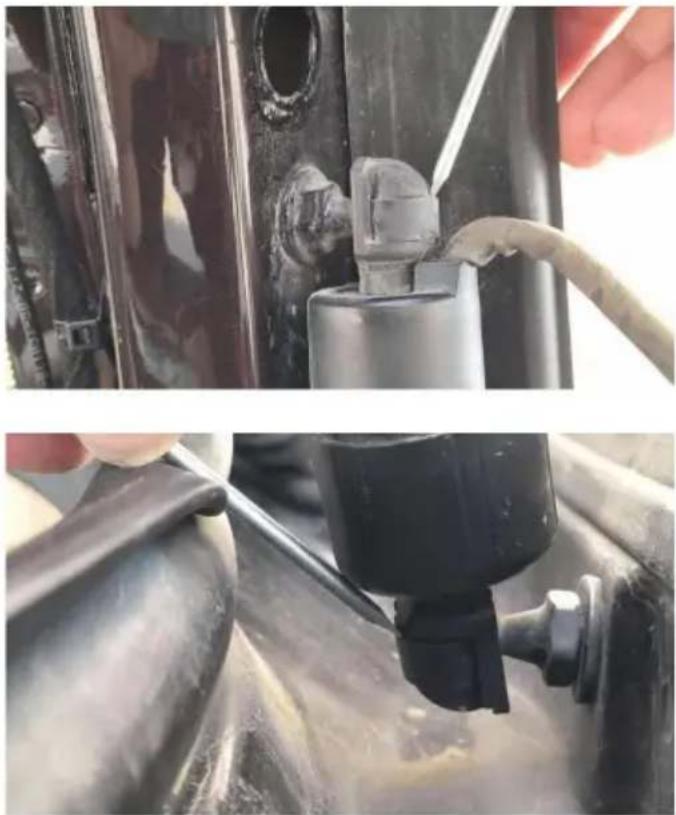

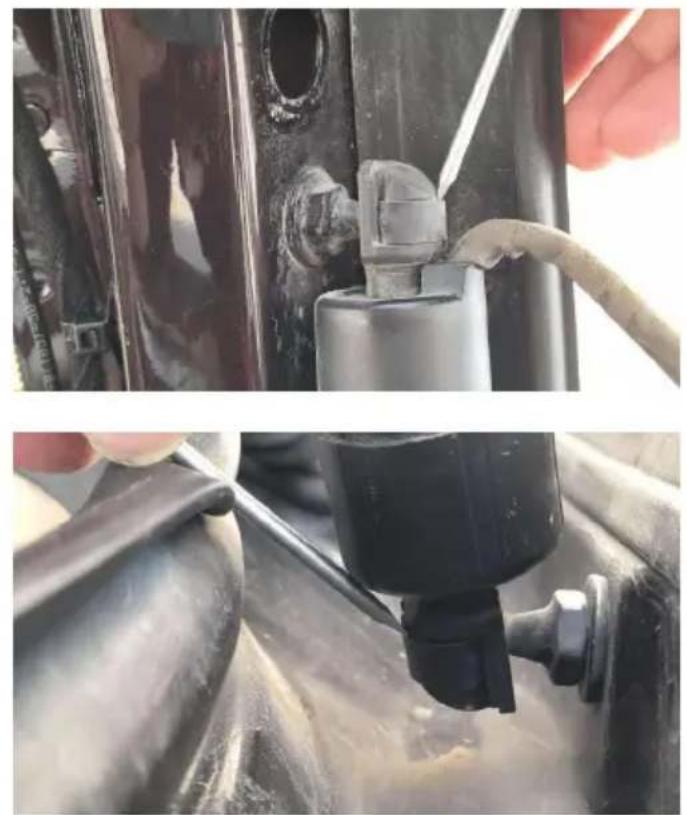

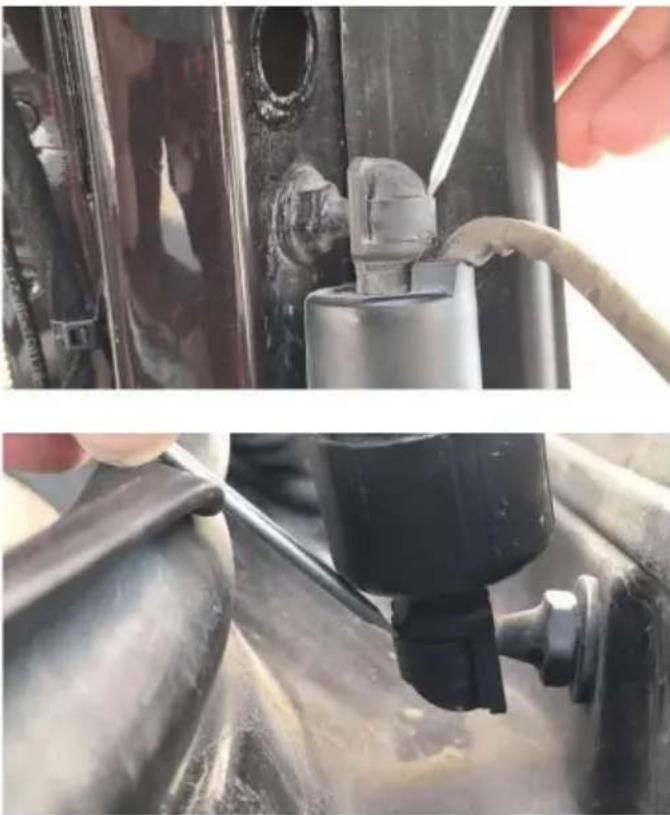

3.3 Using a flat-head screwdriver to remove the clips from the old tailgate, then install the new one. Same method for both sides.

3.4 After installing the new tailgate, reinstall the original panel.

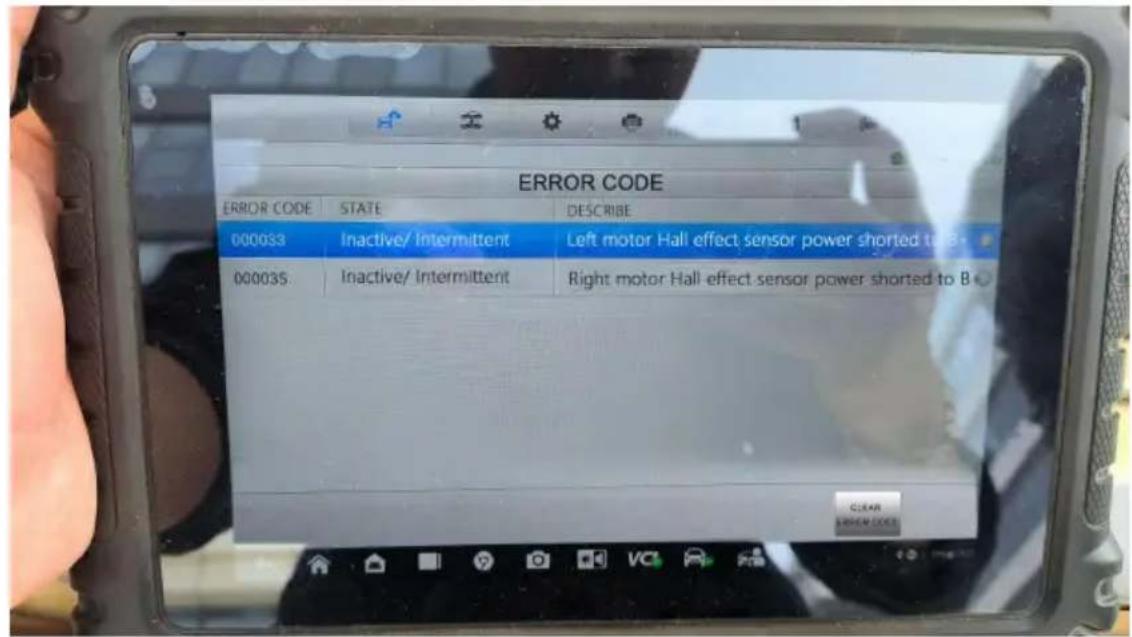

3.5 Use diagnostic tools to connect to the car and clear error codes caused by replacement of the power tailgate.

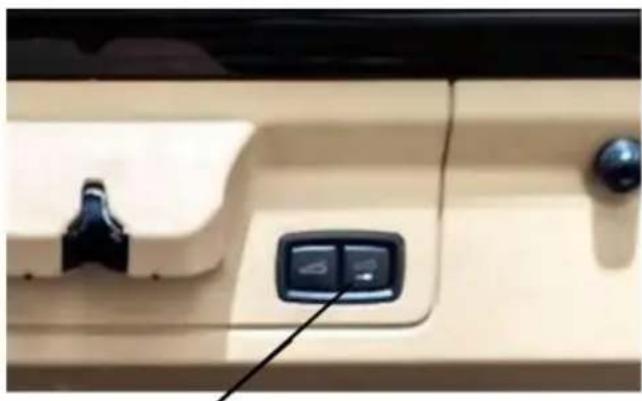

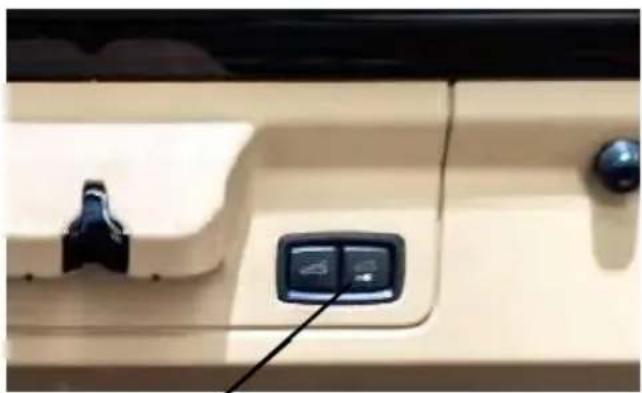

3.6 After clearing the error codes, you can activate the power tailgate closing using the following methods: 3.6.1 Press the tailgate close button directly. 3.6.2 Manually close the tailgate and then press the tailgate open button.

3.6.3 Reset the control module by using diagnostic tools like Autel or Launch then press the tailgate close button.

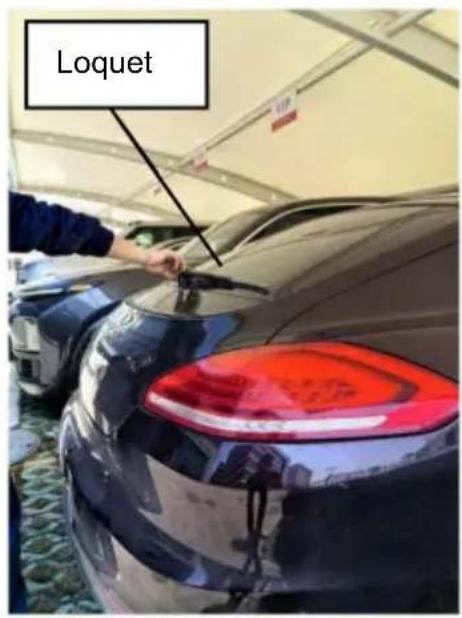

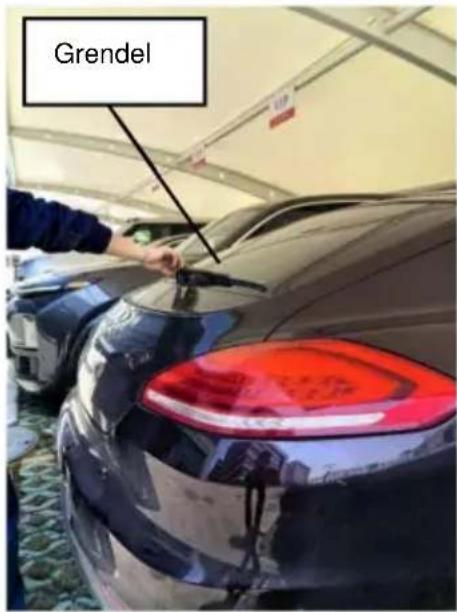

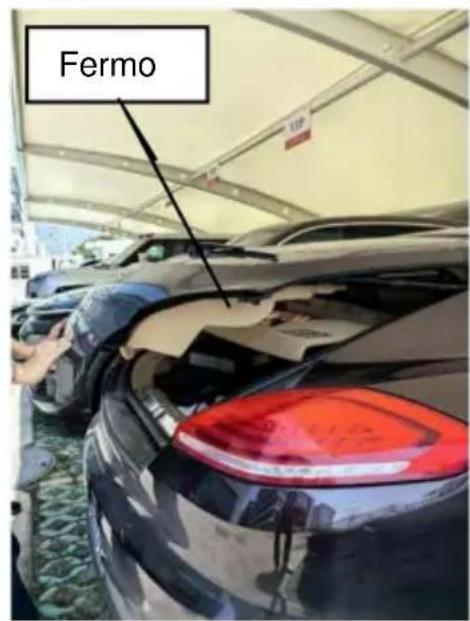

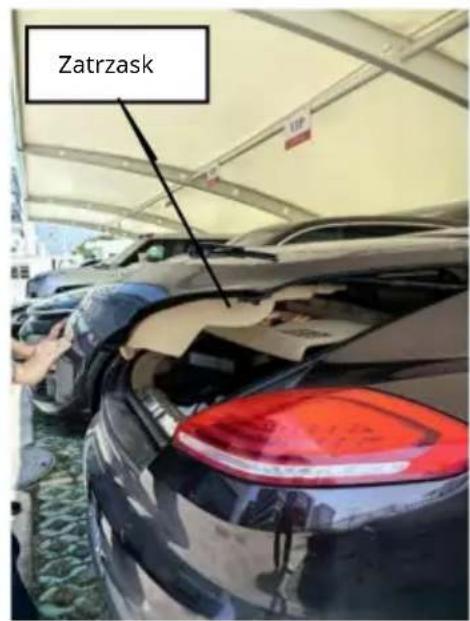

3.7 Manually close the tailgate by holding it with both hands and lowering it slowly until the lock engages with the latch.

Manual closing operation example

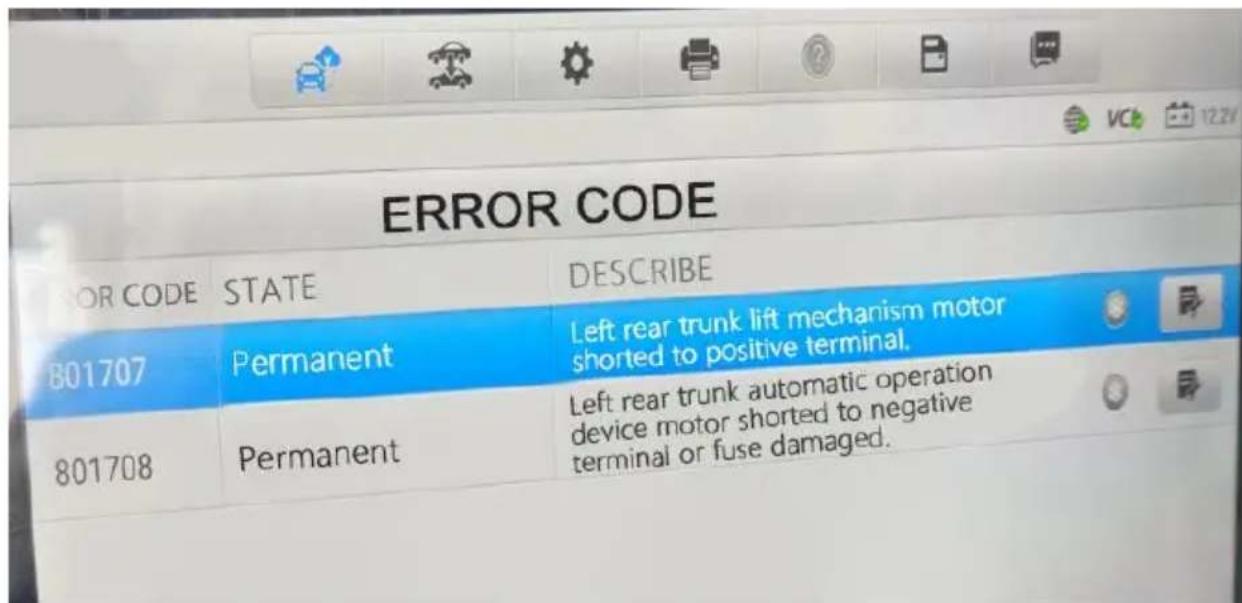

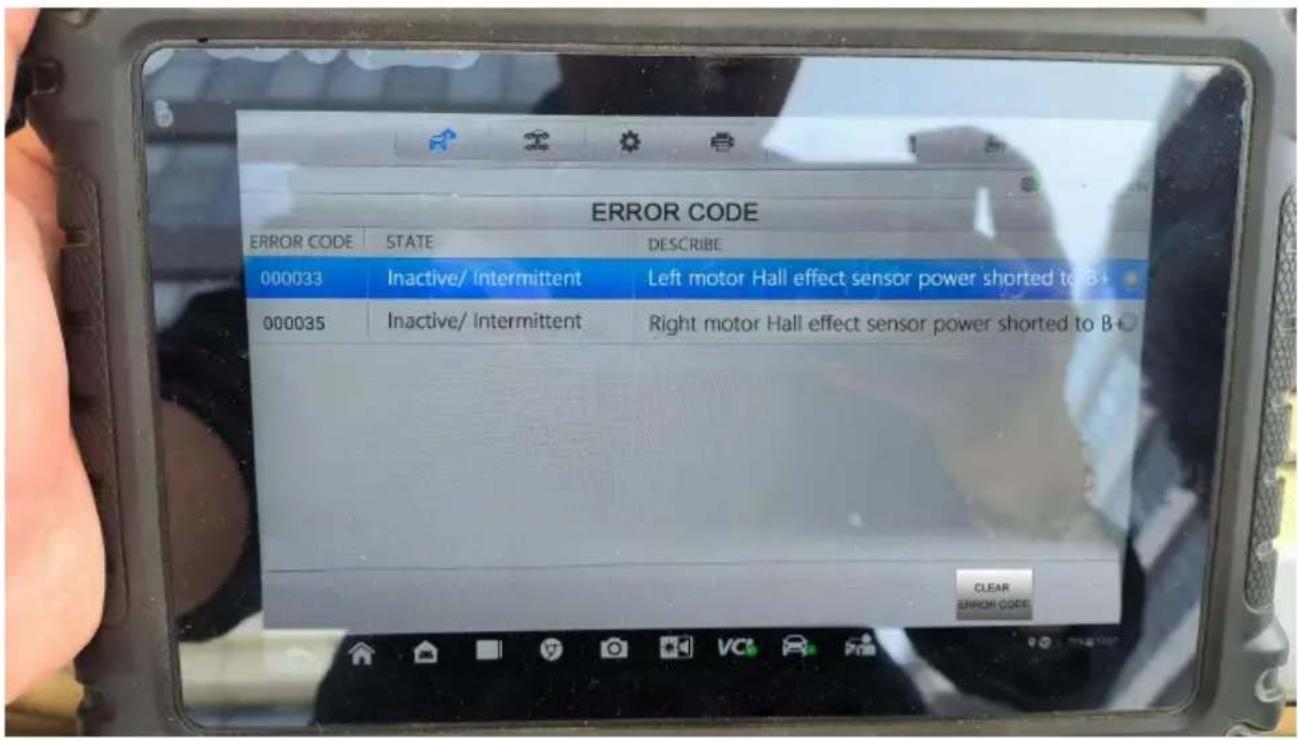

3.8 Troubleshooting: If the error code status is inactive or intermittent, it can be cleared by using the diagnostic tool.
