USER MANUAL EM2245B Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

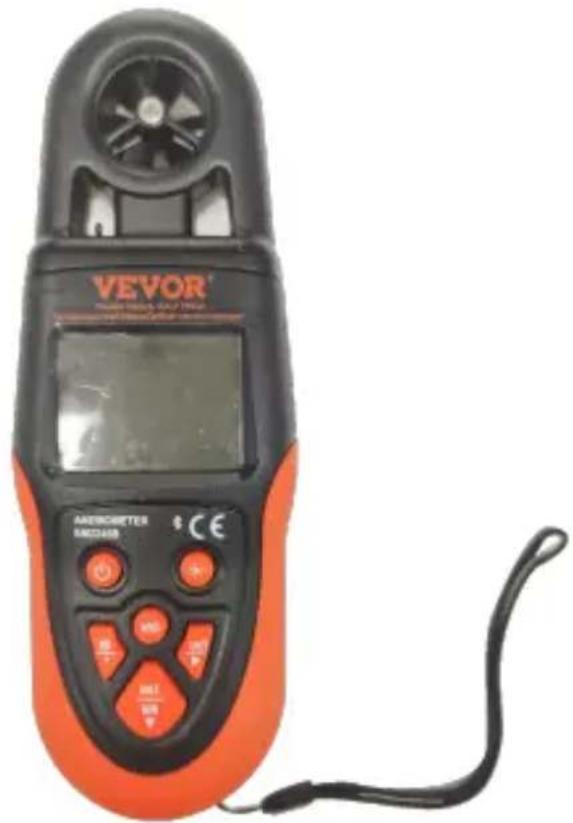

ANEMOMETER

INSTRUCTION SHEET

MODEL: EM2245B

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ANEMOMETER

MODEL: EM2245B

VEVOR® Power Transc. 100V DC Power Transc. 100V DC AERICHETER MEDIUM $ CE

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.
	This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices

INTRODUCTION

This meter is a portable anemometer that can be used to measure instantaneous, maximum, minimum, and average values of wind velocity, air flow, and temperature (wind temperature and wind chill temperature).

FEATURES

● Measurements of instantaneous, maximum, minimum, and average values of wind velocity, air flow, and temperature( wind temperature and wind chill temperature ) .
- Five kinds of wind velocity measurement units to select from.
- Two kinds of air flow measurement units to select from.
- Two kinds of temperature measurement units to select from.
● Area setting for air flow, with two unit options.
● Wind force indication.
● Wind chill temperature calculation.
- Data hold.
● Auto power off.
- Overrange indication.
● Low battery indication.

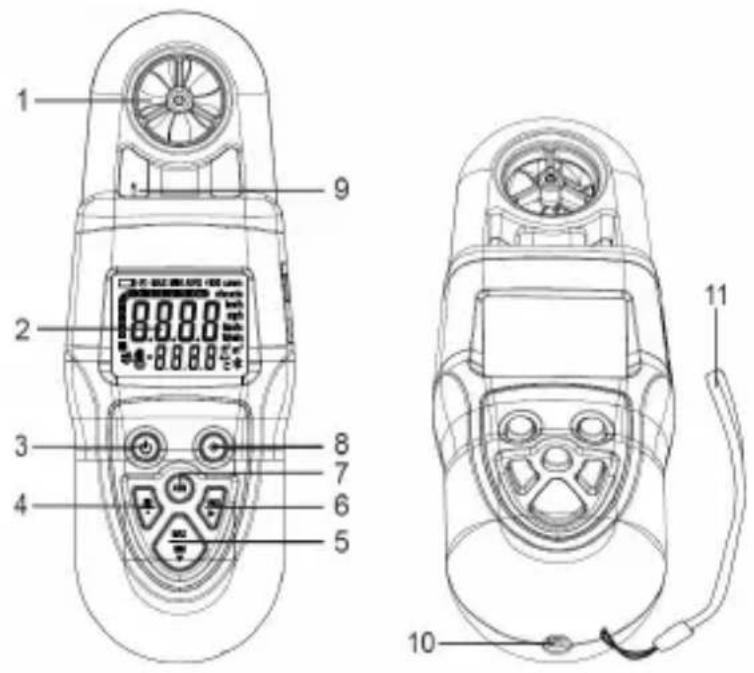

STRUCTURE

1 2 3 4 5 6 7 8 9 10 11

1. Vane

Used to sense air flow.

1. Display
2. " Button

Used to turn on/off the meter or enable/disable the automatic power-off feature.

1. " "Button

Used to enter/exit Data Hold mode or move the decimal point when setting the area.

1. " MAX Button MIN"

Used to select MAX/MIN recording mode or adjust the selected digit when setting the area.

1. " UNB Button

Used to select a desired measurement unit or move the flashing digit when setting the area.

1. "AVGButton

Used to enter AVG recording mode.

1. "Button

Used to turn on/off the backlight.

1. Temperature Sensor

Used to measure temperature.

1. American standard nut, 1/4-20 UNC
2. Carrying Strap

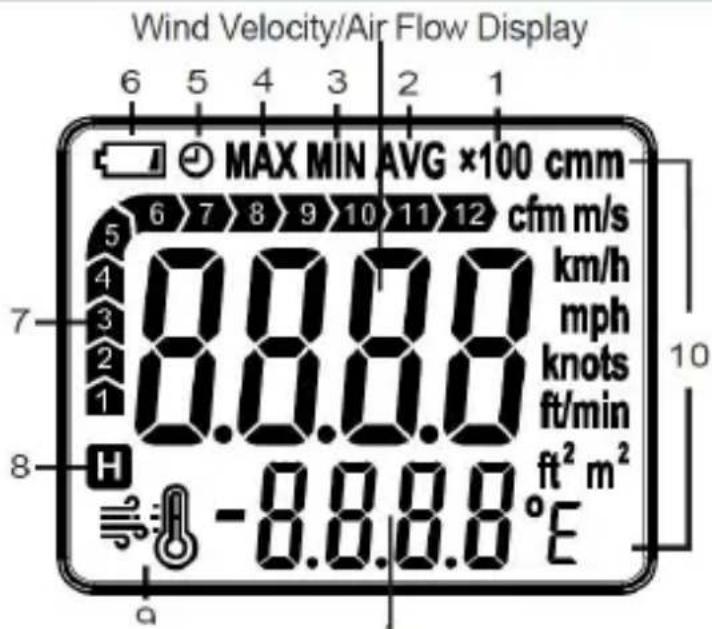

UNDERSTANDING THE DISPLAY

Wind Velocity/Air Flow Display 6 5 4 3 2 1 MAX MIN AVG ×100 cmm 6 7 8 9 10 11 12 cfm m/s 0.0.0.0 km/h 3 mph 2 knots 1 ft/min H -8.8.8.8°E 10 8 a

Temperature/Area Display

Explainations:

1. ×100——The current air flow is *100000. (When it is *10000, " ×10" will be displayed).
2. AVG--- The meter is in AVG recording mode, and the average wind velocity/air flow reading and the average temperature reading of all readings taken since entering this mode are being displayed.
3. MIN—The meter is in MIN recording mode, and the minimum wind velocity/air flow reading and the minimum temperature reading of all readings taken since entering this mode are being displayed.
4. MAX--- The meter is in MAX recording mode, and the maximum wind velocity/air flow reading and the maximum temperature reading of all readings taken since entering this mode are being displayed.
5. The automatic power-off feature is enabled.
6. Low battery indicator

5 6 7 8 9 10 11 12 4 3 2 1 —Beaufort scale

1. H—The meter is in Data Hold mode, and the readings on the display are locked.
2. Wind chill temperature is displayed.

10. Units

Unit	Meaning °C celsius degree
m/s	meters per second °F fahrenheit	heit degree
km/h	kilometers per hour cfm cubic	feet per minute
mph	miles per hour cmm cubic meters per minute
knots	nautical miles per hour	m^2	square meter
ft/min	feet per minute	ft	square feet

1. Turning on the Meter.

Install a new battery ( 9V, 6F22 or equivalent ) into the battery compartment, the display will show all segments briefly. Press the " 🔊 " button to turn on the meter and enter the measurement mode. The backlight will remain on after the meter is turned on.

1. Enabling and Disabling the Automatic Power-Off Feature.

When the meter is on, you can hold down the " 🔊" button for about 2 secs to enable or disable the automatic power-off feature. When the automatic power-off feature is enabled, 🔊 " is displayed as an indicator.

1. Turning on/off the Backlight.

Press the "●" button to turn on or off the backlight, if necessary.

1. Selecting a Desired Unit.

Press the "UNIT" button once to enter the unit setting mode, you can repeatedly press the "UNIT" button to scroll through the "m/s", "km/h"," mph", "knots", "ft/min","cmm","cfm", "°C", "°F", "###""°C" and "###""°F" units. When the desired unit appears, release the button. About 2 secs later, the meter saves the unit automatically and exits the unit setting mode.(The setting is not saved after power loss.)

1. Measuring Wind Velocity, Air Flow and Temperature.

Hold and position the meter so that the air flow passes through the vanes from the rear of the meter. For more accurate test results, try to keep the axis of the vanes within 20^ of the wind direction. Wait about 4 secs, then read the readings on the display.

1. Locking/Unlocking the Readings.

In measurement mode, briefly press the " " button to enter the Data Hold mode. The present readings are locked and the symbol " " appears on the display as an indicator. To exit the Data Hold mode, briefly press this " " button again. The readings are unlocked and the symbol " " disappears.

1. How to Use MAX Recording Mode and MIN Recording Mode

In instantaneous wind velocity/air flow/temperature measurement mode, press the "MAX" button once. The meter enters the MAX recording mode and the display shows the symbol MAX as an indicator. In this mode, the display always shows the maximum readings of all readings taken since entering this mode. Whenever the meter detects a new value which is higher than the presently displayed reading, the meter replaces the presently displayed reading with this new value.

Press the "MIN" button a second time. The meter enters the MIN recording mode and shows the symbol "MIN" on the display as an indicator. In this mode, the display always shows the minimum readings of all readings taken since entering this mode. Whenever the meter detects a new value which is lower than the presently displayed reading, the meter replaces the presently displayed reading with this new value.

Press the MAX button a third time. The meter exits the MIN recording mode and erases all recorded readings and returns to the instantaneous wind velocity/air flow/temperature measurement mode.

1. How to Use AVG Recording Mode

Press the "AVG" button once. The meter enters the AVG recording mode and shows the symbol "AVG" on the display as an indicator. In this mode, the display always shows the average readings of all readings taken since entering this mode.

Press the "AVG" button again. The meter exits the AVG recording mode and erases all recorded readings and returns to the instantaneous wind velocity/air flow/temperature measurement mode.

Note: In MAX recording mode, MIN recording mode, or AVG recording mode, if you press the "H" button to lock the readings, the meter will stop measuring and detecting new readings until you unlock the readings on the display.

1. How to Switch Display Between Wind Velocity, Air Flow, Wind Temperature and Wind Chill Temperature.

Press the UNIT button to select the corresponding unit to switch display between wind velocity, air flow, wind temperature and wind chill temperature.

1. Setting the Area for Air Flow Measurements.

When the meter is off, simultaneously press and hold the " " and " " buttons to turn on the meter and display the area setting interface( with a defa value of 1.000).

You can press the "UNIT" button to move flashing digit; press the "NODE" button to adjust the value of selected digit or change the unit; and press the "Button" to move the decimal point.

After you finish setting the area, press the " " button to turn off the meter and exit the setting mode. When the meter is turned on, it can be used to measure air flow.(Settings are not saved after power loss.)

1. Instruction for Wind Chill Temperature.

After selecting the unit for wind chill temperature, the symbol " will be displayed. When the wind velocity is * 1.34m/s, and the wind temperature is * 10°C, the wind chill temperature is calculated ; when the wind velocity is * 1.34m/s, and the wind temperature is * 10°C, the wind chill temperature is equal to the wind temperature; when the wind temperature is * 10°C, the display show "Hi".

1. Instruction for Air Flow.

When the air flow exceeds 9999, the display will show the first four digits of the air flow value. The multiplier × 10 " will be displayed when the air flow is * 10000 and when it is * 100000, the multiplier × 100 " will be shown.

Note: The area should be set before measuring air flow.

1. Turning off the Meter

If you have not pressed any button for about 5 minutes, the meter will turn off automatically if the automatic power-off feature is enabled. At any time, you can manually turn off the meter by briefly pressing the "button."

1. Establishing the Bluetooth Connection.

This meter can transmit instantaneous values of wind velocity and wind temperature through Bluetooth connection. And you need an intelligent device ( such as a tablet PCor smartphone ) with an AllSensor app already installed or

it to be able to establish a Bluetooth connection. After you

install the app on the intelligent device and turn on Bluetooth on this device, you can monitor the meter measurements, view graphical plot of measurement readings, and etc., through this app. The recorded data can be saved as an EXCEL, JPG or PDF file.

Note: Bluetooth connectivity works over a range of about 10 meters in an area where there is no obstacle and intense electromagnetic interference.

The Bluetooth connectivity can vary depending on the signal receiving capacity of the intelligent device which you use.

System Requirements

1. Android or iOS device with Bluetooth connectivity
2. Android 7.0 or later, or iOS 9 or later

How to Install the App

QR code image containing encoded data, no visible human-readable text

1. If you want to connect an Android device to the meter, download the free AllSensor app for

Android operating system from Google Play Store. Or you can download this free app from the specified website

(http://www.allsun.com/app/allsensor.apk) or by scanning QR Codes with

your Android device. If you want to connect an iOS device to the

meter, search for the AllSensor app in the App Store and then download the AllSensor app.

1. Install the downloaded app on your device.

How to Establish the Bluetooth Connection

1. After you install the AllSensor app on your Android or iOS device, locate and tap the AllSensor

icon on the Home screen or Apps screen of the device to run this app. Tu on Bluetooth on the device.

1. Turn on the meter, and it will automatically search for the Bluetooth signal. It takes about 2 to 5

seconds to establish the Bluetooth connection.

1. After the Bluetooth connection has been established, the data (readings) of present

measurement results will be automatically transferred to the intelligent device and displayed on the relevant interfaces of the AllSensor app.

SPECIFICATIONS

Wind Velocity	Range	Resolution	Accuracy
m/s	0.8 ~ 31.0	0.1	±(5% + 0.5m/s)
km/h	2.86 ~ 111.6	0.22	±(5% + 1.80km/h)
ft/min	153.4 ~ 6102	11.8	±(5% + 98.4ft/min)
mph	1.82 ~ 69.35	0.14	±(5% + 1.12mph)
knots	1.56 ~ 60.26	0.12	±(5% + 0.97knots)

Air Flow	Range	Resolution
cfm	0 ~ 999900	0.001 ~ 100
cmm	0 ~ 999900	0.001 ~ 100

Wind Temperature	Range	Resolution	Accuracy
°C	-10°C~60°C	0.1°C	±2°C
°F	14°F~140°F	0.2°F	±3.6°F
Wind Chill Temperature	Range	Resolution	Condition
°C	-26.3°C~10°C	0.1°C	Ambient temperature: -10°C~10°C Wind velocity: 1.34m/s~35m/s
°F	-15.3°F~50°F	0.2°F	Ambient temperature: 14°F~50°F Wind velocity: 1.34m/s~35m/s

Beaufort Scale	Range	Resolution
Scale	1 ~ 12	1

Area	Range	Resolution
m^2	0.001 ~ 9999	0.001 ~ 1
ft^2	0.001 ~ 9999	0.001 ~ 1

Calculation Formula for Air Flow:

CFM(ft3/min)=Air Velocity(ft/min)xArea(ft2)

CMM(m3/min)=Air Velocity(m/sec)xArea(m2)x60

Table of Correspondence

Scale	0	1	2	3	4
Wind Velocity (m/s)	0 ~ 0.2	0.3 ~ 1.5	1.6 ~ 3.3	3.4 ~ 5.4	5.5 ~ 7.9

Scale	5	6	7	8
Wind Velocity (m/s)	8.0 ~ 10.7	10.8 ~ 13.8	13.9 ~ 17.1	17.2 ~ 20.7
Scale	9	10	11	12
Wind Velocity (m/s)	20.8 ~ 24.4	24.5 ~ 28.4	28.5 ~ 32.6	*32.6

GENERAL SPECIFICATIONS

1. Overrange Indication:

2. When the measured wind velocity exceeds 35m/s (126km/h,6890ft/min, 78.4mph, or 68.04knots ), the display shows "OL".

3. When the wind temperature is below -10^(14^) , the display shows "Lo"; when it is above 60^(140^) , the display shows "Hi".
4. When the air flow exceeds the display range(9999 × 100), the display shows "OL".
5. When the wind chill temperature is below -26.3^(-15.3^) , the display shows "Lo";

6. when it is above 10^(50^) , the display shows "Hi".

7. Auto Power Off:

The meter will turn off automatically if there is no button press for about 5 minutes.

1. Low Battery Indicator: " shown on the display.
2. IP Degree: IP10
3. Battery: 9V battery, 6F22 or equivalent, 1 piece
4. Operating Environment: Temperature: 0°C \~ 40°C Relative Humidity: < 80%
5. Storage Environment: Temperature: -20°C \~ 60°C Relative Humidity: < 90%
6. Dimensions: 190mm x 67mm x 43mm
7. Weight: About 292g (including batteries)

BATTERY REPLACEMENT

• When the display shows ",the batteries are low and must be replaced immediately.
• Before battery replacement, make sure that the meter has been turned off. To replace the batteries, remove the battery cover on the back of the meter. Then replace the old batteries with new ones of the same type, make sure that the polarity connections are correct. Reinstall the battery cover.

CLEANING

Periodically wipe the case with a damp cloth and a little mild detergent. not use abrasives or solvents.

NOTE

1. This Instruction Sheet is subject to change without notice.
2. Our company will not take the other responsibilities for any loss.
3. The contents of this Instruction Sheet can not be used as the reason use the meter for any special application.

LIST OF ACCESSORIES

1. Operating instructions * 1
2. Product lanyard * 1
3. Storage bags * 1
4. Carbon batteries(6F22) * 1

DISPOSAL OF THIS ARTICLE

Dear Customer,

If you at some point intend to dispose of this article, then please keep in mind that many of its components consist of valuable materials, which can be recycled.

Please do not discharge it in the garbage bin, but check with your local council for recycling facilities in your area.

Symbol of a trash bin with crossed lines and a solid rectangle below (no text or labels)

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd, Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
