GKIT6 - Tool kit Vevor - Free user manual and instructions

USER MANUAL GKIT6 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CHAIN LINK ROLLING GATE KIT

MODEL:GKIT6

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Chain link rolling gate

Model:GKIT6

Collection of various metallic mechanical components and assemblies, including clamps, gears, and a wheel (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

SAFETY INSTRUCTIONS

1. Products need to be installed by adults, and gloves are required due the installation.
2. Children are prohibited from installing the product.
3. Check the product for stability regularly to avoid product damage ca by nut loosening.
4. The product is outdoors for a long time, so it is recommended that metal parts be treated with rust prevention to better prolong the life of product.

PARAMETER LIST

Model	GKIT6
Rolling Gate Wheels maximum load-bearing	600lbs
Outer diameter of the Rolling Gate Wheels	Ø145.8mm
Rolling Gate Wheels fitting door frame tube	Ø32-Ø60mm
Outer diameter of the Rolling Gate Track Wheel	Ø125mm
Rolling Gate Track Wheels fitting door frame ra	Ø32-Ø42mm
Rolling Gate Track Wheels fitting door frame cc	Ø41-Ø55mm
Track Brackets fitting door frame rail pipe	Ø32-Ø42mm
Track Brackets Wheels fitting door frame colur	Ø41-Ø73mm
Rolling Gate Latch fitting door frame column	Ø41-Ø47mm

List of kit parts

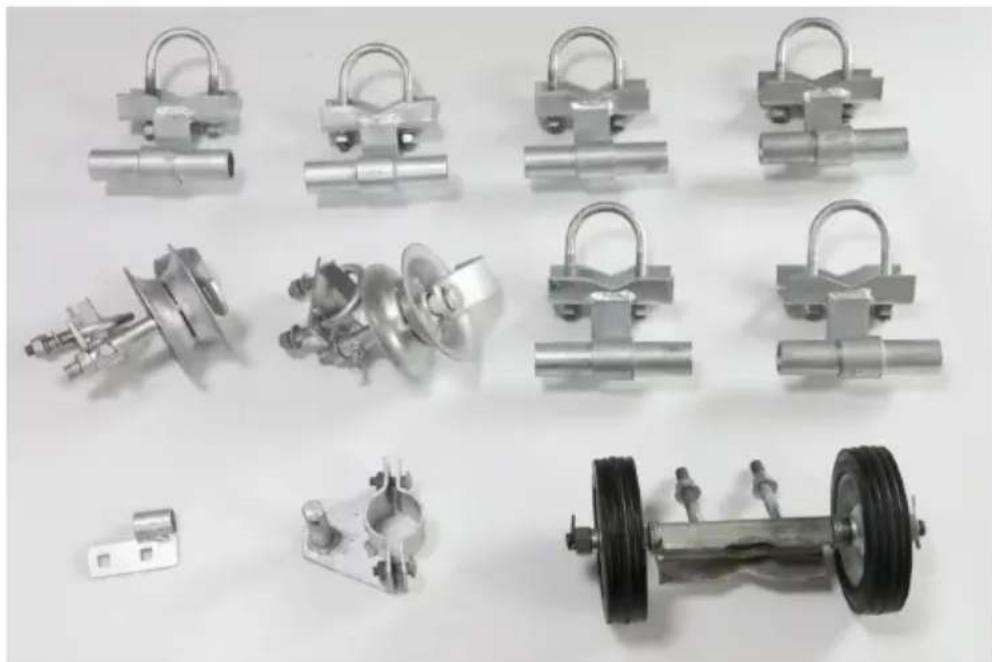

Rolling Gate Wheels*1pc	Rolling Gate Track Wheels*2pc	Track Brackets *6pc	Rolling Gate Latch*1pc

INSTALLATION GUIDE

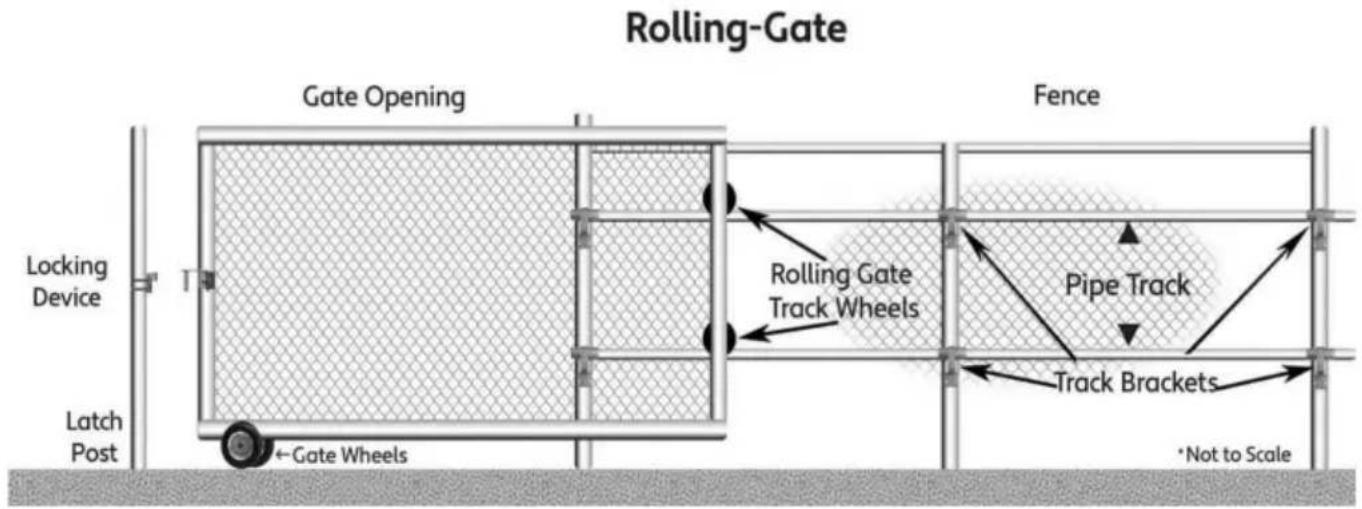

Rolling-Gate Gate Opening Fence Locking Device Rolling Gate Track Wheels Pipe Track Track Brackets Latch Post Gate Wheels *Not to Scale

Rolling Gate Wheels assembly

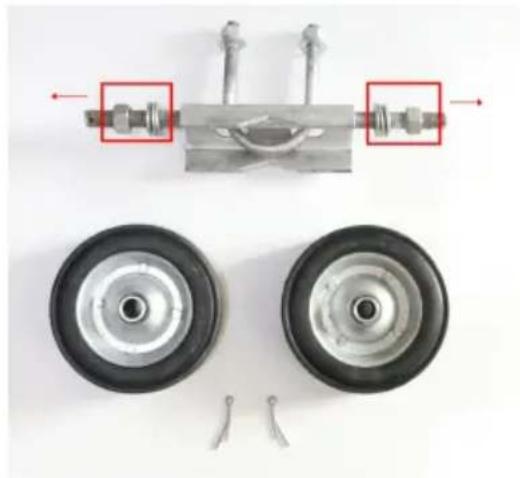

1. First, remove the open pins, nuts and metal gaskets at both ends Rolling Gate Wheels support, and keep 2 metal gaskets at both ends The two Rolling Gate Wheels are placed at both ends of the bracket metal gaskets are placed at both ends, then screw in the nut to loc finally restore the pin to its original position to complete the assembly Rolling Gate Wheels.

Mechanical assembly diagram showing a shaft and wheel assembly with red arrows indicating motion or force directions (no text or symbols present)

Mechanical component with two black tires and a central metallic shaft (no text or symbols visible)

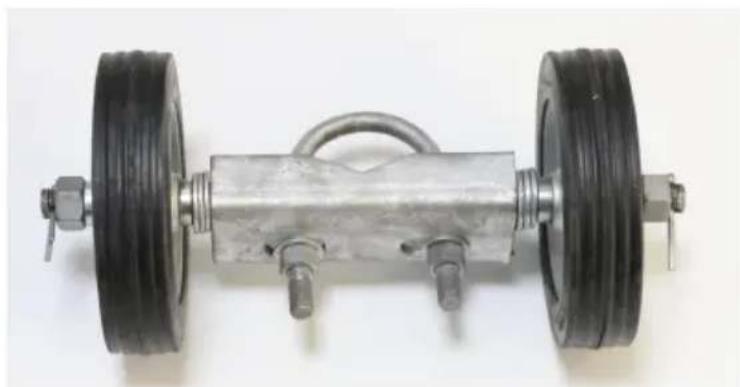

2.Open the nut of the U-shaped bolt, remove the U-shaped bolt, plac door frame pipe in the middle of the rolling gate wheel bracket, then the U-shaped bolt to the door frame pipe, lock the nut to complete

installation of the rolling gate wheels and door.

For firm installation, insert the open pin back into the through holes ends of the wheel shaft.

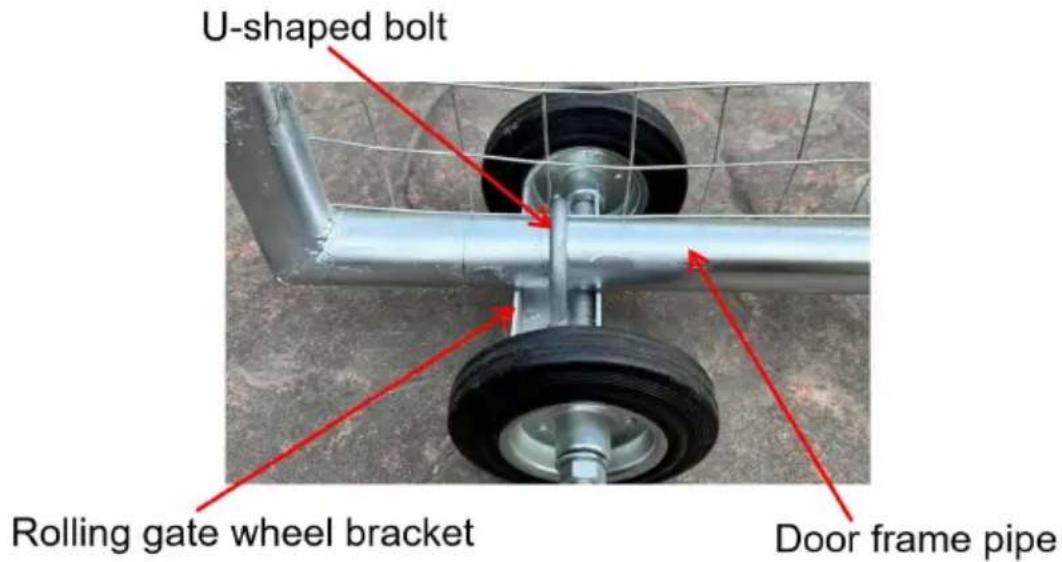

U-shaped bolt Rolling gate wheel bracket Door frame pipe

Installation of Rolling Gate Track Wheels

1. Release the nut on the axle of the track wheels, separate the axle the track wheels, place the track wheels in the door frame rail pipe, reinstall the axle of the track wheels.

Remove the U-bolt of the track wheels and set it on the door frame and lock the U-bolt and track wheels bracket with a nut to complete assembly installation.

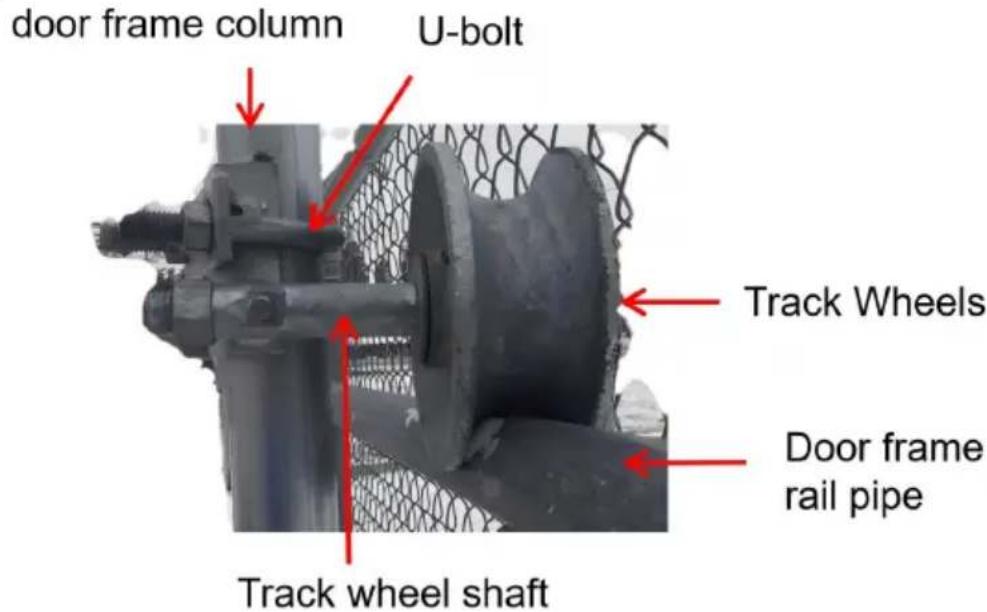

door frame column U-bolt Track Wheels Door frame rail pipe Track wheel shaft

Install track bracket

1. Cover the U-shaped bolt to the fence post, lock the fence post and rail bracket with the nut, and put the rail pipe of the fence gate into a bracket to complete the component installation.

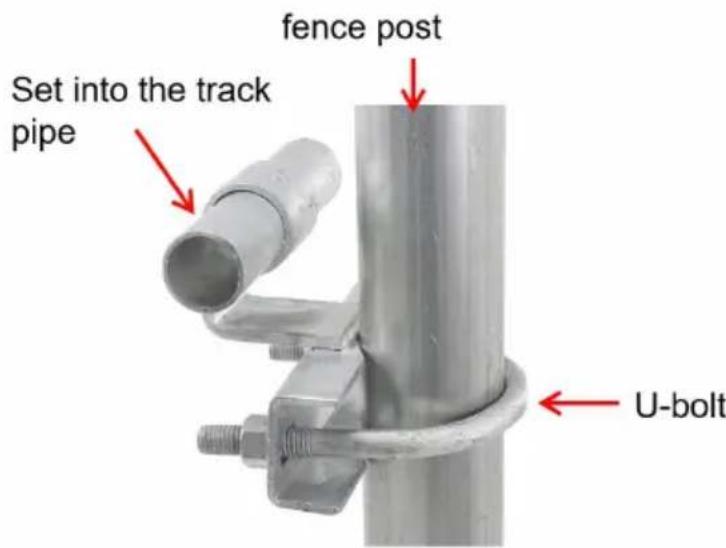

fence post Set into the track pipe U-bolt

Rolling Gate Latch Installation

1. After releasing the rolling gate latch to the nut, then wrap the door column, and slightly lock the nut, the rolling gate latch can be slid up down after installation;

2. Rolling gate latch receiver pin is fixed in the latch post through the support belt; receiver pin need to buy extra for yourself.

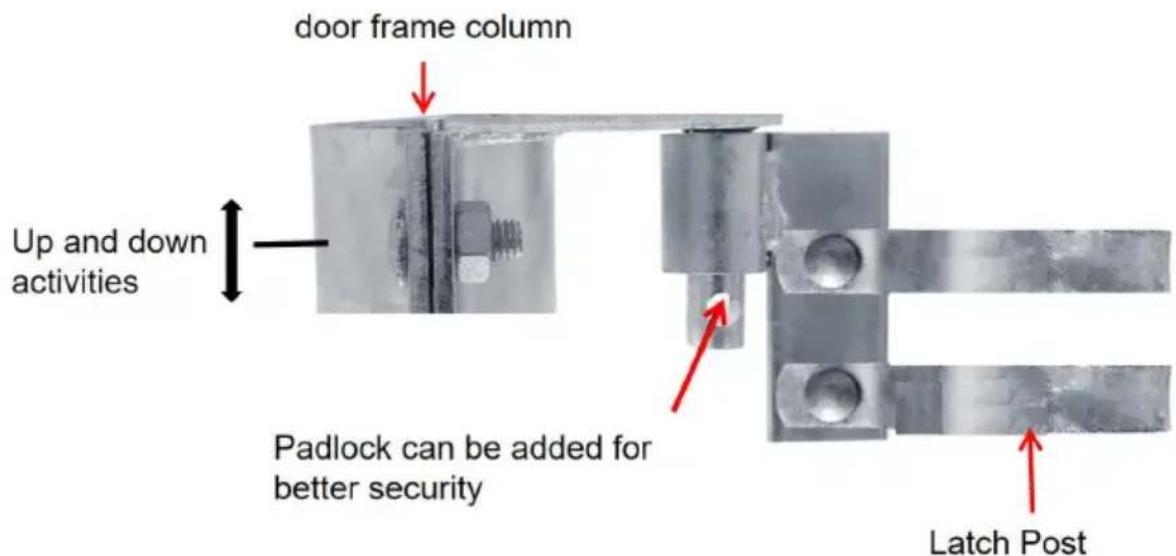

door frame column Up and down activities Padlock can be added for better security Latch Post

Product maintenance

1. Check the product regularly for loose installation to avoid damage to operation of loose parts.
2. Clean up the dirt on the surface of the product regularly, so that t product runs more smoothly.
3. The product is outdoors for a long time, so it is recommended that metal parts be treated with rust prevention to better prolong the life of product.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Collection of various metallic mechanical components and assemblies, including clamps, gears, and a wheel (no visible text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Close-up of two metallic mechanical components with mounting holes and a bracket (no text or symbols visible)

Portail roulant Loquet*1pc

GUIDE D'INSTALLATION

Rolling-Gate Gate Opening Fence Locking Device Rolling Gate Track Wheels Pipe Track Track Brackets Latch Post ← Gate Wheels *Not to Scale

Two views of a mechanical assembly: one showing a cylindrical component with red annotation boxes, the other a view of a multi-crank wheel assembly with visible springs and bolts (no text or symbols)

U-shaped bolt Rolling gate wheel bracket Door frame pipe

door frame column U-bolt Track Wheels Door frame rail pipe Track wheel shaft

Installer le support de rail

fence post Set into the track pipe U-bolt

door frame column Up and down activities Padlock can be added for better security Latch Post

Route, Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

Collection of various metallic mechanical components and assemblies, including clamps, gears, and a wheel (no visible text or symbols)

Rolling-Gate Gate Opening Fence Locking Device Rolling Gate Track Wheels Pipe Track Track Brackets Latch Post ← Gate Wheels *Not to Scale

Two views of a mechanical assembly: one showing a cylindrical component with red annotation boxes, the other a view of a multi-crank wheel assembly with visible springs and bolts (no text or symbols)

U-shaped bolt Rolling gate wheel bracket Door frame pipe

door frame column U-bolt Track Wheels Door frame rail pipe Track wheel shaft

fence post Set into the track pipe U-bolt

door frame column Up and down activities Padlock can be added for better security Latch Post

Produktwartung

YH CONSULTING LIMITED. C/O YH Consulting

Collection of various metallic mechanical components and assemblies, including clamps, gears, and a wheel (no visible text or symbols)

www.vevor.com/support Questa

Rolling-Gate Gate Opening Fence Locking Device Rolling Gate Track Wheels Pipe Track Track Brackets Latch Post ← Gate Wheels *Not to Scale

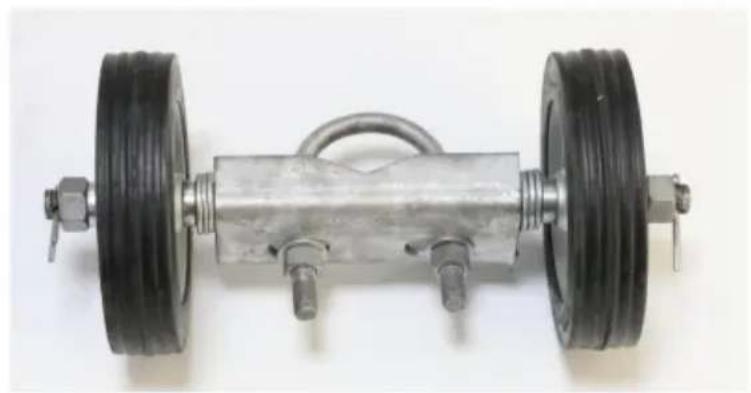

Montaggio ruote saracinesca

Mechanical assembly diagram showing a sliding contact with two wheels and a mechanical component (no text or symbols)

Mechanical component with two black tires and a central shaft, no visible text or symbols

U-shaped bolt Rolling gate wheel bracket Door frame pipe

door frame column U-bolt Track Wheels Door frame rail pipe Track wheel shaft

Installare la staffa del binario

fence post Set into the track pipe U-bolt

door frame column Up and down activities Padlock can be added for better security Latch Post

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

Nuovo Galles del Sud 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim

Luogo, Rancho Cucamonga, CA 91730

RAPPRESENTANZA DEL REGNO UNITO

Strada, Staines-upon-Thames, Surrey, TW18 4AX

Collection of various metallic mechanical components and assemblies, including clamps, gears, and a wheel (no visible text or symbols)

Close-up of two metallic mechanical components with mounting holes and a bracket (no text or symbols visible)

Puerta enrollable Pestillo*1 pieza

GUÍA DE INSTALACIÓN

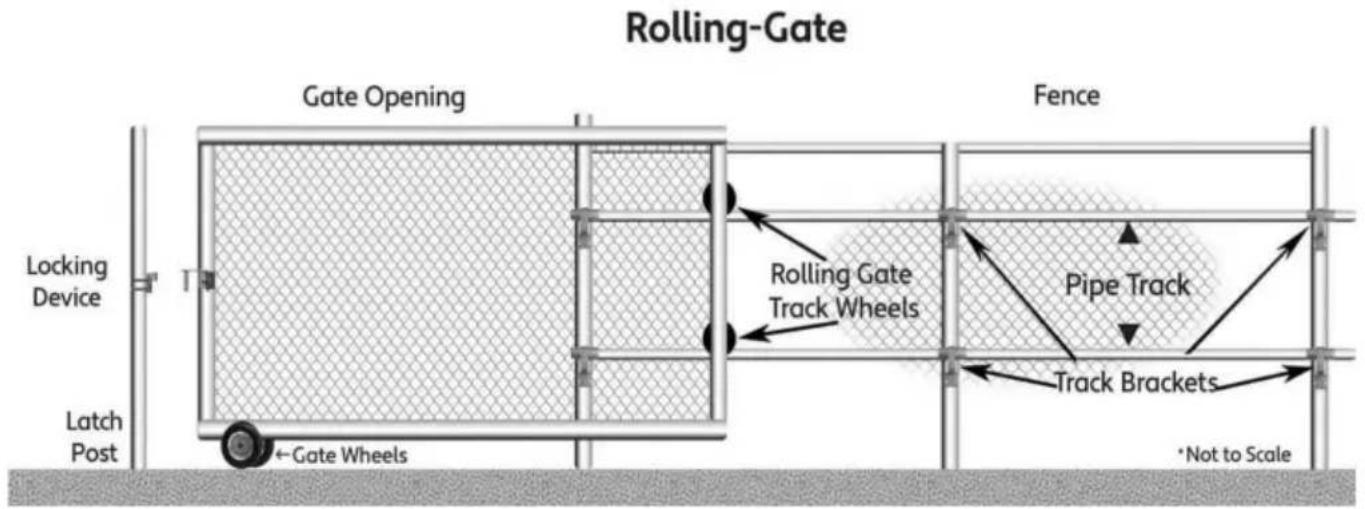

Rolling-Gate Gate Opening Fence Locking Device Rolling Gate Track Wheels Pipe Track Track Brackets Latch Post Gate Wheels *Not to Scale
