Product Type	Electric Breast Pump
Model	D-168
Brand	Vevor
Main Materials	ABS, silicone, PP
Input Voltage	5 V DC
Rated Power	10 W
Battery Capacity	3.7 V, 4000 mAh (Built-in Lithium-ion)
Battery Life	Over 3 hours continuous use
Intensity Levels	Biomimetic and massage mode: 9 levels; Suction and lactation mode: 15 levels
Operating Modes	Biomimetic, massage, breast suction, lactation
Noise Limit	≤ 50 dB(A)
Protection Class	Class II (double insulation)
Operating Temperature	5 °C to 40 °C, 10% to 90% RH
Bottle Capacity	180 ml each (2 bottles included)
Touch Screen	Yes, with LED display for battery level and intensity
Last Setting Memory	Yes, after 3 seconds of operation
Night Light Function	Night mode: press the power button to turn off/on the screen
Gas-Liquid Separation Design	Yes, prevents milk backflow into the tube
Parts in Contact with Milk	Silicone, PP: breast shields, cylinders, tees, valves, bottles, nipples
Disinfection Method	Steam or boiling water for less than 1 minute (excluding main unit)
Main Unit Non-Immersion	Do not immerse in water; clean with a damp cloth
Warranty	Technical support and electronic warranty certificate at www.vevor.com/support

Frequently Asked Questions - D-168 Vevor

How to assemble the Vevor D-168 breast pump?

Assemble in the following order: insert the silicone breast shield and dust cover into the teat, place the cylinder and plunger into the teat, insert the duckbill valve into the milk outlet, screw the T-assembly onto the bottle, then connect the tubes to the plunger and the main unit. Make sure all connections are tight before use.

How to clean and disinfect the parts?

Disassemble all parts that come into contact with milk (bottles, breast shields, cylinders, tees, valves). Wash them in warm soapy water, rinse, then disinfect them with steam or boiling water for less than one minute. Dry completely before reassembling. The main unit should never be immersed; clean it with a damp cloth.

How to adjust the suction intensity?

Use the ∧ and ∨ buttons on the touch panel. In biomimetic or massage mode, the intensity is adjustable over 9 levels. In suction or lactation mode, it is adjustable over 15 levels. The screen displays the corresponding level number.

Why is the suction weak?

Check the connections: possible air leak at the duckbill valve, breast shield, straight joint, tee, or main unit. Make sure the tube is not bent and the airways are clean. Reassemble or replace damaged parts.

How to charge the battery?

Connect the DC 5 V power adapter (a phone charger works) to the charging port of the main unit. The screen dynamically displays the charging status. A full charge provides a battery life of over 3 hours. Do not use non-standard adapters.

Can I use the breast pump while charging?

Yes, when the adapter is connected, the device operates on mains power while charging the battery. However, if the battery is depleted, it may not turn on until it is plugged in.

How to activate night mode?

Briefly press the power button to turn off the screen light (night light). Press again to turn it back on. This allows discreet use in the dark.

Does the breast pump remember my settings?

Yes, a memory function automatically saves the mode and intensity after 3 seconds of operation. On the next start, the device will resume these settings.

What to do if a part is damaged?

Stop using the device immediately. Contact Vevor after-sales service via www.vevor.com/support for replacement parts. Only use original accessories to avoid any danger.

Can I use this breast pump with a double pump?

The D-168 model is designed for single use (one breast at a time). The supplied accessories allow pumping from one breast only. For double pumping, additional parts would be needed, but this is not recommended in the instructions.

USER MANUAL D-168 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

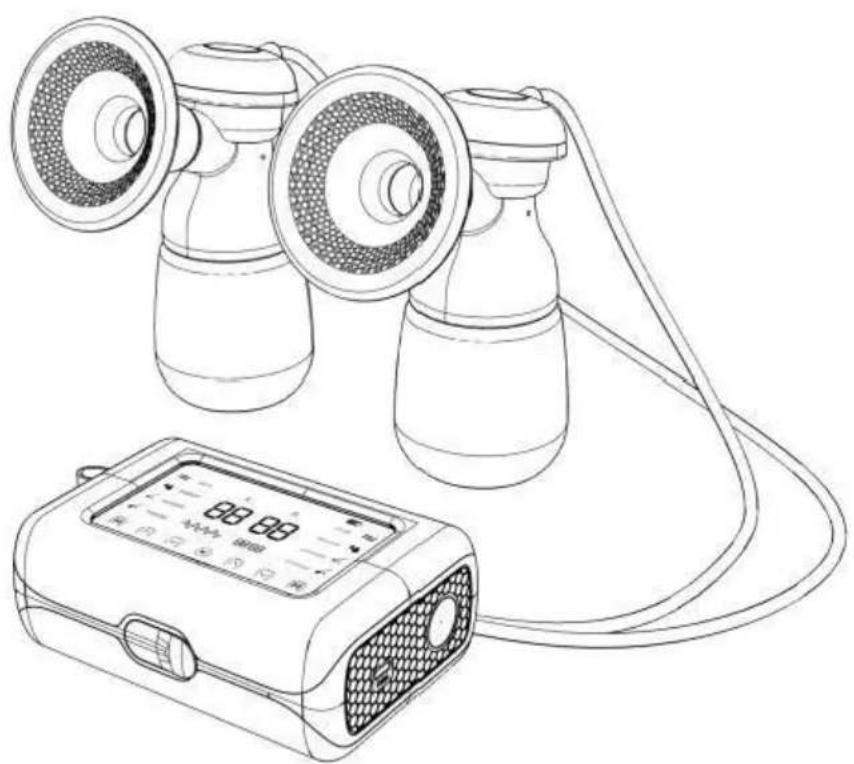

ELECTRIC BREAST PUMP

MODEL: D-168

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used represent an estimate of savings you might benefit from buying certain products with us compared to the major top brands and do not necessarily cover all categories of tools offered by us. You are kindly reminded to carefully consider when placing an order with us whether you are actually comparing with the top major brands.

MODEL: D-068

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

Warning:	It means that due to a mistake,death or serious injury could indicate that due to misoperation, death and injury may occur
Danger:	This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the prc requires separate refuse collection in the European Union. This applies to the product accessories marked with this symbol. Products marked as such may not be diswith normal domestic waste, but must be taken to a collection point for recycling and electronic devices
CE	Comply with the European security certification
	This product is of protection class II. That means it is equenanced or double insulation.

Dear customer

Thank you for using our company's products. The products you purchased from our company

Precautions

1. Before use, remove all packaging from this product and check if the components are complete by referring to the product manual (component description).
2. This product is a personal product. Please do not use it by more than one person to avoid affecting your health.
3. When cleaning this product, please unplug the adapter from the power source.

Do not use bleach, chemical disinfectant solutions/tablets, steel wool, abrasive cleaners, or corrosive liquids (such as gasoline, acetone, or alcohol) to clean this product.

1. When disassembling or installing components such as tees, silicone horns, bell mouths, silicone cylinders, duckbill valves, etc., caution should be exercised and excessive force should not be used.
2. The cylinder head cannot be rinsed with water. If water enters during cleaning, shake off the water droplets and let them dry before continuing to use.
3. During use, it is necessary to ensure that the hose is clean and free of droplets, otherwise it will affect the performance of the host.
4. It is recommended to use a dedicated steam sterilizer or boiling water to disinfect the accessories that need to be disinfected. Disinfectants such as cabinets, microwave ovens, and pressure cookers should not be used for heating and disinfection. The main unit should not be immersed in water for cleaning.
5. The packaging, all components, and the host are not toys. Please keep them out of reach of children.
6. Store in a cool and dry place, avoid direct sunlight, and keep away from ignition and heat sources.
7. When breastfeeding is difficult, the body should be relaxed before breastfeeding; when breast swelling is painful, hot compress and massage should be done first; if you feel uncomfortable with breastfeeding or cannot produce milk multiple times, you should consult a doctor.
8. If any parts are damaged, to avoid danger, please stop using them and send them to our company's service center for maintenance. Do not use accessories or components produced by other manufacturers or without our company's permission to avoid danger.

Declaration of Conformity

This product meets the requirements of corresponding national food safety standards. The compliance information of the "food contact materials" and their execution standards is as follows:

Component name	material quality	Executive standards	Temperature
Tee, cylinder head, dus cover, 180ml wide mou milk bottle, bottle cap	PP	GB 4806.7-2016	-10~100°C
Silicone horn, silicone cylinder, pacifier, duckbi valve	silica gel	GB 4806.11-2016	-10~180°C

Product Introduction

product name	electric breast pump
Model	D-1 6 8
Main materials	A B S, silicone, P P
Executive standards	QB/T 5136
Charging input voltage	5 V
Lithium battery	3.7 V — 4 0 0 0 m A h
Rated power	10W
Noise limit	≤ 5 0 d B (A)
protection against electric shock	Class I
Conditions of Use	5℃~40℃,10%~90%RH

Functional characteristics

Product Features

1. Biomimetic automatic: Controlled by a microcomputer chip program, it simulates the intermittent sucking of breast milk by infants.
2. In "bionic" mode, the intensity is adjustable at 9 levels, while in "massage" mode, the intensity is adjustable at 9 levels, effectively massaging breasts. In "breast suction" mode, the intensity is adjustable at 15 levels, and in lactation mode, the intensity is adjustable at 15 levels, imitating the baby's sucking rhythm and the size of the baby's sucking volume.

Product features

1. The cylinder design with gas-liquid separation structure ensures no milk return during suction.
2. Detachable liquid silicone horn, imitating ergonomic principles, has the function of sucking, massaging, squeezing breasts, and stimulating lactation during breast suction.
3. The control panel is designed with a touch screen, displaying the interface, making the operation process clear at a glance.
4. The host is equipped with a built-in battery, making it easy to use during outages or when going out from home.

Component Description

Serial Number	Component Name	number	material quality	Serial Number	Component Name	number	material quality
1	Dust cover	2	PP	8	Silicone horn	2	Silicone
2	horn	2	PP	9	Silicone cylinder	2	Silicone
3	Tee	2	PP	10	Cylinder head	2	PP
4	Straight connector	2	PP/TPR	11	hose	2	Silicone
5	Connecting line	1	/	12	Duckbill valve	2	Silicone
6	main engine	1	/	13	Pacifier kit	2	Silicone +PP
7	180ml wide mouthed milk bottle	2	PP

Attention: Please check if the components are complete before use.

Installation instructions

Reminder: Before each use, components that come into direct contact with breast milk should be disinfected in advance: milk bottles, silicone horns, three-way silicone cylinders, duckbill valves, and bottle caps.

Installation steps:

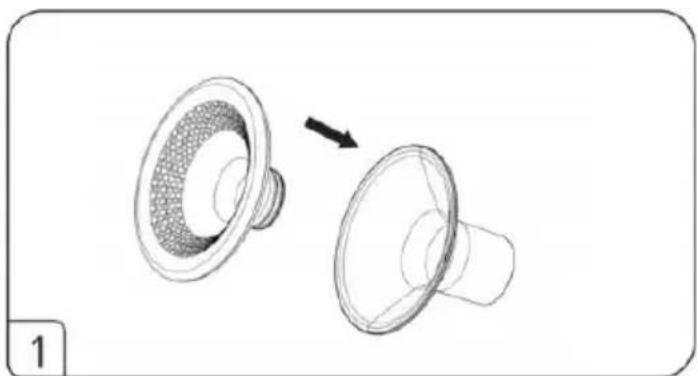

1. Insert the silicone horn and horn mouth in sequence before inserting the cover.

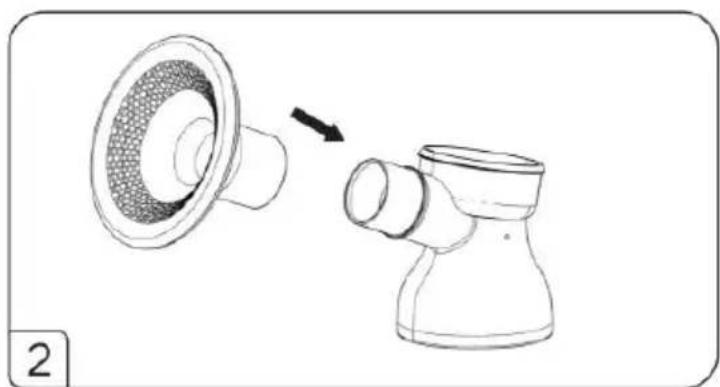

1. Insert the silicone horn and horn mouth components into the tee to ensure they are in place.

(Note: When disassembling, hold the tee with one hand and swing the trumpet assembly up and down slightly with the other hand, and gently pull it out.)

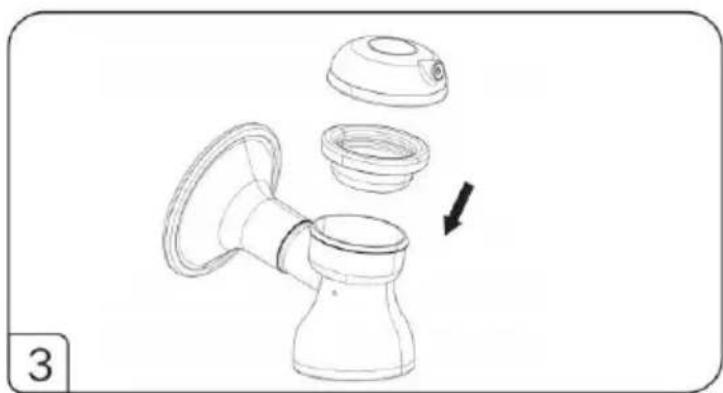

1. Place the cylinder and cylinder head into the tee and tighten the air tight.

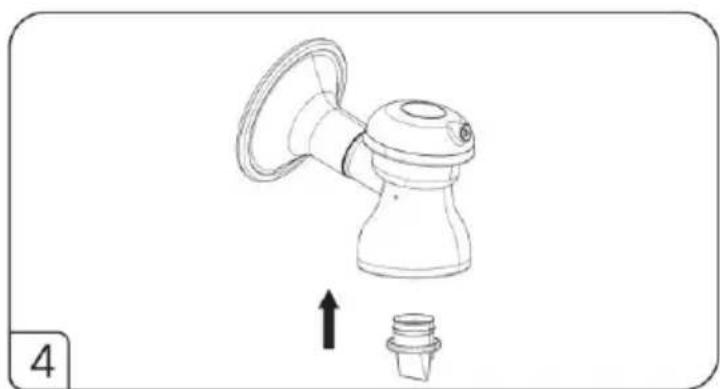

1. Insert the duckbill valve into the bottom milk outlet of the tee to ensure it is installed in place without air leakage.

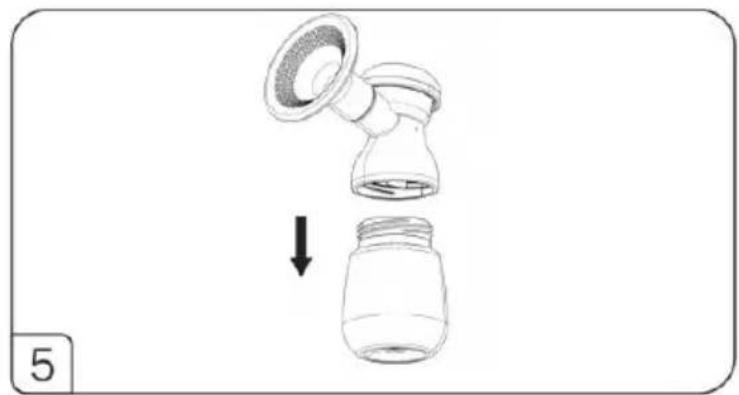

1. Screw the tee assembly into the bottle.

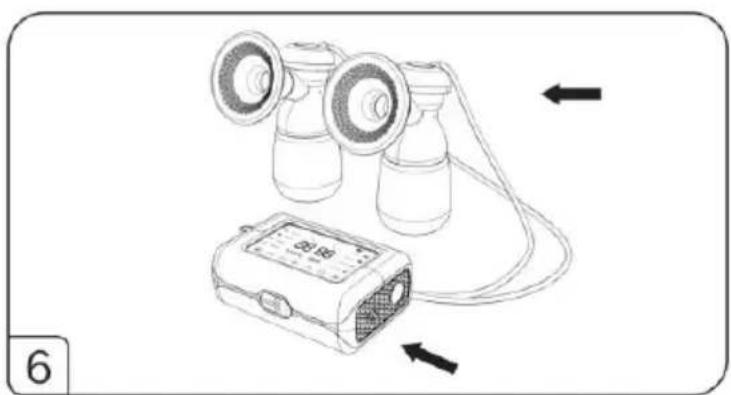

1. Insert the straight connectors of the hoses into the cylinder head and the relative hole positions of the host machine to ensure that they are installed in place without air leakage and can be used.

(Note: Before inserting the straight connector into the air duct hole of the host, the dust plug must be removed first. Do not start the host before removing the plug, otherwise it will affect the service life of the host.)

Instructions for use

Preparation before use

Before use, please check and ensure that all disinfected components (parts that come into direct contact with breast milk) are clean and free of water droplets, and that the suction device is firmly connected to the host.

Before breast suction, please use a damp and hot towel to clean, compress, and massage the breasts and areola to relax the body and relieve the pain of breastfeeding.

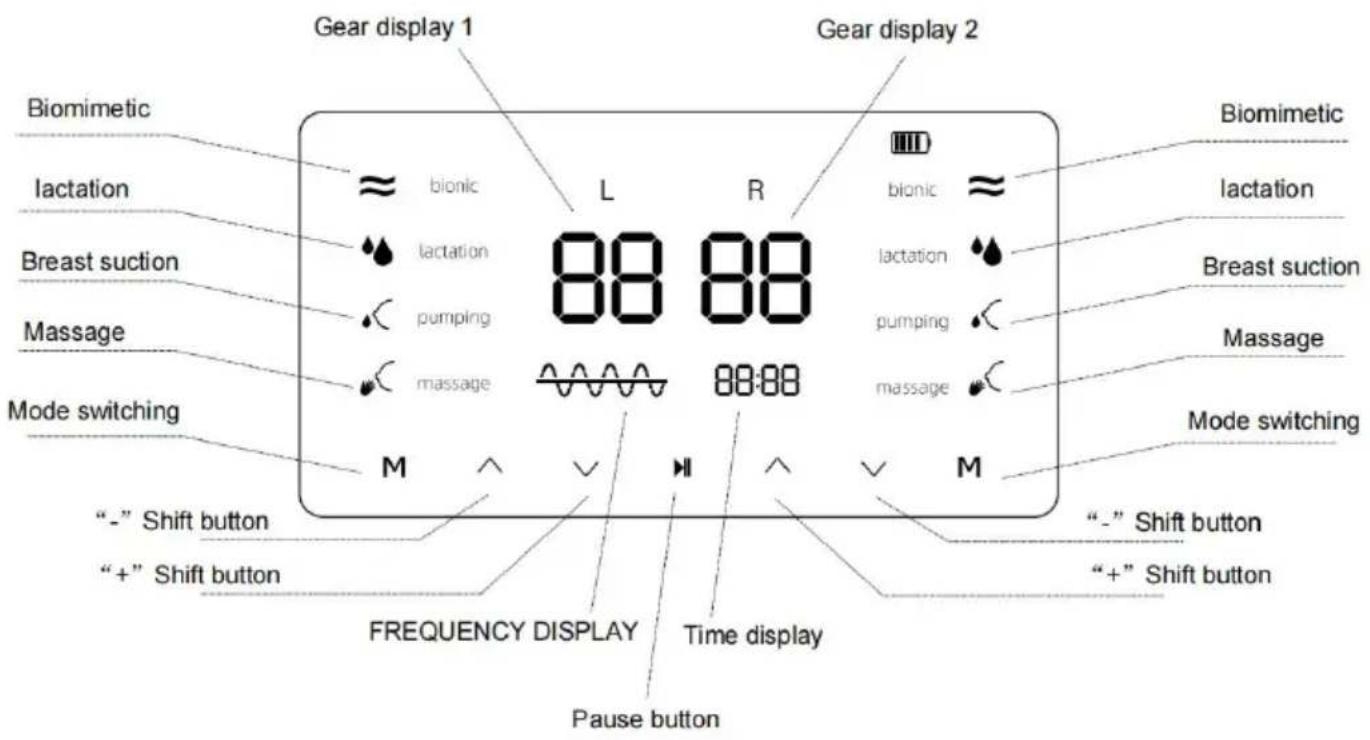

Panel operation instructions

Power on/mode switching

• Tap the button for 2 seconds to turn on the device and enter biomimetic mode by default.
• After turning on, the breast suction/biomimetic/massage/lactation mode can be switched.

Night operation switching

• Press the power button to turn off the screen light; press the power button again and the screen light will light up.
• When the working mode is "biomimetic", "≈" lights up. When the working mode is "massage", ". C" lights up. When the working mode is "lactation", "♠" lights up.

When the working mode is "breast suction", "(") lights up and does not display when turned off.

• In the "bionic" mode, the intensity is adjustable in 9 levels, and the screen displays the corresponding gear number.
• When in the "massage" mode, the intensity is adjustable in 9 levels, and the screen displays the corresponding gear number.
• When in the "lactation" mode, the intensity is adjustable in 15 gears, and the screen displays the corresponding gear number.
• When in the "breast suction" mode, the intensity is adjustable in 15 gears, and the screen displays the corresponding gear number.
• When powered by the built-in battery, the LED screen displays the battery level in real-time and statically; when powered by charging line and charging, in shutdown state, it dynamically displays the battery charging status in real time.
• When the battery level drops to the minimum limit, the rightmost cell of the battery symbol flashes and the other three cells do not light up; after 10 seconds of continuous operation, the LED screen turns off.

Breast suction intensity/frequency regulation

• In the "biomimetic" mode, the lactation intensity can be adjusted by using the "1" or "√" keys, with a total of 9 adjustable levels.
• When in the "Massage" mode, the lactation intensity can be adjusted by using the or keys, with a total of 9 adjustable levels.
• When in the "lactation" mode, the lactation intensity can be adjusted by using the "A" or "V" keys, with a total of 15 adjustable levels.
• When in the "breast suction" mode, the breast suction intensity can be adjusted by using the √ or √ keys, with a total of 15 adjustable levels.
• In working mode, lightly touch the "M" button to freely switch between modes. When switching to the "lactation" mode, the default intensity is the last used gear. When switching to the "Massage" mode, the default intensity is the last used gear. When switching to "lactation" mode, the default intensity is the last used gear. When switching to "breast suction" mode, the default intensity is the last used gear.

Pause function

• Press the button to pause the machine. Press it again to turn it on, but it cannot be turned on when turned off. Pause when either side drops to zero.

Memory function

• Start the biomimetic/breast suction/massage/lactation mode, adjust the required gear to run for more than 3 seconds, and the host will automatically remember. The next startup will start with the previous running gear.

Battery powered/charging

• In working mode, connect the power adapter and receive power from the adapter; When the power adapter is not connected, the host automatically uses the built-in battery for power supply.
• In the shutdown state, connecting the power adapter can charge the battery. After being fully charged, it can work continuously for more than 3 hours. If the battery level is too low, the host automatically stops working and prompts to protect the battery; When the battery is fully charged, it automatically stops charging to avoid damaging the battery.

Troubleshooting

The following problems may occur during the breastfeeding process. Please refer to the provided methods for handling.

Phenomena	Cause analysis	Processing method
Low suction	Air leakage at the connection pa (duckbill valve, silicone horn, straight joint, tee and host)The output air circuit of the host is blocked, such as bent hoses or debris in the hose airway	Check all connecting components,Reinstall, organize, and clean
No suction	The duckbill valve is not properly installed or deformed or damaged Plastic components misused for disinfection, causing deformation and damage to cabinets, microw ovens, and pressure cookers due disinfection	Install the duckbill valve or replace it with a ne accessory
Unable to power on	The adapter is not properly connected to the charging socket the DC power socket on the hot The lithium battery has run out charge	Plug in the adapter again or charge before use
Reflux	If milk or water is found to have entered the cylinder or hose, che if the cylinder is damaged or no properly installed	Immediately shut down, clean or replace the cylinder before reinstalling it

Maintenance

• The battery is built-in and non-detachable, and self-disassembly is prohibited.
• The charging/power supply of the host/battery requires the use of a designed DC5V power adapter or mobile phone power adapter. Do not use other non-standard power adapters for charging/power supply.
• Do not approach high temperatures or ignition sources during the use and placement of the host. Do not place the host in a heater or ignition source, as it may cause combustion and explosion.
• When the host is left unused for a long time, it is recommended to charge it once a month.
• If there is an internal malfunction in the host, please do not disassemble it for repair. It must be sent to the designated repair point of our company for professional repair or replacement.
• Before use, accessories that come into direct contact with breast milk (milk bottles, silicone horns, tees, cylinders, duckbill valves, bottle caps) should be cleaned and disinfected in advance. They can be disinfected by steam or hot water, and the disinfection time should not exceed 1 minute. The host cannot enter water.

Declaration of Hazardous Substances

Hazardous substance
Component Name	Pb	Hg	Cd	Cr (MI)	PBB	PBDE
Plastic structural components	O	O	O	O	O	O
Silicone parts	O	O	O	O	O	O
electrical machinery	X	O	O	O	O	O
Display Assembly	X	O	O	O	O	O
Ac adapter	X	O	O	O	O	O
Hardware	X	O	O	O	O	O
PCB components	X	O	O	O	O	O
Battery	X	O	O	O	O	O

This table is prepared in accordance with the provisions of SJ/T 11364. "O" indicates that the content of the harmful substance in all homogeneous materials of the component is below the limit requirements specified in GB/T 26572.

"X" indicates that the content of the hazardous substance in at least one

homogeneous material of the component exceeds the limit requirements specified in GB/T 26572, but is marked as 'X' in the table above "x". The reason why component content exceeds is because there is currently no mature technology in the industry to replace it.

Indicative Explanation of the Regulations on the Management of Recycling of Waste Electrical and Electronic Products. In order to better care for and protect the Earth, when users no longer need this product or when its lifespan ends, please comply with relevant laws and regulations on the recycling and disposal of waste electrical and electronic products, and hand it over to a local manufacturer with nationally recognized recycling and disposal qualifications for recycling and disposal.

FCC Information

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference. 2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if

installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

Special reminder:

1. When the input voltage is below 3.5V, the machine cannot function properly and the display is black.
2. When the input voltage is higher than 6.3V, the machine cannot function properly and the display is black.

Light mode:

1. Short press the on button to keep the screen lit.
2. Long press the on button to turn off.

Address: Baoshanqu Shuangchenglu

803 long 11 hao 1602A-1609 shi Shanghai

Imported to USA: Sanven Technology Ltd. Suite 250,

9166 Anaheim Place, Rancho Cucamonga, CA 91730

Imported to AUS: SIHAO PTY LTD,

1 ROKEVA STREET EASTWOOD NSW 2122 Australia

SHUNSHUN GmbH

Romeracker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Made In China

VEVOR

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

Anaheim Place, Rancho Cucamonga, CA 91730

Imported in Australia: SIHAO PTY LTD, 1

ROKEVA STREET, ASTWOOD NSW 2122 Australia

SHUNSHUN GmbH Römeräcker 9 Z2021, 76351 Linkenheim-Hochstetten, Germany Pooledas Group Ltd Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom

Made in China

VEVOR

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

Anaheim Place, Rancho Cucamonga, CA 91730

Pooledas Group Ltd Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom

Note: Anything not stated in the text is intended to be a matter of conjecture.

Anaheim Place, Rancho Cucamonga, CA 91730

Imported into AUS: SIHAO PTY LTD, 1

ROKEVA STREET EASTWOOD NSW 2122 Australia

SHUNSHUN GmbH Römeräcker 9 Z2021, 76351 Linkenheim-Hochstetten, Germany

Pooledas Group Ltd Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom

Made in China

VEVOR

TOUGH TOOLS, HALF PRICE

Place, Rancho Cucamonga, CA 91730

Imported into AUS: SIHAO PTY LTD, 1

ROKEVA STREET EASTWOOD NSW 2122 Australia

SHUNSHUN GmbH Römeräcker 9 Z2021, 76351 Linkenheim-Hochstetten, Germany

Pooledas Group Ltd Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom

Made in China

VEVOR

TOUGH TOOLS, HALF PRICE

Technical support and e-warranty certificate www.vevor.com/support

VEVOR

TOUGH TOOLS, HALF PRICE

Place, Rancho Cucamonga, CA 91730

Imported to AUS: SIHAO PTY LTD, 1

ROKEVA STREETEASTWOOD NSW 2122 Australia

SHUNSHUN GmbH Römeräcker 9 Z2021, 76351 Linkenheim-Hochstetten, Germany Pooledas Group Ltd Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom

NEED HELP? CONTACT US!

Anaheim Place, Rancho Cucamonga, CA 91730

Pooledas Group Ltd Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom

Made in China

VEVOR

TOUGH TOOLS, HALF PRICE

Technical support and e-warranty certificate www.vevor.com/support

VEVOR

TOUGH TOOLS, HALF PRICE

Battery-powered/charger

Special reminder:

Anaheim Place, Rancho Cucamonga, CA 91730

Imported to AUS: SIHAO PTY LTD, 1

ROKEVA STREET EASTWOOD NSW 2122 Australia

SHUNSHUN GmbH Römeräcker 9 Z2021, 76351 Linkenheim-Hochstetten, Germany Pooledas Group Ltd Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom

Made in China

VEVOR

TOUGH TOOLS, HALF PRICE
