1RAF2025-1 - Air filter Vevor - Free user manual and instructions

Product Type	Return Air Filter Grille Kit
Brand	Vevor
Model	1RAF2025-1
Dimensions (L × H × D)	22.6 × 27.64 × 1.57 inches (approx. 57.4 × 70.2 × 4 cm)
Net Weight	3.2 kg
Material	Steel
Compatible Filter Thickness	1 inch (25.4 mm)
Mounting	Wall or Ceiling
Number of Screws Provided	4 (M4 × 50 mm)
Removable Door	Yes
Filter Included	No (sold separately)
Recommended Filter Type	Standard 1-inch Air Filter
Application	Return Air for HVAC System
Maintenance	Clean with a damp cloth; replace filter every 3 months
Safety	Turn off HVAC system power before installation; avoid falls
Warranty	Electronic warranty certificate available at vevor.com/support
Spare Parts	Screws and air outlet assembly available
Included Accessories	4 screws, 1 air outlet assembly (seat + grille)
Country of Origin	China
Repairability	Spare parts are available; screws and door can be replaced

Frequently Asked Questions - 1RAF2025-1 Vevor

How to install the Vevor return air filter grille?

Remove the old grille after turning off the HVAC system power. Measure the duct opening. Secure the frame to the wall or ceiling with the 4 provided screws. Insert a 1-inch thick filter into the frame. Close the door and lock the latches.

What are the exact dimensions of model 1RAF2025-1?

The dimensions are 22.6 × 27.64 × 1.57 inches (approx. 57.4 × 70.2 × 4 cm). The first number is the width, the second is the height.

What type of filter should I use with this grille?

Use a standard 1-inch thick air filter. 2-inch filters are not suitable. The filter is not included.

How to maintain the return air grille?

Clean the grille with a non-abrasive damp cloth. Replace the filter every 3 months or more often if needed. Check the condition of the screws.

Can this grille be mounted on the ceiling?

Yes, it is suitable for wall or ceiling mounting. Make sure the frame is securely fastened to prevent falls.

How to remove the old air filter grille?

Open the grille door and, if possible, detach it. Remove the screws securing the frame to the wall or ceiling. Carefully remove the old frame and filter.

Where can I find the warranty certificate?

The electronic warranty certificate is available on the website vevor.com/support. Keep the proof of purchase.

Can I use a 2-inch thick filter?

No, this grille is designed only for 1-inch thick filters. Using a thicker filter could damage the grille or reduce efficiency.

What if the provided screws do not match my installation?

Use screws suitable for your support (wood, plaster, etc.). The provided screws are M4×50. If necessary, get compatible screws.

Is the grille delivered with a filter?

No, the filter is not included. You must purchase a standard 1-inch thick air filter separately.

USER MANUAL 1RAF2025-1 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

RETURN AIR FILTER GRILLE KIT

MODEL:1RAF2020-1/1RAF2025-1

1RAF2030-1/1RAF2418-1/1RAF3020-1

1RAF2025F-1/1RAF2020F-1/1RAF3020F-1

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:1RAF2020-1/1RAF2025-1/1RAF2030-1/1RAF2418-1/1RAF3020-1/1RAF2025F-1/1RAF2020F-1/1RAF3020F-1

White ventilation grille with parallel slats, mounted on a wooden frame (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

PARAMETER LIST

Model	Product size(inch)	Net weight(kg)
1RAF2020-1	22.64×22.64×1.57	2.5
1RAF2025-1	22.6× 27.64×1.57	3.2
1RAF2030-1	22.52×32.68×1.57	3.65
1RAF2418-1	26.61×20.67×1.57	3.15
1RAF3020-1	32.68×22.52×1.57	3.65
1RAF2025F-1	32.68×22.52×1.57	3.5
1RAF2020F-1	22.64×22.64×1.57	2.75
1RAF3020F-1	32.68×22.52×1.57	4.05

PART LIST

Name	1RAF2020-1/1RAF2025-1/1RAF2030-1/1RAF2418-1/1RAF3020-1	1RAF2025F-1/1RAF2020F-1/1RAF3020F-1
cross-headscrew(M4*50)	4	4
Air outlet assembly(Air outlet mountingseat *1, grille *1)	1	1
fine mesh strainer	/	1

OPERATION

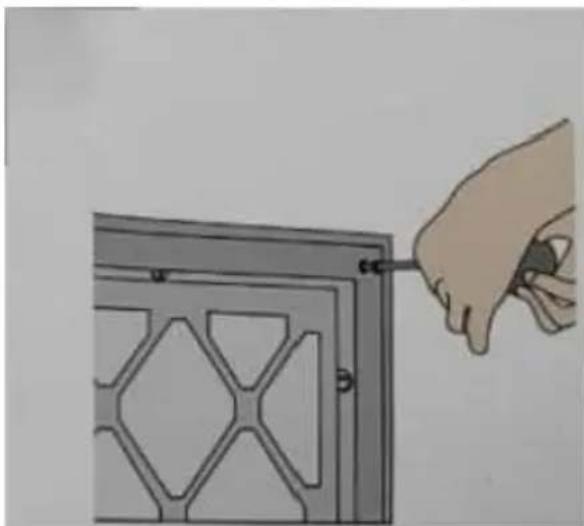

1. To remove your old return air filter grille, open the grille door and - fo safety detach the door if possible

Illustration of a hand holding a window with horizontal slats, no text or symbols present

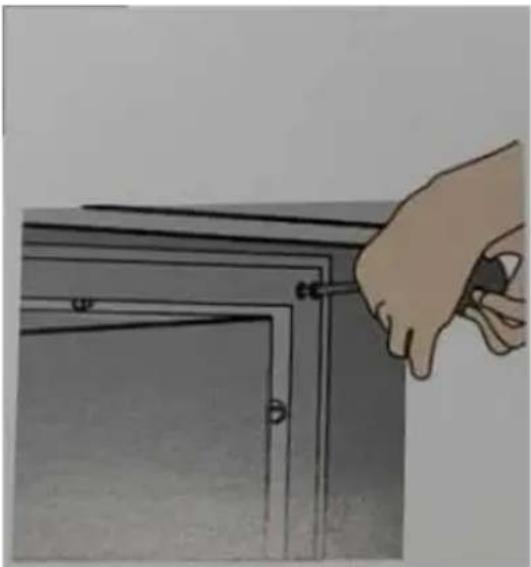

1. Remove the screws that secure the frame onto the wall or ceiling ① If this is a ceiling application-for your safety-prevent the frame/grille/filter from falling down

Hand holding a tool interacting with a grid-patterned panel (no text or symbols visible)

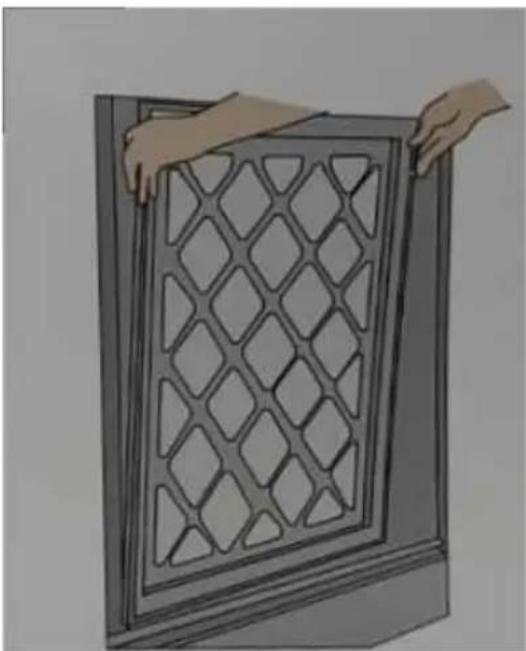

1. Remove the old frame and the filter carefully

Illustration of hands holding a rectangular panel with diamond patterns (no text or symbols)

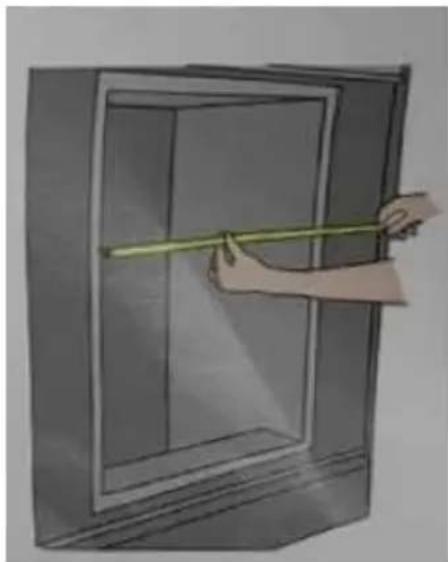

1. Measure the DUCT OPENING (Wall/Ceiling) and make sure it's the size written on the box

First number is always the Width, second number is always the

Height.

DO NOT MEASURE YOUR OLD GRILLE

Illustration of a hand holding a measuring stick inside a large cabinet (no text or symbols)

1. To install the vevor Return Air Filter Grille, detach the door (for eligil

models)from the frame and install the frame onto the wall/ceiling with 4screws provided.

Hand holding a tool interacting with a corner panel (no text or symbols visible)

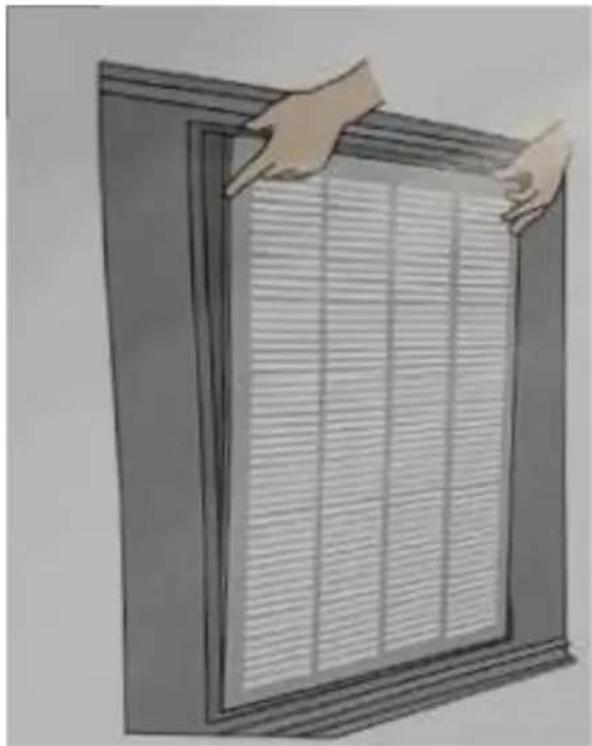

1. Place 1"thick air filter into the frame ①You may use the small tabs tighten the filter

Illustration of two hands holding a decorative panel with geometric patterns (no text or symbols)

1. Attach the door by hinges (for eligible models) and close it by both latches

Illustration of two hands hanging over a slatted metal panel with vertical lines (no text or symbols)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

1RAF2025F-1/1RAF2020F-1/1RAF3020F-1

White ventilation grille with four vertical slats, mounted on a wooden frame (no text or symbols visible)
