USER MANUAL 9JYZ-3 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

INSTRUCTIONS FOR MILKING MACHINE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

MILKING MACHINE

MODEL:9JWD-3

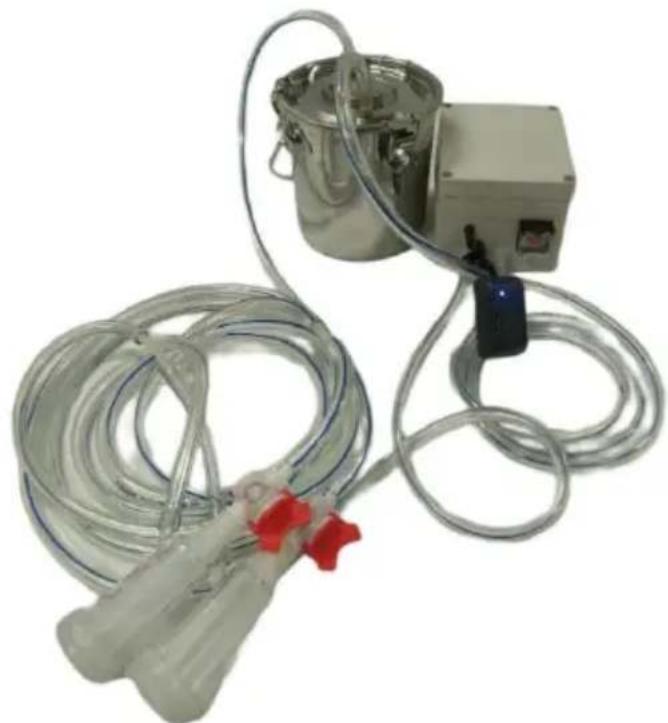

Medical device with coiled tubing and a medical device in the background (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Safety Warnings and Precautions

Symbol	Symbol Description
	Warning - To reduce the risk of injury, users must read the man
	Alternating current
	This symbol, placed before a safety comment, indicates a kind of precaution, warning, or danger. Ignoring this warning may lead to accident. To reduce the risk of injury, fire, or electrocution, please follow the recommendation shown below.
	Warning- Be sure to wear gloves when using this product.
	Note
	FCC information:This device complies with Part 15 of the FCC Rules. Operation is the following two conditions:(1)This device may not cause harmful interference, and (2)this device must accept any interference receiving including interference that may cause undesired operation.
	Disposal information:This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection European Union. This applies to the product and all access marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices.

WARNING: When using the machine, basic safety precautions should always be followed to reduce the risk of personal injury and damage to equi

WARNING: Read all instructions before using this tool and Save all warnings and instructions for future reference!

WARNING: Do not touch the power switch and other electrical parts wit hands.

WARNING: The power supply connected to this equipment must be equipped with a leakage protector.

1. Keep the work area clean. Cluttered areas invite injuries.

2. Observe work area conditions. Do not use the machine in damp or wet I Don't expose to rain. Keep the work area well-lighted. Do not use the mach the presence of flammable gases or liquids.

3. Keep children away. Children must never be allowed in the work area. Do them handle machines, tools, or extension cords. This machine can be used children aged 8 years and above and persons with reduced physical, sensory mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way to understand the hazards involved. Children shall not play with the appliance.

Children shall not do cleaning and user maintenance without supervision.

1. Store idle equipment. When not in use, the machine must be stored in a location to inhibit rust. Always lock up machines and keep them out of reach children.

2. Do not force the machine. It will do the job better and more safely at the which it was intended. Do not use inappropriate attachments to exceed the machine's capacity.

3. Do not modify this machine or use it for an unintended purpose.

4. Dress properly. Do not wear loose clothing or jewelry, as they can be ca moving parts. Protective, electrically non-conductive clothes, and non-skid footwear are recommended when working. Wear restrictive hair covering to contain long hair.

5. Maintain machines with care. Keep them sharp and clean for better and s performance. Follow instructions for lubricating and changing accessories. Inspe machine cords periodically and, if damaged, have them repaired by an author technician. The handles must be kept clean, dry, and free from oil and great times.

6. Disconnect power. Unplug the machine when not in use.

7. Avoid unintentional starting. Be sure the switch is in the Off position when in use and before plugging in.

8. Stay alert. Watch what you are doing, and use common sense. Do not any machine when you are tired.

9. Check for damaged parts. Before using any machine, any damaged part should be carefully checked to determine that it will operate properly and per its intended function. Check for alignment and binding of moving parts, any b parts or mounting fixtures, and any other condition that may affect proper operation. Any damaged part should be properly repaired or replaced by a qualified technician. Do not use the machine if any switch does not turn On properly.

10. Guard against electric shock. Prevent body contact with grounded surfaces such as pipes, radiators, ranges, and refrigerator enclosures.

11. Replacement parts and accessories. When servicing, use only identical replacement parts. Use of any other parts will void the warranty. Only use accessories intended for use with this machine. Approved accessories are available from VEVOR.

12. Do not operate the machine if under the influence of alcohol or drugs. I warning labels on prescriptions to determine if your judgment or reflexes are impaired while taking drugs. If there is any doubt, do not operate the machine

Note: The performance of this machine (if powered by line voltage) vary depending on variations in local line voltage. Extension cord usage may also affect machine performance.

Warning: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense is

caution are factors that cannot be built into this product, but must be supplied by the operator.

Product Description

This milking machine is specially designed for cows and goats, suitable for s and medium-sized farms or daily families. The milk barrel is durable, non-toxic safe, and environmentally friendly. At the same time, it is equipped with a sp brush, milk lining, nipple cup, and so on to make the machine work more conveniently. The food-grade silica gel is safe, hygienic, odorless, soft, comfortable, and convenient for sucking. The milk barrel is made of edible stainless steel, which is safer and more durable.

SPECIFICATIONS

Model	9JWD-3
Input Voltage	North America: 120V 60Hz
	European Union: 220~240V 50Hz
Material of Bucket	Stainless Steel
Milking Bucket	3 L
Pulsation Times	60/min
Operating Vacuum Degree	0.035~0.045MPa
Battery Type	Lithium Cell
Battery Voltage	12V
Battery Capacity	5000mAh
Working Temperature	-10°C~40°C
Noise Level	≤80dB
Color	Silver

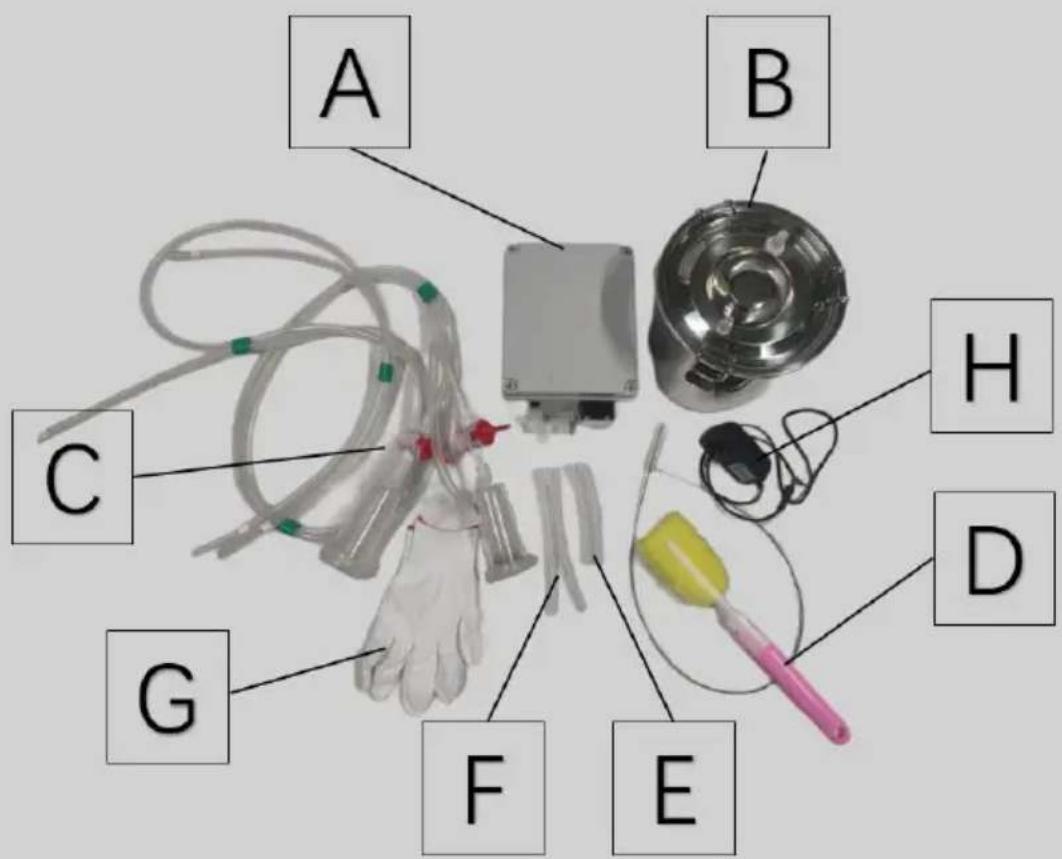

Parts list

Number	Product Name	Quantity
A	Host	1
B	3L stainless steel barrel	1
C	Goat milk cup group	1
D	Small brush	1
E	Short milk tube (Replacement part)	2
F	Short air pipe (Replacement part)	2
G	Glove	1
H	Power Cord	1

A B C H D G F E

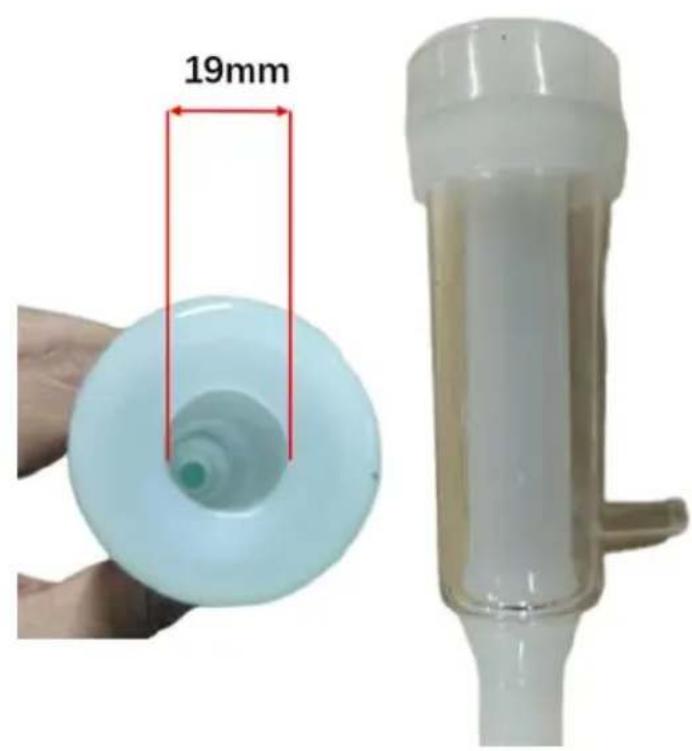

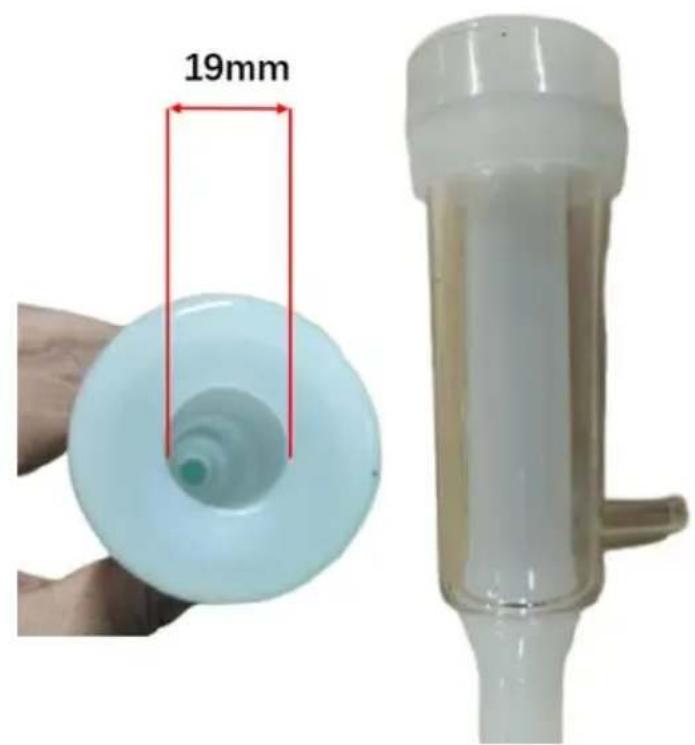

Goat milking cup

19mm

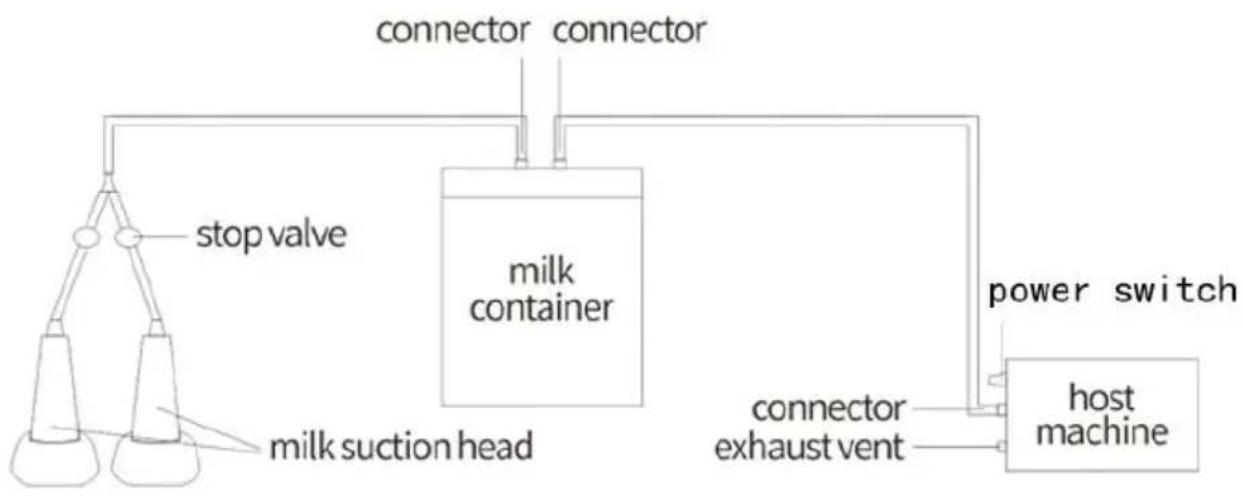

Assembly Diagram

Note: During installation, connect the components with the same number.(The label is only for illustration.)

Medical equipment setup including a coiled tube, tubing, and medical device (no visible text or symbols)

Usage method

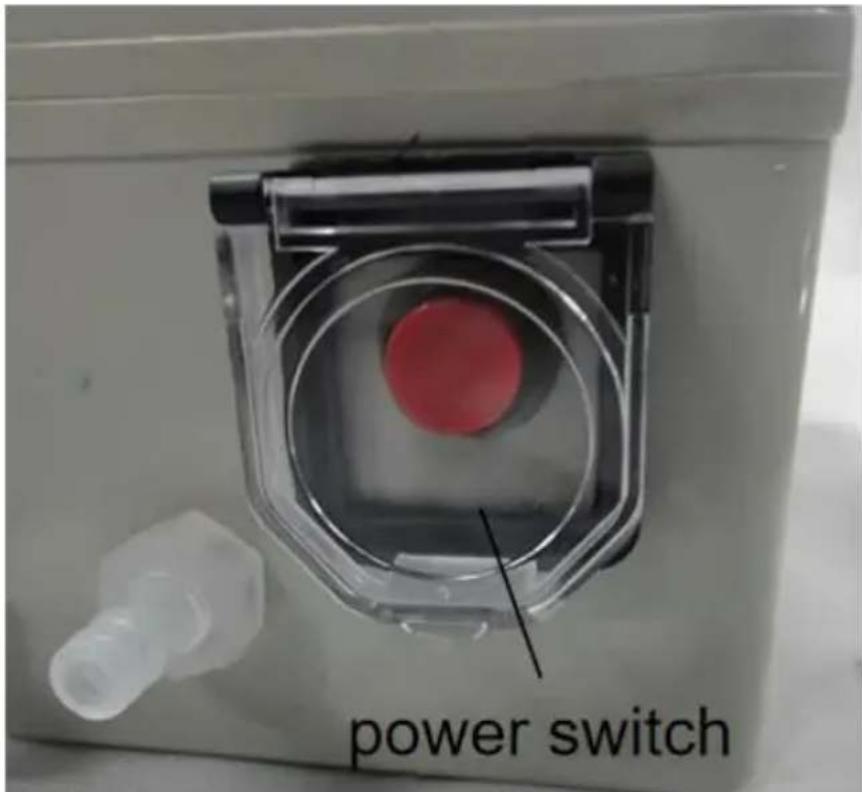

1. Turn on the power switch.

power switch

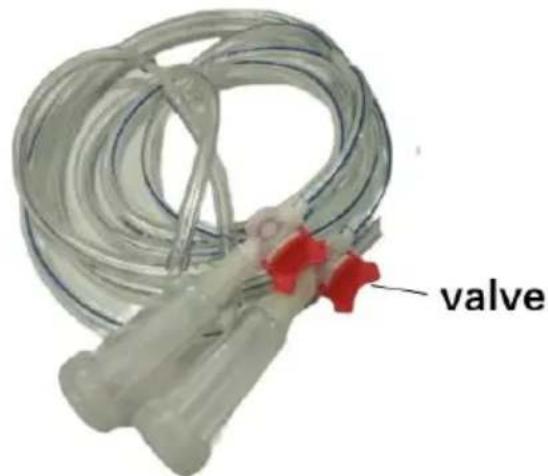

1. Put the milk cup on the teat and turn the valve to the open state so the vacuum pressure in the milk cup to hold the teat firmly. In the same way, another milk cup on the other teat.

valve

Note:

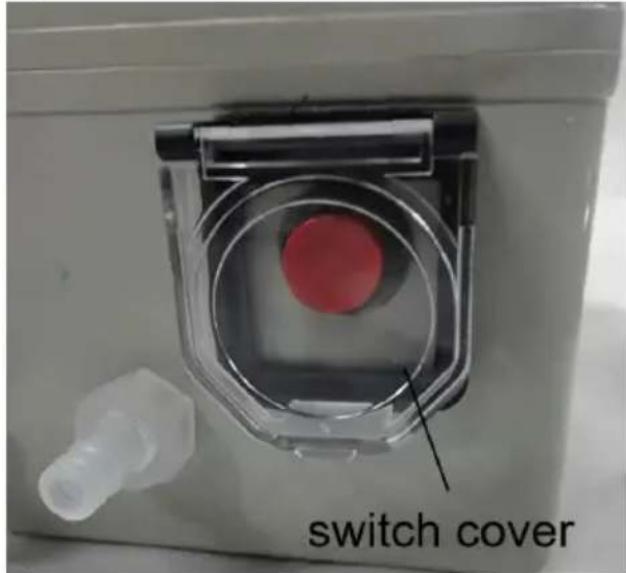

● The switch cover prevents the switch from being touched by mistake.

switch cover

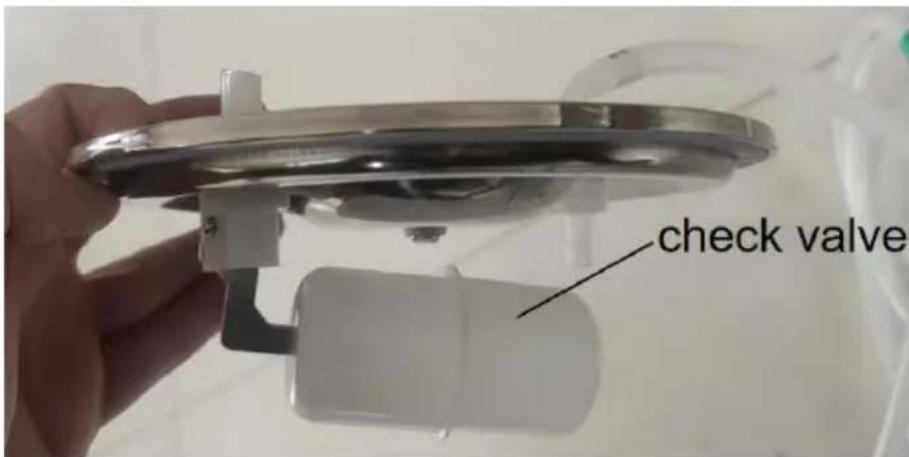

- A check valve is provided to prevent the milk from being sucked into the vacuum pump due to the overfilled milk bucket, which may damage the vacuum pump. The capacity of the milk bucket after adding the check valve is actua

check valve

Common problems and Solutions

1. After receiving the product, plug in the mainframe. It does not work. Check adapter. You can connect the 12V battery for the power supply test if it is adapter problem.

Solution: A power adapter with an output voltage of 12V5A or more can be reconfigured.

1. When the pulse machine is working, it suddenly shuts off and does not have. After restarting, it works again.

Solution: Continuous working time is too long, resulting in excessive battery temperature. Turn off the machine, and wait for the battery to cool down, then it on later.

1. After a period of time, the vacuum pump has no suction.

Solution: Check whether the cover is damaged or cracked, whether there is leakage at the air-tight interface, and whether the pipe is damaged.

1. There is no pulse during the operation of the vacuum pump.

Solution: Check whether the pulse tube is damaged. Listen carefully to the w sound of the main solenoid valve, whether there is a regular beat. If not, th solenoid valve fault.

1. In the course of use, try to avoid sucking milk too full so that milk is s the vacuum pump. (Vacuum pumps can damage if they suck too much milk)

Solution: If you accidentally suck into the pump and stop immediately. Unplug negative pressure pipe, then open the main machine to drain the milk.

1. After milking, the milking cup sucked tightly and could not be taken down should we do?

Solution: First, turn off the vacuum pump. Then we should gently squeeze the animal's breasts with our fingers and pinch the place where the milk cup an animal's breasts intersect each other to let the air into the milk cup. Wait a seconds, and then we can easily remove the milk cup.

1. Why not start milking after opening the vacuum pump?

Solution: Maybe the breast of the animal does not fit the milking cup complete. Please check whether the breast of the animal has entered the milking cup. can stick your thumb into the milking cup to feel the suction. And how to re-breasts of animals fit perfectly into the milking cup.

1. Can I use it directly or only by battery?

Solution: It is recommended to use it alone after fully charged to protect the

battery.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi

Shanghai

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim

Place, Rancho Cucamonga, CA 91730

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

[e-mail]

01772418127

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

MILKING MACHINE

MODELL:9JWD-3

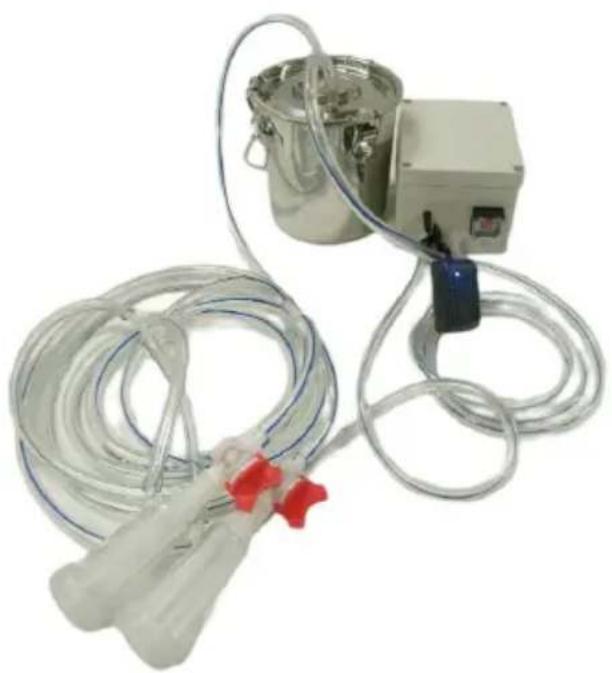

Medical device with coiled tubing and a medical instrument (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

A B C H D G F E

Goat milking cup

19mm

Montagediagramm

Medical device setup with coiled tubing, medical instrument, and two red connectors (no visible text or symbols)

Verwendungsmethode

power switch

switch cover

check valve

Place, Rancho Cucamonga, CA 91730

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

[e-mail]

01772418127

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

MILKING MACHINE

MODÈLE : 9JWD-3

Medical device with coiled tubing and a medical device in the background (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

A B C H D G F E

Goat milking cup

19mm

Schéma d'assemblage

Medical equipment setup with coiled tubing, a medical device, and two red connectors (no visible text or symbols)

power switch

switch cover

check valve

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

[e-mail]

01772418127

Fabriqué en Chine

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

INSTRUCTIES VOOR MELKMACHINE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

MILKING MACHINE

MODEL: 9JWD-3

Medical device with coiled tubing and a medical device in the background (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

A B C H D G F E

Goat milking cup

19mm

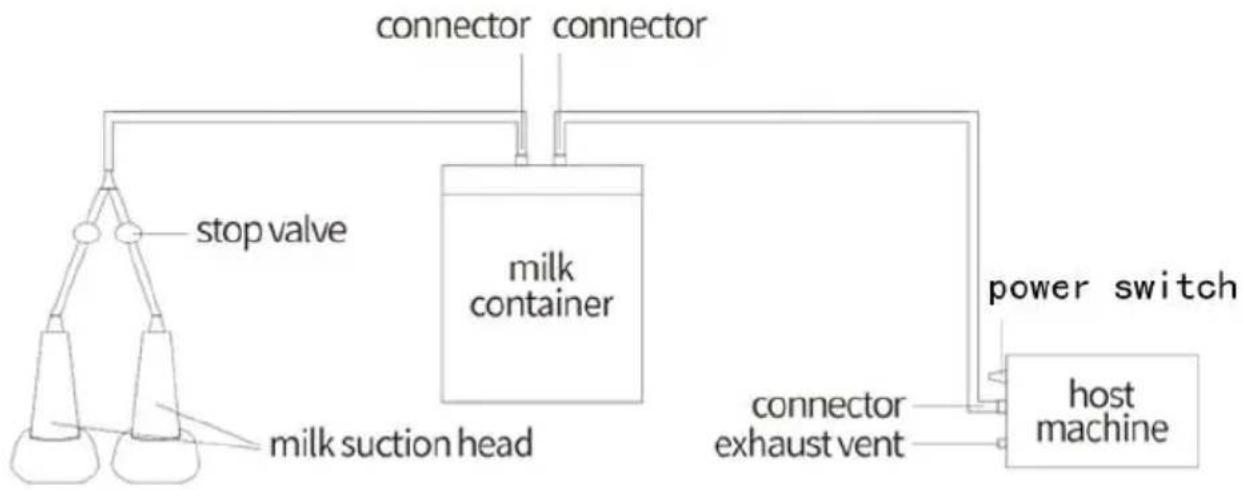

Montageschema
