This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Symbol	Symbol Description
	Warning: To reduce the risk of injury, the user must read the instructions manual carefully.
	This symbol, placed before a safety comment, indicates a kind precaution, warning, or danger. Ignoring this warning may lead to accident. To reduce the risk of injury, fire, or electrocution, please always follow the recommendation shown below.
	CORRECT DISPOSAL: This product is subject to the provision of European Directive 2012/ 19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

FCC INFORMATION

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules, These limits are

designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

WARNING

1. Warnings must be followed carefully to avoid body injury, improper use may re in electric shock, fire, personal injury and other damage:

1) Keep unplug when moving the machine.
2) Keep unplug when installing accessories
3) Place on a fat and stable platform and operate under ventilated conditions

4) Wear special protective equipment when operating the machine

5) Do not use this machine in a hazardous-location.

6) Do not use when the machine is not working properly.

7) Do not disassemble and repair this machine.

8) Do not use an unsuitable AC Outlet.

9) Do not touch the heating plate when the machine is heating

10) Do not use in humid environment or contact with water. Do not infiltrate liquid the machine to prevent fire or electric shock caused by short circuit.

11) Do not use the power supply that does not meet the rated voltage. The power supply that does not meet the specified voltage may cause fire or electric shock

12) Ensure that the machine is grounded so as not to cause harm to body.

13) Do not touch the rotating rod or bearing part with your fingers during use in

of injuries.

14) If the machine is not in use for a long time, please unplug the power cord socket.
15) Do not use the machine during thunderstorms or lighting to avoid damage to machine.
16) Place the machine smoothly on the flame-retardant table and keep away from flammable and explosive items.
17) Please stop using it if the machine smokes, emits a peculiar smell, or become noisy and in other abnormal conditions.
18) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experier and knowledge
if they have been given supervision or instruction concerning use of the appliance, a safe way and understand the hazards involved. Children shall not play with the appliance.Cleaning and user maintenance shall not be made by children without supervision
19) Type X attachment: If the supply cord is damaged, it must be replaced by special cord or assembly available from the manufacturer or its service agent.
20) In order to avoid a hazard due to inadvertent resetting of the thermal cutout appliance must not be supplied through an external switching device, such as a or connected to a circuit that is regularly switched on and off by the utility.

PRODUCT PARAMETER

Model	TLK2730OZ-2S
Temperature Range	50°C-190°C / 122
Timer Range	0-999S
Rating(s)	120V~ 60Hz,1150W For US users
	230V~ 50Hz,1100W For European users
Max.Temperature	50°C-190°C /122°F-374°F
Compatible Mug Size	30OZ
Improtant Note:This product features a long mug wrap (270mm), typically suitable for 30OZ mug temporarily used for shorter mugs (such as 11OZ or 15OZ mugs), two mugs ne placed simultaneously to ensure that the entire length of the mug wrap is in co the mugs. This is to ensure even heating and to extend the service life of the

Safety precautions

1. Please select the appropriate power supply and power supply socket strictly according to the parameter instructions, and connect it to the ground wire correctly.
2. Place the machine smoothly on the flame-retardant desktop, and st away from flammable and explosive items around the machine.
3. Do not use the equipment for a long time, please disconnect the supply.
4. Children under the age of 12 and people with mobility disabilities prohibited.
5. Do not soak it in water or use it in a wet environment.

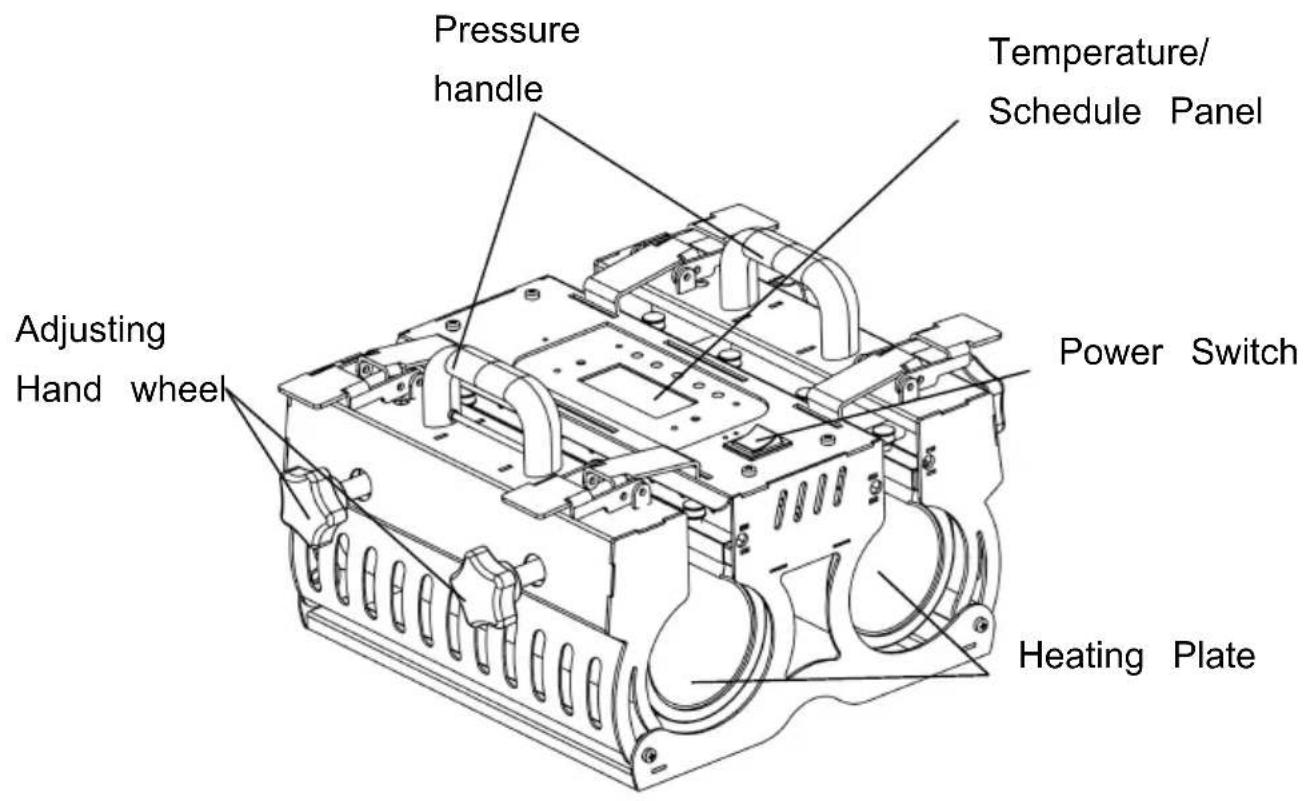

Product structure diagram

Pressure handle Temperature/ Schedule Panel Power Switch Heating Plate Adjusting Hand wheel

Instructions for how to use

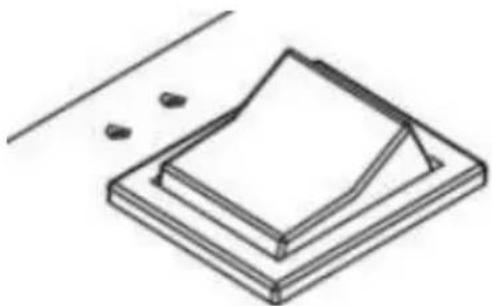

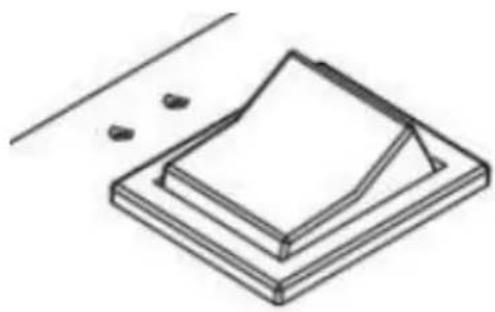

Simple line drawing of a layered object with two small dots, no text or symbols present

1. According to the voltage shown in the equipment package, connect the machine plug to the 23oV plug and turn on the power supply. Main switch, power supply indicator light is on (note that the whole machine must have a protective ground wire).

VEVOR® TONISH TOOL, HALF PRICE Technical Support and Deferring Certificate one-on-one-on-support LEFT RIGHT PUSH/WD LEFT MODE/WD RIGHT MINUS

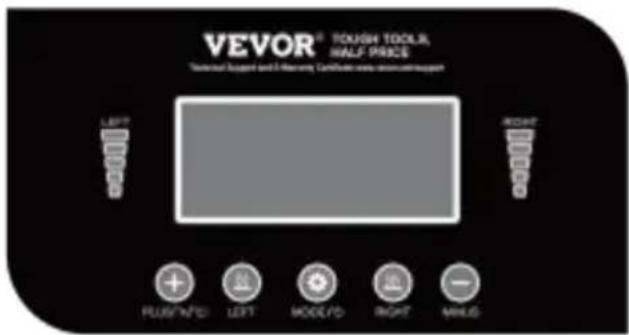

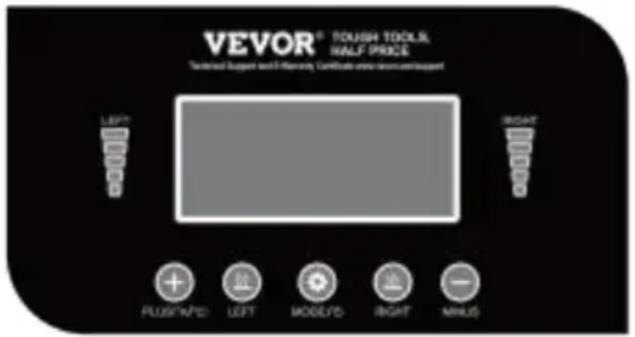

1. Press the Mode key once to set the left temperature, and press the PLUS key to increase and press M1NUS to reduce; Press the Mode key twice to set time, and press the PLUS key to increase and press M1NUS to reduce; Press Mode key three times to set the temperature on the right, and press the PL to increase and press M1NUS to reduce; Press the Mode key four times to right time, press the PLUS key to increase and press M1NUS to reduce. Press fifth time to return to the initial state of boot. Press and hold the PLUS key seconds, and switch Fahrenheit temperature on the left and right screens.

VEVOR® TOUCH TOOL, HALF PRICE Vertical Support and Security Certificate www.touchsupport LEFT RIGHT PLUS/WFD LEFT MODEYS RIGHT MINUS

1. Start heating: press the LEFT button, the left heater will be heated, and progress bar will glow; Press the R1GHT button, the heater on the right is and the progress bar on the right glows; when heating to the set temperature beep alarms are issued, and the LEFT or R1GHT key is pressed again to terminate the heating.

VEVOR® TOUGH TOOL, HALF PRICE Technical Support and Security Certificate www.roumuthsupport LEFT RIGHT PLUS/NPSI LEFT MODEL/SO RIGHT MINUS

1. When heated to the set temperature, press the PLUS key once, the total time on the left begins to be positive, the total moving line flashing light begins flash, the left transfer time waits for the temperature to reach the set temperature to count down, and the running indicator light begins to flash; at the state of heating to the set temperature, press the M1NUS key once, the total running on the right begins to be count, the total running line flashing light begins to the righttransfer time waits for the temperature to light begins to flash, the right transfer time waits for the temperature to reach the set temperature to start countdown, and the running indicator light begins to flash; in the transfer operation there are two alarm mechanisms of the total running time:

VEVOR® TOUGH TOOLS, HALF PRICE Terminal Button with Memory Certificate one-month-on-Stop LEFT RIGHT PLUS/PSO LEFT MODE/PS RIGHT NULL

a. After the countdown, the buzzer rings for 5 seconds, and the screen court indicator light flashes (which ends on the left and right side flickers, and both flashes at the same time). The total operation collects the signal and continuous time forward after 20 seconds (set up) No operation, automatically stop heatir with the setting temperature as the reference, and transfer it to protect the temperature [regularly 100 degrees Celsius (setable)] as the reference. Test the constant temperature. The buzzer alarms at intervals of 3 seconds. The screens shows that the countdown indicator light and the total operation indicator light at the same time (which side of the alarm on the left and right side flashes both sides flashes at the same time). Press PLUS or M1NUS to lift the alarm and (which side of the alarm presses the alarm) returns to normal; in the a state, the rest of the keys are disabled.

VEVOR® TOUCH TOOL, HALF PRICE Technical Support and Flanking Certificate www.occumsupport LEFT RIGHT PUSH/INTC LEFT MODE/O RIGHT MINUS

b. The total start-up running time of one operation shall not exceed 5 minutes up), and those who exceed 5 minutes shall be deemed to be improper oper equipment. if it fails, the device immediately cuts of the heating body power the system enters the standby state, and presses the Mode key to turn it again.

Technical line drawing of mechanical components or parts (no text or symbols)

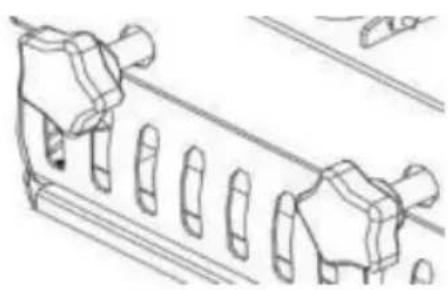

1. Adjust the knob and hand wheel, try to close the device several times, adjust the appropriate pressure, and turn clock wise Hand wheel can increase the equipment pressure; turning the hand wheel counterclockwise can reduce the equipment pressure until appropriate pressure.

2. Place the cup flat on the sponge pad, fold the hot paper (the side of the pattern is facing it, the part of the cup to be transferred), press the handle until it is completely turned of, then the time light flashes, and the time beg count down. After the countdown, the light went out, and the buzzer turned "down" sound, which means that the hot painting has been completed. At this the handle should be lifted as soon as possible.

Scope of application

Mug	Color-changing cup
392°F (200°C) 60s	365°F (185°C) 50s

Common fault analysis

Failure phenomenon	Causes of failure	Resolutions
It can't be heated, but shows well.	Damaged heating plate or relay	Check the heating plate or relay for damage.
Insufficient color and image discoloration	Insufficient temperature And/or insufficient heating time.	Adjust the temperature and/or increase the heating time.
Dark color; blurred images.	Press the time is too long and the temperature is too high	Adjust the temperature and the heating time
No action after boot	Whether the plug is touch well Whether the fuse is burnir	Check that the plug is well touched
		Check the fuse for combustion
The actual temperature exceeds the set temperature	Relay disconnected	Disconnect the relay and replace the relay.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Modello :TLK2730OZ-2S

Technical line drawing of a mechanical housing assembly (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

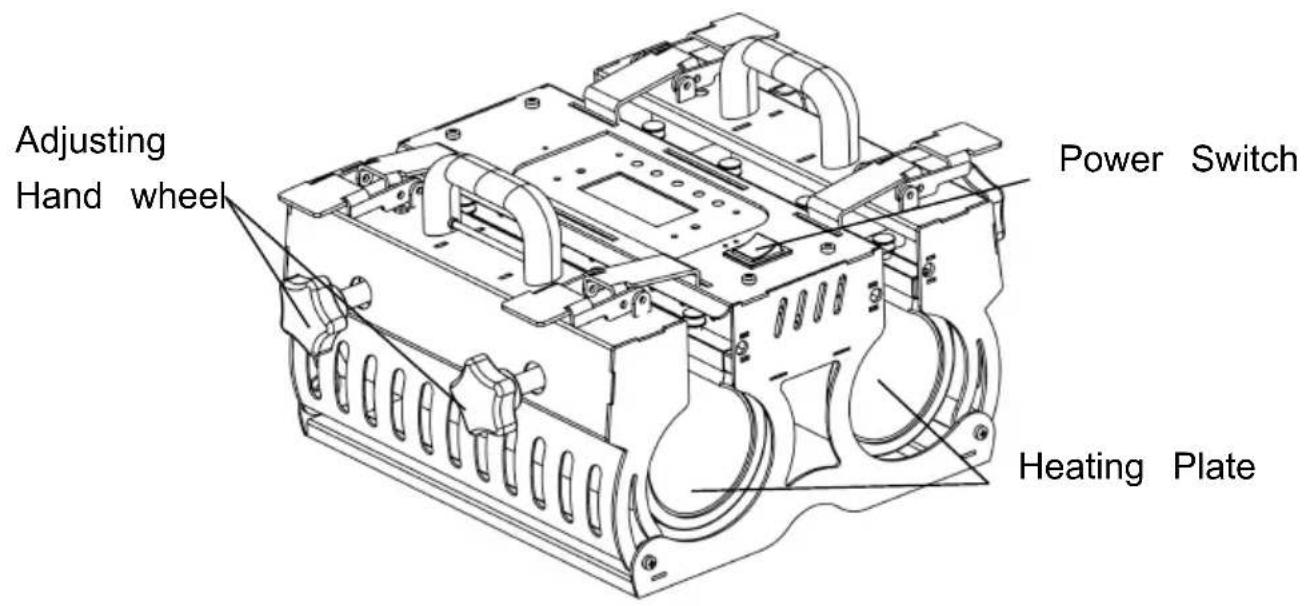

Pressure handle Temperature/ Schedule Panel Power Switch Adjusting Hand wheel Heating Plate

Simple line drawing of a layered object with two small dots, no text or symbols present

VEVOR® TOUSH TOOLS, HALF PRICE Technical Support and Security Checkups new document support LEFT RIGHT PLUS/W/D LEFT MODE/FD RIGHT MINUS

VEVOR® TOUCH TOOLS, HALF PRICE Switched Support and Memory Certificate www.comwardsupport LEFT RIGHT PLUS/AFID LEFT MODE/FD RIGHT MINUS

VEVOR® TOUGH TOOL, HALF PRICE Technical Support and Warranty Certificate under instrument support

VEVOR® TOUCH TOOLS, HALF PRICE Switched Support with Frequency Certificates via transatl Support LEFT RIGHT PLUS/AFD LEFT MODE/FO RIGHT MINUS

VEVOR® TOUCH TOOL HALF PRICE Selected Support and Memory Certificate www.touchsupport LEFT RIGHT PLUS/NPSD LEFT MODEYS RIGHT MINUS

Technical line drawing of a mechanical component with multiple slots and mounting holes (no text or symbols)

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Modelu : TLK2730OZ-2S

Technical line drawing of a mechanical housing assembly (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Pressure handle Temperature/ Schedule Panel Power Switch Adjusting Hand wheel Heating Plate

Simple line drawing of a layered object with two small dots, no text or symbols present

VEVOR® TOURISH TOOLS, HALF PRICE Switched Support and Warranty Certificate www.tourishsupport LEFT RIGHT PLUS/AFID LEFT MODE/FID RIGHT MINUS

VEVOR® TOUCH TOOLS, HALF PRICE Standard Support and Defining. Certificate www.touchsupport LEFT RIGHT PLUS/NFD: LEFT MODE/TO RIGHT MADS

Technical line drawing of a mechanical component with multiple slots and mounting holes (no text or symbols)

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Modell : TLK2730OZ-2S

Technical line drawing of a mechanical housing assembly (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Adjusting Hand wheel Power Switch Heating Plate

Gebrauchsanweisung

Simple line drawing of a layered object with two small dots, no text or symbols present

VEVOR® TOUGH TOOLS, HALF PRICE Technical Support and Memory Certificate over non-thermal support LEFT RIGHT PLUS/WD LEFT MOD/WD RIGHT MHUS

VEVOR® TOUSH TOOLS, HALF PRICE Technical Support and Filter any Certificate new instrument support LEFT RIGHT PUSKAPED LEFT MODIFS RIGHT MULS

VEVOR® TOUGH TOOL, HALF PRICE Technical Support and Memory Certificate www.toughorsupport LEFT RIGHT PUSH/FTS1 LEFT MODCYO RIGHT MINUS

Technical line drawing of a mechanical component with multiple slots and mounting holes (no text or symbols)

Two black and white mugs with embossed brand logos, displayed side by side (no visible text or symbols on the mugs themselves)

Becher	Farbwechselbecher
392°F (200°C) 60s	365°F (185°C) 50s

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Technical line drawing of a mechanical housing assembly (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Pressure handle Temperature/ Schedule Panel Power Switch Adjusting Hand wheel Heating Plate

Simple line drawing of a layered object with two small dots, no text or symbols present

VEVOR® TOUSH TOOLS, HALF PRICE Technical Support and Security Checkups new document support LEFT RIGHT PLUS/W/D LEFT MODE/FD RIGHT MINUS

VEVOR® TOUCH TOOL, HALF PRICE Technical Support and Security Certificate www.doucomsupport LEFT RIGHT PLUS/FO: LEFT MODE/FO RIGHT MINUS

Technical line drawing of a mechanical component with multiple slots and mounting holes (no text or symbols)

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Model :TLK2730OZ-2S

Technical line drawing of a mechanical housing assembly (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Pressure handle Temperature/ Schedule Panel Power Switch Adjusting Hand wheel Heating Plate

Simple line drawing of a layered object with two small dots, no text or symbols present

VEVOR® TOUSH TOOLS, HALF PRICE Technical Support and Security Checkups new document support LEFT RIGHT PLUS/W/D LEFT MODE/FD RIGHT MINUS

Technical line drawing of a mechanical component with multiple slots and mounting holes (no text or symbols)

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Modell : TLK2730OZ-2S

Technical line drawing of a mechanical housing assembly (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Pressure handle Temperature/ Schedule Panel Power Switch Heating Plate Adjusting Hand wheel

Simple line drawing of a layered object with two small dots, no text or symbols present

VEVOR® TOUGH TOOL, HALF PRICE Technical Support and Conditioning Certificates were introduced support LEFT RIGHT PUSIP/PSD LEFT MODERD RIGHT MINUS

VEVOR® TOUCH TOOLS, HALF PRICE Technical Support and Flanking Certificate non-encouring support LEFT RIGHT PUSH ITEMS LEFT MODELDS RIGHT MINUS

VEVOR® TOUCH TOOLS, HALF PRICE Switched Support with Frequency Certificates via transatl Support LEFT RIGHT PLUS/AFD LEFT MODE/FO RIGHT MINUS

VEVOR® TOUCHING TOOLS, HALF PRICE Technical Support with Flawery Calculate www.rouscruisupport LEFT RIGHT PLUS/WID LEFT MODE/SO RIGHT MINUS

VEVOR® TOUCHING TOOLS, HALF PRICE Technical Support and Flanking Certificates www.touchingsupport LEFT RIGHT PLUS/WFD LEFT MODEYS RIGHT MINUS

Technical line drawing of a mechanical component with multiple slots and mounting holes (no text or symbols)

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Modelo : TLK2730OZ-2S

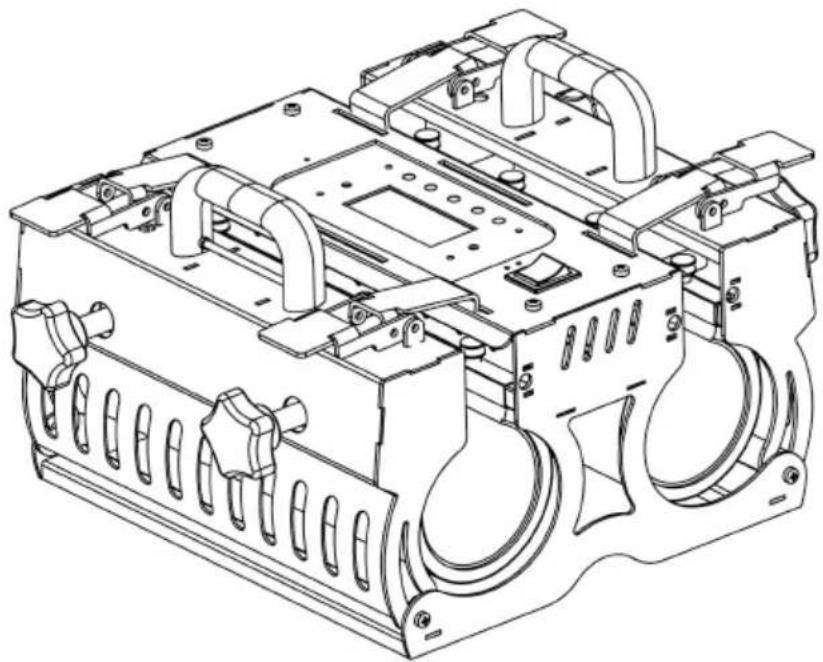

Technical line drawing of a mechanical housing assembly (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Pressure handle Temperature/ Schedule Panel Power Switch Adjusting Hand wheel Heating Plate

Simple line drawing of a layered object with two small dots, no text or symbols present

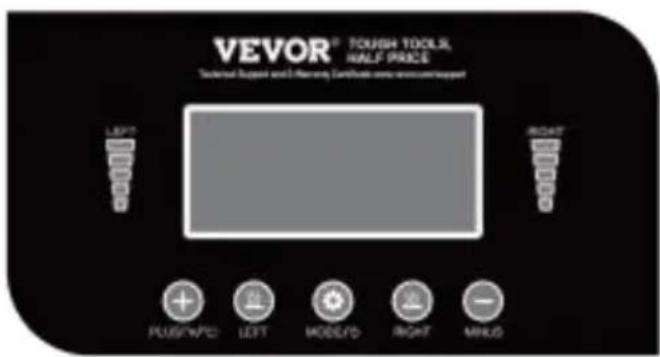

VEVOR® TOUSH TOOLS, HALF PRICE Technical Support and Security Certificate new document support LEFT RIGHT PLUS/W/D LEFT MODE/FD RIGHT MINUS

VEVOR® TOUCH TOOLS, HALF PRICE Switched Support with Frequency Certificates via transatl Support LEFT RIGHT PLUS/AFD LEFT MODE/FO RIGHT MINUS

VEVOR® TOUCH TOOL HALF PRICE Selected Support and Memory Certificate www.touchsupport LEFT RIGHT PLUS/NPSD LEFT MODEYS RIGHT MINUS

Technical line drawing of a mechanical component with multiple slots and mounting holes (no text or symbols)

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE
