USER MANUAL I-A Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TOP AUTOMOTIVE CREEPER

MODEL:I-A/I-B

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

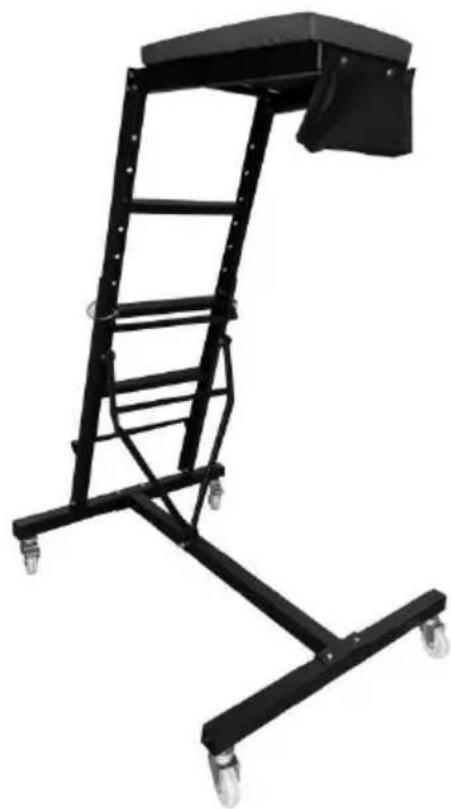

TOP AUTOMOTIVE CREEPER

MODEL: I-A/I-B

Black metal ladder platform with wheels, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel f contact us: Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, users must read instructions manual carefully.
	Warning- Be sure to wear eye protectors when using product.
	Warning- Be sure to wear gloves when using this pr

PRODUCT PAREMETERS

Model	I-A	I-B
Adjustable Height	48-64 inch	48-76 inch
Weight Capacity	400 lbs	400 lbs

The height of the top automotive creeper can be adjusted. The heavy-duty st construction is powder coated for protection. A high density padded foam dec provides additional comfort.

WARNING

WORK AREA

1. Operate in a safe work environment. Keep your work area clean, well-lit and of distractions. Place lights so you are not working in a shadow.
2. Keep anyone not wearing the appropriate safety equipment away from the area.
3. Store tools properly in a safe and dry location. Keep tools out of the reach children.

PERSONAL SAFETY

WARNING! Wear personal protective equipment approved by the Canadian Standards Association(CSA) or American National Standards Institute(ANSI).

PERSONAL PROTECTIVE EQUIPMENT

1. Always wear impact safety goggles that provide front and side protection f eyes. Eye protection equipment should comply with CSA Z94.3-07 or ANSIZ87 standards based on the type of work performed.
2. Wear gloves that provide protection based on the work materials or reduce effects of tool vibration.
3. Wear protective clothing designed for the work environment and tool.
4. Non-skid footwear is recommended to maintain footing and balance in the environment.
5. Wear steel toe footwear or steel toe caps to prevent a foot injury from f objects.

PERSONAL PRECAUTIONS

Control the tool, personal movement, and the work environment to avoid pers injury or damage to the tool.

1. Do not operate any tool when tired or under the influence of drugs, alcohol medications.
2. Do not overreach when operating the tool. Proper footing and balance enable better control in unexpected situations.

SPECIFIC SAFETY PRECAUTIONS

WARNING! DO NOT let comfort or familiarity with the product (gained from repeated use) replace strict adherence to the tool safety rules. If you use the unsafely or incorrectly, you can suffer serious personal injury.

1. Use the correct tool for the job. This tool was designed for a specific fun not modify or alter this tool or use it for an unintended purpose.
2. DO NOT use the tool if any parts are damaged, broken, or misplaced. R replace the parts.
3. ALWAYS ensure the height adjustment bar is securely fixed in one of the position slots prior to using.
4. The maximum capacity listed includes the user (person), tools, equipment and personal items. DO NOT exceed the maximum capacity.

5. Lean your chest onto the chest pad deck gently. Avoid causing a shock jumping or falling onto the chest pad deck.

6. DO NOT stand or sit on the chest pad deck.

7. DO NOT use the foldable top automotive creeper to work over a running
8. DO NOT get the foldable top automotive creeper wet or use it in damp or areas where there is condensation.
9. Use the creeper on a smooth, level surface capable of withstanding the load.
10. ALWAYS lock the casters before using the foldable top automotive creep

PACKING LIST

Item	Item	QTY	Item	Item	QTY
A	Base Frame	1	L	Bumper Pads	3
B	Ladder Assembly	1	M	M Leg Lock Pin	2
C	Chest Deck Frame	1	N	Frame Bolts	4
D	Chest Deck Pad	1	P	Chest Frame Bolts	6
E	Base Leg	1	R	Height Adjustment Plate Bolts	4
F	Connecting Column	1	S	Phillips Screws	2
H	Pouch	1	U	Flange Nut	4
I	Pouch Bracket	1	V	Lock Nut	4
J	Front Casters	2	W	Lock Nut M8	2
K	Rear Casters	2	X	Lock Nut M6	3

INSTALLATION

Letter references in parenthesis (A) refer to the contents.

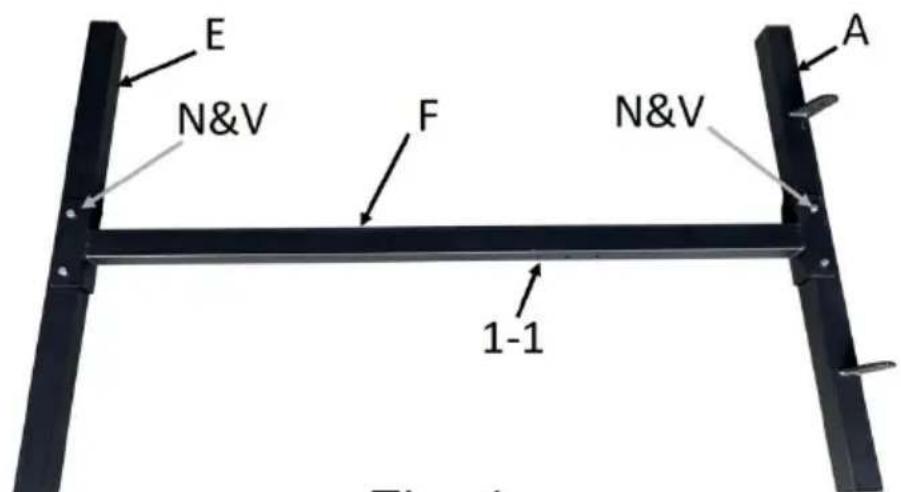

1. Assemble the Base leg (E) and the base frame (A) to the Connecting Co (F). Insert the end of Connecting Column (F) into the base frame and the E (E) and align the bolt holes. The height adjustment holes (Fig.1 1-1) will be inside. Secure each part with a frame bolt (N) and lock nut1 (V).

E N&V F N&V A 1-1

Fig. 1

1. Attach the front casters (J) by inserting the stem of each caster through of each leg and securing it with a flange nut (U). Install the rear locking ca to the base frame in the same manner. Lock the rear wheels in place for 1 remainder of the installation.

K&U U J Fig. 2

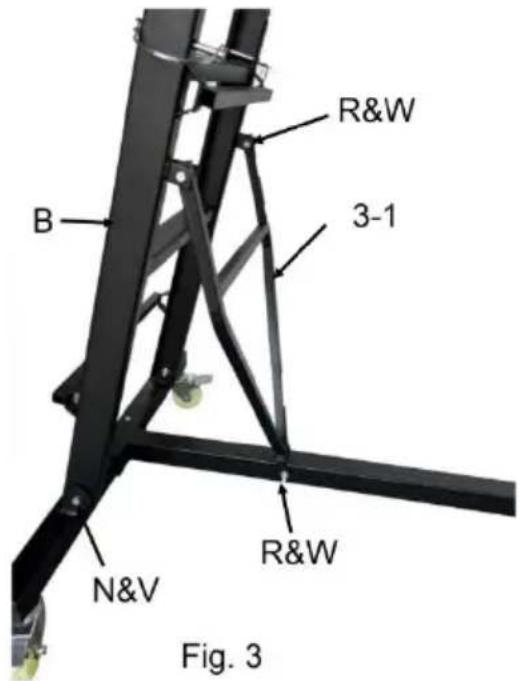

1. Install the ladder assembly (B) by inserting a frame bolt(N) through each the base of a lock nut1 (V). Swing the ladder's angle support (Fig.3 3-1) into height adjustment holes (3-2). Make sure the crossbar is firmly in place.

R&W B 3-1 N&V R&W Fig. 3

1. Match the angled opening with the adjustment notches. Insert a height adjustment plate bolt (R) through the bolt hole at each end of the plate. Se each bolt with a lock nut 2 (W). Repeat on the other side.

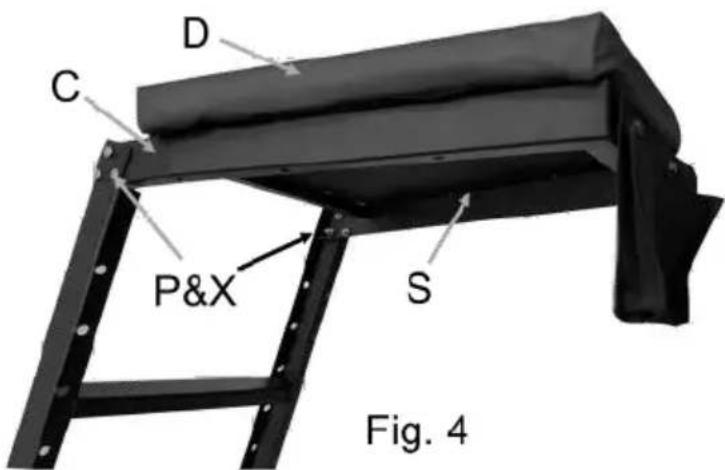

2. Attach the chest deck frame (C) to the top of the ladder assembly (B) u

D C P&X S Fig. 4

three chest frame bolts (P) and lock nut3 (X) on each side. Attach the chest pad (D) using two Phillips screws(S) from underneath.

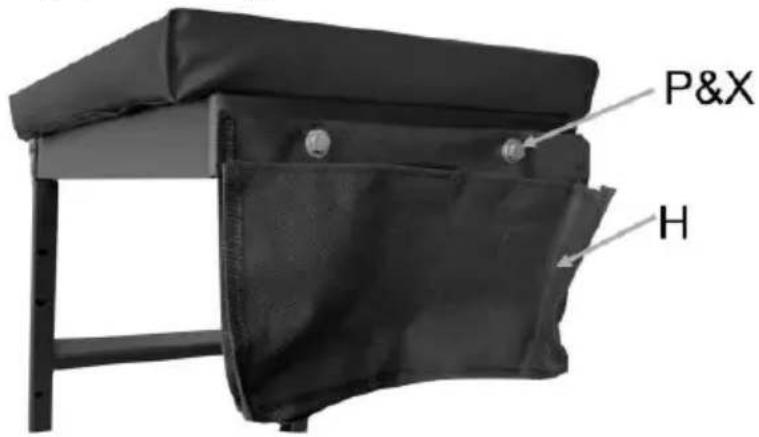

1. Put the pouch (H) and align the screw holes. Insert two chest frame bolt

P&X H

Fig. 5

and lock nut3 (X) through the screw holes.Line up the protruding screws with holes in the deck frame's front. Secure the pouch to the deck frame with the screws.

1. Re-check and tighten all bolts and screws as necessary.

CARE & MAINTENANCE

1. Maintain the tool with care. A tool in good condition is efficient, easier to and will have fewer problems.
2. Inspect the tool components periodically. Repair or replace damaged or wo components. Only use identical replacement parts when servicing.
3. Maintain the tool's labels and name plates. These carry important information unreadable or missing, contact Princess Auto Ltd. for replacements.

WARNING!

Only qualified service personnel should repair the tool. An improperly repaired may present a hazard to the user and/or others.

CLEANING

Wipe clean as needed. Use mild upholstery cleaner (not caustic) to clean the deck pad as needed.

LUBRICATION

DO NOT lubricate casters. This can damage the mechanism.

STORAGE

1. Remove the leg lock pins from each leg. Hold the ladder when removing second pin, as the base frame will fall to the floor. Store the pins in the c pouch.
2. Push the ladder's angle support arms back towards the ladder.
3. Lift each leg up until it rests next to the ladder assembly.
4. Store the creeper vertically. Make sure the rear casters are locked once in place.

REMOVAL FROM STORAGE

1. Lower each leg.
2. Pull the ladder's angle support arms forward to settle in a height adjustment notch.
3. Remove the leg lock pins from the pouch.
4. Lift the base frame and push the leg down until it the bolt holes align. Leg lock pin through and turn the end down. Repeat with the other leg.
5. Unlock the rear casters, and it is ready for use.

Sanven Technology Ltd.

Address: Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Made In China
