USER MANUAL K1001-2 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

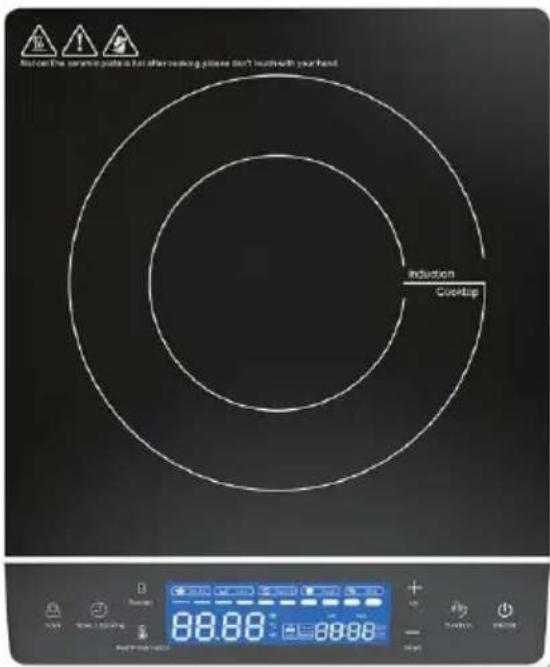

Induction cooker

MODEL:K1001-2

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:K1001-2

Assell The sensation paste is full after cooking please don't lunch with your hand. Induction Cookup 88.88 88.88 + - + - + - + - B Sonic 100% 200% 300% 400% 500% 600% 700% 800% 900% 1000%

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	CORRECT DISPOSALThis product is subject to the provision of European Direct 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the proo and all accessories marked with this symbol. Products ma as such may not be discarded with normal domestic waste must be taken to a collection point for recycling electrical electronic devices
	This product is of protection class II. That means it is eq with enhanced or double insulation.
	FCC Information:CAUTION: Changes or modifications not expressly approve by the party responsible for compliance could void the use authority to operate the equipment!This device complies with Part 15 of the FCC Rules. Ope is subject to the following two conditions:1) This product may cause harmful interference.2)This product must accept any interference received, including interference that may cause undesired operation.WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product.Note: This product has been tested and found to comply the limits for a Class B digital device pursuant to Part 15 FCC Rules, These limits are designed to provide reasonable protection against harmful interference in a residential installation.This product generates, uses and can radiate radio freque energy, and if not installed and used in accordance withinstructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception,which can be determined by turning the product and on, the user is encouraged to try to correct the interference by one or more of the following measures.· Reorient or relocate the receiving antenna.· Increase the distance between the product and receiver.· Connect the product to an outlet on a circuit different from that to which the receiver is connected.· Consult the dealer or an experienced radio/TV technician assistance.

INSTRUCTION

1. Power on: there is a DI sound, all displays are turned on once, and the power self-test is successful. The induction cooker is in the shutdown sta 2. On/Off: Press the On/Off key to enter into the standby and the power indicator is bright.

1500W 110V:

1. Function: In standby state, press the function key, the default is frying that displays 518F to enter the heating, and then press again to cook -soup-BBQ-hot pot in sequence.

3.1 Frying:

F light 176-248-284-320-356-392-428-464-518F nine stage fire manual adjustment, you can set a timed shutdown. No operation 2 hours shutdown.

3.2 Cooking:

W starts to light the default maximum power, process automatic fire control can be set to boot. The default heating time is 30 minutes. The time ca adjusted. Power and time cross display.

3.3 Soup:

W starts to light the default maximum power, process automatic fire control can be set to make an appointment to start. The default heating time is minutes. The time can be adjusted. Power and time cross display.

3.4 BBQ:

F light up 176F-248F-284F-320F-356F-392F-428F-464F-518F nine-stage fire manual adjustment, can set a timed shutdown. No operation 2 hours shutdown.

3.5 Hot pot:

W lit 200W-400W-600W-800W-1000W-1200W-1300W-1400W-1500W nine fire manual adjustment, you can set a timed shutdown. No operation hours shutdown.

1800W 110V:

1. Function: In standby state, press the function key, the default is frying that displays 518F to enter the heating, and then press again to cook -soup-BBQ-hot pot in sequence.

3.1 Frying:

F light 176-248-284-320-356-392-428-464-518F nine stage fire manual adjustment, you can set a timed shutdown. No operation 2 hours shutdown.

3.2 Cooking:

W starts to light the default maximum power, process automatic fire control can be set to boot. The default heating time is 30 minutes. The time ca adjusted. Power and time cross display.

3.3 Soup:

W starts to light the default maximum power, process automatic fire control can be set to make an appointment to start. The default heating time is minutes. The time can be adjusted. Power and time cross display.

3.4 BBQ:

F light up 176F-248F-284F-320F-356F-392F-428F-464F-518F nine-stage fire manual adjustment, can set a timed shutdown. No operation 2 hours shutdown.

3.5 Hot pot:

nine fire manual adjustment, can be set to shut down. No operation 2 has shutdown.

2200W 220V:

1. Function: In standby state, press the function key, the default is frying that displays 518F to enter the heating, and then press again to cook -soup-BBQ-hot pot in sequence.

3.1 Frying:

C light up 80°C-120°C-140°C-160°C-180°C-200°C-220°C-240°C-270°C nine stage fire manual adjustment, can be set time shutdown. No operation 2 hours shutdown.

3.2 Cooking:

W starts to light the default maximum power, process automatic fire control can be set to boot. The default heating time is 30 minutes. The time is adjustable.

3.3 Soup:

W starts to light the default maximum power, process automatic fire control can be set to make an appointment to start. The default heating time is minutes. The time is not adjustable.

3.4 BBQ:

C light up 80°C-120°C-140°C-160°C-180°C-200°C-220°C-240°C-270°C nine stage fire manual adjustment, can be set timed shutdown. No operation 2 hours shutdown.

3.5 Hot pot:

W lit 200W-400W-600W-800W-1000W-1200W-1400W-1800W-2200W nine fire manual adjustment, can be set time shutdown. No operation 2 hours shutdown.

1. Timer/Booking/reservation: set the shutdown time or turn on time. in the heating mode, press the Timer/Booking key, and the four digits on the right side display the time parameter, The time is adjusted to up 10 minutes a down 1 minute, and the maximum is 4 hours (1 minute --4 hours). The reservation is raised once by 30 minutes and then adjusted to 10 minutes with a maximum of 24 hours (1 minute -24 hours).

2. Child lock: Press and hold for two seconds to lock or unlock (success child lock indication illuminated). After locking, only the shutdown button can be operated.
   6.+- Adjust: Adjust firepower and time.

3. High temperature prompt on the surface of the crystal board after shutdown:HH (HH goes out when the temperature is too low to be hot)8. Key: One button maximum, the indicator lights on, digital displays PP, return to the original level after 8 minutes.
4. Insulation key: When turned on, it is for insulation and displays the minimum power corresponding to the minimum power.

TROUBLE CODE

1500W/1800W:

E0 = No pot or incorrect pot utensils
E1 = Low power supply voltage (80), can resume operation when the voltage is normal.
E2 = High power supply voltage (145), can resume operation when the voltage is normal.
E3 = The furnace temperature sensor is short circuit.
E4 = The furnace temperature sensor is open circuit.
E5 = The IGBT temperature sensor is short-circuited or the internal temperature is too high. (not shown)
E6 = IGBT temperature sensor open circuit (no display)

2200W:

E0 = No pot or incorrect pot utensils
E1 = Low power supply voltage (80), can resume operation when the voltage is normal.
E2 = High power supply voltage (280), can resume operation when the voltage is normal.
E3 = The furnace temperature sensor is short circuit.
E4 = The furnace temperature sensor is open circuit.

E5 =The IGBT temperature sensor is short-circuited or the internal temperature is too high.

E6 = IGBT temperature sensor open circuit.

SAFETY REMINDING

	Never use the cooker to work without food in otherwise its operational performance may be affected and danger may happen.
	For sealed foods such as canned goods, please not heat them before opening their covers soa avoid any dagers of explosion due to heatingexpansion.
	The appliance is not intended to be used bychildren or handicapped persons, unless they have been supervised by a responsible person ensure that they can use itsafely.
	Do not place rough or uneven appliances, which may damage the ceramic surface.
	If the surface is cracked, pull out the plug to the possibility of electric shock.
	Do not put any detergents or flammable mater in the equipment installed under the ceramic cooker hob.

This product does not consider the following: Warning: If there are cracks in the surface, please turn off the appliance to avoid possible electric shock. Use of equipment by unattended young children and disabled children's play equipment.

1. Do not overheat an empty pan.

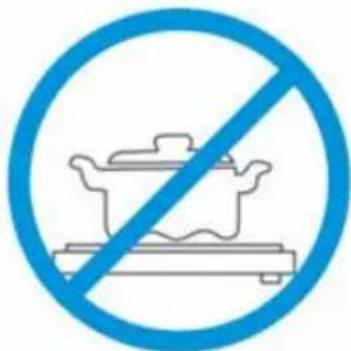

2. Do not carry the infrared cooker with the appliance loaded.

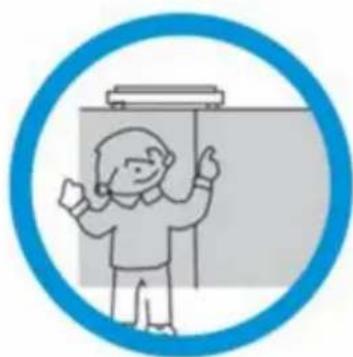

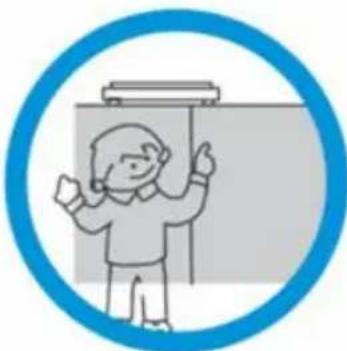

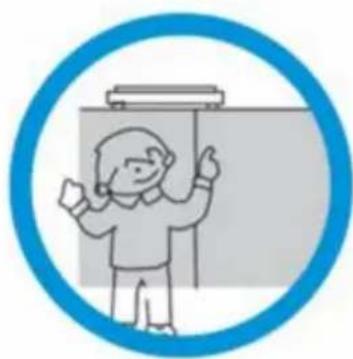

3. Do not let children operate alone to avoid scalding and other risks.
4. During the operation of the appliance, due to high temperature please do not touch the surface of the appliance and black crystal panel.

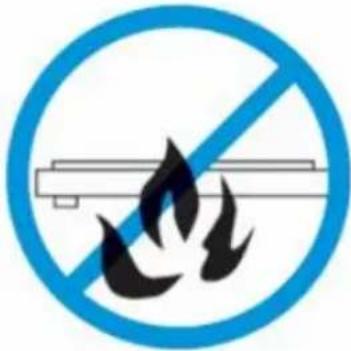

5. Do not use it in the bathroom, gas stove and other damp places or

inflammable and explosive objects.

1. Metal objects knives, forks, spoons and LiDs should not be placed on the surface of the cooking area to prevent them from getting hot.
2. While using the equipment, it should be placed horizontally, should not close to the wall or objects. Clearance around it should be more than 30cm.
3. Do not use paper, cloth and other articles on the panel to heat indir so as to avoid the high temperature of the bottom of the pot Cause combustion.
4. Do not directly add canned and other sealed containers, otherwise the container will be heated and expanded, resulting in explosion.

Do not heat the aluminum foil directly or indirectly.

This product is a household kitchenware, shall not be used in industrial.medica and other places to use Accident-free release.

Unplug the power cord plug from the socket to avoid electronic devices caused by long time electricity Pieces of aging damage, even fire.

1. After cooking, there is still residual heat on the panel generated by t high temperature of the pot. Do not touch it immediately.
2. If the cord is damaged, it must be repaired by the manufacturer's maintenance department or similar departments of professional personnel to repair and replace.
3. Do not use pots and pans with painted bottom on the induction cook to avoid high temperature to burn.
4. Do not heat plastic containers and paper on panels to prevent burnir

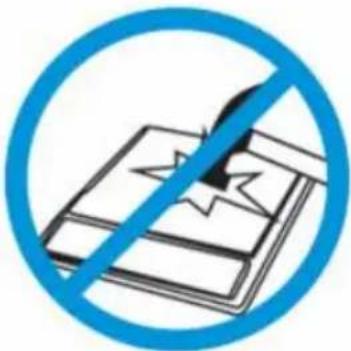

5. Do not hit the black crystal panel with hard objects or touch the black crystal panel with sharp instruments to avoid black crystal Plate cracking and other damage.
6. Do not use the infrared cooker on the carpet or tablecloth, so as no block the exhaust port or suction port, shadow Heat dissipation.
   19 Do not heat food directly on the panel, especially high fat food, overheating oil will cause burning.

7. The infrared cooker cannot be operated by external timer or independent remote control system.

8. Do not place the infrared cooker on the iron, stainless steel, aluminum and other metal panel, because The action of magnetic field line will cause its heating surface to burn out the bottom of induction cooker.

9. Do not directly wash with water to avoid water entering the internal parts and breakdown the units.

Pot selection and use

1. Applicable pots and containers: iron pots with a bottom diameter of 12CM or more, 25CM or less, and a flat bottom. (It is recommended that the pot contains more than 30 % iron)

Iron pot

Iron plate

Flat flat pot

Iron pot

Iron baking tray

Magnetic stainless steel pot

(The above information is for reference purposes)

1. Inapplicable pots: containers made of aluminum and copper, ceramic pots ,heat -resistant glass pots, curved pot bottoms, and pot bottoms. (There is no pot with iron content can not be used)

Non-magnetic stainless steel

Glass pot

Ceramic pot

Casserole

Bottom <12cm

(The above information is for reference purposes)

1. The pots with unsuitable materials all cause abnormal power of the induction cooker, disordered temperature, and internal heat and error, which may cause the induction cooker to malfunction.
2. Place the pot in the center of the panel when using

CLEANING AND MAINTENANCE

1. Please shut off the power and pull out the plug before cleaning of the appliance.
2. Clean the appliance until it cools down completely.
3. To remove dirt, please select litmusless detergent.
4. After removing dirt, please use neat wet cloth to clean the unit.
5. Do not clean by water directly, water gets inside may cause malfunction
6. Keep the ceramic plate and pan clean before cook, otherwise, dirt after charring is very difficult to clean and the plate may get discoloration
7. You may clean air vent/air entry's dirt by vacuum cleaner to suck up, if there is dirt with oil, add a little litmusless detergent with toothbrush to clean.
8. Don't use caustic impregnates to clean. It may damage the cooker by chemical reaction. Do not use benzine, scrubbing brush or polishing powder to clean the induction cooker.

TROUBLE SHOOTING

1. If there is anything wrong with the stove, please check it as following before sending to repair.

	Problem	Possible causes
1	No indicator light when power"on"	Cable/terminal blockisloose Broken circuit or blown fuse 3.Power supply stopped
2	If there is "buzz" noise an the “on/off" light flash no heating	Please check if the potis available 2.If the pot is in the centre of the ceramic plate
3	Appliance suddenly stops heating during operation	Air entrance or outlet blocked2. over-heating protection activated3. Please check if the temperature around is too high4. If the working time over defaulted working time or the timer finish
4	No response for the key	Please check the plug is in a right place

2 Please do not open and repair the unit by yourself to avoid getting hu and other risks.
3. If you can't identify the problem, contact the after-sales service without delay
