EUGHP-212 - Cooker Vevor - Free user manual and instructions

USER MANUAL EUGHP-212 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Commercial Countertop Gas Stove

Model:EUGHP-212/EUGHP-424/EUGHP-636

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:EUGHP-212/EUGHP-424/EUGHP-636

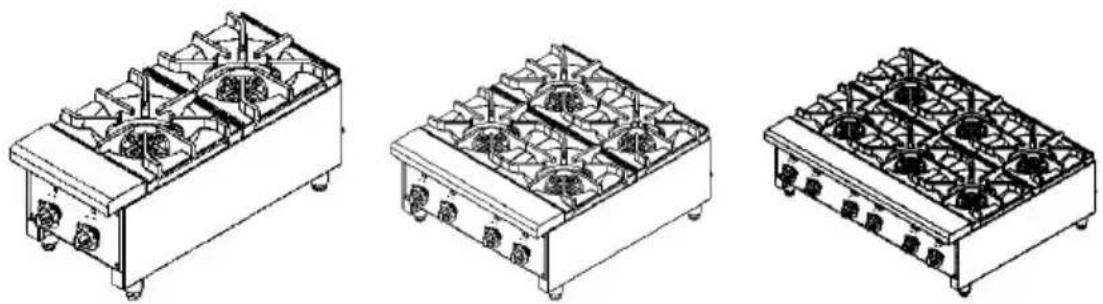

EUGHP-212 EUGHP-424 EUGHP-636

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

Warning-To reduce the risk of injury, the user must re instructions manual carefully.

Model	EUGHP-212
Type of Appliance	A1
Appliance category	I3+(28-30/37)		I3B/P (30)	I3B/P (37)	I3B/P (50)	I2H(20)
Gas type	G31	G30	G30	G30	G30	G20
Normal pressure (mbar)	37	29	29	37	50	20
Nominal heat input(kW)(Hi)	7kw*2
Mian burner Injector size(mm)	1.3		1.3	1.12	1.17	2.4
Ignition injector size (mm)	0.2					0.45
Destination countries	BE,CH,CY,CZ,ES,FR,GB,GR,IE,IT,LT,LU,LV,PT,SI,SK,TR		BE,BG,CY,CZ,DK,EE,FI,FR,GB,GR,HR,HU,IT,LT,LU,LV,MT,NL,NO,RO,SE,SI,SK,TR	PL	AT,CH,CZ,DE,LU,SK	AT,CH,CZ,DK,EE,ES,FI,GB,GR,IE,IT,LT,LV,NO,PT,RO,SE,SI,S
Model	EUGHP-424
Type of Appliance	A1
Appliance category	I3+(28-30/37)		I3B/P (30)	I3B/P (37)	I3B/P (50)	I2H(20)
Gas type	G31	G30	G30	G30	G30	G20
Normal pressure (mbar)	37	29	29	37	50	20
Nominal heat input(kW)(Hi)	7kw*4
Mian burner Injector size(mm)	1.3		1.3	1.12	1.17	2.4
Ignition injector size (mm)	0.2					0.45
Destination countries	BE,CH,CY,CZ,ES,FR,GB,GR,IE,IT,LT,LU,LV,PT,SI,SK,TR		BE,BG,CY,CZ,DK,EE,FI,FR,GB,GR,HR,HU,IT,LT,LU,LV,MT,NL,NO,RO,SE,SI,SK,TR	PL	AT,CH,CZ,DE,LU,SK	AT,CH,CZ,DK,EE,ES,FI,GB,GR,IE,IT,LT,LV,NO,PT,RO,SE,SI,S
Model	EUGHP-636
Type of Appliance	A1
Appliance category	I3+(28-30/37)		I3B/P (30)	I3B/P (37)	I3B/P (50)	I2H(20)
Gas type	G31	G30	G30	G30	G30	G20
Normal pressure (mbar)	37	29	29	37	50	20
Nominal heat input(kW)(Hi)	7kw*6
Mian burner Injector size(mm)	1.3		1.3	1.12	1.17	2.4
Ignition injector size (mm)	0.2					0.45
Destination countries	BE,CH,CY,CZ,ES,FR,GB,GR,IE,IT,LT,LU,LV,PT,SI,SK,TR		BE,BG,CY,CZ,DK,EE,FI,FR,GB,GR,HR,HU,IT,LT,LU,LV,MT,NL,NO,RO,SE,SI,SK,TR	PL	AT,CH,CZ,DE,LU,SK	AT,CH,CZ,DK,EE,ES,FI,GB,GR,IE,IT,LT,LV,NO,PT,RO,SE,SI,S

For Your Safety

Do NOT store or use gasoline or other flammable vapors and liquids vicinity of this, or any other equipment

Warning!

Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death.

Read the installation, operation and maintenance instructions thoroughly before installing or servicing this equipment.

Warning

The factory configuration of this device is G20, please use the correct source! If you need to replace the air source, please contact regular business or professionals to operate!

◆These instructions are only valid if the country code appears on the appliance. If the code does not appear on the appliance, refer to the technical instructions for adapting the appliance to the conditions for it that country.
◆ Any modification, as well as incorrect installation, adjustment, repair maintenance may result in property damage or casualties. Any adjustm or repair shall be made in contact with the supplier and carried out trained professionals.
◆ For your safety, please do not store or use flammable or explosive gases, liquids or articles near this product.
◆ The device shall not be used by persons (including children) who physically, perceptually or mentally disabled or who lack experience or knowledge, unless someone is responsible for their safety or gives instructions on how to operate the device.

◆ Please supervise children to ensure their personal safety.
◆ Please store the operation guide carefully. If the device is to be u

a third party, please deliver the operating instructions together. All users the device must adhere to the operator's manual advisory and safety guidelines.

If the appliance is positioned against walls, partitions, kitchen equipment, decorative panels, etc., it is recommended that these equipment and facilities be made of non-combustible materials, otherwise they should covered with appropriate non-combustible insulation materials and pay close attention to the fire regulations.

◆ The installation location of gas equipment should be in a well-ven place, and exhaust facilities should be installed to ensure that steam exhaust gas after combustion are discharged during operation.

◆ Please do not modify the necessary air intakes and smoke vents combustion to avoid safety accidents.

◆ The equipment is only suitable for low-pressure gas regulator, illegal of high and medium pressure regulator may cause property damage or safety accidents.

◆ Fire warning:

Smell gas: any source of fire must be strictly prohibited, do not ignite equipment, do not touch any electronic switch, do not use any telephone your building.

If there is gas smell, please close the main gas valve, call the main call for professional maintenance. The control knob of the gas valve can only be operated by hand. The tool control knob cannot be used. If the cannot be turned by hand, do not force it to turn or try to fix it. If operated arbitrarily or maintained improperly, there is a risk of gas lead and gas explosion. The manufacturer shall not be liable for any fire and caused by improper operation and maintenance.

To Purchaser

After installation of your griddle, immediately contact your local gas supplier to obtain information in the event the user of your equipment smells gas. This information must be posted in a prominent location.

To User

RETAIN THIS MANUAL FOR FUTURE USE

1. The installation of this equipment should be done by professional
2. The connection equipment must comply with the gas safety, installation and use regulations.
3. The equipment should be installed separately or in combination with other equipment according to the specified scope.
4. The device is not suitable for embedded installation. Otherwise, the equipment will work under Severe hypoxia conditions and the discharge combustion products will be excessively exceeded, which will seriously endanger the health of the workers and even fatal accidents.
5. Due to heavy equipment, please consider the weight of the device installing, we recommend that you install on the ground or on the ta 6. Can not be installed on the flammable floor or material. If it is ins a countertop, the countertop material must be of a material that does easily catch fire or fire, in order to ensure the safety of the user ar normal operation of the equipment.
6. It is recommended to install such equipment in a room with good ventilation performance or under a hood. If the equipment is installed the wall of flammable materials, it must have a distance of at least from the wall. If it is not possible to guarantee a safe distance, prot measures must be taken, such as the use of refractory materials to the wall temperature within the established safety range.
7. Remove the plastic film from the device before installation.
8. After the equipment is installed, it must be kept stable, placed horizontally, not tilted, and it must not be shaken during use.
9. Do not use other gases that do not comply with this equipment use and use high and medium pressure regulators. This device is on suitable for low pressure regulators.

10. Before installing the equipment, a valve that cuts off the air support be installed, and it must be placed in an upstream position that is accessible on the equipment.

11. Make sure that the gas used by the equipment is the same as of gas supplied, otherwise it is prohibited to use it.

12. The pipes connected to the equipment must be connected with s metal pipes to ensure that no air leakage occurs.
13. If the pipeline pressure is higher or lower than the rated pressure required by this equipment by 15%, an adjuster is required to ensure the rated pressure is reached.
14. After connecting, test with soapy water or test equipment to test leaks at the pipe connection. "It is forbidden to test with an open fla
15. Check the gas supply pressure after installation.

Upon receipt of this stove, inspect it thoroughly for any damage which may have occurred o during shipment.If damage is observe contact the delivery agency immediately.

1.Clearances And Ventilation: This griddle is designed for installation non-combustible locations with 0 mm, clearance from sides and back; combustible locations with 200mm clearance sides and back.

Keep equipment area free and clear from combustibles.

The area in front of, and above the griddle must be clear to avoid obstruction of flow of combustion and ventilation air. Means must be provided for adequate air supply and adequate clearance for air open into the combustion chamber.

Adequate clearances must be provided in front and sides of the grid servicing and proper operation.

It is important that the griddle be installed under an exhaust hood w adequate to remove the products of combustion and cooking vapors.

Sufficient make-up air must also be provided to the space where the griddle is located to replace that removed through the exhaust hood.

1. Installation of gas source: For natural gas or liquefied petroleum gas, the type of gas required must be in the order specified. Natural gas liquefied petroleum gas have different pressures. When customers use different gas pressures and switch nozzles, different nozzles must be

purchased separately. After the gas source is converted, the nameplate needs to be updated to the corresponding gas source nameplate. List nozzles. After the nozzle is replaced, make sure that the leak is detected and no leaks are found to continue using the product. Replacing the requires professional action.

IMPORTANT: Check all gas connections for leaks, using a soap and solution.

DO NOT USE AN OPEN FLAME FOR CHECKING PURPOSES

1. Connect the inlet pipe 1/2 BSPT joint on the rear of the unit valve body outlet of the air source with a metal pipe or a PVC hose. Note: The length of PVC hose should not exceed 1.5m, avoid pressure of the gas source is too long due to excessive PVC hose; regularly check the PVC hose. If it is found to be hardened, it necessary to replace the PVC hose in time. It is recommended that PVC hose be required within two years. Make a replacement; the cyl used should not be larger than 320mm in diameter, 680mm in height the maximum filling is less than or equal to 14.9kg.

2. The regulating valve is factory set. If you need to change the no: must re-install the sealant and install it before use

3. Remove all protective film before use.

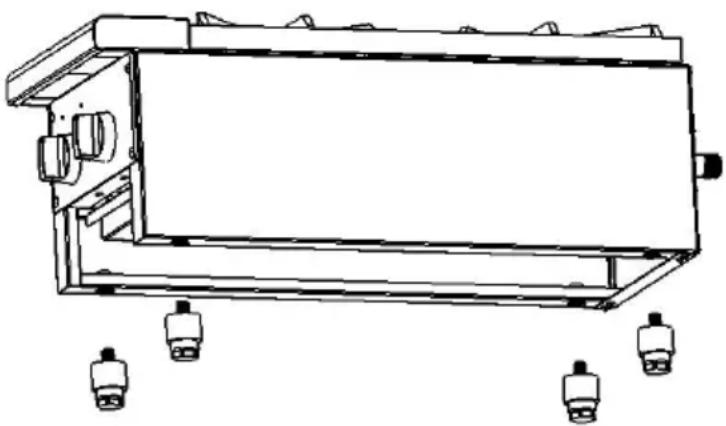

4. Before the equipment is used: Install the four feet into the corresponding holes at the bottom of the container, rotate and tighten feet, and adjust the feet to smooth the device.

Technical line drawing of a mechanical device with mounting feet and internal components (no text or symbols)

5. Lighting And Relighting Of STOVE:

1) Manual models: lightly press knob and anticlockwise turn to “☆”, deeply press knob again and keep for 2-5 minutes, see Pic1

Close-up of a metallic industrial valve component with no visible text or symbols

2) After 2 to 5 minutes to maintain the above operating position, Tur lighter valves and light pilots. if not ignited Repeat Press the igniter (Repeat Operation Step 1) and 2).
3) if the pilot burns, continue to hold the press position for 5-10 sec then release the press, observe whether the flame state. repeat opera step 2) if the flame is extinguished.
4) After the pilot is in the burning state, continue to rotate the butto counterclockwise, select the appropriate flame size or temperature.
5) to be completely closed, turn the knob to the initial state and the identification on the knob is perpendicular to the ground plane.
6) If want to re-ignite, repeat the above steps

6. Care And Maintenance:

Contact factory, factory representative, or a local service company to perform maintenance and repairs.

Please Note: Contact factory before any warranty repairs are made.

1) To clean griddle plate, use warm water, a mild cleanser and scouri

pad.

2) At least once per day, clean and empty grease pan.
3) Periodically, but not less than once every 3 months, clean burner cusing warm water and wire brush. Make sure equipment is cold before removing burners and orifices.

TROUBLESHOOTING GUIDE

Fault phenomenon	Reason	Method of exclusion
Fire can not point	1.Firearm installation or connection is incorrect.2. Lighter plug or plug is damaged.3. Low pressure in gas pipe.4. Nozzleclogging.5. Thermocouple loosening.6. Thermocouple damage7. Fault of gas temperat control valve.	1. Please install it correctly.2.Replace the corresponding spare parts.3. Adjusting pressure relief valve.4. Dredging nozzles.5. Tightening Thermocouple.6.Replacement Thermocouple.7. Replacement of gas control valve.
Fire is burning, but the fire does not point	1. Low pressure in gas pipe2. Main fire nozzle clogging3. Fault of gas control valve	1. Adjusting pressure relief valve.2. Dredging nozzles.3. Replacement of gas control valve.
Closed gas source has the sound of tempering	1. Nozzle aperture and source mismatch.2. Gas source pressure low.3. Refutation is not enough for the flow of the nozz	1. Adjust the diameter of the nozzle2. Adjusting pressure relief valve3. Increase the allowable flow of pipe diameter.
Red fire, black smoke	1. Nozzle aperture and gas source mismatch.2 The gas in the cylinder almost exhausted. With the peak of gas, t components of the gas source fluctuate greatly.	1. Adjust the diameter of the nozzle2. Change the gas sour 3. Adjust the small valve flow, and then increase the valve flow after pea

The above fault items are for reference only. If there are any failures should be stopped at once, and professional technicians should be not and checked as soon as possible. Safety first! Maintenance must be carried out in case of power and gas source being switched off.

Propane(G30,G31)Orifice switch manual

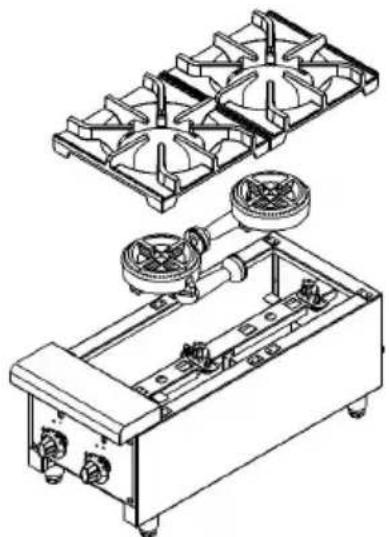

1. Take out grate and burner

Technical line drawing of a gas stove with cooling fans and two fans (no text or symbols)

1. Remove natural gas orifice and mount propane gas orifice(propane orifice size 1.3mm)

Technical line drawing of a mechanical assembly with no visible text or symbols

Attention: High temperature-resistant sealant shall be applied when replacing the orifice, suggest LOCTITE565 sealant

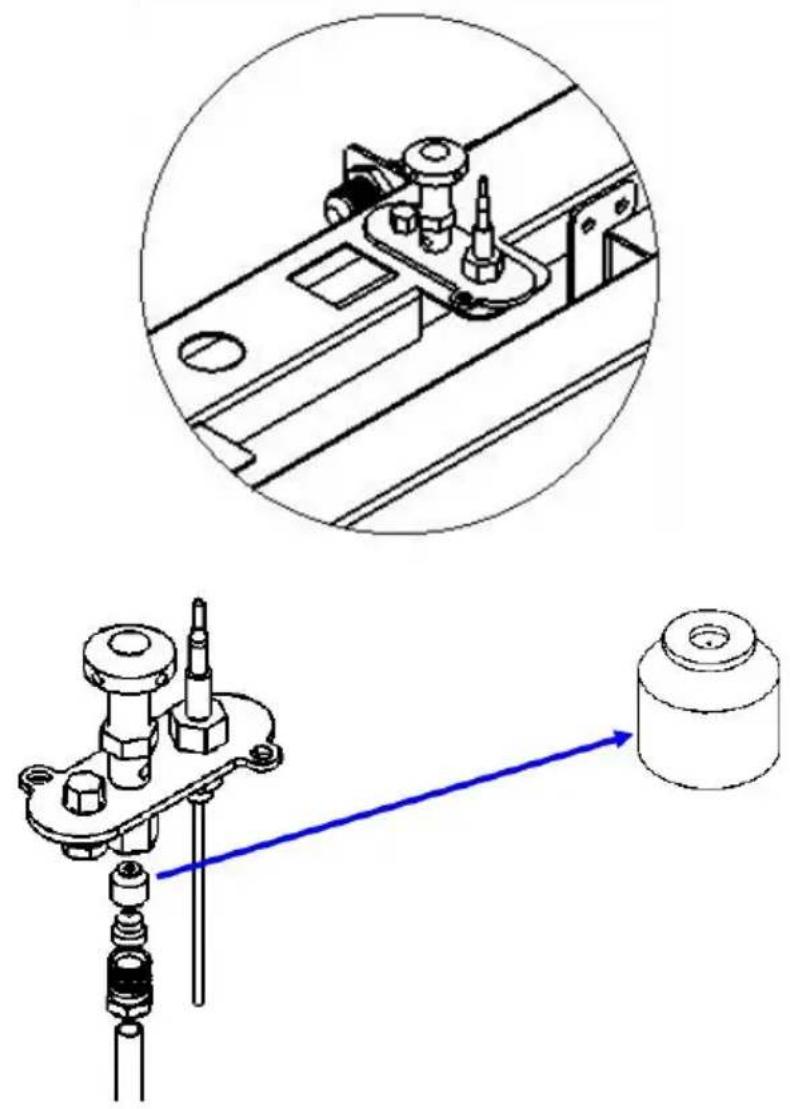

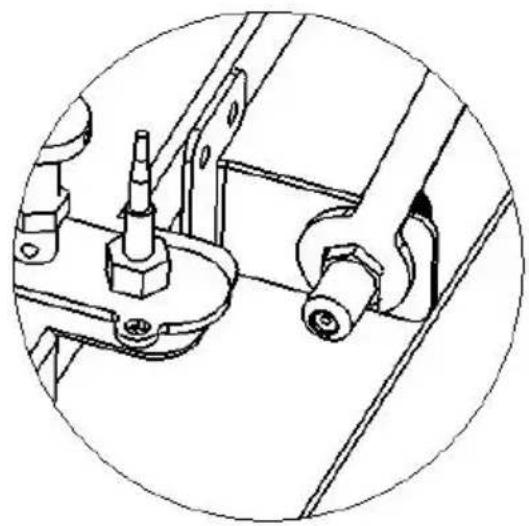

1. Remove natural gas Ignition injector orifice and mount propane gas Ignition injector

Technical diagram showing mechanical assembly with a magnified inset of a component and a blue directional arrow indicating motion (no text or symbols)

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a three-tiered gas stove or boiler unit (no text or symbols visible)

EUGHP-212

Line drawing of a portable electric stove with multiple fans and cooling fans (no text or symbols)

EUGHP-424

Line drawing of a portable gas stove with six fans (no text or symbols)

EUGHP-636

BESOIN D'AIDE? CONTACTEZ-NOUS!

Technical line drawing of a mechanical device with mounting feet and internal components (no text or symbols)

Close-up of a metallic industrial valve with 'OFF' label and starburst symbols (no readable text beyond branding)

Technical line drawing of a gas stove with two fans and a control panel (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical illustration of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a three-tiered gas stove or boiler unit (no text or symbols visible)

EUGHP-212

Line drawing of a portable electric stove with multiple fans and cooling fans (no text or symbols)

EUGHP-424

Line drawing of a portable gas stove with six fans (no text or symbols)

EUGHP-636

Technical line drawing of a rectangular industrial machine with mounting feet (no text or symbols)

Close-up of a metallic industrial valve with 'OFF' label and starburst symbols (no readable text beyond branding)

Technical line drawing of a gas stove with two fans and a control panel (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing mechanical assembly with a magnified inset of a component and a blue directional arrow (no text or symbols)

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a three-tiered gas stove or boiler unit (no text or symbols visible)

EUGHP-212

Line drawing of a portable electric stove with multiple fans and cooling fans (no text or symbols)

EUGHP-424

Line drawing of a portable gas stove with six fans (no text or symbols)

EUGHP-636

Technical line drawing of a mechanical device with mounting feet and internal components (no text or symbols)

Close-up of a metallic industrial valve with 'OFF' label and starburst symbols (no readable text beyond branding)

Technical line drawing of a gas stove with two fans and a control panel (no text or symbols)

Technical line drawing of a mechanical assembly with bolts and brackets (no text or symbols)

Technical diagram showing mechanical assembly with a magnified inset of a component and a blue directional arrow indicating motion (no text or symbols)

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a three-tiered industrial stove or cooling unit (no text or symbols)

Line drawing of a portable electric stove with multiple fans and cooling fans (no text or symbols)

Certificado UEGHP-424

Line drawing of a portable gas stove with six fans (no text or symbols)

EUGHP-636

Technical line drawing of a mechanical device with mounting feet and control knobs (no text or symbols)

Close-up of a metallic industrial valve with 'OFF' label and starburst symbols (no readable text beyond branding)

Technical line drawing of a gas stove with two fans and a control panel (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical illustration of a mechanical assembly with a magnified inset showing internal components and a blue directional arrow (no text or symbols)

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a three-tiered gas stove or boiler unit (no text or symbols visible)

EUGHP-212

Line drawing of a portable electric stove with multiple fans and cooling fans (no text or symbols)

EUGHP-424

Line drawing of a portable gas stove with six fans (no text or symbols)

EUGHP-636

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Line drawing of a rectangular industrial machine with mounting feet and control knobs (no text or symbols)

Close-up of a metallic industrial valve with 'OFF' label and starburst symbols (no readable text beyond branding)

Technical line drawing of a gas stove with two fans and a control panel (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical illustration of a mechanical assembly with a magnified inset showing internal components and a blue directional arrow (no text or symbols)

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a three-tiered industrial gas stove or cooling unit (no text or symbols)

EUGHP-212

Line drawing of a portable electric stove with multiple fans and cooling fans (no text or symbols)

EUGHP-424

Line drawing of a portable gas stove with six fans (no text or symbols)

EUGHP-636

HULP NODIG? NEEM CONTACT MET ONS OP!

Technical line drawing of a rectangular industrial machine with mounting feet (no text or symbols)

Close-up of a metallic industrial valve with 'OFF' label and starburst symbols (no readable text beyond branding)

HANDLEIDING VOOR PROBLEEMOPLOSSING

Technical line drawing of a gas stove with two fans and a control panel (no text or symbols)

Technical line drawing of a mechanical assembly with bolts and brackets (no text or symbols)

Technical illustration of a mechanical assembly with a magnified inset showing internal components and a blue directional arrow (no text or symbols)

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a three-tiered industrial gas stove or cooling unit (no text or symbols)

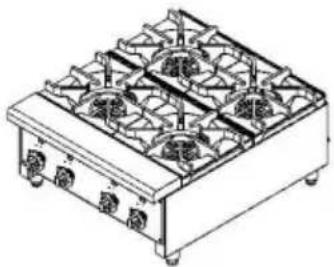

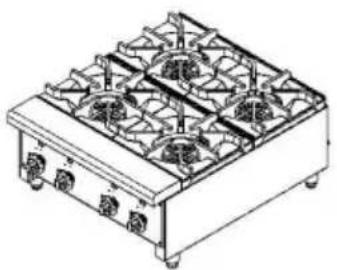

EUGHP-212

Line drawing of a three-tiered electric stove with heat sinks and cooling fans (no text or symbols)

EUGHP-424

Line drawing of a 3D portable gas stove with multiple fans and cooling legs (no text or symbols)

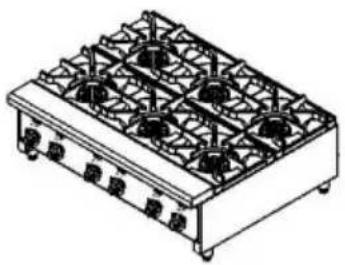

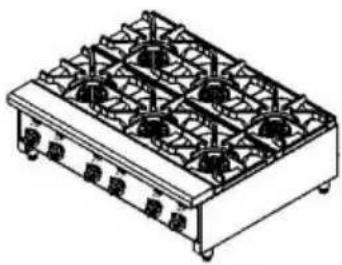

EUGHP-636

BEHÖVER HJÄLP? KONTAKTA OSS!

Line drawing of a rectangular industrial machine with mounting feet and control knobs (no text or symbols)

Close-up of a metallic industrial valve with 'OFF' label and starburst symbols (no readable text beyond branding)

Technical line drawing of a gas stove with two fans and a control panel (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Observera: Högtemperaturbeständigt tätningsmedel ska appliceras

Technical illustration of a mechanical assembly with a magnified inset showing internal components and a blue directional arrow (no text or symbols)

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
