INDUCTION HOB

MODEL:SK-68IHB4S3

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to major top brands and doses not necessarily mean to cover all categories of tools. Us. You are kindly reminded to verify carefully when you are placing an order, as we are actually saving half in comparison with the top major brands.

MODEL:SK-68IHB4S3

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

[e-mail]

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SafetyWarnings

Your safety is important to us. Please read this information before us your cooktop.

Installation

Electrical Shock Hazard

• Disconnect the appliance from the mains electricity supply before can out any work or maintenance on it.

• Connection to a good earth wiring system is essential and mandato

• A qualified electrician must only make alterations to the domes wiring system.

• Failure to follow this advice may result in electricalshock or death.

Cut Hazard

• Take care - panel edges are sharp.
• Failure to use caution could result in injury or cuts.

Important safety instructions

• Read these instructions carefully before installing or using this applia
• No combustible material or products should be placed on this applica at any time.
• Please make this information available to the person responsible for installing the appliance as it could reduce your installation costs.
• In order to avoid a hazard, this appliance must be installed accord these instructions for installation.
• This appliance is to be properly installed and earthed only by a suitable qualified person.
• This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply.
• Failure to install the approximately could invalidate any warranty or liability claims.

Operation and maintenance

Electrical Shock Hazard

• Do not cook on a broken or cracked cooktop. If the cooktop surfabreak or crack, switch the appliance off immediately at the mains power supply (wall switch) and contact a qualified technician.

• Switch the cooktop off at the wall before cleaning or maintenance.

• Failure to follow this advice may result in electrical shock or death.

Health Hazard

• This appliance complies with electromagneticsafety standards.

Hot Surface Hazard

• During use, accessible parts of this appliance will become hot enough to cause burns.
• Do not let your body, clothing or any item other than suitable cookware contact the Induction glass until the surface is cool.
• Metallic objects such as knives, forks, spoons and lids should not lie on the cookersurfaces since they can get

Hot.

• Keep children away.
• Handles saucepans may be hot to touch. Check saucepan handles d overhang other cooking zones they are on. Keep handles out of reach children.
• Failure to follow this advice could result in burns and scalds.

Cut Hazard

• Theazor-sharp blade of caoktop scrapes exposed when the safety cover is retracted. Use with extreme care and always store safely and reach of children.
• Failure to use caution could result in injury or cuts.

Important safety instructions

• Never leave appliance unattended when in use. Boil over causes smoking and greasy spillovers that may ignite.
• Never use your appliance as a work or storage surface.
• Never leave any objects or utensils on the appliance.
• Never use your appliance for warming or heating the room.
• After use, always turn off the cooking zones and the cooktop as c in this manual (i.e. by using the touch controls).
• Do not attend to play with appliance or sit, stand, or climb on it.
• Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured.
• Do not leave children alone at tended in the area where the appliance is in use.
• Children persons with a disability which limits their ability to use the appliance should have a responsible and competent person to instruct

in its use. The instructor should be satisfied that they can use the a without danger to themselves or their surroundings.

• Do not repair or replace any part of the appliance unless specifically recommended in the manual. A qualified technician should all other servicing.
• Do not use a steam cleaner to clean your cooktop.
• Do not place or drop heavy objects on your cooktop.
• Do not stand on your cooktop.
• Do not use pans with jagged edges or drag pans across the Induction glass surface as this can scratch the gl
• Do not use scourers or any other harsh abrasive cleaning agents to your cooktop, as these can scratch the Induction glass.
• If the supply cord is damaged, it must be replaced with its service agent or similarly qualified persons in order to avoid a hazard

This appliance is intended to be used in households

and similar applications such as: -staff kitchen areas in shops, offices other working environments; -farmhouses; byclients in hotels, motels and other residential type environments ; -bed and breakfast type environments.

• WARNING: The appliance and its accessible parts become hot during use.

Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervise

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or 1 of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and unders the hazards involved.

Children shall not play with the appliance. Children shall not make clean and user maintenance without supervision.

• WARNING: Unattended cooking on a cooker with fat or oil can be dangerous and may result in fire. NEVER try to

extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

-WARNING: Danger of fire: do not store items on the cooking surface
- Warning: If the surface is cracked, switch off the appliance to avoid possibility of electric shock, for cooker surfaces of glass-ceramic or similar material which protect live parts
A steam cleaner is not to be used.

• The appliance is not intended to be operated by means of an external or separate remote-control system.

Congratulations on the purchase of your new Induction Cooker.

We recommend that you spend some time to read this Instruction / In Manual in order to fully understand how to install correctly and operate installation, please read the installation section.

Read all the safety instructions carefully before use and keep this Inst / Installation Manual for future reference.

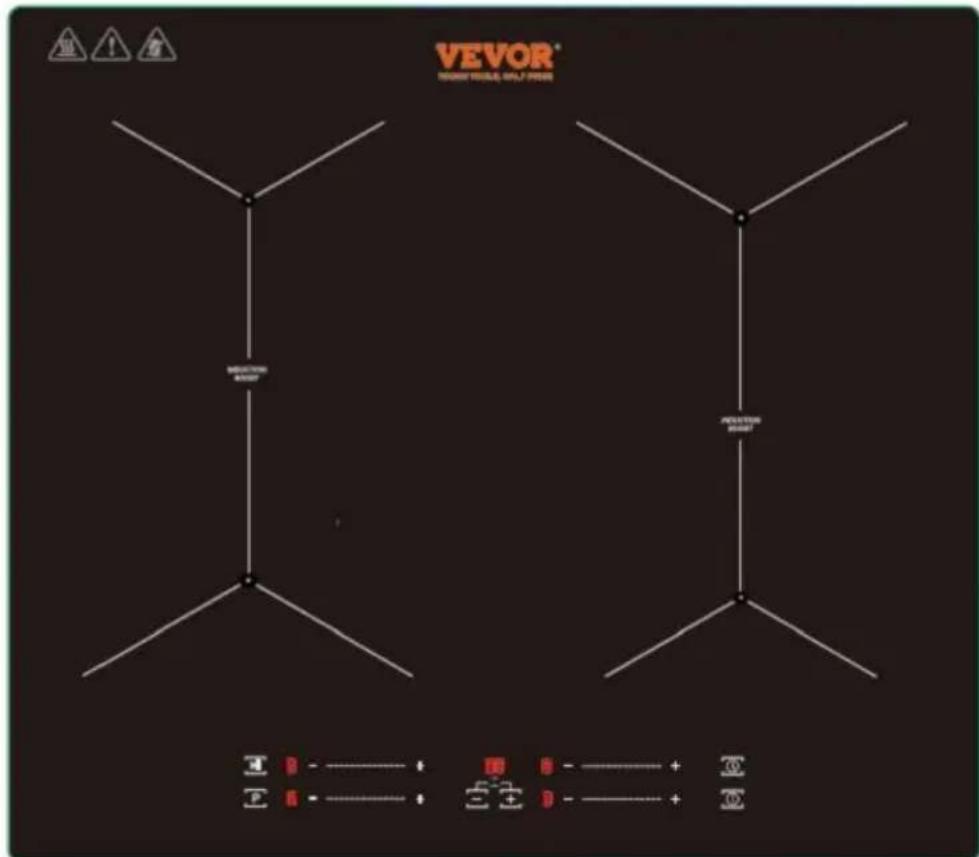

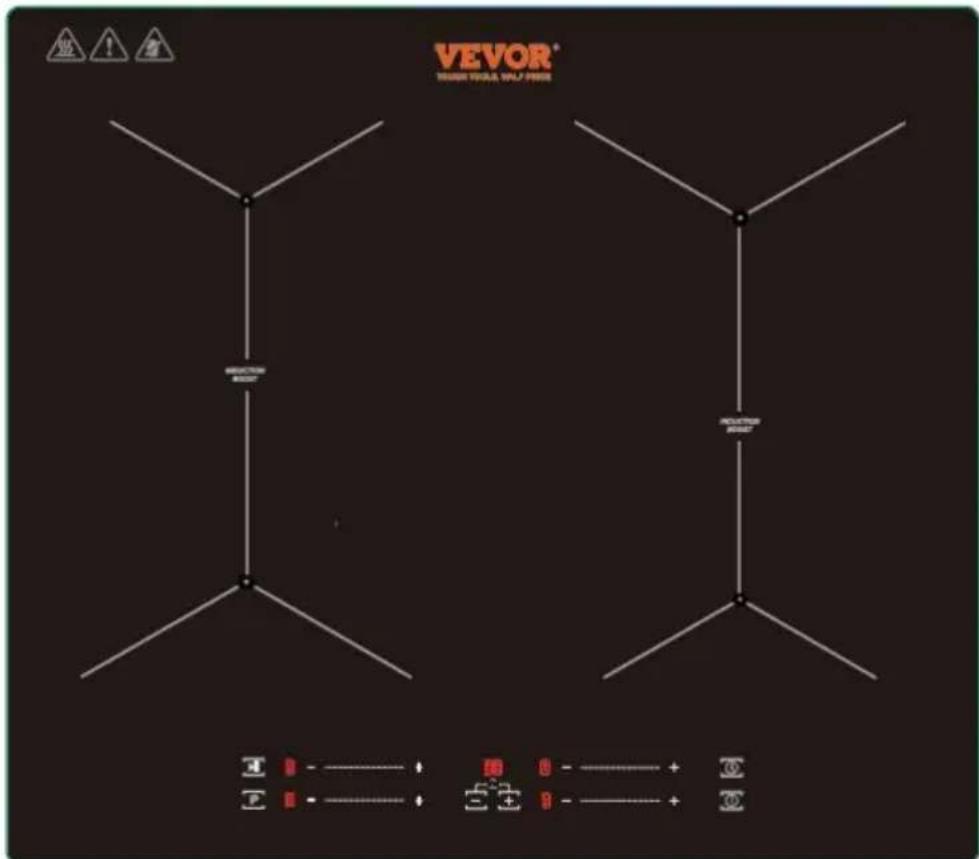

Product Overview

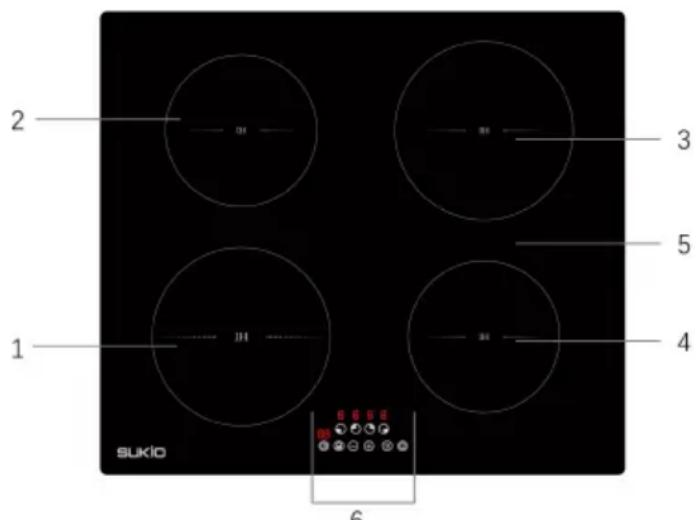

Top View

Model SMAPLE IHB4XY

1. Induction cooker max. 2000W, boost 2600W
2. Induction cooker max. 1600W, boost 2000W
3. Induction cooker max. 2000W, boost 2600W
4. Induction cooker max. 1600W, boost 2000W
5. Glass plate

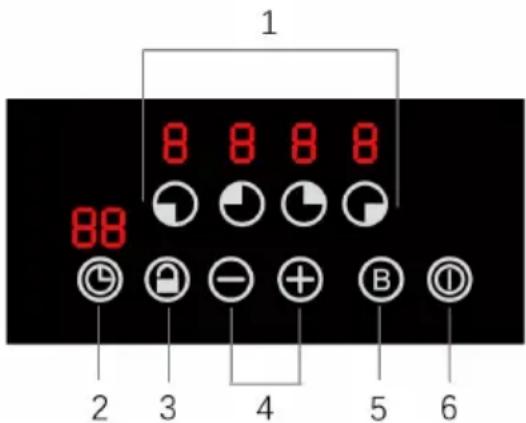

6. Control panel

1. Heating zone selection control
2. Timer control
3. Lock button
4. Down/Up button
5. Boost/Pause
6. On/Off button

Product Information

The microcomputer induction hob can meet different kinds of cuisine demands because of resistance wire heating, micro-computerized contro and multi-power selection, really the optimal choice for modern families The inductiohob centers oncustomers and adopts a personalized design. The hob has safe and reliq performances, making your lifecomfortable and enabling to fully enjoy the pleasure from life.

A Word on Induction Cooking Side

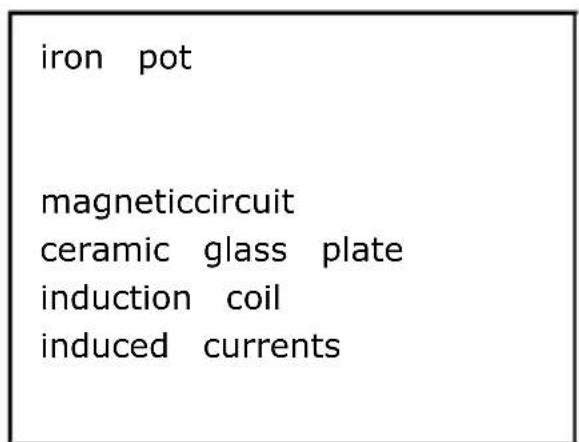

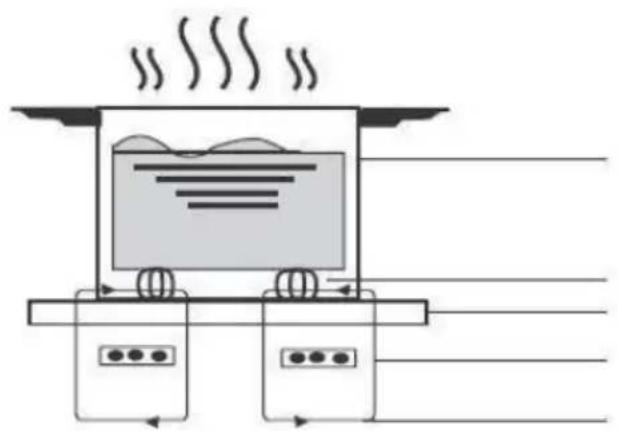

Induction cooking is a safe, advanced, efficient, and economical cookir technology. It works by electromagnetic vibrations generating heat direc in the pan, rather than indirectly through heating the glass surface. T glass becomes hot only because the pan eventually warms it up.

Before using your New Induction Hob

• Read this guide, taking special note of the 'SafetyWarnings' section
• Remove any protective film that may still be on your Induction Coc

Using the Touch Controls

• The controls respond to touch, so you don't need to apply any pre

• Use the ball of your finger, not its tip.

• You will hear a beep each time a touch is registered.

• Make sure the controls are always clean, dry, and that there is no (e.g. a utensil or a cloth) covering them. Even a thin film of water can make the controls difficult to operate.

Choosing the right Cookware for Induction Hob models

• Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan.

• You can check whether your cookware is suitable by carrying out a magnet test. Move a magnet toward the base of the pan. If it is attracted, the pan is suitable for induction.

• If you do not have a magnet:

• Put some water in the pan you want to check.

Turn on and wait minutes to check if water gets hot.

• Cookware made from the following materials is not suitable: pure stainless steel, aluminium or without a magnetic base, glass, wood, porcelain, ceramic, and earthenware.

Do not use cookware with jagged edges or a curved base.

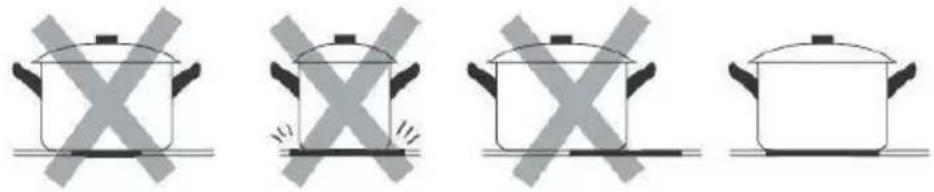

Make sure that the base of your pan is smooth, sits flat against the and is the same size as the cooking zone. Always center your pan cooking zone.

Always lift pans off the induction cooker - do not slide, or they may the glass.

Using your Induction Hob

To start cooking

1. Touch the ON/OFF ① control, the cooktop displays both burners (this 0 will disappear if no further operation in 30 seconds).

1. Place a suitable pan on the cooking zone that you wish to use.

2. Make sure the bottom of the pan and the surface of the cooking zone are clean and dry.

1. Touch the heating zone selection control, an indicator 0 up to the key will flash.

Set the power level by following operation by touching the “-”, “+”;

Zone 1 and Zone 3 can be boost functions.How do work?

Zone 1 will be 2000W directly if you push Boost button
2 Zone 3 will be 2400W directly if you push Boost button

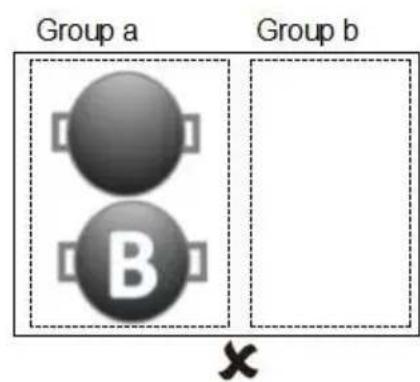

3 Zone 1 and Zone 3 boost will NOT work at same time
4 Boost function only works alone

When you have finished cooking

1. Touch the heating zone selection control that you wish to switch off.

1. Turn the cooking zone off by touching the “-”and scrolling down to

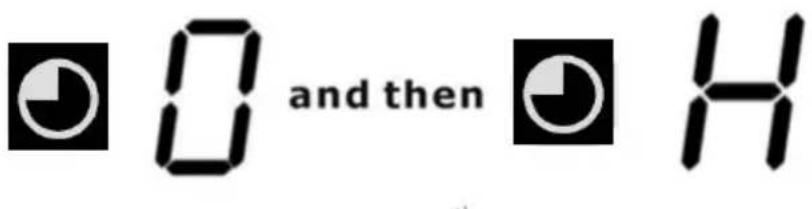

Make sure the power display shows "0", then shows "H".

1. Turn the whole cooktop off by touching the "ON/OFF" control.

1. Beware of hot surfaces “H” (surface TEMP. >60°C) will show which cooking zone is hot to touch. It will disappear when the surface has

down to a safe temperature. It can also be used as an energy savin function if you want to heat further pans, use the hotplate that is still

1. Touch the heating zone selection control, then touch key, dual ring zone will begin to work. The LED indicator will light up, which is on the side of the double fire key.

When dual ring zone is working, turning off double zone by pressing again.

Using the Boost

Boost is the function that one zone rises to a larger power in one second and lasting for 5 minutes. Thus you can get a more powerful and faster cooking.

1. In this hob every zone can work with Boost function, If you need to I boost please switch off the other zone in the same group first, the other z can't work at the same time. Otherwise the and symbols will flash on the display of the selected zone and power level is automatically set.

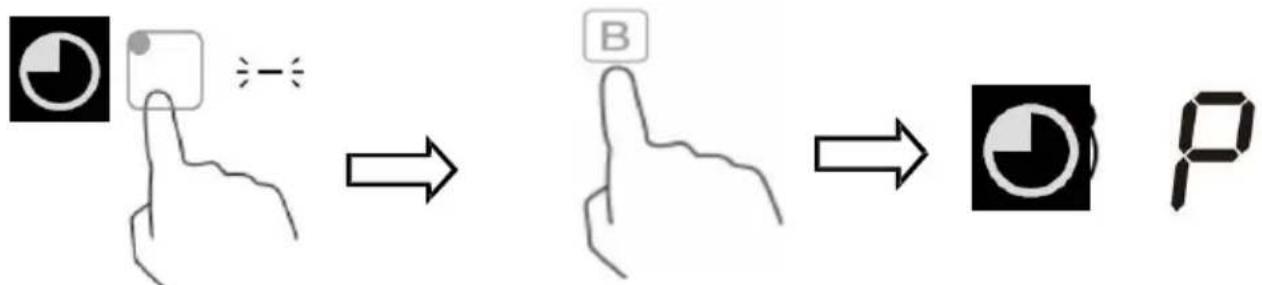

1. Touch the heating zone selection button that you wish to boost, an indicator next to the key will flash 5 seconds.

2. Touch the Boost button, the heating zone will begin to work at Boost mode.

The power display will show "P" to indicate that the zone is boosting.

1. The Boost power will last 5 minutes, and then the zone will return power stage set before Boost.

2. If you want to cancel the Boost during this 5 minutes, touch the I zone selection button, an indicator next to the key will flash. And then the Boost button. The heating zone will return to the power stage set Boost.

Flex Zone

• This area can be used as a single zone or as two different zones, accordingly to the cooking needs anytime.
• Flexible area is made of two independent inductors that can be connected separately. When working as a single zone, a cookware is moved from zone to the other one within the flexible area keeping the same power of the zone where the cookware originally was placed, and the part is not covered by cookware will not heat.
• Important: Make sure to place the cookwares centered on the single cooking zone. In case of big pot, oval, rectangular and elongated pans, ensure to place the pans centered on the cooking zone covering both sides

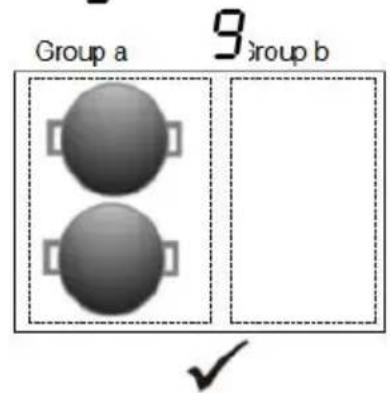

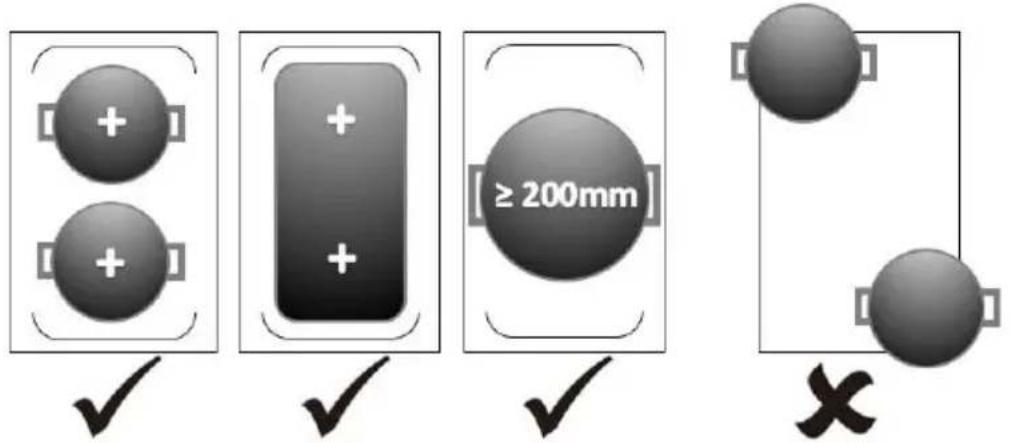

Examples for good and bad pot placements:

As big zone

1.To activate the flexible area as a single big zone, simply press the dedicated key.
2. The power setting works as any other normal area.

As two independent zones

To use the flexible area as two different zones with different power so press the dedicated key again and the zones will return into their old

Locking the Controls

• You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on).
• When the controls are locked, all the controls except the ON/OFF control are disabled.

To lock the controls

Touch the keylock control

To unlock the controls

1. Make sure the induction cooker is turned on.
2. Touch and hold the keylock control for 3 seconds.
3. You can now start using your cooker.

When the cooker is in the lowde, all the controls are disabled except the ON/OFF, you can always turn the induction cooker with the ON/OFF control in an emergency, but you shall unlock cooker first in the next operation.

Over-Temperature Protection

A temperature sensor equipped can monitor the temperature inside the induction cooker. When an excessive temperature is monitored, the induction cooker will stop operation automatically.

Residual Heat Warning

There will be some residual heat when the cooker has been operating some time. The letter "H" appears to warn you to avoid it.

Using the Timer

• You can set it to turn one cooking zone off after the set time is up.
• You can set the timer up to 99 minutes.

Setting the timer to turn one cooking zone off

1. Touching the heating zone selection control

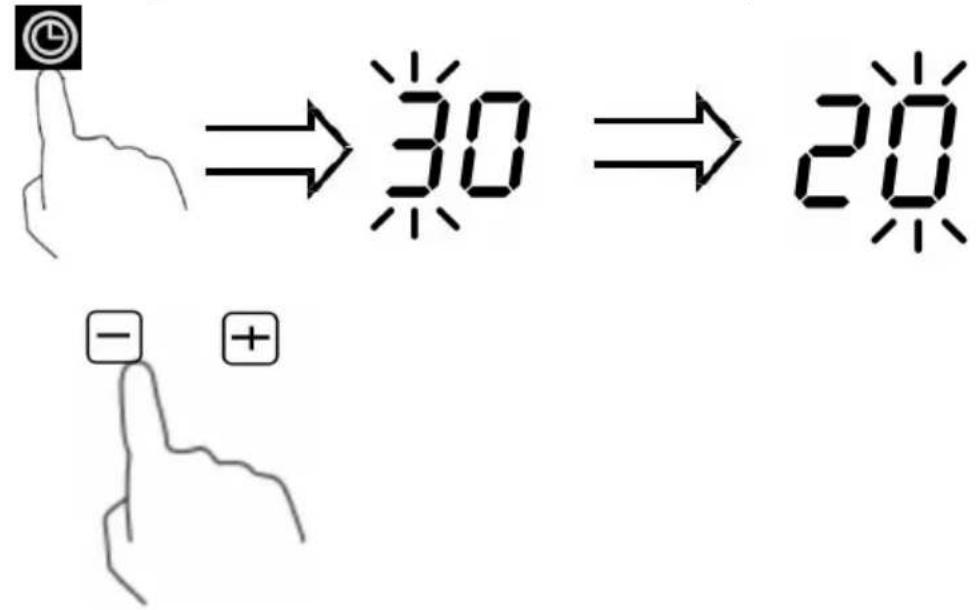

2. Touch the timer control, the timer indicator show "30"

Set the time by touching the control ^ 十 + ^ 一 ^ 一

Or touch the timer control, the timer indicatorshows "30". The tens are flashing, setting the tens timer by power level bar.

After the tens timer has been set, it will flash for 3 seconds, and then t ones flashing, and please set the timer by the power level bar during flas

Hint: Touch the “-” or “+” control of the timer once

will decrease or increase by 1 minute.

Touch and hold the “-” or “+” control of the timer will decrease increase by 10 minutes.

If the setting time exceeds 99 minutes, the timer will automatically return to 0 minute.

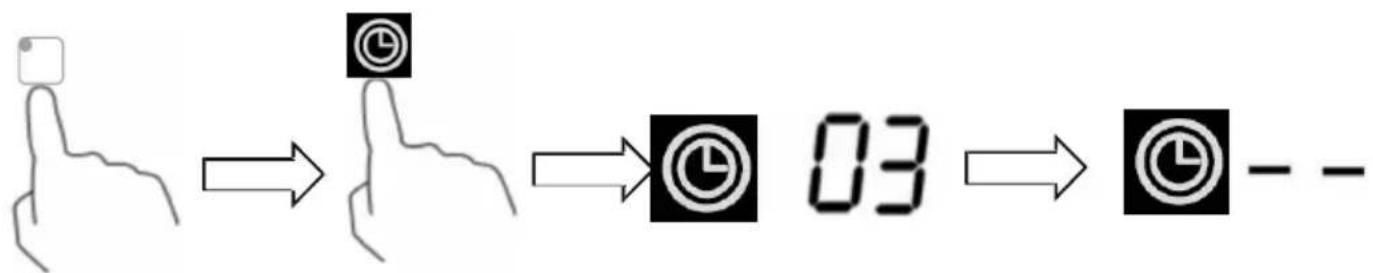

1. Touching the heating zone selection control, and then touching the 'Timer', the timer is canceled and the"--" will show in the minute

1. When the time is set, it will begin to co

down immediately, the display will show

the remaining time.

NOTE: The red dot next to power level indicator will illuminate indicati zone is selected.

Setting the timer to turn more than one cooking zone off

1. If more than one heating zone use this function, the timer indicates show the lowest time.

(e.g. zone 1# setting time of 3 minutes, zone 2# setting time of minutes, the timer indicator shows "3".)

NOTE: The red dot next to power level indicator will flash.

(set to 6 minutes)

(set to 6minutes)

1. When cooking timer expires, the corresponding cooking zone will be switch off automatically.

NOTE: If you want to change the time after the timer is set, you start from step 1

Cooking Guidelines

Take care when frying as the oil and fat heat up very quickly extremely high temperature oil and fat will ignite spontaneously this presents a serious fire risk.

Heat Settings

The settings below are guidelines only. The exact setting will depend several factors, including your cookware and the amount you are cooking. Experiment with the induction cooker to find the settings that best suit

Heat	Suitabil
1 - 2	· delicate warming for small amounts of food · melting chocolate, butter, and foods that but quickly · gentle simmering
3 - 4	· reheating · rapid simmering
5 - 6	· pancakes
7 - 8	· sautéing · cooking pasta
9-b	· stir-frying · searing · bringing soup to the boil · boiling water

Care and Cleaning

What?	How?	Important!
Everydaysoiling onglass(fingerprints,marks,stainsleft by foodnon-sugaryspillovers onthe glass)	1. Switch the powert the cooktop off. 2. Apply a cooktopcleaner while theglass is still warm (but not hot)! 3. Rinse and wipe drwith a clean clothpaper towel. 4. Switch the powert the cooktop backon.	·When the power to thecooktop is switched ofthere will be no ‘hot surface’ indication but the cooking zone maystill be hot! Take extreme care. ·Heavy-duty scourers,some nylon scourersand harsh/abrasivecleaning agents mayscratch the glass.Always read the labelcheck if your cleanerscourer is suitable. ·Never leave cleaningresidue on the cooktopthe glass may becomestained.
Boilovers,melts,and h Sugary spillson the glass	Remove theseimmediately with a fissllice,palette knife orrazor blade scrapersuitable for Inductionglass cooktops,butbeware of hot cookingzone surfaces: 1. Switch the powert the cooktop off atthe wall. 2. Hold the blade orutensil at a 30°angle and scrape the soiling or spilla cool area of the cooktop. 3. Clean the soiling o spill up with a discloth or paper towe4. Follow steps 2 tofor ‘Everyday soilingon glass’ above.	·Remove stains left bymelts andsugary food orspillovers as soon aspossible. If left to coolthe glass,they may bedifficult toremove or evenpermanentlydamage the glasssurface. ·Cut hazard: when thesafety cover is retractedthe blade in a scraperrazor-sharp.Use withextreme care and alwaystore safely and out ofreach of children.
Spillovers on the touch controls	1. Switch the power t the cooktop off. 2. Soak up the spill 3. Wipe the touch control area with a clean damp sponge or cloth. 4. Wipe the area completely dry with a paper towel. 5. Switch the power t the cooktop back on.	·The cooktop may bee and turn itself off, and the touch controls may not function while there is liquid on them. Ensure you dry the touch control area before turning the cooktop back on.

Hints and Tips

Problem	Possible causes	What to do
The hob cannot be turned on.	No power.	Make sure the hob is connected to the power supply and that it is switched o Check whether there is a power outage in your home or area. If you've checked everything and the problem persists, call a qualified technician.
The touch controls are unresponsive.	The controls are locked.	Unlock the controls. See section‘Using your induction cooktop’ for instructions.
The touch controls are difficult to operate.	There may be a slight film of water over the control or you may be using the tip your finger when touching the controls.	Make sure the touch control area is dry and the ball of your finger with touching the controls.
The glass is being scratched.	Rough-edged cookware. Unsuitable, abrasive scourer or cleaning products bein used.	Use cookware with flat a smooth bases. See ‘Choosing the right cookware’. See ‘Care and cleaning’.
Some pans make crackling or clicking noises.	This may be caused the construction of your cookware (layers of different metals vibrating differently).	This is normal for cookware and does not indicate a fault.
The induction hob makes a low humming noise when used on a high heat setting.	This is caused by the technology of induction cooking.	This is normal, but the noise should quieten dow or disappear completely when you decrease the heat setting.
Fan noise coming from the induction hob.	A cooling fan built in your induction hob has con on to prevent the electronics from overheating. It may continue to run even after you’ve turned the induction hob off.	This is normal and needs no action. Do not switch the power to the induction hob off at the wall while fan is running.
Pans do not become hot and appears in the display.	The induction hob cannot detect the pan because it is not suitable for induction cooking. The induction hob cannot detect the pan because it is too sma for the cooking zone not properly centred c it.	Use cookware suitable for induction cooking. See section ‘Choosing the right cookware’. Centre the pan and make sure that its base matches the size of the cooking zone.
The induction hob or a cooking zone has turned itself off unexpectedly, a tone sounds and an error code is displayed (typically alternating with one or two dig in the cooking timer display).	Technical fault.	Please note down the er letters and numbers, swit the power to the induction hob off at the wall, and cont a qualified technician.

Failure Display and Inspection for induction

cooking zone

If an abnormality comes up, the induction cooker will enter the protect state automatically and display corresponding protective codes:

INDUCTION HOB
Error	Possible Cause	Remedy
E0	No pot,pot does not match, wire disk fail	Automatically shut down after 1 minute
E1	Voltage is too low (less than 85V)	Check the voltage
E2	Voltage is too high (higher than 285V)	Check the voltage
E3	Furnace surface sensor on/short circuit	Reduce power or turn
E4	IGBT sensor on/short circuit	Reduce power or turn
E5	Dry burning, furnace surface temperature too high (about 250℃)	Automatically shut down after 1 minute
E6	IGBT overheat	Shut down and stop heating
E7	The furnace surface sensor fails	Shut down and stop heating
EC	Communication failure between display boa and mainboard	Shut down and stop heating
CERAMIC HOB
Error	Possible Cause	Remedy
E1	The voltage is below 90V	Check the voltage
E2	The voltage is higher than 250V	Check the voltage
E3	Thermal sensor stoppage	Replace the thermal sensor
E5	The plate temperature is high	Reduce power or turn

The above are the judgment and inspection of common failures. Please do not disassemble the unit by yourself to avoid any dangers and damages to the induction cooker.

Installation

Selection of installation equipment

Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 5 cm space sha be preserved around the hole.

Be sure the thickness of the work surface is at least 30mm . Please seresistant work surface material to avoid larger deformation caused by theradiation from the hotplate. As shown below:

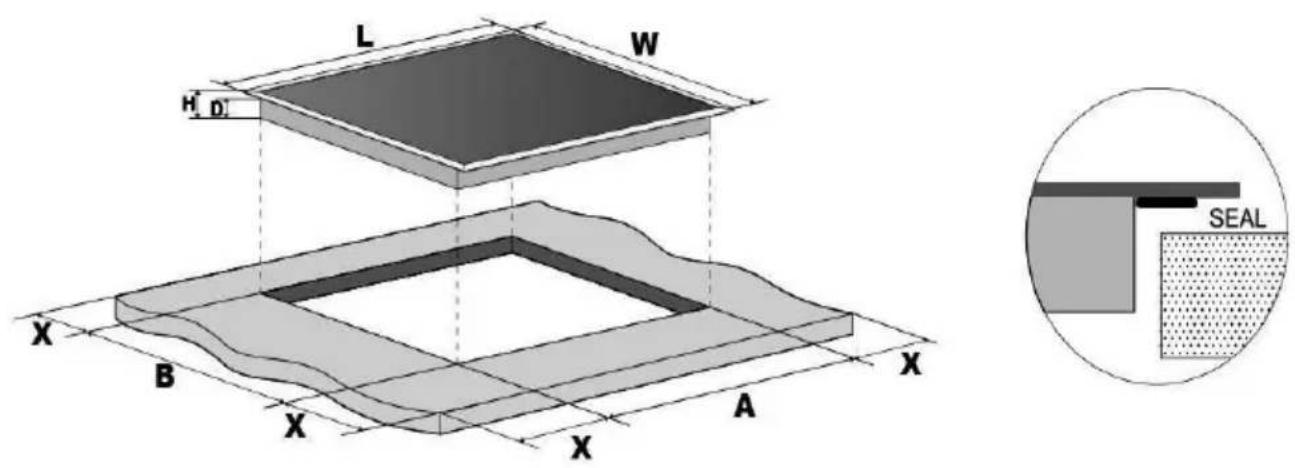

Model	L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
IHB4XY	590	520	62	58	565	495	50mini

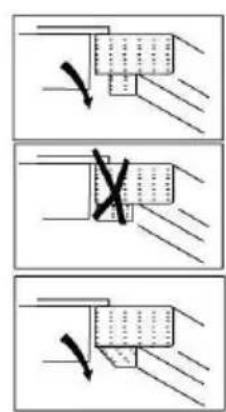

Under any circumstances, make sure the Induction cooker cooker is well ventilated and the air inlet and outlet blocked. Ensure the Induction cooker is in good work state. As shown below

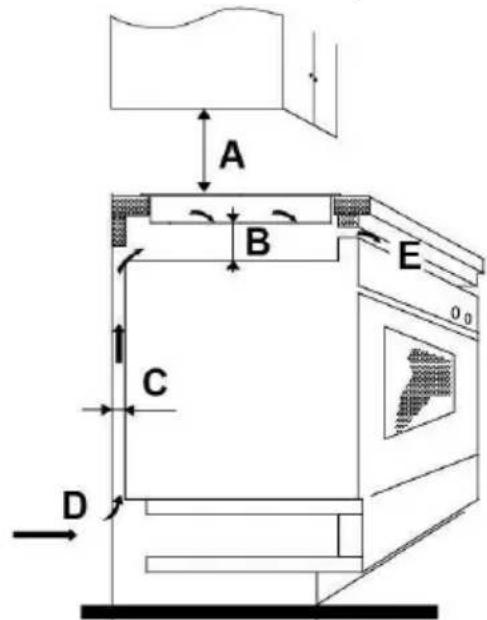

Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760mm.

A(mm)	B(mm)	C(mm)	D	E
760	50 mini	30 mini	Air intake	Air exit 10mm

Before you install the cooker, make sure that

• the work surface is square and level, and no structural members interfere with space requirements

• the work surface is made of a heat-resistant material

• if the cooker is installed above an oven, the oven has a built-in fan

• the installation will comply with all clearance requirements and applicable standards and regulations

• a suitable isolating switch providing full disconnection from the mapower supply is incorporated in the permanent wiring, mounted an positioned to comply with the local wiring rules and regulations. The isolating switch must be of an approved type and provide a air gap contact separation in all poles (or in all active [phase]

conductors if the local wiring rules allow for this variation of the requirements)

• the isolating switch will be easily accessible to the customer with cooker installed
• you consult local building authorities and by-laws if in doubt regarding installation
• you u\(eat-resistant and easy-to-clean finishes (such as ceramic tiles) for the wall surfaces surrounding the cooker.

When you have installed the cooker, make sure that

• the power supply cable is not accessible through cupboard doors drawers

• there is adequate flow of fresh air from outside the cabinetry to of the cooker

• if theaker is installed above a drawbarward spacea thermal protection barrier is installed below the base of the cooker

• the isolating switch is easily accessible by the customer

Cautions

1. The induction hotplate must be installed by qualified personnel or technicians.

We have professionals at your service. Please never conduct the operation by yourself.

1. The cooker will not be installed directly above a dishwasher, frid freezer, washing machine or clothes dryer, as the humidity may damage the cooker electronics.
2. The induction hotplate shall be installed such that better heat ratio can be ensured to enhance its reliability.
3. The wall introduced heating zone above the table surface shall withstand heat.
4. To avoid any damage, the sandwich layer and adhesive must be resistant to heat.

Connecting the cooker to the mains power supply

This cooker must be connected to the mains power supply only by a suitably qualified person.

Before connecting the cooker to the mains power supply, check

1. the domestic wiring system is suitable for the power drawn cooker.
2. the voltage corresponds to the value given in the rating plate
3. the power supply cable sections can withstand the load specified on the rating plate. To connect the cooker to the mapower supply, do not use adapters, reducers, or branching devices, as they can cause overheating and fire.

The power supply cable must not touch any hot parts and mupositioned so that its temperature will not exceed 75^ at any

Check with alectrician whether the domestic wiring system is suitable without alterations. alterations must only be made by a qualified electrician.

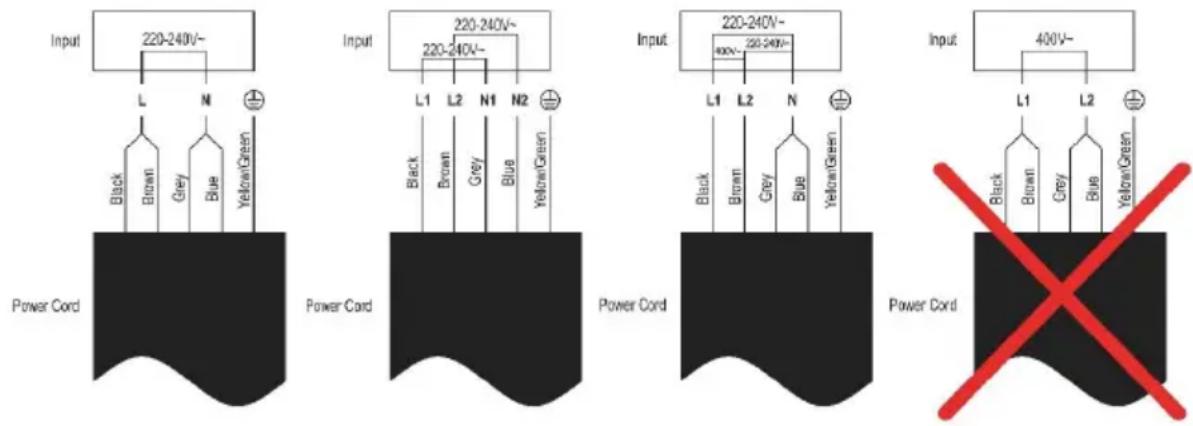

The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker. The method of connection is shown below.

• If the cable is damaged or to be replaced, the operation must be of the by after-sale agent with dedicated tools to avoid any accidents.
• If the appliance is being connected directly to the mains an omnipole circuit-breaker must be installed with a minimum opening of 3mm between contacts.
• The installer must ensure that the correct electrical connection has made and that it is compliant with safety regulations.
• The cable must not be bent or compressed.
• The cable must be checked regularly and replaced by authorised technicians only.

This appliance is labeled in compliance with European directive

2002/96/EC for Waste Electrical and Electror Equipment (WEEE). Ensuring that this

appliance is disposed of correctly will help prevent any possible environmental and human health damage that might otherwise be caused if it were disposed of incorrectly.

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment necessary.

The symbol on the product indicates that it not be treated as normal household waste. should be taken to a collection point for th recycling of electrical and electronic goods.This appliance requires specialist waste disposal.For further information regarding this product's treatment, recovery, and recycling, please contact your local council, your household waste disposal service, or the sh where you purchased it.

For more detailed information about this is product's treatment, recovery, and recycling, please contact your local city office, your household waste disposal service, or the shop where you purchased the product.

VEVOR

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR

TOUGH TOOLS, HALF PRICE

Assistance technique et certificat de garantie electronique www.vevor.com/support

PLAQUE À INDUCTION

MODELE: SK-68IHB4S3

[e-mail]

HULP NODIG? NEEM CONTACT MET ONS OP!

[e-mail]

Felvisning ochinspection for induction

kokzon
