USER MANUAL 2403-UV25X2 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

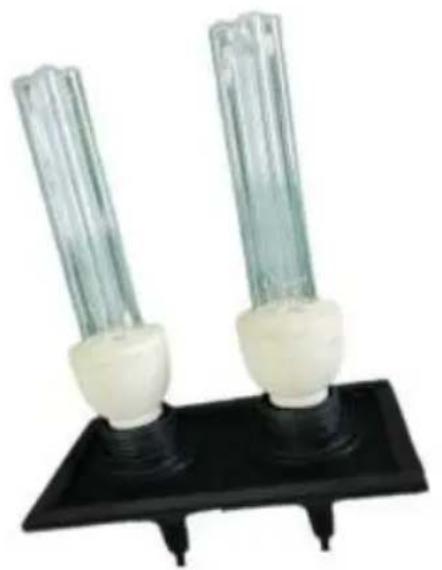

HVAC AIR PURIFIER

MODEL:2403-UV25X2

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

Model:2403-UV25X2

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

1. Please read and understand this manual carefully before using the Air Purifier .
2. The installation should be done by an adult, and children should not it without supervision.
   3.UV lights are harmful to exposed skin and eyes, causing temporary permanent blindness. Never look straight at the UV light.
   4.Disconnect the power before installing or replacing the UV bulb, otherwise may cause shock and death.
3. Please wear gloves and install the HVAC Air Purifier to avoid cuts installation.
4. Transportation Attention : During transportation, the package should be upright, handled with care,prevent strong impact,vibration, extrusion.
5. Do not modify the unit in any way. Any modification could damage device or render it dangerous to others.
   8.Repair or maintenance should only be carried out by a qualified pe 9.Only the rated voltage specified in this manual can be used.
6. Do not use this product in the kitchen, where the oily fume may the lifetime of the lamps.
7. Do not use this product in acidic, alkaline or other organic gas areas where may cause fire.
8. Do not use this product in flammable and explosive places, otherw will cause fire.
   13.The product can only be disassembled after the product is closed minutes.
   14.The lamp tube contains mercury and must be properly handled.
9. Do not clean up the broken lamps with a vacuum cleaner.
   16.The product is not waterproof, can not be the product to be insta. humidifier or other wet environment.

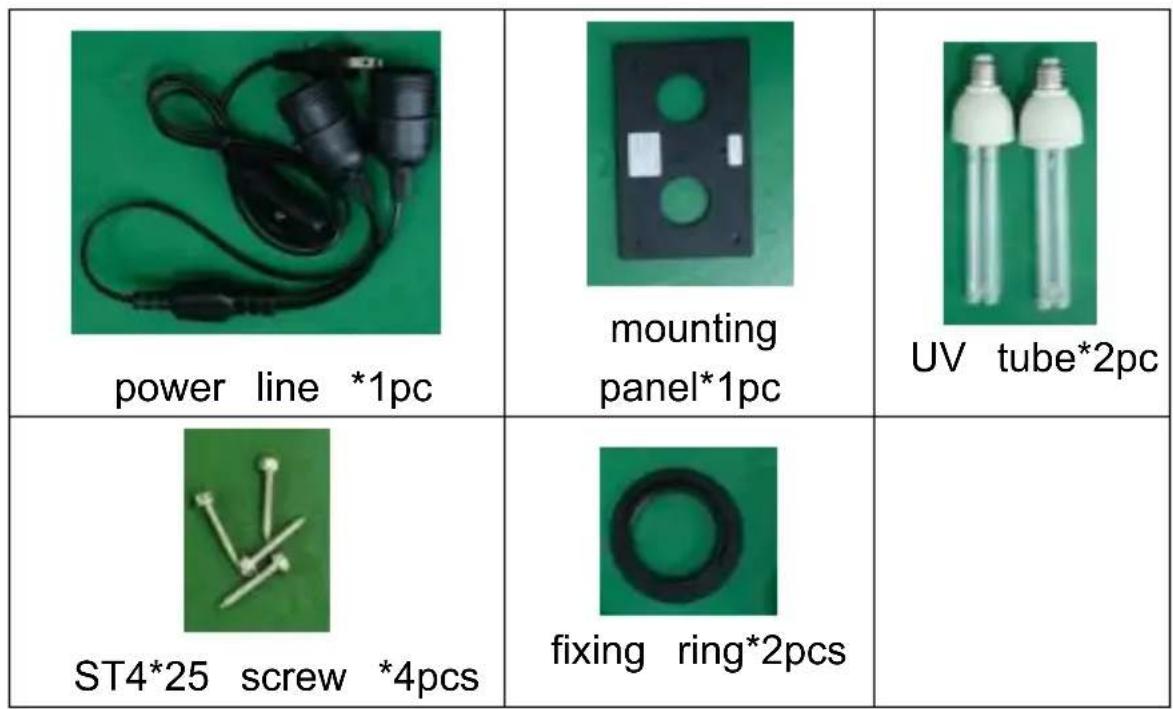

List of kit parts

PARAMETER LIST

Model	2403-UV25X2
Power	50W
Lights tube length	126mm
Light wavelength	254nm
UV lifetime	8000hours
Assembly lamp tube	2pc
American-Standard Input	AC120V 60Hz
European version Input	AC230V 50Hz
Power line length	1.5m
Effective area	2200 ft²

Note: Each model of rated power supply has AC120V and AC230V. If the voltage and frequency information on the product nameplate.

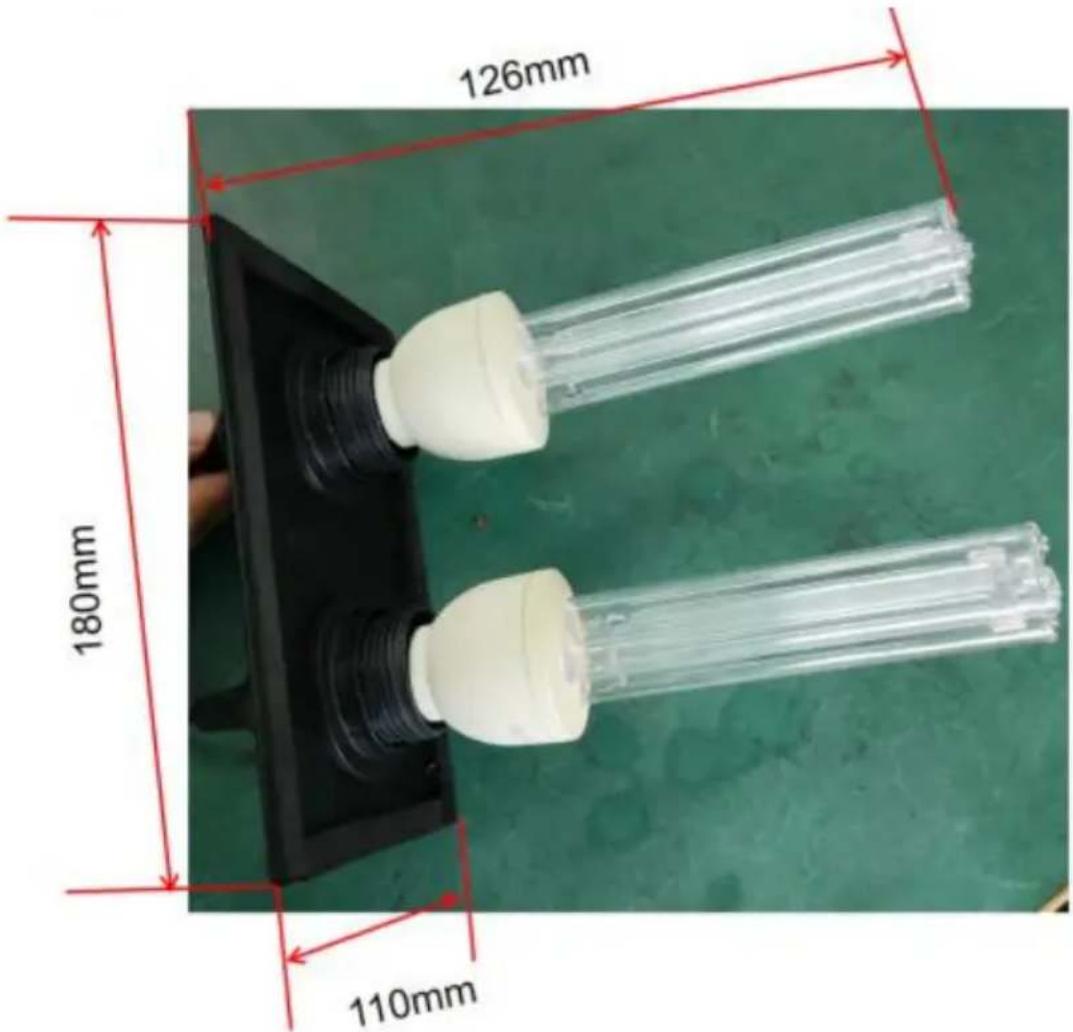

Product size

Note: Please note whether the interior space of the HVAC pipe can accommodate the product.

Installation Instructions

Selecting Mounting Location

1. The unit can be mounted in any orientation, but cannot be installed where people can see the UV lights.
2. Choose a location that will make changing/cleaning of the UV bulb easy.
3. Install unit on a flat surface of the duct work ABOVE the air con

cooling coil ("A Coil") if your HVAC system has air conditioning. If your HVAC system does not have air conditioning, the unit should be installed on the supply air duct if possible. The unit can be installed on a reduct if necessary

CAUTION: Do not install the unit in the "A coil" or under a hur as damage may occur.

If you are unsure if you have chosen a correct mounting location, re your HVAC system's owners manual or call a qualified professional for assistance.

1. Be sure to locate the unit away from any plastic or rubber comp that may be damaged by UV light. If mounting options are limited, p and rubber may be covered with aluminum foil duct tape in order to them from the UV light.

Installation steps

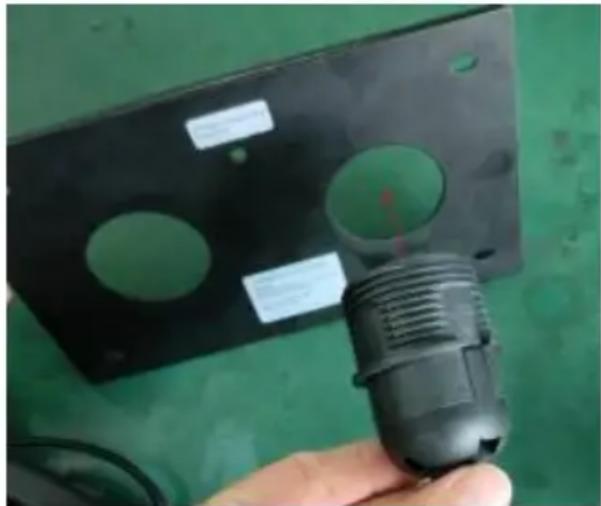

1. Power cord light holder passes through the hardware panel.

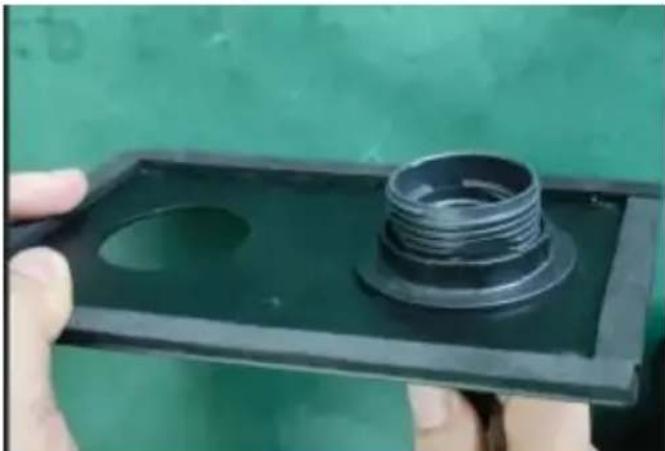

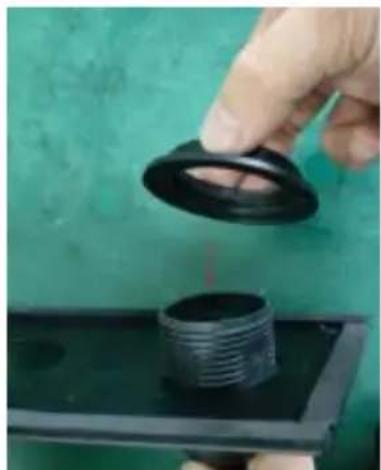

1. The fixing ring is screwed into the lamp holder of the power cord.

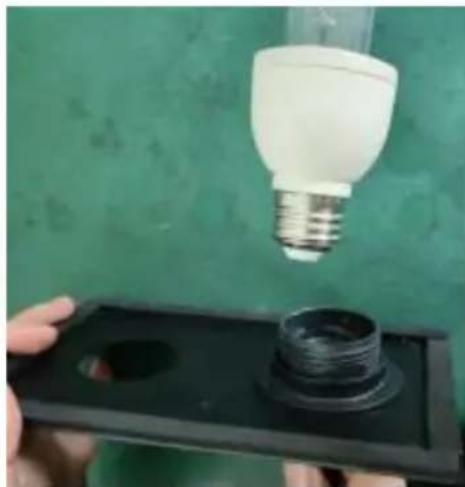

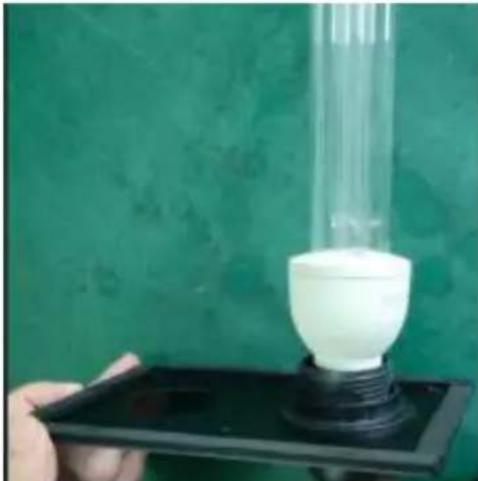

1. Screw out the UV lamp into the power line lamp holder.

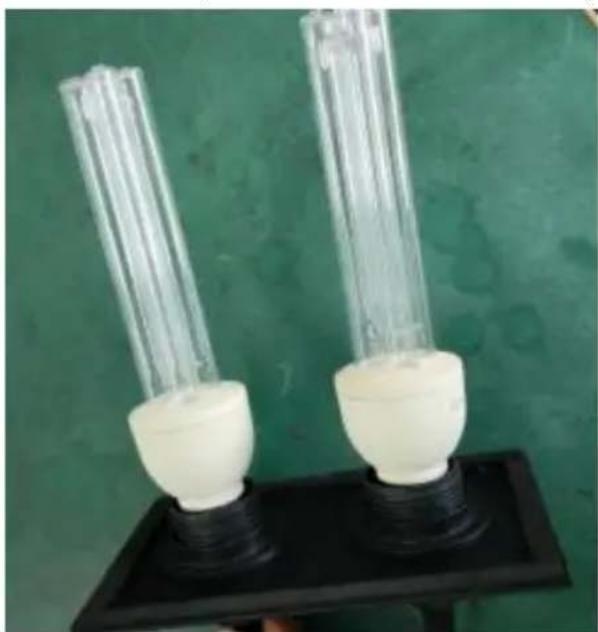

1. Install the other UV lamp in the same way.

Draw the hole position to be processed on the HVAC pipe wall, four screw holes, one 6mmUV lamp viewing hole, two 64mmUV lamp mou holes;

The mounted through holes were then fabricated through a cutter and 3mm / 6mm drill.

Finally, fix the product is attached to the HVAC pipe through 4 screw

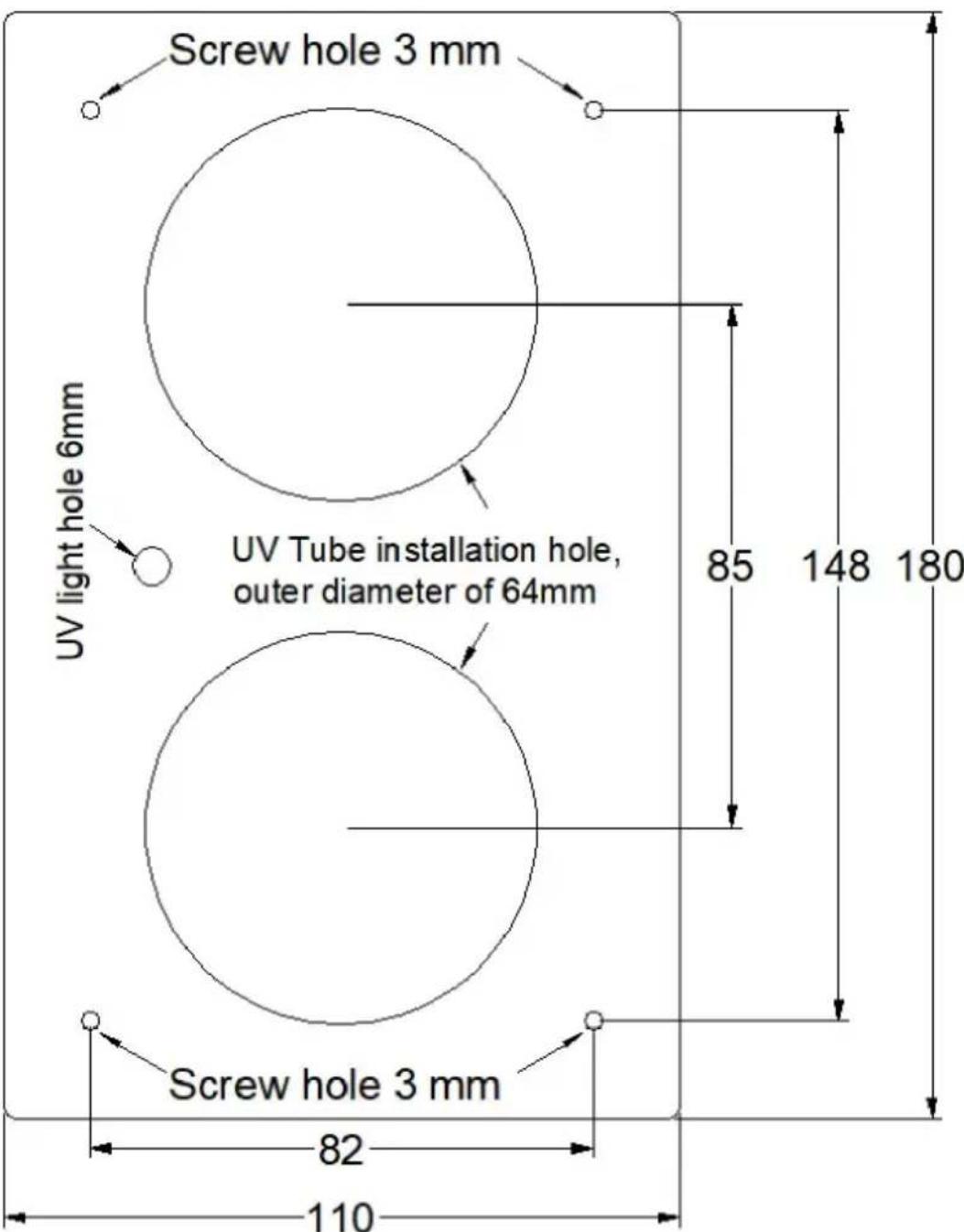

Processing size diagram

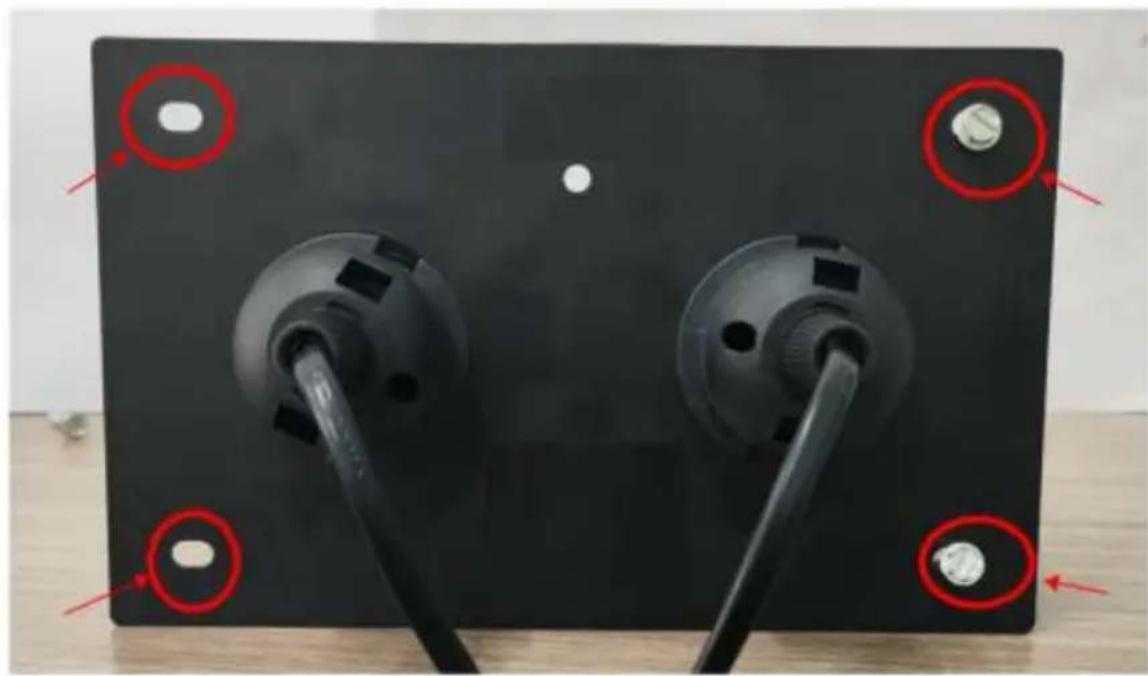

Screws installation diagram

Bulb Cleaning and Replacement

1. Disconnect the power to the HVAC system, unplug unit, and allow bulb(s) to cool for at least 15 minutes before attempting to remove the 2. Remove the 4 support screws and slide the unit from the pipe with system.

3a. To Clean: Hold the unit securely and wipe the UV bulb(s) with a cloth dampened with glass cleaner. If you touch the glass with your be sure to wipe away any fingerprints or dirt with cloth. Make sure is clean and dry before installing unit back into duct.

3b. To Replace: Use of any bulb not approved for the unit will void warranty and could cause serious injury or damage. Hold the unit see and push the bulb release button to remove the UV bulb. Install the bulb into the unit by sliding the bulb in from the outside until the bu into place. If you touch the bulb with your hand, be sure to wipe a fingerprints or dirt with a soft damp cloth. Make sure the bulb(s) is/ clean and dry before installing the unit back into the duct.

1. Re-install the unit into the duct work and re-install the 4 screws. the screws evenly until unit is securely in place. DO NOT OVERTIGHT SCREWS.
2. Reconnect the power to the HVAC system and plug the unit back grounded power outlet.

Manufacturer: Shanghaiuxinmuyeyouxianggsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
