BZT-234 - Air purifier Vevor - Free user manual and instructions

Product Type	Evaporative Humidifier
Brand	Vevor
Model	BZT-234
Use	Indoor only
Power Supply	Conforms to rated voltage of product (see rating label)
Operating Temperature	5 °C to 40 °C
Humidification Technology	Natural evaporation via wick
Filter	Evaporative wick (replaceable)
Recommended Filter Life	3 to 4 months
Tank Cleaning	Wipe with a soft cloth; use citric acid for stubborn limescale
Filter Cleaning	Rinse with clean water; do not rub by hand or use a wire brush
Safety Precautions	Do not immerse in water; unplug before maintenance; keep out of reach of children
Warranty	1 year limited (upon presentation of receipt)
Included Accessories	Not specified (refer to the manual)
Dimensions (approx.)	Not specified
Weight (approx.)	Not specified

Frequently Asked Questions - BZT-234 Vevor

How to clean the filter of the Vevor BZT-234 humidifier?

Unplug the appliance. Remove the motor head and the filter. Rinse the filter with clean water. Do not rub by hand and do not use a wire brush. Wipe the tank with a soft cloth. For limescale, use citric acid.

How often should the filter wick be replaced?

It is recommended to replace the wick every 3 to 4 months, depending on water hardness and frequency of use.

Can I use essential oils in the humidifier?

No, do not add essential oils, perfumes, or disinfectants to the water tank. This could corrode the product and be harmful to health.

What type of water should I use?

Use cold tap water at room temperature. Do not pour hot water (above 40 °C) to avoid damaging the appliance.

Can the humidifier be used in a child's bedroom?

Keep the appliance out of reach of children. Do not let children use it. Place it on a flat surface, at least 2 meters away from furniture and electrical appliances.

What to do if the humidifier stops working?

First check the power supply. If abnormal behavior persists, immediately unplug and contact Vevor after-sales service (www.vevor.com/support).

How to store the humidifier when not in use for a long time?

Empty all remaining water from the tank, dry the filter wick, and store the appliance in a dry place protected from frost.

Does the humidifier produce white dust?

No. Thanks to evaporation technology, minerals and impurities are trapped in the wick. Only clean moisture is released.

What is the warranty for the Vevor BZT-234 humidifier?

The appliance has a limited one-year warranty from the date of purchase, upon presentation of the receipt. The warranty does not cover damage due to misuse, natural disasters, or unauthorized repairs.

Where can I download the user manual?

You can download the manual for free in PDF format from the website notice-facile.com by selecting the Vevor model BZT-234.

USER MANUAL BZT-234 Vevor

EVAPORATIVE HUMIDIFIERS

MODEL: BZT-234

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL: BZT-234

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

Safety instructions

1. To avoid the danger of electric shock, do not pull the plug while your hands are wet. 2. Do not disassemble, repair, or alter this product. Doing so will void the warranty.
2. Protect the power cord from scratches, damage, knots, or being pressed by heavy objects to avoid electric shock, short circuit, or fire.
3. In case of abnormal behavior, pull the plug immediately and contact an authorized dealer.
4. Do not separate the water tank from the base while the machine is working, and do not touch the water and parts in the base. 6. This machine is for indoor use only.
5. Do not leave the machine plugged in if the machine will not be in use for a period or during thunderstorm weather.
6. Do not flip the machine while it is working or while there is water in the base, to avoid burning out the internal components.
7. Keep away from children. Do not allow children to operate the product. Pull the power plug when filling water and cleaning.

Matters needing attention

1) The power supply voltage must be consistent with the rated voltage of the product. If the supply voltage does not match, do not use the product. 2) On initial use, leave the humidifier at room temperature for 30 minutes before use. This prevents the water tank from damage due to sudden temperature change. 3) Only operate the machine between 5°C and 40°C. 4) Place the machine on flat surfaces. 5) Do not put the humidifier directly on wooden floors to prevent damage. 6) Please place the humidifier at least 2 meters away from furniture and electrical appliances to avoid damage.

7) Keep away from heat sources and direct sunlight. 8) Never add hot water above 40°C into the water tank to avoid damaging the machine. 9) Never let water drip into the outlet. Wipe the machine and its cord to avoid damage. 10) Pour out all the water if the machine will be placed in temperatures below 0°C to avoid damage to the machine. 11) Do not put metals, chemicals, and detergents into the machine to avoid spreading fumes during misting. 12) Turn off the power supply and pull out the plug when pouring water. 13) Do not immerse the machine in water. 14) Household use only.

Cleaning and maintenance

In some areas, the water quality is hard, with high calcium and magnesium ion content. Coupled with the use of bleach powder and other water purifiers in some areas, and in some places due to large air pollution, there is a large amount of dust in the air. In the use of this product for about a week, the sink and filter will produce dirt and scale. If not cleaned in time, it will affect the use effect.

When cleaning, the filter can be directly washed under the faucet, but it should not be rubbed by hand, nor brushed with a wool (steel) brush. It can be wiped with a clean cloth.

If there is stubborn scale that cannot be wiped with a cloth, you can pour acid into the sink, then wipe off the scale with a cloth or soft brush, and then clean with water.

The function of the filter element to filter water and absorb water will decrease with the increase of use time. The recommended use cycle is 3-4 months. Please replace it regularly.

If the product is not used for a long time, it is recommended to dump the remaining water in the tank, dry the filter element, and then put it away.

Cleaning

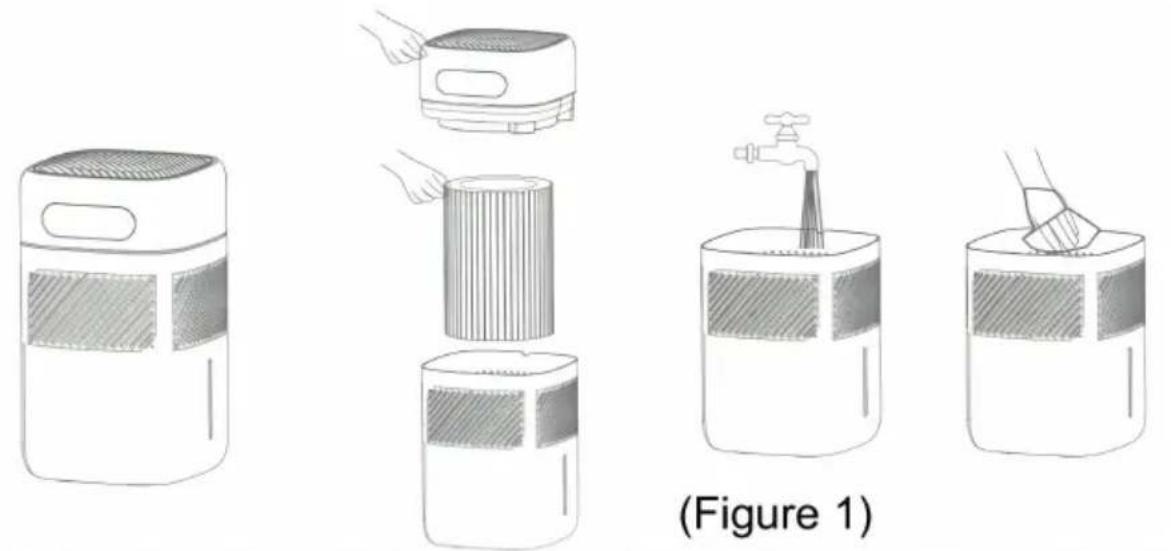

1. Filter cleaning steps:

a. Take out the main engine head and filter, scrub the inside of the tank with a brush or soft cloth, then rinse with water and wipe it off.

(Figure 1)

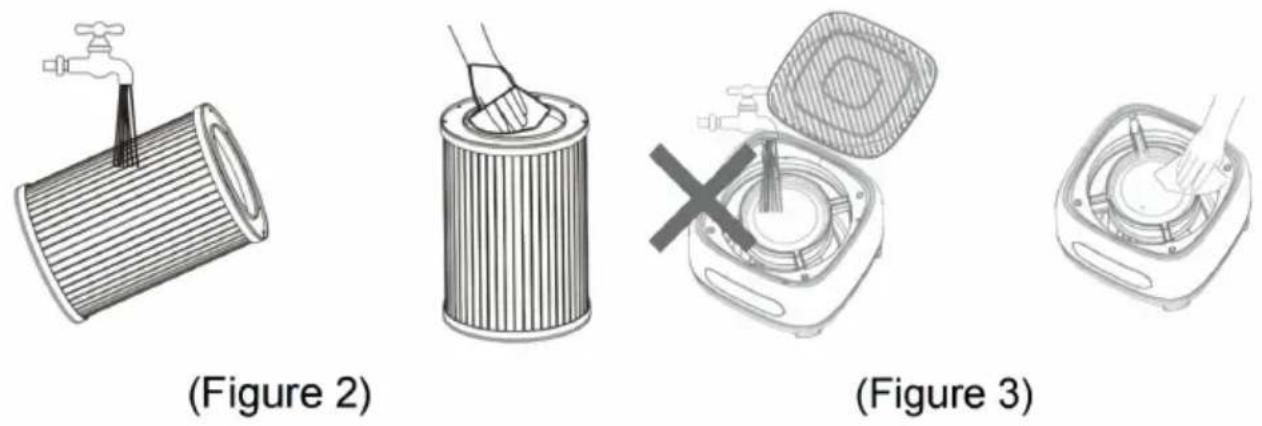

b. Rinse the filter with water. Dirt on the rubber shell can be scrubbed with a soft cloth (due to water quality and time, darkening on the filter may not be cleaned, but it does not affect use).

Figure 2

c. When cleaning the head of the host, do not irrigate from the bottom or the power connector!

You can scrub with a soft cloth (Figure 3).

Note:

1. Unplug the power before adding water or cleaning.
2. Do not add essential oils, perfumes, or disinfectant to the water tank to avoid corrosion and damage to the product or human body.

Warranty

1. The machine, under normal use, has a one-year limited warranty on product quality from the date of purchase with receipt.
2. The following circumstances do not fall within the scope of warranty:
3. Failure to follow the instructions and precautions causing product faults, or faults caused by unexpected disasters and other factors such as high voltage fluctuations, fire, flood, earthquake, etc.
4. Outside of the warranty period.
5. Customer making unauthorized repairs, changes, misuse or accidental damages.
6. Using the product in an environment not suited for the product.

INTRODUCTION

Your new humidifier adds invisible moisture to your home by moving inlet air through a saturated

wick. As air moves through the wick, the water evaporates into the air, leaving behind any white dust, minerals, or dissolved and suspended solids in the wick. Because the water is evaporated, there is just clean and invisible moist air.

As the evaporation wick traps accumulated minerals from the water, its ability to absorb and evaporate water decreases. We recommend changing the wick at the beginning of every season. In hard water areas, more frequent replacement may be necessary to maintain your humidifier's efficiency.
