This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	CORRECT DISPOSALThis product is subject to the provision of european D 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to acollection point for recycling electrica electronic devices.
	Indoor Use Only

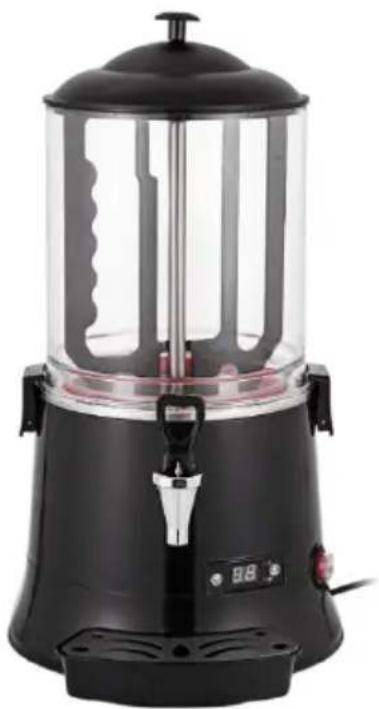

HC-10 hot chocolate machine, also known as "hot coffee machine", is multi-functional hot drink machine, which can heat and stir coffee, chocolate, milk, milk tea, fruit juice, bean (rice) milk, wine, etc., or milk drinks: chocolate milk, milk coffee, etc. The machine has the characteristics of beautiful appearance, novel design, small occupied and so on, and can be used independently or used together. It is so for coffee shops, DIY chocolate shops, milk tea shops, bars, western restaurants in hotels or high-end buildings, 4S shops for leisure cars, company lounges, tea bars and other necessary equipment.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions before using this product.

2. This appliance generates heat during use. Do not touch hot surface Use handles or knobs.

3. To protect against electric shock, do not place or immerse cord, p appliance in water or other liquid.
4. This appliance is not intended for use by children or by persons reduced physical, sensory, or mental capabilities, or lack of experience knowledge. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do play with the appliance. Keep the appliance and its cord out of reach children.
5. Unplug from outlet when not in use, before putting on or taking c and before cleaning. Allow to cool before putting on or taking off pan before cleaning. To disconnect, turn any control to OFF, then unplug cord from outlet. Do not disconnect by pulling on cord.
6. Do not operate any appliance with a damaged cord or plug or af appliance malfunctions, or has been damaged in any manner. Do not attempt to replace or splice a damaged cord. Return appliance to the manufacturer (see warranty) for examination, repair or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
8. Do not use outdoors or for commercial purposes.
9. Do not let cord hang over edge of table or counter, or touch hot
10. Do not place on or near wet surfaces, or heat sources such as gas or electric burner, or in a heated oven.
11. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
12. The heating base is subject to residual heat from cooking cycle. E touch heating base immediately after using. Allow to cool before hand
13. Use caution when opening the lid during or after a cooking cycle. Escaping steam can cause burns.
14. Do not use appliance for other than intended use. Misuse can cause injuries.
15. Intended for household countertop use only. Keep 6 inches (152

clear from the wall and on all sides. Always use appliance on a dry level surface.

1. Be sure handles are properly assembled to bowl and locked in p before using.
2. Never leave unattended when containing hot oil.
3. WARNING: Spilled food can cause serious burns. Keep appliance a cord away from children. Never drape cord over edge of counter and use outlet below counter.
4. Models with detachable power cords: do not remove the power cord during operation. If plug becomes disconnected from appliance, unplug from wall outlet before re-connecting.

THIS PRODUCT IS FOR HOUSEHOLD USE ONLY

No user-serviceable parts inside. Power Unit never needs lubrication. [Not attempt to service this product. A short power supply cord is pro reduce the risk resulting from becoming entangled in or tripping over longer cord. An extension cord may be used with care. However, the marked electrical rating of the extension cord should be at least as (the electrical rating of the fondue pot. The extension cord should not allowed to hang over the counter or tabletop where it can be pulled children or tripped over Unintentionally.

SAVE THESE INSTRUCTIONS

FCC Information:

CAUTION: Changes or modifications not expressly approved by the pa responsible for compliance could void the user's authority to operate t equipment!

This device complies with Part 15 of the FCC Rules. Operation is such the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including

interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the lir a Class B digital device pursuant to Part 15 of the FCC Rules, The are designed to provide reasonable protection against harmful interferer in a residential installation.

This product generates, uses and can radiate radio frequency energy, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, user is encouraged to try to correct the interference by one or more following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assista

I. Basic parameters

Model	HC-10	Volume	10L
Name	Hot chocolate machine	Temperature control range	30-90°C
Power supply	AC220-240V 50/60HZ AC110-120V 50/60HZ	Net weight	7.1Kg
Power	600W	Outline dimensions	320*400*570

II. Component Introduction

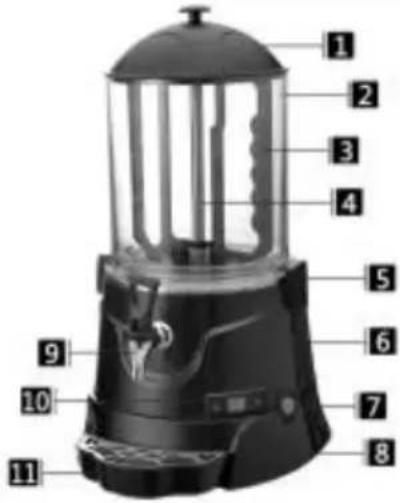

1.cover2.Cylinder block3.Stirring blade4.Mixing shaft5.Cylinder body buckle6.Host shell7.base8.Power switch9.Discharge faucet10.controller11.Water collection box

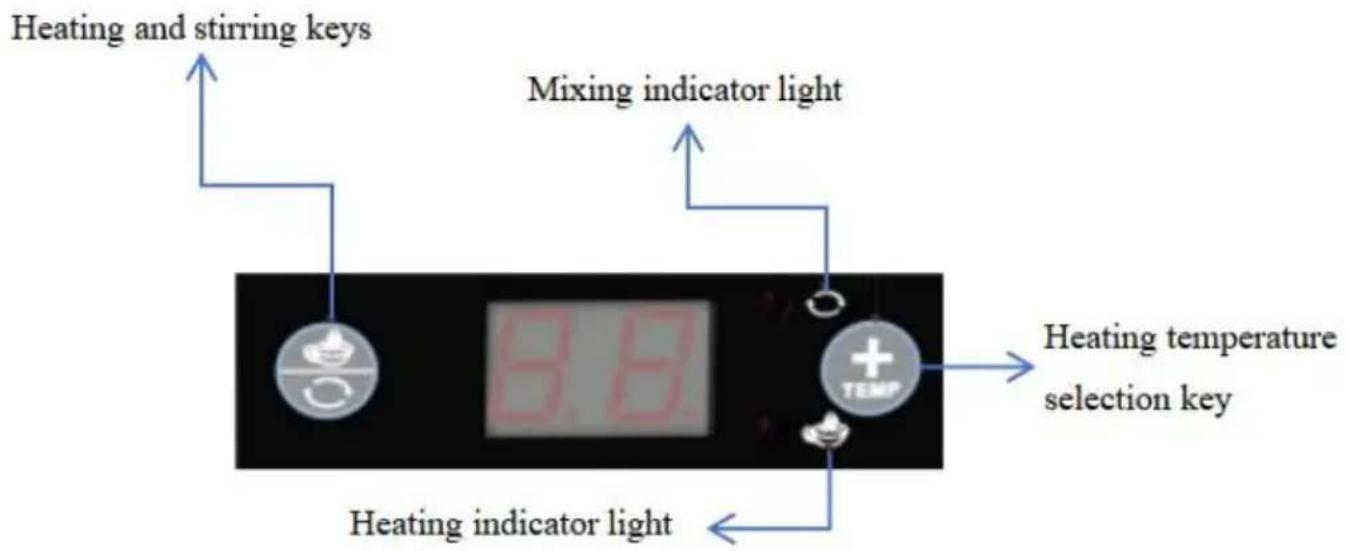

Schematic of the control panel

Heating and stirring keys Mixing indicator light 8.8 TEMP Heating temperature selection key Heating indicator light

III. Instructions for use

◆ Remove the machine and remove the foam film. Check that the nameplate parameters on the back of the machine are consistent with you need. If not, please contact the after-sales service. Please read instructions carefully before attempting the machine..

◆ Switch on the power supply, the buzzer beeps twice after power

power indicator is on, and the machine circuit is normal; press the "heating key" on the control panel, the mixing indicator is on, and the blade rotates; press the "stirring and heating key" for the second time the heating function indicator lights up. Wait a while to see if the temperature on the display rises (it is better to add a small amount water). Press this key the third time, and the stirring and heating will

◆ In the standby state, press the "temperature setting key", and the tube flashes to display the set temperature value. At this time, you express the "temperature setting key" to increase the set value. Press the "temperature setting key" for a long time to quickly increase the set. The set temperature range is 30 °C \~ 90 °C. Do not press any key seconds, save parameters, exit the setting state, and return to the state.

◆ In the standby state, press the "mixing heating key", the mixing lights up, and the mixer starts working. Press the "Stirring Heating Ke again, the heating indicator light is on, the heating tube starts working the digital tube displays the actual temperature. When the actual temperature is greater than or equal to the set temperature, the heating tube stops working and the heating indicator flashes. When the temperature drops and is 3 degrees below the set temperature, the tube starts working again, and the heating indicator is on. If you want terminate the heating process, you can press the "Stirring heating key exit the heating mode, and the heating indicator will go out and return the standby state.

◆ Press the "temperature setting key" for a long time in the standby to enter the parameter setting. Press the setting key to switch the parameters from C1 to C6. Press the "Stirring and heating key" to set the parameter. The nixie tube displays the corresponding parameter value. Press the "temperature adjustment key" to change the corresponding parameter value (the value increases in one direction. When it reaches maximum value, press the "temperature adjustment key" again to change to the minimum value of the range). Press the "Stirring heating key" to return to the parameter selection, do not operate any key for 5 s

after setting the parameters, save the parameters, exit the setting stat and return to the standby state.

Parameters	Name	Range	Initial value	Unit
C1	Temperature compensation value	-19~20	0	°C
C2	Heater restart temperature return difference	0~50	1	°C
C3	Heater Alarm Curren (Span 0.1)	0.5~3.0	2.0	A
C4	First two digits of motor alarm current value: 1.1 (span 0.1)	0~2.0	1	A
C5	Two digits after the decimal point of mot alarm current value: 0.01	1~9	0	A
C6	alarm mode	0~3	3	0: No alarm1: Individual heating alarm2: Separate motor alarm3: Full alarm

Alarm description: The alarm function can only be activated when the corresponding device starts working. After the alarm goes off, it needs be switched on again.

E1: Mixing motor overcurrent alarm E2: Heater overcurrent alarm

IV. Precautions for cleaning

1. Clean the outside

For the outer barrel, if the beverage is flowing, please wash it with water and scrub the position around the sealing ring with a brush; if beverage is easy to solidify, such as chocolate, please wash it with water, and it will be easier to clean after melting. Scrub the barrel v cover with sponge or soft cleaning tools. Hard cleaning tools can ease cause scratches on the barrel wall and cover. The plastic surface of base can be scrubbed with a towel.

2.Cleaning steps

A. Move the two cylinder block latches upwards as shown in the illustration

1° 2°

B. Take the lid off

Diagram showing a lid and container with an arrow indicating upward motion (no text or symbols)

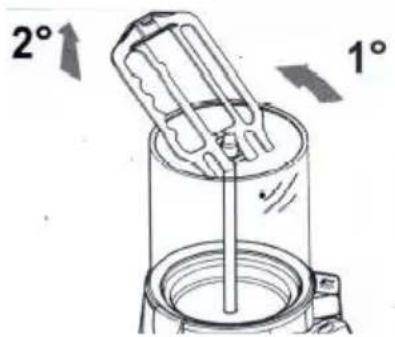

C. As shown in the figure, pull the stirring blade up 30cm, tilt it 80 and then pull it up to get the rotating blade out.

2° 1°

D. Cylinder block

Simple line drawing of a cylindrical container with a vertical rod and an upward arrow, no text or symbols present.

E. Remove the seal ring

Simple 3D diagram of a sphere with an upward arrow, no text or symbols present

F. Install the cleaned sealing ring again. Pay attention to installing the sealing ring in place.

OK!

NO!

G. Install the cleaned cylinder on the machine.

Medical diagram showing a hand holding a tube with labeled points A and B, likely illustrating a procedure or anatomical step.

H. Fasten the cylinder lock catch.

2° 1°

3.Cleaning faucet

◆For the faucet, if the beverage is easy to solidify, such as chocolate should be cleaned in a timely manner, otherwise chocolate solidification may cause blockage of the faucet;

Cleaning method: After cleaning the cylinder block, add hot water to a cylinder block, then turn on the faucet and drain until the water from faucet is completely free of impurities

V. Operating Instructions

1. Instructions

◆ Pour the chocolate powder and other seasonings into the cylinder, in a proper amount of water, 3-5 cm away from the upper end of t cylinder.

Diagram illustrating a container pouring liquid into a container with an upward arrow, alongside a bridge diagram labeled MAX.

◆ Turn on the power supply, press the power switch, set the temperature to the required temperature, press the stirring and heating key, the machine will automatically stir and heat, reach the set temperature an in a state of heat preservation.

2. Precautions

When the machine is working, it is strictly forbidden to remove the mixing blade and take away or put back the cylinder body.

When the machine stops stirring, pay attention to whether the bev is solidified when cooled. If it is solidified, please take out the cylinder and the stirring blade and place them on a clean basin, so as to a overload of the motor and affecting the service life of the machine.

◆ If the machine needs cooling, disconnect the power supply for na cooling. Do not spray water on the heater for cooling, so as not to service life of the machine.

VI. Fault analysis and solution

Serial Number	Symptoms	Cause of occurrence	Discharge method
1	The machine does not start	1. The power cord not connected properly	1. Check the power line and connect properly
		2. Zero line is not connected	2. Check the zero line
		3. The power switch not turned on	3. Turn on the power switch
		4. Problems with power switch plug and connecting wire	4. Check the plug and wiring
		5. Problem with PCB board	5. Replace PCB board
2	The motor does not stir	1. Low voltage	1. Check the power supply voltage
		2. Problem with PCB board	2. Replace PCB board
		3. Mixing motor is damaged	3. Replace the mixing motor
		4. The stirring rod is installed in place	4. Check and insta in place
3	The machine is not heated	1. The wire end of electric heater is loos	1. Check the three ends and connect them properly
		2. The electric heater damaged	2. Replace the electric heater
4	Material leakage	1. The hose connecti the faucet is broken	1. Check and replace the hose
		2. The clamp on th silicone hose is loose	2. Check and connect the clamp
		3. Faucet valve body damaged	3. Replace the faucet valve body
		4. The seal ring at cylinder body is damaged.	4. Replace the sealing ring
5	The LCD does not display	1. Problem with PCB board	1. Replace PCB board
		2. Loose plug	2. Check and connect the plug.

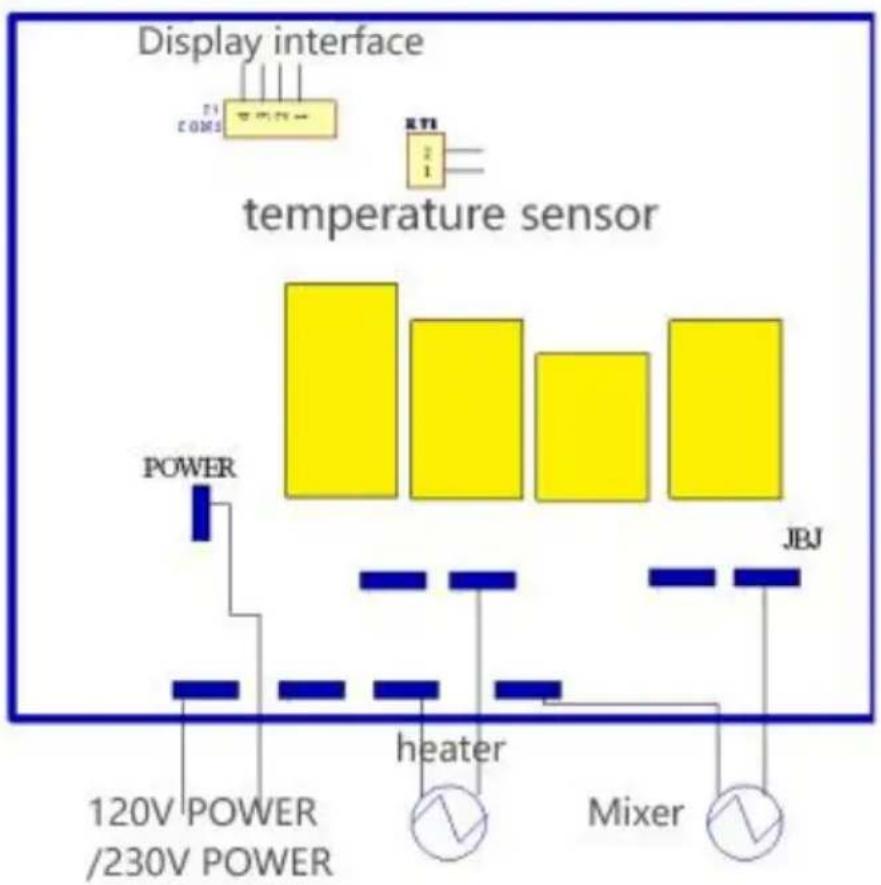

VII. Circuit schematic

Guarantee card

Q&A

1. How do I get a spare seal ring?

You can contact us to purchase.

2.Can I use milk powder?

Yes

1. Can I add chocolate chunks and milk to make hot chocolate?

Chocolate cubes are not recommended. Chocolate powder is recommended.

1. Can I make drinks inside?

Yes

1. Is chocolate bubbling a normal phenomenon?

Yes, Generally, chocolate contains a certain amount of small bubbles. During stirring, bubbles will also enter the chocolate slurry; Heating chocolate also produces gas; So, don't worry.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>
