Product Type Vacuum Pump
Brand Vevor
Model 2RS-4
Supply Voltage 220-240 V ~ 50 Hz
Power 1 HP (≈ 746 W)
Free Air Displacement 10 ft³/min (≈ 283 L/min)
Ultimate Vacuum 0.3 Pa
Rotational Speed 2800 rpm
Oil Capacity 550 ml
Dimensions (L × W × H) 430 × 142 × 280 mm
Weight 19 kg
Usage Indoor, domestic use
Recommended Oil Type High-performance vacuum pump oil
Maintenance Regular oil draining and replacement; filter cleaning
Safety Hot surface (burn risk); risk of electric shock; do not expose to water
Spare Parts Oil seals, valves, vanes, reservoir cover, oil sight glass
Warranty Electronic support and warranty certificate (www.vevor.com/support)
Main Functions Evacuation of refrigeration systems, air conditioning and other domestic applications

Frequently Asked Questions - 2RS-4 Vevor

What oil to use for the Vevor 2RS-4 pump?
Use a high-performance vacuum pump oil specially formulated to maintain optimal viscosity at operating temperature. Do not use standard engine oil.
How to fill the pump with oil for the first time?
Remove the exhaust plug, add oil until it appears at the bottom of the sight glass. The capacity is approximately 550 ml. Close the plug, then run the pump for a few seconds and check the level again.
What is the recommended oil change frequency?
Draining must be done regularly, as soon as the oil is contaminated or emulsified. For intensive use, schedule a change every 20 to 50 hours of operation. Warm up the pump before draining.
What to do if the pump does not start?
First check the supply voltage (220-240 V ±10%). If the pump is cold, let it reach room temperature or warm it up. Also check that the switch is in the on position and that the motor is not blocked.
Why is the achieved vacuum too low?
Possible causes: loose inlet cap, damaged seal, lack of oil or contaminated oil, leak in the circuit. Check the oil level and the tightness of connections.
How to change the pump oil?
1. Warm up the pump. 2. Remove the drain plug, drain the used oil into a suitable container. 3. Tilt the pump to remove residues. 4. Close the plug, remove the exhaust plug and fill with new oil up to the level indicated on the sight glass.
Is there a risk of burns during use?
Yes, the pump surface can become very hot. Do not touch the housing during or just after operation. Wait for cooling before handling.
Can the pump be used outdoors or in the rain?
No, the pump is intended only for indoor use. Do not expose it to water or moisture, risk of electric shock.
What to do in case of oil leakage?
Check that the drain plug is tightened. If the leak comes from the shaft seal or the cover, replace the concerned sealing gasket. Use thread seal tape if necessary.
Where to find spare parts for the 2RS-4 pump?
Spare parts (seals, vanes, valves, oil sight glass, etc.) are available from the retailer or through Vevor after-sales service (www.vevor.com/support). Consult the exploded view in the manual to identify references.

User questions about 2RS-4 Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

No questions yet. Be the first to ask one.

Download the instructions for your Pumps in PDF format for free! Find your manual 2RS-4 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 2RS-4 by Vevor.

USER MANUAL 2RS-4 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

VACUUM PUMP

MODEL: RS-1 / RS-1.5 / RS-2 / RS-3 / RS-6 / 2RS-2 / 2RS-3 / 2RS-4 / VP280

We continue to be committed to provide you with tools at competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent savings you might benefit from buying certain tools with us compared to major top brands and does not necessarily mean to cover all categories of tools. You are kindly reminded to verify carefully when placing an order that you are actually saving half in comparison with the top major brands.

MODEL: RS-1 / RS-1.5 / RS-2 / RS-3 / RS-6 / 2RS-2 / 2RS-3 / 2RS-4 / VP280

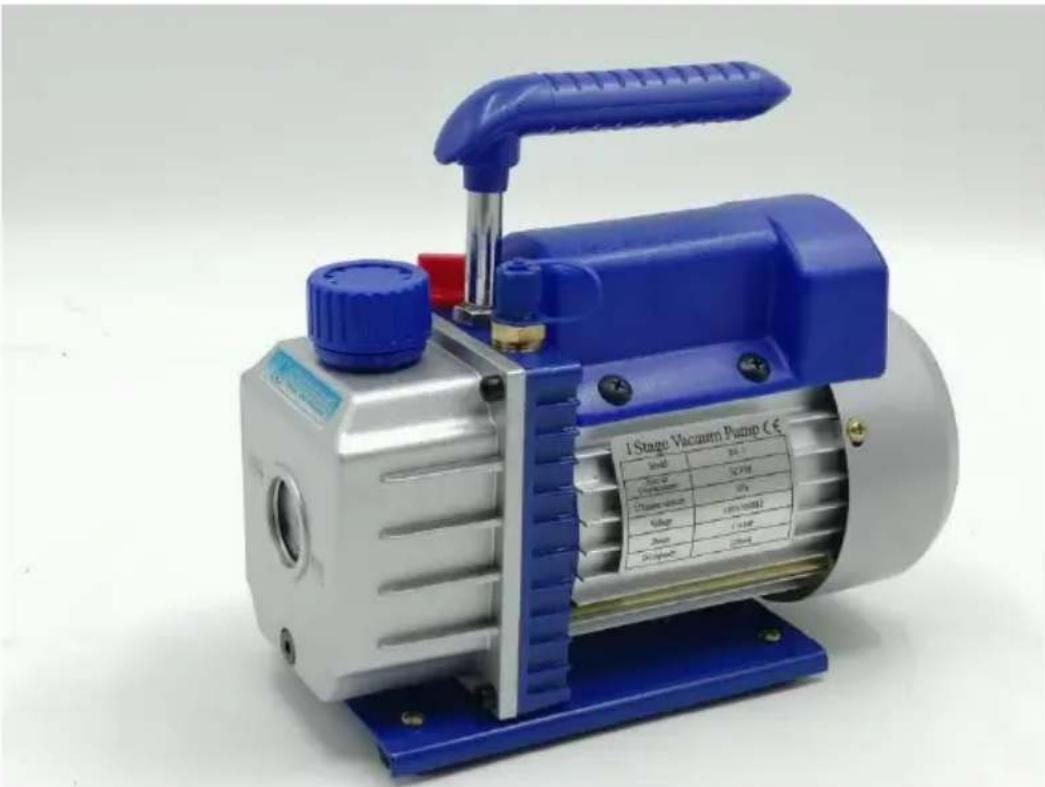

I-Stage Vacuum Pump. Model: 34.1. Type #: 52708. Condition: 0%. Dissipation: 100000000. Voltage: 160-180V. Power: 1-10W. Discharge: 200mg.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

SAFETY INSTRUCTION

Before operating this appliance, please read the instructions manual carefully and save these instructions. Basic safety precautions should always be followed including the following:

Vevor 2RS-4 - SAFETY INSTRUCTION - 1

Warning - To reduce the risk of injury, the user must read the instructions manual carefully.

Vevor 2RS-4 - SAFETY INSTRUCTION - 2

This symbol, placed before a safety comment, indicates precaution, warning, or danger. Ignoring this warning may cause an accident. To reduce the risk of injury, fire, or electric shock, please always follow the recommendations shown below.

Vevor 2RS-4 - SAFETY INSTRUCTION - 3

WARNING

Household Use Only.

WARNING: Hot Surface - To reduce the risk of burns, do not touch.

CAUTION: To reduce the risk of electric shock, do not expose to rain. Store

CAUTION: To reduce the risk of electric shock, use indoors only.

WARNING: Risk of injury - Do not direct air steam at the body.

OPERATING MANUAL

1. Before using your vacuum pump

In all cases, motors are designed for operating voltages plus or minus 10% of the normal rating. Single voltage motors are supplied fully connected and ready to operate.

(1) Check to be sure the voltage and frequency at the outlet match the specifications on the pump motor decal. Check the ON-OFF switch to be sure it is in the OFF position before you plug the pump into an outlet. Remove and discard the exhaust cap from the end of the pump's handle. (2) The pump is shipped without oil in the reservoir. Before starting the pump, fill it with oil. Remove the Exhaust Fitting cap and add oil until the oil just shows in the bottom of the sight glass. The approximate oil capacity of the pump is 180 800 ml (reference the technical data). (3) Replace the Exhaust Fitting cap and remove the cap from one of the inlet ports. Turn the motor switch to ON. When the pump runs smoothly, replace the cap on the inlet port. This may take from two to 30 seconds, depending on the ambient temperature. After the pump runs for approximately one minute, check the sight glass for the proper oil level. The level should be even with the sight glass oil level line. Add oil if necessary.

Note: When the pump is running, the oil level should be even with the line on the sight glass. Underfilling will result in poor vacuum performance. Overfilling can result in oil blowing from the exhaust.

2. To shut down your pump after use

To help prolong pump life and promote easy starting. Follow these procedures for shut down.

(1) Close the manifold valve between the pump and the system. (2) Remove the hose from the pump inlet. (3) Cap the inlet port to prevent any contamination or loose particles from entering the port.

TO MAINTAIN YOUR HIGH VACUUM P

1. Vacuum pump oil:

The condition and type of oil used in any high vacuum pump are important in determining the ultimate attainable vacuum. We recommend that High Vacuum Pump Oil. This oil has been specifically blended to maintain viscosity at normal running temperatures and to improve cold weather starting.

2. Oil Change Procedure

(1) Be sure the pump is warmed up. (2) Remove the OIL DRAIN cap. Drain contaminated oil into a suitable container and dispose of it properly. Oil can be forced from the pump by opening and partially blocking the exhaust with a cloth while the pump is running. Do not operate the pump for more than 20 seconds using this method. (3) When the flow of oil has stopped, tilt the pump forward to drain residual oil. (4) Replace the OIL DRAIN cap. Remove the exhaust fitting and fill the reservoir with new vacuum pump oil until the oil just shows at the bottom of the sight glass. The approximate oil capacity of the pump is 180-800 ml (reference the technical data). (5) Be sure the inlet ports are capped, then turn on the pump. Allow it to run for one minute, then check the oil level. If the oil is below the sight glass LEVEL line, add oil slowly (with the pump running) until the oil reaches the LEVEL line. Replace the exhaust fitting, making sure the inlet is

(6)

a) If the oil is badly contaminated with sludge that forms when water collects in the oil, you may need to remove the oil reservoir cover and wipe it out. b) Another method of dealing with heavily contaminated oil is to force it out of the pump reservoir. To do this, allow the pump to run until it is warmed up. While the pump is still running, remove the oil drain cap. Slightly restrict the exhaust. This will back-pressure the oil reservoir and force the oil from it, carrying more contamination.

When the oil ceases to flow, turn off the pump.

Repeat this procedure as required until the contamination is removed.

Replace the OIL DRAIN cap and refill the reservoir to the proper level with fresh pump oil.

TROUBLESHOOTING GUIDE

Your pump has been designed for dependable use and has a long life. If something goes wrong, the following guide will help you get the pump back into service as soon as possible.

If disassembly of the pump is required, please check your warranty. The warranty may be voided by misuse or customer tampering, which results in the pump becoming inoperable.

1. Failure To Start

Check the line voltage. The pump needs to start at ±10% line voltage (load at 320°F). At extremes, switching between the standard run windings may occur.

2. Oil Leakage

(1) Be sure the oil is not a residual accumulation from spillage, etc. (2) If leakage exists, the module cover gasket or the shaft seal may need replacement. If leakage exists in the area of the oil drain plug, you may need to reseal using a commercial pipe thread sealer.

3. Failure To Pull A Good Vacuum

(1) Be sure the vacuum gauge and all connections are in good condition and free of leaks. You can confirm leakage by monitoring the vacuum with a thermistor while applying vacuum pump oil at connections or suspected leak points. The vacuum will improve briefly while the oil is sealing the leak. (2) Be sure the pump oil is clean. A badly contaminated pump may require oil flushes. (3) Be sure the oil is at the proper level. For maximum pump operation, the oil level should be even with the OIL LEVEL line on the sight glass when the pump is running. Overfilling will cause the oil to expand when operating temperatures rise, so it will be at a higher level than when the pump is not running. To check the oil level, run the pump with the inlet capped. Check the oil level in the sight glass. Add oil as needed.

COMMON TROUBLESHOOTING

FailureDescriptionFaultCauseSolution
LowVacuum1.Theair inlet cap on the sp side ofthe air inlet port is ITighten the air inlet cap
2. The rubberring inside the inletcapon the spare port si the air inlet port is damageReplacetherubber ring
3. Insufficient oilRefuel to the centerline of the gauge
4. Thepumpoil is emulsified anduncleanReplacewith new oil
5. The oil inlethole of the isblockedorthe oil supply is insufficientClean the oil inlet hole and mesh
6. Leakageof pipe container connected to the pumpCheckthe connected pipe container to prevent leakage
7. Improper pumpselectionCheck the size of the pump container, recalculate and sele the appropriate pump model
8. The pump has been used long, and the clearance is increaseddue to the wear oCheck, repair,orreplacethe pump witha new one
OilLeakage1. The oil sealis damagedReplacethe oil seal
2.The oil tank connection is looseor damagedTightenthescrews andreplace the O-ring
Oil Injection1.ToomuchoilDrain theoil to the oil level
2.The inletpressure is too h for a long timeSelecttheappropriatepump to increase thepumping speed
Hard Starting1. The oil temperature is tooTheair inlet is ventilated, repeatedly starts the motor heats the pump oil
2. The motororpower supply faultyCheck and repair
3.Foreign objects fall into th pumpCheckand eliminate
4. The power supply voltage too lowCheck the powersupply volta

Note: If the above solutions do not solve your problem, please contact the nearest dealer or send your pump to a professional repair center, and we will do our best to serve you.

TECHNICAL PARAMETERS

SKU3CFM1-3HPZKBOC001V23CFMZKB0000000001V3
ModelRS-1
Voltage220-240V 50Hz
Free Air Displacement3CFM
Ultimate Vacuum5PA
Rotating Speed1440
Power (HP)1/4
Oil Capacity (ml)220
Dimension (mm)240*110*220
Weight (Kg)5
SKUQCKTZKB2.5CFM1-4HV2
ModelRS-1
Voltage220-240V 50Hz
Free Air Displacement2.5CFM
Ultimate Vacuum5PA
Rotating Speed1440
Power (HP)1/4
Oil Capacity (ml)220
Dimension (mm)240*110*220
Weight (Kg)5
SKU4.5CFM1-3HPZKB001V1
ModelRS-1.5
Voltage120V/60HZ
Free Air Displacement4.5CFM
Ultimate Vacuum5PA
Rotating Speed1720
Power (HP)1/3
Oil Capacity (ml)225
Dimension (mm)270*110*220
Weight (Kg)6
SKUQCKTZKB5CFM1-3HPDV1
ModelRS-2
Voltage120V/60HZ
Free Air Displacement5CFM
Ultimate Vacuum5PA
Rotating Speed1720
Power (HP)1/3
Oil Capacity (ml)250
Dimension (mm)290*120*240
Weight (Kg)7
SKU7CFM1-2HPZKB00001V1
ModelRS-3
Voltage120V/60HZ
Free Air Displacement7CFM
Ultimate Vacuum5PA
Rotating Speed1720
Power (HP)1/2
Oil Capacity (ml)250
Dimension (mm)310*125*255
Weight (Kg)7.5
SKU7CFM1-2HPZKB00001V2
ModelRS-3
Voltage220-240V 50Hz
Free Air Displacement7CFM
Ultimate Vacuum5PA
Rotating Speed1440
Power (HP)1/3
Oil Capacity (ml)250
Dimension (mm)310*125*255
Weight (Kg)6.5
SKUQCKTZKB6CFM1-2HP1V2
Model2RS-2
Voltage220-240V 50Hz
Free Air Displacement6CFM
Ultimate Vacuum0.3PA
Rotating Speed2800
Power (HP)1/2
Oil Capacity (ml)330
Dimension (mm)290*115*225
Weight (Kg)10
SKUQCKTZKB6CFM1-2HP1V1
Model2RS-2
Voltage120V/60HZ
Free Air Displacement6CFM
Ultimate Vacuum0.3PA
Rotating Speed1400
Power (HP)1/2
Oil Capacity (ml)330
Dimension (mm)290*115*225
Weight (Kg)10
SKU8CFM1HPZKB0000001V1
Model2RS-3
Voltage120V/60HZ
Free Air Displacement8CFM
Ultimate Vacuum0.3PA
Rotating Speed3500
Power (HP)3/4
Oil Capacity (ml)370
Dimension (mm)360*135*275
Weight (Kg)11
SKU8CFM1HPZKB0000001V2
Model2RS-3
Voltage220-240V 50Hz
Free Air Displacement8CFM
Ultimate Vacuum0.3PA
Rotating Speed2800
Power (HP)3/4
Oil Capacity (ml)370
Dimension (mm)360*135*275
Weight (Kg)10
SKUQCKTZKB7CFM1-2HPSV1
Model2RS-3
Voltage120V/60HZ
Free Air Displacement7CFM
Ultimate Vacuum0.3PA
Rotating Speed3500
Power (HP)3/4
Oil Capacity (ml)370
Dimension (mm)360*135*275
Weight (Kg)10
SKU9CF1HPZKBJB000001V39CF1HPZKBJB000001V2
Model2RS-3
Voltage220-240V 50Hz
Free Air Displacement9CFM
Ultimate Vacuum0.3PA
Rotating Speed3500
Power (HP)1
Oil Capacity (ml)370
Dimension (mm)360*135*275
Weight (Kg)11
SKUVP280ZKB000000001V3VP280ZKB000000001V2
ModelVP280
Voltage220-240V 50Hz
Free Air Displacement10CFM
Ultimate Vacuum0.3PA
Rotating Speed2800
Power (HP)1
Oil Capacity (ml)550
Dimension (mm)430*142*280
Weight (Kg)19
SKUVP280ZKB000000001V1
ModelVP280
Voltage120V/60HZ
Free Air Displacement12CFM
Ultimate Vacuum0.3PA
Rotating Speed3500
Power (HP)1
Oil Capacity (ml)550
Dimension (mm)430*142*280
Weight (Kg)19
SKUQCK10CFM-220V9FSXV2
Model2RS-4
Voltage220-240V 50Hz
Free Air Displacement10CFM
Ultimate Vacuum0.3PA
Rotating Speed2800
Power (HP)1
Oil Capacity (ml)550
Dimension (mm)430*142*280
Weight (Kg)19
SKU12CFM1HPDJZKB0001V1
ModelRS-6
Voltage120V/60HZ
Free Air Displacement12CFM
Ultimate Vacuum5PA
Rotating Speed1720
Power (HP)1
Oil Capacity (ml)450
Dimension (mm)430*140*250
Weight (Kg)16.5
SKU12CFM1HPSJZKB0001V2
ModelRS-6
Voltage220-240V 50Hz
Free Air Displacement12CFM
Ultimate Vacuum5PA
Rotating Speed1440
Power (HP)1
Oil Capacity (ml)450
Dimension (mm)430*140*250
Weight (Kg)16.5

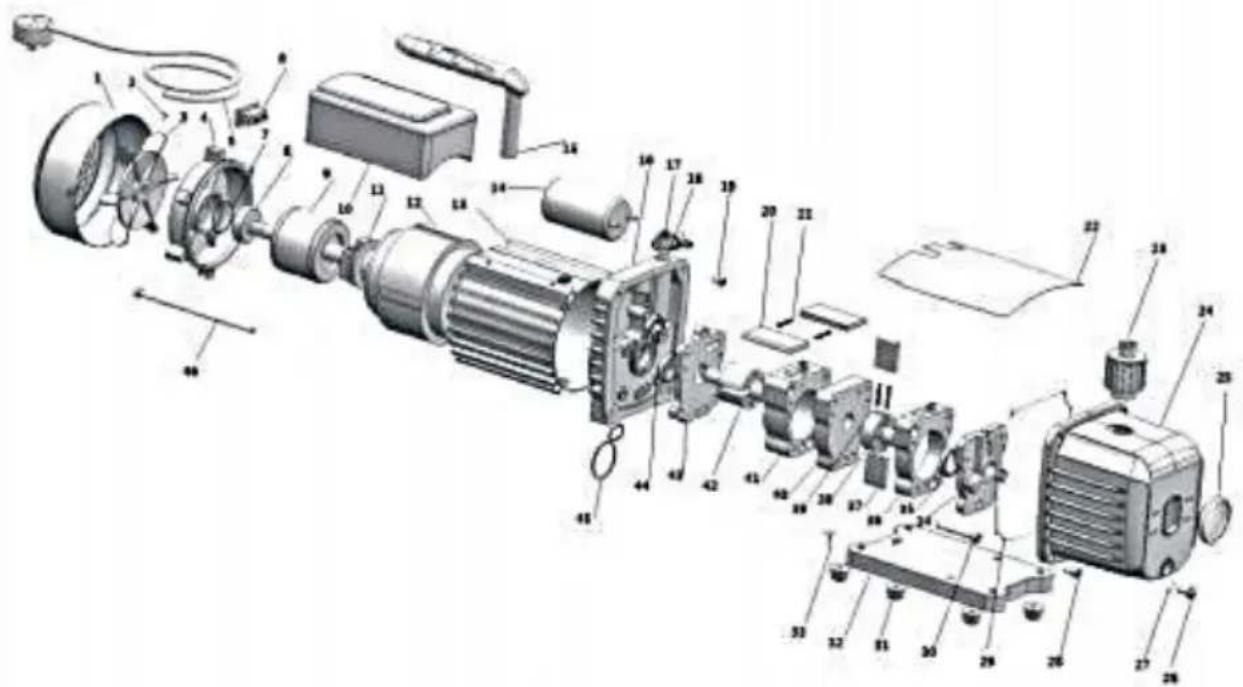

EXPLODED DRAWING

Exploded view diagram of an electric motor assembly with numbered components for identification.

1Fancover24Die-cast aluminum housing
2Crossscrew25Sight glass
3Fan26Oil drain
4Motor cover27Oil drain screw O- ring
5Power supply cords28Screw
6Power switch29Sealing ring
7Washer30Screw
8Bearing31Rubber foot
9Motor rotor32Base plate
10Capacitor box33Self-tapping screw
11Centrifugal switch34Back-pumpcover
12Motor stator35Oil seal
13Casing36Back-pump body
14Capacitor37Back-rotary -vane
15Handle38Back-pump rotor
16Trestle39Spring
17Gas cap40Middle fence
18The air inlet nozzle41Front-pump body
19Screw42Front- pump rotor
20Front rotary-vane43Front cover
21Spring44Oil seal
22Cap board45O type ring
23Exhaust and oil inlet fitting46Screw

Manufacturer: WENLING HONGBAOSHI VACUUM EQUIPMENT CO.,LTD Address: Yaque Industrial Zone, Xinhe Town, Wenling City, Zhejiang Province

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to major top brands and does not necessarily mean to cover all categories of tools we offer. You are kindly reminded to verify carefully when you are placing an order that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

VACUUM PUMP

MODEL: RS-1 / RS-1.5 / RS-2 / RS-3 / RS-6 / 2RS-2 / 2RS-3 / VP280

I-Stage Vacuum Pump. Model: 34.1. Type #: 52708. Condition: 0%. Dissipation: 100000000. Voltage: 160-180V. Power: 1-10W. Discharge: 200mg.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

SAFETY INSTRUCTION

OPERATING MANUAL

1. Before using your vacuum pump

TROUBLESHOOTING GUIDE

We continue to be committed to providing you tools with competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to major top brands and does not necessarily mean to cover all categories of tools from us. You are kindly reminded to verify carefully when you are placing an order that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

VACUUM PUMP

MODEL: RS-1 / RS-1.5 / RS-2 / RS-3 / RS-6 / 2RS-2 / 2RS-3 / VP280

I-Stage Vacuum Pump. Model: 34.1. Type #: 52708. Condition: 0%. Dissipation: 100000000. Voltage: 160-180V. Power: 1-10W. Discharge: 200mg.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

OPERATING MANUAL

TROUBLESHOOTING GUIDE

www.vevor.com/support

We continue to be committed to provide you with tools at competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to major top brands and does not necessarily mean to cover all categories of tools from us. You are kindly reminded to verify carefully when you are placing an order that you are actually saving half in comparison with the top major brands.

MODEL: RS-1 / RS-1.5 / RS-2 / RS-3 / RS-6 / 2RS-2 / 2RS-3 / VP280

I-Stage Vacuum Pump. Model: 34.1. Type #: 52708. Condition: 0%. Dissipation: 100000000. Voltage: 160-180V. Power: 1-10W. Discharge: 200mg.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

OPERATING MANUAL

TROUBLESHOOTING GUIDE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared major top brands and does not necessarily mean to cover all categories of tools us. You are kindly reminded to verify carefully when you are placing an order that are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

VACUUM PUMP

MODEL: RS-1 / RS-1.5 / RS-2 / RS-3 / RS-6 / 2RS-2 / 2RS-3 / VP280

I-Stage Vacuum Pump. Model: 34.1. Type #: 52708. Condition: 0%. Dissipation: 100000000. Voltage: 16.10kW. Power: 1.1kW. Discharge: 200mg.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

SAFETY INSTRUCTION

OPERATING MANUAL

1. Before using your vacuum pump

TROUBLESHOOTING GUIDE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared major top brands and does not necessarily mean to cover all categories of tools us. You are kindly reminded to verify carefully when you are placing an order that are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

VACUUM PUMP

MODEL: RS-1 / RS-1.5 / RS-2 / RS-3 / RS-6 / 2RS-2 / 2RS-3 / : VP280

I-Stage Vacuum Pump. Model: 34.1. Type #: 52708. Condition: 0%. Dissipation: 100000000. Voltage: 160kW. Power: 1-10kW. Discharge: 200mg.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

OPERATING MANUAL

TROUBLESHOOTING GUIDE

www.vevor.com/support

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to major top brands and does not necessarily mean to cover all categories of tools from us. You are kindly reminded to verify carefully when you are placing an order that you are actually saving half in comparison with the top major brands.

MODEL: RS-1 / RS-1.5 / RS-2 / RS-3 / RS-6 / 2RS-2 / 2RS-3 / 2I VP280

I-Stage Vacuum Pump. Model: 34.1. Type: air. Length: 50mm. Capacity: 20W. Volume: 100000000g. Order: 1-100P. Discharge: 200mg.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

OPERATING MANUAL

TROUBLESHOOTING GUIDE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you with tools at competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to major top brands and does not necessarily mean to cover all categories of tools from us. You are kindly reminded to verify carefully when you are placing an order that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

VACUUM PUMP

MODEL: RS-1 / RS-1.5 / RS-2 / RS-3 / RS-6 / 2RS-2 / 2RS-3 / : VP280

I-Stage Vacuum Pump. Model: 34.1. Type #: 52708. Condition: 0%. Dissipation: 100000000. Voltage: 16.10kW. Power: 1.1kW. Discharge: 200mg.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

SAFETY INSTRUCTION

OPERATING MANUAL

TROUBLESHOOTING GUIDE

www.vevor.com/support

Made in China

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Vevor

Model : 2RS-4

Category : Pumps
