USER MANUAL FF-08B-20L Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

GREASE PUMP USER MANUAL

MODEL: FF-08B-12L,FF-08B-20L,FF-09B-40L

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

GREASE PUMP

MODEL: FF-08B-12L,FF-08B-20L,FF-09B-40L

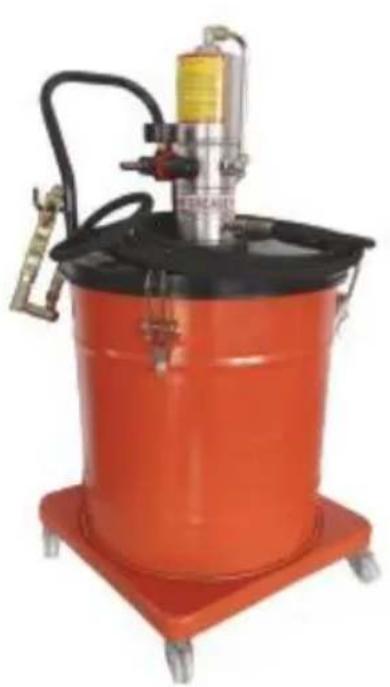

Red industrial water spray can with mechanical components and tubing (no visible text or symbols)

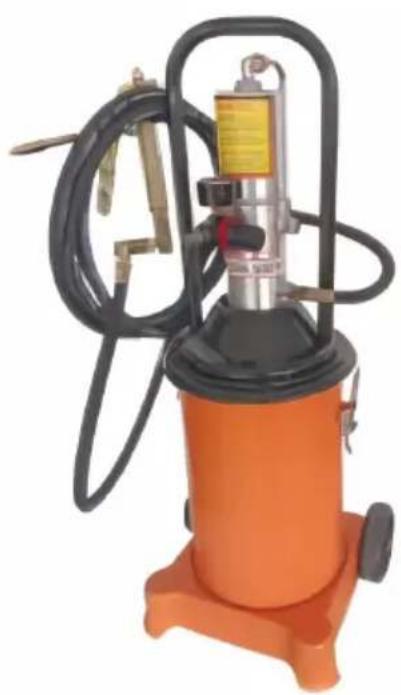

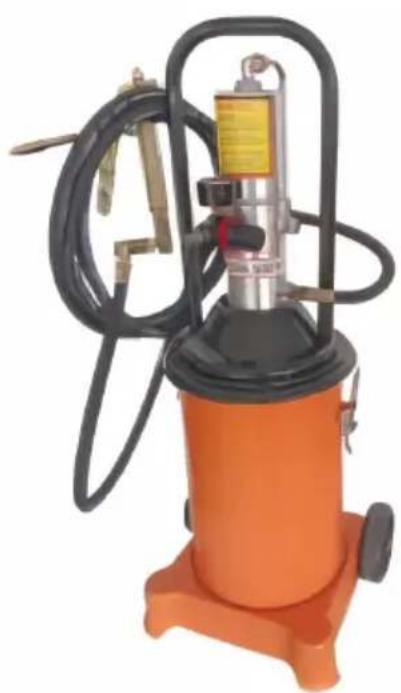

Orange industrial pressure pump with black tubing and yellow control panel (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING

1. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating.

2. Failure to follow the safety rules and other basic safety precautions result in serious personal injury.

GENERAL SAFETY RULES

1. Wear goggles. During operation, dust, sparks and dust are hard to the gas.

2.There will be noise when the product works. It is recommended bring earplugs.

1. Be extremely careful and use common sense during the opera Never use alcohol, drugs, or prescription drugs Ring down to operate the device. Read the instructions on the medication you taking to see if they will affect you The judgment and reaction If you have any questions, do not operate this device.

2. Minors should not operate this product to avoid accidents or injuries.

3. The air pressure of the air source is kept stable, so as not the work and life of the product.

4. Dress appropriately. Never wear loose long hair, and keep hair clothing away from this product.

5. The intake pressure shall not exceed the pressure specified in manual.

6. Disconnect the air source when servicing or replacing the device

Cautions

1. If there is any quality problem and it cannot be repaired by non-professional personnel, please contact the dealer or the manufacturer for help.

2. When using, please put the butter gun lightly; do not put it ground at will, because the head of the gun is sharp, to preve injury or the residual butter outflow inside.

3. Don't point the gun at a person's face when used.
4. After use, wipe the pump head and the butter gun clean. Che regularly whether the machine is complete and working properly.
5. Butter wire tubes shall not be kinked, twisted or stretched.
6. Excessive pressure causes damage to the butter gun head a equipment.
7. Defective accessories should be replaced immediately.
8. Every time the butter gun is replaced, the gas source needs be closed without pressure.
9. Do not leave the device unattended when the device is turned and always close it before leaving the work area and wait for device to stop completely.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model	FF-08A-12L	FF-08A-20L	FF-09A-40L
Oil Volume	740g/min	740g/min	740g/min
Pressure Ratio	50:1	50:1	50:1
Output Pressure	30-40MPa	30-40MPa	30-40MPa
Air supply Pressure	0.6~0.8Mpa	0.6~0.8Mpa	0.6~0.8Mpa
Bucket Capacity	12L	20L	40L

FF-08A-20L, FF-09A-40L:

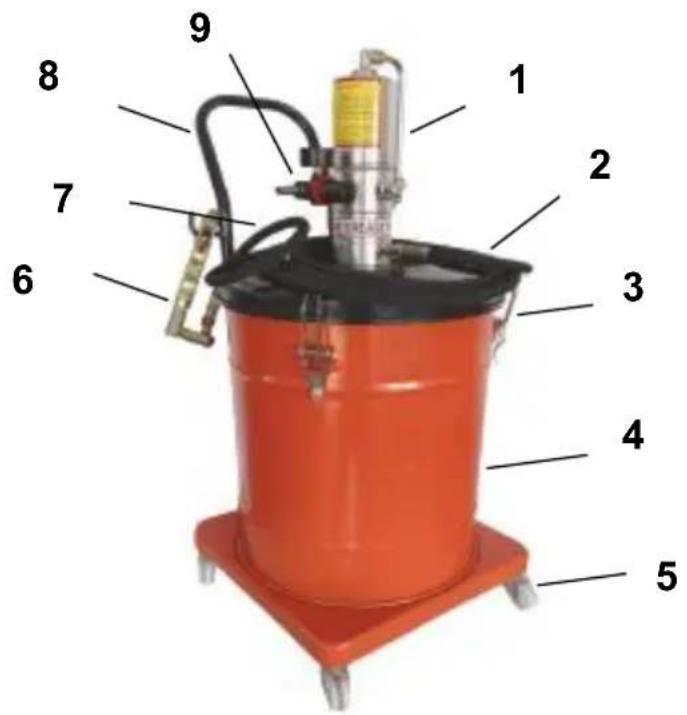

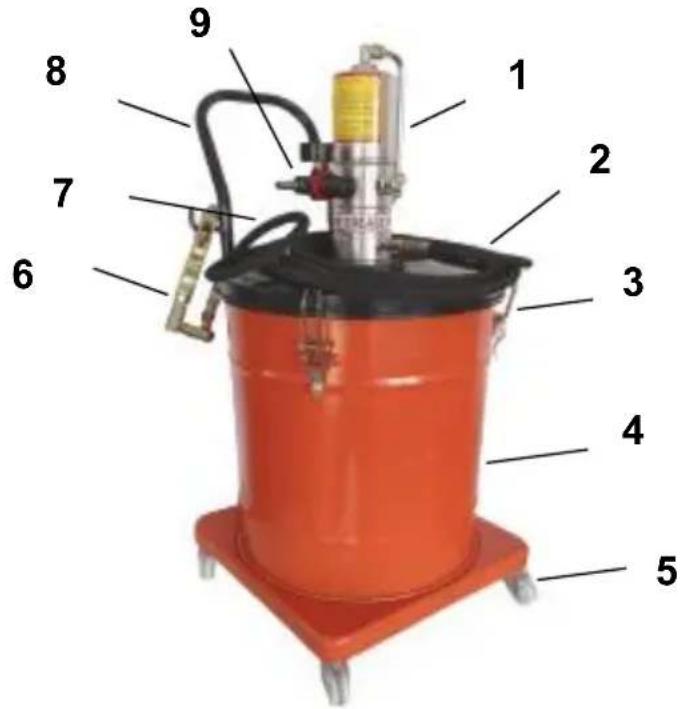

Labeled diagram of a red industrial machine with numbered parts for identification

1. Grease Pump 2. Grease Bucket Cap 3. Quick Clip 4. Grease Bucket 5. Casters 6. Grease Gun 7. Hose 8. Handle 9. Pressure Valve

FF-08A-12L:

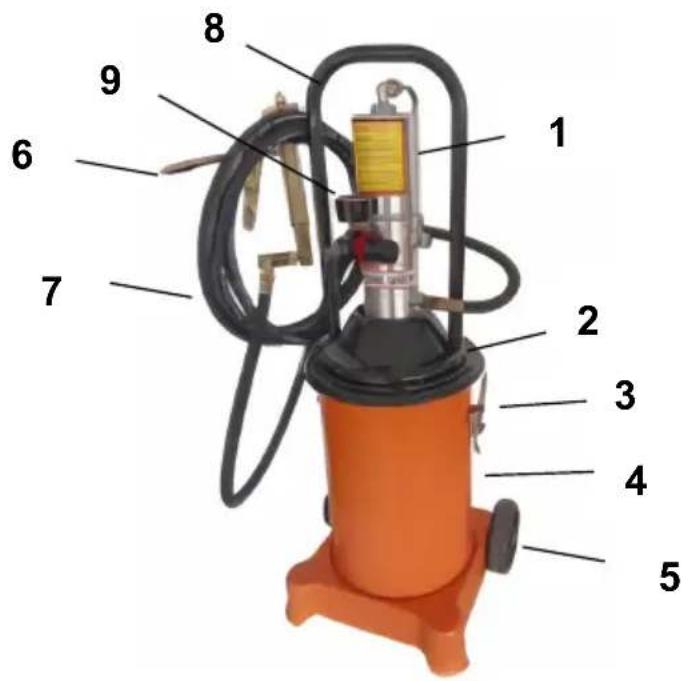

Labeled diagram of an industrial pressure pump with numbered components for identification

1. Grease Pump 2. Grease Bucket Cap 3. Quick Clip 4. Grease Bucket 5. Casters 6. Grease Gun 7. Hose 8. Handle 9. Pressure Valve

OPERATING INSTRUCTIONS

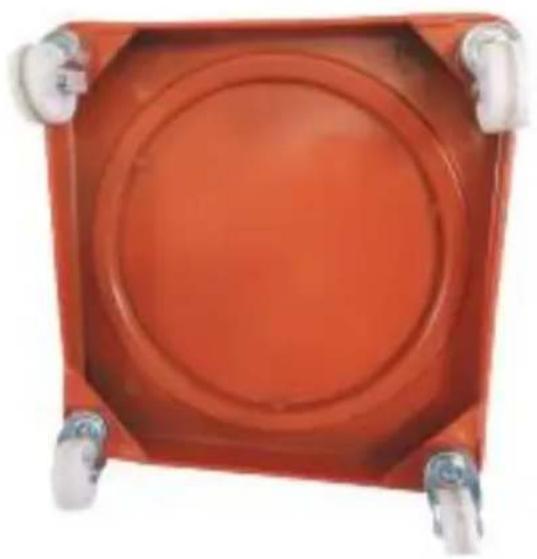

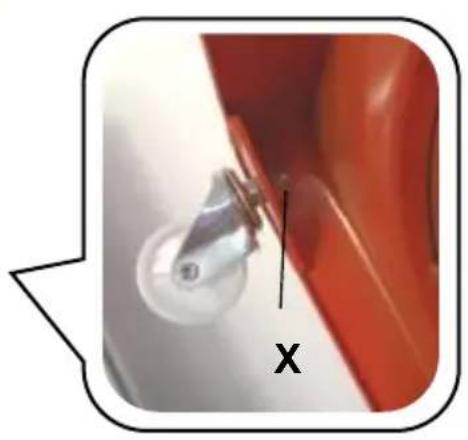

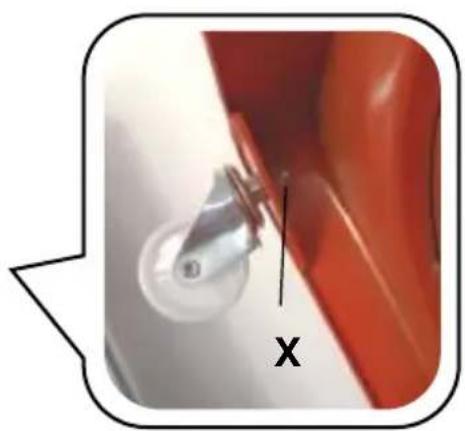

Step1: Install Casters, Lock with nuts and spring washers(X)

FF-08B-20L, FF-09B-40L:

Red square mechanical component with circular top and four side handles (no text or symbols visible)

X

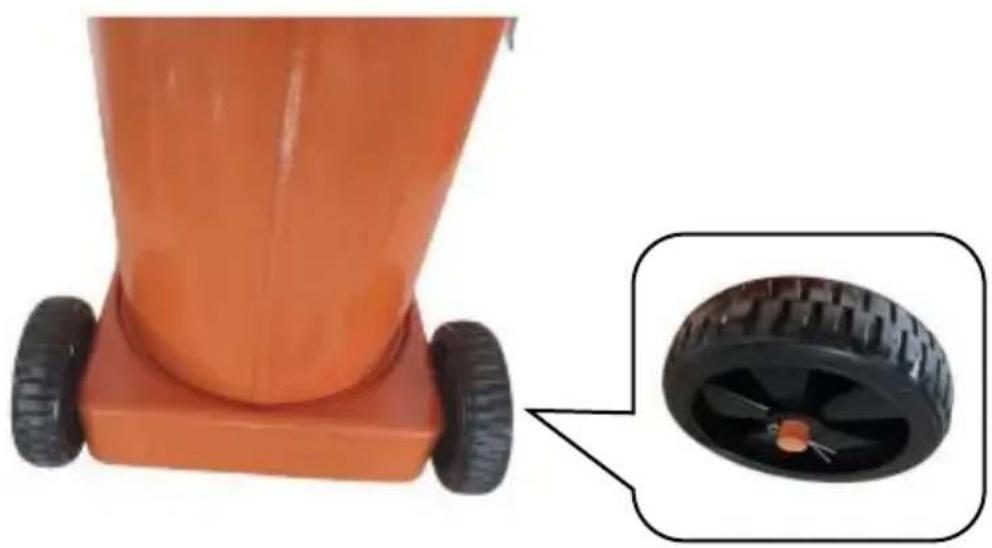

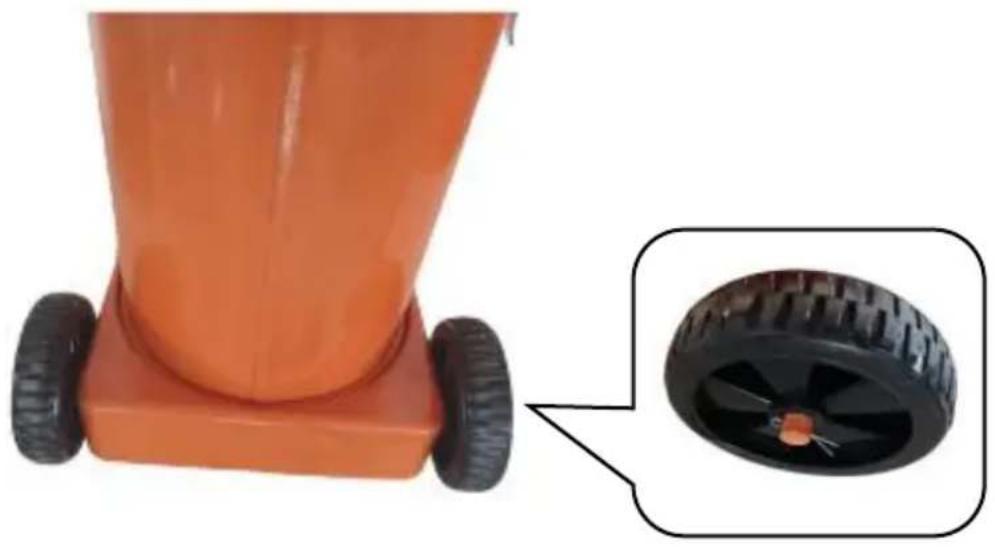

Install the wheels and insert the pins.

FF-08B-12L:

Close-up of an orange push truck with two wheels, shown with a close-up inset showing the wheel rim (no text or symbols)

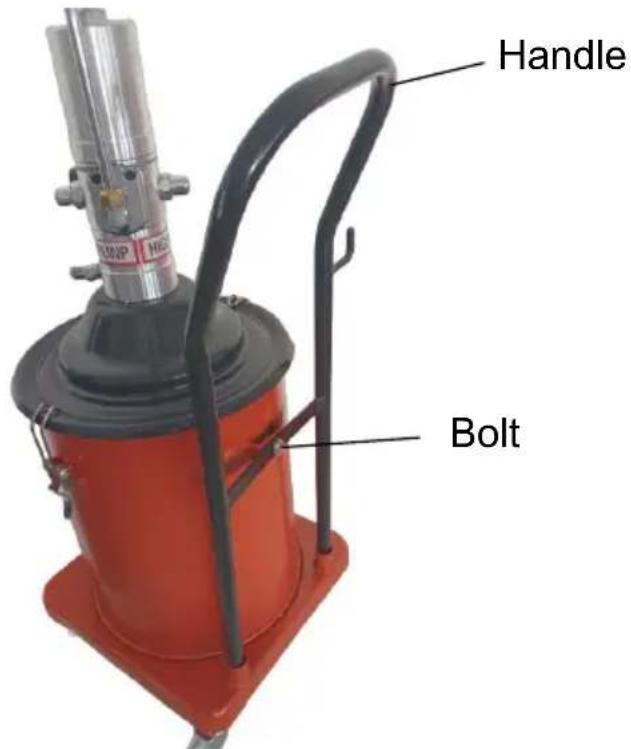

Step2: Remove the handle first, adjust the direction of the handle and fasten with the bolt.(FF-08B-20L, FF-09B-40L)

Note: The handle of FF-08B-12L has been installed.

Handle Bolt

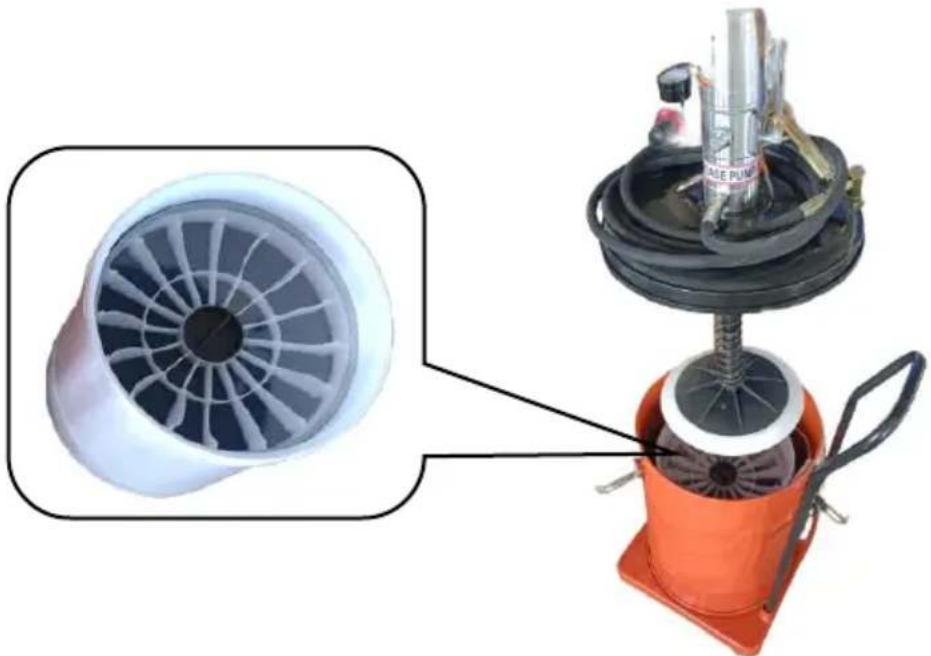

Step3: Open the butter bucket cap and pour butter into it. Then insta butter bucket cap and fasten it. (FF-08B-12L, FF-08B-20L)

For Model FF-09B-40L: Put the standard butter barrel into the butter bucket, then install the butter bucket cap and fasten it.

Note: The standard butter barrel has an inside diameter of 23.8cm at height of 34cm.

Industrial machine with fan blade and orange base, showing internal components and a close-up inset (no text or symbols visible)

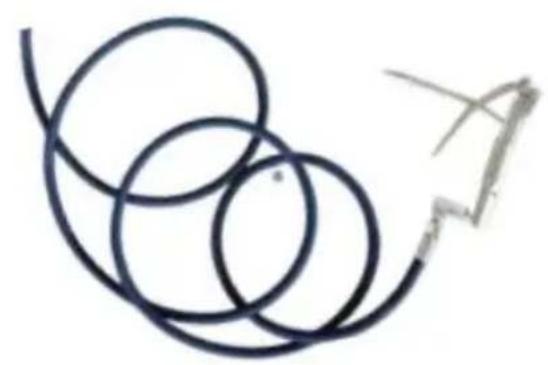

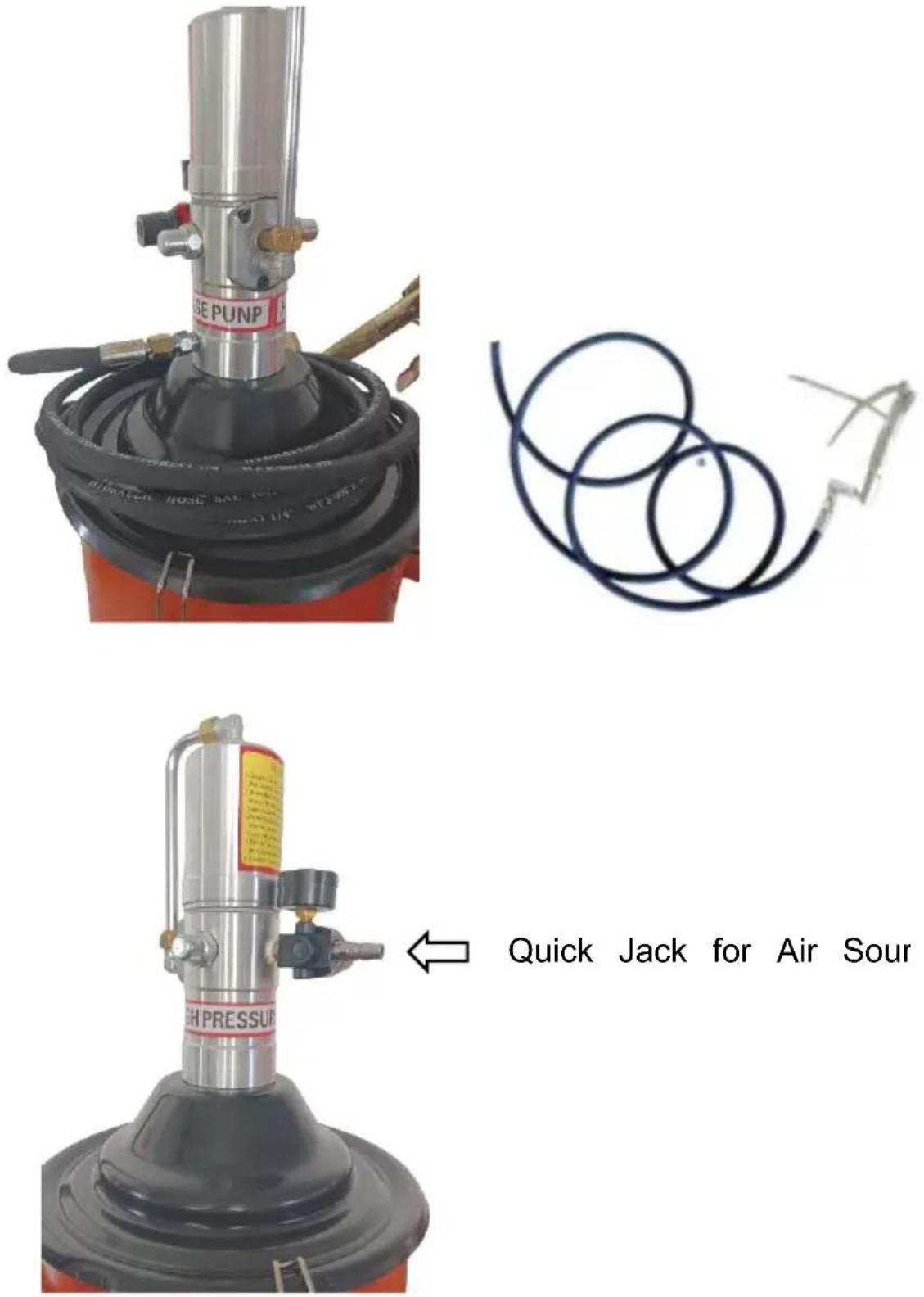

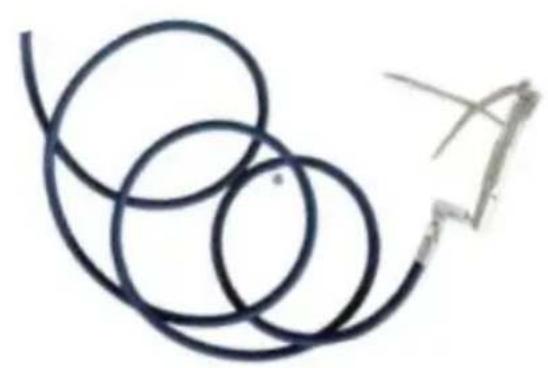

Step4: Connect the hose to the grease pump inlet and the grease g the other end of the hose.Access the air source, adjust the intake pr through the pressure valve.

Note: Wrap a few loops of raw material around the joint as needed.

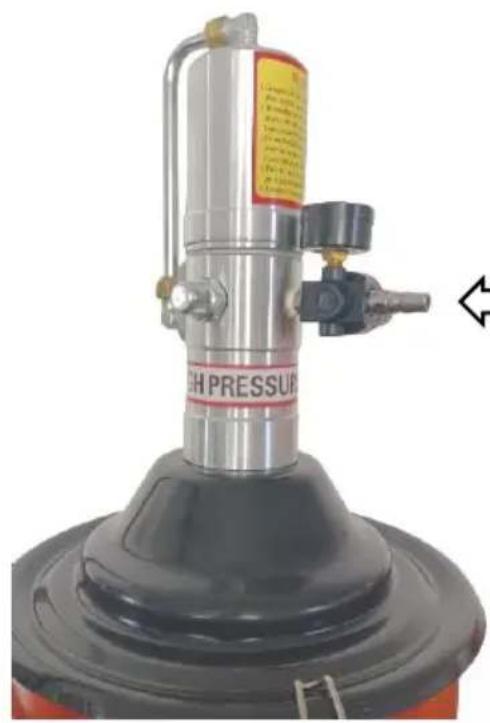

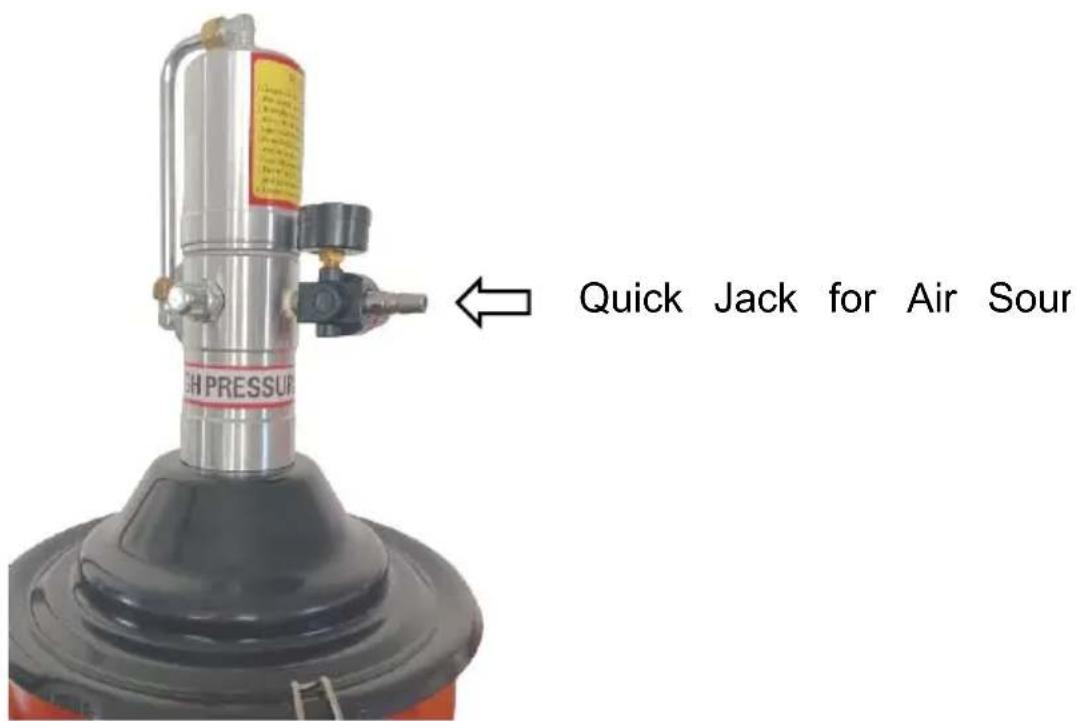

Quick Jack for Air Sour

MAINTENANCE

1. The air entering the pump needs to be filtered to avoid dan the pump.
2. When using the hose, avoid excessive bending and overload in the hose, as this can lead to damage.
3. After using the product, please disconnect the gas source, and then clean the grease gun.
4. Do not overload or idle the pump to avoid damage
5. If the product is not used for a long time, please clean it

TROUBLESHOOTING

Problem	Possible Cause	Possible Solution
Pump not working	The internal slide is loos	Install the charging plate and tighten the screws
	outlet blocked	Check and clean the outl
	grease viscosity is too high	Choose the right viscosity grease.1~2# in Winter, 2# in Spring and Autumn, 2~3# in Summer.
The oil output abnormal	1. The internal slide is no the right place2. Intake air pressure is often abnormal	1. Adjust the internal slide position.2. Make sure the air supp is normal and adjust the pressure valve
Grease leaks ou	Check the seal ring for w	Replace the seal ring

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

GREASE PUMP

MODÈLE : FF-08 B -12L,FF-08 B -20L,FF-09 B -40L

Red industrial water spray can with mechanical components and tubing (no visible text or symbols)

Orange industrial pressure pump with black tubing and yellow control panel (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING

Labeled diagram of a red industrial spray gun with numbered components for identification.

Labeled diagram of an orange pressure pump with numbered parts for identification

Close-up of a red circular component with mounting feet, shown alongside by a magnified inset showing a close-up of a mechanical component labeled 'X' (no text or symbols on the main subject)

Close-up of an orange push truck with two wheels, shown with a close-up inset showing the wheel rim and tire (no text or symbols)

Industrial machine with fan blade and orange base, no visible text or symbols

Close-up of a mechanical pressure pump assembly with visible branding and no readable text or symbols on the device itself.

Abstract line drawing with intertwined loops and a small arrow-like shape (no text or symbols)

HIGH PRESSURE

Quick Jack for Air Sour

MAINTENANCE

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Fabriqué en Chine

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

GREASE PUMP

MODELL: FF-08 B -12L,FF-08 B -20L,FF-09 B -40L

Red industrial water spray can with mechanical components and tubing (no visible text or symbols)

Orange industrial pressure pump with black tubing and yellow control panel (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING

FF-08 A-20L, FF-0 9A - 40L:

Labeled diagram of a red industrial spray gun with numbered components for identification.

1. Fettpumpe 2. Fetteimerdeckel 3. Schnellclip 4.Fetteimer 5.Rollen 6.Fettpresse 7.Schlauch 8.Griff 9.Druckventil ____

FF-08 A -12L :

Orange industrial pressure pump with black tubing and yellow control panel (no visible text or symbols)

Red square electronic component with circular top and four side handles (no visible text or symbols)

X

Close-up of an orange push truck with two wheels, shown with a close-up inset showing the wheel rim and tire (no text or symbols)

Industrial machine with fan blade and orange base, showing internal components and a magnified inset (no text or symbols visible)

Close-up of a mechanical pressure pump assembly with visible branding and internal components (no readable text or symbols)

Abstract line drawing with intertwined loops and a small arrow-like shape (no text or symbols)

HIGH PRESSURE

Quick Jack for Air Sour

MAINTENANCE

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

GREASE PUMP

MODELLO: FF-08 B -12L,FF-08 B -20L,FF-09 B -40L

Red industrial water spray can with mechanical components and tubing (no visible text or symbols)

Orange industrial pressure pump with black tubing and yellow control panel (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING

FF-08 A-20L, FF-0 9A - 40L:

Labeled diagram of a red industrial spray gun with numbered components for identification.

Labeled diagram of an orange pressure pump with numbered parts for identification

Red square electronic component with circular top and four side handles (no text or symbols visible)

X

Close-up of an orange push truck with two wheels, shown with a close-up inset showing the wheel rim and tire (no text or symbols)

Close-up of a jet engine component with fan blades and attached hydraulic cylinder (no text or symbols visible)

Close-up of a mechanical pressure pump assembly with visible branding and internal components (no readable text or symbols)

Abstract line drawing with intertwined loops and a small arrow-like shape (no text or symbols)

HIGH PRESSURE

Quick Jack for Air Sour

MAINTENANCE

Importato in AUS: SIHAO PTY LTD . 1 ROKEVA STREETEASTWOC NSW 2122 Australia

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

GREASE PUMP

MODELO: FF-08 B -12L,FF-08 B -20L,FF-09 B -40L

Red industrial water spray can with mechanical components and tubing (no visible text or symbols)

Orange industrial pressure pump with black tubing and yellow control panel (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING

FF-08 A-20L, FF-0 9A - 40L:

Labeled diagram of a red industrial spray gun with numbered components for identification.

Labeled diagram of an orange industrial pressure pump with numbered components

1. Bomba de grasa 2. Tapa del cubo de grasa 3. Clip rápido 4. Ba grasa

2. Ruedas 6. Pistola de engrase 7. Manguera 8. Mango 9. Válvula de presi

OPERATING INSTRUCTIONS

Close-up of a red circular component with mounting feet, shown alongside by a magnified inset showing a small mechanical part labeled 'X' (no text or symbols on the main subject)

Close-up of an orange push truck with two wheels, shown with a close-up inset showing the wheel rim and tire (no text or symbols)

Industrial machine with fan blade and orange base, no visible text or symbols

Close-up of a mechanical pressure pump assembly with visible branding and internal components (no readable text or symbols)

Abstract line drawing with intertwined loops and a small arrow-like shape (no text or symbols)

HIGH PRESSURE

Quick Jack for Air Sour

MAINTENANCE

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Hecho en china

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

GREASE PUMP

MODEL: FF-08 B -12L, FF-08 B -20L, FF-09 B -40L

Red industrial water spray can with mechanical components and tubing (no visible text or symbols)

Orange industrial pressure pump with black tubing and yellow control panel (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING

FF-08 A-20L, FF-0 9A - 40L:

Labeled diagram of a red industrial pump or lift with numbered components from 1 to 9

Labeled diagram of an industrial pressure pump with numbered components for identification

Red square electronic component with four metallic pins at corners (no visible text or symbols)

X

Close-up of an orange push truck with two wheels, shown with a close-up inset showing the wheel rim and tire (no text or symbols)

Industrial machine with fan blade and orange base, no visible text or symbols

Exterior view of a mechanical pump assembly and its coiled wire (no text or symbols visible)

Quick Jack for Air Sour HIGH PRESSURE

MAINTENANCE

Import do AUS: SIHAO PTY LTD . 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Import do USA: Sanven Technology Ltd. Apartament 250, 9166 Anah Place, Rancho Cucamonga, Kalifornia 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

VET POMP HANDLEIDING

MODEL: FF-08 B -12L,FF-08 B -20L,FF-09 B -40L

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

GREASE PUMP

MODEL: FF-08 B -12L,FF-08 B -20L,FF-09 B -40L

Red industrial water filter unit with mechanical components and control panel (no visible text or symbols)

Orange industrial pressure pump with black tubing and yellow control panel (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING

1. Lees zorgvuldig alle MONTAGE- EN BEDIENINGSINSTRUCTIES

FF-08 A-20L, FF-0 9A - 40L:

Labeled diagram of a red industrial pump or lift with numbered components from 1 to 9

1. Vetpomp 2. Dop van vetemmer 3. Snelle clip 4. Vetemmer 5. Zwenkwielen 6. Vetsput 7. Slang 8.Handvat 9.Drukklep ____

FF-08 EEN -12L :

Labeled diagram of an orange industrial pressure pump with numbered components

1. Vetpomp 2. Dop van vetemmer 3. Snelle clip 4. Vetemmer
2. Zwenkwielen 6. Vetspuit 7.Slang 8.Handvat 9.Drukklep _ _ _

OPERATING INSTRUCTIONS

Red industrial component with circular top and mounting feet, shown with a magnified inset showing a mechanical component labeled 'X' (no text or symbols on the main subject)

Installeer de wielen en steek de pinnen erin.

FF-08 B -12L :

Close-up of an orange push truck with two wheels, alongside a close-up of the tire wheel (no text or symbols visible)

Diagram of a turbine fan assembly with a mounted pump and orange base, showing internal blades and components (no text or labels)

Close-up of a mechanical pressure pump assembly with visible branding and internal components (no readable text or symbols)

Abstract line drawing with intertwined loops and a small arrow-like shape (no text or symbols)

HIGH PRESSURE

Quick Jack for Air Sour

MAINTENANCE

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Gemaakt in China

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

GREASE PUMP

MODELL: FF-08 B -12L, FF-08 B -20L, FF-09 B -40L

Red industrial water spray can with mechanical components and tubing (no visible text or symbols)

Orange industrial pressure pump with black tubing and yellow control panel (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING

FF-08 A-20L, FF-0 9A - 40L:

Labeled diagram of a red industrial pump or lift with numbered components from 1 to 9

Labeled diagram of an orange industrial pressure pump with numbered components for identification.

1. Fettpump 2. Lock för fetthink 3. Snabbklämma 4. Fetthink 5. Hjul 6. Grease Gun 7. Slang 8. Handtag 9. Tryck V alven _

OPERATING INSTRUCTIONS

Close-up of a red circular component with mounting feet, shown alongside by a magnified inset showing a mechanical component labeled 'X' (no text or symbols on the main subject)

Close-up of an orange push truck with two wheels, alongside a close-up of the tire wheel (no text or symbols visible)

Industrial machine with fan blade and orange base, no visible text or symbols

Close-up of a mechanical pump assembly with a red base and black casing, alongside a coiled wire (no visible text or symbols)

Quick Jack for Air Sour HIGH PRESSURE

MAINTENANCE

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Tillverkad i Kina

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
