FABRIC DRAWER DRESSER USER MANUAL

MODEL: ZWE-BC-SS-11 / ZWE-BC-SS-12

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

FABRIC DRAWER DRESSER

MODEL: ZWE-BC-SS-11/ ZWE-BC-SS-12

Line drawing of a 3D cabinet with six drawers, no text or symbols present

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, drugs or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of safely supporting the Fabric Drawer Dresser.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or near this item.
3. Do not exceed specified weight capacities.
4. Use only on a flat, level, hard, and smooth surface that can safely support a fully loaded Fabric Drawer Dresser.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damaged.

SAVE THIS MANUAL

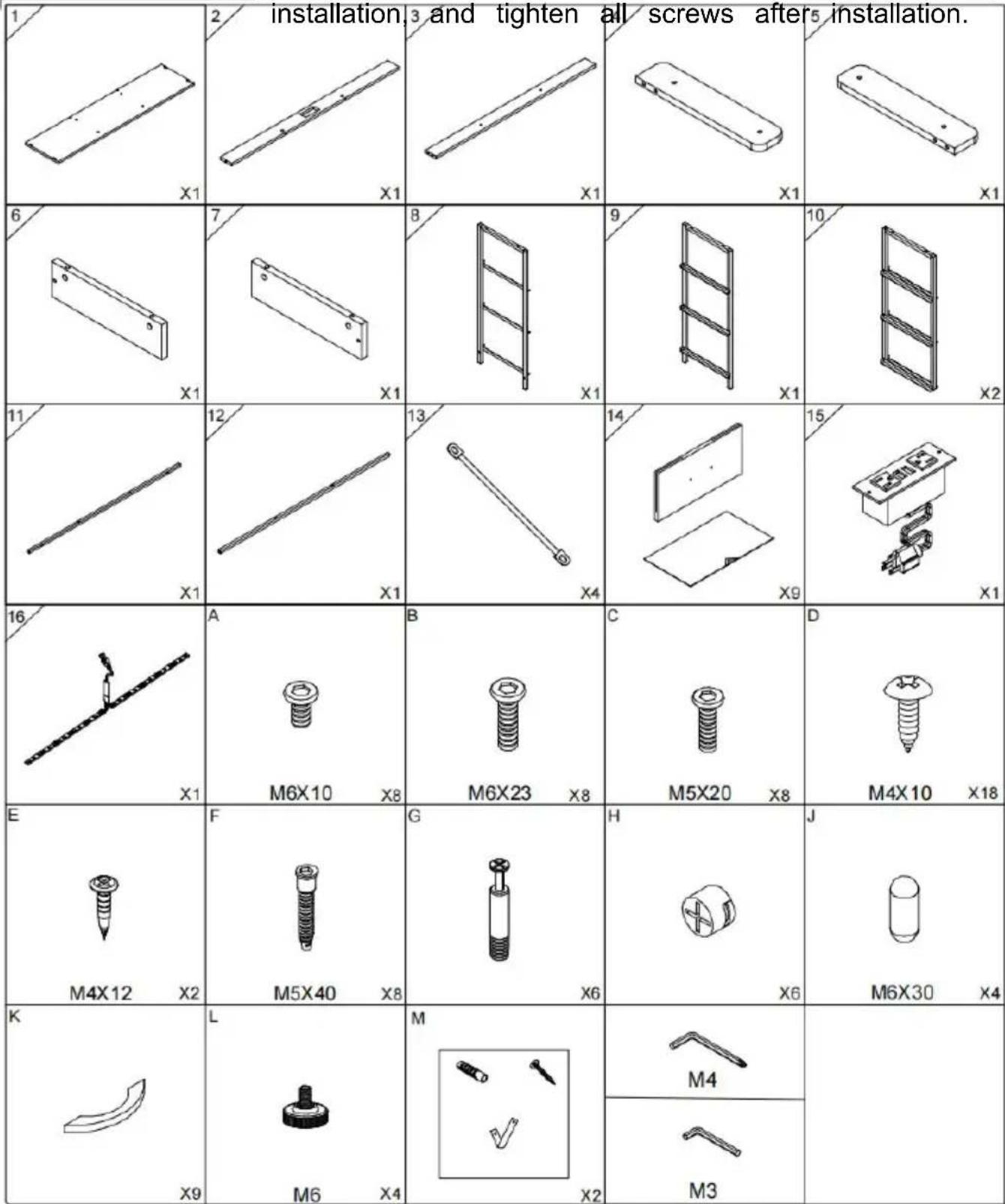

PARTS LIST

WARNING

1. Because plates and screws are not common, please read the manual carefully before installation, and distinguish each plate and screws.
2. Please do not tighten the screws too tightly before installation, and tighten all screws after installation.

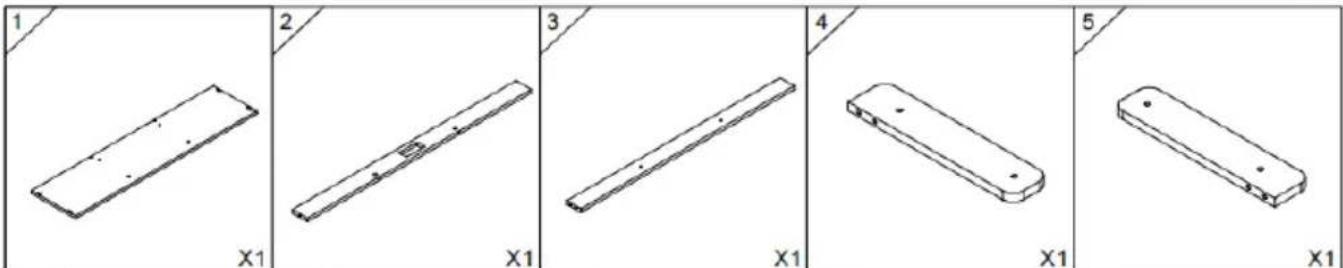

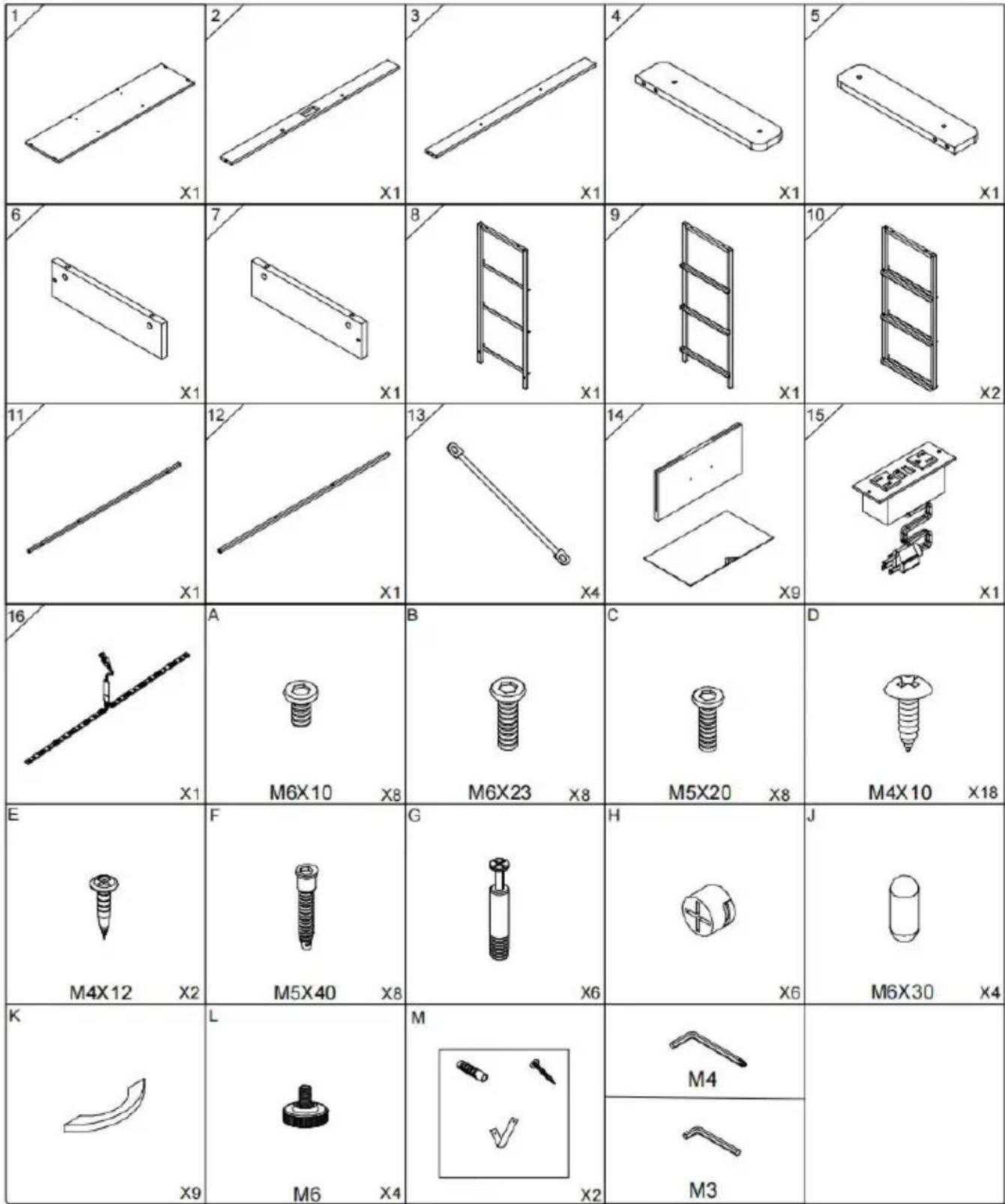

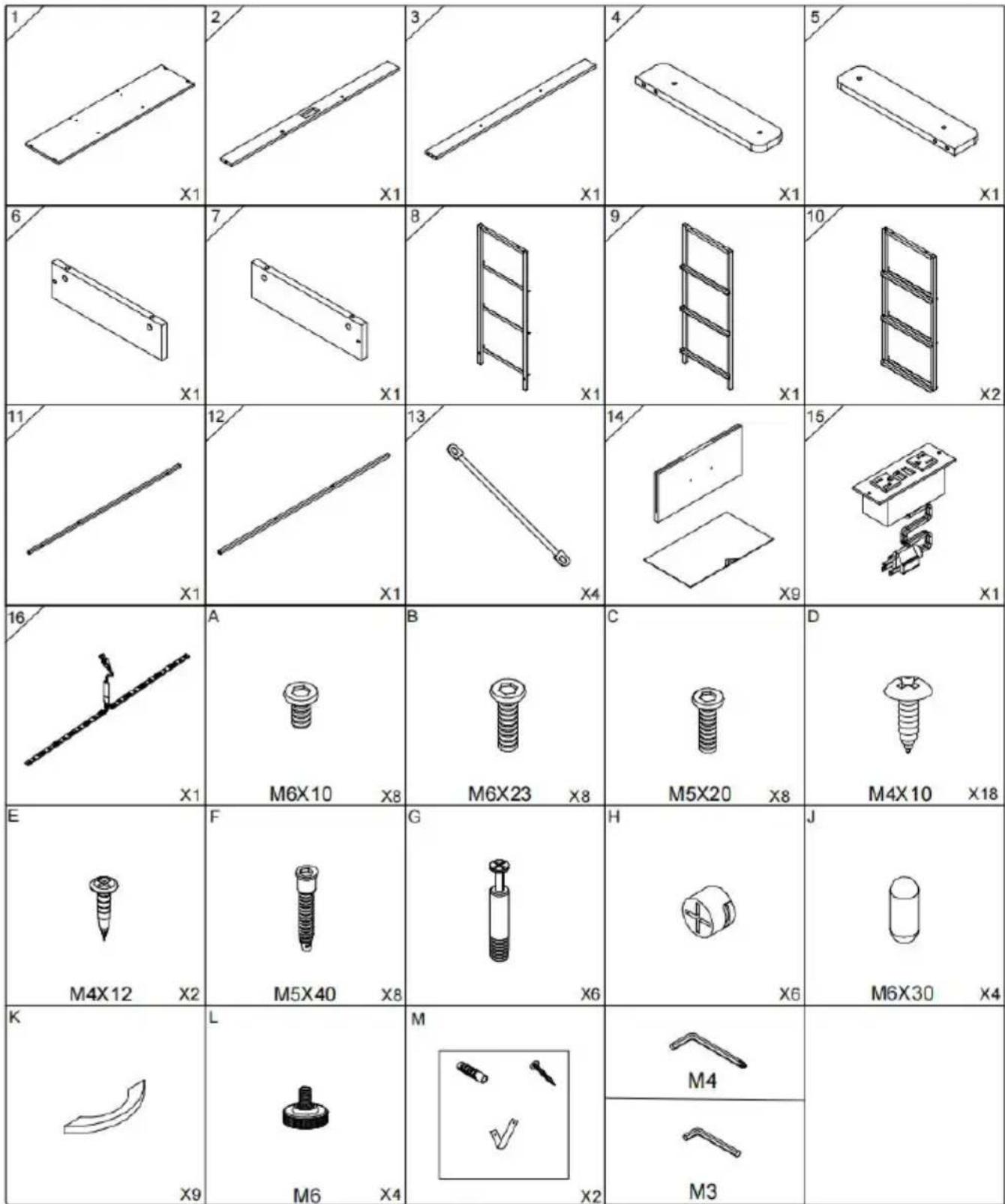

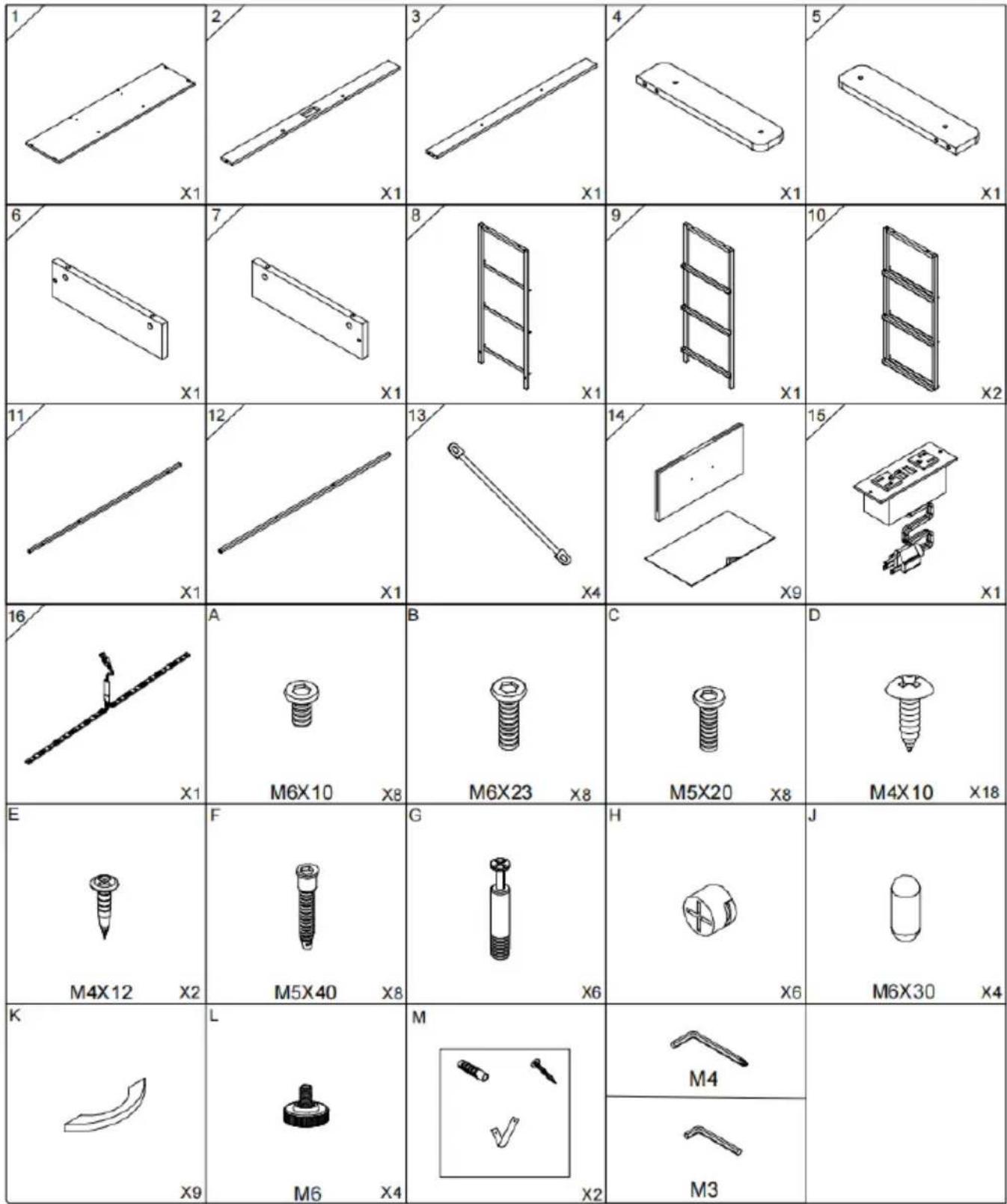

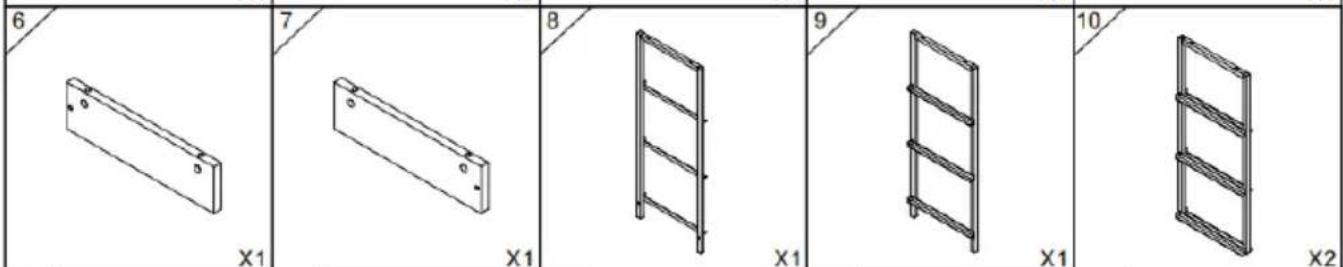

1 X1 2 X1 3 X1 4 X1 5 X1 6 X1 7 X1 8 X1 9 X1 10 X2 11 X1 12 X1 13 X4 14 X9 15 X1 16 X1 A M6X10 B M6X23 C M5X20 D M4X10 E F M4X12 G M5X40 H X6 J M6X30 K L M6 M4 M3 X9

1 X1 2 X1 3 X1 4 X1 5 X1

6 X1 7 X1 8 X1 9 X1 10 X2

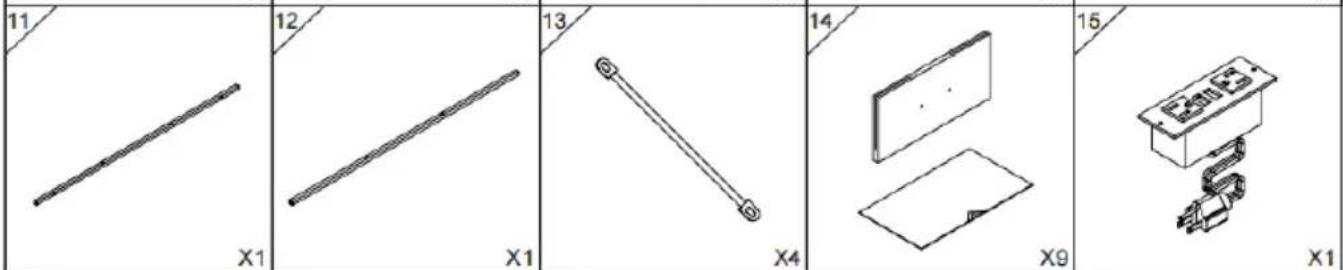

11 X1 12 X1 13 X4 14 X9 15 X1

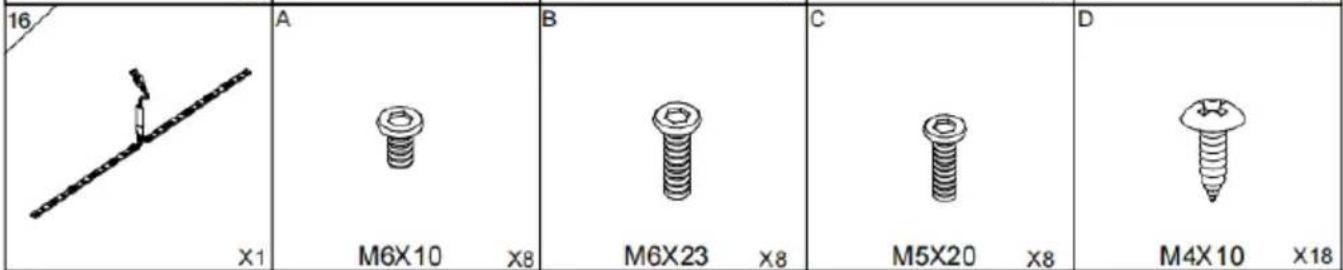

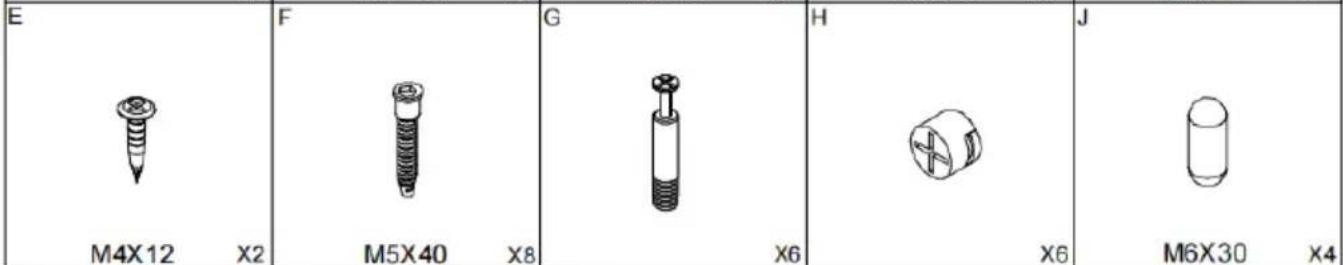

16 A M6X10 x8 B M6X23 x8 C M5X20 x8 D M4X10 x18 x1

E M4X12 X2 F M5X40 X8 G X6 H X6 J M6X30 X4

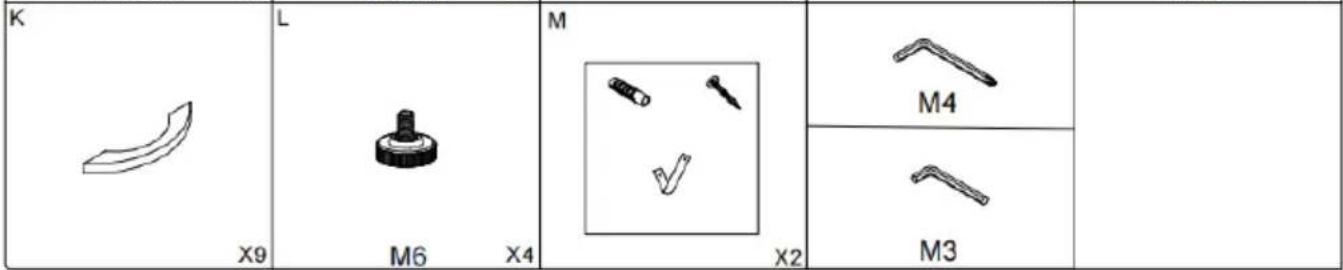

K X9 L M6 M4 X4 X2 M3

ASSEMBLY STEP

How to use furniture connector cam lock screw and fitting?

Dowel(G)

Eccentric wheel(H)

1

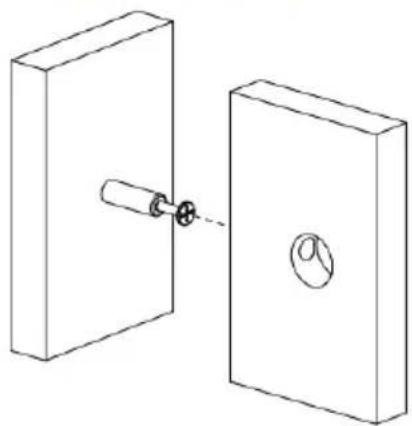

Use screwdriver to attach dowel into pre-inserted nut

Simple line drawing of a rectangular block with a screw and a pin inserted, no text or symbols present.

2

Step 1 completed

Simple line drawing of a rectangular block with a cylindrical pin inserted (no text or symbols)

3

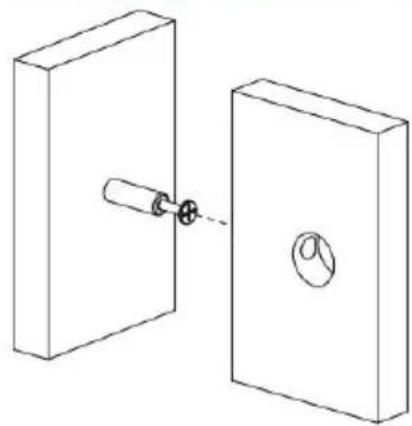

Attach dowel into hole on fitting board

Diagram of a door lock mechanism showing pin insertion and mounting (no text or symbols)

4

Put eccentric wheel (cam lock fitting) into hole

Pure mechanical diagram showing two rotating components with a central shaft and cross symbol, no text or labels present.

U-shaped cut align to dowel

Isometric line drawing of a mechanical component with two circular features and an arrow indicating direction (no text or symbols)

5

Tighten: Turn the eccentric wheel clockwise Loosen: Turn it anticlockwise

Isometric line drawing of a rectangular frame with a central circular feature (no text or symbols)

1

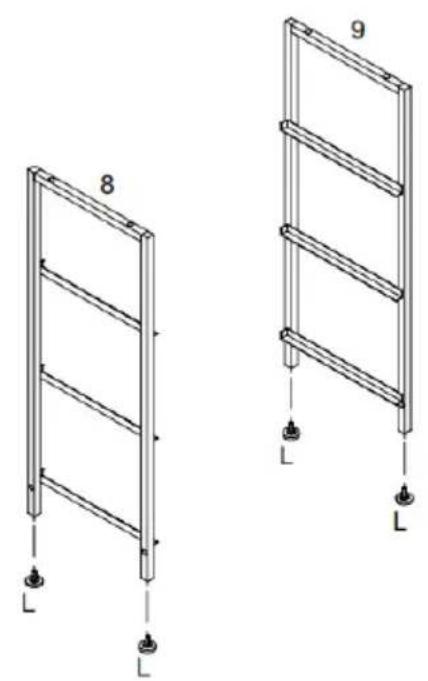

Technical line drawings of two ladder structures labeled 8 and 9, with base supports and mounting feet (no text or symbols beyond labels)

L M6 X4
There are 4 metal nuts on part 11, which are facing back when install them. You can see in step 9.

2

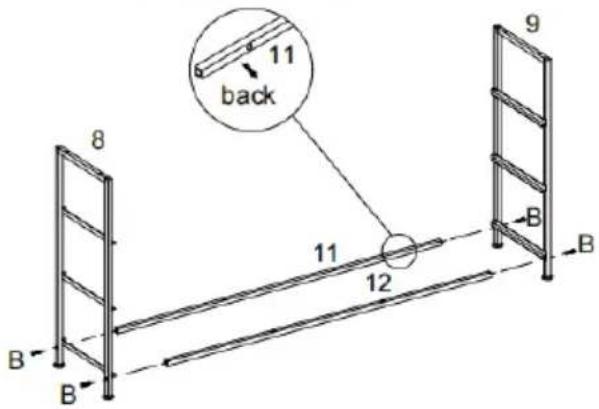

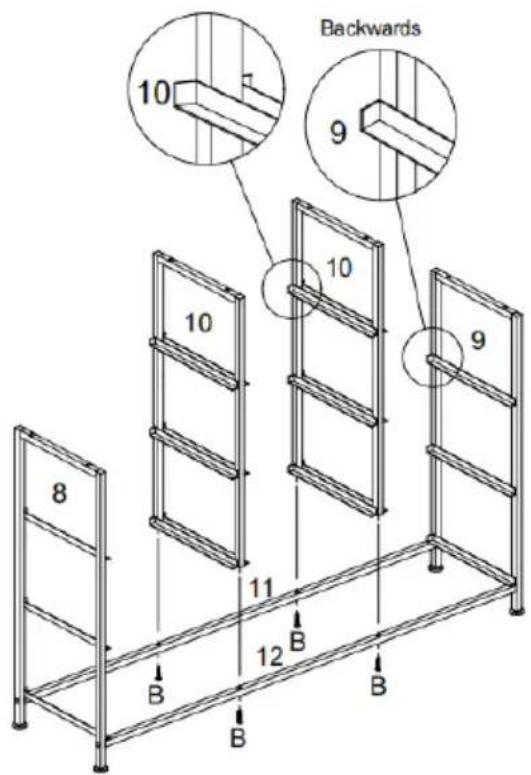

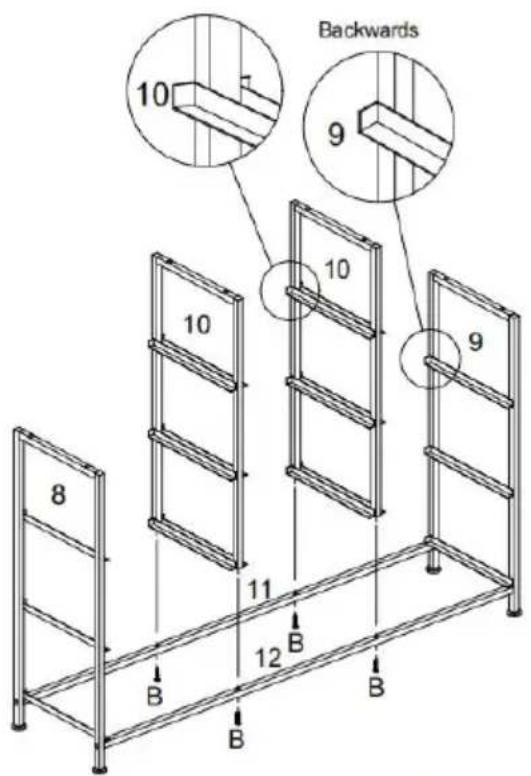

11 back 8 11 12 9 B B B

B M6X23 X4

3

Backwards 10 1 9 10 10 9 8 11 12 B B B

B M6X23 X4

4

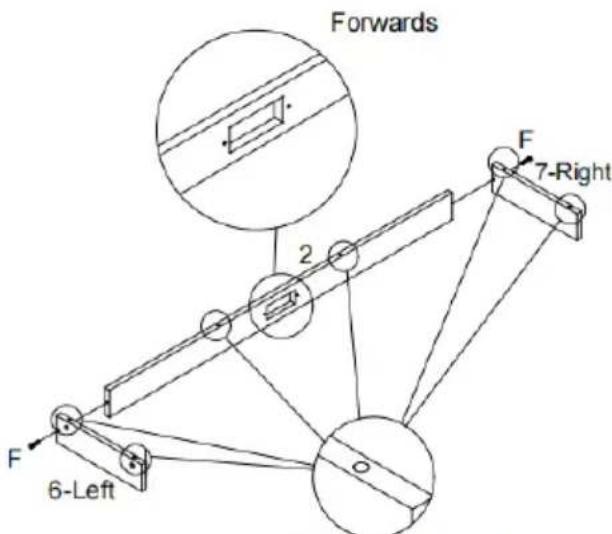

Forwards 2 F 7-Right 6-Left

Big holes facing up
Screw E must be operated with M3 wrench.
F M5X40 X2

ASSEMBLY STEP

5

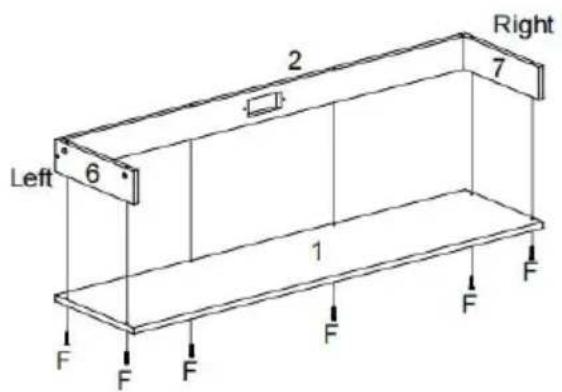

Left 6 2 7 Right 1 F F F F F

There are 8 white plastic nuts on part 1, facing downward when installing.

F M5X40 X6

6

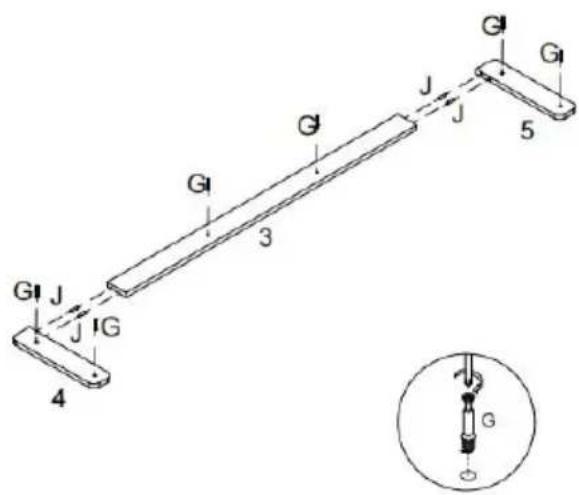

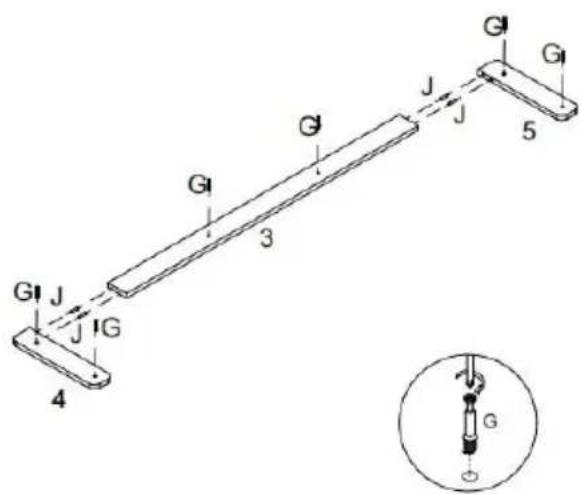

G J G 3 J 5 4 G J G

G		X6
J	M6X30	X4

7

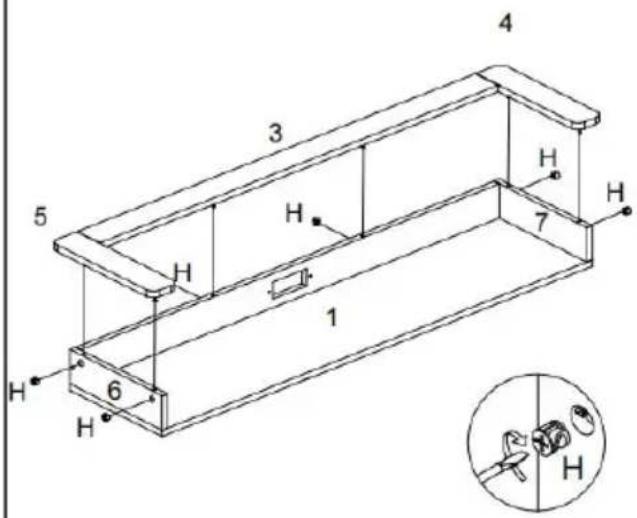

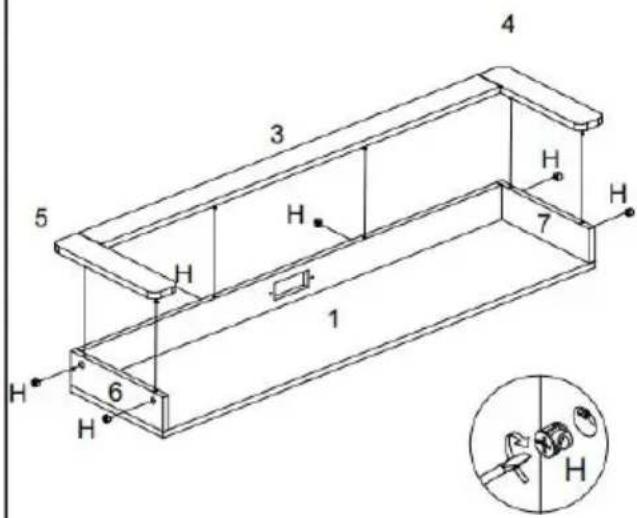

4 3 5 H H 7 1 6 H H

When part H is put into the hole, the notch above it is first aligned with part G, and then clockwise tighten part H.

H X6

8

Technical line drawing of a multi-level storage or lifting device with four vertical metal racks and overhead casing (no text or symbols)

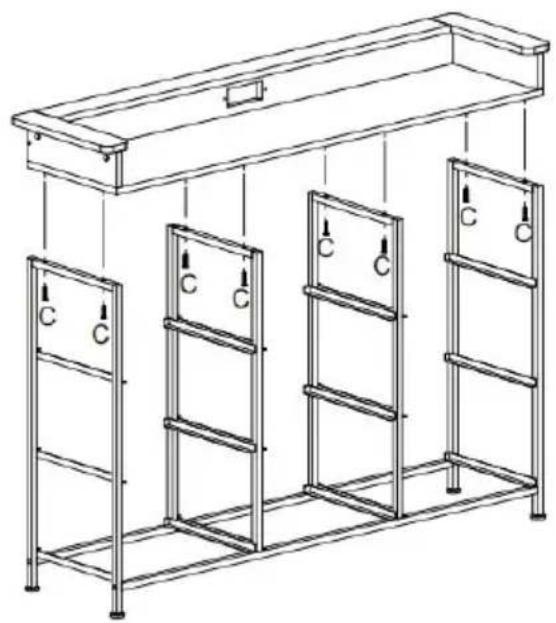

C M5X20 X8

9

Technical diagram of a multi-level storage or shelving unit with labeled components and dimension annotations

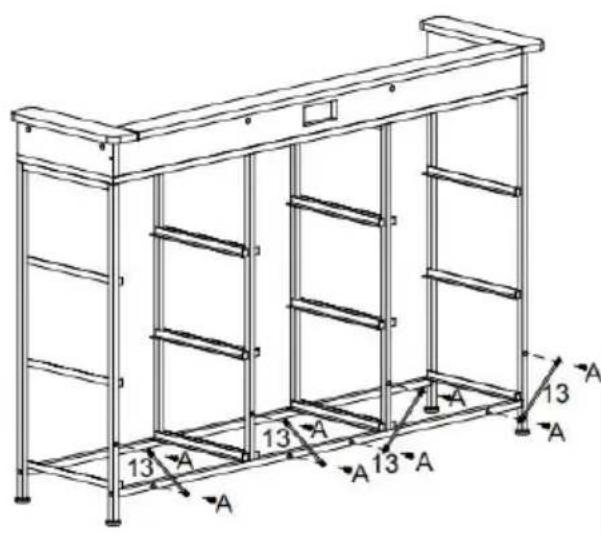

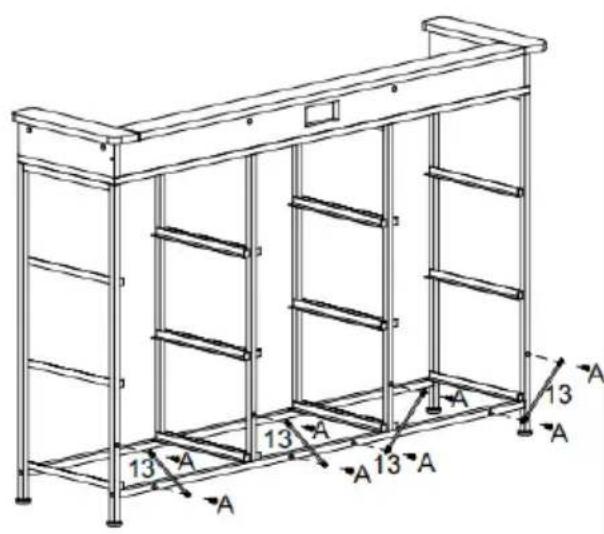

A M6X10 X8

10

Diagram showing two 3D rectangular blocks with internal holes, one being rotated and the other tilted (no text or symbols)

Diagram illustrating a 3D cube transformation from an open to a closed box, with labeled points D and K.

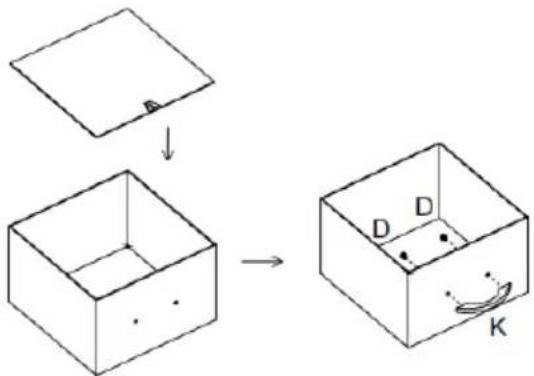

D	M4X10	X18
K		X9

11

⚠ Special remind: Remote control without battery.

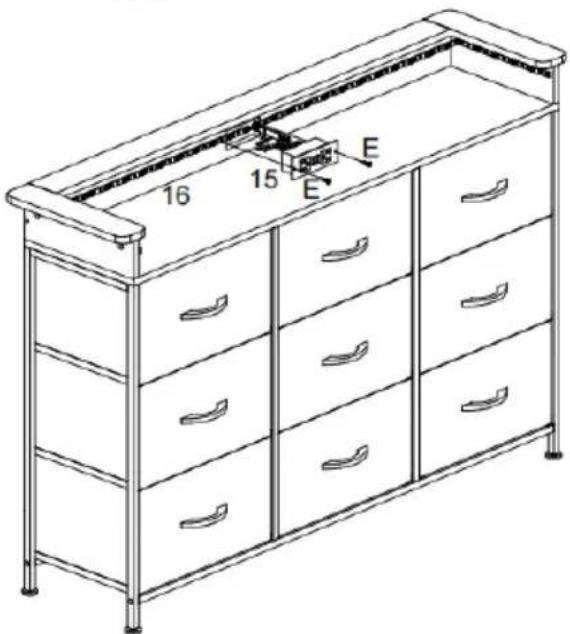

16 15 E E

E M4X12 X2

12

Note:

1. Mark on the wall
2. Use an electric drill to drill deep holes in the wall
3. Tap part M into the hole

After the cabinet assembly,

please install the wall xing

device on the back of the

cabinet to avoid accidents

Install at a location based

on your needs.

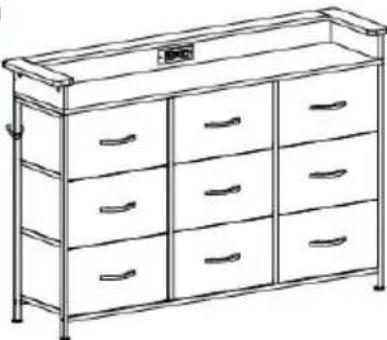

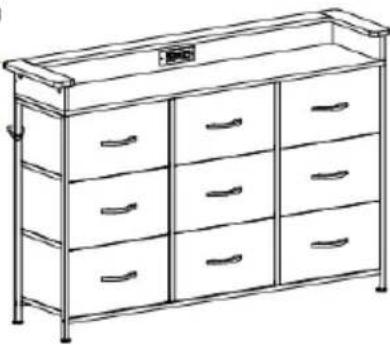

Line drawing of a 3rd-order drawer cabinet with six drawers, no text or symbols present

M M

Please install anti-tip device as following steps if you need

M | ×1

RGB LED REMOTE CONTROLLER

● 22 Dynamic Modes
● 20 Static Colors
- Very Smooth Effects
- Speed Adjustable
● Brightness Adjustable

• Card Type RF Remote
• Ultra Slim Design
  ● Dynamic Demo Mode Easy Remote Pairing
• Direct Color Select

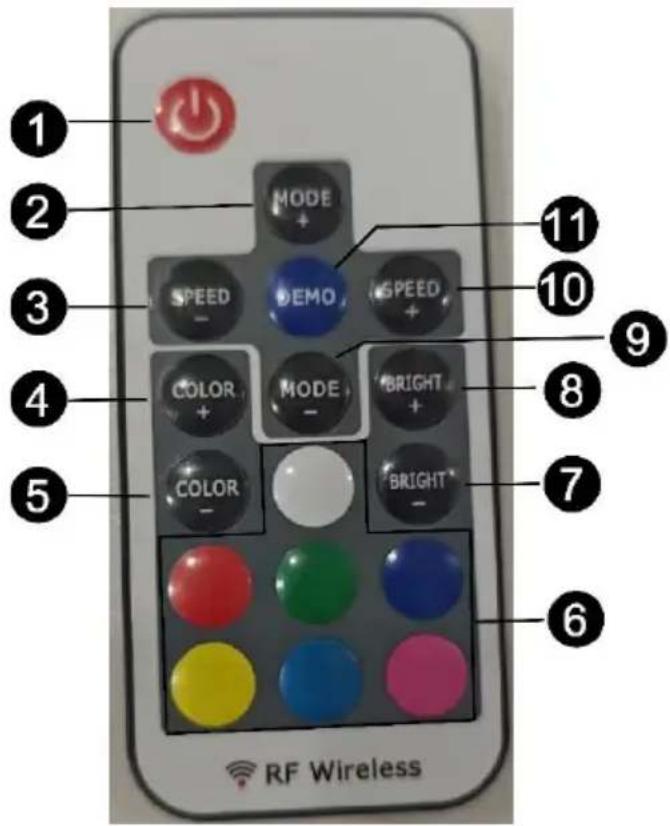

Functions:

1 2 3 4 5 MODE + SPEED - DEMO - SPEED + COLOR + MODE - BRIGHT + COLOR - BRIGHT - RF Wireless 11 10 9 8 7 6

1. Turn On/Standby

Press this key to turn on unit or switch to standby mode. At power will automatically turn on and restore to previous status.

2/9. Dynamic Mode Adjust

Switch to dynamic mode from static color, or switch between dynamic modes.

3/10. Dynamic Speed Adjust

Adjust dynamic playing speed, Press 'SPEED+' to increase speed and press 'SPEED-' to decrease. Unit will switch to dynamic mode if press this key at static color mode.

4/5. Static Color Adjust

Switch to static color mode from dynamic mode, or switch between static colors.

6. Direct Color Select

Shortcut key to static colors. When press the specific color key, LED will play the same static color, The direct colors are included in 'COLOR+' and 'COLOR-' operation.

7/8. Brightness Adjust

Adjust static color brightness. Press 'BRIGHT+' to increase brightness and press 'BRIGHT-' to decrease. Unit will switch to static color mode if press this key at dynamic mode.

11. Demo Mode

Press this key will switch to Demo mode. At demo mode, it plays 17 dynamic modes in loop, each mode repeats 3 time.

Installing:

1. Power Supply

This unit accepts DC 5V to 24V power supply. The DC jack's inner pole (or red cable) is positive and sleeve (or black cable) is negative. Also please make sure the power supply voltage same as the LED load.

\*Note: Remote control without battery.

2.LED Output

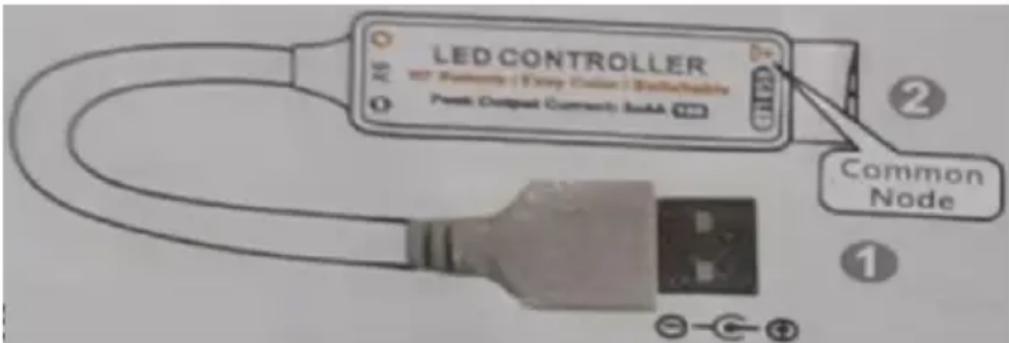

This unit support common anode connection LED products. The mark 'A' indicates the common connection node. The peak output current is 4 amperes and maximum constant current is 2 amperes per channel. Please reduce load if main unit is overheating.

CAUTON! Do not short circuit or overload the LED outputs, this may lead to permanent damage!

LED CONTROLLER AS 2 Common Node 1

Operation:

1. Using Remote Controller

Please pull out the battery insulate tape before using. The RF wireless remote signal can pass through barrier, so it's not necessary to aim at the main unit when operate. For proper receiving remote signal, please do not install the main unit in closed metal parts.

2. Pairing New Remote

The remote and main unit is 1 to 1 paired as default, Furthermore, main unit can be paired to 3 remote controllers and each remote controller can be paired to any main unit Please do following steps to pair new remote controller.

1) Plug off the power of main unit and plug in after S seconds.
2) Press 'On/off' and 'BRIGHT-' key together in 5 seconds after power on. After this operation, the main unit will recognize the new remote controller.

3. Free Remote Pairing Mode

In some specific cases; the main unit may need to be paired to any remote controllers. Please do following steps for free remote pairing mode:

1) Plug off the power of main unit and plug in after 5 seconds.
2) Press 'ON/OFF' and 'MODE+' key together in 5 seconds after power on. After this operation, the main unit will recognize any remote controller. To pair the main unit back to specific remote, please repeat the 'Pairing New Remote' operation.

4. Switch Output Color Sequence

The controller's default output signal sequence is Common-Green-Red-Blue. If the LED application is in different cable sequence, the direct color keys will not match the LED color. In this case, user can adjust the output signal sequence with following steps:

1) Plug off the power of main unit and plug in after 5 seconds.
2) Press 'RED' and 'BLUE' color key together in 5 seconds after power on. With this operation, the output sequence will switch between 6 possible combinations. The sequence will be memorized and it won't change before

next same operation.

FCC INFORMATION

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This unit generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be one or more of the following measures:

● Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

PRODUCT PARAMETER

Model	ZWE-BC-SS-11	ZWE-BC-SS-12
Sockets	Model: JN02-03-22125VAC,12A, 60Hz1500W	Model: JN02-00-22220~250VAC,50/60HzMax.16A
USB Port	5VDC, Max. 2A,Max. 10W	5VDC, Max. 2.1A,Max. 10.5W
Colour	White
Safe Loading Weight	5kg/Grid (Large) & 2.5kg/Grid (Small)
Product Size	1200*300*720mm
LED Remote Controller
Dynamic mode	22 modes
Static Color	20 colors
PWM Grade	256 levels
Brightness Grade	5 levels
Speed Grade	10 levels
Demo mode	Yes
Direct Color Select	Yes
Output Color Switchable	Yes, 6 options
Working Voltage	DC 5~24V
Output Current	3x4A peak, 3x2A constant
Remote frequency	433.92MHz

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion

House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

FABRIC DRAWER DRESSEF

MODEL: ZWE-BC-SS- 11/ ZWE-BC-SS- 12

Line drawing of a multi-tiered storage cabinet with drawers, no text or symbols present

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

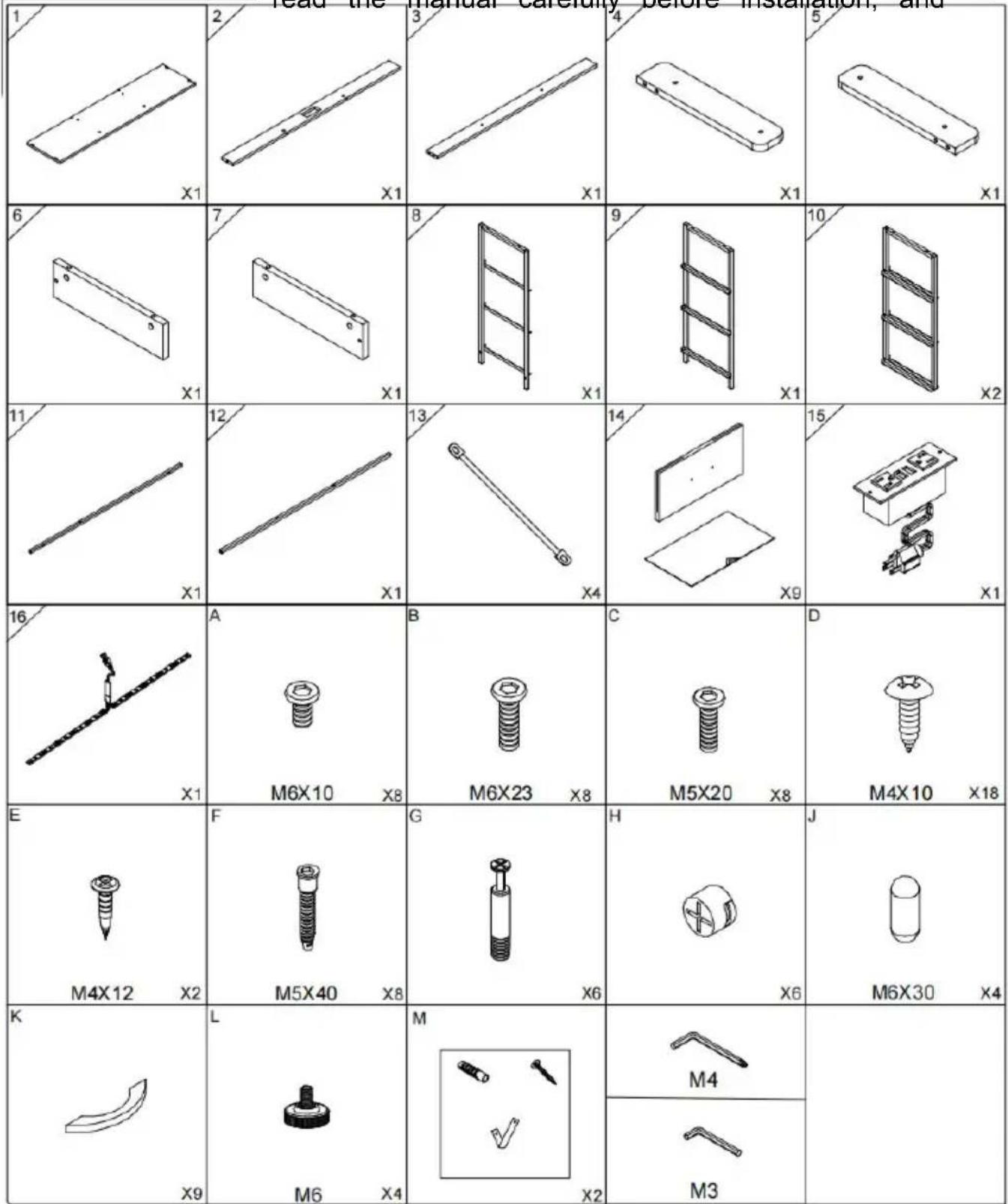

1. Because plates and screws are not common, please read the manual carefully before installation, and
