USER MANUAL RS-1.5 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
VACUUM PUMP
VACUUM CHAMBER
MODEL: RS-0.5,RS-1, RS-1.5, RS-2,2RS-3
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared major top brands and does not necessarily mean to cover all categories of tools us. You are kindly reminded to verify carefully when you are placing an order that are actually saving half in comparison with the top major brands.
MODEL: RS-0.5,RS-1, RS-1.5, RS-2,2RS-3


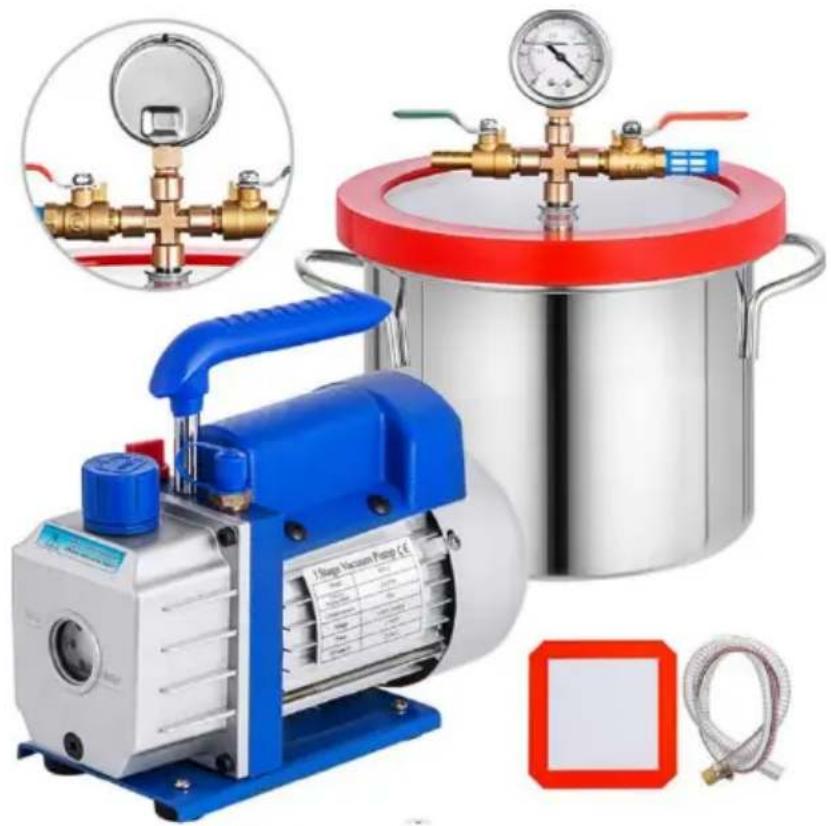

Product photo of a vacuum pump and a stainless steel storage tank with pressure gauges, alongside a close-up inset showing its pipe connection (no text or symbols on main components)NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
Beforeoperatingthisappliance, pleaseread the instructionsmanual careful and savetheseinstructions.Basicsafetyprecautionsshouldalwaysbefollowed including thefollowing:
Warning-Toreduce the risk of injury, the user must instructionsmanual carefully.ed
This symbol, placed before a safety comment, indicate precaution, warning, or danger. Ignoring this warning an accident. To reduce the risk of injury, fire, or electropleasealwaysfollow the recommendation shown below.
WARNING
Household Use Only.
WARNING: Hot Surface-To reduce the risk of burns, do not touch.
CAUTION: To reduce the risk of electric shock, do not expose to rain. Store
CAUTION: To reduce the risk of electric shock, use indoors only.
WARNING: Risk of injury-Do not direct air steam at the body.
1. Before using your vacuum pump
In all cases, motors are designed for operating voltages plus or minus 10% of the normal rating. Single voltage motors are supplied fully connected and ready to operate.
(1) Check to be sure the voltage and frequency at the outlet match the specifications on the pump motor decal. Check the ON-OFF switch to be sure it is in the OFF position before you plug the pump into an outlet. Remove and discard the exhaust cap from the end of the pump's handle.
(2) The pump is shipped without oil in the reservoir. Before starting the pump, fill it with oil. Remove the Exhaust Fitting cap and add oil until the oil just shows in the bottom of the sight glass. The approximate oil capacity of the pump is 180 800 ml (reference the technical data).
(3) Replace the Exhaust Fitting cap and remove the cap from one of the inlet ports. Turn the motor switch to ON. When the pump runs smoothly, replace the cap on the inlet port. This may take from two to 30 seconds, depending on the ambient temperature. After the pump runs for approximately one minute, check the sight glass for the proper oil level. The level should be even with the sight glass oil level line. Add oil if necessary.
Note: When the pump is running, the oil level should be even with the line on the sight glass. Underfilling will result in poor vacuum performance. Overfilling can result in oil blowing from the exhaust.
2. To shut down your pump after use
To help prolong pump life and promote easy starting. Follow these procedures for shut down.
( 1 ) Close the manifold valve between the pump and the system.
( 2 ) Remove the hose from the pump inlet.
(3) Cap the inlet port to prevent any contamination or loose particles from entering the port.
TO MAINTAIN YOUR HIGH VACUUM PI
1. Vacuum pump oil:
The condition and type of oil used in any high vacuum pump are important in determining the ultimate attainable vacuum. We recommend that High Vacuum PumpOil. This oil has been specifically blended to maintain r viscosity at normal running temperatures and to improve cold weather star
2.Oil Change Procedure
(1) Be sure the pump is warmed up.
(2) Remove the OIL DRAIN cap. Drain contaminated oil into a suitable container and dispose of it properly. Oil can be forced from the pump by opening and partially blocking the exhaust with a cloth while the pump is running. Do not operate the pump for more than 20 seconds using this method.
(3) When the flow of oil has stopped, tilt the pump forward to drain residual oil.
(4)Replace the OIL DRAIN cap.Remove the exhaust fitting and fill the reservoir with new vacuum pump oil until the oil just shows at the bottom of the sight glass. The approximate oil capacity of the pump is 180-800ml(reference the te data).
(5) Be sure the inlet ports are capped, then turn on the pump. Allow if one minute, then check the oil level space. If the oil is below the sight (LEVEL line, add oil slowly (with the pump running) until the oil reaches LEVEL line. Replace the exhaust fitting, making sure the inlet is
(6)
a) If the oil is badly contaminated with sludge that forms when water is to collect in the oil, you may need to remove the oil reservoir cover and wipe it out.
b) Another method of dealing with heavily contaminated oil is to force the pump reservoir. To do this, allow the pump to run until it is warmed up. While the pump is still running, remove the oil drain cap. Slightly restrict the exhaust. This will back-pressure the oil reservoir and force the oil from it, carrying more contamination.
When the oil ceases to flow, turn off the pump.
Repeat this procedure as required until the contamination is removed.
Replace the OIL DRAIN cap and refill the reservoir to the proper level with fresh pump oil.
TROUBLESHOOTING GUIDE
Your pump has been for dependable use and has a long life. If some go wrong, the following guide will help you get the pump back into serve as possible.
If the disassembly of the pump is required, please check your warranty. may be voided by misuse or customer tampering, which results in the pu inoperable.
1. Failure To Start
Check the line voltage. The pump needs to start at±10% line voltage (load at 320F. At extremes, switching between the standard run windings may occur.
2.Oil leakage
(1) Be sure the oil is not a residual accumulation from spillage, etc.
(2) If leakage exists, the module cover gasket or the shaft seal may need rep. If leakage exists in the area of the oil drain plug, you may need to reseal using a commercial pipe thread sealer.
3. Failure To Pull A Good Vacuum
(1) Be sure the vacuum gauge and all connections are in good condition a leak-free. You can confirm leakage by monitoring the vacuum with a thermist gauge while applying vacuum pump oil at connections or suspected leak point. The vacuum will improve briefly while the oil is sealing the leak.
(2) Be sure the pump oil is clean. A badly contaminated pump may require several oil flushes.
(3)Be sure the oil is at the proper level. For maximum pump operation, the must be even with the OIL LEVEL line on the sight glass when the pump running. Do not overfill---- operating temperatures will cause the oil to expand it will appear at a higher level than when the pump is not running. To che oil level, start the pump with the inlet capped. Check the oil level in the si glass. Add oil if necessary.
COMMONTROUBLESHOOTING
| FailureDescription | FaultCause | Solution |
| LowVacuum | 1.Theair inlet cap on thespa side of the air inlet port is | Tighten the air inlet cap |
| 2. The rubber ring inside th inletcapon the spare port si the air inlet port is damage | Replace the rubber ring | |
| 3. Insufficient oil | Refuel to the centerline of the gauge | |
| 4. Thepump oilis emulsified andunclean | Replacewithnew oil | |
| 5. The oil inlet hole of the isblockedorthe oil supply is insufficient | Clean the oil inlet hole and mesh | |
| 6.Leakageof pipecontainer connected to the pump | Checkthe connected pipe containerto prevent leakage | |
| 7. Improperpumpselection | Check the size of the pump container, recalculate and sele the appropriate pump model | |
| 8. The pump has been used long, and the clearance is increased due to the wear of | Check, repair,orreplace the pump with a new one | |
| Oil Leakage | 1. Theoilseal isdamaged | Replacetheoilseal |
| 2.The oil tank connection is looseor damaged | Tightenthe screws and repla the O-ring | |
| Oil Injection | 1.Toomuchoil | Drain the oil to the oil level |
| 2.The inletpressure is toohig for a long time | Selecttheappropriatepump to increase thepumping speed | |
| Hard Starting | 1. The oil temperature is too | Theair inlet is ventilated, repeatedly starts the motor heats the pump oil |
| 2. The motor or power sup faulty | Check andrepair | |
| 3.Foreign objects fall into th pump | Checkand eliminate | |
| 4. Thepowersupply voltage is too low | Check the power supply vol |
Note: If the abovesolutions do not solve your problem, please contact the nearest deal to send your pumptoa professional repair center, and we will do our best to serve you.
INSTRUCTIONS FOR VACUUM PUMP AND VACUUM CHAMB
-

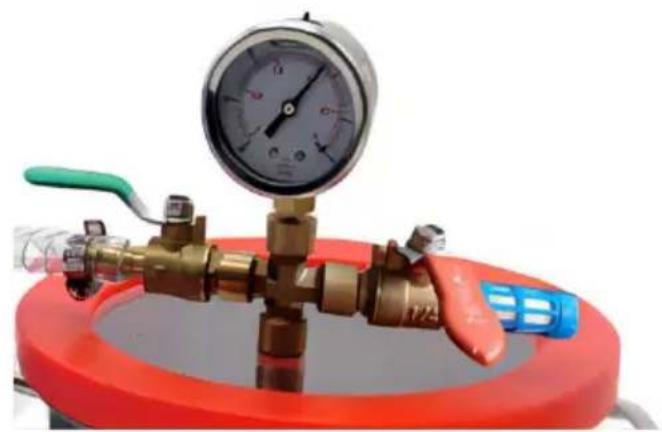

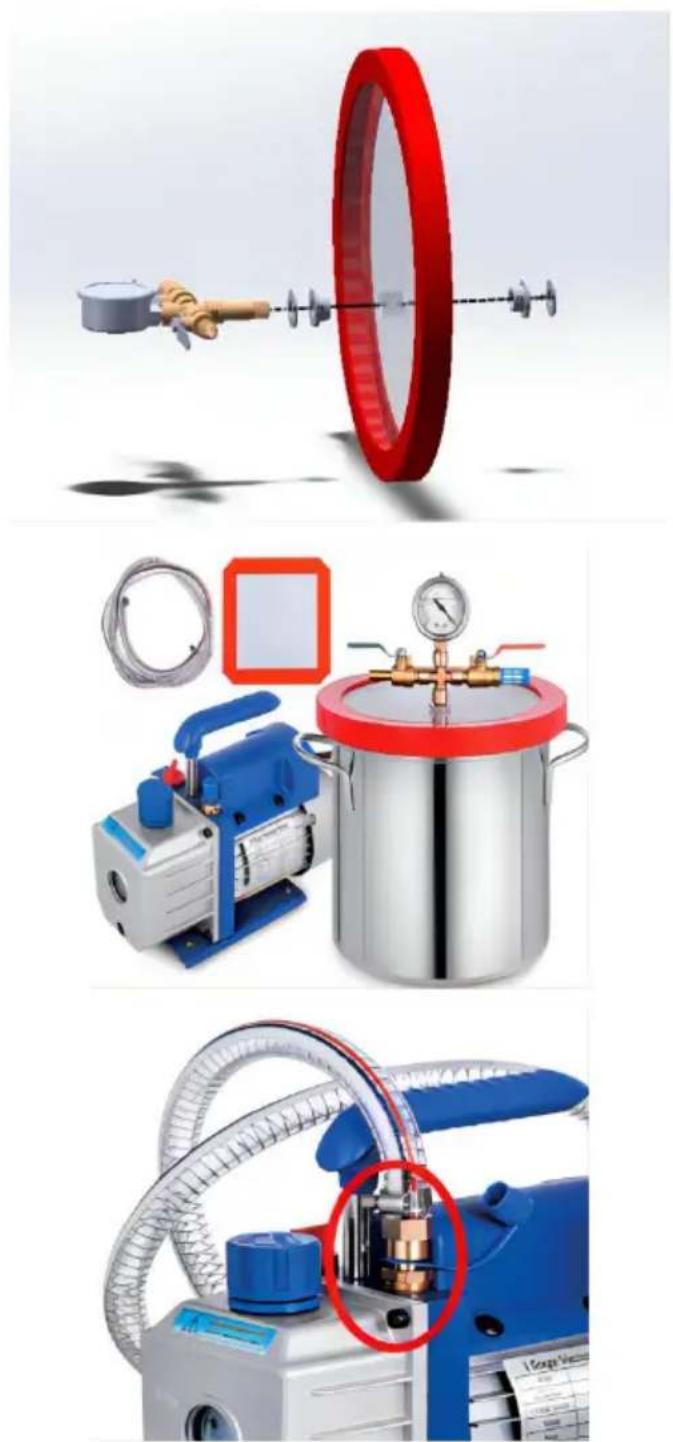

After removing the vacuum gauge assembly, install the vacuum gauge assembly in the order shown in the diagram, and then tighten the nut with appropriate force.
-

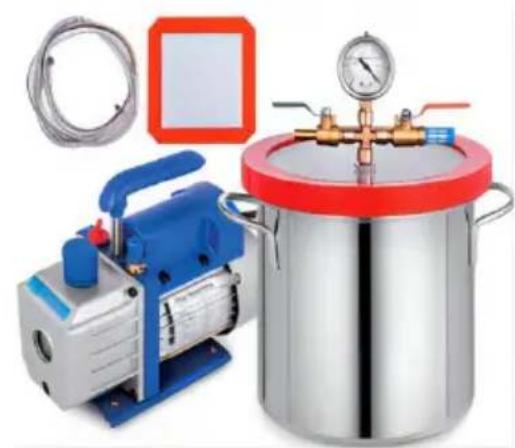

Prepare 1 vacuum pump, 1 vacuum chamber, and vacuum pump oil.
-

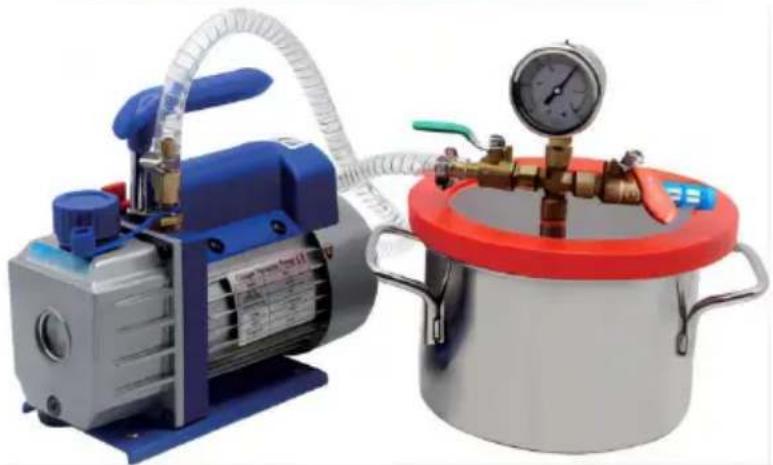

After filling the vacuum pump, connect the hose to the air inlet nozzle of the vacuum pump.


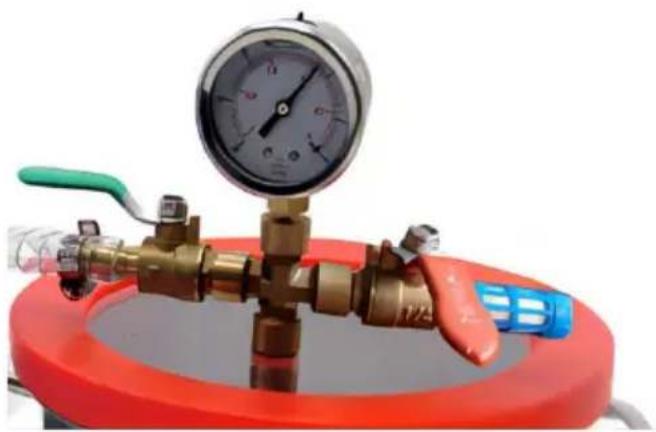

The interface at the other of the hose is connected with the vacuum gauge, and the valve switch is shown in the figure.
-

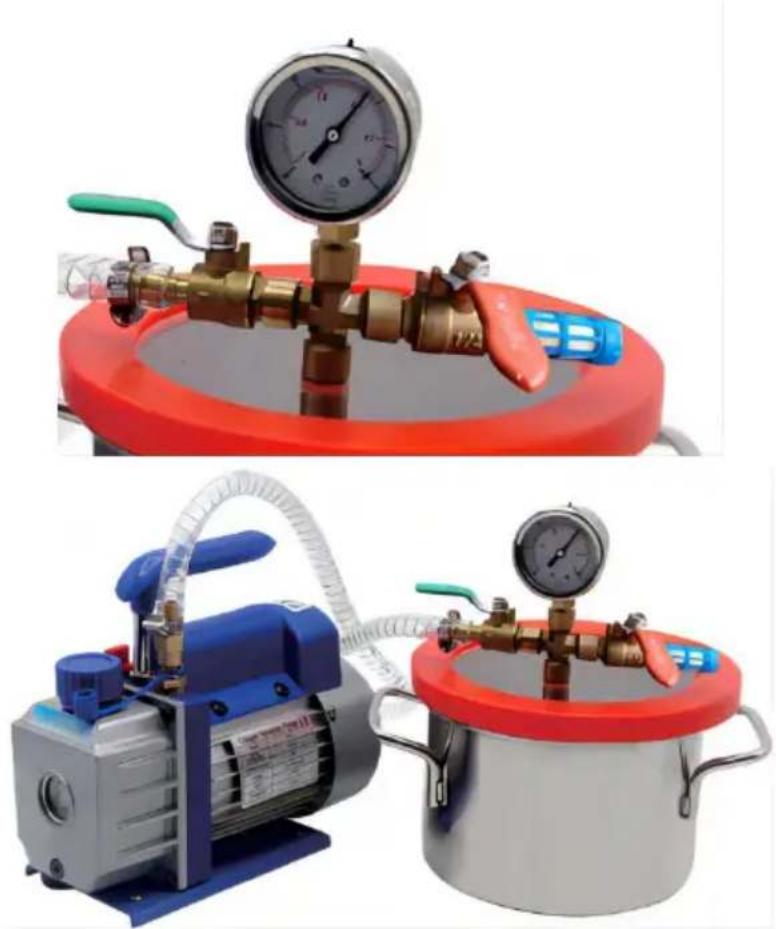

After the connection, start the power normally, and you can see that the pointer pressure of the vacuum gauge will rotate.
| Model | RS-1 |
| Voltage | 120V/60HZ |
| Free Air Displacement | 3CFM |
| Ultimate Vacuum | 5PA |
| Rotating Speed | 1720 |
| Power (HP) | 1/4 |
| Oil Capacity (ml) | 220 |
| Dimension (mm) | 240*110*220 |
| Weight (Kg) | 6.5 |
| Accessory | 1 gallon vacuum chamberIncludes: vacuum gauge*11 meter tube*1white rubber ring*1silencer*2 |
| SKU | MCKDZKBT3CFM5YVRLV1 |
| Model | RS-1 |
| Voltage | 120V/60HZ |
| Free Air Displacement | 3CFM |
| Ultimate Vacuum | 5PA |
| Rotating Speed | 1720 |
| Power (HP) | 1/4 |
| Oil Capacity (ml) | 220 |
| Dimension (mm) | 240*110*220 |
| Weight (Kg) | 10.6 |
| Accessory | 5 gallon vacuum chamberIncludes: vacuum gauge*11 meter tube*1white rubber ring*1silencer*2silicone gasket*1 |
| SKU | QCKTZKB3JLBXGT3CFV1 |
| Model | RS-1 |
| Voltage | 120V/60HZ |
| Free Air Displacement | 3CFM |
| Ultimate Vacuum | 5PA |
| Rotating Speed | 1720 |
| Power (HP) | 1/4 |
| Oil Capacity (ml) | 220 |
| Dimension (mm) | 240*110*220 |
| Weight (Kg) | 9.68 |
| Accessory | 3 gallon vacuum chamberIncludes: vacuum gauge*11 meter tube*1white rubber ring*1silencer*2silicone gasket*1 |
| SKU | QCKTZKB3CF1-4J1.5V1 |
| Model | RS-1 |
| Voltage | 120V/60HZ |
| Free Air Displacement | 3CFM |
| Ultimate Vacuum | 5PA |
| Rotating Speed | 1720 |
| Power (HP) | 1/4 |
| Oil Capacity (ml) | 220 |
| Dimension (mm) | 240*110*220 |
| Weight (Kg) | 7.2 |
| Accessory | 1.5 gallon vacuum chamberIncludes: vacuum gauge*11 meter tube*1white rubber ring*1silencer*2 |
| SKU | QCKTZKB2.5CFMD1.5V1 |
| Model | RS-1 |
| Voltage | 120V/60HZ |
| Free Air Displacement | 2.5CFM |
| Ultimate Vacuum | 5PA |
| Rotating Speed | 1720 |
| Power (HP) | 1/4 |
| Oil Capacity (ml) | 220 |
| Dimension (mm) | 240*110*220 |
| Weight (Kg) | 7.2 |
| Accessory | 1.5 gallon vacuum chamberIncludes: vacuum gauge*11 meter tube*1white rubber ring*1silencer*2 |
| SKU | QCKTZKB3.6CFMD1.5V1 |
| Model | RS-1 |
| Voltage | 120V/60HZ |
| Free Air Displacement | 3.6CFM |
| Ultimate Vacuum | 5PA |
| Rotating Speed | 1720 |
| Power (HP) | 1/4 |
| Oil Capacity (ml) | 220 |
| Dimension (mm) | 240*110*220 |
| Weight (Kg) | 7.2 |
| Accessory | 1.5 gallon vacuum chamberIncludes: vacuum gauge*11 meter tube*1white rubber ring*1silencer*2 |
| SKU | QCKTZKB3CF1-4J1.5V2 |
| Model | RS-1 |
| Voltage | 220-240V 50Hz |
| Free Air Displacement | 3CFM |
| Ultimate Vacuum | 5PA |
| Rotating Speed | 1440 |
| Power (HP) | 1/4 |
| Oil Capacity (ml) | 220 |
| Dimension (mm) | 240*110*220 |
| Weight (Kg) | 7.2 |
| Accessory | 1.5 gallon vacuum chamberIncludes: vacuum gauge*11 meter tube*1white rubber ring*1silencer*2 |
| SKU | QCKTZKB3CFM1-4J5TV3QCKTZKB3CFM1-4J5TV2 |
| Model | RS-1 |
| Voltage | 220-240V 50Hz |
| Free Air Displacement | 3CFM |
| Ultimate Vacuum | 5PA |
| Rotating Speed | 1440 |
| Power (HP) | 1/4 |
| Oil Capacity (ml) | 220 |
| Dimension (mm) | 240*110*220 |
| Weight (Kg) | 10.6 |
| Accessory | 5 gallon vacuum chamberIncludes: vacuum gauge*11 meter tube*1white rubber ring*1silencer*2silicone gasket*1 |
| SKU | QCKTZKB1.8CFMDJ2TV3 |
| Model | RS-0.5 |
| Voltage | 220-240V 50Hz |
| Free Air Displacement | 1.8CFM |
| Ultimate Vacuum | 5PA |
| Rotating Speed | 1440 |
| Power (HP) | 1/4 |
| Oil Capacity (ml) | 220 |
| Dimension (mm) | 240*110*220 |
| Weight (Kg) | 8 |
| Accessory | 2 gallon vacuum chamberIncludes: vacuum gauge*11 meter tube*1white rubber ring*1silencer*2silicone gasket*1 |
| SKU | QCKTZKB3CFM1-4J3TV2QCKTZKB3CFM1-4J3TV3 |
| Model | RS-1 |
| Voltage | 220-240V 50Hz |
| Free Air Displacement | 3CFM |
| Ultimate Vacuum | 5PA |
| Rotating Speed | 1440 |
| Power (HP) | 1/4 |
| Oil Capacity (ml) | 220 |
| Dimension (mm) | 240*110*220 |
| Weight (Kg) | 9.68 |
| Accessory | 3 gallon vacuum chamberIncludes: vacuum gauge*11 meter tube*1white rubber ring*1silencer*2silicone gasket*1 |
| SKU | 3CFMZKBJ2JLZKT001V33CFMZKBJ2JLZKT001V2 |
| Model | RS-1 |
| Voltage | 220-240V 50Hz |
| Free Air Displacement | 3CFM |
| Ultimate Vacuum | 5PA |
| Rotating Speed | 1440 |
| Power (HP) | 1/4 |
| Oil Capacity (ml) | 220 |
| Dimension (mm) | 240*110*220 |
| Weight (Kg) | 8 |
| Accessory | 2 gallon vacuum chamberIncludes: vacuum gauge*11 meter tube*1white rubber ring*1silencer*2silicone gasket*1 |
| SKU | 3CFMZKBJ2JLZKT001V1 |
| Model | RS-1 |
| Voltage | 120V/60HZ |
| Free Air Displacement | 3CFM |
| Ultimate Vacuum | 5PA |
| Rotating Speed | 1720 |
| Power (HP) | 1/4 |
| Oil Capacity (ml) | 220 |
| Dimension (mm) | 240*110*220 |
| Weight (Kg) | 8 |
| Accessory | 2 gallon vacuum chamberIncludes: vacuum gauge*11 meter tube*1white rubber ring*1silencer*2silicone gasket*1 |
| SKU | QCKTZKB4CFM1-3J2TV2 |
| Model | RS-1.5 |
| Voltage | 220-240V 50Hz |
| Free Air Displacement | 4CFM |
| Ultimate Vacuum | 5PA |
| Rotating Speed | 1440 |
| Power (HP) | 1/3 |
| Oil Capacity (ml) | 225 |
| Dimension (mm) | 275*115*240 |
| Weight (Kg) | 8.69 |
| Accessory | 2 gallon vacuum chamberIncludes: vacuum gauge*11 meter tube*1white rubber ring*1silencer*2silicone gasket*1 |
| SKU | QCKTZKB4CFMDJ3T01V3QCKTZKB4CFMDJ3T01V2 |
| Model | RS-1.5 |
| Voltage | 120V/60HZ |
| Free Air Displacement | 4CFM |
| Ultimate Vacuum | 5PA |
| Rotating Speed | 1720 |
| Power (HP) | 1/3 |
| Oil Capacity (ml) | 225 |
| Dimension (mm) | 270*110*220 |
| Weight (Kg) | 10.7 |
| Accessory | 3 gallon vacuum chamberIncludes: vacuum gauge*11 meter tube*1white rubber ring*1silencer*2silicone gasket*1 |
| SKU | QCKTZKB3JLBXGT4CFV1 |
| Model | RS-1.5 |
| Voltage | 120V/60HZ |
| Free Air Displacement | 4CFM |
| Ultimate Vacuum | 5PA |
| Rotating Speed | 1720 |
| Power (HP) | 1/3 |
| Oil Capacity (ml) | 225 |
| Dimension (mm) | 270*110*220 |
| Weight (Kg) | 10.7 |
| Accessory | 3 gallon vacuum chamberIncludes: vacuum gauge*11 meter tube*1white rubber ring*1silencer*2silicone gasket*1 |
| SKU | QCKTZKB4CFM1-3J2TV1 |
| Model | RS-1.5 |
| Voltage | 120V/60HZ |
| Free Air Displacement | 4CFM |
| Ultimate Vacuum | 5PA |
| Rotating Speed | 1720 |
| Power (HP) | 1/3 |
| Oil Capacity (ml) | 225 |
| Dimension (mm) | 270*110*220 |
| Weight (Kg) | 8.69 |
| Accessory | 2 gallon vacuum chamberIncludes: vacuum gauge*11 meter tube*1white rubber ring*1silencer*2silicone gasket*1 |
| SKU | S12HP5CFM110VBGFDV1S13HP5CFM110VVAFJV1 |
| Model | RS-2 |
| Voltage | 120V/60HZ |
| Free Air Displacement | 5CFM |
| Ultimate Vacuum | 5PA |
| Rotating Speed | 1720 |
| Power (HP) | 1/3 |
| Oil Capacity (ml) | 250 |
| Dimension (mm) | 290*120*230 |
| Weight (Kg) | 12 |
| Accessory | 5 gallon vacuum chamberIncludes: vacuum gauge*11 meter tube*1white rubber ring*1silencer*2silicone gasket*1 |
| SKU | QCKTZKB3.6CFMDJ3TV1 |
| Model | RS-1 |
| Voltage | 120V/60HZ |
| Free Air Displacement | 3.6CFM |
| Ultimate Vacuum | 5PA |
| Rotating Speed | 1720 |
| Power (HP) | 1/4 |
| Oil Capacity (ml) | 220 |
| Dimension (mm) | 240*110*220 |
| Weight (Kg) | 9.68 |
| Accessory | 3 gallon vacuum chamberIncludes: vacuum gauge*11 meter tube*1white rubber ring*1silencer*2silicone gasket*1 |
| SKU | S12HP5CFM110VBGFDV2 |
| Model | RS-2 |
| Voltage | 220-240V 50Hz |
| Free Air Displacement | 5CFM |
| Ultimate Vacuum | 5PA |
| Rotating Speed | 1440 |
| Power (HP) | 1/3 |
| Oil Capacity (ml) | 250 |
| Dimension (mm) | 290*120*230 |
| Weight (Kg) | 11.6 |
| Accessory | 5 gallon vacuum chamberIncludes: vacuum gauge*11 meter tube*1white rubber ring*1silencer*2silicone gasket*1 |
| SKU | S12HP7CFM110VHZQ5V1 |
| Model | 2RS-3 |
| Voltage | 120V/60HZ |
| Free Air Displacement | 7CFM |
| Ultimate Vacuum | 5PA |
| Rotating Speed | 3500 |
| Power (HP) | 3/4 |
| Oil Capacity (ml) | 370 |
| Dimension (mm) | 360*135*275 |
| Weight (Kg) | 16 |
| Accessory | 5 gallon vacuum chamberIncludes: vacuum gauge*11 meter tube*1white rubber ring*1silencer*2silicone gasket*1 |


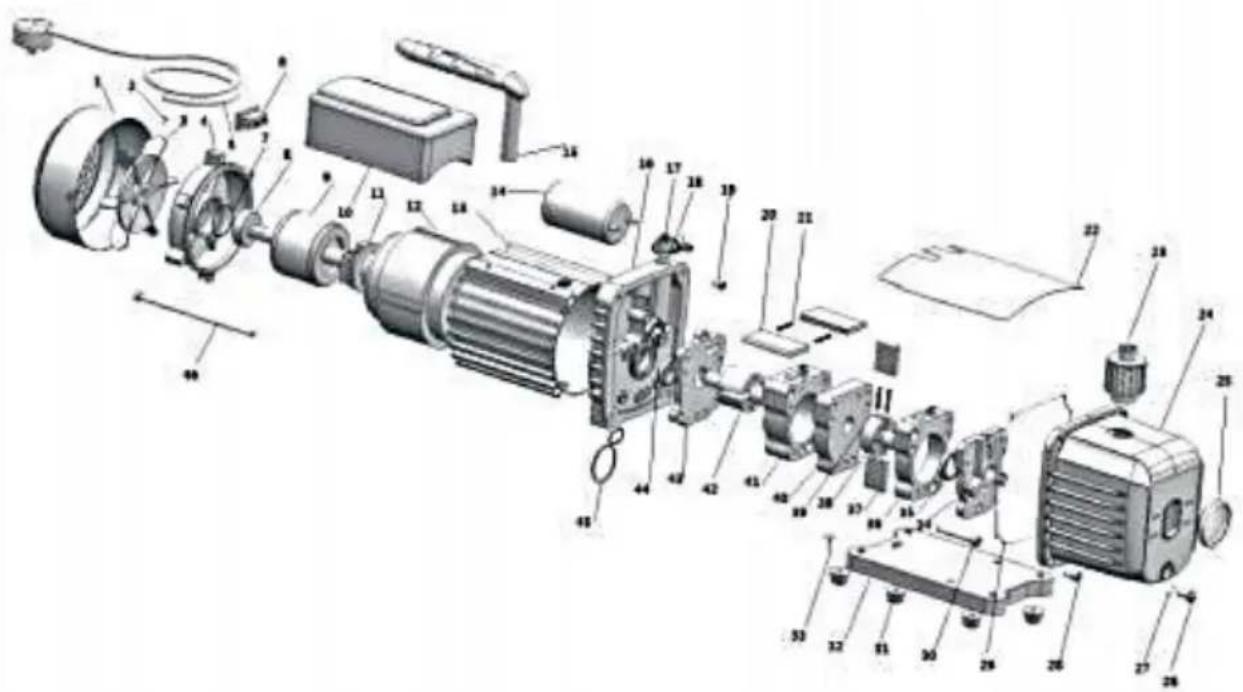

Exploded view diagram of an electric motor assembly with numbered components for identification| 1 | Fancover | 24 | Die-cast aluminum housing |
| 2 | Crossscrew | 25 | Sight glass |
| 3 | Fan | 26 | Oil drain |
| 4 | Motor cover | 27 | Oil drain screw O- ring |
| 5 | Power supply cords | 28 | Screw |
| 6 | Power switch | 29 | Sealing ring |
| 7 | Washer | 30 | Screw |
| 8 | Bearing | 31 | Rubber foot |
| 9 | Motor rotor | 32 | Base plate |
| 10 | Capacitor box | 33 | Self-tapping screw |
| 11 | Centrifugal switch | 34 | Back-pumpcover |
| 12 | Motor stator | 35 | Oil seal |
| 13 | Casing | 36 | Back-pump body |
| 14 | Capacitor | 37 | Back-rotary -vane |
| 15 | Handle | 38 | Back-pump rotor |
| 16 | Trestle | 39 | Spring |
| 17 | Gas cap | 40 | Middle fence |
| 18 | The air inlet nozzle | 41 | Front-pump body |
| 19 | Screw | 42 | Front- pump rotor |
| 20 | Front rotary-vane | 43 | Front cover |
| 21 | Spring | 44 | Oil seal |
| 22 | Cap board | 45 | O type ring |
| 23 | Exhaust and oil inlet fitting | 46 | Screw |
VEVOR®
TOUGH TOOLS, HALF PRICE
Technical Support and E-Warranty Certificate
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared major top brands and does not necessarily mean to cover all categories of tools us. You are kindly reminded to verify carefully when you are placing an order where are actually saving half in comparison with the top major brands.
MODÈLE : RS-0.5, RS-1, RS-1.5, RS-2,2RS-3
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
1. Before using your vacuum pump
TROUBLESHOOTING GUIDE
Exploded view diagram of an electric motor assembly with numbered components for identificationWe continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared major top brands and does not necessarily mean to cover all categories of tools us. You are kindly reminded to verify carefully when you are placing an order v are actually saving half in comparison with the top major brands.
MODELL: RS-0.5, RS-1, RS-1.5, RS-2,2RS-3
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
TROUBLESHOOTING GUIDE
Close-up of a blue industrial machine with coiled tubing and a highlighted component (no visible text or symbols)
Exploded view diagram of an electric motor assembly with numbered components for identificationwww.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared major top brands and does not necessarily mean to cover all categories of tools us. You are kindly reminded to verify carefully when you are placing an order where are actually saving half in comparison with the top major brands.
MODELLO: RS-0.5,RS-1, RS-1.5, RS-2,2RS-3
Have product questions? Need technical support? Please feel free to contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
TROUBLESHOOTING GUIDE
Exploded view diagram of an electric motor assembly with numbered components for identificationWe continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared major top brands and does not necessarily mean to cover all categories of tools us. You are kindly reminded to verify carefully when you are placing an order that are actually saving half in comparison with the top major brands.
MODELO: RS-0.5,RS-1, RS-1.5, RS-2,2RS-3
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
1.B antes usando su vacío bomba
TROUBLESHOOTING GUIDE
Close-up of a blue industrial machine with coiled tubing and a highlighted component (no visible text or symbols)
Exploded view diagram of an electric motor assembly with numbered components for identificationwww.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared major top brands and does not necessarily mean to cover all categories of tools us. You are kindly reminded to verify carefully when you are placing an order that are actually saving half in comparison with the top major brands.
MODELE: RS-0,5, RS-1, RS-1,5, RS-2,2RS-3
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
TROUBLESHOOTING GUIDE
Close-up of a blue industrial machine with coiled tubing and a highlighted component (no visible text or symbols)
Exploded view diagram of an electric motor assembly with numbered components for identificationwww.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
Technisch Ondersteuning en e-garantiecertificaat www.vevor.com/support
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared major top brands and does not necessarily mean to cover all categories of tools us. You are kindly reminded to verify carefully when you are placing an order that are actually saving half in comparison with the top major brands.
MODELLEN: RS-0,5,RS-1, RS-1,5, RS-2,2RS-3
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
TROUBLESHOOTING GUIDE
Close-up of a blue industrial machine with coiled tubing and a highlighted component (no visible text or symbols)
| Model | RS-1 |
| Spanning | 120V/60HZ |
| Gratis luchtverplaatsing | 3CFM |
| Ultiem vacuum | 5 PA |
| Roterende snelheid | 1720 |
| Vermogen (PK) | 1/4 |
| Oliecapaciteit (ml) | 220 |
| Afmeting (mm) | 240*110*220 |
| Gewicht (kg) | 6.5 |
| Accessoire | Vacuümkamer van 1 gallonInclusief: vacuummeter*11 meter buis*1witte rubberen ring*1geluiddemper*2 |
| SKU | MCKDZKBT3CFM5YVRLV1 |
| Model | RS-1 |
| Spanning | 120V/60HZ |
| Gratis luchtverplaatsing | 3CFM |
| Ultiem vacuum | 5 PA |
| Roterende snelheid | 1720 |
| Vermogen (PK) | 1/4 |
| Oliecapaciteit (ml) | 220 |
| Afmeting (mm) | 240*110*220 |
| Gewicht (kg) | 10.6 |
| Accessoire | Vacuümkamer van 5 gallonInclusief: vacuummeter*11 meter buis*1witte rubberen ring*1geluiddemper*2siliconen pakking*1 |
| SKU | QCKTZKB3JLBXGT3CFV1 |
| Model | RS-1 |
| Spanning | 120V/60HZ |
| Gratis luchtverplaatsing | 3CFM |
| Ultiem vacuum | 5 PA |
| Roterende snelheid | 1720 |
| Vermogen (PK) | 1/4 |
| Oliecapaciteit (ml) | 220 |
| Afmeting (mm) | 240*110*220 |
| Gewicht (kg) | 9.68 |
| Accessoire | Vacuümkamer van 3 gallonInclusief: vacuümmeter*11 meter buis*1witte rubberen ring*1geluiddemper*2siliconen pakking*1 |
| SKU | QCKTZKB3CF1-4J1.5V1 |
| Model | RS-1 |
| Spanning | 120V/60HZ |
| Gratis luchtverplaatsing | 3CFM |
| Ultiem vacuum | 5 PA |
| Roterende snelheid | 1720 |
| Vermogen (PK) | 1/4 |
| Oliecapaciteit (ml) | 220 |
| Afmeting (mm) | 240*110*220 |
| Gewicht (kg) | 7.2 |
| Accessoire | Vacuümkamer van 1,5 gallonInclusief: vacuümmeter*11 meter buis*1witte rubberen ring*1geluiddemper*2 |
| SKU | QCKTZKB2.5CFMD1.5V1 |
| Model | RS-1 |
| Spanning | 120V/60HZ |
| Gratis luchtverplaatsing | 2,5CFM |
| Ultiem vacuum | 5 PA |
| Roterende snelheid | 1720 |
| Vermogen (PK) | 1/4 |
| Oliecapaciteit (ml) | 220 |
| Afmeting (mm) | 240*110*220 |
| Gewicht (kg) | 7.2 |
| Accessoire | Vacuümkamer van 1,5 gallonInclusief: vacuummeter*11 meter buis*1witte rubberen ring*1geluiddemper*2 |
| SKU | QCKTZKB3.6CFMD1.5V1 |
| Model | RS-1 |
| Spanning | 120V/60HZ |
| Gratis luchtverplaatsing | 3,6CFM |
| Ultiem vacuum | 5 PA |
| Roterende snelheid | 1720 |
| Vermogen (PK) | 1/4 |
| Oliecapaciteit (ml) | 220 |
| Afmeting (mm) | 240*110*220 |
| Gewicht (kg) | 7.2 |
| Accessoire | Vacuümkamer van 1,5 gallonInclusief: vacuummeter*11 meter buis*1witte rubberen ring*1geluiddemper*2 |
| SKU | QCKTZKB3CF1-4J1.5V2 |
| Model | RS-1 |
| Spanning | 220-240 V 50 Hz |
| Gratis luchtverplaatsing | 3CFM |
| Ultiem vacuum | 5 PA |
| Roterende snelheid | 1440 |
| Vermogen (PK) | 1/4 |
| Oliecapaciteit (ml) | 220 |
| Afmeting (mm) | 240*110*220 |
| Gewicht (kg) | 7.2 |
| Accessoire | Vacuümkamer van 1,5 gallonInclusief: vacuummeter*11 meter buis*1witte rubberen ring *1geluiddemper*2 |
| SKU | QCKTZKB3CFM1-4J5TV3QCKTZKB3CFM1-4J5TV2 |
| Model | RS-1 |
| Spanning | 220-240 V 50 Hz |
| Gratis luchtverplaatsing | 3CFM |
| Ultiem vacuum | 5 PA |
| Roterende snelheid | 1440 |
| Vermogen (PK) | 1/4 |
| Oliecapaciteit (ml) | 220 |
| Afmeting (mm) | 240*110*220 |
| Gewicht (kg) | 10.6 |
| Accessoire | Vacuümkamer van 5 gallonInclusief: vacuummeter*11 meter buis*1witte rubberen ring*1geluiddemper*2siliconen pakking*1 |
| SKU | QCKTZKB1.8CFMDJ2TV3 |
| Model | RS-0,5 |
| Spanning | 220-240 V 50 Hz |
| Gratis luchtverplaatsing | 1,8CFM |
| Ultiem vacuum | 5 PA |
| Roterende snelheid | 1440 |
| Vermogen (PK) | 1/4 |
| Oliecapaciteit (ml) | 220 |
| Afmeting (mm) | 240*110*220 |
| Gewicht (kg) | 8 |
| Accessoire | Vacuümkamer van 2 gallonInclusief: vacuümmeter*11 meter buis*1witte rubberen ring*1geluiddemper*2siliconen pakking*1 |
| SKU | QCKTZKB3CFM1-4J3TV2QCKTZKB3CFM1-4J3TV3 |
| Model | RS-1 |
| Spanning | 220-240 V 50 Hz |
| Gratis luchtverplaatsing | 3CFM |
| Ultiem vacuum | 5 PA |
| Roterende snelheid | 1440 |
| Vermogen (PK) | 1/4 |
| Oliecapaciteit (ml) | 220 |
| Afmeting (mm) | 240*110*220 |
| Gewicht (kg) | 9.68 |
| Accessoire | Vacuümkamer van 3 gallonInclusief: vacuümmeter*11 meter buis*1witte rubberen ring*1geluiddemper*2siliconen pakking*1 |
| SKU | 3CFMZKBJ2JLZKT001V33CFMZKBJ2JLZKT001V2 |
| Model | RS-1 |
| Spanning | 220-240 V 50 Hz |
| Gratis luchtverplaatsing | 3CFM |
| Ultiem vacuum | 5 PA |
| Roterende snelheid | 1440 |
| Vermogen (PK) | 1/4 |
| Oliecapaciteit (ml) | 220 |
| Afmeting (mm) | 240*110*220 |
| Gewicht (kg) | 8 |
| Accessoire | Vacuümkamer van 2 gallonInclusief: vacuummeter*11 meter buis*1witte rubberen ring*1geluiddemper*2siliconen pakking*1 |
| SKU | 3CFMZKBJ2JLZKT001V1 |
| Model | RS-1 |
| Spanning | 120V/60HZ |
| Gratis luchtverplaatsing | 3CFM |
| Ultiem vacuum | 5 PA |
| Roterende snelheid | 1720 |
| Vermogen (PK) | 1/4 |
| Oliecapaciteit (ml) | 220 |
| Afmeting (mm) | 240*110*220 |
| Gewicht (kg) | 8 |
| Accessoire | Vacuümkamer van 2 gallonInclusief: vacuummeter*11 meter buis*1witte rubberen ring*1geluiddemper*2siliconen pakking*1 |
| SKU | QCKTZKB4CFM1-3J2TV2 |
| Model | RS-1.5 |
| Spanning | 220-240 V 50 Hz |
| Gratis luchtverplaatsing | 4CFM |
| Ultiem vacuum | 5 PA |
| Roterende snelheid | 1440 |
| Vermogen (PK) | 1/3 |
| Oliecapaciteit (ml) | 225 |
| Afmeting (mm) | 275*115*240 |
| Gewicht (kg) | 8.69 |
| Accessoire | Vacuümkamer van 2 gallonInclusief: vacuummeter*11 meter buis*1witte rubberen ring*1geluiddemper*2siliconen pakking*1 |
| SKU | QCKTZKB4CFMDJ3T01V3QCKTZKB4CFMDJ3T01V2 |
| Model | RS-1.5 |
| Spanning | 120V/60HZ |
| Gratis luchtverplaatsing | 4CFM |
| Ultiem vacuum | 5 PA |
| Roterende snelheid | 1720 |
| Vermogen (PK) | 1/3 |
| Oliecapaciteit (ml) | 225 |
| Afmeting (mm) | 270*110*220 |
| Gewicht (kg) | 10.7 |
| Accessoire | Vacuümkamer van 3 gallonInclusief: vacuummeter*11 meter buis*1witte rubberen ring*1geluiddemper*2siliconen pakking*1 |
| SKU | QCKTZKB3JLBXGT4CFV1 |
| Model | RS-1.5 |
| Spanning | 120V/60HZ |
| Gratis luchtverplaatsing | 4CFM |
| Ultiem vacuum | 5 PA |
| Roterende snelheid | 1720 |
| Vermogen (PK) | 1/3 |
| Oliecapaciteit (ml) | 225 |
| Afmeting (mm) | 270*110*220 |
| Gewicht (kg) | 10.7 |
| Accessoire | Vacuümkamer van 3 gallonInclusief: vacuummeter*11 meter buis*1witte rubberen ring*1geluiddemper*2siliconen pakking*1 |
| SKU | QCKTZKB4CFM1-3J2TV1 |
| Model | RS-1.5 |
| Spanning | 120V/60HZ |
| Gratis luchtverplaatsing | 4CFM |
| Ultiem vacuum | 5 PA |
| Roterende snelheid | 1720 |
| Vermogen (PK) | 1/3 |
| Oliecapaciteit (ml) | 225 |
| Afmeting (mm) | 270*110*220 |
| Gewicht (kg) | 8.69 |
| Accessoire | Vacuümkamer van 2 gallonInclusief: vacuummeter*11 meter buis*1witte rubberen ring*1geluiddemper*2siliconen pakking*1 |
| SKU | S12HP5CFM110VBGFDV1S13HP5CFM110VVAFJV1 |
| Model | RS-2 |
| Spanning | 120V/60HZ |
| Gratis luchtverplaatsing | 5CFM |
| Ultiem vacuum | 5 PA |
| Roterende snelheid | 1720 |
| Vermogen (PK) | 1/3 |
| Oliecapaciteit (ml) | 250 |
| Afmeting (mm) | 290*120*230 |
| Gewicht (kg) | 12 |
| Accessoire | Vacuümkamer van 5 gallonInclusief: vacuümmeter*11 meter buis*1witte rubberen ring*1geluiddemper*2siliconen pakking*1 |
| SKU | QCKTZKB3.6CFMDJ3TV1 |
| Model | RS-1 |
| Spanning | 120V/60HZ |
| Gratis luchtverplaatsing | 3,6CFM |
| Ultiem vacuum | 5 PA |
| Roterende snelheid | 1720 |
| Vermogen (PK) | 1/4 |
| Oliecapaciteit (ml) | 220 |
| Afmeting (mm) | 240*110*220 |
| Gewicht (kg) | 9.68 |
| Accessoire | Vacuümkamer van 3 gallonInclusief: vacuummeter*11 meter buis*1witte rubberen ring*1geluiddemper*2siliconen pakking*1 |
| SKU | S12HP5CFM110VBGFDV2 |
| Model | RS-2 |
| Spanning | 220-240 V 50 Hz |
| Gratis luchtverplaatsing | 5CFM |
| Ultiem vacuum | 5 PA |
| Roterende snelheid | 1440 |
| Vermogen (PK) | 1/3 |
| Oliecapaciteit (ml) | 250 |
| Afmeting (mm) | 290*120*230 |
| Gewicht (kg) | 11.6 |
| Accessoire | Vacuümkamer van 5 gallonInclusief: vacuummeter*11 meter buis*1witte rubberen ring*1geluiddemper*2siliconen pakking*1 |
| SKU | S12HP7CFM110VHZQ5V1 |
| Model | 2RS-3 |
| Spanning | 120V/60HZ |
| Gratis luchtverplaatsing | 7CFM |
| Ultiem vacuum | 5 PA |
| Roterende snelheid | 3500 |
| Vermogen (PK) | 3/4 |
| Oliecapaciteit (ml) | 370 |
| Afmeting (mm) | 360*135*275 |
| Gewicht (kg) | 16 |
| Accessoire | Vacuümkamer van 5 gallonInclusief: vacuümmeter*11 meter buis*1witte rubberen ring*1geluiddemper*2siliconen pakking*1 |
VEVOR®
TOUGH TOOLS, HALF PRICE
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared major top brands and does not necessarily mean to cover all categories of tools us. You are kindly reminded to verify carefully when you are placing an order v are actually saving half in comparison with the top major brands.
MODELL: RS-0.5,RS-1, RS-1.5, RS-2,2RS-3
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
TROUBLESHOOTING GUIDE
Exploded view diagram of an electric motor assembly with numbered components for identificationwww.vevor.com/support
