UV-312 - Manicure and pedicure set Vevor - Free user manual and instructions

Product Type	Manicure and Pedicure Set
Brand	Vevor
Model	UV-312
Power Supply	DC 5V 2A via Type-C port
Battery Type	Rechargeable Lithium-ion
Initial Charging Time	4 hours
Rotation Speed	0 to 35,000 rpm
Digital Display	Speed and battery level
Speed Control	Progressive via + and - buttons
Rotation Direction	Forward (F) and reverse (R) with switching
Safety Stop	Motor stops if chuck is turned during use
Overload Protection	Automatic shutdown to prevent overheating
Intended Use	Nail care (manicure and pedicure)
Included Accessories	Multiple grinding heads, user manual
Maintenance	Clean with a soft dry cloth, store in a dry place
Certifications	CE, UKCA, FCC Part 15
Warranty and Support	Technical support via www.vevor.com/support
Manufacturer	Shanghaiuxinmuyeyouxianggsi (Shanghai, China)

Frequently Asked Questions - UV-312 Vevor

How to charge the device for the first time?

For first use, charge the device for a full 4 hours via the Type-C port with a DC 5V 2A adapter.

How to adjust the rotation speed?

Use the + and - buttons to increase or decrease the speed. The speed displayed on the screen is in hundreds of rpm (e.g., 35 corresponds to 35,000 rpm).

How to change the rotation direction?

Briefly press the direction change button to switch from forward (F) to reverse (R). Press again to return to forward.

What to do if the device stops suddenly during use?

This is overload protection. Turn off the power, wait a few moments, then restart the machine.

How to replace a grinding head?

Turn off the device. Turn the clamping sleeve to loosen the old head, insert the new head fully into the chuck, then tighten the sleeve again.

Can I use the device with water?

It is not recommended to use the device with water. If you do, ensure that water does not rise above the grinding head to prevent water from entering the handpiece and causing rust.

How to clean and maintain the device?

Wipe the device with a soft dry cloth. Never immerse the device in water. Store in a dry place. Clean at least once a month.

Is the device suitable for beginners?

Yes, but it is recommended to read the manual carefully and start at low speed. Persons with reduced capabilities or without experience should be supervised.

What to do if there is a burning smell from the motor?

A slight burning smell may be normal due to heat dissipation. If the odor becomes strong or the device overheats excessively, stop immediately and contact support.

How to contact Vevor customer service?

Visit the website www.vevor.com/support for technical support and the electronic warranty certificate.

USER MANUAL UV-312 Vevor

RECHARGEABLE NAIL DRILL

MODEL: UV-312

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and do not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us whether you are actually saving half in comparison with the top major brands.

MODEL: UV-312

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read ins manual carefully.
	CORRECT DISPOSAL This product is subject to the provision of European Dire 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the pro and all accessories marked with this symbol. Products may such may not be discarded with normal domestic waste must be taken to a collection point for recycling electrical electronic devices
Li-Ion	To minimize hazards to health and the environment at th this product's life, laws dealing with Waste Electrical and Electronic Equipment (WEEE) and The Waste Battery Directive require you to dispose of this product at a suitable colle facility where it will be sent in order to remove the ball for appropriate recycling.Please contact your local authority more details on recycling and safe disposal of these in area.
CE UK CA	Compliance is a EC & UK security certification.
WARNING	Move away from any potential source of ignition immediate the battery leaks or emits an unusual odor. When you unusual smell, heat, discoloration, deformation, or any other unusual situations in the process of using, charging, or batteries, you should immediately remove them from the or charger and stop using them.

FCC INFORMATION

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference. 2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance. The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction.

IMPORTANT SAFEGUARDS

Thank you for using this product. In order to ensure that you can operate the machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please be sure to read the precautions and safety rules on this page to ensure your safe use.

This manual will outline safety warnings and precautions, operating, maintenance, and cleaning. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product, since we believe that the users will comply with codes. If you have any problems, please call us. Do not try to fix the problem yourself, or it may cause injury or property damage.

Please read ALL the instructions before using your machine.

1. If the battery is low, please charge it in time.
2. Do not let children, minors, and pets get close to or touch the machine.
3. Do not immerse the appliance in water or any other liquid.
4. Do not disassemble the product.
5. Using any accessories or attachments that are not provided or recommended by the manufacturer may cause injury.
6. Please start to use after the collect is fixed well.
7. Do not leave the product hanging over the edge of table or counter or into contact with any hot surfaces.
8. Do not place the product on or near hot air, electric burners or heaters.
9. Do not apply this unit to any other purposes than the indicated usage.
10. KEEP IT OUT OF CHILDREN'S REACH.
11. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.
12. Please clean it regularly, at least once a month.
13. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
14. When twisting the lock chuck in use, the power of the main motor will be immediately cut off to protect the machine. (The motor is easy to be damaged and the life of the motor will be reduced in this way, so please be cautious in operation).
15. If the nail drill machine is re-started, the speed control dial needs to be set to speed "0", and then the power supply will be restarted.
16. Please start to use after the collect is fixed well.
17. Please stop the machine once any abnormal movement or noise is noticed during operation.
18. Please adjust the speed gradually, not abruptly.
19. Please do not touch any rotating part when the machine is working.
20. Please stop the machine first to change the direction.
21. Please do not place a cloth or anything else on the ventilation slides of the controller, and keep dust away from it.
22. Please unplug the power supply after stopping the machine.

BEFORE USING

1. Before using the appliance for the first time, peel off any promotional and packaging materials and check that the product is clean and dust-free.
2. Please dispose of all plastic bags carefully and keep them away from children and pets.
3. Check all components provided according to the list in this manual.

PRODUCT PARAMETERS

Model	UV-312
Charging port	Type-C
Power In put	DC5V 2A
Rotating speed	0-35000RPM

Note: Please use the correct power source voltage.

TIPS

1. Product can go into service after 4 hours of charging. (When used for the first time.)
2. This device is equipped with a security protection system. The hand piece will stop working when the overload protection function is started to avoid overheating due to improper operation. Just turn off the power and restart the machine to continue use.
3. The slight burning smell from the handle motor is normal due to heat dissipation.
4. When replacing the grinding head of the grinding handle, clean the dust a

the socket before replacing it.

Prevent dust from entering the handle and causing noise.

1. The internal parts of the handle are relatively precise, so be sure to handle with care to avoid bumps.
2. If you need to use it with water during pre-processing, the water should exceed the grinding head to avoid the height of the grinding rod. At high speed, water flows back into the handle, causing parts to rust. Correct operation can greatly extend the grinding time.

The service life of the machine!

1. Please cut off the power before replacing the grinding head, and be sure to insert the grinding head into the bottom of the chuck. If you do not insert the grinding head into the bottom of the chuck, the grinding head may easily fall due to vibration, which will bring risks.
2. Standard grinding heads should be used, and bent, deformed, or broken grinding heads must not be used.
3. In working condition, when the handle is not in use, the grinding head should remain clamped.

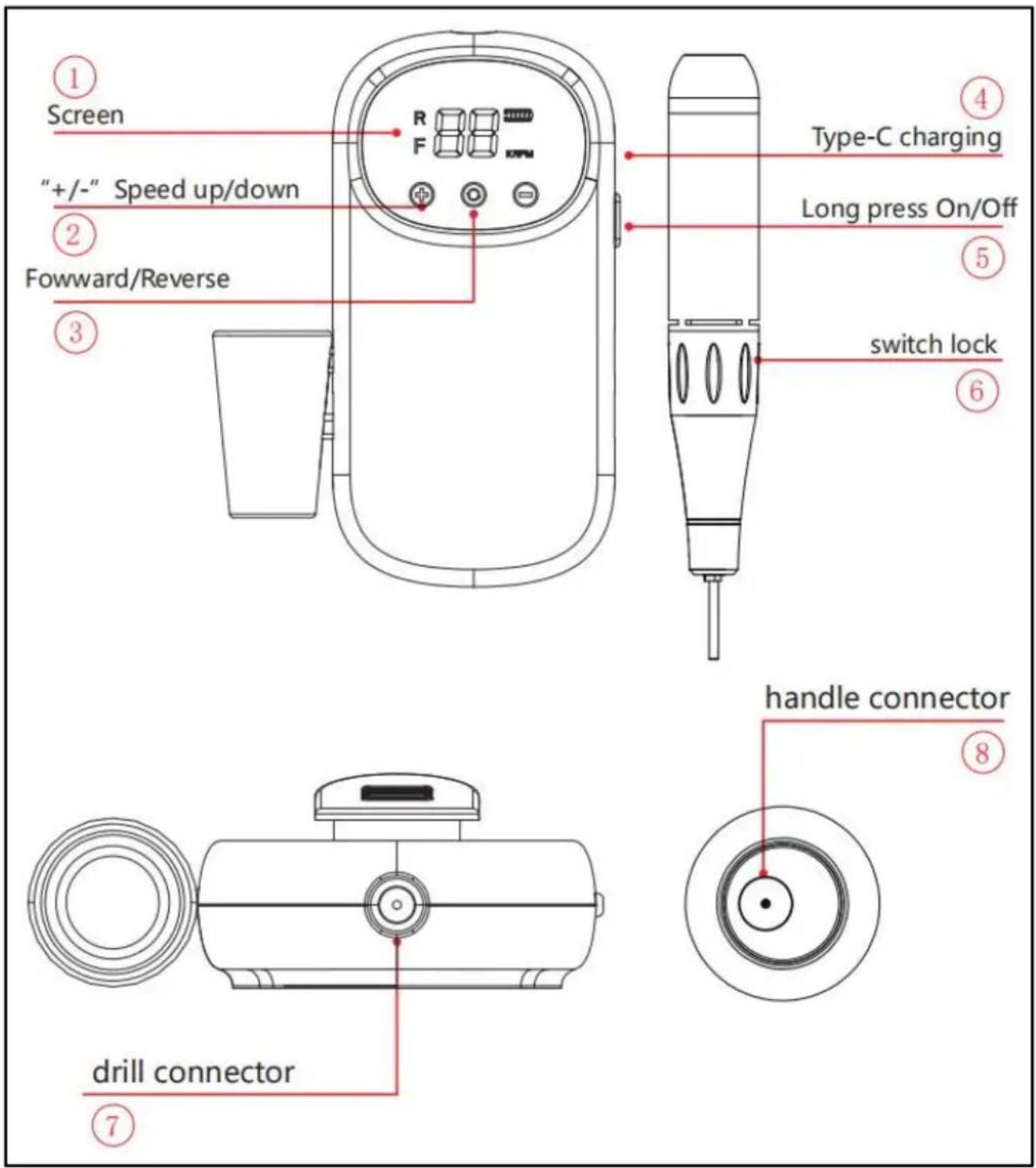

COMPOSITIONS

① Screen display: Speed display: 00-35RPM, representing 0-35000 rpm adjustment.

Digital power display: Displays power when turned on.

② Touch the "+" button to accelerate and the "-" button to decelerate. ③ Forward and reverse: the default forward rotation "F" when turning on the machine; reverse "R" when pressing the button, the same

Press the button again to return to forward rotation.

④ Type-C grinder charging port. ⑤ Power on: press and hold for 2 seconds; power off: press and hold for seconds. Short press the button for 1 second to pause. ⑥ Tighten the steering sleeve of the grinding pen, place the grinding head bottom and turn it back to the lock head to clamp it. The connection port where the host computer connects to the polishing pen. ⑧ Connect the polishing pen to the connection port of the host machine.

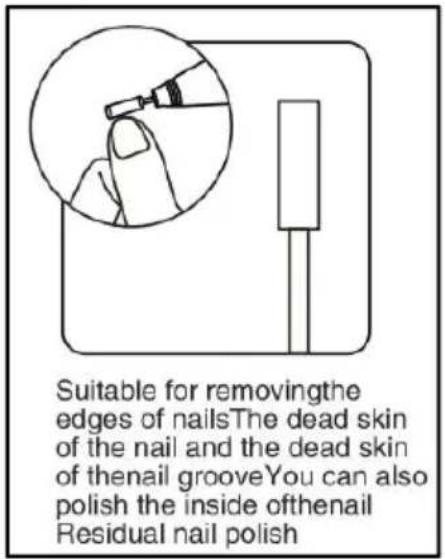

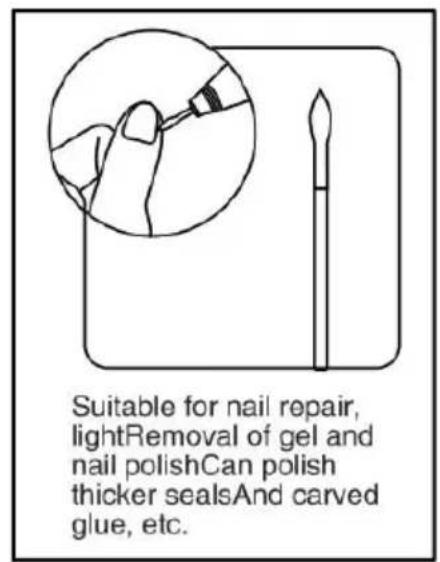

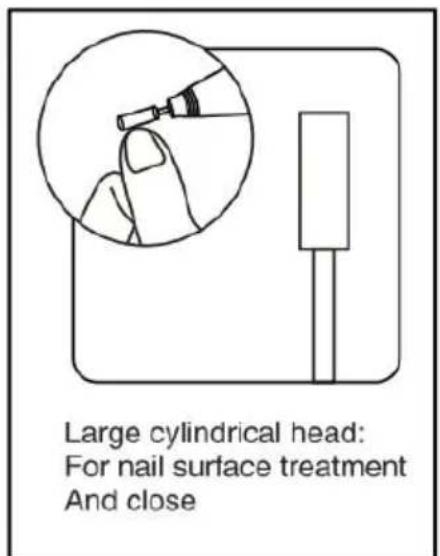

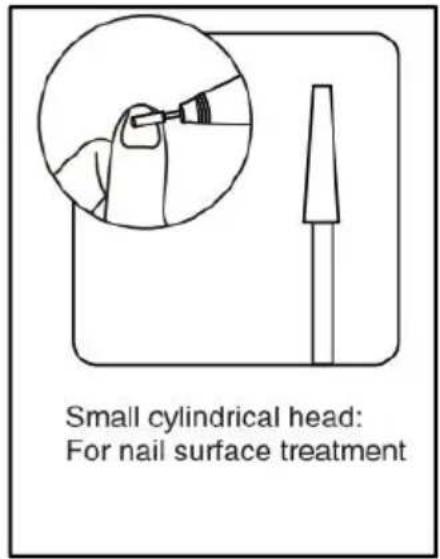

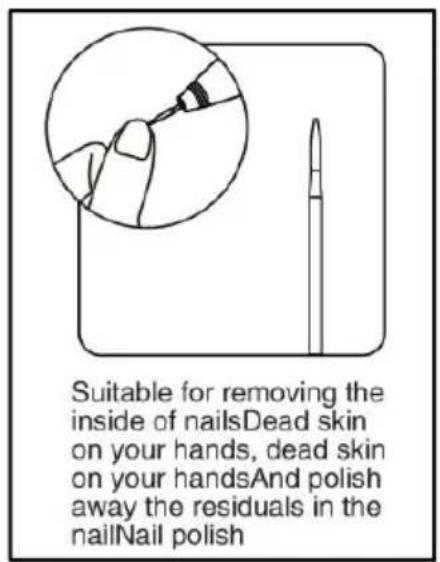

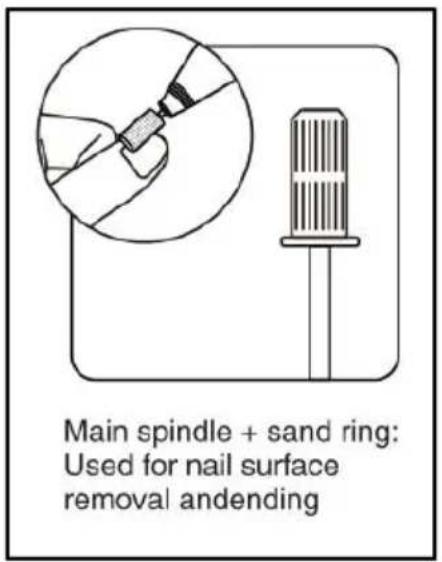

INTRODUCTION TO GRINDING HEAD

Note: When rotating the switch lock left and right, a grinding head or thimble must be inserted, otherwise it will cause the rotation to be too loose, which is also normal.

Attention: Please note that there is a lock icon on the product and the instructions.

CLEANING AND STORAGE

1. If the machine is not to be used for a long period of time, remove power and cover it, and store it in a dry and safe place.
2. Wipe with a soft, dry cloth. Be sure to keep the product dry.
3. Please keep accessories and products together.

Manufacturer: Shanghaiuxinmuyeyouxianggsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

YH CONSULTING LIMITED.

G/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

CORDLESS NAIL GUN

MODEL: UV-312

C/O YH Consulting Limited Bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH Mainzer Landstr.69, 60329 Frankfurt am Main.

VEVOR

TOUGH TOOLS, HALF PRICE

C/O YH Consulting Limited, Buro 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr. 69,

60329 Frankfurt am Main.

VEVOR

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Note: Anything not stated in the text is a product of the following products:

Rotate in this direction to unlock icon "s". The sanding head can be light. Loose, remove and replace.

02

After unlocking, the opening opens, remove the grinding head and replace the grinding head.

03

Rotate in the opposite direction to the lock icon "A" to lock the sanding head to use sanding.

Insert the drill bit completely (Exposed parts < 5 mm)

<5 mm
