Product Type	Electric Manicure and Pedicure Set
Brand	Vevor
Model	SN360S
Dimensions (approx.)	22 x 16 x 12 cm
Weight (approx.)	1.2 kg
Power Supply	12V DC power adapter (included)
Rotation Speed	Variable, adjustable by wheel
Rotation Direction	Forward and reverse (reversible)
Handpiece	With clamping chuck for bits
Included Bits	Multiple sanding, polishing, and milling bits
Usage	Home or salon manicure and pedicure
Noise Level	Low to moderate
Housing Material	Robust ABS plastic
Maintenance and Cleaning	Clean the bits with a brush after use; disinfect with alcohol
Safety	Use only with original accessories; unplug before cleaning
Spare Parts and Repairability	Bits and handpiece available as spare parts
Warranty	Vevor manufacturer's warranty
General Information	Complete set for nail and foot care; suitable for individuals and professionals

Frequently Asked Questions - SN360S Vevor

How to change the handpiece bit?

Turn the adjustment ring clockwise until it clicks, remove the test bar, insert the desired bit, then turn the ring counterclockwise to tighten.

How to reverse the rotation direction?

Press the button once to switch from forward 'F' to reverse 'R', and a second time to go back forward.

What type of bits are included?

The set includes several silicon carbide and felt bits for sanding, polishing, and milling nails and calluses.

How to clean the bits after use?

Brush off debris with a stiff brush and disinfect with isopropyl alcohol. Do not immerse them in water.

Is the set suitable for beginners?

Yes, it is easy to use with adjustable speed. Start at a low speed to get used to it.

Can the device be used on artificial nails?

Yes, with appropriate bits (carbide burr) and by setting a moderate speed to avoid damaging the nail.

How to adjust the rotation speed?

Use the wheel on the main unit to gradually increase or decrease the speed.

What to do if the handpiece gets hot?

Turn off the device and let it cool down. Check that the bits are tightly secured and that the ventilation is not blocked.

Is the device noisy?

It emits a moderate noise comparable to a low-power hair dryer. The noise level is acceptable for domestic use.

Where to find replacement bits?

Bits are available on the Vevor website or from authorized resellers. Refer to model SN360S.

USER MANUAL SN360S Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

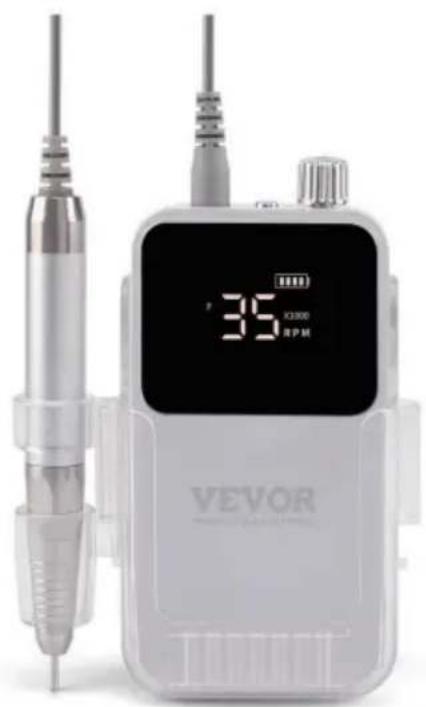

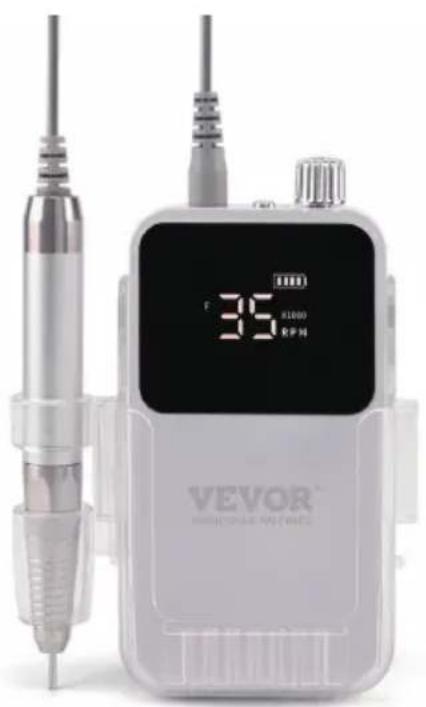

RECHARGEABLE NAIL DRILL

MODEL: SN360S

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the top brands, and do not necessarily mean to cover all categories of tools offered by us. We kindly remind you to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL: SN360S

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instruction manual carefully.
	CORRECT DISPOSALThis product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices
	To minimize hazards to health and the environment at the end product's life , laws dealing with Waste Electrical and Electron Equipment (WEEE) and The Waste Battery Directive require you dispose of this product at a suitable collection facility where it sent in order to remove the batteries and for appropriate recycling.Please contact your local authorities for more details or recycling and safe disposal of these in your area.
	Compliance is a EC & UK security certification.
	Move away from any potential source of ignition immediate the battery leaks or emits an unusual odor. When you unusual smell, heat, discoloration, deformation, or any other unusual situations in the process of using, charging, or batteries, you should immediately remove them from the or charger and stop using them.

FCC INFORMATION

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference. 2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and the receiver.
• Connect the product to an outlet on a circuit different from the one to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction.

IMPORTANT SAFEGUARDS

Thank you for using this product. In order to ensure that you operate the machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please be sure to follow the precautions and safety rules on this page to ensure your safety. This manual will outline safety warnings and precautions, operating maintenance, and cleaning. The warnings and instructions in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product, so ensure that the user complies with these codes. If you have any problems, please call us. Do not try to fix the problems yourself, or it may result in injury or property damage.

Please read ALL the instructions before using your machine.

1. If the battery is low, please charge it in time.
2. Do not let children, minors, and pets get close to or touch the product.
3. Do not immerse the product in water or any other liquid.
4. Do not disassemble the product.
5. Using any accessories or attachments that are not provided or recommended by the manufacturer may cause injury.
6. Please start to use after the collector is fixed well.
7. Do not leave the product hanging over the edge of a table or allow it to come into contact with any hot surfaces.
8. Do not place the product on or near hot air, electric burner
9. Do not use this unit for any purpose other than its intended use.
10. KEEP IT OUT OF CHILDREN'S REACH.
11. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.
12. Please clean it regularly, at least once a month.
13. This appliance is not intended for use by persons (including those with reduced physical, sensory or mental capabilities, or lack of experience or knowledge) unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
14. When twisting the lock chuck during use, the power of the motor stops immediately to protect the machine. (The motor is easy to damage and its life will be reduced if operated this way; be cautious.)
15. If the nail drill machine is restarted, adjust the speed control dial to speed "0" before restarting the power supply.
16. Please start to use after the collect is fixed well.
17. Please stop the machine once any abnormal noise is noticed during operation.
18. Please adjust the speed gradually, not abruptly.
19. Please do not touch any rotating part when the machine is running.
20. Please stop the machine first before changing the direction.
21. Please do not place a cloth or anything else on the ventilator, and keep dust away from it.
22. Please unplug the power supply after stopping.

TIPS

1. The product can be used after 4 hours of charging (for the first time).
2. This device is equipped with a security protection system. It will stop working when the overload protection function is activated due to overheating from improper operation. Just turn off the power and let the machine cool down for continuous use.
3. A slight burning smell from the handle motor is normal due to heat dissipation.
4. When replacing the grinding head of the handle, clean the dust around the socket before replacing it.

Prevent dust from entering the handle and causing noise.

1. The internal parts of the handle are relatively precise, so handle them with care to avoid bumps.
2. If you need to use it with water during pre-processing, do not exceed the height of the grinding head to avoid water flowing back into the handle, which could cause parts to rust.

Proper operation can greatly extend the grinding time.

The service life of the machine!

1. Please cut off the power before replacing the grinding head, and insert the grinding head into the bottom of the chuck. If you do not insert the grinding head into the bottom of the chuck, the grinding head may easily fall off due to vibration, which will bring risks.
2. Standard grinding heads should be used, and bent or deformed grinding heads must not be used.
3. When the handle is not in use, the grinding head should remain clamped.

BEFORE USING

1. Before using the appliance for the first time, peel off any product packaging materials and check that the product is clean and dust-free.
2. Please dispose of all plastic bags carefully and keep them away from children and pets.
3. Check all components provided according to the list in this manual.

PRODUCT PARAMETERS

Model SN360S

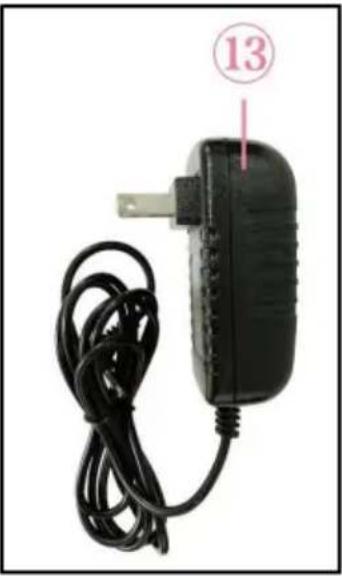

Power adapter In put	AC100-240V 50/60Hz
Power adapter Out Put	DC12V 2A
Rotating speed 0-3	5000RPM

Note: Please use the correct power source voltage.

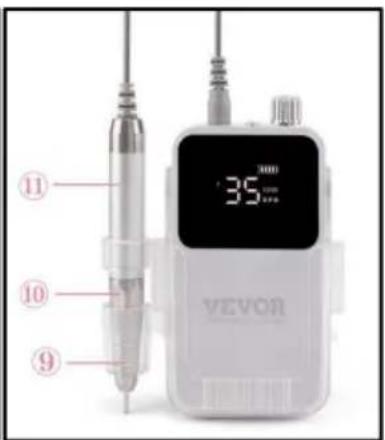

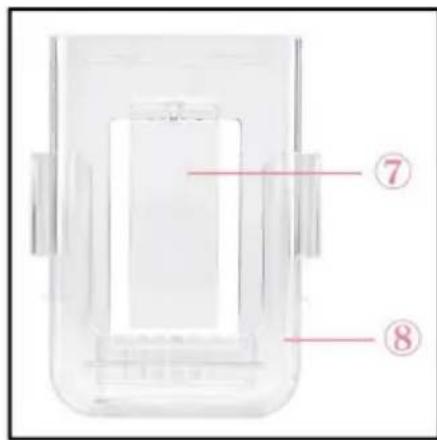

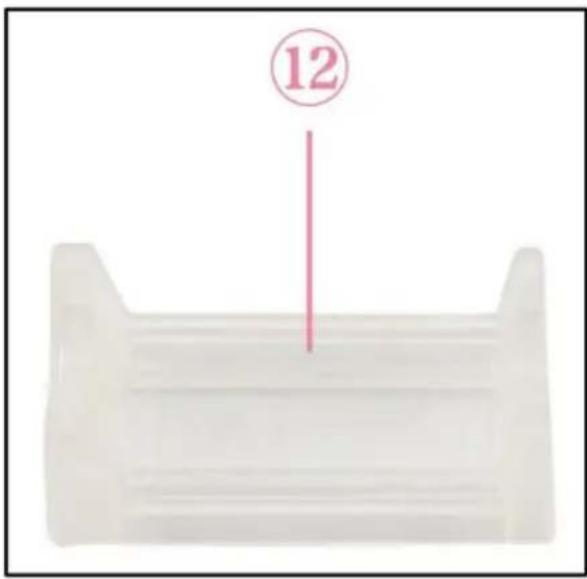

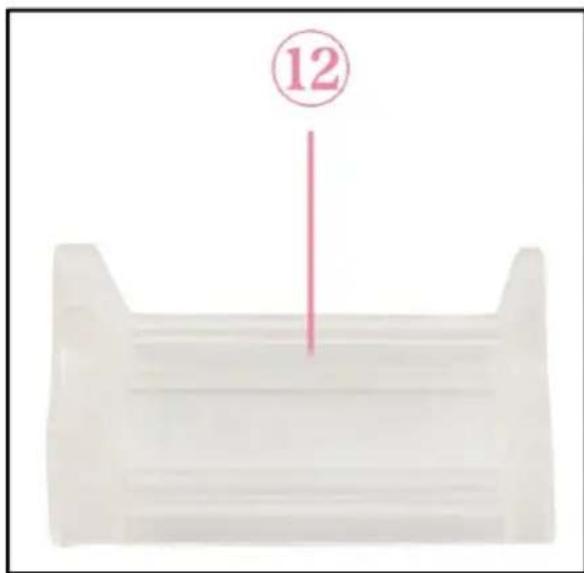

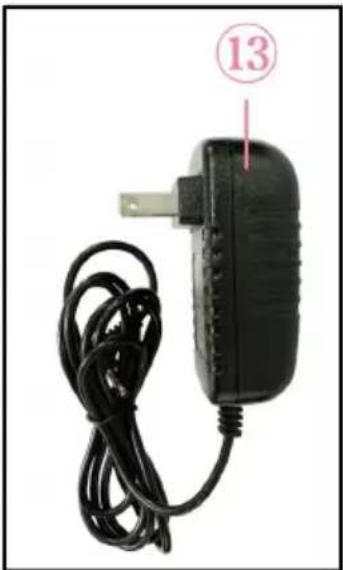

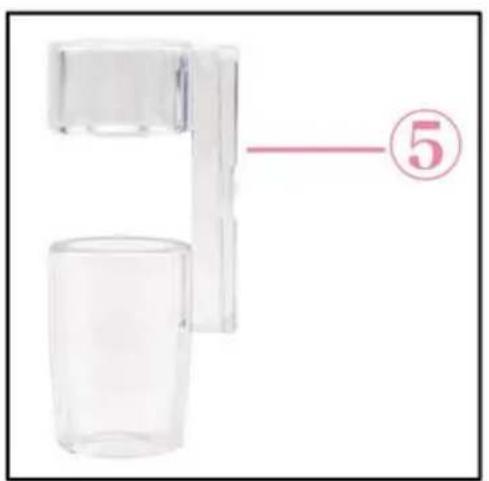

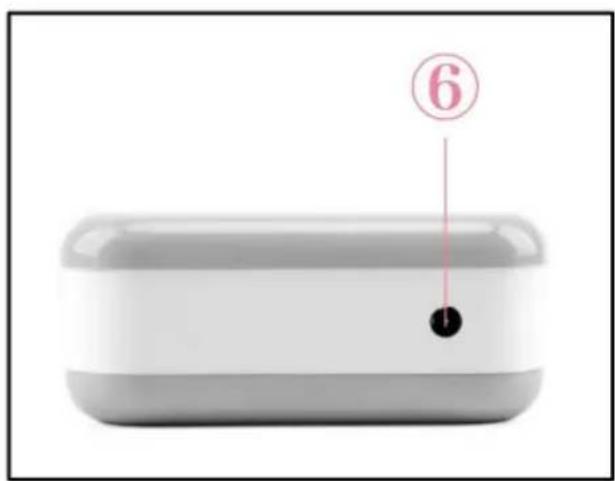

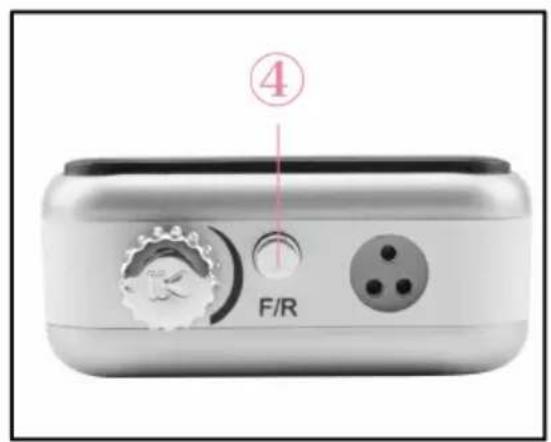

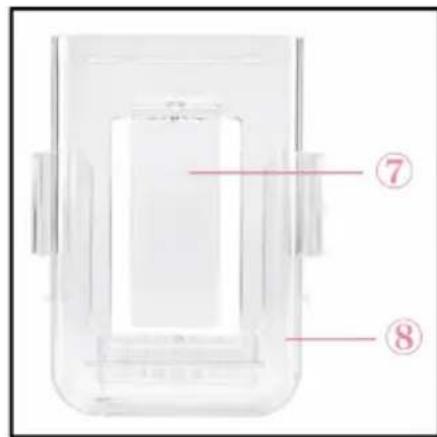

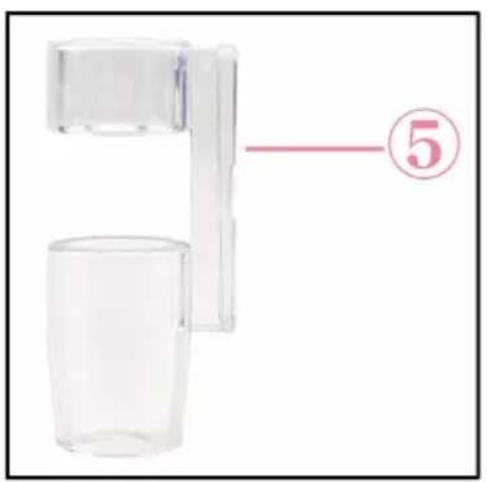

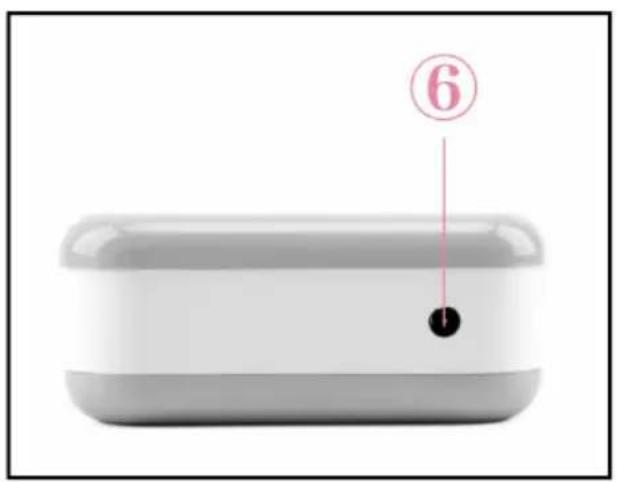

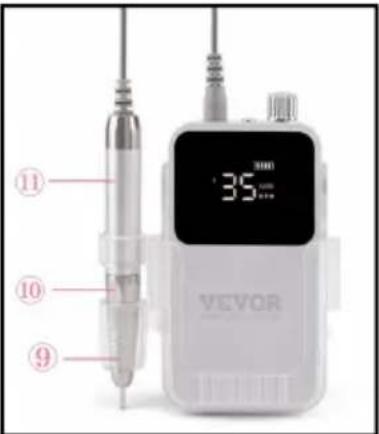

COMPOSITIONS

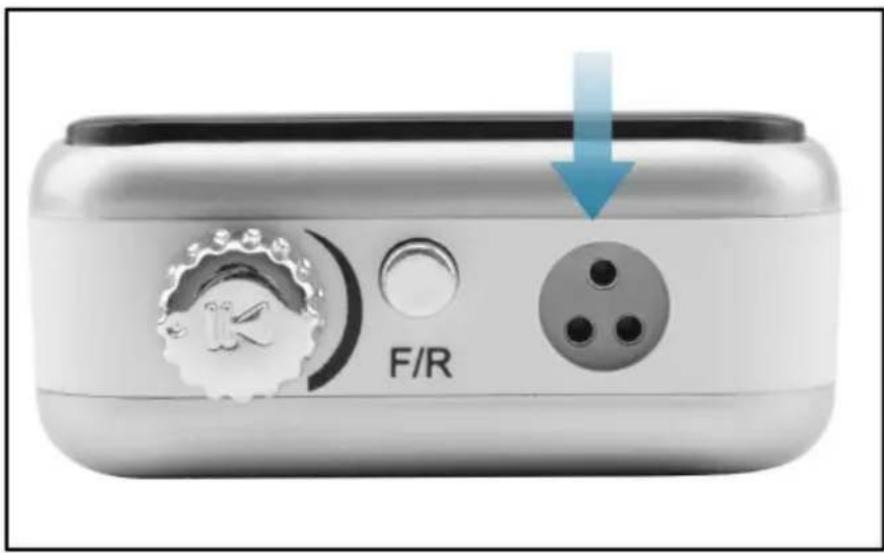

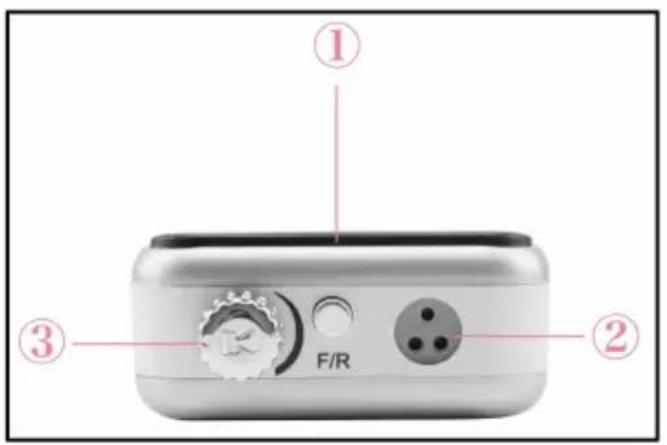

① Digital Display Screen ② Three Core Socket

(Avoid bad contact with the DC plug)

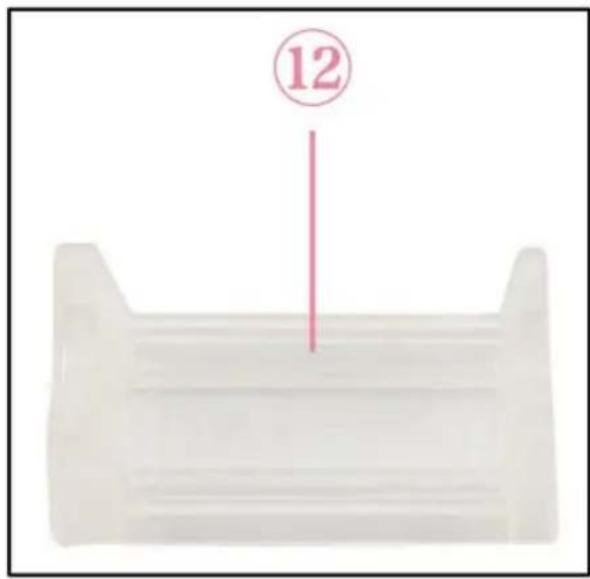

③ Speed Control Button ④ Host and Forward/Reverse Button ⑤ Hand piece Holder ⑥ Power Supply Socket ⑦ Belt Clip ⑧ Acetone Resistant Finish Control Box ⑨ Test Bar Bit ⑩ Handle Sleeve ⑪ Lock Chuck ⑫ Hand piece Base ⑬ Power Adapter

OPERATION

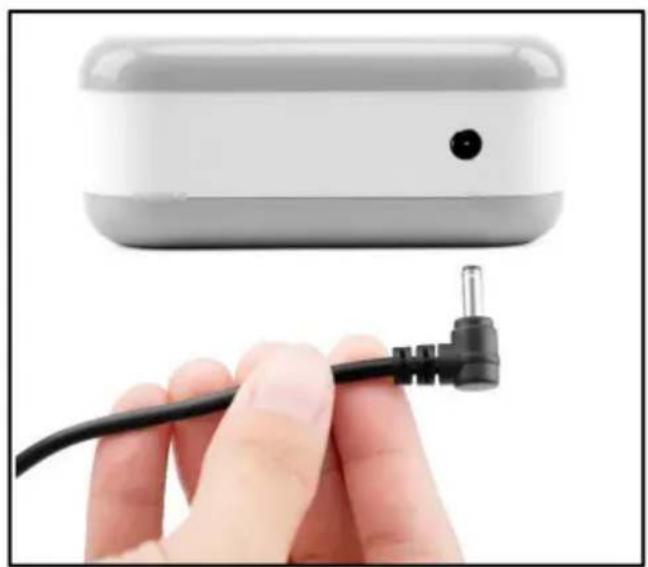

1. Connect the appropriate adapter into the power supply socket of the nail drill.

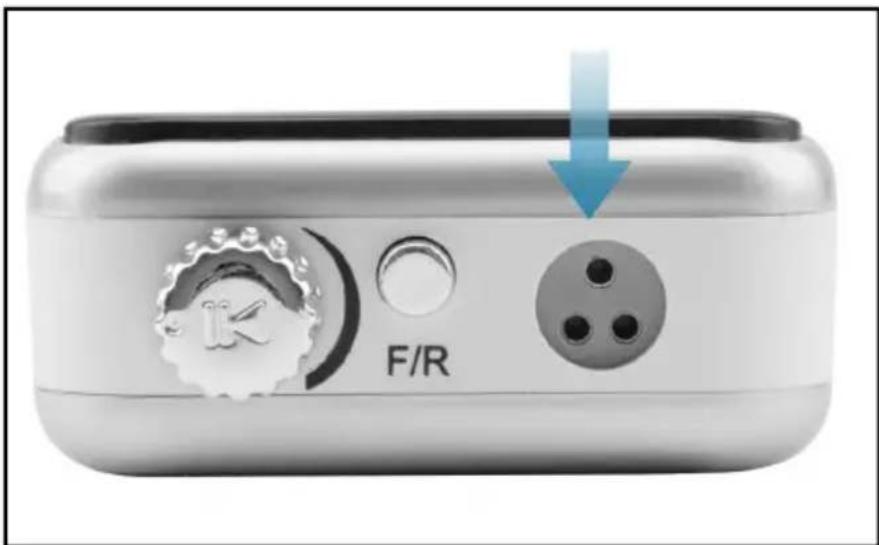

1. Then connect the hand piece into the three core socket.

1. Upload the desired nail drill bit.

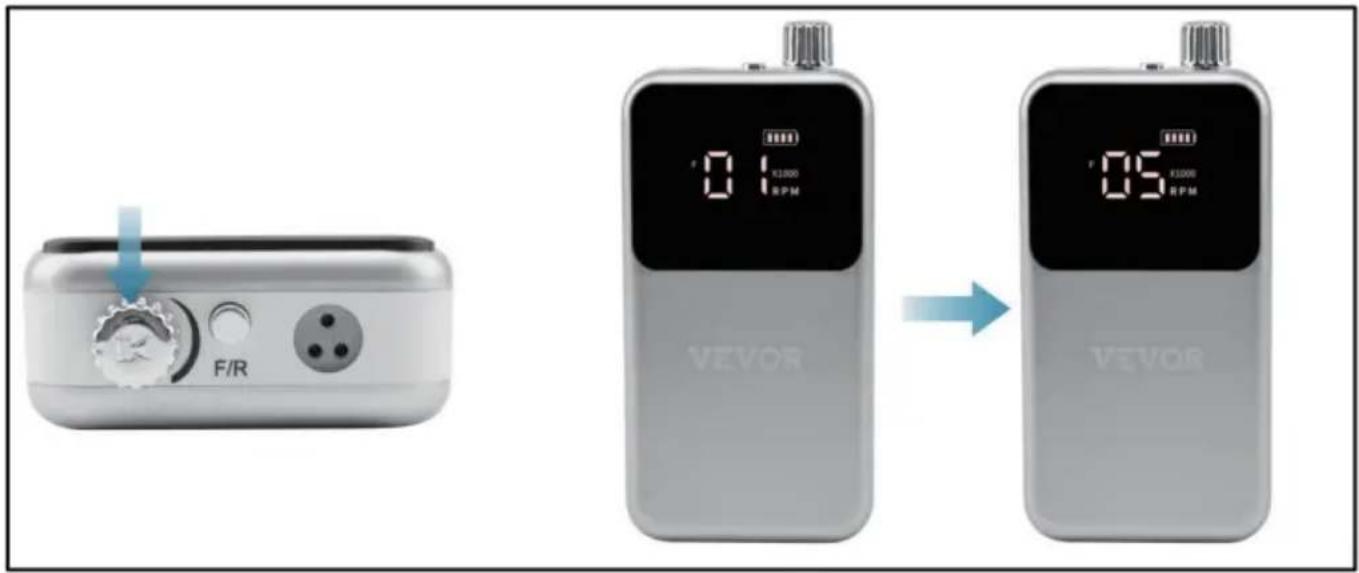

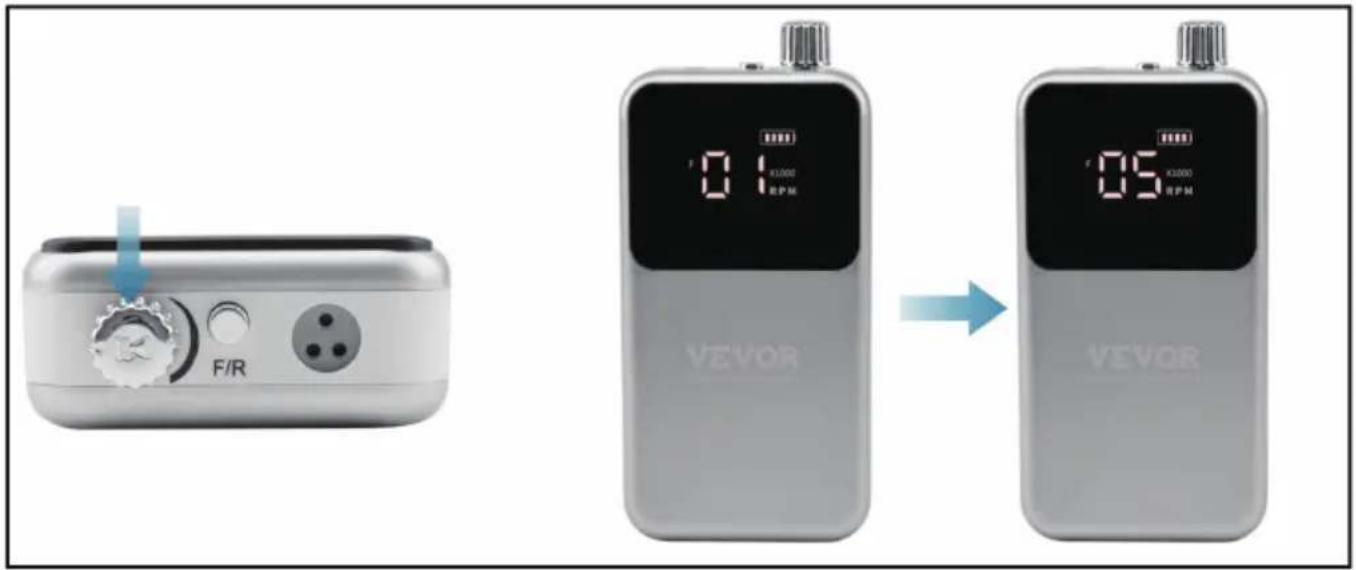

1. Variable Speed Control Button with Play/Pause Function

A. Turn on the Button, the Speed is increased by "01"×1000 RPM, the Higher Speed is increased to "05"×1000 RPM.

B. Press the Button to start Play/Pause Function. Press once, the Machine is immediately in Pause State. Press twice, the machine will restart in Play State.

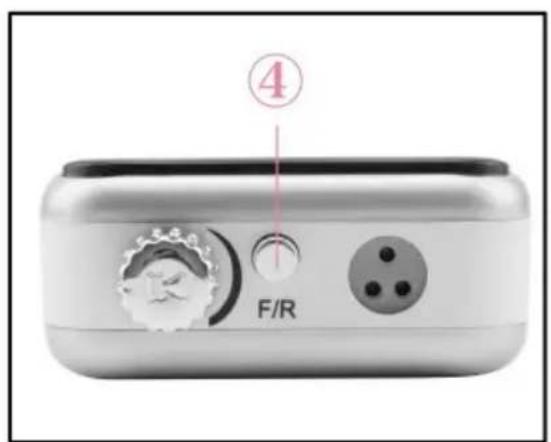

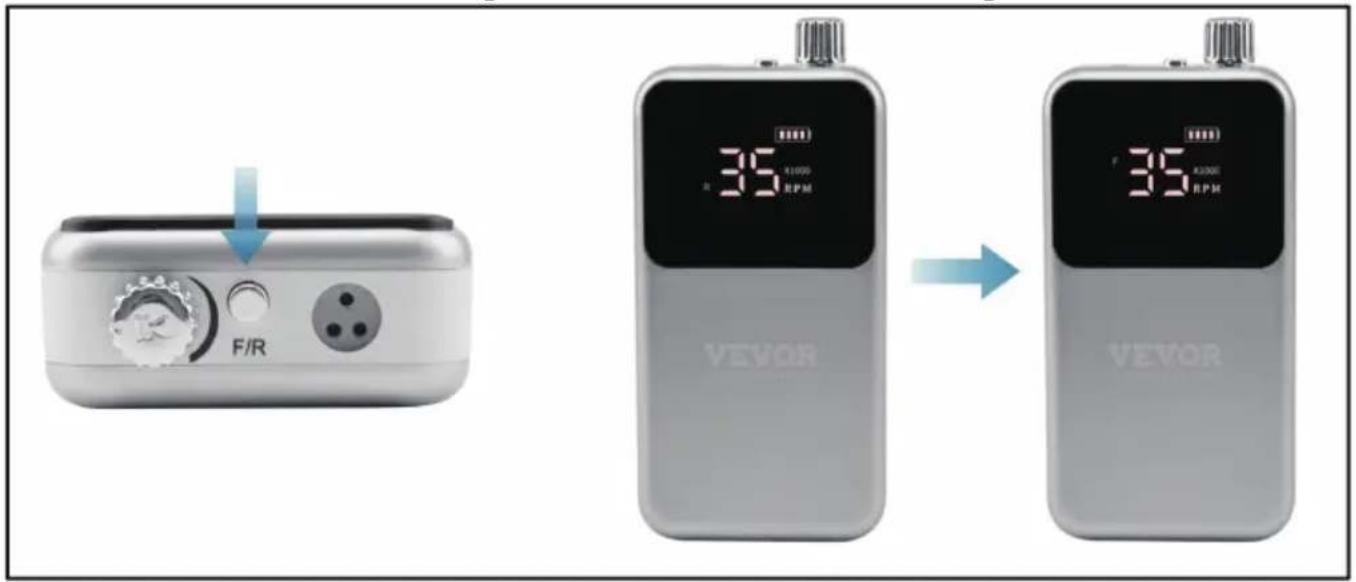

5. Forward/Reverse Button

The Default Direction is "F" (Forward Direction). Press once to change into "R" Reverse Direction.

Press twice, press once to change into "F" Forward Direction again.

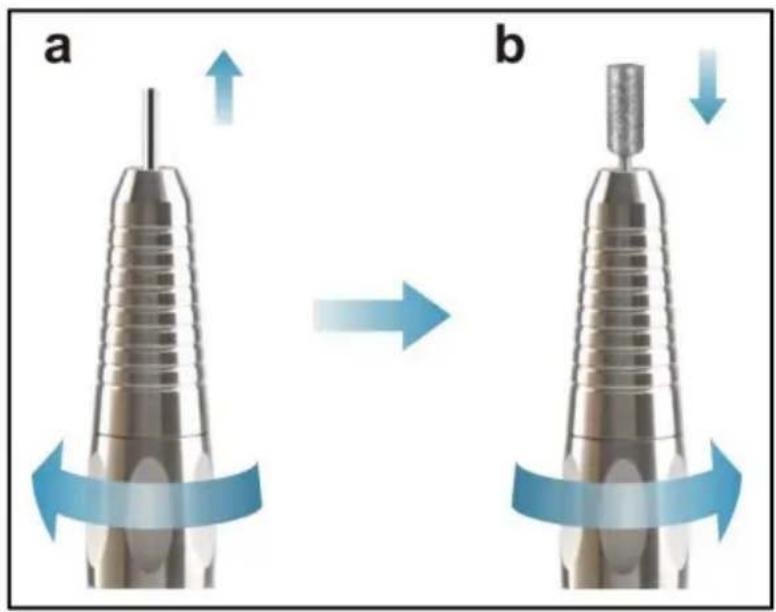

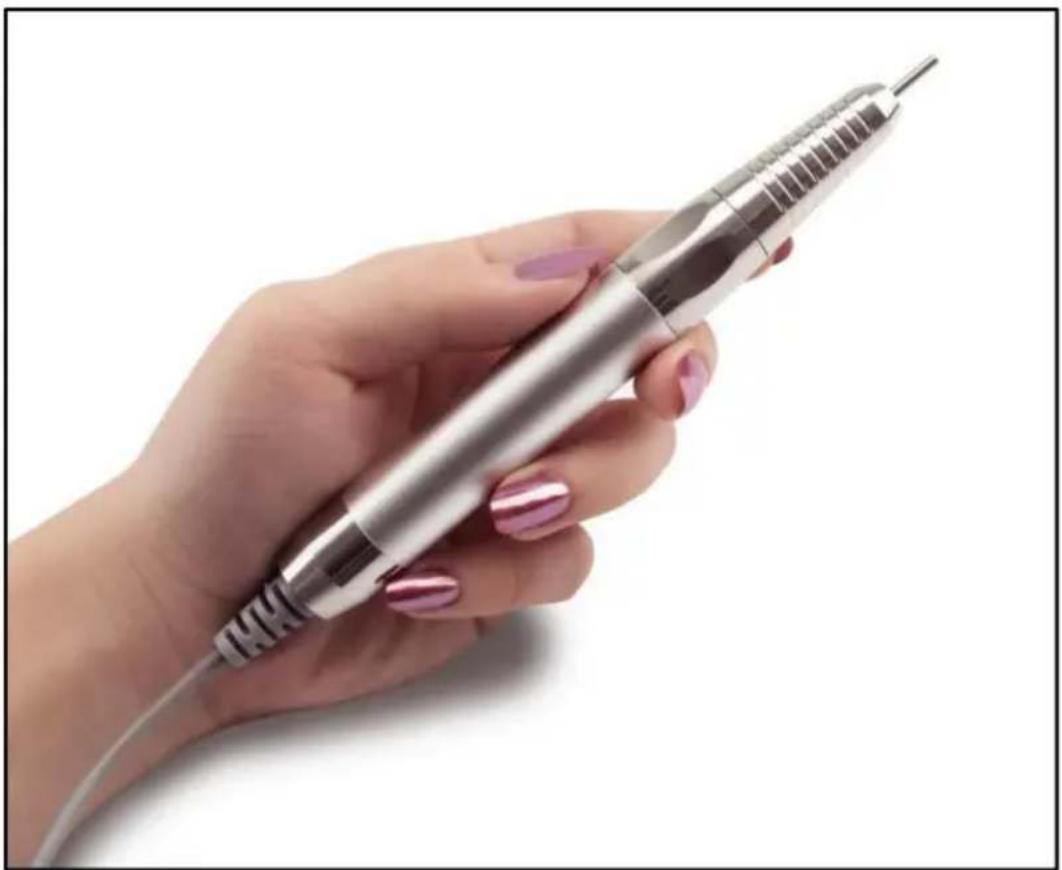

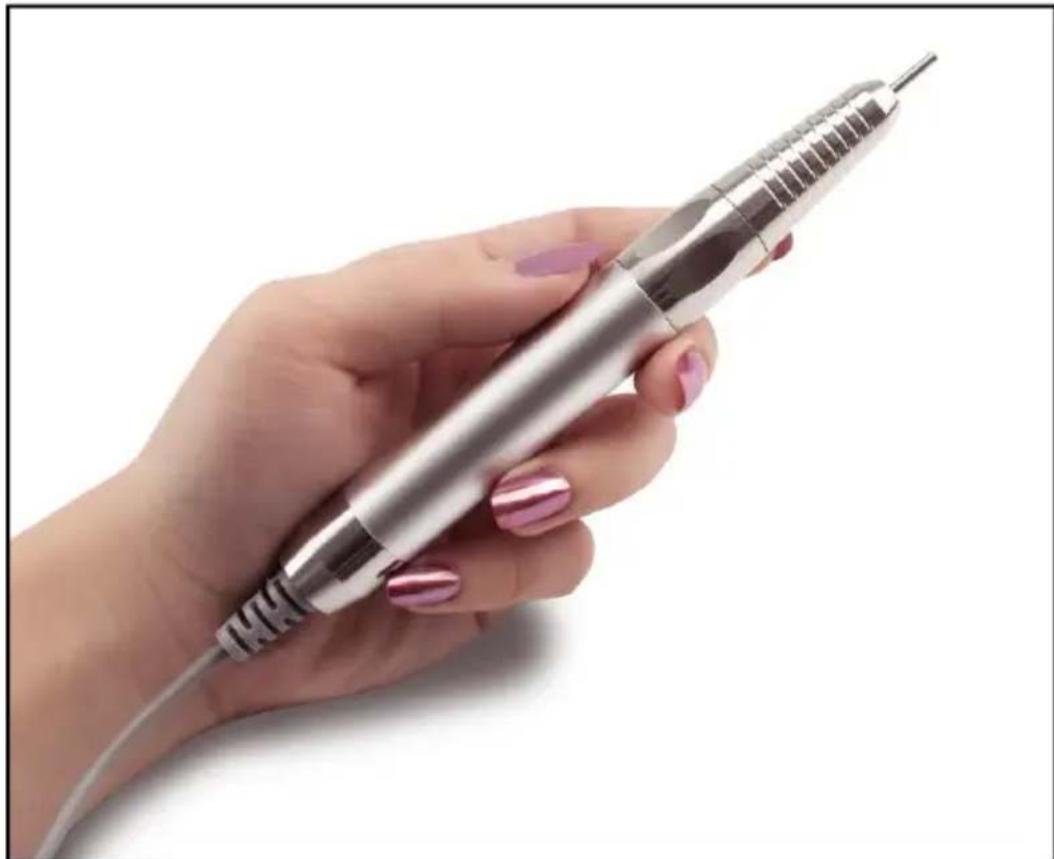

HANDPIECE OPERATION

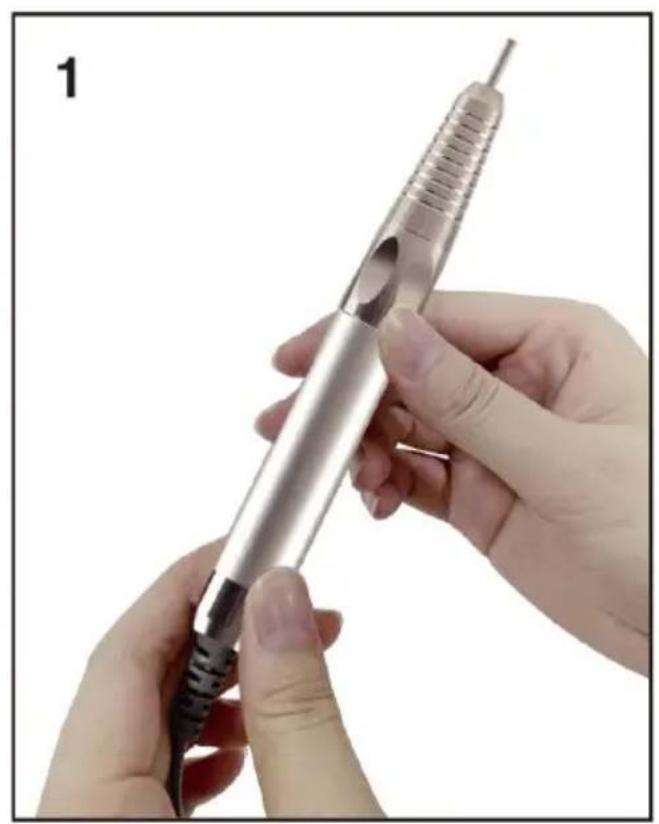

1. Holding handpiece in hand and turning the set ring toward "" (clockwise) direction until you hear the "click".

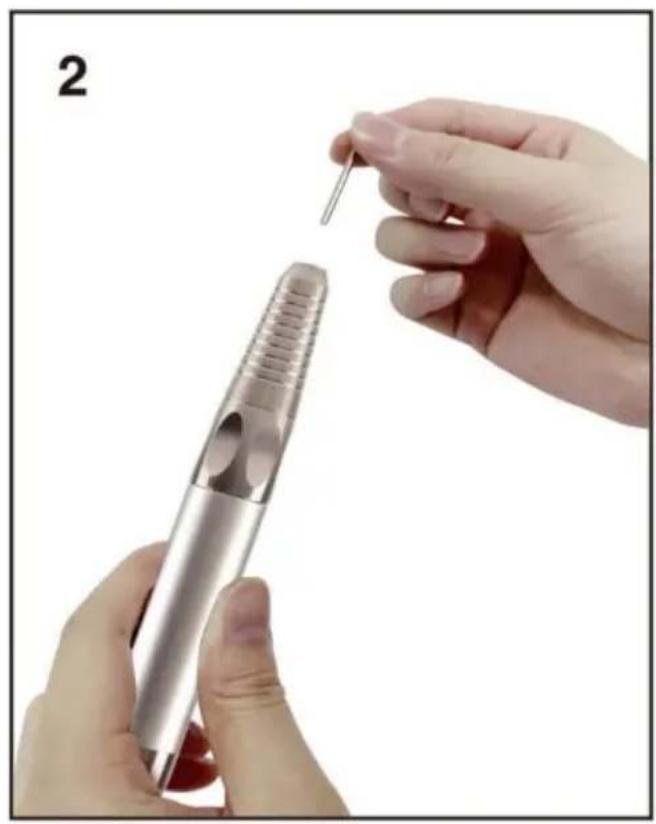

2. Take out the test bar.

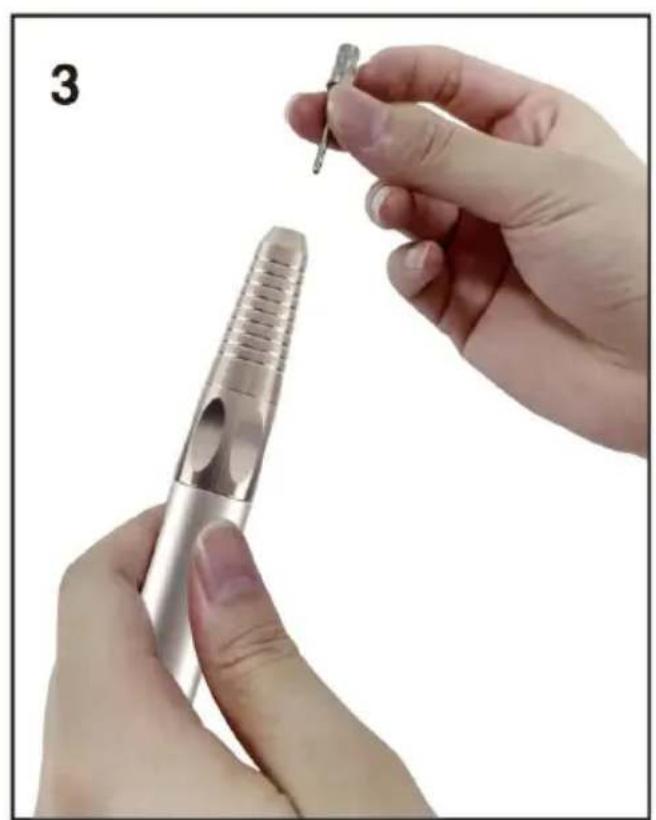

3. Insert your desired bit into the bottom of the collet.

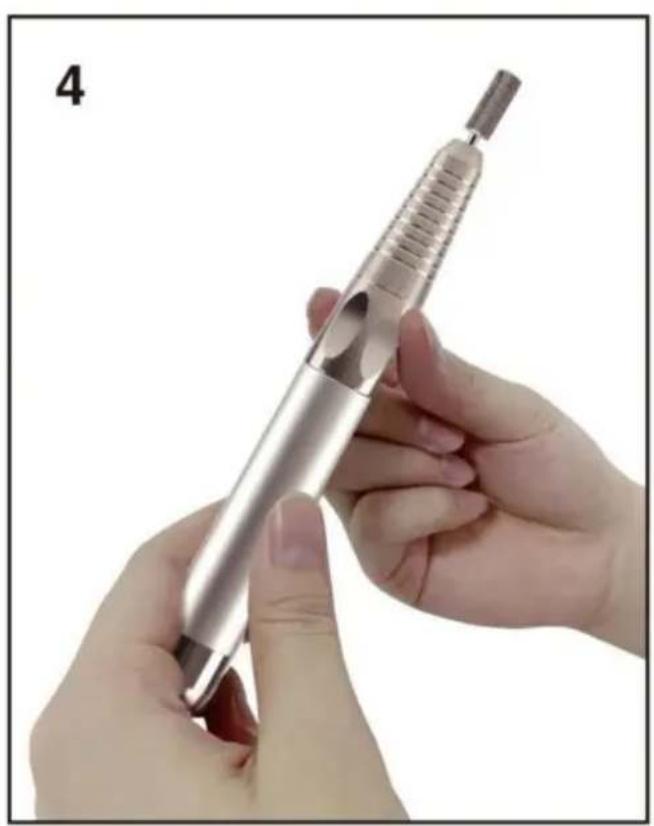

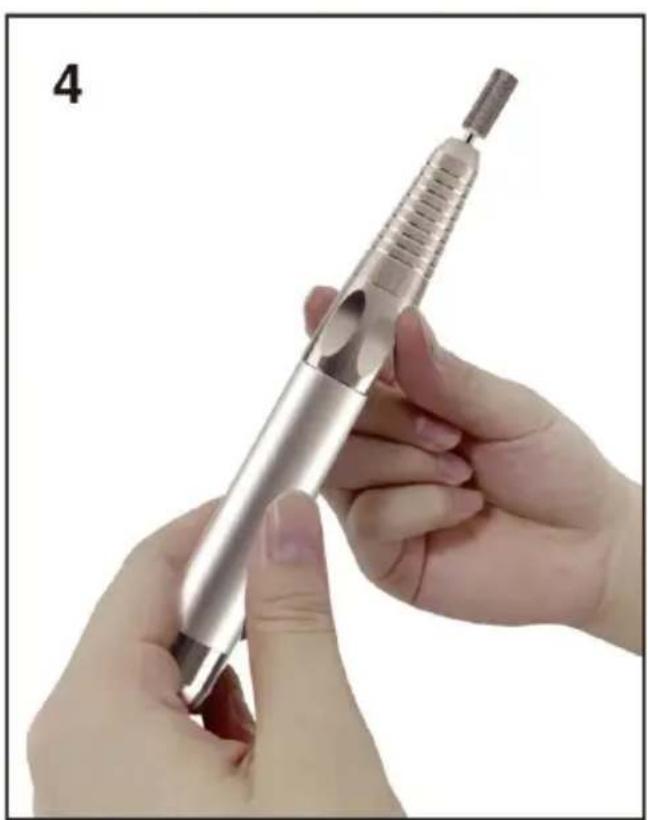

4. Turning back the set ring to "🔒" (anti-clockwise) direction until the collet is secured.

Attention: Please note that there is a lock icon on the proc follow the instructions.

CLEANING AND STORAGE

1. If the machine is not to be used for a long period of time, clean and cover it and store it in a dry and safe place.
2. Wipe with a soft, dry cloth. Be sure to keep the product dry.
3. Please keep accessories and products together.

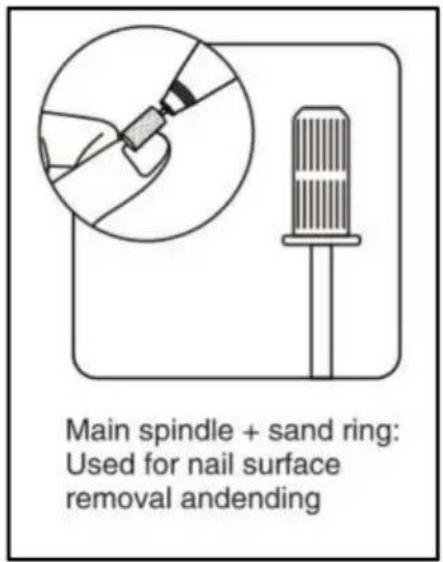

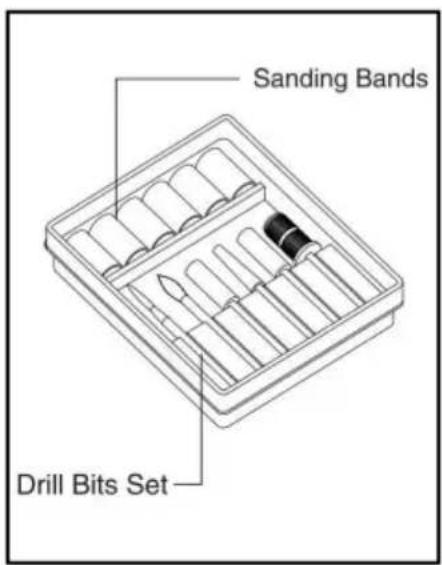

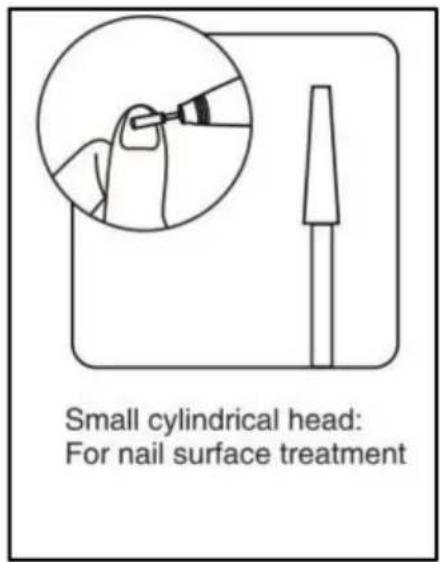

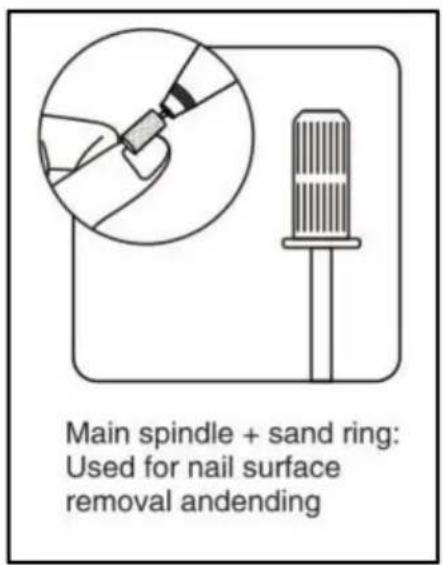

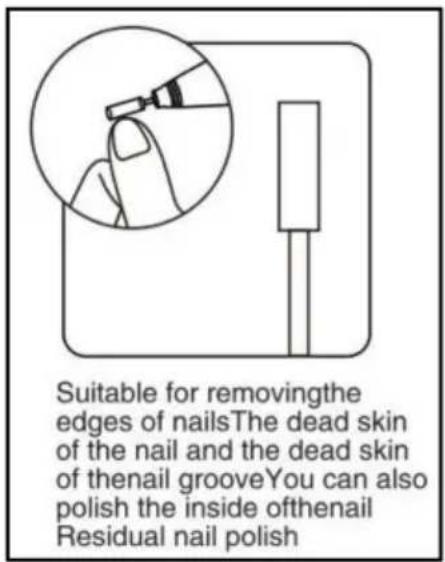

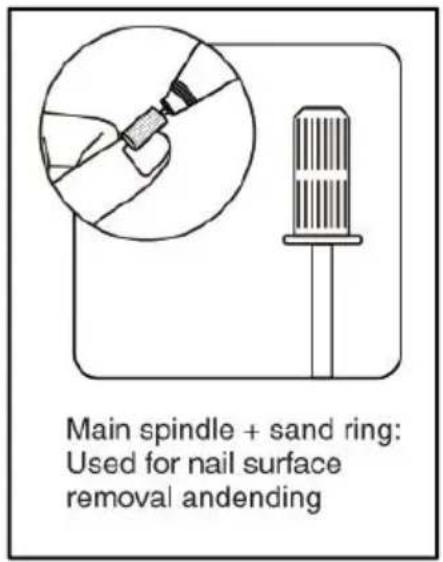

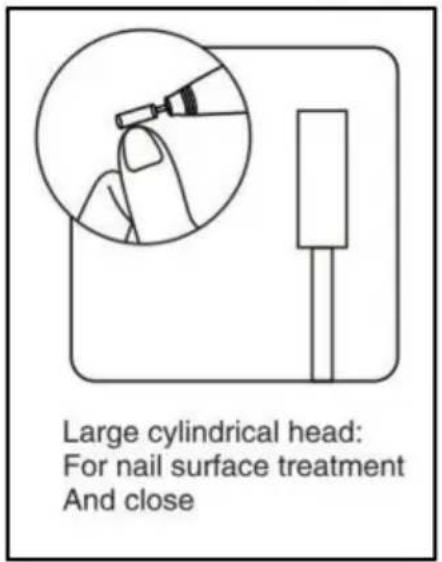

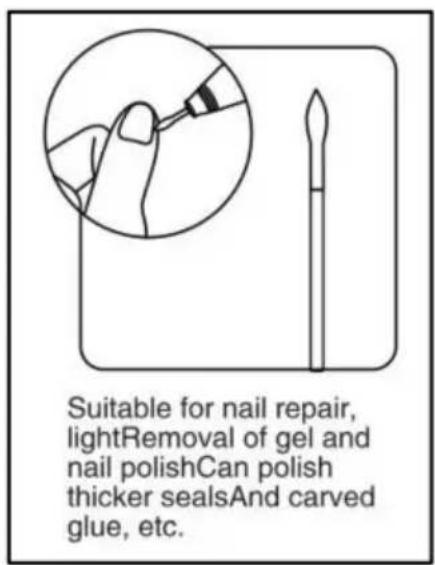

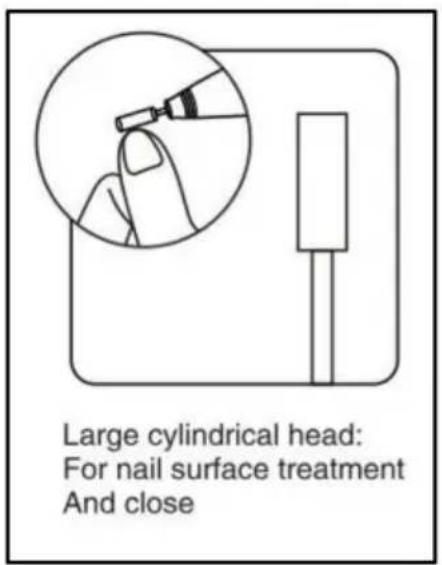

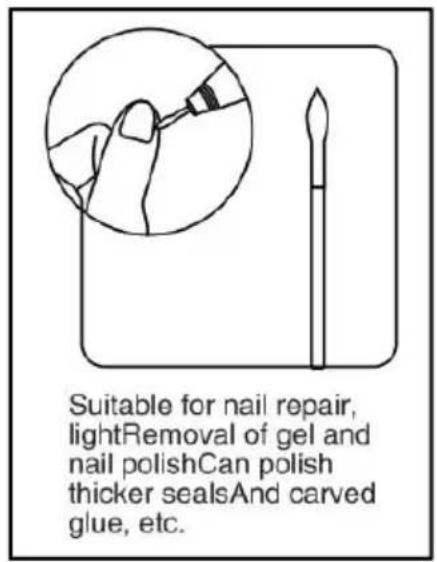

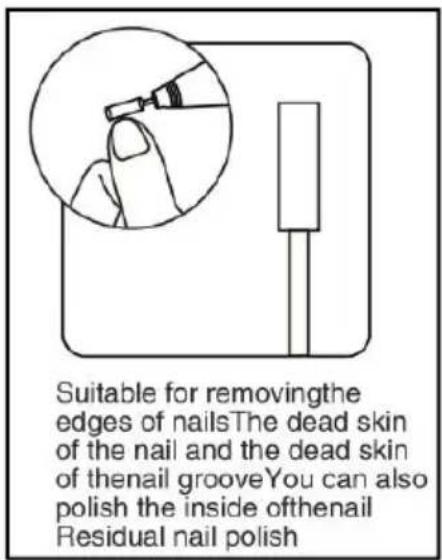

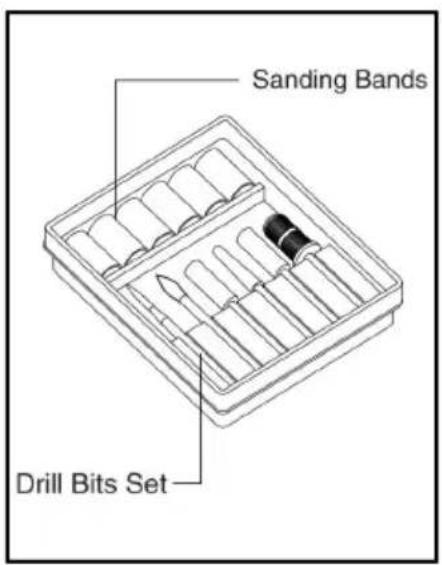

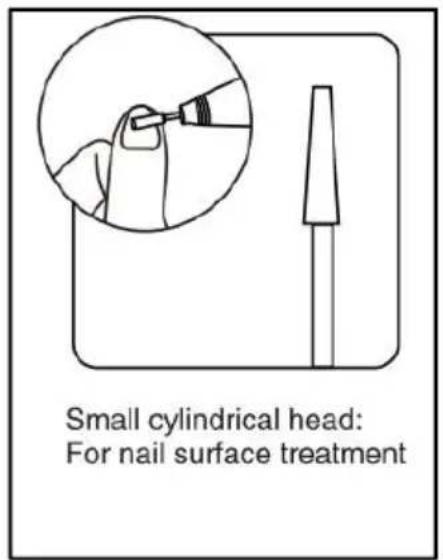

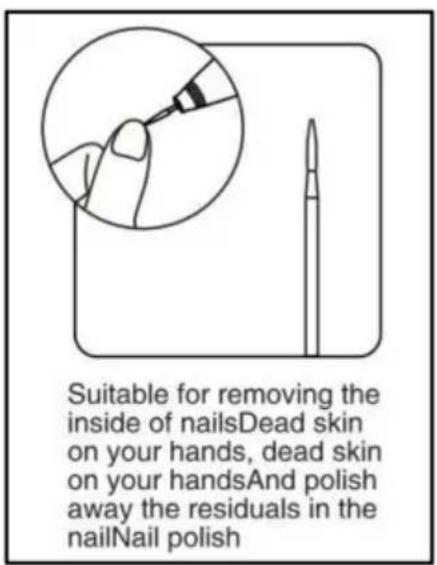

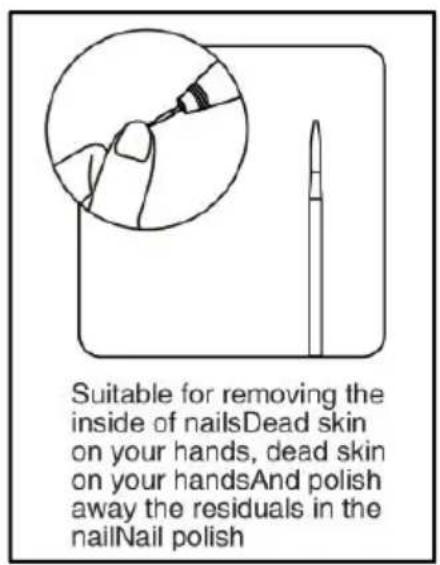

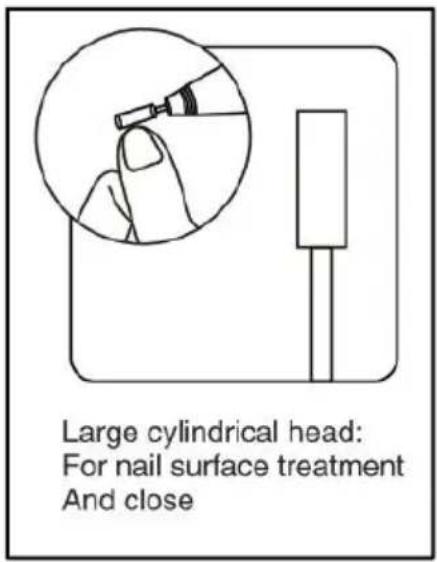

INTRODUCTION TO GRINDING HEAD

ERROR CODE

Problems Solution
E1: The handle is blocked	1. The handle is in the unlocked state2. The bearing is rusty and stuck or rotate smoothly.3. The motor bearings do not rotate4. PCB circuit failure.
E2: Low battery prompt	If the battery loses power, it will alarm needs to be charged before it can be
E3: No handle connected	1. The handle wire is disconnected.2. The handle socket is not connected motherboard.3. PCB circuit failure.
E4: Motor phase loss	1. The handle wire is broken and one of wires is blocked.2. The connection between the handle plug and the host socket is too loose and the contact is poor.3. There is poor contact between the motor and the handle cord plug.4. Connect the carbon brush handle.5. PCB circuit failure.
E5: PCB power circuit failure	Damage to related components of the boost circuit causing abnormal 24V power supply
E6: Phase voltage sampling circuit fault	Possible reasons: Welding of the phase sampling resistor on the motherboard or MC
