USER MANUAL UV-1003 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

RECHARGEABLE NAIL DRILL

MODEL: UV-1003

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: UV-1003

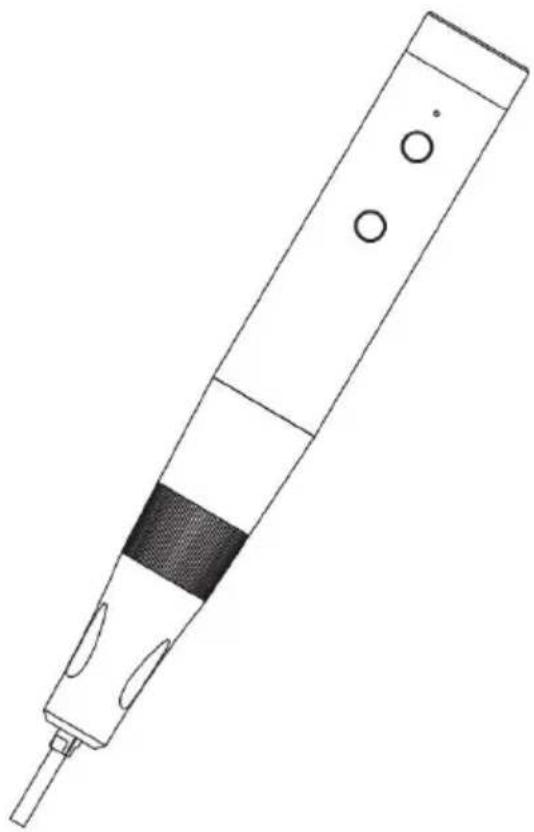

Line drawing of a handheld electronic device with a pointed tip and three circular ports (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read ins manual carefully.
	CORRECT DISPOSALThis product is subject to the provision of European Dire 2012/19/EC. The symbol showing a wheelie bin crossed t indicates that the product requires separate refuse collectio the European Union. This applies to the product and all accessories marked with this symbol. Products marked as may not be discarded with normal domestic waste, but m taken to a collection point for recycling electrical and elec devices
	To minimize hazards to health and the environment at th this product's life , laws dealing with Waste Electrical a Electronic Equipment (WEEE) and The Waste Battery Dire require you to dispose of this product at a suitable colle facility where it will be sent in order to remove the batte for appropriate recycling.Please contact your local authoritie more details on recycling and safe disposal of these in y
CE UK CA	Compliance is a EC & UK security certification.
	Move away from any potential source of ignition immediat the battery leaks or emits an unusual odor. When you n unusual smell, heat, discoloration, deformation, or any othe unusual situations in the process of using, charging, or s batteries, you should immediately remove them from the c or charger and stop using them.

FCC INFORMATION

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate product.

Note: This product has been tested and found to comply with the limits for B digital device pursuant to Part 15 of the FCC Rules, These limits are des provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

IMPORTANT SAFEGUARDS

Thank you for using this product. In order to make sure that you can opera machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please be sure to read the precautions and saf rules on this page to ensure your safe use.

This manual will outline safety warnings and precautions, operating, maintenance

and cleaning. The warnings and instructions reviewed in this manual cannot call all possible conditions and situations that may occur. Caution and common se are not built into this product, since we believe that the uses will comply wi codes. If you have any problems, please call us. Do not try to fix the prob yourself, or it will cause injury or property damage.

Please read ALL the instructions before using your machine.

1. If the battery is low, please charge it in time.
2. Do not let children, minors, and pets get close to or touch the machine.
3. Do not immerse the appliance in water or any other liquid.
4. Do not disassemble the product.
5. Using any accessories or attachments that are not provided or recommend by the manufacturer may cause injury.
6. Please start to use after the collect is fixed well.
7. Do not leave the product hanging over the edge of table or counter or into contact with any hot surfaces.
8. Do not place the product on or near hot air, electric burners or heaters.
9. Do not apply this unit to any other purposes than the indicated usage.
10. KEEP IT OUT OF CHILDREN'S REACH.
11. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.
12. Please clean it regularly, at least once a month.
13. This appliance is not intended for use by persons (including children) with educed physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safe.
14. When twist the lock chuck in using, the power of the main motor will be immediately to protect the machine. (The motor is easy to be damaged and of the motor will be reduced in this way, so please be cautious in operation).
15. If the nail drill machine is re-started, the speed control dial need to be to the speed "0", and the power supply will be restarted.
16. Please start to use after the collect is fixed well.
17. Please stop the machine once any abnormal movement/noise is notic during operation.

18. Please adjust the speed gradually, not abruptly.

19. Please do not touch any rotating part when the machine is working.

20. Please stop the machine at first to change the direction.
21. Please do not place a cloth or anything else on the ventilation slides of controller, and keep the dust away from it.
22. Please keep the plug out from the power supply after stop the machine.

BEFORE USING

1. Before using the appliance for the first time, peel off any promotional and packaging materials and check that the product is clean and dust-free.
2. Please dispose of all plastic bags carefully and keep them away from chi and pets.
3. Check all components provided according to the list in this manual.

PRODUCT PARAMETERS

Model	UV-1003
Charging port	Type-C
Power In put	DC5V 1A
Rotating speed	0-30000RPM

Note: Please use the correct power source voltage.

TIPS

1. Product can go into service after 4 hours of charging. (When used for the time.)
2. This device is equipped with a security protection system. Hand piece will working when the overload protection function is started to avoid overheat due improper operation. Just turn off the power and restart the machine for continue use.
3. The slight burning smell from the handle motor is normal due to the head dissipation.
4. When replacing the grinding head of the grinding handle, clean the dust a the socket before replacing it.

Prevent dust from entering the handle and causing noise.

1. The internal parts of the handle are relatively precise, so be sure to hand with care to avoid bumps.
2. If you need to use it with water during pre-processing, the water should exceed the grinding head to avoid the height of the grinding rod. At high spe water flows back into the handle, causing parts to rust. Correct operation car greatly extend the grinding time

The service life of the machine!

1. Please cut off the power before replacing the grinding head, and be sure insert the grinding head into the bottom of the chuck. If you do not insert the grinding head into the bottom of the chuck, the grinding head may easily fail due to vibration, which will bring risks.
2. Standard grinding heads should be used, and bent, deformed, or broken grinding heads must not be used.
3. In working condition, when the handle is not in use, the grinding head sh remain clamped.

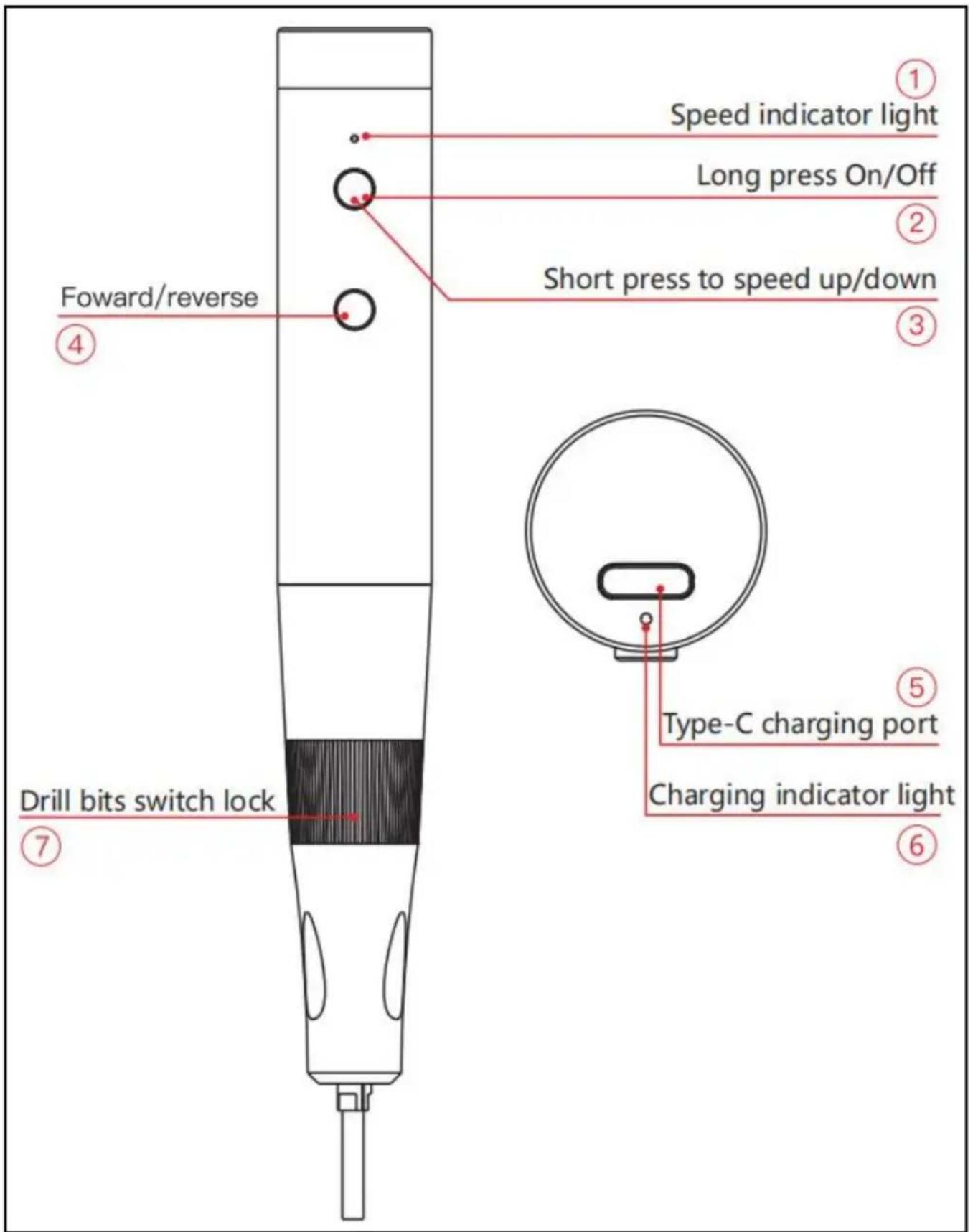

COMPOSITIONS

① Speed indicator light:

• Green light: Rotate at low speed for pre-sanding, removing dead skin, and polishing nails.
• Blue light: Medium speed rotation, can be used to polish and remove single-color nail polish.
• Red light: Rotate at high speed to polish and remove crystal nail polish.

② Long press on/off.
③ Single press to accelerate/decelerate.
④ Forward/Reverse: Single press the button to rotate forward/reverse independently.
⑤ Type-C polishing pen charging port.
⑥ Charging indicator light:

• Red light flashes - low battery. Red dot stays on - charging
• Blue light is always on - in use Green light is always on - fully charged
  ⑦ Switch lock: Turn left to unlock, turn right to close the lock. When replace grinding head, please insert the grinding head into the bottom of the hole.

Speed indicator light Long press On/Off Short press to speed up/down Foward/reverse Drill bits switch lock Type-C charging port Charging indicator light

INTRODUCTION TO GRINDING HEAD

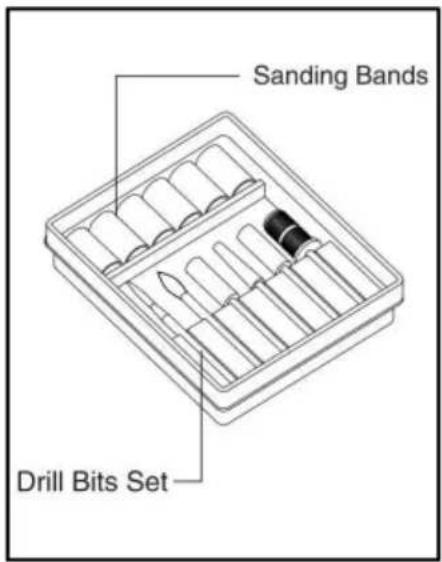

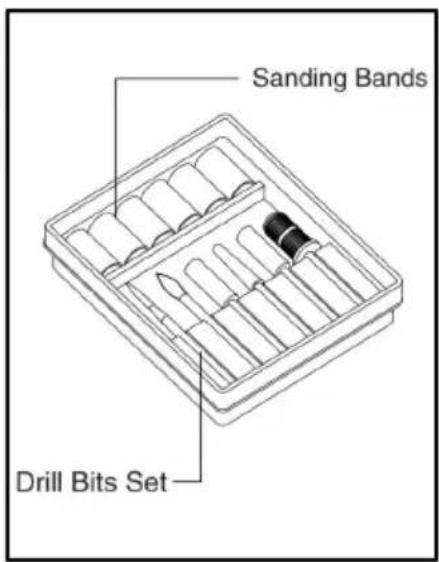

Sanding Bands Drill Bits Set

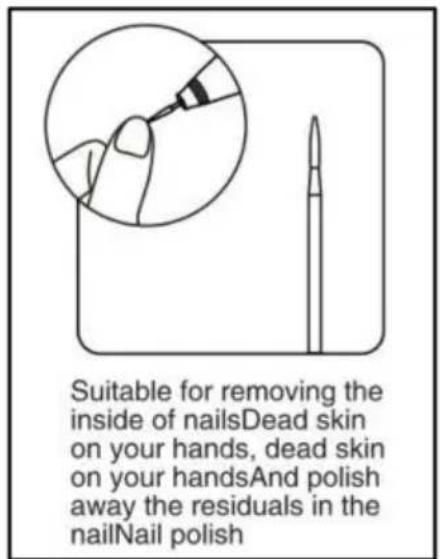

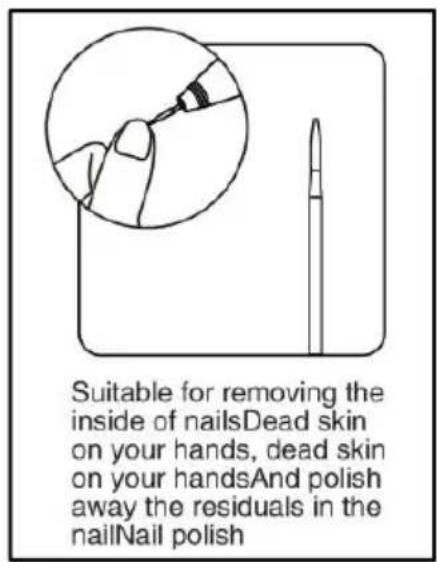

Suitable for removing the inside of nailsDead skin on your hands, dead skin on your handsAnd polish away the residuals in the nailNail polish

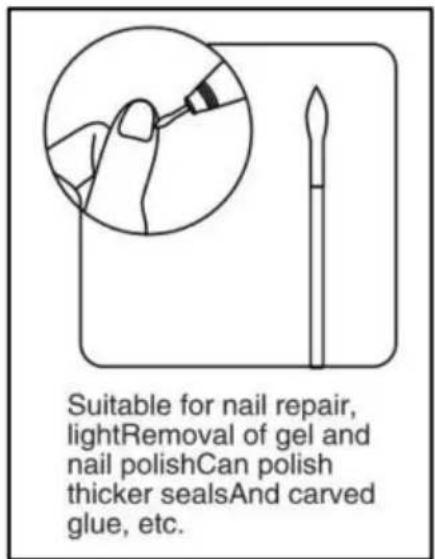

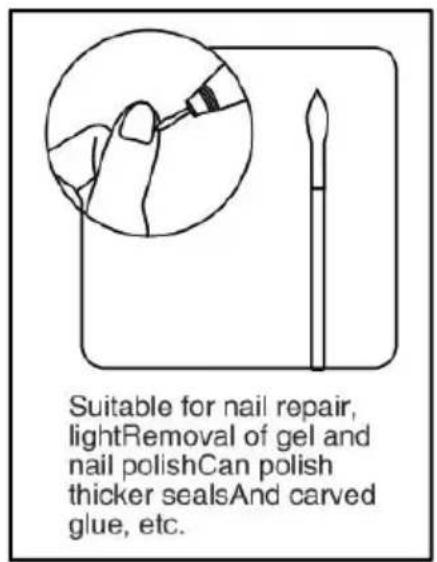

Suitable for nail repair, lightRemoval of gel and nail polishCan polish thicker sealsAnd carved glue, etc.

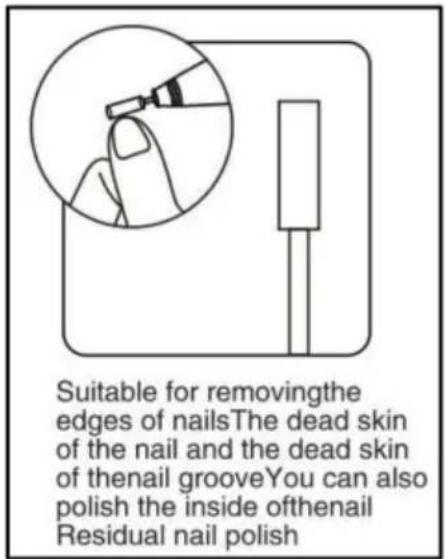

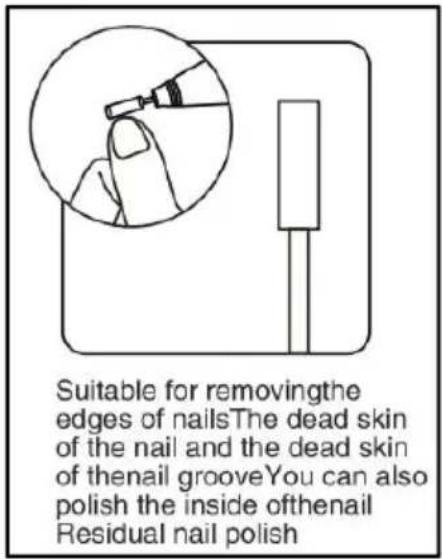

Suitable for removing the edges of nails The dead skin of the nail and the dead skin of thenail groove You can also polish the inside of thenail Residual nail polish

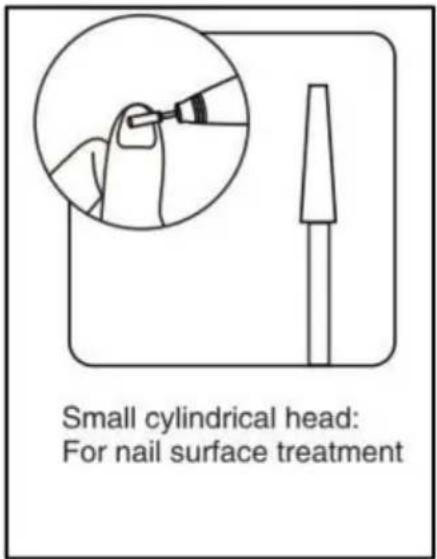

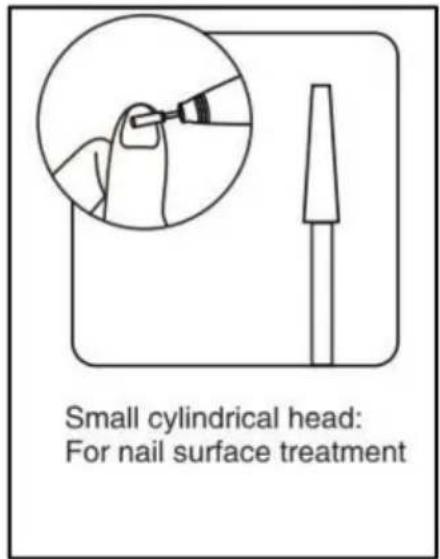

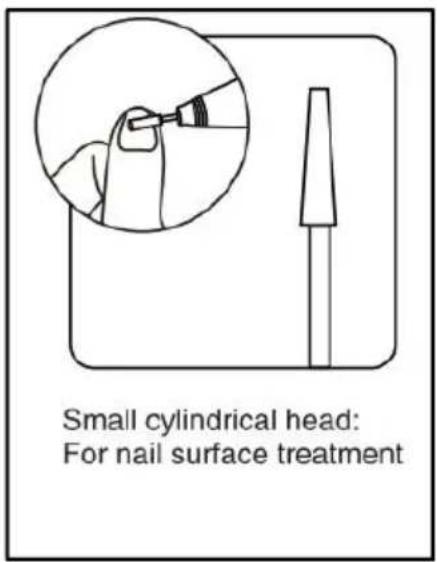

Small cylindrical head: For nail surface treatment

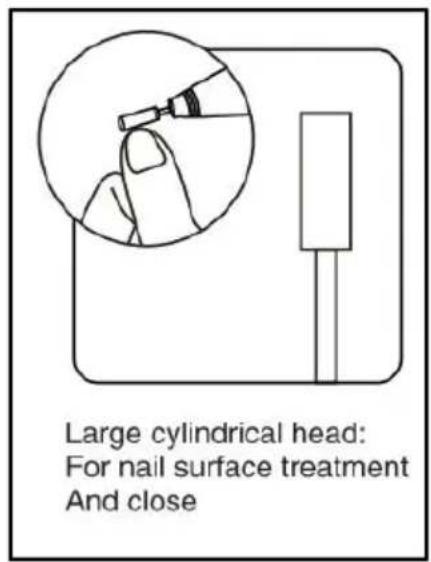

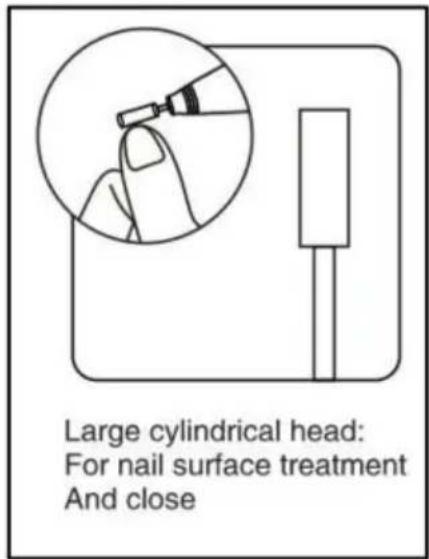

Large cylindrical head: For nail surface treatment And close

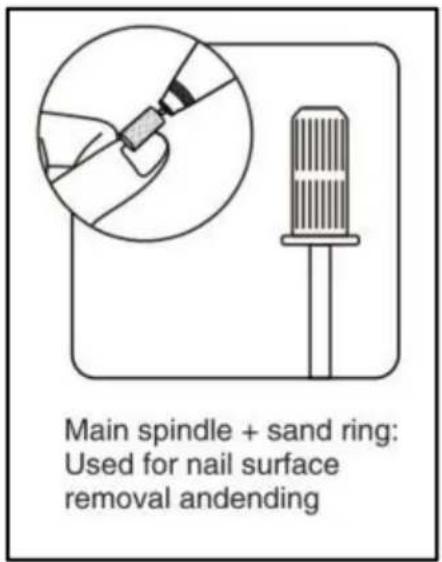

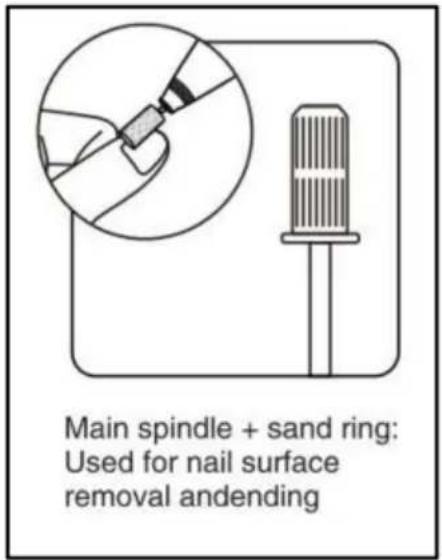

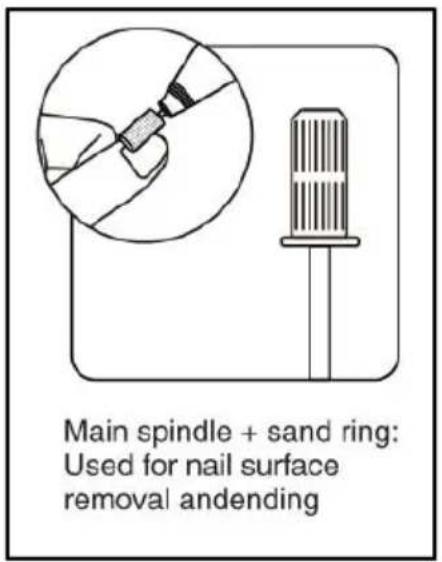

Main spindle + sand ring: Used for nail surface removal andending

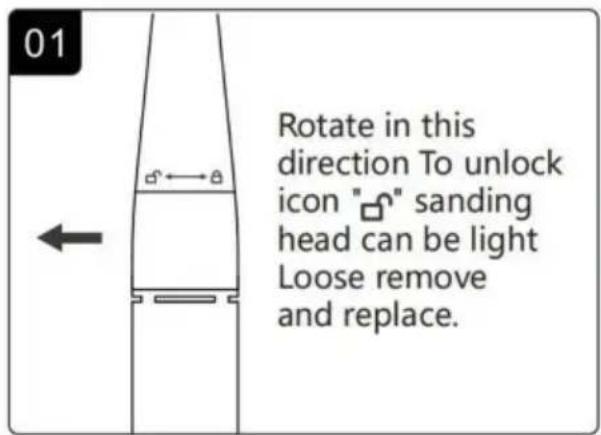

01 Rotate in this direction To unlock icon "☐" sanding head can be light Loose remove and replace.

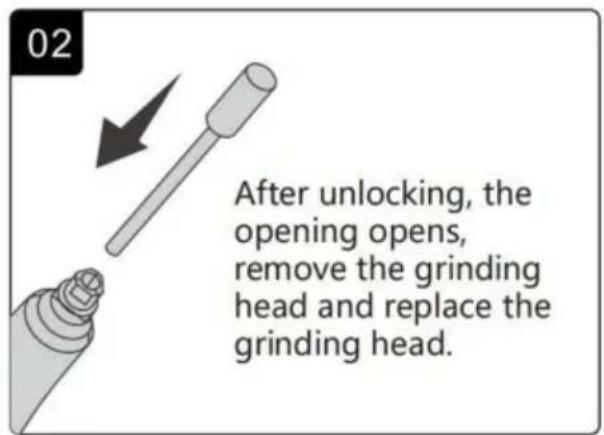

02 After unlocking, the opening opens, remove the grinding head and replace the grinding head.

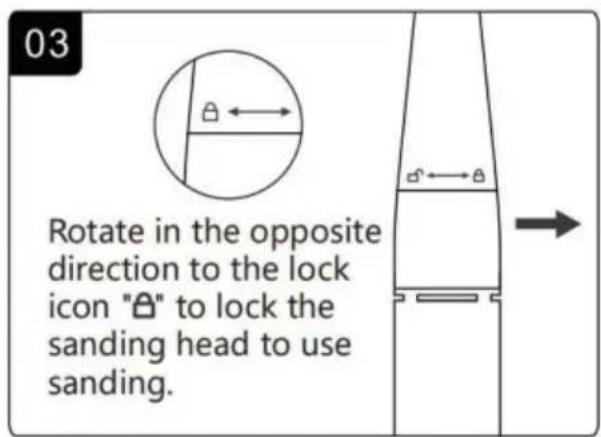

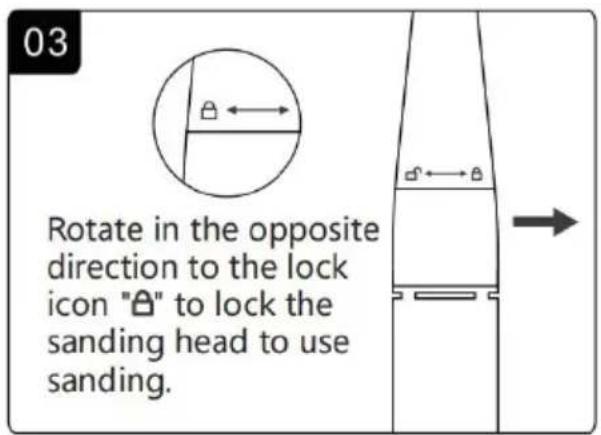

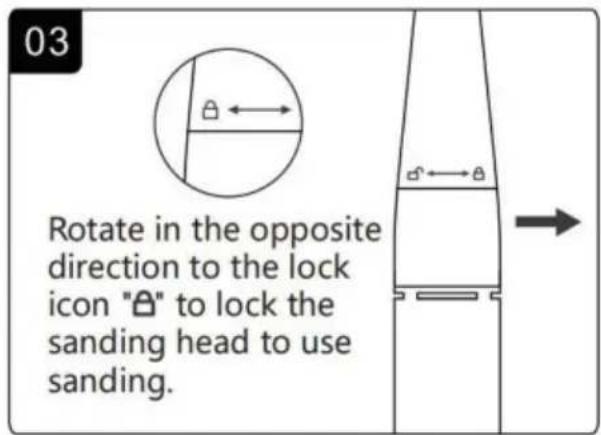

03 Rotate in the opposite direction to the lock icon "A" to lock the sanding head to use sanding.

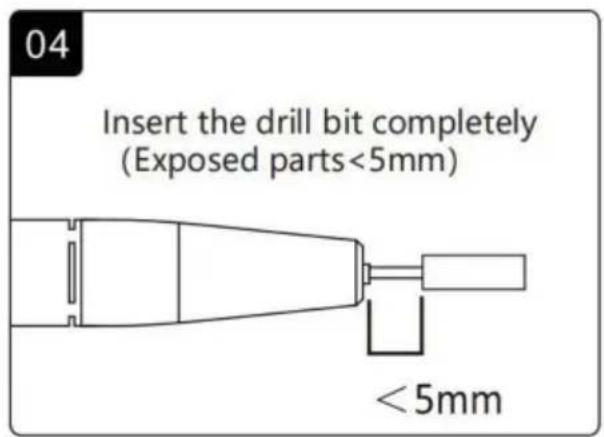

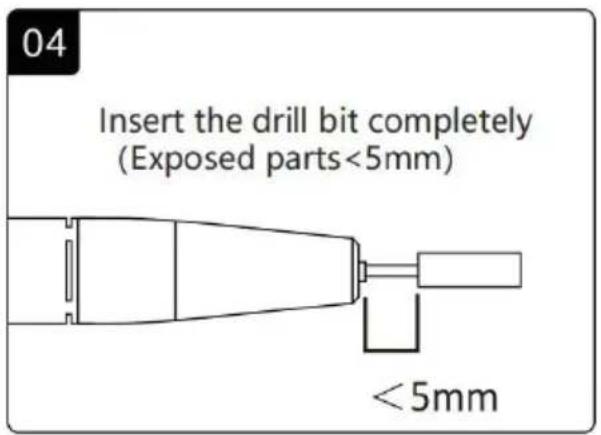

04 Insert the drill bit completely (Exposed parts<5mm) <5mm

Note: When rotating the switch lock left and right, a grinding head o thimble must be inserted, otherwise it will cause the rotation to be to which is also normal.

Attention: Please note that there is a lock icon on the product and the instructions.

CLEANING AND STORAGE

1. If the machine is not to be used for a long period of time, Remove power and cover it and store it in a dry and safe place.
2. Wipe with a soft, dry cloth. Be sure to keep the product dry
3. Please keep accessories and products together.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REPU

YH CONSULTING LIMITED.

G/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
