Product Type	Manicure and Pedicure Set
Brand	Vevor
Model	SN358S
Rotation Speed	Variable from 1000 to 5000 rpm (display 01 to 05)
Rotation Direction	Forward (F) and reverse (R) selectable by button
Main Functions	Variable speed control, pause/play function, direction reversal
Handpiece	With self-tightening clamping collet for bits
Power Supply	AC adapter (not detailed in the manual, external power supply likely)
Dimensions (estimated)	Approximately 20 x 15 x 10 cm
Weight (estimated)	Approximately 1 kg
Included Accessories	Test bar, drilling bits (nail drill bits)
Safety	Stop by pause button, recommended use out of reach of children, do not use near water
Maintenance and Cleaning	Clean the handpiece regularly with a dry cloth, avoid shocks
Spare Parts and Repairability	Replacement bits and collet available; technical support via vevor.com/support
General Information	128-page user manual (multilingual); electronic warranty available at vevor.com/support

Frequently Asked Questions - SN358S Vevor

How to change the bit of the handpiece?

Turn the adjustment ring clockwise until it clicks, remove the old bit, insert the new bit, then tighten the ring counterclockwise until it is secure.

What is the maximum speed of the device?

The maximum speed is 5000 rpm corresponding to setting 05 on the control knob.

How to reverse the rotation direction?

Press the F/R button once to switch from forward (F) to reverse (R). Press again to return to forward.

What to do if the handpiece does not rotate?

First check that the device is on and the speed is not set to 0. Make sure the bit is properly inserted and the collet is tightened. If the problem persists, contact technical support.

Can I use this device on natural nails?

Yes, but with caution. Use suitable bits and a low speed (01-02) to avoid damaging the nail. It is recommended to test on a similar surface.

How to clean the handpiece?

Use a dry, soft cloth to wipe the exterior. Never immerse the handpiece in water. For the collet, you can disassemble it and clean it with a fine brush.

Is the AC adapter included in the package?

The manual does not specify if the adapter is included. Usually, Vevor models include the adapter. Check the package contents or contact the seller.

How to adjust the rotation speed?

Use the variable speed control knob to select a level from 01 (1000 rpm) to 05 (5000 rpm). Press the pause/play button to start or stop rotation.

What does the indicator light on the device mean?

The light probably turns on when the device is powered on and running. Refer to the manual for exact meanings (color, flashing).

Where to find the warranty certificate?

The electronic warranty certificate is available at vevor.com/support. You may need to provide proof of purchase.

USER MANUAL SN358S Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

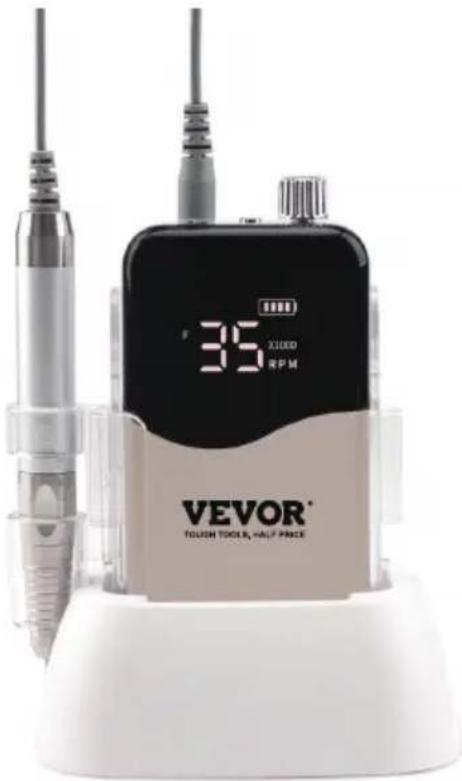

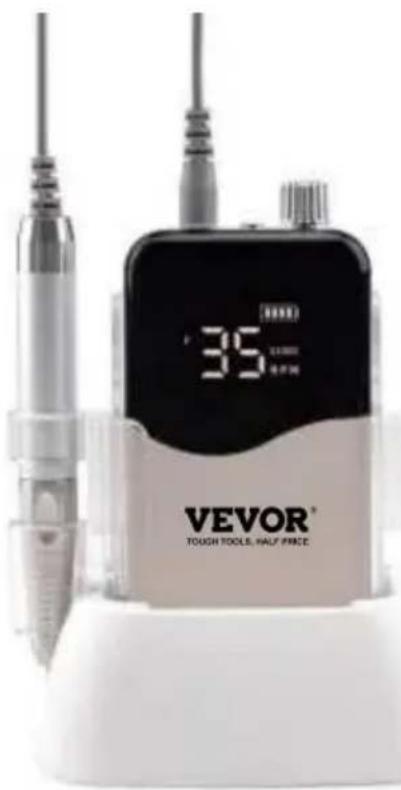

RECHARGEABLE NAIL DRILL

MODEL: SN358S

We continue to be committed to provide you tools with competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the top brands, and does not necessarily mean to cover all categories of tools offered by us. We are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL: SN358S

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instruction manual carefully.
	CORRECT DISPOSALThis product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices
	To minimize hazards to health and the environment at the end product's life , laws dealing with Waste Electrical and Electron Equipment (WEEE) and The Waste Battery Directive require you dispose of this product at a suitable collection facility where it sent in order to remove the batteries and for appropriate recycling.Please contact your local authorities for more details or recycling and safe disposal of these in your area.
	Compliance is a EC & UK security certification.
	Move away from any potential source of ignition immediate the battery leaks or emits an unusual odor. When you unusual smell, heat, discoloration, deformation, or any other unusual situations in the process of using, charging, or batteries, you should immediately remove them from the or charger and stop using them.

FCC INFORMATION

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference. 2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses, and can radiate radio frequency energy. If it is installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and the receiver.
• Connect the product to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance. The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction.

IMPORTANT SAFEGUARDS

Thank you for using this product. To ensure that you can operate the machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please be sure to read the precautions and rules on this page to ensure your safe use.

This manual will outline safety warnings and precautions, operating, maintenance, and cleaning. The warnings and instructions reviewed in this manual cover all possible conditions and situations that may occur. Caution and common issues are not built into this product, since we believe that the users will come to codes. If you have any problems, please call us. Do not try to fix their own codes. If you have any problems, please call us. Do not try to fix their own codes, or it will cause injury or property damage.

Please read ALL the instructions before using your machine.

1. If the battery is low, please charge it in time.
2. Do not let children, minors, and pets get close to or touch the machine.
3. Do not immerse the appliance in water or any other liquid.
4. Do not disassemble the product.
5. Using any accessories or attachments that are not provided or recommended by the manufacturer may cause injury.
6. Please start to use after the collector is fixed well.
7. Do not leave the product hanging over the edge of a table or counter, or in contact with any hot surfaces.
8. Do not place the product on or near hot air, electric burners, or heat sources.
9. Do not use this unit for any other purpose than the intended can/lean usage.
10. KEEP IT OUT OF CHILDREN'S REACH.
11. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.
12. Please clean it regularly, at least once a month.
13. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
14. When twisting the lock during use, the power of the main motor will immediately cut off to protect the machine. (The motor is easy to be damaged.)

The motor's lifespan will be reduced in this way, so please be cautious when opening.

1. If the nail drill machine is restarted, the speed control dial needs to be set to speed "0", and then the power supply will be restarted.
2. Please start to use after the collect is fixed well.
3. Please stop the machine once any abnormal movement or noise occurs during operation.
4. Please adjust the speed gradually, not abruptly.
5. Please do not touch any rotating part when the machine is working.
6. Please stop the machine first before changing the direction.
7. Please do not place a cloth or anything else on the ventilation slide controller, and keep dust away from it.
8. Please unplug the power supply after stopping the machine.

TIPS

1. The product can go into service after 4 hours of charging. (When used time.)
2. This device is equipped with a security protection system. The hand piece works when the overload protection function is started to avoid overhead improper operation. Just turn off the power and restart the machine for use.
3. The slight burning smell from the handle motor is normal due to heat dissipation.
4. When replacing the grinding head, clean the dust around the socket before replacing it.

Prevent dust from entering the handle and causing noise.

1. The internal parts of the handle are relatively precise, so handle with care to avoid bumps.
2. If you need to use it with water during pre-processing, ensure the water does not exceed the grinding head to avoid the height of the grinding rod. At high water flows back into the handle, causing parts to rust. Correct operation greatly extends the grinding time.

The service life of the machine!

1. Please cut off the power before replacing the grinding head, and be

insert the grinding head into the bottom of the chuck. If you do not insert the grinding head into the bottom of the chuck, the grinding head may ease due to vibration, which will bring risks.

1. Standard grinding heads should be used, and bent, deformed, or broken grinding heads must not be used.
2. In working condition, when the handle is not in use, the grinding head should remain clamped.

BEFORE USING

1. Before using the appliance for the first time, peel off any promotional packaging materials and check that the product is clean and dust-free.
2. Please dispose of all plastic bags carefully and keep them away from children and pets.
3. Check all components provided according to the list in this manual.

PRODUCT PARAMETERS

Model SN358S
Power adapter In put AC100-240V 50/60Hz
Power adapter Out Put DC12V 2A
Rotating speed 0-35000RPM

Note: Please use the correct power source voltage.

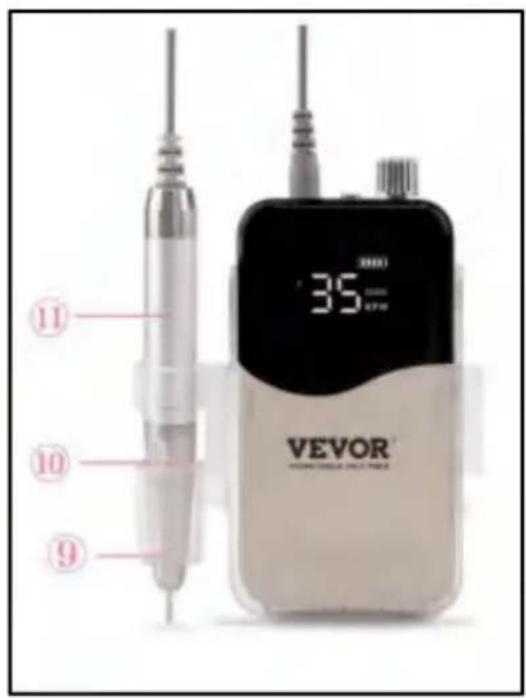

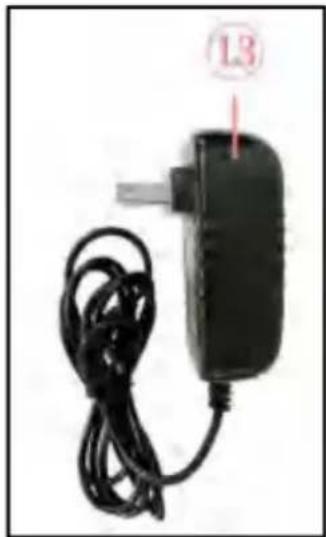

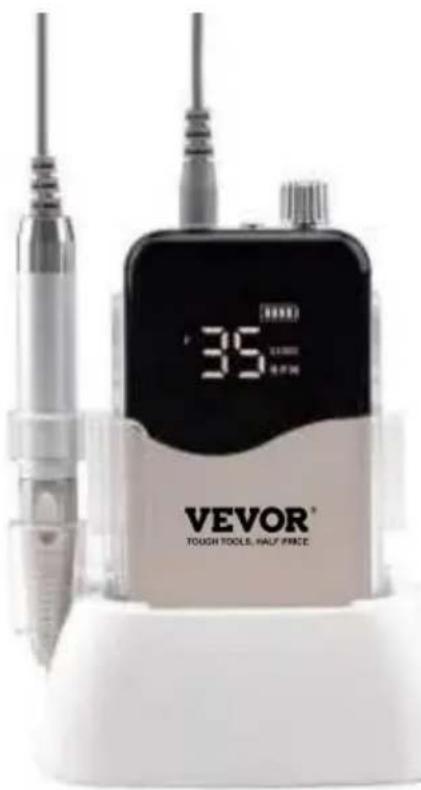

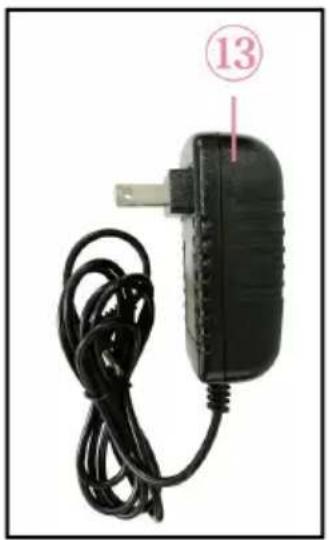

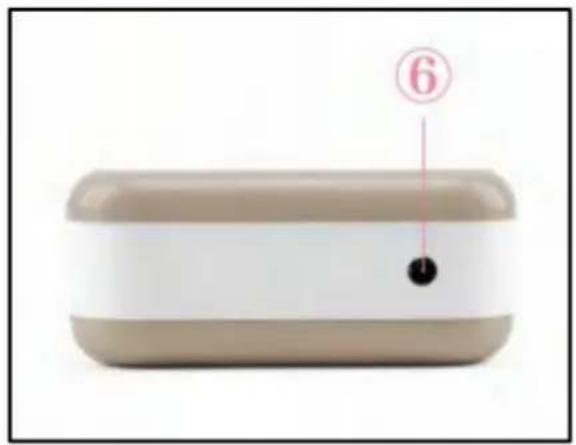

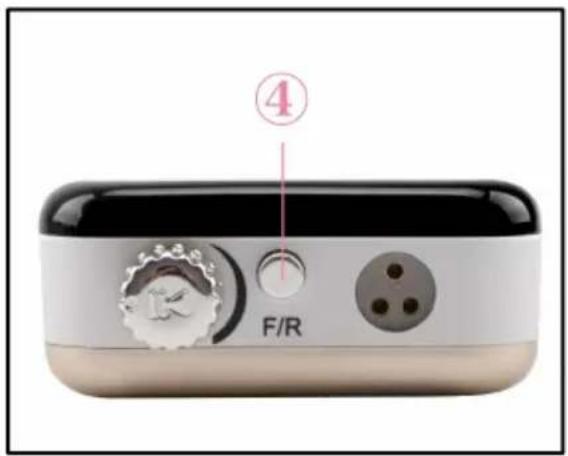

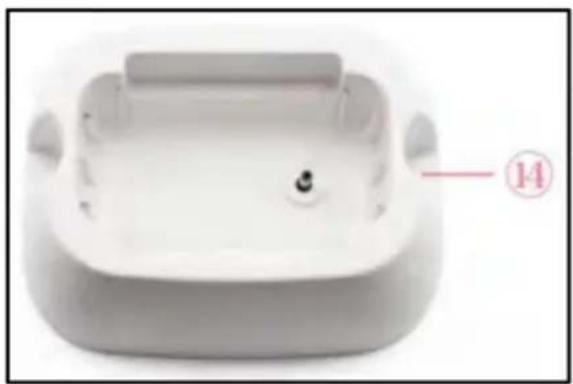

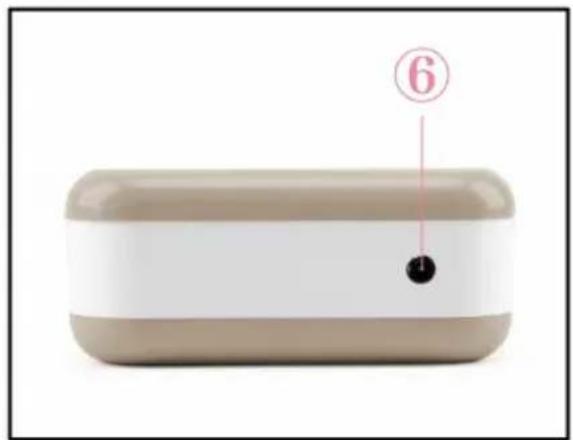

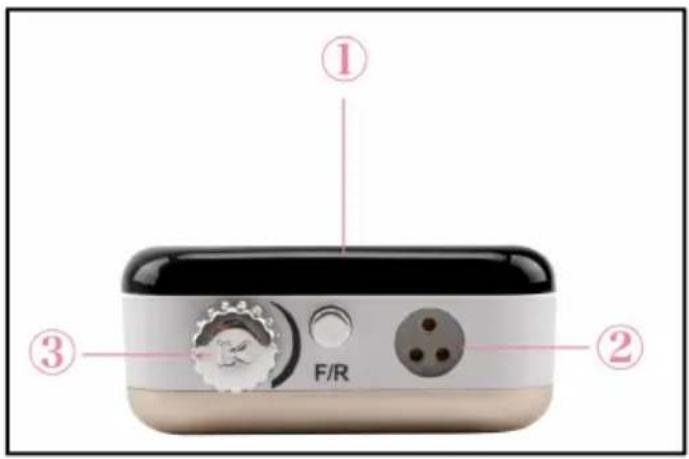

COMPOSITIONS

① Digital Display Screen ② Three Core Socket (Avoid bad contact with the DC plug) ③ Speed Control Button ④ Host and Forward/Reverse Button ⑤ Hand piece Holder ⑥ Power Supply Socket

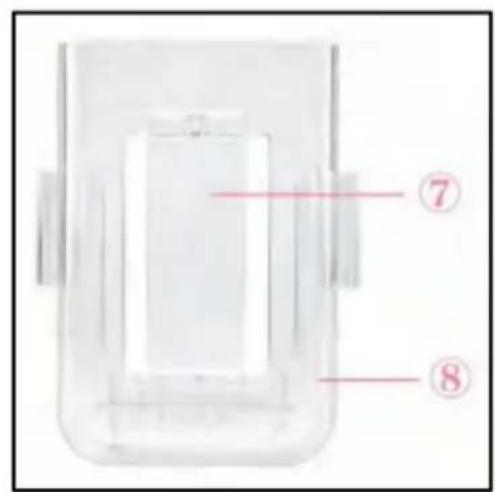

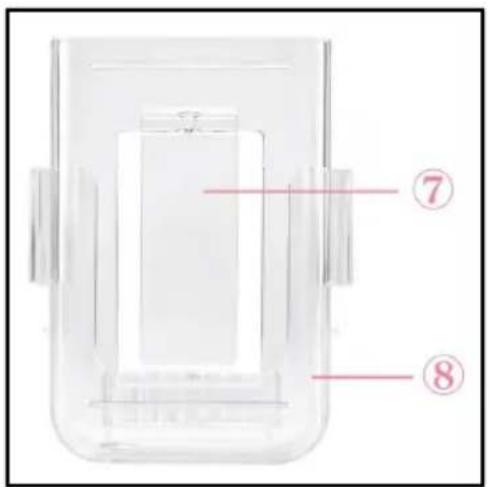

⑦ Belt Clip ⑧ Acetone Resistant Finish Control Box ⑨ Test Bar Bit ⑩ Handle Sleeve ⑪ Lock Chuck ⑫ Hand piece Base ⑬ Power Adapter ⑭ Smart Desktop Charge Base

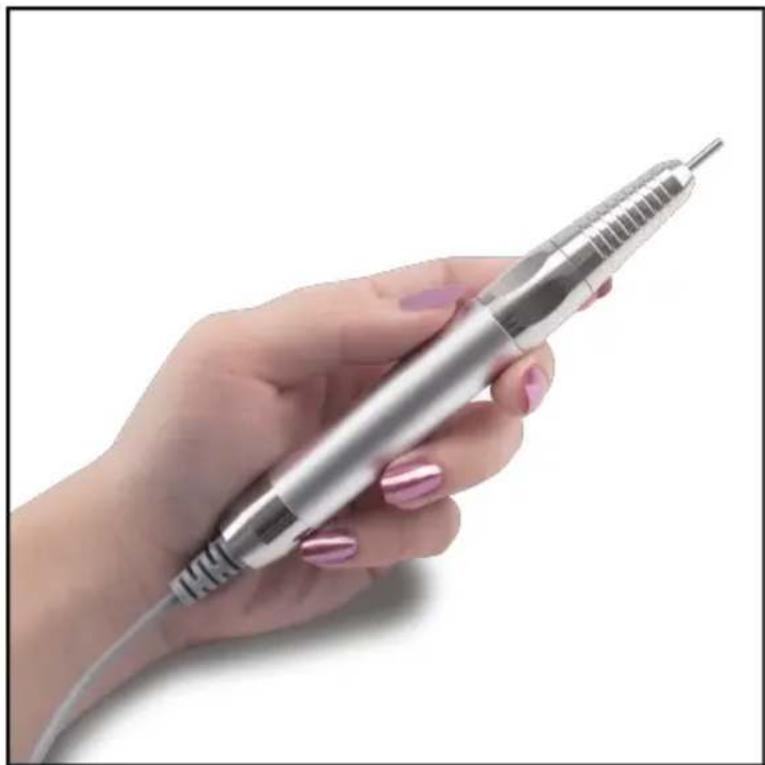

OPERATION

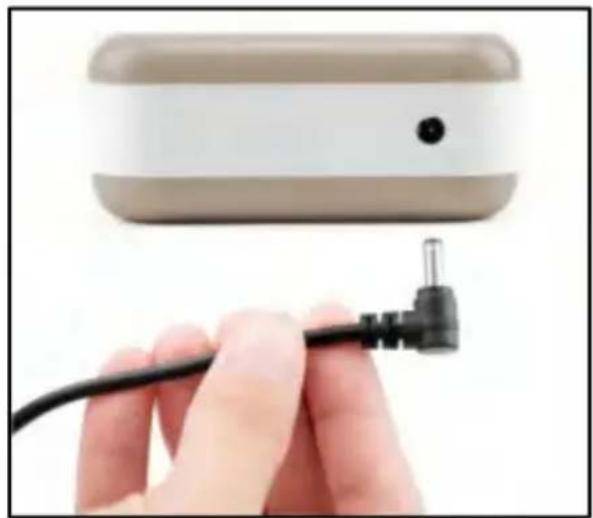

1. Connect the appropriate adapter into the power supply socket to charge the nail drill.

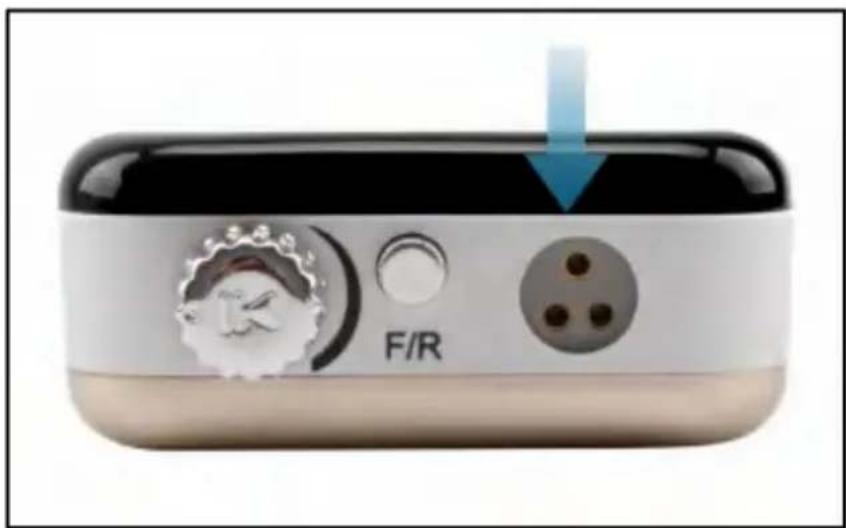

1. Then connect the hand piece into the three core socket.

1. Upload the desired nail drill bit.

4. Variable Speed Control Button with Play/Pause Function

A. Turn on the button, the speed is increased by "01" × 1000 RPM. Adjust the

Higher speed can be increased by setting to "05" x 1000 RPM.

B. Press the button to start Play/Pause function.

Press once, the machine is immediately in Pause state.

Press twice, the machine will restart in Play state.

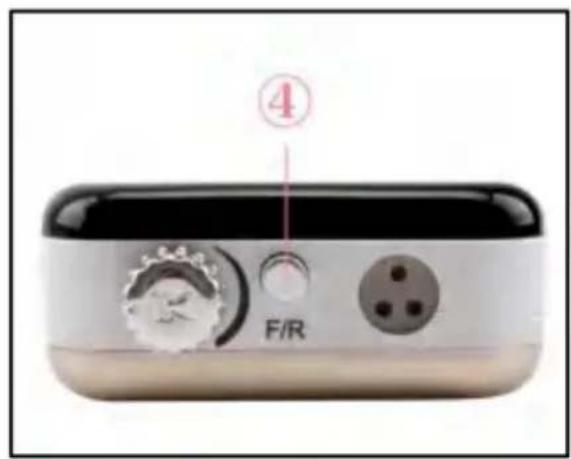

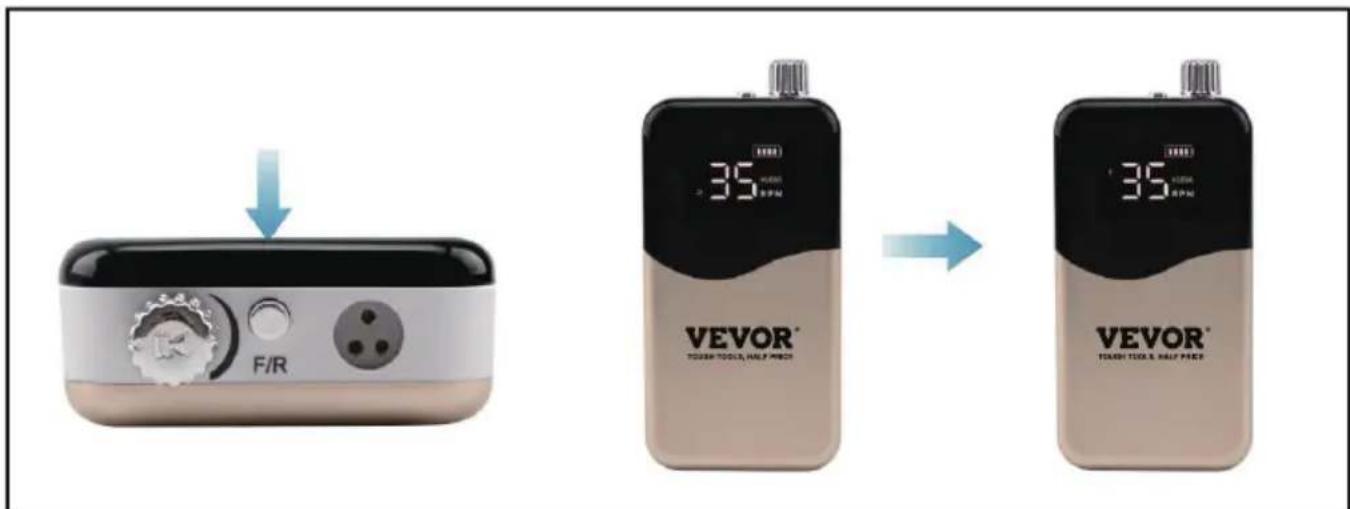

5. Forward/Reverse Button

The default direction is "F" (Forward direction). Press once to change to "R" (Reverse direction).

Press twice, then press once to change back to "F" (Forward direction).

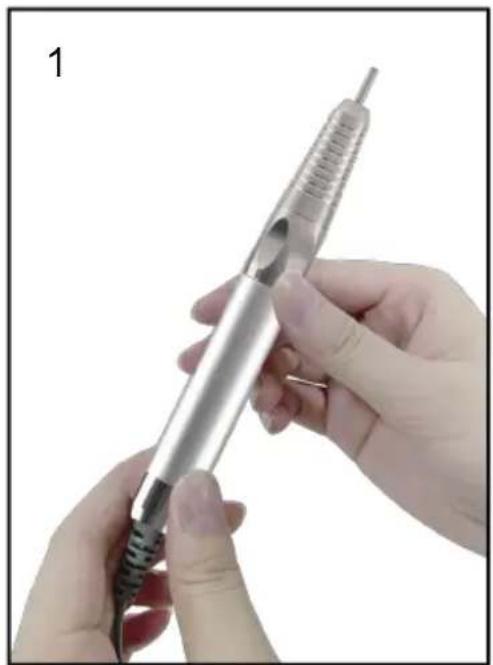

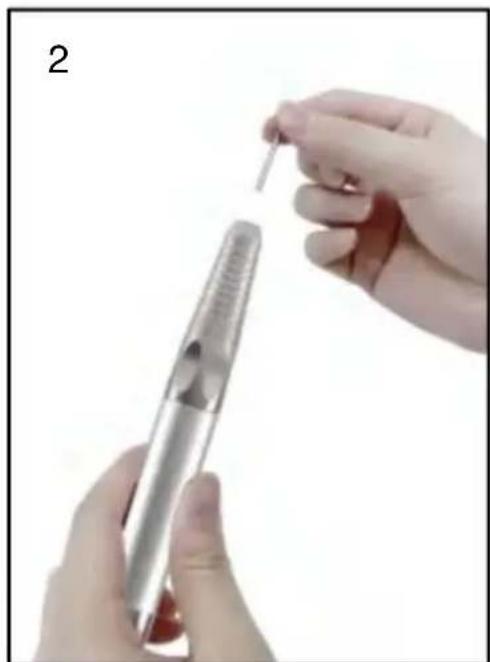

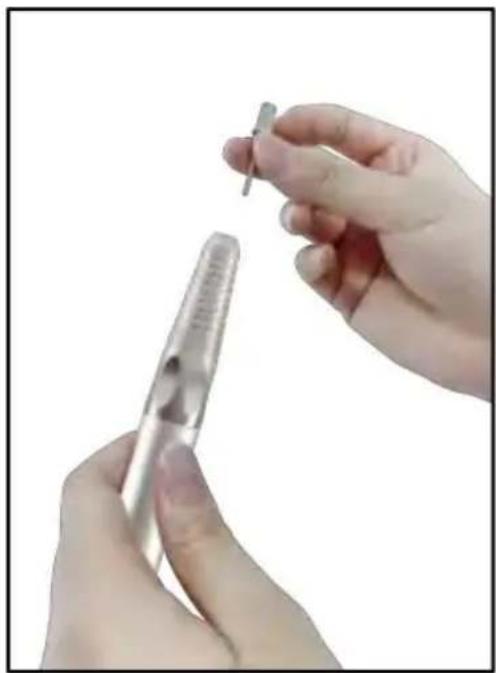

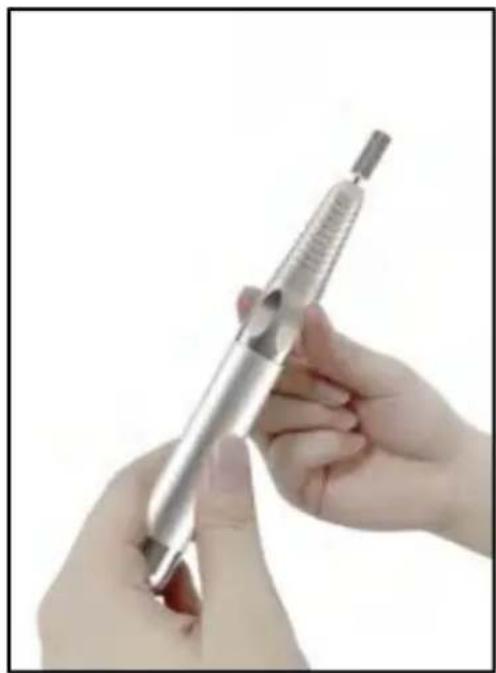

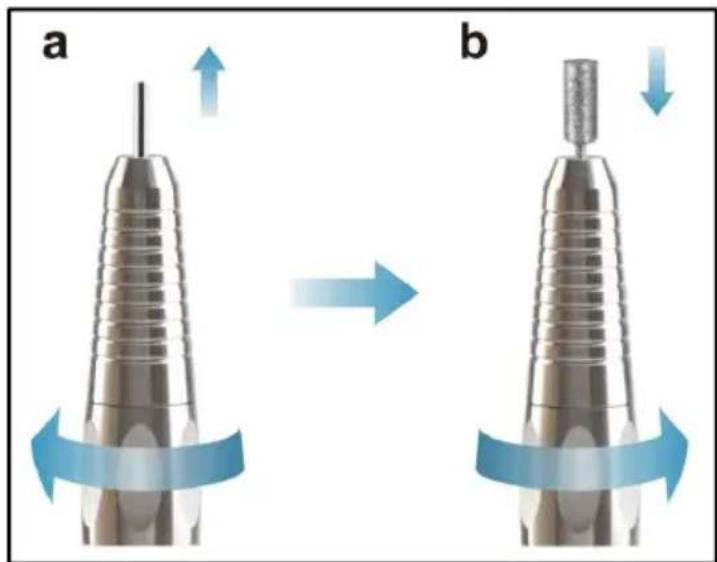

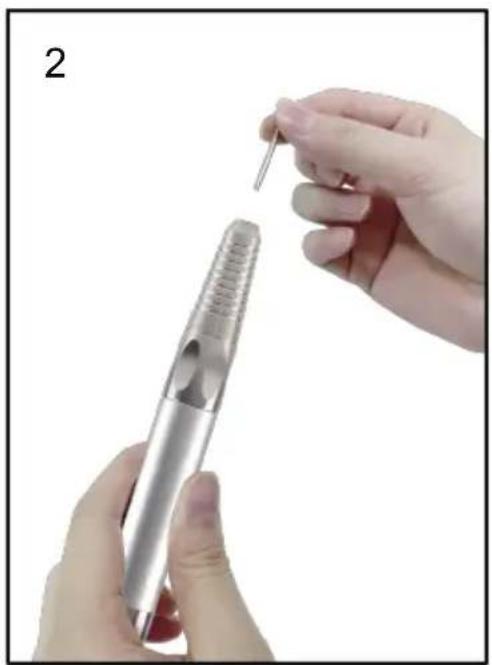

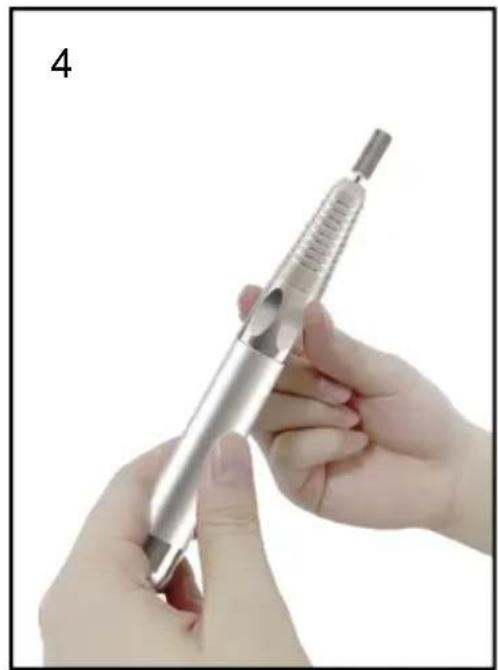

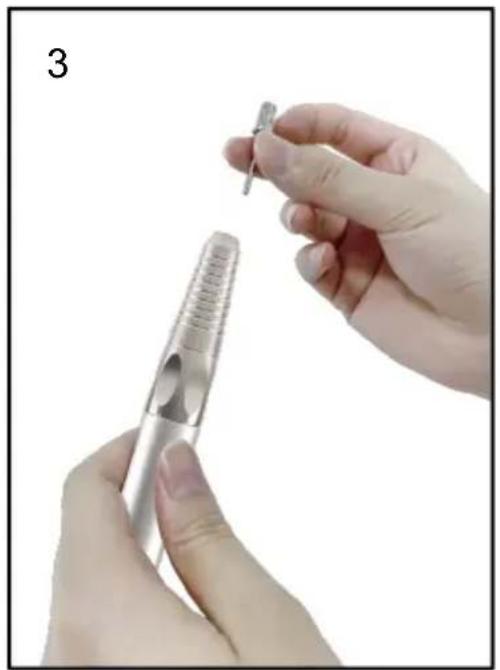

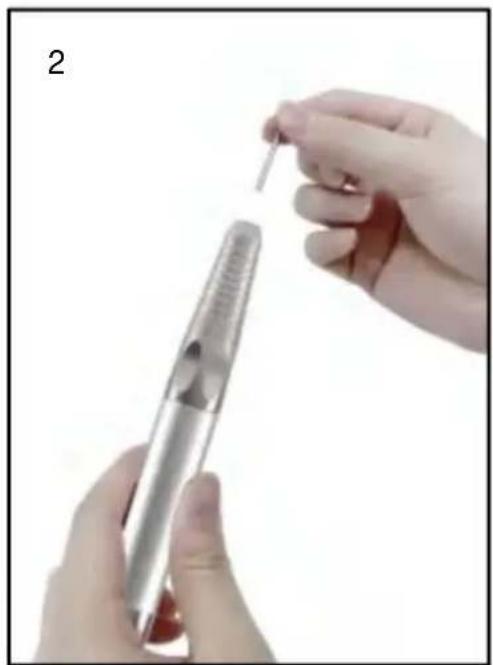

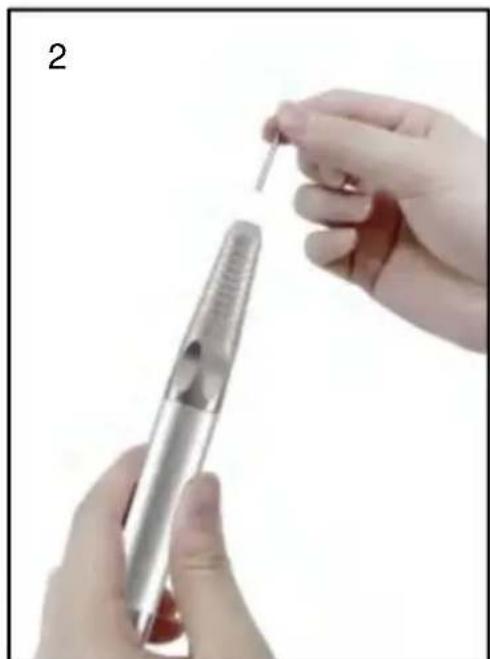

HANDPIECE OPERATION

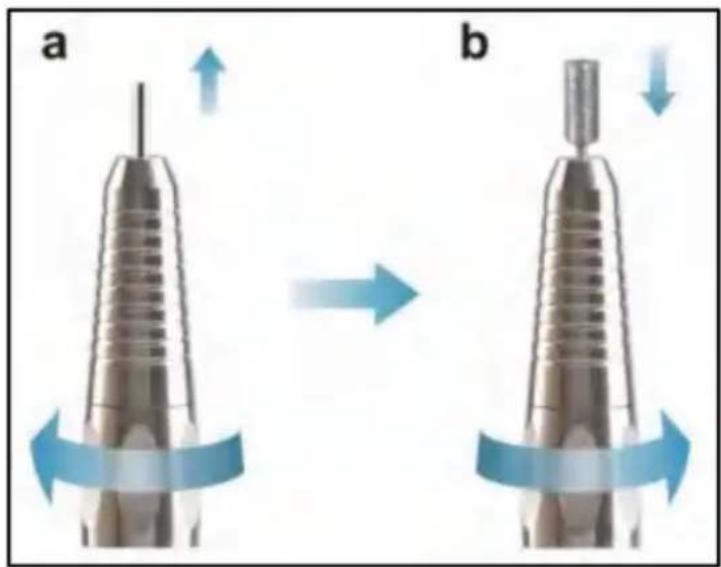

1. Hold the handpiece in hand and turn the setting ring toward "" (clockwise) direction until you hear the "click". 2. Take out the test bar. 3. Insert your desired bit into the bottom of the collet. 4. Turn back the setting ring to "🔒" (anti-clockwise) direction until the collet is secured.

Attention: Please note that there is a lock icon on the product. Follow the instructions.

CLEANING AND STORAGE

1. If the machine is not to be used for a long period of time, clean and cover it, and store it in a dry and safe place.
2. Wipe with a soft, dry cloth. Be sure to keep the product dry.
3. Please keep accessories and products together.

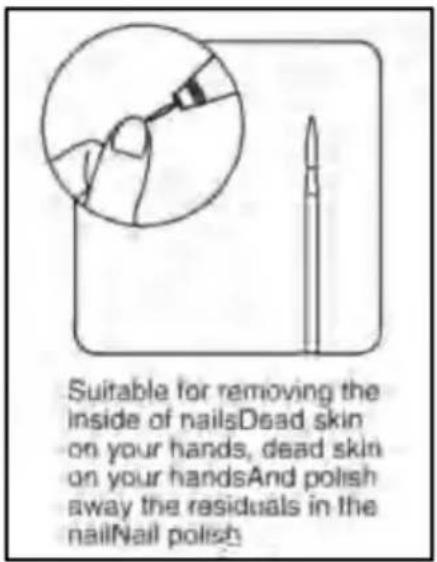

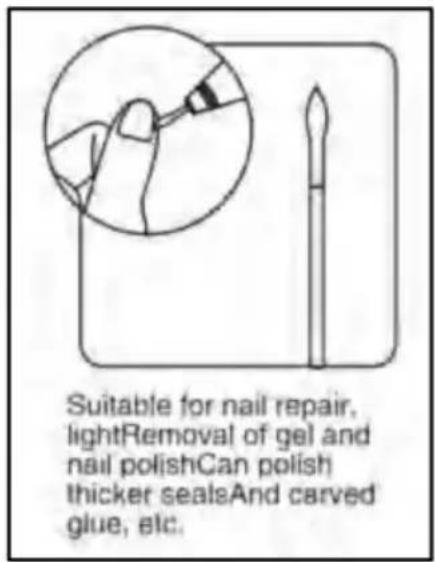

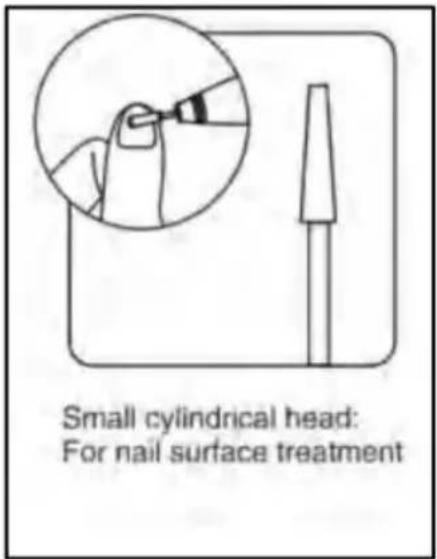

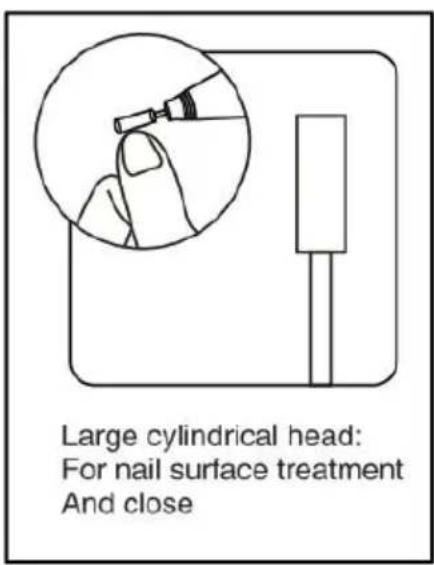

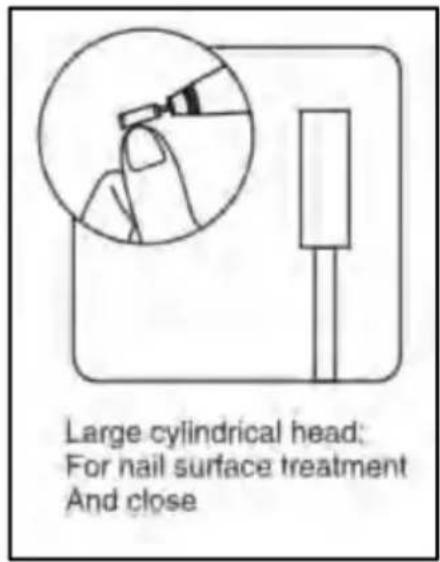

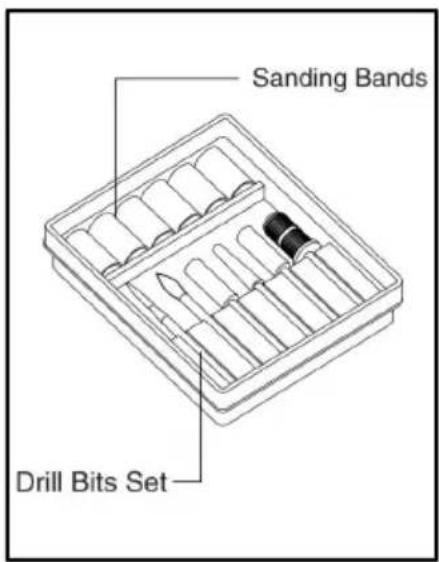

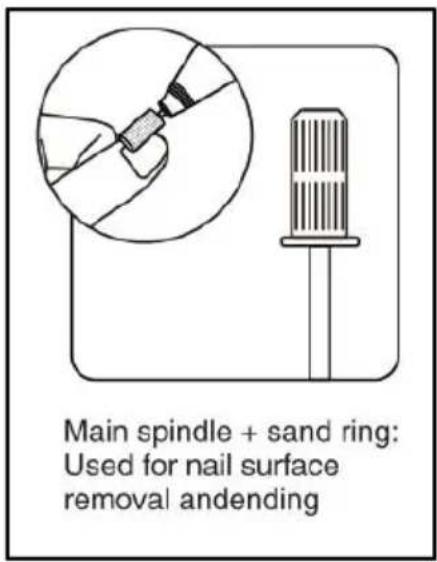

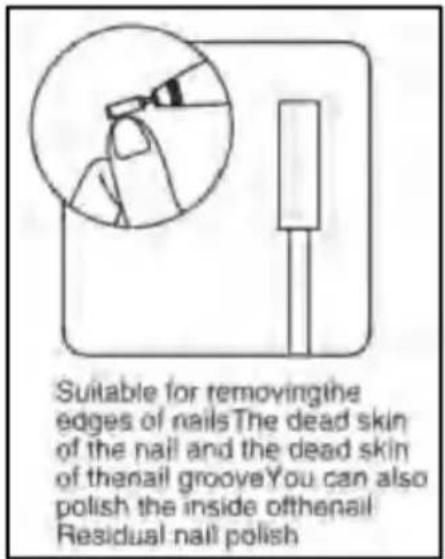

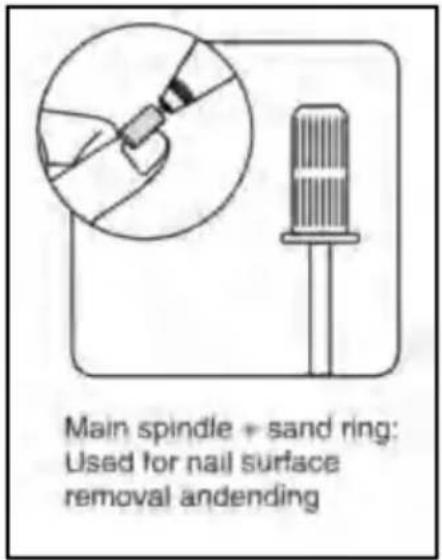

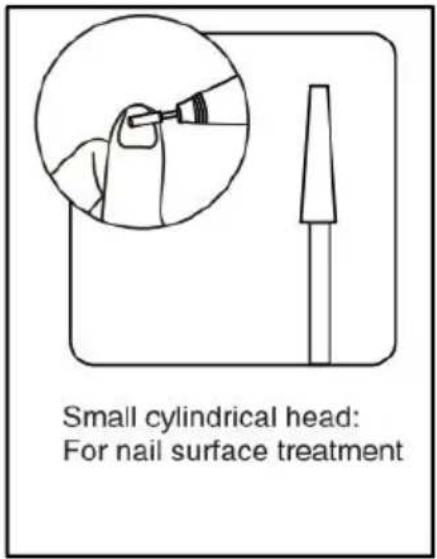

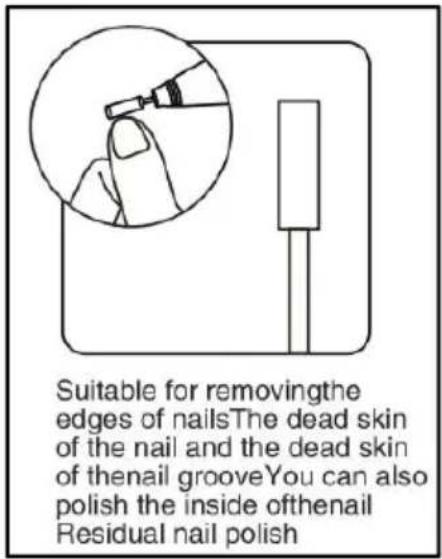

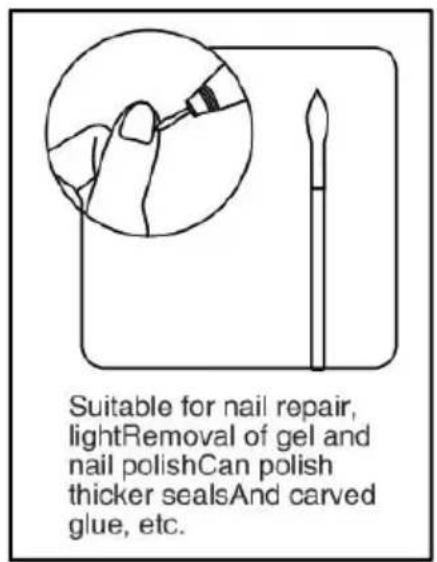

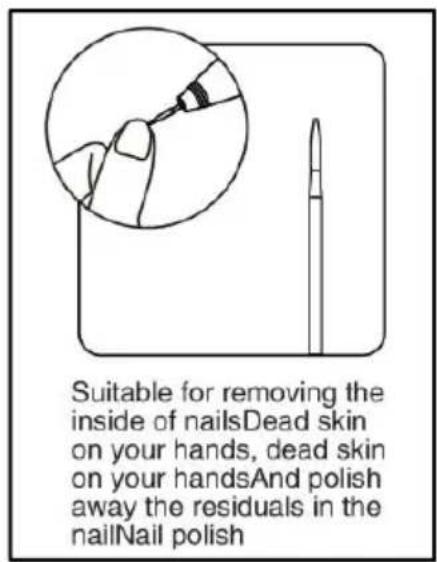

INTRODUCTION TO GRINDING HEAD

ERROR CODE

Problems Solution
E1: The handle is block- 4. PCB circuit failure.	1. The handle is in the unlocked state.2. The bearing is rusty and stuck or does not be charged before it can be restored
E2: Low battery prompt	If the battery loses power, it will alarm and no be charged before it can be restored
E3: No handle connected	1. The handle wire is disconnected.2. The handle socket is not connected to the motherboard.3. PCB circuit failure.
E4: Motor phase loss	1. The handle wire is broken and one of the blocked.2. The connection between the handle plug and host socket is too loose and the contact is pc3. There is poor contact between the motor an handle cord plug.4. Connect the carbon brush handle.5. PCB circuit failure.
E5: PCB power circuit failure	Damage to related components of the boost circ causing abnormal 24V power supply
E6: Phase voltage sampling circuit fault	Possible reasons: Welding of the phase sampling resistor on the motherboard or MCU.

Manufacturer: Shanghai Muxin Muye Youxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

E-CrossStu GmbH

Mainzer Landstr. 69, 60329

Frankfurt am Main.

REPU

YH CONSULTING LIMITED.

G/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

VEVOR®

TOUGH TOOLS, HALF PRICE

CORDLESS ANGLE GRINDER

DRILL

MODEL: SN358S

NEED HELP? CONTACT US!

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

Imported into Australia: SIHAO PTY LTD. 1 RUE ROKEVAASTWOOD NSW 2122 Australia

E-CrossStu GmbH

Mainzer Landstr.69, 60329

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

VEVOR®

TOUGH TOOLS, HALF PRICE

VEVOR®

TOUGH TOOLS, HALF PRICE

CORDLESS NAILER

DRILLING

MODEL: SN358S

NEED HELP? CONTACT US!

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshan District, Shanghai 200000 CN.

E-CrossStu GmbH

Mainzer Landstr. 69, 60329

Frankfurt am Main.

YH CONSULTING LIMITED.

C/O YH Consulting Limited, Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

VEVOR®

TOUGH TOOLS, HALF PRICE

VEVOR®

TOUGH TOOLS, HALF PRICE

CORDLESS NAILER

DRILL

MODEL: SN358S

NEED HELP? CONTACT US!

Imported in AUS: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

E-CrossStu GmbH

Mainzer Landstr. 69, 60329

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

VEVOR®

TOUGH TOOLS, HALF PRICE

VEVOR®

TOUGH TOOLS, HALF PRICE

CORDLESS DRILL

DRILL

MODEL: SN358S

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET ASTWOOD

E-CrossStu GmbH

Mainzer Landstr.69, 60329

Frankfurt am Main.

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

VEVOR®

TOUGH TOOLS, HALF PRICE

VEVOR®

TOUGH TOOLS, HALF PRICE

NAIL GUN

DRILL

MODEL: SN358S

NEED HELP? CONTACT US!

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

Importer: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD

E-CrossStu GmbH

Mainzer Landstr. 69, 60329

Frankfurt am Main.

YH CONSULTING SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

VEVOR®

TOUGH TOOLS, HALF PRICE

VEVOR®

TOUGH TOOLS, HALF PRICE

RECHARGEABLE NAIL

EXERCISE

MODEL: SN358S

NEED HELP? CONTACT US!

1. Upload the desired nail drill.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

E-CrossStu GmbH

Mainzer Landstr.69, 60329

Frankfurt am Main.

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

VEVOR®

TOUGH TOOLS, HALF PRICE

VEVOR®

TOUGH TOOLS, HALF PRICE

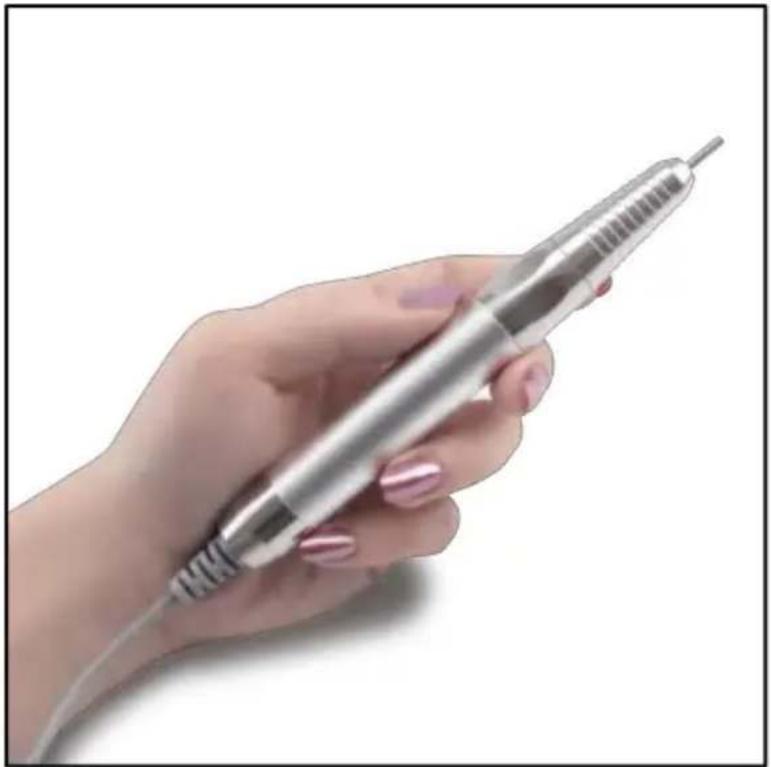

LOADABLE NAIL DRILL

MODEL: SN358S

NEED HELP? CONTACT US!

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

E-CrossStu GmbH

Mainzer Landstr.69, 60329

Frankfurt am Main.

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE
