BED HANDLE

MODEL:LQX-110039

VEVOR Support Center

QR code image containing encoded data, no visible human-readable text

VEVOR

Affordable. Reliable. Home Improvement.

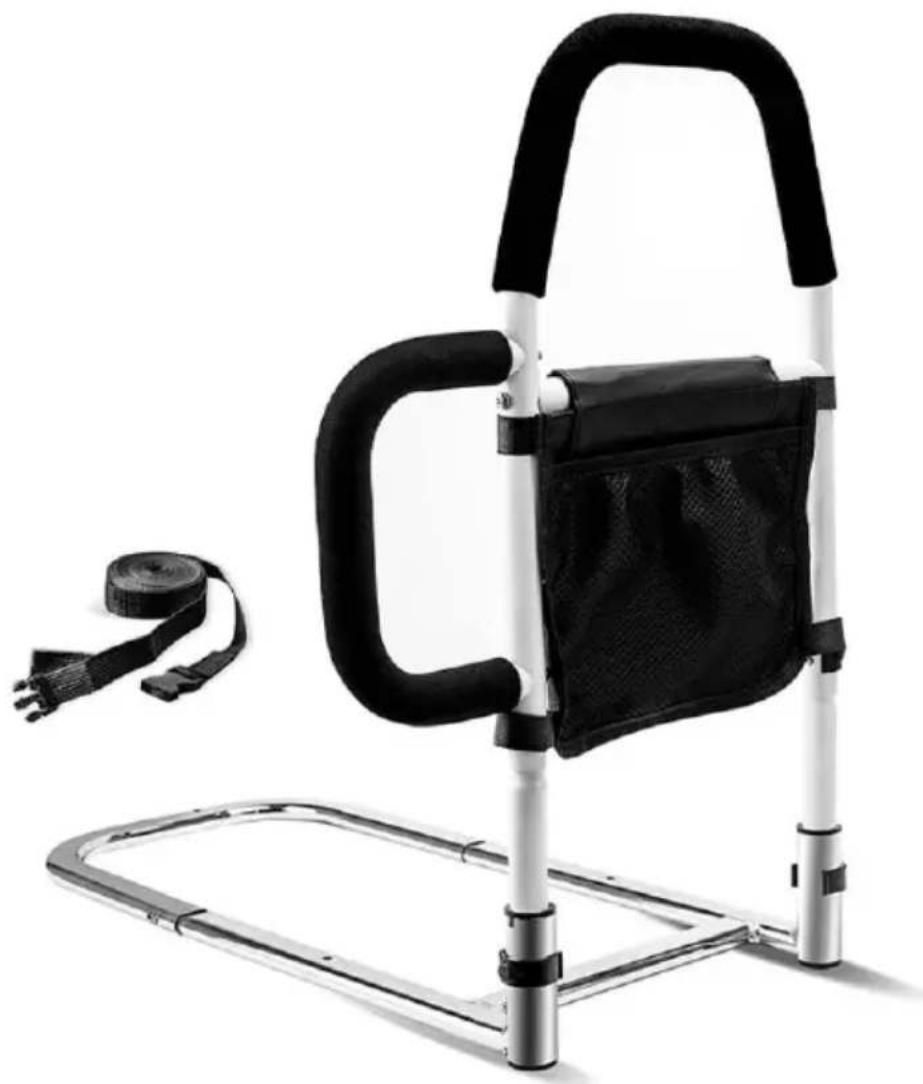

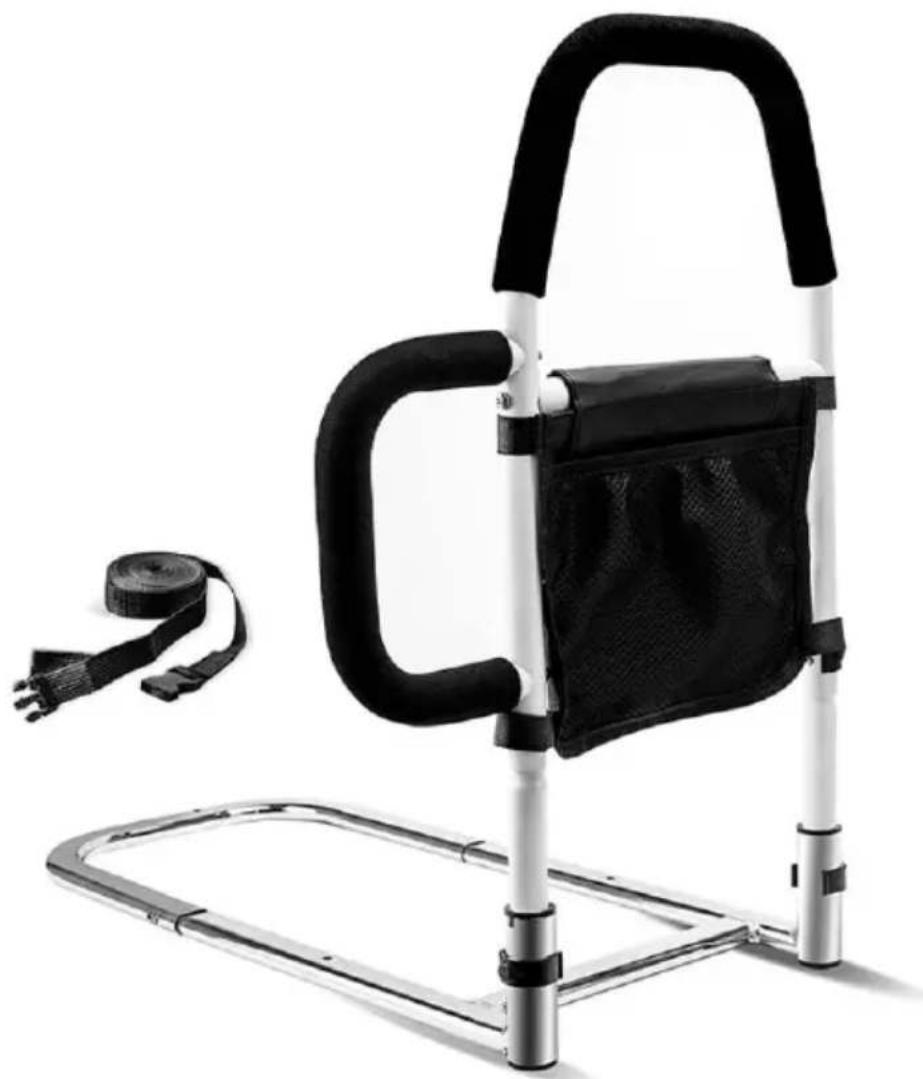

BED HANDLE

Black and white photo of a mobility device with a handle, seat, and cable (no text or symbols visible)

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING:

Read this material before using this product. Failure to do so can result in injury.

Use precautions

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or near this. Please keep small spare parts out of children's reach.
3. Use as intended only.
4. Inspect before every use; do not use if parts are loose or damaged.
5. Keep away from sharp points, blades and other items, so as not to scratch product.

Technical Parameters

Model	maximum load capacity
LQX-110039	300lb
FDA Registration No.: 3016734231

Instructions for Use

APPLICATION OF BED SAFETY RAIL

This Bed Safety Rail is an assistive balance device. It is designed to assist people who are mobile, but require some assistance to get and get out of bed, or reposition in bed safely. The bed rail is intended for people with very poor mobility, or who are permanently bedridden. It is NOT designed to prevent people from falling out of bed.

CAUTIONS and WARNINGS

1. Please make sure that you read and follow these instructions careful. Failure to comply may result in injury.
2. Ensure all parts are assembled securely and all spring buttons are properly engaged in position prior to use.
3. The area between an assistive bed rail and mattress creates a po for serious, life-threatening entrapment. It is possible fora person's head neck, arm (s), leg (s) or body to become wedged between the side mattress and any of the bed rail.
4. The mattress must be tight against the assistive handrail, with no at all times. This should be checked frequently-at least daily.
5. The mattress must be tight against the assistive handrail, with no at all times. This should be checked frequently-at least daily.
6. NEVER use unless the product is tight against the mattress without gaps, and at least 12.5 in. from headboard and foot board.
7. NEVER use with children.
8. NEVER use on toddler, bunk, water, or inflatable beds, beds with compressible pads, articulated beds, or on beds with a mattress height taller than 13in (33cm)or shorter than 7 in (17.8cm).ONLY use with two queen and king size beds.
9. Theproduct is an auxiliary product. Patients without autonomous ability must be under supervision.

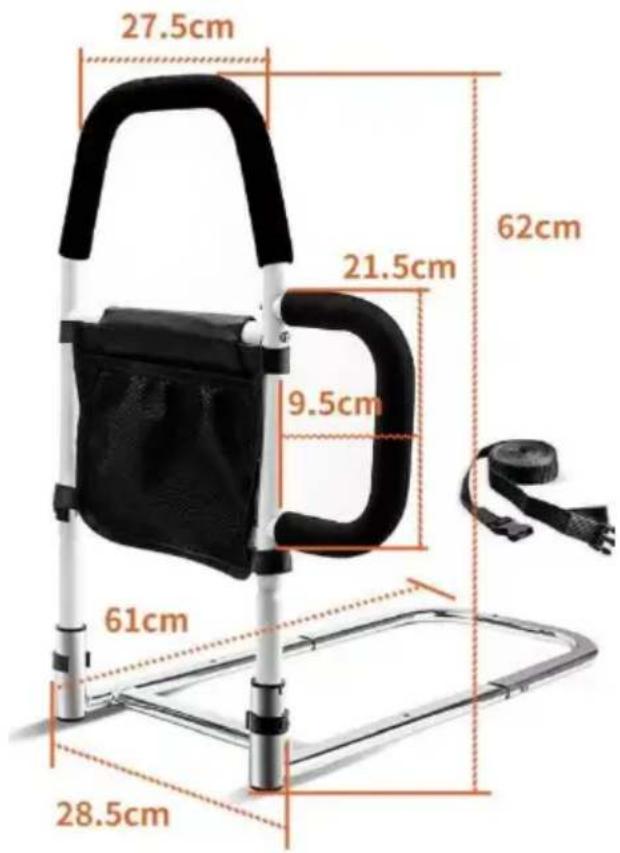

PARTS LIST

A B E F G H C D

ITEM	DESCRIPTION	QUANTITY
A	Bed Rail Handle	1
B	Side Handle	1
C	U-shape Frame	1
D	Base Frame	1
E	Extension Tube	2
F	Small C-Clip	2
G	Big C-Clip	2
H	Safety Strap	1

INSTALLATION

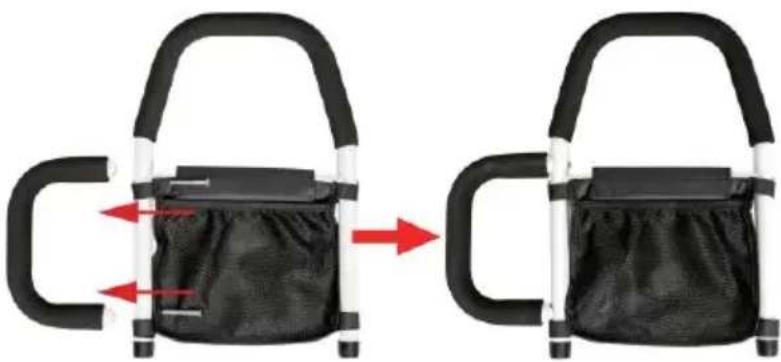

1. Take off two screws from side handle(B) firstly. Align holes in bechandle(A) with the holes in side handle(B), then secure two parts with previous screws.

Figure 1

Two black handbags with handles and side straps, showing a change in size from left to right (no text or symbols visible)

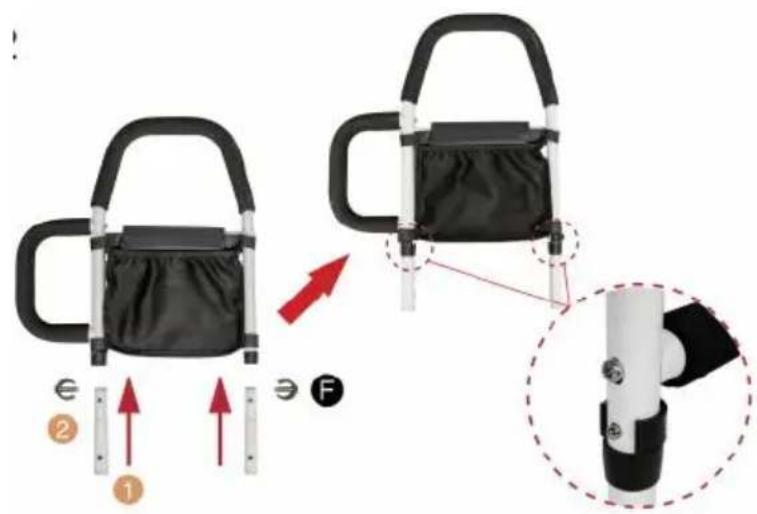

1. Insert two extension tubes (smaller ends) (E) into bed rail handle(A) secure with two small C-clips(F).

Figure 2

Diagram illustrating the use of a mobility device with labeled parts and directional arrows indicating movement.

Tips: The extension tube may feel tight when being inserted into the handrail. However, this is not a flaw, it actually enhances stability.

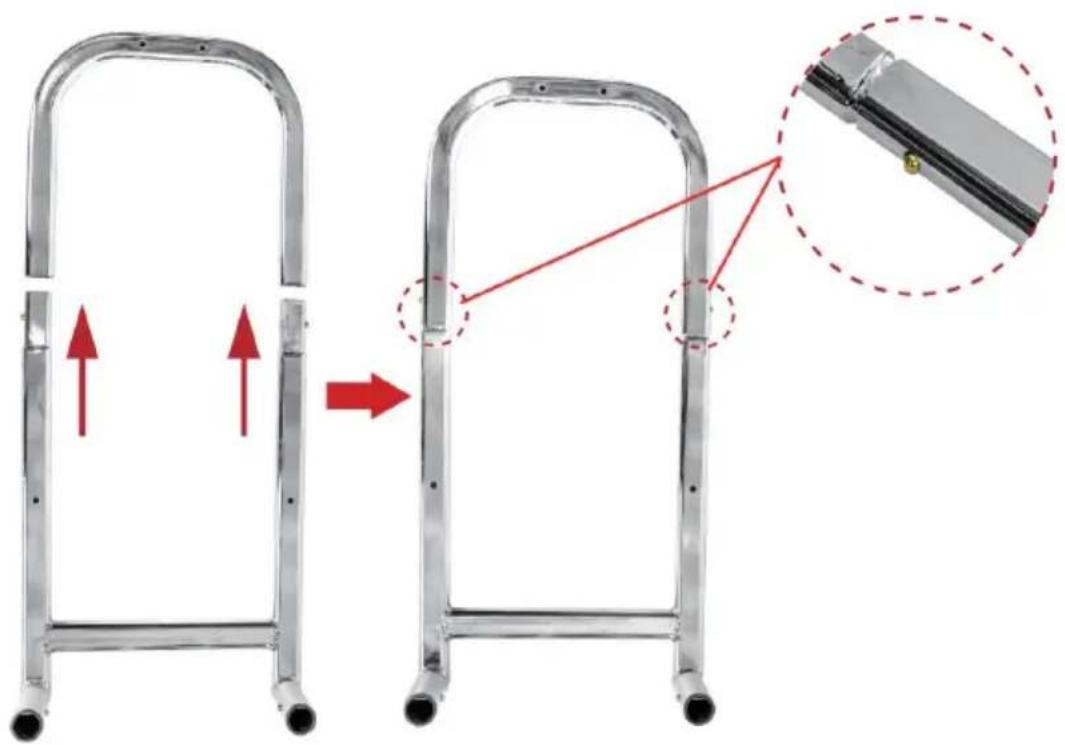

1. Insert U-shape frame(C) into base frame(D) and make sure that two spring buttons have fully engaged into the holes.

Fig. 3

Three-step diagram showing a metal ladder being lifted, with red arrows indicating upward motion and a magnified inset showing the same structure (no text or symbols)

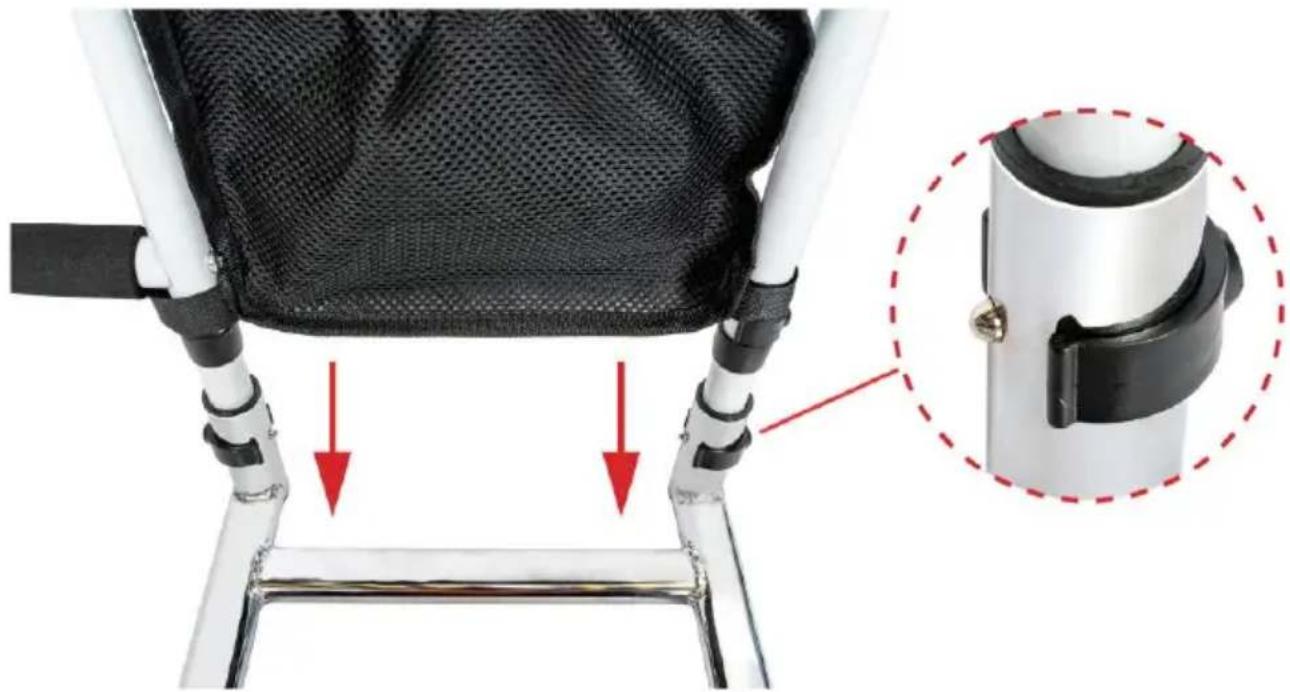

1. Slide bed rail handle(A) into both base frame's tubes(D) and sec with two big C-clips(G).

Fig.4

Close-up of a black mesh back panel with red arrows indicating adjustment, alongside a close-up of a metallic mechanical component (no text or symbols visible)

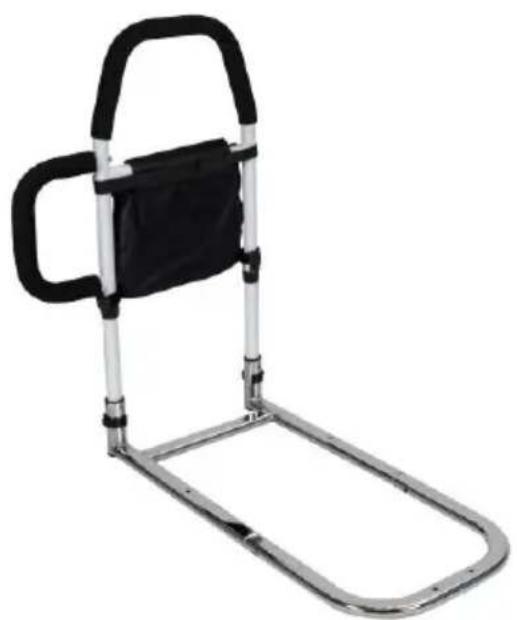

1. Make sure all screws are fully tightened and all spring buttons are properly engaged in position prior to use.

Fig.5

Metallic metal frame with a black handle and side panel, isolated on white background (no text or symbols)

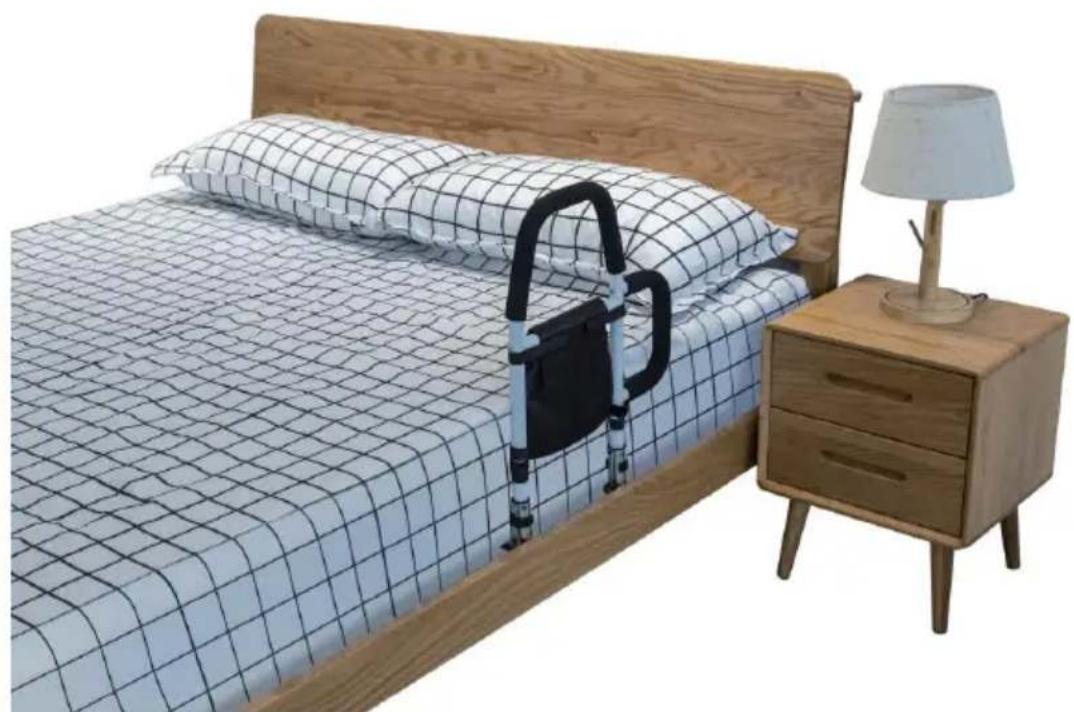

1. Remove the mattress and place the bed rail onto the base of the Position the bed rail so the user can reach the handle from a relax position without having to stretch.

Fig. 6

Modern bedroom with wooden bed, a black-and-white adjustable bandage chair, and a small nightstand (no text or symbols visible)

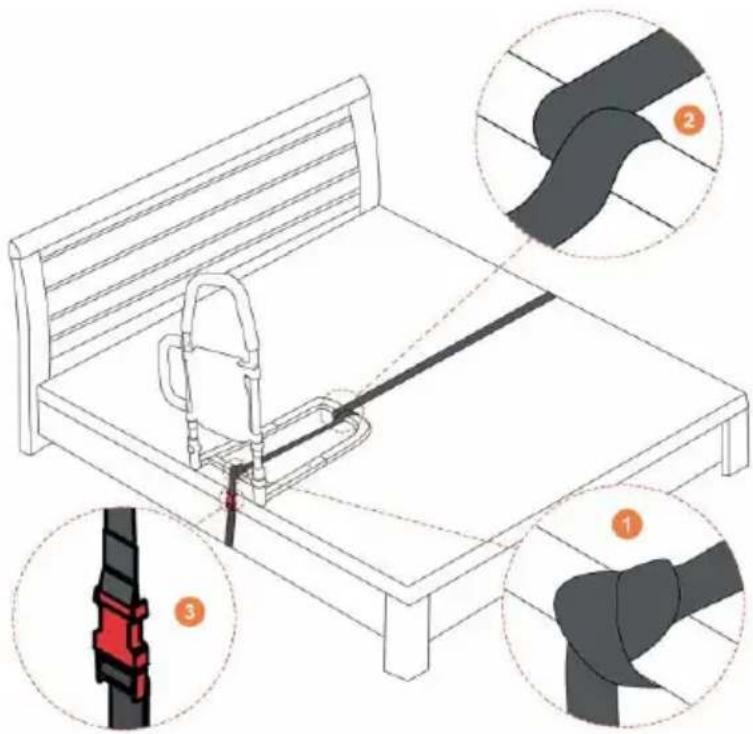

Option -Secure the Safety Strap to the Bed Frame

(it's non-mandatory)

Take the mattress off the bed. Place the assembled bed safety a desired location on your bed. Tie a secure knot on the the rail in the position shown in step ①.

Loop the strap around the bed rail base in the position shown step ②. Feed the strap over the top of the bed and back under the base. Buckle up the two strap buckles together as step ③. down on the loose end of the strap to tighten.

Note: To avoid tripping hazards, make sure you tuck away any strap ends.

Diagram illustrating three-step car seatbelt installation: seatbelt, cable, and seatbelt connection.

Option -Fix the Bed Rail on Bed Frame (it's non-mandatory)

The Bed Safety Rail could be fixed on base of the bed with screws provided and provide increased stability for users, but it is not necessary to do.

CLEANING THE BED SAFETY RAIL

Note: Please check the suitability of the cleaning products before use. Do not use abrasive cleaners or cloths as these could permanently damage the surface and invalidate any warranty.

1. Clean regularly using soapy water or warm water. Then wipe it with dry towel.
2. Allow product to fully dry prior to use/storage.

Our After-Sales Service:

1. If you discover any product damage or missing parts, please contact customer service team for assistance.

2. Our dedicated customer service team is available to address any questions or concerns you may have regarding the product.

3. We strive to provide prompt and efficient support to ensure the satisfaction of our customers.

4. For any inquiries, warranty claims or assistance, please contact our customer service.

Usage Guidelines for Bed Rail:

1. Ensure that the bed rail is properly installed and securely attached bed frame before use.
2. When adjusting the height or position of the bed rail, make sure securely locked in place before use.
3. Do not allow children to play or hang on the bed rail. It is inten adult use only.
4. Use caution when getting in or out of bed, ensuring that the bed properly positioned to provide support.

Manufacturer: MOBILITY SOURCE MEDICAL TECHNOLOGY CO., LTD.

Address: 160 HEHENG ROAD, YANGHE TOWN, GAOMING DISTRICT, Fosha Guangdong, 528513, CHINA.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW : Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP
