USER MANUAL LEC-432 Vevor

Affordable.Reliable.Home Improvement.

FIBER OPTIC LIGHTS STAR CEILING LIGHT MODEL:LEC-432

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

Affordable.Reliable.Home Improvement.

FIBER OPTIC LIGHTS

STAR CEILING LIGHT

MODEL: LEC-432

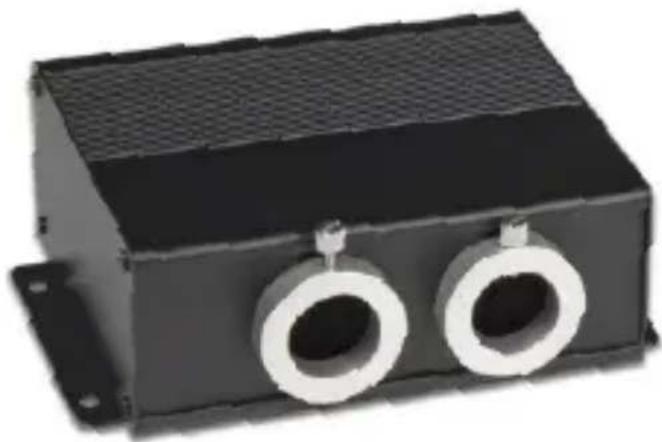

Exterior view of a black rectangular electronic device with two circular ports and a mesh grille (no text or symbols visible)

Black rectangular electronic device with attached black cable and power plug (no visible text or symbols)

Smartphone screenshot displaying a colorful circular gradient with a blue sphere, alongside a color palette bar (no readable text or symbols)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.

INSTRUCTIONS

Welcome to use Fiber Optic Lights Star Ceiling Light. Please read the manual carefully before turning on the light engine

Safety Notes:

1. Make sure the input voltage is correct.
2. Avoid placing the light engine in the rain or in moist areas. Please ensure that the light engine has sufficient ventilation and is not placed in a completely sealed area.
3. Avoid using the device above 40^ C temperature.

The fiber strands cannot be folded in half, and the bending radius should not be less than 10mm.

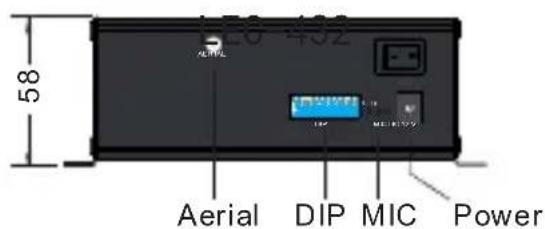

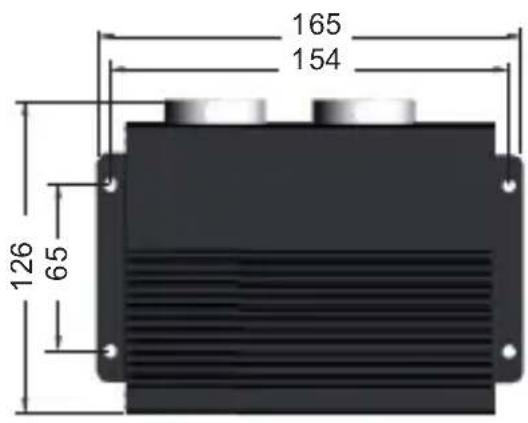

I. Light engine information and dimensions

165 154 126 65

58 Aerial DIP MIC Power

II. Technical parameters:

Model: LEC-432

Input Voltage: 12V DC

Emitting Colors: RGBW Mixing

Remote Control: Yes

Sound Control: Yes

Port Aperture: MAX: Φ20mm

Fiber Strands: 900pcs 9.8ft 0.03"

Power : 20W

LED: RGBW*4 LEDs

Sound Control: Yes

Twinkle: Yes

APP: Yes

III. Fiber optic light engine settings

Those light engines are the regular version, and the control is the following:

Working Status	Built-in Programs	Remote control	DMX controller	Sound	APP
Standalone	√	√	× √	√

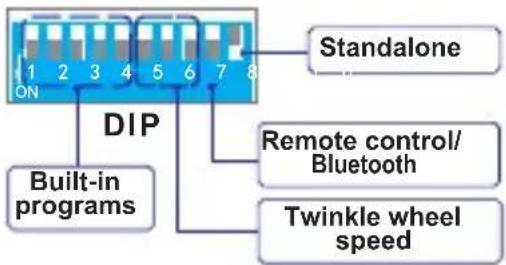

1. Standalone mode settings

(1) When using a remote control and APP, set the 9^th and 10 DIP switches to the "ON" position, and other 1 to 8 DIP switches to "OFF" position.
(2) When the remote control and APP are not in use and the light engine is controlled by the built-in programs, set the 10 ^th DIP switch to the "ON" position and the 9 DIP switch to the "OFF" position. The 1 -8 ^st DIP switches can set the built-in programs. The 1 -5 ^st DIP switches are for the programs of the standalone machine, and the 6 -8 ^th DIP switches are for the twinkle wheel speed.

(Pull the switch downward for "ON", and the flat position is "OFF")

OFF ON

ON 1 2 3 4 5 6 7 8 DIP Built-in programs Standalone Remote control/ Bluetooth Twinkle wheel speed

QR code with central logo containing 'LSD' text and a rainbow-colored circular design

APP Download

2. Remote control Instructions:

(1) By default, the light engine and the remote control in the same box has been paired. The light engine can be controlled by the paired remote control only. Do not mix the light engine with other remote controls

(2) Before using the remote control, make sure that the remote control has a fresh button cell.

(Need to purchase CR2032H by yourself).

(3) If necessary, you can pair the current light engine with more remotes. It is also possible to pair the current remote with more light engines.

How to pair the remote control and the light engine:

(1) Make sure that the 9 and 10 DIP switches of the light engine have been set to ON (shown on the right).
(2)Turn on the light engine. At the same time, press one of the four pairing keys 3 times in a row to start the pairing.
(3)The light engine will flash 3 times. The pairing is complete.

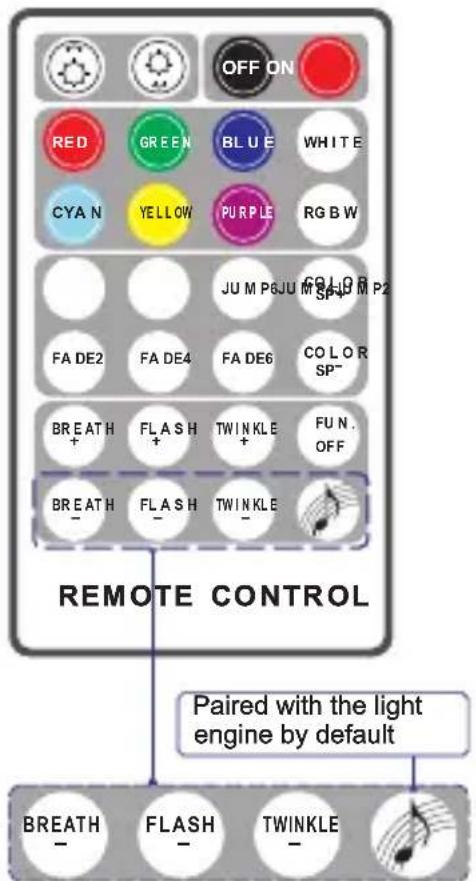

The pairing rules:

(1)The four keys on the last row of the remote are the four pairing keys.
(2) Each Pairing Key can be paired with multiple light engines and will have the same effect.
(3) Each Pairing Key can be paired with multiple light engines and will have the same effect. Pairing Keys with different icons can be from different remote controls.
(4)Once the device is successfully paired with the remote control, the pairing function cannot be canceled, but can be overwritten.
(5) For the same light engine, a new pairing key will overwrite the previous pairing key with the same icon.

OFF ON RED GREEN BLUE WHITE CYAN YELLOW PURPLE RGB W JUMP6JUMP2 FA DE2 FA DE4 FA DE6 COLOR SP+ BREATH FLASH TWINKLE FUN. + + + OFF BREATH FLASH TWINKLE REMOTE CONTROL Paired with the light engine by default BREATH FLASH TWINKLE

4 Pairing Keys

1 ON 2 3 4 5 6 7 8 Remote function is on Master

2. The keys of the remote control

	Dimming+/- (7-tier)ON/OFF
	Static colors(Red,Green,Blue,White,Cyan,Yellow,Purple,RGBW)
	JUMP2: W、B JumpJUMP4: W、B、G、R JumpJUMP6: W、B、G、R、Y、C JumpFADE2: W、B FadeFADE4: W、B、G、R FadeFADE6: W、B、G、R、Y、C FadeCOLOR SP +/-: Color Cycling Speed Adjustment(7-tier)
	BREATH+/- : Breathing Effect. (7-tier)FLASH+/- : Strobe Effect. (7-tier speed)TWINKLE+/- : Twinkle Effect. (7-tier speed)FUN.OFF : Termination of Breathe/Flashing/Sound control/Twinkle effect.Activate the Sound Control mode
	4 Pairing Keys: To match the light engine and theremote control for use. By default,is paired with the light engine.

Remarks:

(1) Press “Breath” or “Flash”, the light engine will breathe or flash in a static color of the last emitted color. If “FUN.OFF” is pressed, the current breathing, flash or twinkle function will be turned off, and the light engine will resume the last program.
(2) The light engine has a memory function. When it is turned on, it runs the last program before it is turned off.
(3) The "TWINKLE+", "TWINKLE-" and "FUNON" buttons on the remote control correspond to the "K1", "K2" and "K3" buttons in the APP.

IV. The table of the built-in programs of the Master light engine

Built-in Programs List of the Master (1 to 5th DIP Switches)

Pro.No.	DIP Switches Settings (1 ^st to 5 ^th )	Function
00		Light off, Motor stops
01		White
02		Blue
03		Green
04		Red
05		Yellow
06		Cyan
07		White、Blue、Green、Red、Yellow、Cyan Jump 2S
08		White、Blue、Green、Red、Yellow、Cyan Jump 4S
09		White、Blue、Green、Red、Yellow、Cyan Jump 8S
10		White、Blue、Green、Red、Yellow、Cyan Fade 2S
11		White、Blue、Green、Red、Yellow、Cyan Fade 4S
12		White、Blue、Green、Red、Yellow、Cyan Fade 8S
13		White、Blue Jump 2S
14		White、Blue Jump 4S
15		White、Blue Jump 8S
16		White、Blue Fade 2S
17		White、Blue Fade 4S
18		White、Blue Fade 8S

Built-in Twinkle Wheel Speed of the Master ( 6^th to 8 DIP Switches)

DI P Switches Settings (6 to 8)	Function
	0.5RPM
	1.0RPM
	1.5RPM
	2.0RPM
	3.0RPM
	4.0RPM
	6.0RPM

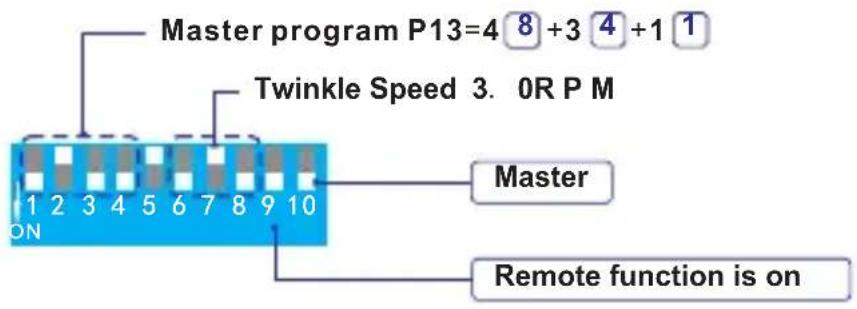

For example: Master built-in program P13 + twinkle speed 3.0RPM

Master program P13=4 8 +3 4 +1 1 Twinkle Speed 3. 0R P M ON Master Remote function is on

V. Fiber Bundle Assembly and Installation

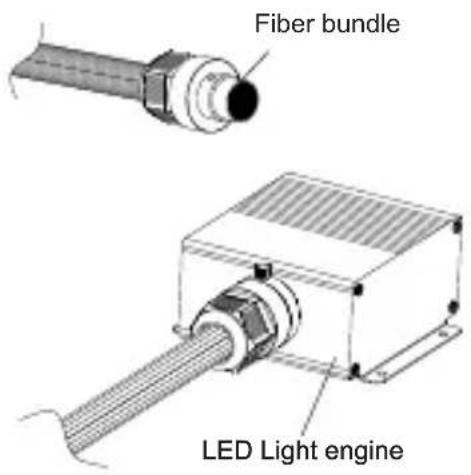

1. Fiber connectors / couplings Assembly

Loosen the screws on the light engine port ferrule, and insert the ready fiber connector into the ferrule. Then tighten the screws against countersunk holes on the fiber connector.

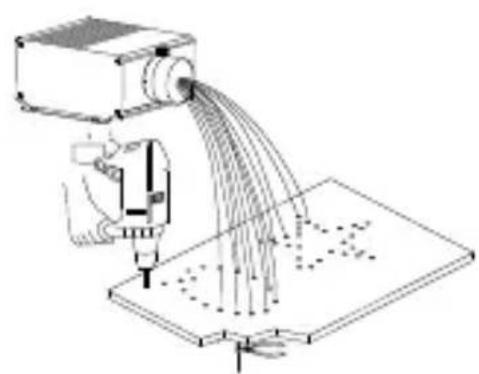

2. Fiber strands installation on ceilings

	1. Drill holes on the ceiling as required by the pattern. Insert the fiber strands into the holes and glue them with the resin adhesive. Cut the fiber ends flush with the ceiling or leave 2-3mm protrusion2. The fiber strands cannot be folded in half, and the bending radius should not be less than 10mm.

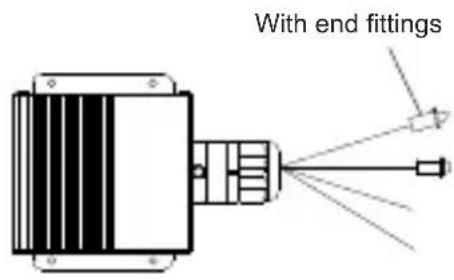

	Fiber tail ends can be mounted with end fittings to present more optical effects.

Precautions:

1. Reasons and troubleshooting methods for the remote control being out of control:

(1) Check whether the remote control indicator light is on. If the indicator light is not on or the brightness is low, please replace the battery.
(2) If the remote control is out of control after replacing the battery, re-pair it.
(3) Ensure that the remote control is used within a range of 10 meters.

1. Reasons and troubleshooting methods for the APP being out of control:

(1) If the APP is installed normally and the APP cannot search for the light engine, it is necessary to confirm whether this light engine is occupied by other mobiles.
(2) If the light engine is occupied by other mobiles, it needs to be released and then powered on for search and connection.
(3) One mobile supports connecting to about 5 light engines. The specific number varies depending on the mobile signal reception.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/0 YH Consulting Limited office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

Abordable.Fiable.Amélioration de l'habitat.

QR code with central logo containing 'LED' text and a rainbow-colored circular design

Technical line drawing of a robotic arm pouring liquid into a device on a flat surface (no text or symbols)

YH CONSULTING LIMITED. Adresse : YH Consulting Limited, bureau : 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH Mainzer Landstr.69, 60329 Francfort-sur-le-Main.

www.vevor.com/support

VEVOR

QR code with central logo containing 'LED' text and a rainbow-colored circular design

APP herunterladen

YH CONSULTING LIMITED. C/0 YH Consulting

Limited, Büro 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

www.vevor.com/support

VEVOR

QR code with central logo containing 'LED' text and a rainbow-colored circular design

Scarica APP

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

Nuovo Galles del Sud 2122 Australia

YH CONSULTING LIMITED. C/0 YH Consulting Limited ufficio 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH Via Magonza 69, 60329 Francoforte sul Meno.

QR code with central logo containing 'LED' text and a rainbow-colored circular design

Technical line drawing of a robotic arm pouring liquid into a control panel (no text or symbols)

YH CONSULTING LIMITADA. C/O YH Consulting

Limited, oficina 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

www.vevor.com/support

VEVOR

Diody LED: Diody LED RGBW*4

QR code with central logo containing 'LED' text and a rainbow-colored circular design

Pobierz aplikację

Technical line drawing of a robotic arm pouring liquid into a sample on a flat surface (no text or symbols)

YH CONSULTING LIMITED. C/O biuro YH Consulting

Limited 147, Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

www.vevor.com/support

VEVOR

www.vevor.com/support

VEVOR

QR code with central logo containing 'LED' text and a rainbow-colored swirl design

APP downloaden

De koppeling is compleet.

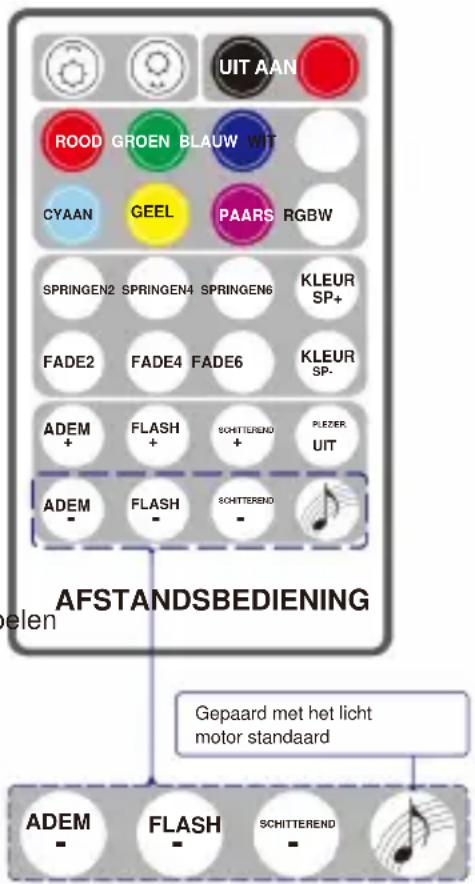

UIT AAN ROOD GROEN BLAUW WIT CYAAN GEEL PAARS RGBW SPRINGEN2 SPRINGEN4 SPRINGEN6 KLEUR SP+ FADE2 FADE4 FADE6 KLEUR SP- ADEM + FLASH + SCHITTEREND + PLEZER UIT ADEM - FLASH - SCHITTEREND - AFSTANDSBEDIENING elen Gepaard met het licht motor standard ADEM - FLASH - SCHITTEREND -
