USER MANUAL Mini Massager TERRAILLON

MANUEL D'UTILISATION – INSTRUCTION MANUAL

MINI MASSAGER

Terraillon

Terraillon®

CE

www.terraillon.com

ÉLÉMENTS D'EMBALLAGE

QR code image containing encoded data, no visible human-readable text

CLAUSE DE NON-RESPONSABILITÉ

ATTENTION

Line drawing of a portable electronic device with a nozzle and control buttons (no text or symbols)

Pistolet de massage x1

Tête plate x1

Tête sphérique x1

Tête conique x1

QR code image containing encoded data, no visible human-readable text

CHARGEMENT DU PRODUIT

Thank you for purchasing the Mini Massager Please read the instructions before using the massager as this manual provides additional information including safety precautions and warnings.

If you have any difficulties or need more information, you can find our help centre by scanning the QR code. If you cannot find the answer to your question, you can also contact our After Sales Service: [e-mail]

QR code image containing encoded data, no visible human-readable text

DISCLAIMER

CAUTION

If you have the following conditions or any health issues, please consult with your doctor before use.

1. Pregnancy, diabetes including complications such as neuropathy and retinal damage.
2. Use of cardiac pacemaker, recent surgery, epilepsy or migraines, protrusion of lumbar intervertebral discs and anterior displacement of bone vertebrae.
3. Recent joint replacement surgery, intrauterine device placement, metal implants and other concerns of the body.

WARNING: consult doctor before using this product to reduce the risk of injury.

PRECAUTIONS

1. Minors are not allowed to use this product. This product is not a toy, please store it out of reach of children.
2. Do not immerse the product in water. If the product falls into the water, please submit it for inspection in time.
3. Do not place the product near the fire source or into the fire.
4. Do not use the gun massager on the head, near the heart or on the genitals.
5. Do not use the gun massager on the bones and joints. The massager is designed for use on soft tissues.
6. Do not drop the product intentionally.
7. Do not remove screws or attempt to disassemble the product.
8. It is forbidden to replace or supplement medical treatment with the device, if you feel pain or are receiving treatment, please consult before using the device your doctor.
9. Do not put fingers, hair or other parts of the body near the axis and back of the massage head to avoid crushing injuries.
10. If the equipment is damaged, stop operation immediately.
11. Do not place fingers, hair or other body parts near the axis or back of the massager to prevent injury.

EN

PACKAGE CONTENTS

Line drawing of a portable electronic device with a nozzle and control buttons (no text or symbols)

Gun Massager x1

Flat Head x1

Spherical Head x1

Cone Head x1

U-Shaped Head x1

Charging Cable x1

Pouch bag x1

Instruction Manual x1

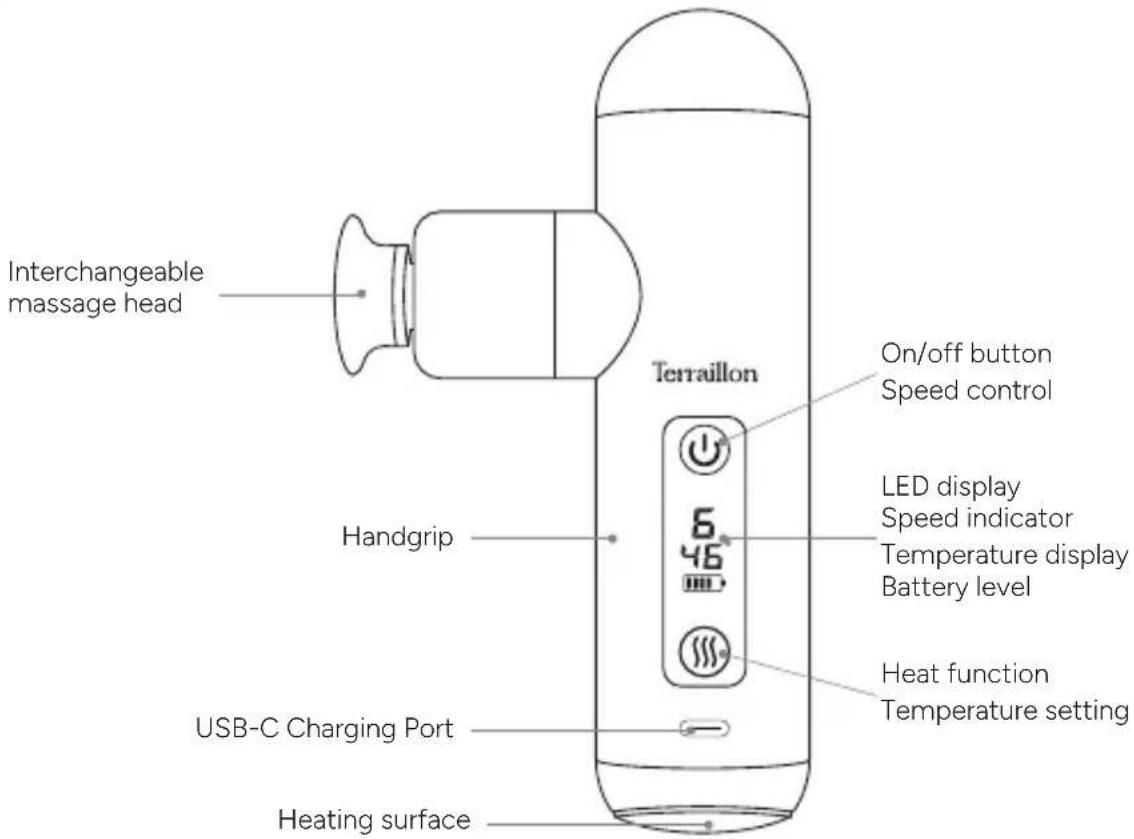

PRODUCT OVERVIEW

Interchangeable massage head Terraillon On/off button Speed control Handgrip LED display Speed indicator Temperature display Battery level 6 45 Heat function Temperature setting USB-C Charging Port Heating surface

Terraillon.

EN

MASSAGE HEADS

• Flat Head: suitable for Relaxation and Shaping of Various Muscle Groups and especially the abdominal belt, the pectoral muscles of the chest or even the biceps and triceps femoris in the leg.
• Spherical Head: suitable for Relaxing Large Muscle Groups, including your arms, waist, back, buttocks, and thighs.
• Cone Head: suitable for deep tissue impact recovery sessions. Ideal for targeting trigger points and small specific areas: such as the soles of the feet, palms, Achilles heel and rhomboid muscles in the back.
• U-Shaped Head: suitable for trapezius muscles, areas around the achilles tendon muscle, ankle muscle and calf muscles.

For more specific programme tips, you can find an article detailing them in our help centre by scanning the QR code.

QR code image containing encoded data, no visible human-readable text

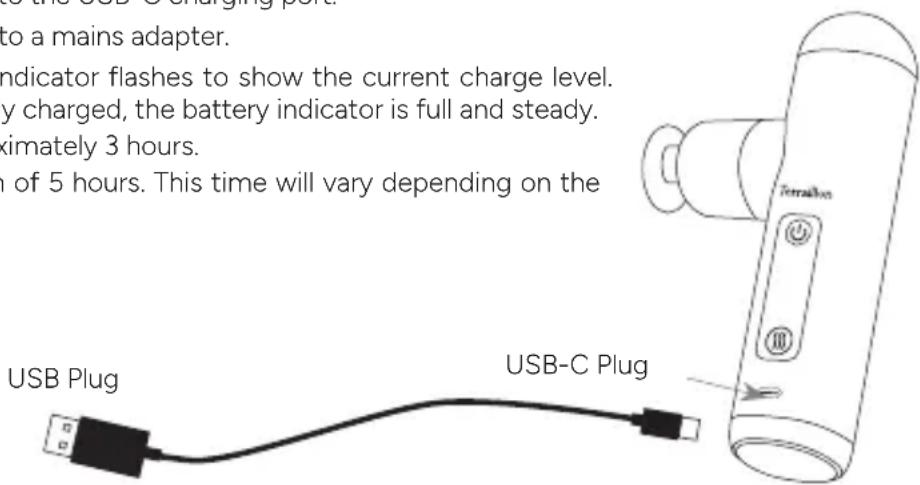

CHARGING THE PRODUCT

IMPORTANT: you must recharge the massager before first use and if it has not been used for more than 12 months. To recharge, the massage gun must be switched off.

1. Use the USB-C cable included with this massager.
2. Plug the USB-C plug into the USB-C charging port.
3. Connect the USB plug to a mains adapter.
4. During charging, the indicator flashes to show the current charge level. When the battery is fully charged, the battery indicator is full and steady. Charging time is approximately 3 hours.
   Battery life is a maximum of 5 hours. This time will vary depending on the programmes and usage

to a mains adapter. indicator flashes to show the current charge level. by charged, the battery indicator is full and steady. approximately 3 hours. in of 5 hours. This time will vary depending on the USB Plug USB-C Plug

Terraillon.

EN

CHECKING THE BATTERY LEVEL:

• The battery charge level is visible as soon as the product is switched on.

- The battery is discharged: a red light indicates that the battery needs recharging

- The battery is charging: the battery level flashes on the LED screen as charging progresses.

• The battery is fully charged: the battery symbol is complete.

Safety instructions for charging and backing up the product's lithium battery:

• For your safety, always use a 5 V input charger/adapter (the Mini Massager's input voltage is 5 V DC 1A).
• Select a qualified charger from a reputable manufacturer. It must be certified and in good condition.
  • DO NOT use a fast charging USB adaptor as this may damage the product.
• Only charge the product at ambient temperatures between 10^ / 40^ and 40^ / 104^ .
• Do not heat the device above 70^ / 158^ . Do not throw into a fire.
• Keep out of direct sunlight.
• Switch off the product after use.

PLEASE NOTE:

We will not take any responsibility for the misuse of the product, such as using voltage higher than indicated.

Misuse may result in serious injury or loss of property.

In extreme cases, abuse or misuse of a lithium battery can lead to an explosion, heat generation, fire or smoke development.

USING THE PRODUCT

SETTING-UP THE MASSAGE HEADS:

1. Place the flat massage head at the end of the gun and clip it on.

2. The silicone tips: spherical head, conical head, U-shaped head clip directly onto the flat head.

To change the massage head, the gun must be switched off.

ON/OFF:

Then switch on the gun to start the massage.

1. Press the massage gun's on/off button ⏻ for 3 seconds to start the massage. Massage starts at the slowest speed.

The massage gun switches off automatically after every 15-minute session. If you wish to continue your massage, you can restart the unit.

1. If you wish to stop the session before the 15-minute timer expires, press the On/Off button 📍 again for 3 seconds.

Terraillon.

EN

SPEED SELECTION:

The Mini Massager has 6 massage speeds.

Briefly press the On/Off speed button ⏻ to change the intensity.

Each press increases the speed by 1.

The intensity selected will then be displayed on the unit's LED screen.

USING THE HEATING SURFACE:

To use the heating surface, the Mini Massager must be ON.

1. Press the heating surface button for 3 seconds to start the programme. The heating surface takes approximately 1 minute to reach the temperature of the selected programme.

The Mini Massager has 3 heating programmes:

1: Temperature at 38^ C - LED display + green light
2: Temperature at 42^ C - LED display + blue light
3: Temperature at 46^ C - LED display + red light

Briefly press the heating surface button 🎨 to change programme.

The heating function stops after 15 minutes of operation (the timer starts when the appliance is switched on).

1. If you wish to stop the heating function during use, press the heating surface button ⚪ for 3 seconds.

The appliance will also stop.

FAQ

• Why is my Mini Massager not turning on?
If the Mini Massager will not power on, please ensure the battery is fully charged.
• Why is my Mini Massager is not charging?

If your Mini Massager will not charge, please ensure each end of the charging cable is securely attached to the gun massager and the power source. Check to ensure the wall outlet has power. If using a computer USB port, please ensure that the computer has power.

TECHNICAL SPECIFICATION

Product Name Mini Massager
Battery capacity 1800 mAh
Vibration mode 6 levels
Speed 800 RPM	1 300 RPM
	1 800 RPM
	2 300 RPM
	2 800 RPM
	3 200 RPM
Temperature of heating programmes	38°C, 42°C, 46°C

Charging time 3 hours
Charging interface USB-C
Usage time 3-5 hours
Rated Power 13,3 W
Product size	90 x 40 x 155 mm
Product weight 400 g
Decibels	45 - 50 dB
Excursion	6,5 mm

EN

CARE AND MAINTENANCE

To reduce the risk of failure, electric shock, injury, fire and equipment damage, please read all the instructions and warnings in this manual.

1. Do not dispose of, store or use the massager near or in fire or open flames.
2. Do not remove screws or attempt to disassemble the massager.
3. Please consult with your doctor before use. This massager is not intended to replace or supplement prescribed medical treatments.

WARRANTY

This product is guaranteed against defects in materials and workmanship. This warranty does not cover damage resulting from accidents, improper use or negligence. If you have a complaint, first contact the store where you made your purchase.

ENVIRONMENTAL PROTECTION

When the product is no longer usable, please take it to a collection point for the recycling of waste electrical and electronic equipment.

DE

QR code image containing encoded data, no visible human-readable text

HAFTUNGSAUSSCHLUSS

ACHTUNG

Line drawing of a Tension electric shaver device with no visible text or symbols

Massagepistole x1

Flachkopf x1

Kugelkopf x1

Konuskopf x1

U-förmiger Kopf x1

Ladekabel x1

Tragetasche x1

QR code image containing encoded data, no visible human-readable text

AUFLADEN DES PRODUKTS

in. Tensile

EIN/AUS:

QR code image containing encoded data, no visible human-readable text

DISCLAIMER

OPGELET

Line drawing of a Tension electric shaver device with no visible text or symbols

Massagepistool x1

Platte kop x1

Bolvormige kop x1

Kegelvormige kop x1

U-vormige kop x1

Laadkabel x1

Transportzak x1

Handleiding x1

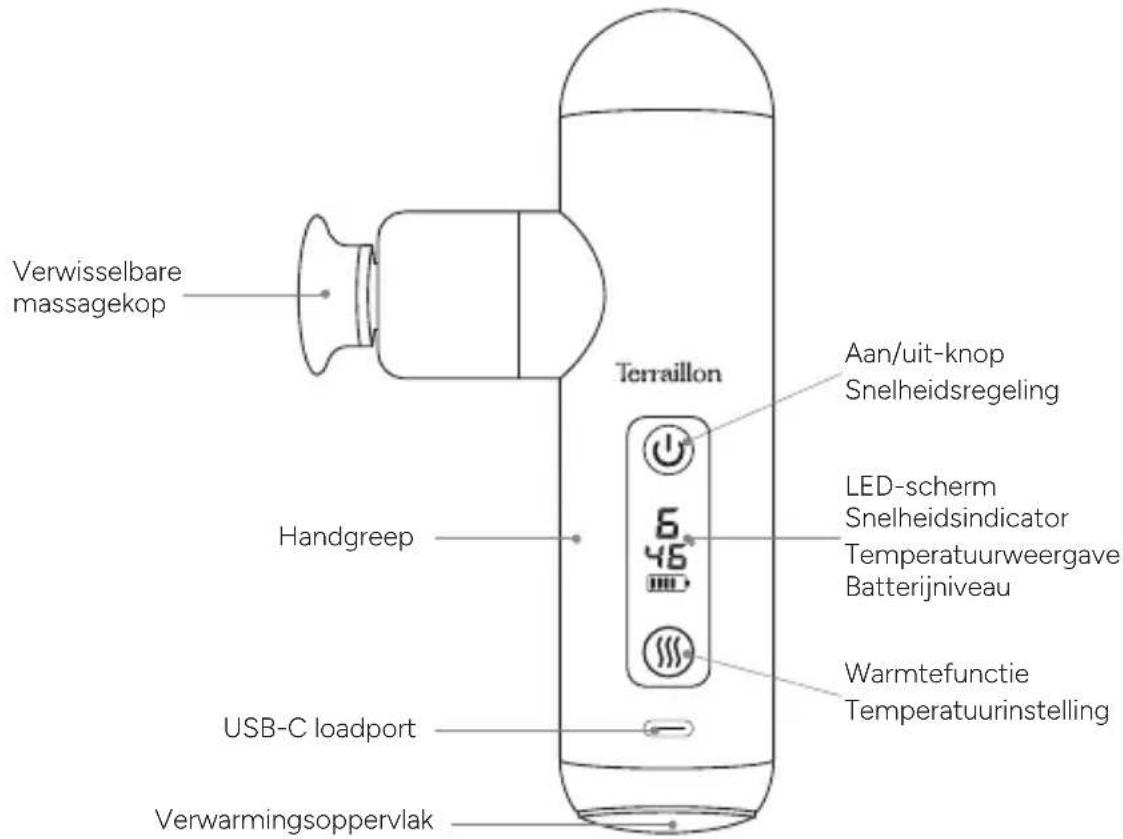

PRODUCTOVERZICHT

QR code image containing encoded data, no visible human-readable text

HET PRODUCT OPLADEN

QR code image containing encoded data, no visible human-readable text

ESCLUSIONE D I RESPONSABILITÀ

ATTENZIONE

Line drawing of a Tension electric shaver device with no visible text or symbols

QR code image containing encoded data, no visible human-readable text

CARICARE IL PRODOTTO

QR code image containing encoded data, no visible human-readable text

AVISO LEGAL

PRECAUCIÓN

Line drawing of a Timadian brand hairdryer device with buttons and port (no text or symbols on body)

QR code image containing encoded data, no visible human-readable text

CARGA DEL PRODUCTO

QR code image containing encoded data, no visible human-readable text

ANSVARSBEGRÄNSNING

FÖRSIKTIGHET

Line drawing of a portable electronic device with a nozzle and control buttons (no text or symbols)

Massagepistol x1

Platt huvud x1

Sfäriskt huvud x1

Koniskt huvud x1

U-format huvud x1

Laddningskabel x1

Bärväska x1

Användarhandbok x1

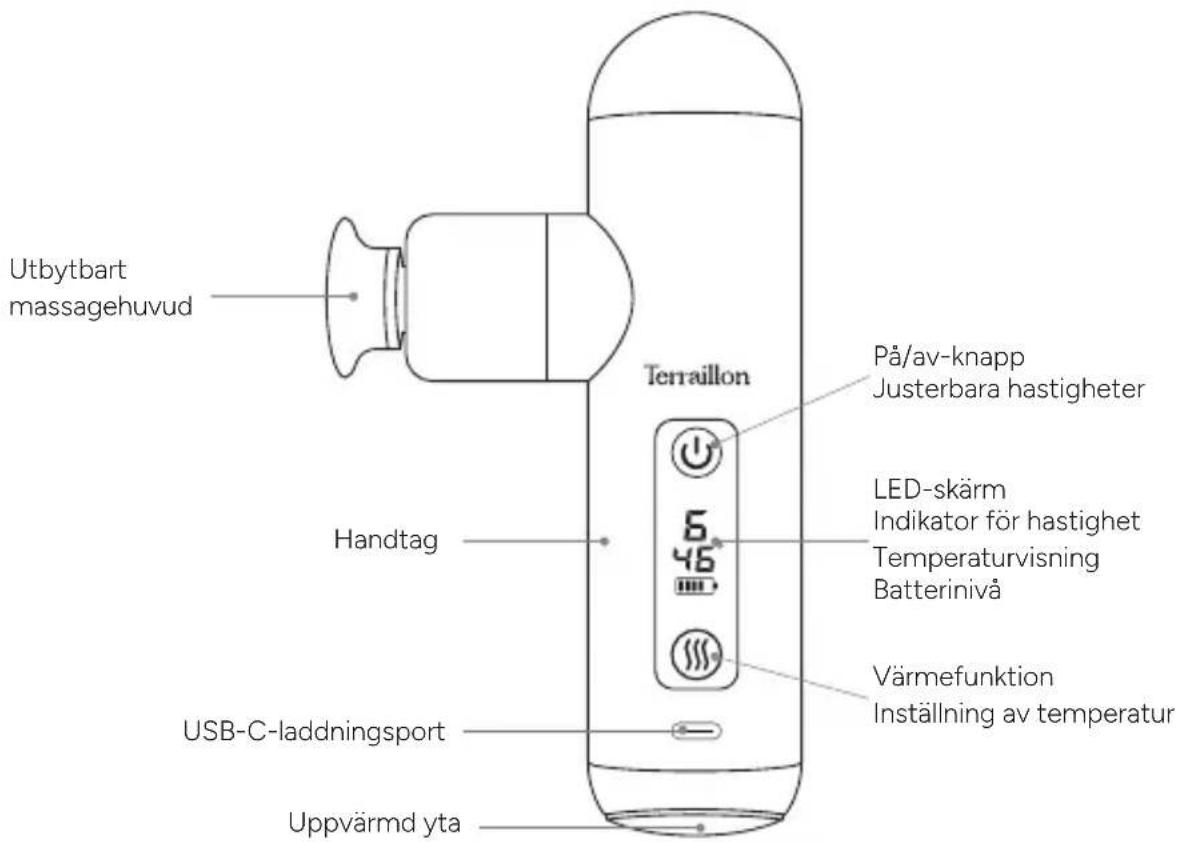

PRODUKTÖVERSIKT

QR code image containing encoded data, no visible human-readable text

LADDA PRODUKTEN

TIPS OM PASSANDE MASSAGE:
