Fitness Massager - Massage device TERRAILLON - Free user manual and instructions

Product type	Massage gun
Brand	Terraillon
Model	Fitness Massager
Dimensions	190 x 155 x 32 mm
Battery capacity	1200 mAh
Charging time	2-3 hours
Battery life	1-2 hours
Number of speeds	6
Maximum speed	3200 rpm
Rated power	25 W
Charging interface	USB-C
Input voltage	5 V DC 2 A
Included massage heads	4 (spherical, flat, conical, U-shaped)
Auto shut-off	After 10 minutes
Warranty	Against defects in materials and workmanship
Maintenance	Clean with a soft cloth, do not immerse

Frequently Asked Questions - Fitness Massager TERRAILLON

How to turn on the Fitness Massager?

To turn on the device, press and hold the Power button on the handle. The massage starts at the slowest speed.

How to charge the device?

Use the provided USB-C cable and plug it into the USB-C charging port of the device. Connect the other end to a standard wall adapter (5V 2A) or a computer USB port. The LED indicators show the charging progress.

What massage heads are included?

The device comes with 4 massage heads: spherical for large muscle groups, flat for kneading, conical for deep tissue, and U-shaped for areas like the trapezius.

How long does the battery last?

The 1200 mAh battery provides 1 to 2 hours of use depending on the speed. Full charging time is 2 to 3 hours.

Can I use the device on bones or joints?

No, the massage gun is designed for use on soft tissues only. Avoid bones, joints, head, heart, and genital areas.

How to clean the device?

Clean the device with a soft, slightly damp cloth. Never immerse the massage gun in water or any other liquid.

What if the device does not turn on?

Make sure the battery is fully charged. Plug in the USB-C cable and check that the indicators light up during charging. If the problem persists, contact customer service.

The device turns off automatically, why?

The massage gun has an auto shut-off after 10 minutes of continuous use to prevent overuse. Press and hold the Power button to restart.

What is the recommended input voltage?

Use a charger with an input voltage of 5 V DC 2 A. Do not use a fast-charging USB adapter, as this could damage the device.

Where can I find spare parts?

Massage heads and charging cables can be obtained by contacting Terraillon customer service at [e-mail]. Also check the official website.

USER MANUAL Fitness Massager TERRAILLON

MANUEL D'UTILISATION – INSTRUCTION MANUAL

FITNESS MASSAGER

Line drawing of a handheld device with a circular head and handle, no text or symbols present

Terraillon® CE

www.terraillon.com

LE TRI

FACILE

ÉLÉMENTS

D'EMBALLAGE

FR

Cet appareil

et sa batterie

se recyclent

À DÉPOSER

EN MAGASIN

À DÉPOSER

EN DECHETERIE

CHARGEMENT DU PRODUIT

Thank you for purchasing the Fitness Massager Please read the instructions before using the massager as this manual provides additional information including safety precautions and warnings.

If you have any difficulties or need more information, you can find our help centre by scanning the QR code. If you cannot find the answer to your question, you can also contact our After Sales Service: [e-mail]

DISCLAIMER

CAUTION

If you have the following conditions or any health issues, please consult with your doctor before use.

1. Pregnancy, diabetes including complications such as neuropathy and retinal damage.
2. Use of cardiac pacemaker, recent surgery, epilepsy or migraines, protrusion of lumbar intervertebral discs and anterior displacement of bone vertebrae.
3. Recent joint replacement surgery, intrauterine device placement, metal implants and other concerns of the body.

WARNING: consult doctor before using this product to reduce the risk of injury.

PRECAUTIONS

1. Minors are not allowed to use this product. This product is not a toy, please store it out of reach of children.
2. Do not immerse the product in water. If the product falls into the water, please submit it for inspection in time.
3. Do not place the product near the fire source or into the fire.
4. Do not use the gun massager on the head, near the heart or on the genitals.
5. Do not use the gun massager on the bones and joints. The massager is designed for use on soft tissues.
6. Do not drop the product intentionally.
7. Do not remove screws or attempt to disassemble the product.
8. It is forbidden to replace or supplement medical treatment with the device, if you feel pain or are receiving treatment, please consult before using the device your doctor.
9. Do not put fingers, hair or other parts of the body near the axis and back of the massage head to avoid crushing injuries.
10. If the equipment is damaged, stop operation immediately.
11. Do not place fingers, hair or other body parts near the axis or back of the massager to prevent injury.

EN

PACKAGE CONTENTS

Gun Massager x 1 Massage Head x 4

Charging Cable x 1 Instruction Manual x 1

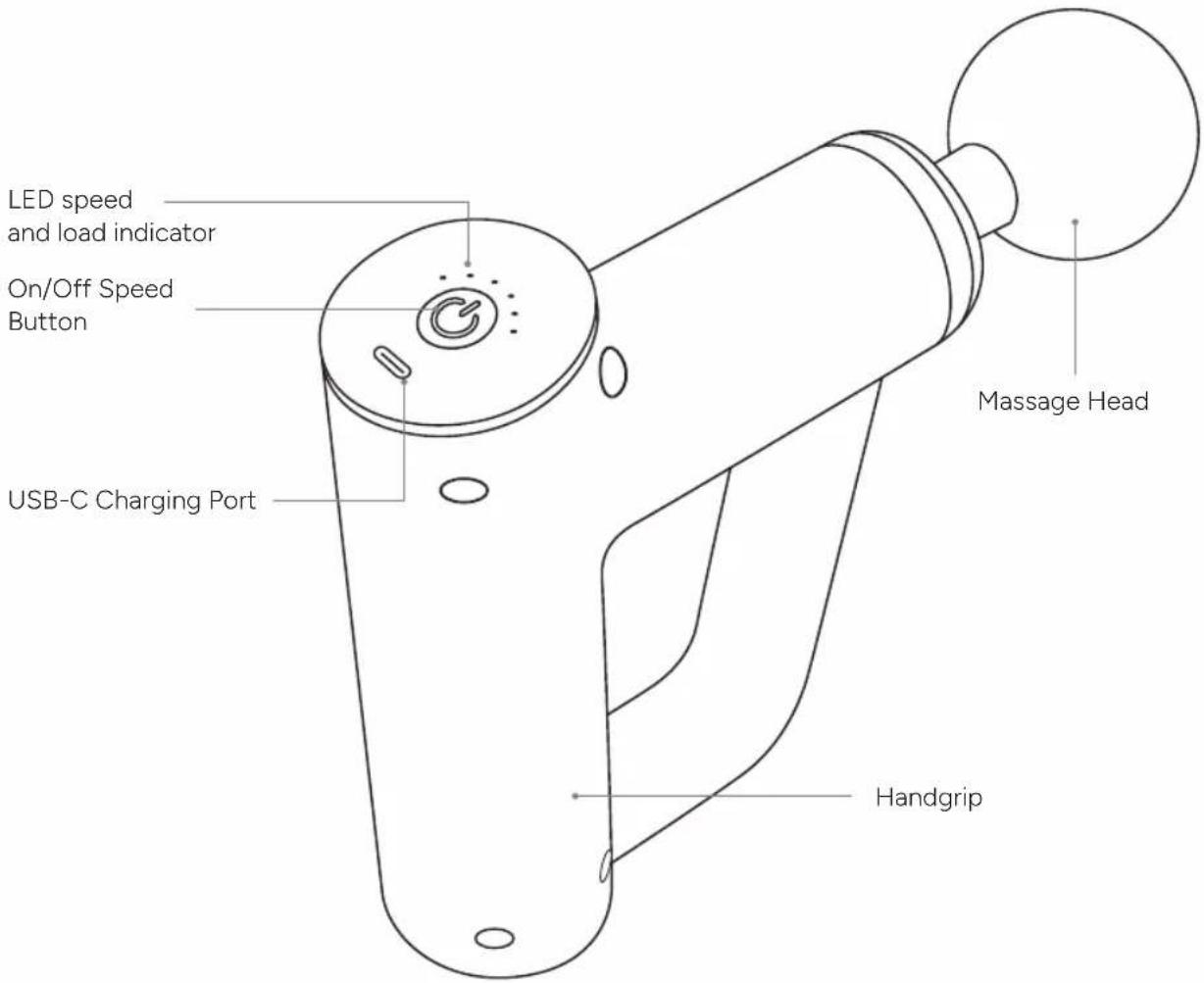

PRODUCT OVERVIEW

Terraillon.

EN

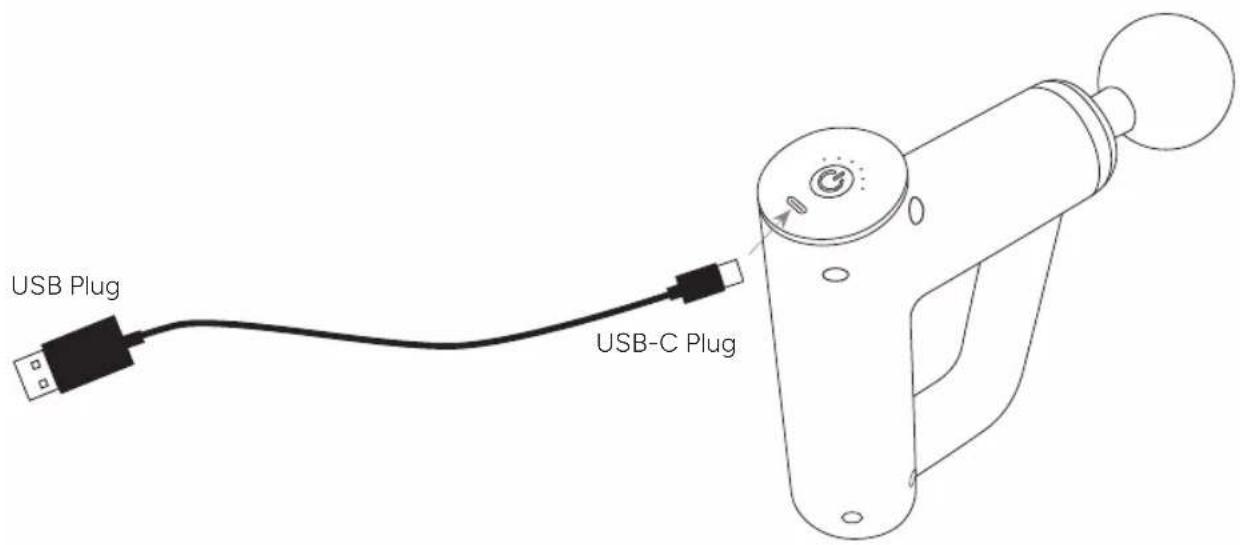

CHARGING THE PRODUCT

For your safety, always use an appropriate 5V input charger/adapter to charge the massager. DO NOT USE a quick-charging USB adapter as this may damage the product.

Important: The massage gun must not be turned on.

1. Use the USB-C cable included with this massager.
2. Connect the USB-C plug to the USB-C charging port.
3. Connect the USB plug to a USB port on a computer or standard wall adapter to begin charging.

GOOD TO KNOW:

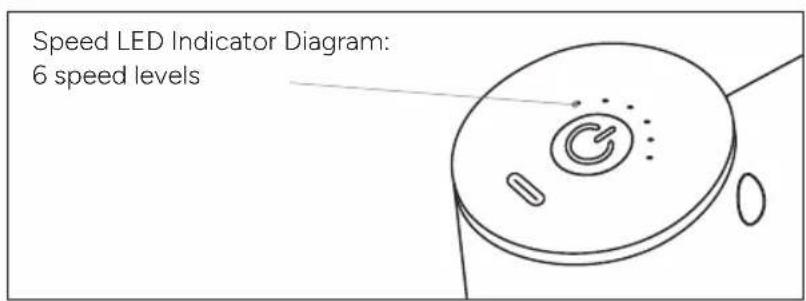

When the product is charging, the 6 LEDs on the speed indicator light up progressively.

When the product is charged, all 6 LEDs light up steadily.

When the battery is discharged, all 6 LEDs flash at the same time and the device switches off after a few seconds.

NOTE:

• You must select a qualified charger from a reputable manufacturer.
• You must charge the massager if it has not been used for more than 12 months.

Safety instructions for charging the product's lithium battery:

• The input voltage is DC 5V 2A.
- In order to charge the product safely and reliably, please use a wall adapter that is certified and in good condition.
- Only charge the product in ambient temperatures between 10^ / 40^ and 40^ / 104^ .

Terraillon.

EN

• Do not heat above 70^ / 158^ . Do not dispose of in a fire.
• Keep out of direct sunlight.
• Turn off the product after use.
• Please note: we will not take any responsibility for the misuse of the product, such as using voltage higher than indicated. Misuse may result in serious injury or loss of property.
• In extreme cases, abuse or misuse of a lithium battery can lead to an explosion, heat generation, fire or smoke development.

MASSAGE HEADS

• Spherical Head: suitable for Relaxing Large Muscle Groups, including your arms, waist, back, buttocks, and thighs.
• Flat Head: suitable for Relaxation and Shaping of Various Muscle Groups and especially the abdominal belt, the pectoral muscles of the chest or even the biceps and triceps femoris in the leg.
• Cone Head: suitable for deep tissue impact recovery sessions. Ideal for targeting trigger points and small specific areas: such as the soles of the feet, palms, Achilles heel and rhomboid muscles in the back.
• U-Shaped Head: suitable for trapezius muscles, areas around the achilles tendon muscle, ankle muscle and calf muscles.

For more specific programme tips, you can find an article detailing them in our help centre by scanning the QR code.

CONNECTING THE ATTACHMENT

Place the massage head you want on the end of the gun and snap it on. Then turn on the gun to start the massage.

To change the massage head, turn the gun off by holding down the On/Off button: you can remove the head you are using and insert the new one.

EN

USING THE PRODUCT

1. Long press the on/off speed button of the gun massager to start the massager. The massage will start at the slowest speed and will display the slow indicator light.
2. Short press the on/off speed button to change the intensity.
3. The Gun Massager switches off automatically after each 10-minute session, corresponding to the recommended massage time. To restart, simply long press the on/off speed button.
4. The gun massager features six speeds
5. If you wish to stop the session before the 10-minute timer, simply long press the on/off button until the massager powers off.

FAQ

• Why is my Fitness Massager not turning on?

If the Fitness Massager will not power on, please ensure the battery is fully charged.

• Why is my Fitness Massager is not charging?

If your Fitness Massager will not charge, please ensure each end of the charging cable is securely attached to the Gun Massager and the power source. Check to ensure the wall outlet has power. If using a computer USB port, please ensure that the computer has power.

TECHNICAL SPECIFICATION

Product Name Fitness Massager
Battery capacity 1200 mAh	Charging time 2-3 Hours
Vibration mode 6 levels	Charging interface USB-C
Speed 1 800 RPM	Usage time 1-2 hours
2 000 RPM	Rated Power 25 W
2 300 RPM
2 600 RPM	Product size 190 x 155 x 32 mm
2 900 RPM
3 200 RPM

EN

CARE AND MAINTENANCE

To reduce the risk of failure, electric shock, injury, fire and equipment damage, please read all the instructions and warnings in this manual.

1. Do not dispose of, store or use the massager near or in fire or open flames.
2. Do not remove screws or attempt to disassemble the massager.
3. Please consult with your doctor before use. This massager is not intended to replace or supplement prescribed medical treatments.

WARRANTY

This product is guaranteed against defects in materials and workmanship. This warranty does not cover damage resulting from accidents, improper use or negligence. If you have a complaint, first contact the store where you made your purchase.

ENVIRONMENTAL PROTECTION

When the product is no longer usable, please take it to a collection point for the recycling of waste electrical and electronic equipment.

DE

Diagram of a circular device with a central button and two buttons, no text or symbols present

Terraillon.

DE

AUFLADEN DES PRODUKTS

Simple line drawing of a circular device with a central button and two side buttons, no text or symbols present.

Terraillon.

NL

HET PRODUCT OPLADEN
