14977 - Clock Kienzle - Free user manual and instructions

Product type	Radio-controlled wall clock
Brand	Kienzle
Model	14977
Power supply	1 AA 1.5 V battery (LR6), not included
Reception function	DCF time signal (radio-controlled)
Time setting	Automatic via DCF or manual
Display	Analog (hour and minute hands)
Mounting	Wall-mount (bracket included)
Movement	Quartz
Safety	Do not immerse; avoid shocks and extreme temperatures
Cleaning	Dry cloth, remove batteries beforehand
Maintenance	Remove batteries if not used for a long time
Warranty	2 years (extendable upon registration)
Package contents	Clock, instruction manual
Reset	RESET button
Manual reception	REC button (press and hold 3 s)
Manual setting	M.SET button (press and hold 3 s)
Locking pin	Present for transport
Use	Indoor only
Certification	CE conformity
Recommended batteries	1x AA/LR6

Frequently Asked Questions - 14977 Kienzle

How to set the time manually on the Kienzle 14977 clock?

To set the time manually, press and hold the M.SET button for about 3 seconds. When the minute hand starts moving, use brief presses to advance minute by minute, or press and hold for continuous adjustment. Release to save and exit.

What to do if the clock hands do not move after inserting the battery?

First check that you have removed the locking pin located in the battery compartment. If the pin is removed and the hands remain still, wait a few minutes as the clock may be in the DCF signal reception phase. If nothing happens, press the RESET button with a pointed object.

How to reset the Kienzle 14977 clock?

Use a pointed instrument (e.g., pen) to press the RESET button on the back of the clock. The hands will move to 12:00, then the clock will attempt to receive the DCF signal. Wait 2 to 5 minutes for it to display the correct time.

Why does my clock not display the correct time after inserting batteries?

The clock automatically searches for the DCF signal. This process can take 3 to 14 minutes. If it does not receive the signal, you can trigger a manual search by pressing and holding the REC button for 3 seconds. In the absence of signal, use manual setting via the M.SET button.

What type of battery should I use for the Kienzle 14977 clock?

The clock operates with one AA (LR6) 1.5 V battery. Batteries are not included. Use a recommended brand alkaline battery for best performance. Do not mix different types or brands of batteries.

How to mount the clock on the wall?

Use the provided wall bracket on the back of the clock. Securely attach it to the wall with a screw (not included). Ensure the clock is properly hung to avoid falls. The manufacturer is not liable for falls due to incorrect mounting.

How to clean the Kienzle 14977 clock?

Before cleaning, remove the battery to avoid any electrical risk. Use only a dry cloth to wipe the exterior. Do not use cleaning liquids, as they may damage the electronic components.

Does the clock automatically change to daylight saving time and winter time?

Yes, when the clock receives the DCF signal, it automatically switches between daylight saving time and winter time (Central European Time). If the automatic change does not work, you can force a manual reception by pressing and holding the REC button for 3 seconds.

What to do in case of general malfunction of the clock?

If the clock does not respond to buttons or displays incorrect time, perform a reset with the RESET button. If the problem persists, check the battery and for interference (e.g., doorbells, security systems). Contact your retailer if necessary; do not disassemble the device yourself.

How to contact customer service for the Kienzle 14977 clock?

In case of a defect, please contact your retailer. He will contact the Service Centre and can send the device for repair if necessary. The 2-year warranty can be extended upon online registration. See the terms at www.bresser.de/warranty_terms.

USER MANUAL 14977 Kienzle

Close-up of a black analog wall clock with minimalist design and no visible text or symbols on the face itself.

EN Visit our website via the following QR Code or web link to find further information on this product or the available translations of these instructions.

INFOS+DOWNLOADS:

Simple shield icon with a checkmark inside, no text or symbols present

GARANTIE · WARRANTY · GARANTÍA · GARANZIA

www.bresser.de/warranty_terms

DE Bedienungsanleitung......4
EN Instruction manual....8
FR Manuel d'instructions....12
NL Handleiding 16
IT Manuale di istruzioni....20
ES Manual de instrucciones.... 24

INHALTSVERZEICHNIS

1. About this manual 9
2. General safety instructions 9
3. Scope of delivery 9
4. Parts Overview 9
5. Getting started/Power supply 9
   6.Time setting 9
6. Quick Start 10
7. Manual time setting 10
8. Mounting/Positioning 10
9. Troubleshooting 10
10. Cleaning and Maintenance 11
11. Disposal 11
12. EC Declaration of Conformity 11
13. Warranty & Service 11

1. ABOUT THIS MANUAL

This instruction manual is to be considered part of the device. Before using the device, please read the safety instructions and the user manual carefully. Keep this user manual for future reference. If the device is sold or passed on, the instruction manual must be provided to the new owner/user of the product. The device is intended for indoor use only!

2. GENERAL SAFETY INSTRUCTIONS

• Choking hazard! Keep packaging material, like plastic bags and rubber bands, out of the reach of children, as these materials pose a choking hazard.
• RISK of ELECTRIC SHOCK! This device contains electronic components that operate via a power source (batteries). Children should only use the device under adult supervision. Only use the device as described in the manual; otherwise, you run the risk of an electric shock.
• RISK of FIRE/EXPLOSION! Do not expose the device to high temperatures. Use only the recommended batteries. Do not short-circuit the device or batteries, or throw them into a fire. Excessive heat or improper handling could trigger a short-circuit, a fire or an explosion!
• Do not immerse the unit in water.
• Do not subject the unit to excessive force, shock, dust, extreme temperature or high humidity, which may result in malfunction, shorter electronic life span, damaged batteries and distorted parts.
• Do not disassemble the device. In the event of a defect, please contact your dealer. The dealer will contact the Service Centre and can send the device in to be repaired, if necessary.
• Use only the recommended batteries. Always replace weak or empty batteries with a new, complete set of batteries

at full capacity. Do not use batteries from different brands or with different capacities. Remove the batteries from the unit if it has not been used for a long time.

- The manufacturer is not liable for damage related to improperly installed batteries!

3. SCOPE OF DELIVERY

Wall clock, Instruction manual Required batteries: 1 x 1.5V battery (Size AA/LR6) Batteries not included with purchase.

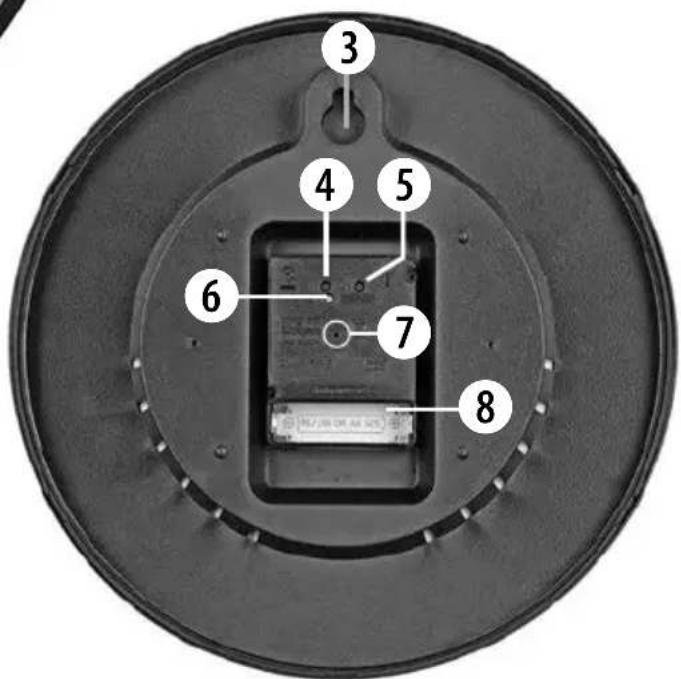

4. PARTS OVERVIEW

1. Dial plate
2. Clock hands (hours, minutes)
3. Wall mount
4. M.SET button
5. REC button
6. RESET button
7. Locking pin
8. Battery compartment

5. GETTING STARTED/POWER SUPPLY

1. Remove the locking pin (7) from the clockwork. The clock can be operated only after the pin has been removed.
2. Insert one battery (1.5V, AA/LR6) into battery compartment (8). Please ensure the polarities (+/-) of the batteries match upon installation.

6. TIME SETTING

NOTE! After the clock received the DCF time signal the time will be set according to the Central European time (CET). Summer and winter time change (and reverse) is also set automatically.

7. QUICK START

1. Insert the battery into the clock.
2. The clock will automatically search for the time signal.
3. After about one minute, the minute and hour hands will start moving (this clock has no second hand).
4. It usually takes 3 to 14 minutes to receive the signal.
5. Once the signal is received, the hands will stop briefly to set the correct time.

Automatic time setting via DCF time signal

After inserting the battery the time will be set automatically via DCF signal. This process may take a few minutes. During this process the clock hands will turn several times with interruption until they will display the right time.

Initiate to receive the DCF time signal manually

NOTE! Use this function when e.g. automatic summer/winter time change does not work or the wall clock temporarily receives no time signal.

1. Press and hold the REC button (5) for 3 seconds to start manual search for the DCF signal.
2. The clock hands will move to their start position (12:00 a.m.) and a the wall clock then tries to receive the signal.
3. Wait approx. 2-5 minutes until the current time will be displayed.

8. MANUAL TIME SETTING

NOTE! It is necessary to set the time manually in places where no radio signal is received.

1. Press and hold the M.SET button (4) for approx. 3 seconds.
2. When the minutes hand starts moving you can the set the time manually:
3. Press the M.SET button shortly to set the time in minutes steps.

4. Press and hold the M.SET button to set the time continuously.

5. Release M.SET button to stop manual setting and save the time automatically and exit manual time setting mode.

9. MOUNTING/POSITIONING

NOTE! Make sure you have mounted or placed the device in a safe way. Otherwise the device may fall down and heavy damages can occur for which the manufacturer is not liable.

The wall clock can be mounted on walls with the wall mount (3).

10. TROUBLESHOOTING

Transmission collision

Signals from other household devices, such as door bells, home security systems and entry controls, may interfere with those of this product and cause temporarily reception failure. This is normal and does not affect the general performance of the product. The transmission of the radio signal will resume once the interference recedes.

Other malfunctions

If there is no response from the wall clock by keystrokes or if any other malfunctions occur perform the following steps.

NOTE! With this procedure all received data will be deleted.

1. Press RESET button (6) with a pointed instrument (e.g. pen).
2. The clock hands will move to their start position (12:00 a.m.
3. Wait approx. 2-5 minutes until the current time will be displayed.

11. CLEANING AND MAINTENANCE

Before cleaning the device, disconnect it from the power supply (remove batteries)!

Only use a dry cloth to clean the exterior of the device. To avoid damaging the electronics, do not use any cleaning fluid.

Protect the device from dust and moisture. The batteries should be removed from the unit if it has not been used for a long time.

12. DISPOSAL

Dispose of the packaging materials properly, according to their type, such as paper or cardboard. Contact your local waste-disposal service or environmental authority for information on the proper disposal.

Do not dispose of electronic devices in the household garbage!

As per Directive 2012/19/EU of the European Parliament on waste electrical and electronic equipment and its adaptation into German law, used electronic devices must be collected separately and recycled in an environmentally friendly manner.

13. EC DECLARATION OF CONFORMITY

CE Hereby, Bresser GmbH declares that the equipment type with article number 14977 is in compliance with Directive: 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.bresser.de/download/14977/14977_CE.pdf

14. WARRANTY & SERVICE

The regular warranty period is 2 years and begins on the day of purchase. To benefit from an extended voluntary warranty period as stated on the gift box, registration on our website is required.

You can consult the full warranty terms as well as information on extending the warranty period and details of our services at www.bresser.de/warranty_terms.

TABLE DES MATIÈRES

10. PROBLEEMOPLOSSING

Transmissie-collisie

1. ACERCA DE ESTE MANUAL

Errors and technical changes reserved.
