Installation Instructions Use and Care Information

READ AND SAVE THESE INSTRUCTIONS BEFORE YOU START INSTALLING THIS RANGEHOOD

WARNING: - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium setting.
b) Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware appropriate for the size of the surface element.

WARNING: - TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING*:

a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately EVACUATE AND CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN - You may be burned.
c) DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.
d) Use an extinguisher ONLY if:
1. You know you have a Class ABC extinguisher, and you already know how to operate it.
2. The fire is small and contained in the area where it started.
3. The fire department is being called.
4. You can fight the fire with your back to an exit.

* Based on "Kitchen Firesafety Tips" published by NFPA

WARNING - TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, do not use this fan with any solid-state speed control device.

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have any questions, contact the manufacturer.
2. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

CAUTION: For General Ventilating Use Only. Do Not Use To Exhaust Hazardous or Explosive Materials and Vapors.

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Installation Work And Electrical Wiring Must Be Done By Qualified Person(s) In Accordance With All Applicable Codes And Standards, Including Fire-Rated Construction.

2. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

3. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

4. Ducted fans must always be vented to the outdoors.

ALL WALL AND FLOOR OPENINGS WHERE THE RANGEHOOD IS INSTALLED MUST BE SEALED.

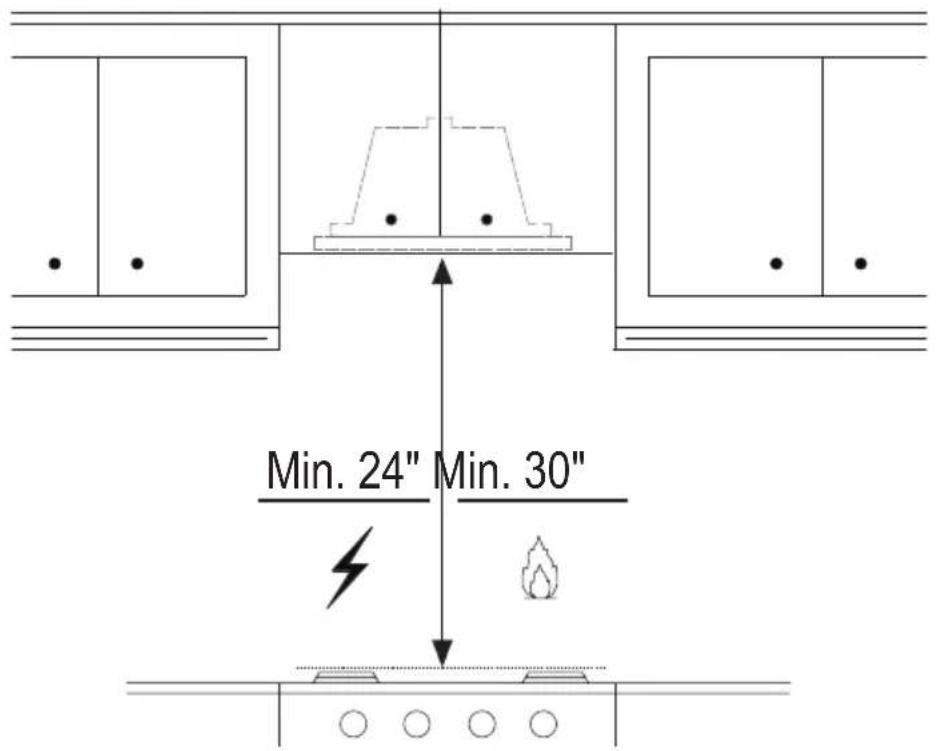

This rangehood requires at least 24" of clearance between the bottom of the rangehood and the cooking surface or countertop. This hood has been approved by UL at this distance from the cooktop. This minimum clearance may be higher depending on local building codes. For gas cooktops and combination ranges, a minimum of 30" is recommended and may be required. The maximum depth of overhead cabinets is 13". Overhead cabinets on both sides of this unit must be a minimum of 18" above the cooking surface or countertop. Consult the cooktop or range installation instructions given by the manufacturer before making any cutouts. MOBILE HOME INSTALLATION The installation of this rangehood must conform to the Manufactured Home Construction and Safety Standards, Title 24 CFR, Part 3280 (formerly Federal Standard for Mobile Home Construction and Safety, Title 24, HUD, Part 280). See Electrical Requirements"

VENTING REQUIREMENTS

Determine which venting method is best for your application. Ductwork can extend either through the wall or the roof.

The length of the ductwork and the number of elbows should be kept to a minimum to provide efficient performance. The size of the ductwork should be uniform. Do not install two elbows together. Use duct tape to seal all joints in the ductwork system. Use caulking to seal exterior wall or floor opening around the cap.

Flexible ductwork is not recommended. Flexible ductwork creates back pressure and air turbulence that greatly reduces performance.

Make sure there is proper clearance within the wall or floor for exhaust duct before making cutouts. Do not cut a joist or stud unless absolutely necessary. If a joist or stud must be cut, then a supporting frame must be constructed.

WARNING - To Reduce The Risk Of Fire, Use Only Metal Ductwork.

CAUTION - To reduce risk of fire and to properly exhaust air, be sure to duct air outside – Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.

Cold Weather installations

An additional back draft damper should be installed to minimize backward cold air flow and a nonmetallic thermal break should be installed to minimize conduction of outside temperatures as part of the vent system. The damper should be on the cold air side of the thermal break. The break should be as close as possible to where the vent system enters the heated portion of the house.

WARNING

• Venting system MUST terminate outside the home.
• DO NOT terminate the ductwork in an attic or other enclosed space.
• DO NOT use 4" laundry-type wall caps.
• Flexible-type ductwork is not recommended.
• DO NOT obstruct the flow of combustion and ventilation air.
• Failure to follow venting requirements may result in a fire.

ELECTRICAL REQUIREMENTS

A 120 volt, 60 Hz AC-only electrical supply is required on a separate 15 amp fused circuit. A time-delay fuse or circuit breaker is recommended. The fuse must be sized per local codes in accordance with the electrical rating of this unit as specified on the serial/rating plate located inside the unit near the field wiring compartment.

ELECTRICAL INSTALLATION WITH WIRING BOX

THIS UNIT MUST BE CONNECTED WITH COPPER WIRE ONLY. Wire sizes must conform to the requirements of the National Electrical Code, ANSI/NFPA 70 - latest edition, and all local codes and ordinances. Wire size and connections must conform with the rating of the appliance. Copies of the standard listed above may be obtained from:

National Fire Protection Association

Batterymarch Park

Quincy, Massachusetts 02269

This appliance should be connected directly to the fused disconnect (or circuit breaker) through flexible, armored or nonmetallic sheathed copper cable. Allow some slack in the cable so the appliance can be moved if servicing is ever necessary. A UL Listed, 1/2" conduit connector must be provided at each end of the power supply cable (at the appliance and at the junction box).

When making the electrical connection, cut a 1 1/4" hole in the wall. A hole cut through wood must be sanded until smooth. A hole through metal must have a grommet.

WARNING

• Electrical ground is required on this rangehood.
• If cold water pipe is interrupted by plastic, nonmetallic gaskets or other materials, DO NOT use for grounding.
  • DO NOT ground to a gas pipe.
• DO NOT have a fuse in the neutral or grounding circuit. A fuse in the neutral or grounding circuit could result in electrical shock.
• Check with a qualified electrician if you are in doubt as to whether the rangehood is properly grounded.
• Failure to follow electrical requirements may result in a fire.

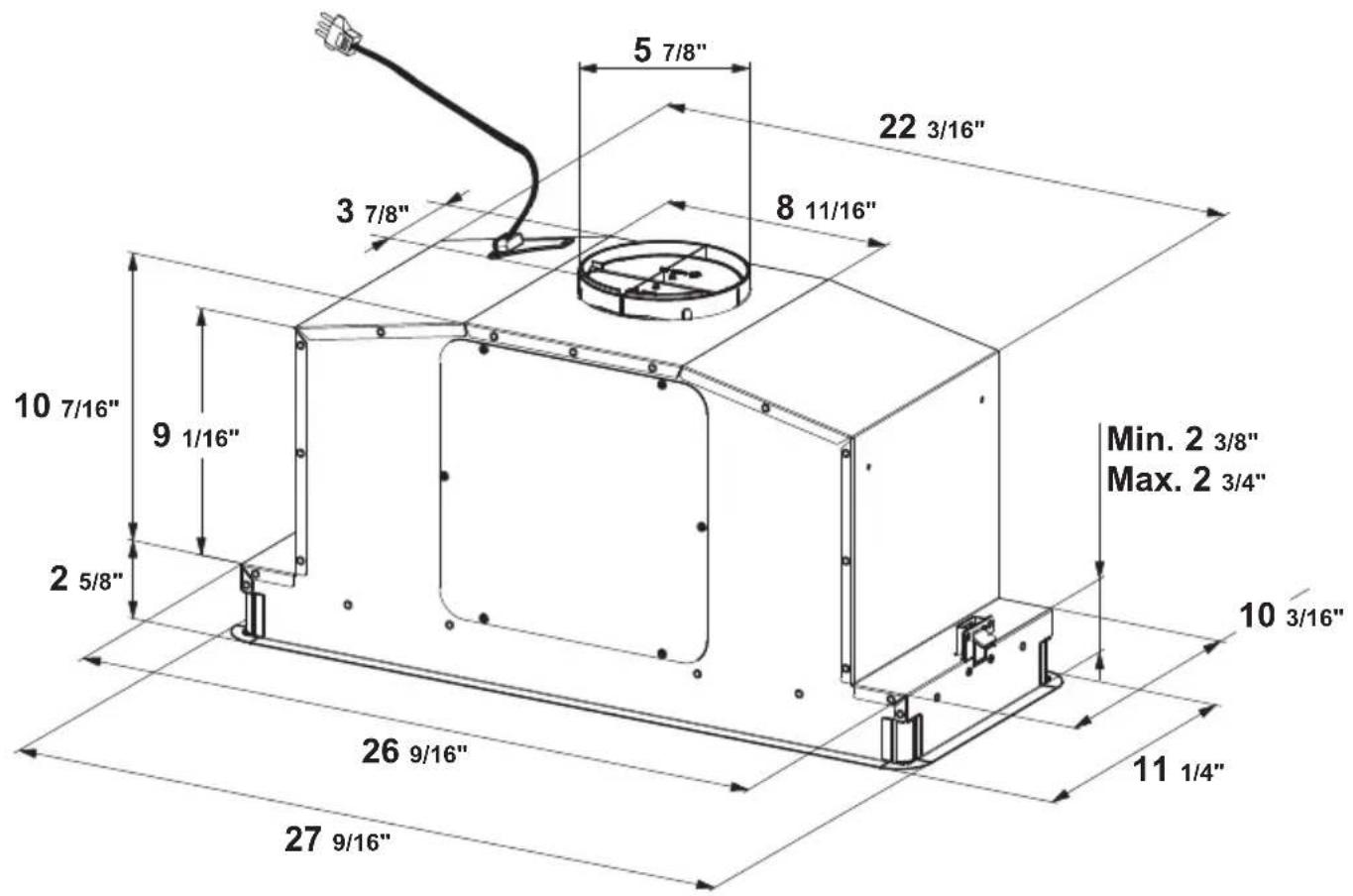

RANGEHOOD DIMENSIONS

5 7/8" 22 3/16" 3 7/8" 8 11/16" 10 7/16" 9 1/16" 2 5/8" Min. 2 3/8" Max. 2 3/4" 10 3/16" 26 9/16" 11 1/4" 27 9/16"

Min. 24" Min. 30"

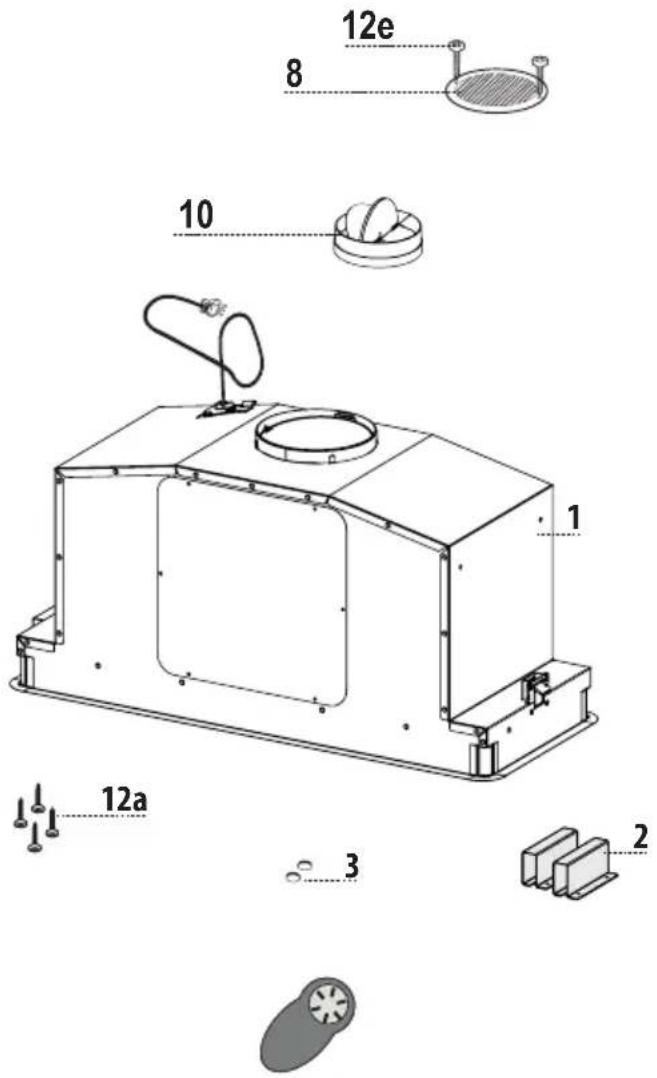

MAIN PARTS

Components

Ref. Qty. Product Components

1 1 Hood Body, complete with:

Controls, Light, Filters,

Blower.

2 2 Bracket

3 2 Cover

8 1 Recirculation Vent Grill

10 1 Damper ø 5 7/8"

1 Remote Control REMCTRL

Ref. Qty. Installation Components

12a 4 Screws 1/8" x 5/8"

12e 2 Screws 1/8"x 3/8"

(for Recirculation Vent

Grill mounting)

Qty.

Documentation

1 Instruction Manual

12e 8 10 1 12a 3 2

Parts needed

- 6" Round Metal ductwork.

Available Accessories

Direct Connect Wiring Box sku # number: WIREBOX

Standard Liner 30- LINE30ST

Standard Liner 36 - LINE36ST

Activated Charcoal Filter sku #; FILTER1

CFM Reducer Kit #CFMRED

CFM Reducer Kit (600-300) ; sku# CFMRED

CFM Reducer Kit (600-400) ; sku# CFMRED2

Charcoal Filter Kit Washable Long Lasting ; sku# FILTER1LL

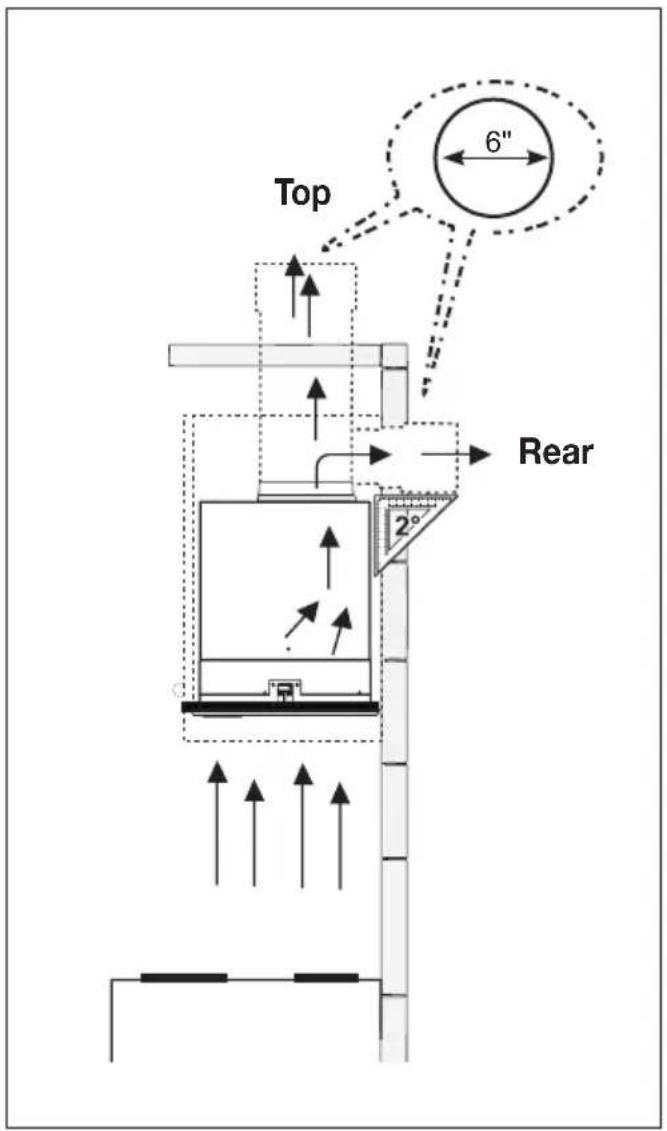

Choose your ducting method

Top 6" Rear 2°

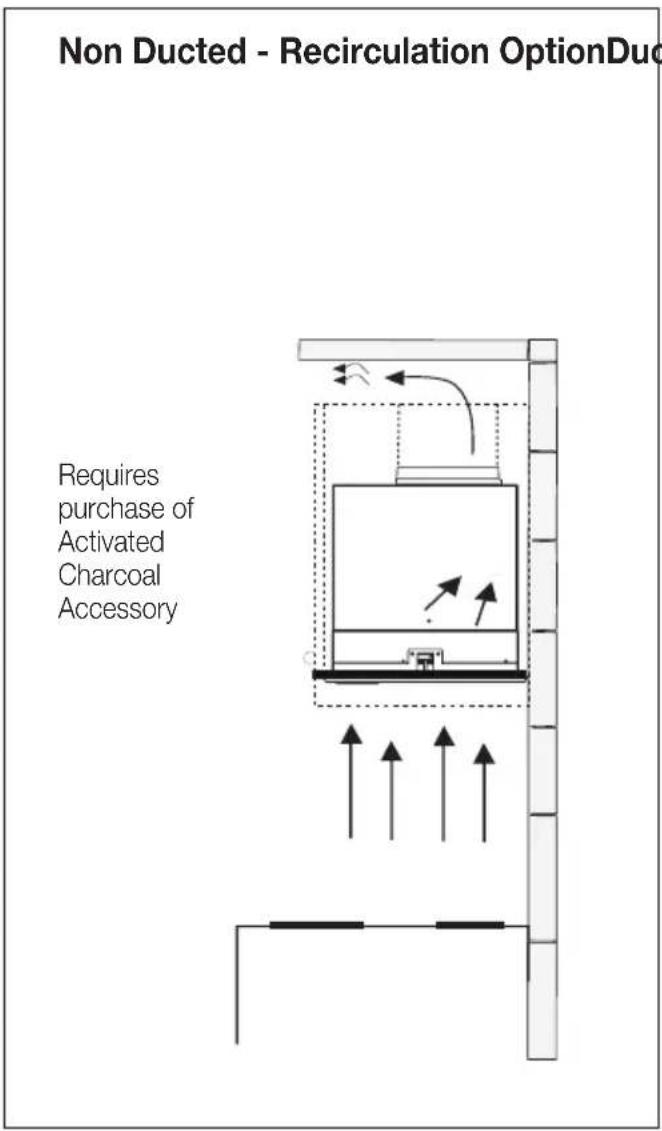

Non Ducted - Recirculation OptionDuo Requires purchase of Activated Charcoal Accessory

Non Ducted - Recirculation OptionDucted Ve

1

Install the rangehood

The Hood can be installed directly on the underside of the wall unit (Minimum 24" from the Cooking Surface).

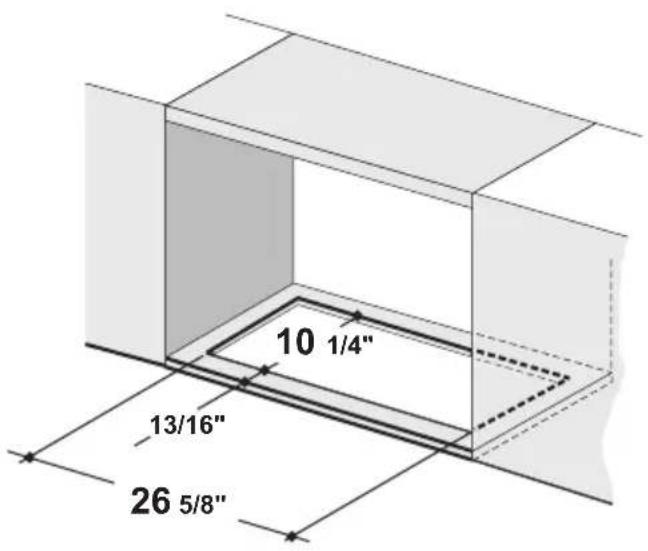

Create an opening in the bottom of the wall unit, as shown.

10 1/4" 13/16" 26 5/8"

2

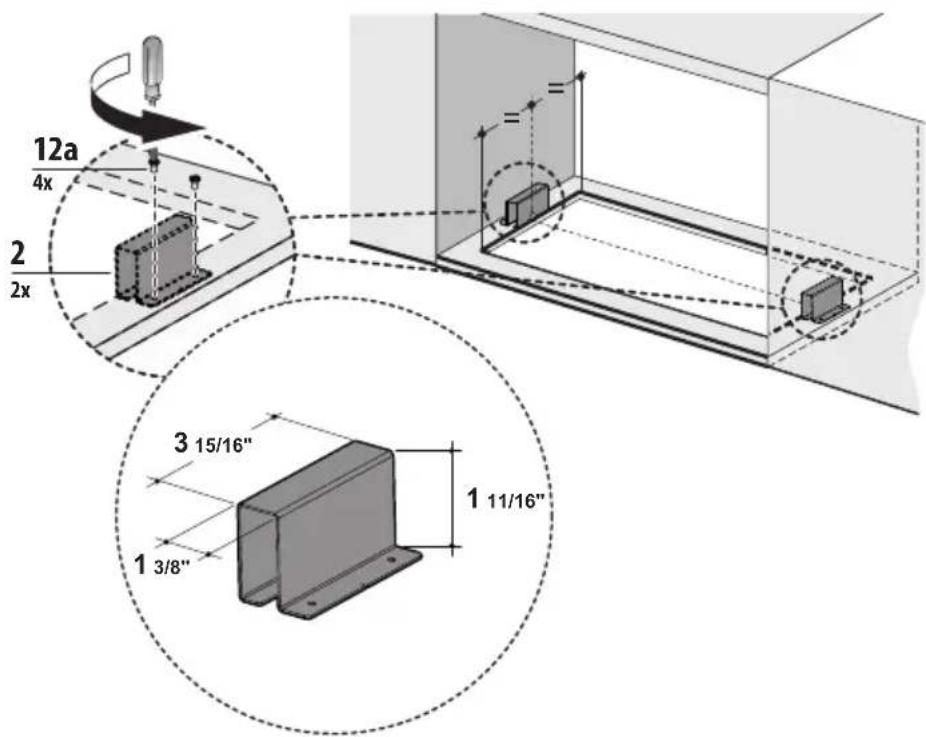

Fix the brackets with two screws as shown.

12a 4x 2 2x 3 15/16" 1 3/8" 1 11/16"

3

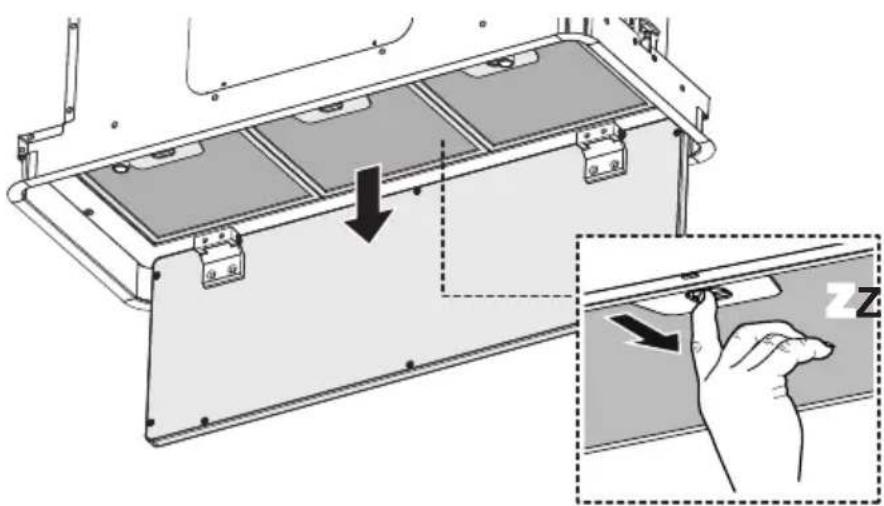

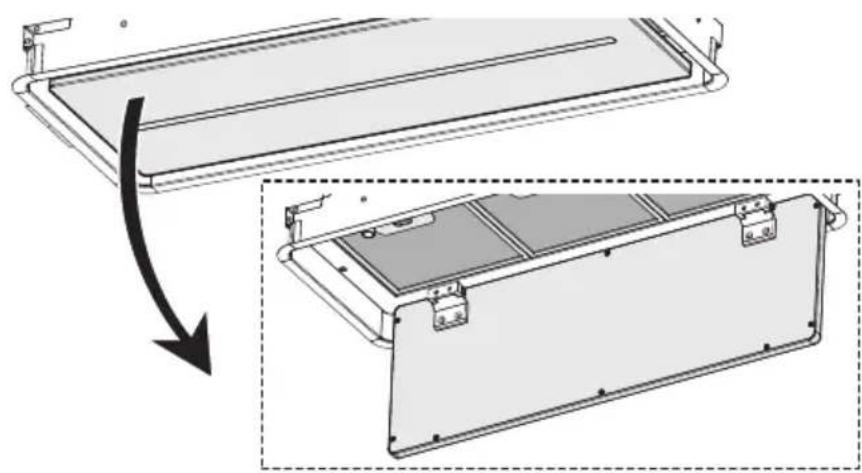

Open the filter panel cover by pulling it.

Technical illustration of a mechanical component with an arrow indicating a process or transformation (no text or symbols present)

4

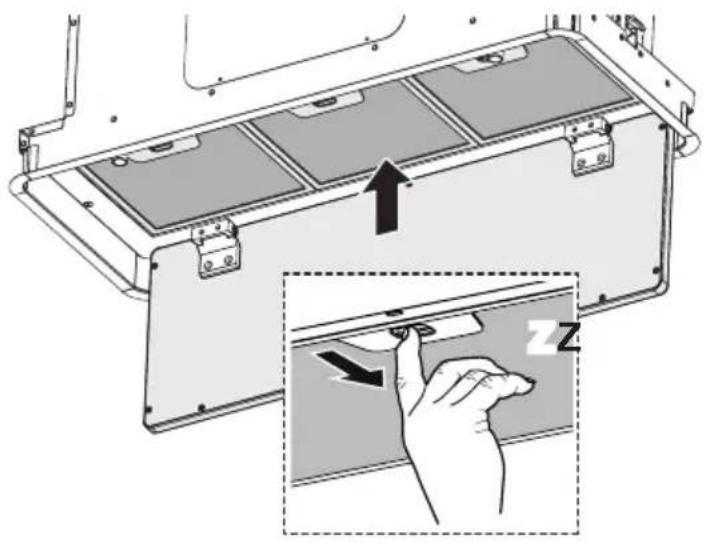

Remove the grease filters.

Diagram of a device's internal structure with a hand holding a clip, showing a downward arrow and magnified detail (no text or symbols)

5

Technical diagram illustrating a mechanical assembly with labeled components and directional arrows, including a 2x magnified view of the component.

Insert the hood until the side supports snap into place.

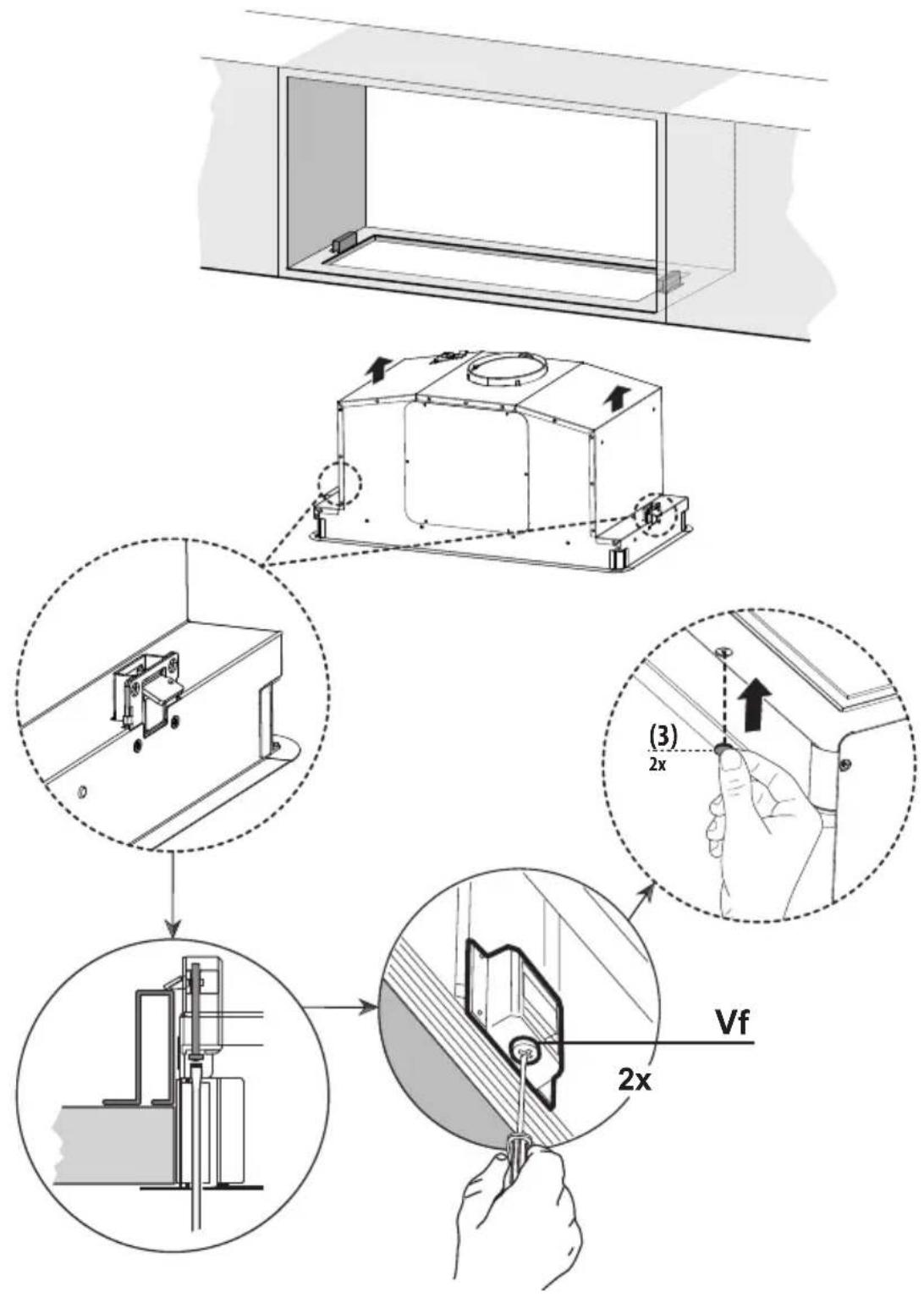

Lock in position by tightening the screws Vf from underneath the hood.
Insert the Covers (3) in each of the two screws openings as shown.

Ducted Venting Installation

10

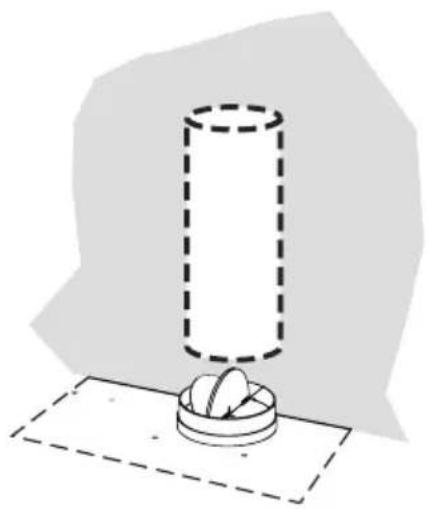

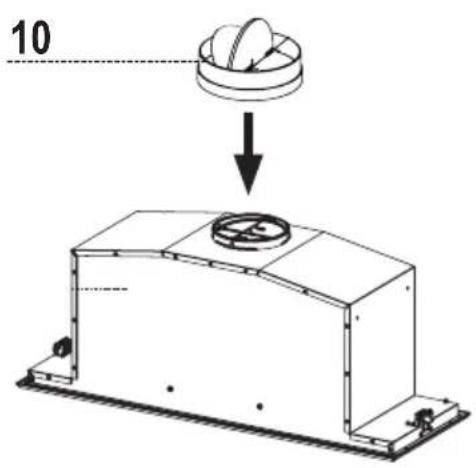

Install Damper that is included with the Hood before connecting to the ductwork.

Simple line drawing of a cylinder placed on a base with a circular object underneath, against a plain background (no text or symbols)

Install Roof or Wall Cap purchased separately. Connect the 6" metal ductwork to the Roof or Wall Cap and then attach ductwork.

Non Ducted - Recirculation Option

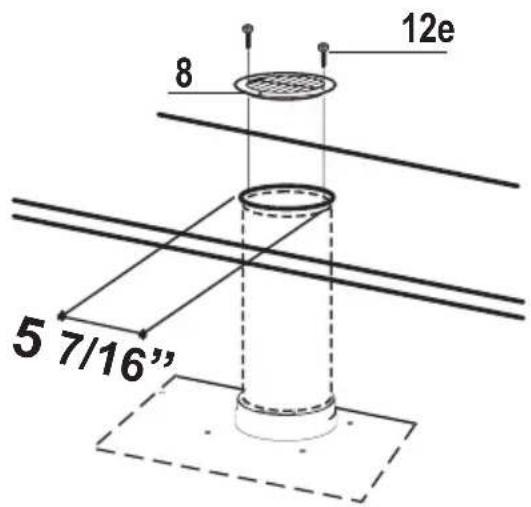

12e 8 5 7/16"

For Non-Ducted Recirculation venting route the ductwork to a location above the hood where the discharge is vented back into the room.

Use the included Recirculation Vent Grill (8) to cover the opening. Secure the grill with the 2 screws (12e) provided in the Install Kit.

If the directional grille is not used, fit a straight tube at least 15" in length from the hood air outlet to the wall unit.

Required Activated Charcoal Filter Accessory - sku

- FILTER1 (purchased separately)

See page 11 Section 8 for installation instructions of Activated Charcoal Filter Accessory.

7

ELECTRICAL INSTALLATION WITH CONNECTION CABLE

GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING - Improper grounding can result in a risk of electric shock.

Consult a qualified electrician if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician install an outlet near the appliance.

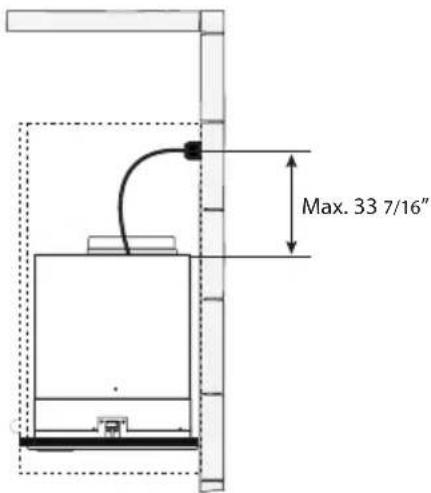

Max. 33 7/16"

The supply cord shall be accessible for inspection after installation.

ELECTRICAL INSTALLATION WITH OPTIONAL WIRING BOX

For Permanent wiring Installation-Use only with Listed rangehood Wiring Box kit sku # WIREBOX, manufactured by Faber.

Direct Connect Wiring Box Accessory sku # WIREBOX (purchased separately)

8

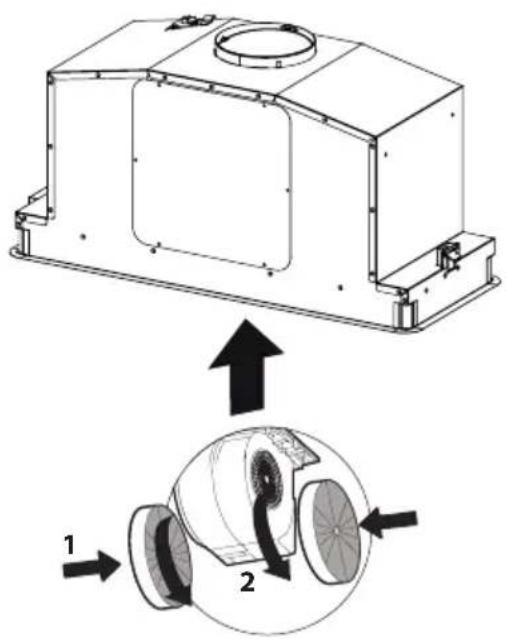

For Non-Ducted Recirculation Option

Technical diagram showing a mechanical housing with internal components and directional arrows indicating flow or movement.

Attach each charcoal filter to the black grid on each side of the blower. Press the charcoal filter tightly to the black grid on the blower side and rotate the filter clockwise (towards the front of the insert hood) until it locks into place. Turn counterclockwise (towards the back of the insert hood) to remove.

Required Activated Charcoal Filter Accessory - sku # - FILTER1 (purchased separately)

9

Replace the grease filters removed previously.

Diagram of a device chassis with an arrow indicating upward movement, showing internal compartments and a hand interacting with a screen (no text or symbols present)

10

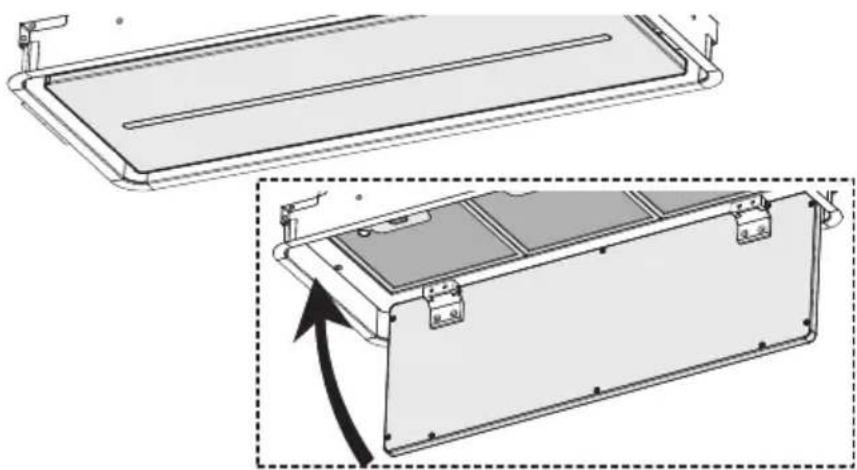

Close the filter panel cover by pushing it back into place until the latch mechanism has secured it.

Technical line drawing of a mechanical component with an inset showing a rotating assembly (no text or symbols)

USE AND CARE INFORMATION

For Best Results

Start the rangehood several minutes before cooking to develop proper airflow. Allow the rangehood to operate for several minutes after cooking is complete to clear all smoke and odors from the kitchen.

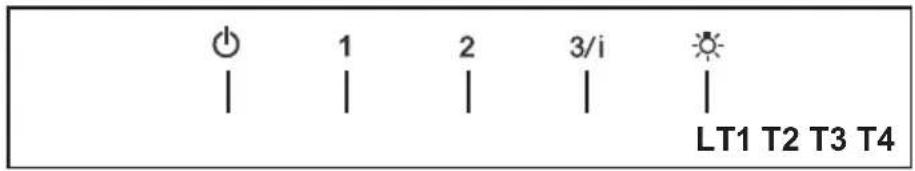

1 2 3/i LT1 T2 T3 T4

T1. Fan Off Button: Turn the blower Off. The fan can be operated by pressing any of the fan setting buttons.

Hold down this button for 2 seconds to activate Delay Off function which will keep the fan On for 15 minutes and automatically shut Off.

T2. Fan Settings Buttons: Low Speed.
T3. Fan Settings Buttons: Medium Speed.
T4. Fan Settings Buttons: High Speed / Intensive Speed.

Hold down the button for 2 seconds to activate the INTENSIVE SPEED, which is timed to run for 10 minutes. At the end of this time it will automatically return to the speed set before. Suitable to deal with maximum levels of cooking fumes.

L. Light Button: On/Off switch for the LED lights.

Cleaning Filter Cover Panel

• Open the Panel by pulling it down.
• Clean the outside with a damp cloth and neutral detergent.
• Clean the inside using a damp cloth and neutral detergent.

Do not use wet cloths or sponges, or jets of water; do not use abrasive substances.

Technical illustration of a mechanical component with an arrow indicating a transformation or assembly (no text or symbols present)

Cleaning metal grease filters

The metal grease filters can be cleaned in hot detergent solution or washed in the dishwasher. They should be cleaned every 2 months use, or more frequently if use is particularly heavy.

• Open the Panel by pulling it down.
• Remove the filter, pushing the lever towards the back of the unit and at the same time pulling downward.
• Wash the filter without bending it, leave it to dry thoroughly before replacing (if the surface of the filter changes color over time, this will have absolutely no effect on its efficiency).
• Replace, taking care to ensure that the handle faces forward.
• Cleaning in dishwasher may dull the finish of the metal grease filter.
• Close the Panel.

Hand inserting a green arrow on a smartphone screen, enclosed in a circular frame (no text or symbols)

Replacing Activated Charcoal Filter

The Activated Charcoal Filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage.

• Open the Panel by pulling it down.

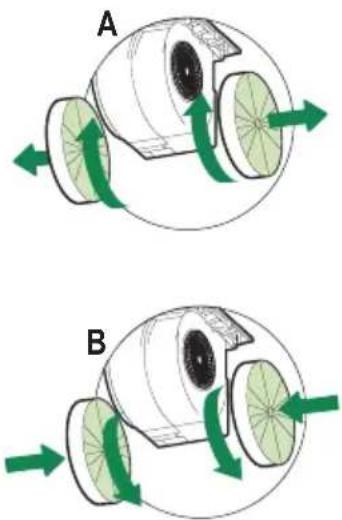

• Remove the Filter, pushing it towards the back of the unit and at the same time pulling downward.
• Remove the saturated Activated Charcoal Filters, as indicated (A).
  • Fit the new Filters, as indicated (B).
• Replace, taking care to ensure that the handle faces forwards.
• Close the Panel.

CAUTION: When used in recirculation mode, to Reduce the Risk of Fire and Shock use only conversion kit Model FILTER 1.

Diagram of two mechanical components labeled A and B with green directional arrows indicating rotation or movement (no text or symbols beyond labels)

Lighting unit

- LED lights must be replaced by Faber factory authorized service.

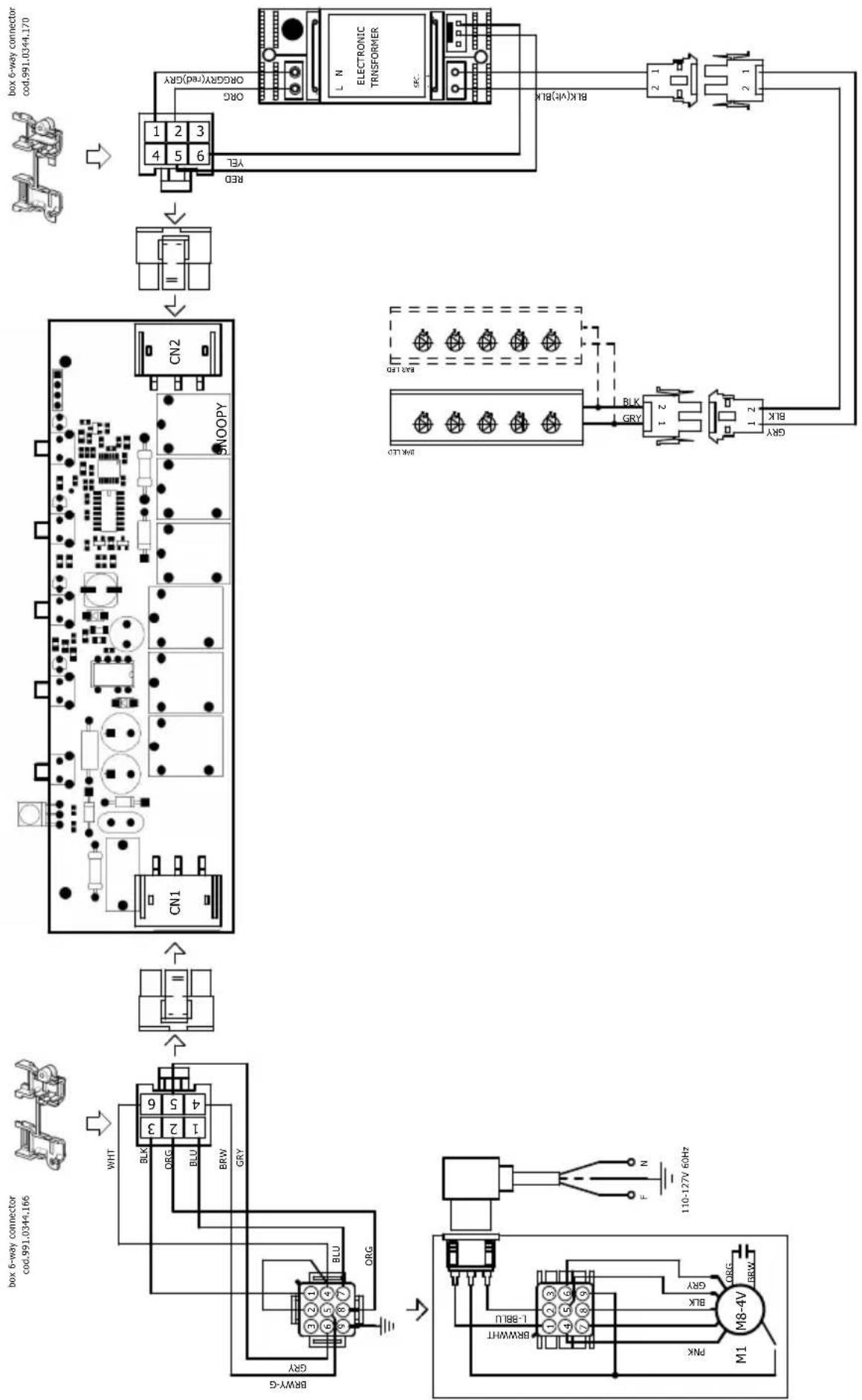

Wiring Diagram

FABER

FABER CONSUMER WARRANTY & SERVICE

All Faber products are warranted against any defect in materials or workmanship for the original purchaser for a period of 1 year from the date of original purchase (requires proof of purchase). This warranty covers labor and replacement parts. Faber, at its option, may repair or replace the product or components necessary to restore the product to good working condition. To obtain warranty service, contact the dealer from whom you purchased the range hood, or the local Faber distributor. If you cannot identify a local Faber distributor, contact us at [phone] for the name of a distributor in your area.

The following is not covered by Faber's warranty:

1. Service calls to correct the installation of your range hood, to instruct you how to use your range hood, to replace or repair house fuses or to correct house wiring or plumbing.
2. Service calls to repair or replace range hood light bulbs, fuses or filters. Those consumable parts are excluded from warranty coverage.
3. Repairs when your range hood is used for other than normal, single-family household use.
4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes or Faber documentation, or use of products not approved by Faber.
5. Replacement parts or repair labor costs for units operated outside the United States or Canada, including any non-UL or C-UL approved Faber range hoods.
6. Repairs to the hood resulting from unauthorized modifications made to the range hood.
7. Expenses for travel and transportation for product service in remote locations and pickup and delivery charges. Faber range hoods should be serviced in the home.

THIS WARRANTY DOES NOT ALLOW RECOVERY OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING, WITHOUT LIMITATION, DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, PERSONAL INJURY/WRONGFUL DEATH OR LOST PROFITS FABER WARRANTY IS LIMITED TO THE ABOVE CONDITIONS AND TO THE WARRANTY PERIOD SPECIFIED HEREIN AND IS EXCLUSIVE. EXCEPT AS EXPRESSLY SPECIFIED IN THIS AGREEMENT, FABER DISCLAIMS ALL EXPRESS OR IMPLIED CONDITIONS, REPRESENTATIONS, AND WARRANTIES INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

This warranty gives you specific legal rights that may vary from state to state.

Model#:

Serial #: ____

January 4, 2016

VEUILLEZ LIRE ET CONSERVER LA PRÉSENTE NOTICE AVANT DE COMMENCER L'INSTALLATION DE LA HOTTE DE CUISINE

AVERTISSEMENT:-POUR RÉDUIRE LE RISQUE D'UN FEU DE GRAISSE SUR LA TABLE DE CUISSON :

National Fire Protection Association

Batterymarch Park

5 7/8" 22 3/16" 3 7/8" 8 11/16" 10 7/16" 9 1/16" 2 5/8" 26 9/16" 27 9/16" Min. 2 3/8" Max. 2 3/4" 10 3/16" 11 1/4"

Min. 24" Min. 30"

PIÈCES PRINCIPALES

Composants

Diagram of a mechanical or electrical device with directional arrows indicating flow or movement (no text or symbols present)

1

Installer la hotte

10 1/4" 13/16" 26 5/8"

2

Technical illustration of a mechanical component with an arrow indicating a process or transformation (no text or symbols present)

Diagram of a device's internal structure with a hand holding a clip, showing a downward arrow and magnified detail (no text or symbols)

5

Technical diagram illustrating a mechanical assembly with labeled components and directional arrows, including a 2x magnified view of the component.

Diagram showing a cylinder placed on a circular object with an arrow, against a plain background (no text or symbols)

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or assembly.

Technical diagram showing a device with labeled components and a hand interacting with a screen, highlighting a 3D coordinate system.

10

Technical illustration of a rectangular electronic device with internal components and an arrow indicating rotation (no text or symbols present)

Technical illustration of a mechanical component with an arrow indicating a transformation or assembly (no text or symbols present)

Hand inserting a green arrow on a smartphone screen, enclosed in a circular frame (no text or symbols)

Diagram of a mechanical or biological structure with green arrows indicating rotational or directional movement (no text or symbols)

Diagram of a mechanical device with rotating components and green arrows indicating motion (no text or symbols)

Système d'éclairage

National Fire Protection Association

Batterymarch Park

Quincy, Massachusetts 02269

5 7/8" 22 3/16" 3 7/8" 8 11/16" 10 7/16" 9 1/16" 2 5/8" 26 9/16" 27 9/16" Min. 2 3/8" Max. 2 3/4" 10 3/16" 11 1/4"

Min. 24" Min. 30"

PARTES PRINCIPALES

Componentes

Diagram of a vertical structure with internal components and directional arrows, no text or symbols present

1

Instale la campana

(). 10 1/4" 13/16" 26 5/8"

2

Technical illustration of a mechanical component with an arrow indicating a process or transformation (no text or symbols present)

4

Diagram of a device's internal structure with a hand holding a clip, showing a downward arrow and magnified detail (no text or symbols)

5

Technical diagram illustrating a mechanical assembly with labeled components and directional arrows, including a 2x magnified view of the component.

Simple line drawing of a cylinder placed on a base with an object inside, against a plain background (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or assembly.

Technical diagram showing a device with labeled components and a hand interacting with a screen, highlighting a Z-axis indicator.

10

Technical line drawing of a mechanical component with an inset showing a rotating assembly (no text or symbols)

Technical illustration of a mechanical component with an arrow indicating rotation, showing front and side views (no text or symbols)

Hand pressing a green arrow on a smartphone screen (no text or symbols visible)

Diagram of a mechanical device with green arrows indicating rotational or directional movement (no text or symbols)

Diagram of a mechanical or biological structure with green arrows indicating rotational or directional movement (no text or symbols)
