USER MANUAL SEMC 1100 A1 SILVERCREST

Black-and-white photo collage of three 1973 Japanese-style espresso machines with cups and gauges, displayed against tiled walls (no text or symbols visible)

ESPRESSO MACHINE

ESPRESSOMASCHINE

MACHINE À EXPRESSO SEMC 1100 A1

GB IE

ESPRESSO MACHINE

Operating instructions

FR BE

MACHINE À EXPRESSO

Mode d'emploi

CZ

ESPRESSO KÁVOVAR

Návod k obsluze

SK

KÁVOVAR

Návod na obsluhu

DK

ESPRESSOMASKINE

MACCHINA PER CAFFÈ ESPRESSO

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE AT CH

GB/IE Operating instructions Page 1

A ① ② ③ ④ ⑤ ⑥ 16 ⑮ ⑰ ⑧ ⑨ ⑩ ⑭ ⑪ ⑫ ⑫

B 17 18 MAX 20 21

Contents

Introduction 2

Intended use 2

Warnings and symbols used 2

Package contents/ Transport inspection .... 2

Safety instructions .... 3

Appliance elements....5

Technical data 5

Temperature display 5

First use ....6

Operation 6

Filling the water tank 6

Heating after a long time of inactivity / during first use 6

Heating up before every use 7

Preparing espresso 8

Preparing cappuccino 9

Tips for the perfect espresso 10

Tips for the milk froth 10

Drawing hot water 10

Cleaning and care 11

Cleaning the milk frother 11

Cleaning the hot water shower 11

Cleaning the accessories 12

Cleaning the appliance 12

Descaling the appliance 12

Ordering replacement parts 13

Troubleshooting 13

Disposal....14

Disposal of the appliance 14

Disposal of the packaging 15

Congratulations on the purchase of your new appliance. You have selected a high-quality product.

The operating instructions are part of this product. They contain important information on safety, usage and disposal. Before using the product, familiarise yourself with all operating and safety instructions. Use the product only as described and for the specified areas of application. Please also pass on these operating instructions to any future owner.

Intended use

The device is designed exclusively for the preparation of espresso/cappuccino and for frothing milk. It is exclusively intended for use in private households. Do not use it for commercial applications.

The appliance is not intended for any other purpose, nor for use beyond the scope described.

Warnings and symbols used

The following warnings and symbols are used in these operating instructions, on the packaging and on the appliance (where applicable):

DANGER! A warning with this symbol and the signal word „DANGER“ indicates an imminently hazardous situation that will result in death or serious injury if not avoided.

WARNING! A warning with this symbol and the signal word „WARNING“ indicates a potentially hazardous situation that could result in death or serious injury if not avoided.

CAUTION! A warning with this symbol and the signal word „CAUTION“ indicates a potentially hazardous situation that could result in a minor or moderate injury if not avoided.

	ATTENTION! A warning with this symbol and the signal word „ATTENTION“ indicates a potential situation that could result in property damage if not avoided.
	Note: A note identifies additional information that facilitates the use of the appliance.
	Do not immerse in water!
	AC current/voltage
	All of the parts of this appliance that come into contact with food are food-safe.
	Read the instructions.

Package contents/Transportinspection

WARNING!

▶ Do not allow children to play with packaging materials.

There is a risk of suffocation.

The appliance is supplied with the following components as standard:

• Espresso Machine
• Sieveholder
  • Large espresso sieve
• Small espresso sieve
  ● Measuring spoon with compactor
• Quick start guide
• Operating instructions

i Note:

▶ Check the package for completeness and for signs of visible damage.
▶ If the contents are incomplete or damaged due to defective packaging or through transportation, contact the Service Hotline.

Safety instructions

To ensure safe operation of the appliance, follow the safety guidelines set out below:

⚠ WARNING! RISK OF INJURY!

■ Prior to use, check the appliance for visible external damage. Do not operate an appliance that has been damaged or dropped.

■ The appliance and its connecting cable must be kept away from children younger than 8 years old.

■ This appliance may be used by children aged 8 years or over if they are supervised or have been instructed how to use the appliance safely and have understood the potential risks.

■ This appliance may be used by people with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised and have been instructed in how to use the appliance safely and have understood the potential risks.

■ Cleaning and user maintenance must not be carried out by children, unless they are aged 8 or over and are supervised.

■ Children must not use the appliance as a plaything.

■ All repairs must be carried out by authorised specialist companies or by the Customer Service department. Improper repairs can pose significant risks to the user. It will also invalidate any warranty claims.

■ Never submerge the appliance in water or other liquids! Danger of electric shock!

■ Never touch the appliance with wet or moist hands.

■ To avoid risks, arrange for defective plugs and/or power cables to be replaced at once by qualified technicians or our Customer Service Department.

■ Risk of burns! During use, some parts become very hot!

■ Hot vapour plumes are formed when the product is in use. Take care to ensure that you do not scald yourself! Keep a safe distance away from the steam.
■ The appliance should only be connected to correctly installed and earthed mains power sockets.
■ After use, the surfaces of the heating elements will still have some residual heat.
- Do not allow any liquid to get onto the appliance's plug connections.
■ Use the appliance only for its intended purpose. Misuse can lead to injuries.

! ATTENTION! PROPERTY DAMAGE!

■ Defective components must always be replaced with original replacement parts. Compliance with safety requirements can only be guaranteed if original replacement parts are used.
■ Protect the appliance from penetration by moisture and liquids.
■ Protect the appliance against knocks, dust, chemicals, extreme temperatures, etc. and keep it away from sources of heat (ovens, radiators).
■ NEVER submerse the appliance in water or other liquids!
■ Always remove the mains adapter from the mains outlet; never pull on the power cable.
■ Never leave the appliance unattended during operation.
■ Do not use an external timer switch or a separate remote control system to operate the appliance.
- Do not operate the appliance in rooms where the temperatures are below or around 0°C. If the water in the pipes or the water tank freezes, the appliance could be damaged.

■ Never operate the appliance outdoors. This appliance is intended for indoor use only.
■ Do not generate steam when the descaler solution is in the water tank!
■ The espresso machine must not be put in a cupboard when in use.

Appliance elements

Figure A:

① On/Off switch
② Temperature indicator
③ "Espresso" button
4 "Steam" button
⑤ White control lamp "Steam"
6 Storage space
⑦ Steam control
8 Handle
9 Water tank
⑩ Milk frother
⑪ Drip grille
12 Drip tray
13 Opening for the red float
14 Hot water shower
15 White control lamp "Espresso"
16 Red operating lamp

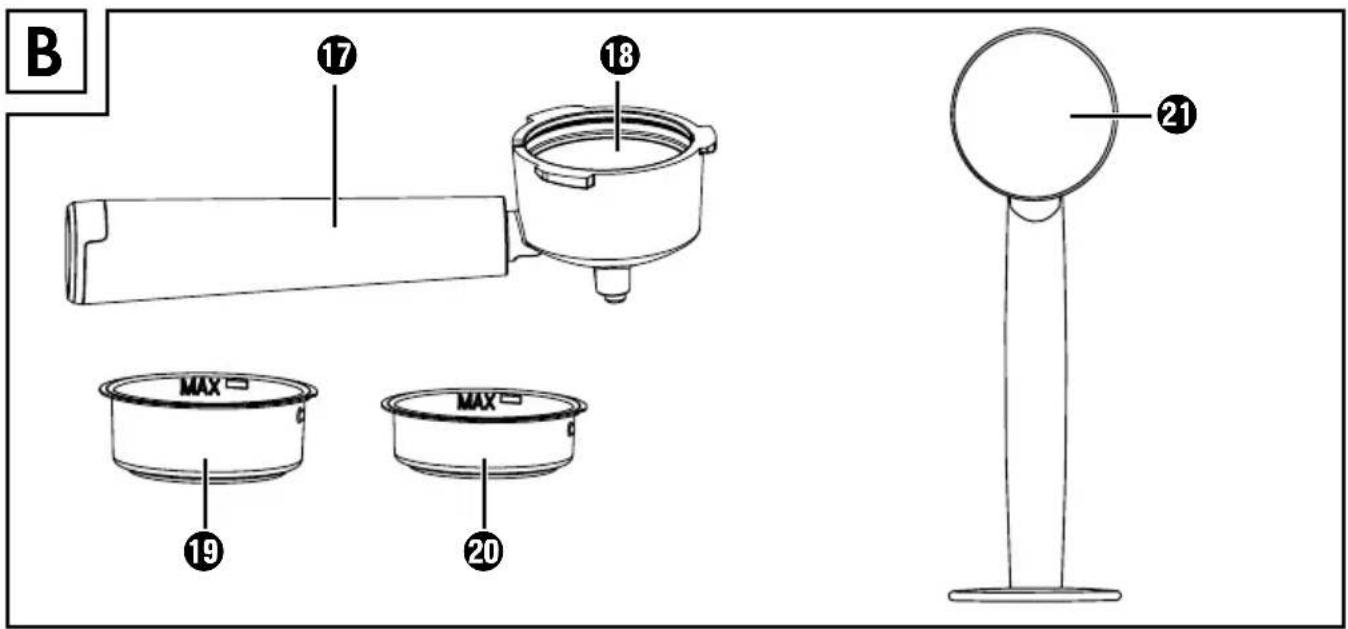

Figure B:

17 Portafilter handle
18 Portafilter
19 Large espresso sieve
20 Small espresso sieve
②1 Measuring spoon with compactor

Technical data

Mains voltage	220 - 240 V ~, 50-60 Hz
Rated power	1100 W
Pump pressure	approx. 1.5 MPa (15 bar)

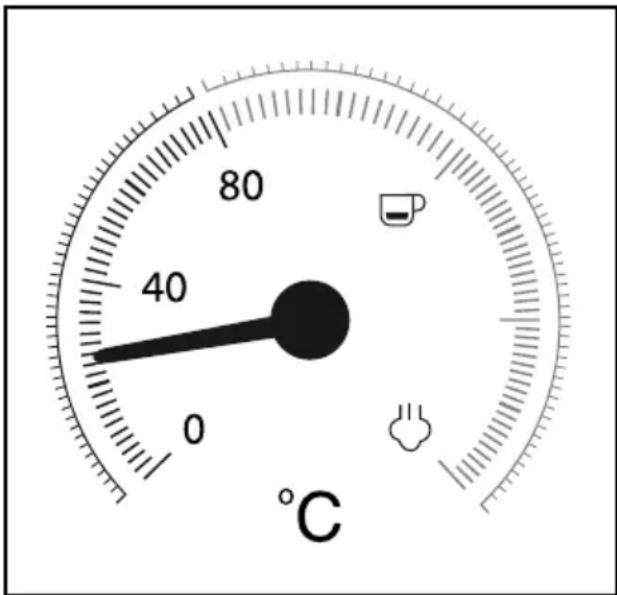

Temperature display

The temperature indicator ② indicates how far the appliance has heated up (Figure 1).

80 40 0 °C

Figure 1

As soon as you switch the appliance on, it starts heating up until the pointer is approximately in the middle between 80°C and "The operating lamp lights up. The "Espresso" control lamp flashes.

Once the pointer reaches the red portion of the scale, the temperature is high enough to prepare an espresso. The "Espresso" control lamp lights up permanently.

When you press the "Steam" button ⏻ 4, the "Steam" control lamp 5 flashes. The appliance continues to heat up and the pointer rises higher until it reaches the range of the scale between

Once the pointer reaches the range between "☐" and "☐" the temperature is high enough to produce steam. The "Steam" control lamp lights up permanently.

First use

1) Clean the sieve holder ⑱, the measuring spoon ⑲, the espresso sieve ⑳ ⑳, the drip grille ⑪ and the water tank ⑨ as described in the section "Cleaning and Care".

2) Place the appliance on a level and heat-resistant surface. Ensure that a mains power socket is in the vicinity.

3) Insert the drip grille ⑪ so that the float ⑬ can protrude through the hole in the drip grille ⑪.

4) Place the sieve holder ⑬ in the appliance by inserting the "INSERT" mark, which is located next to the hot water shower ⑭, into the appliance and then turning it clockwise until the handle of the sieve holder ⑰ is facing the front ("I" mark).

5) Insert the plug into a mains power socket.

6) Proceed as follows before the first use, so as to clean the internal pipelines:

Allow sufficient water for about 5 cups of espresso (about 100 ml) to flow through the appliance. Refer to the section "Operation".

7) Let the appliance generate steam for about 30 seconds. Refer to the section "Operation".

(i) Note:

When using the appliance for the first time, it is possible that you can hear the pump working, even though no water comes out of the appliance. If this is the case, turn the steam control ⑦ in the direction of the „+”, so that the air can escape from the pipes of the appliance (the "Steam" button ④ is pressed). After approx. 20 seconds the air will have escaped, the noises disappear and water flows from the appliance.

Operation

Filling the water tank

(i) Note:

▶ Use only fresh drinking water for making espresso/cappuccino.

1) Remove the water tank ⑨ and fill it with water: Fill it with water to at least the Min marking. Never fill it past the Max marking.

2) Replace the water tank Ⓙ in the machine.

Heating after a long time of inactivity / during first use

If you have not used it for some time, preheat the appliance as follows:

1) Fill the water tank ⑨ with tap water.

2) Place either the large 19 or the small espresso sieve 20 in the sieve holder 18:

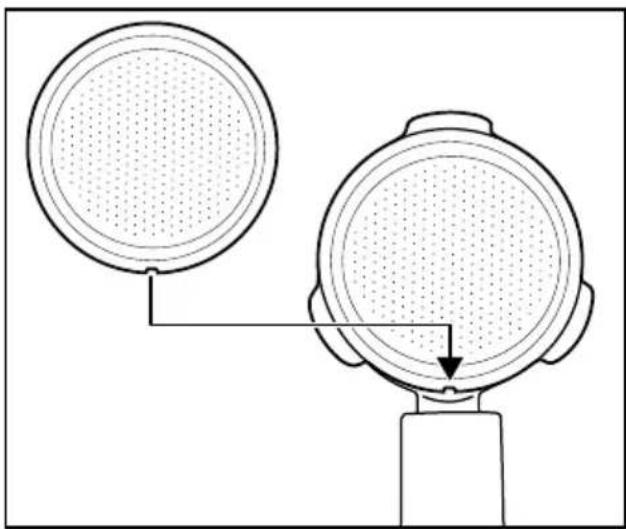

- Make sure that the small indentation on the large 19 or small espresso sieve 20 is located above the indentation on the sieve holder 18 when inserted (Figure 2).

Diagram of two circular devices with dotted patterns connected by a line, no text or symbols present

Figure 2

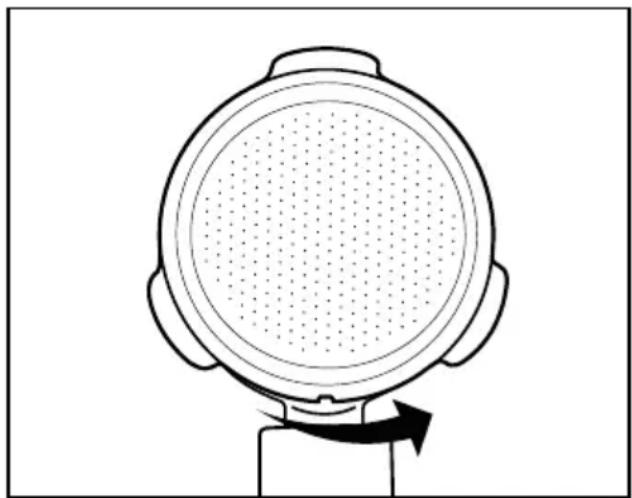

- Then turn the large 19 or small espresso sieve 20 slightly to ensure it cannot fall out (Figure 3).

Diagram of a circular device with dotted pattern and arrow indicating rotation (no text or symbols)

Figure 3

i Note:

▶ Wait until the espresso sieve 19 20 has cooled down before taking it out!
In order to remove the espresso sieves 19 20 from the sieve holder 18, turn the inserted espresso sieve 19 20 until the indentation on the espresso sieve 19 20 is located directly above the indentation on the sieve holder 18. You can now remove these espresso sieve 19 20.
3) Place the sieve holder ⑬ in the appliance by inserting the "INSERT" mark, which is located next to the hot water shower ⑭, into the appliance and then turning it clockwise until the handle of the sieve holder ⑰ is facing the front ("I" mark).
4) Place a cup under the sieves holder 18.
5) Close the steam control ⑦ (turn it as far as it will go in the direction of the “—” symbol).
6) Switch the appliance on using the On/Off switch ① ⏻. The operating lamp ⑯ lights up. The "Espresso" control lamp ⑮ flashes. The appliance starts to heat up.
7) As soon as the "Espresso" control lamp 15 lights up continuously, press the "Espresso" button 3. Let the water run through for about 1 minute.

(i) Note:

▶ You may need to empty the cup in between. Interrupt the process by pressing the "Espresso" button 📋 ③. Empty the cup and press the "Espresso" button 📋 ③ again so that water flows through the appliance.

8) After about 1 minute, stop the pump by pressing the "Espresso" button 📄 3 again.
9) Wait until the "Espresso" control lamp 15 lights up continuously (if it is not already lit). The warming-up is concluded. You can now prepare espresso.

Heating up before every use

Before you can prepare an espresso or cappuccino, the appliance must be heated up.

1) Switch the appliance on using the On/Off switch ① ⏻. The operating lamp ⑯ lights up. The "Espresso" control lamp ⑮ flashes. Make sure that the steam control ⑰ ⏻ is turned in the direction of the "-" as far as the stop.
2) Place the sieve holder 18 in the appliance by inserting the "INSERT" mark, which is located next to the hot water shower 14, into the appliance and then turning it clockwise until the handle of the sieve holder 17 is facing the front ("I" mark).
3) Press the "Espresso" button ☐ ③ so that the appliance draws water from the water tank ⑨. As soon as water starts exiting the openings in the sieve holder, press the "Espresso" button ☐ again to stop the pump.
4) Wait until the "Espresso" control lamp lights up continuously.
5) Press the "Espresso" button 📄 again and allow hot water to flow through for 20 seconds before stopping the pump again.

The preheating process is completed. You can now make an espresso/cappuccino.

i Note:

▶ If you want to prepare several espressos or cappuccinos in a row, you do not need to heat up the machine again and rinse it.

Preparing espresso

(i) Note:

▶ Always ensure that the espresso sieve 19 20 is clean and free of coffee powder residues.

1) When the appliance is heated up: To prepare an espresso, place the small espresso sieve 20 into the sieve holder 18. To prepare two espressos, place the large espresso sieve 19 into the sieve holder 18.

2) Fill the small espresso sieve 20 with espresso powder up to the Max marking. This corresponds to approx. 7 g of powder or a level measuring spoon 21. Or...

Fill the large espresso sieve ⑲ with espresso powder up to the Max marking. This equates to about 7 g + 7 g of powder or two level measuring spoons ⑳.

3) Tamp down the espresso powder using the compactor on the measuring spoon 21. Add more espresso powder, if required, until the espresso sieve 19 20 is full up to the Max marking. Tamp the coffee powder down once again.

i Note:

▶ Compaction of the coffee powder is an essential process for the preparation of an espresso. If the espresso powder is compacted very strongly, the espresso runs through more slowly and more crema is generated. If the espresso powder is not so strongly compacted, the espresso runs through more quickly and it creates very little crema.

4) Place the sieve holder 18 in the appliance at the "INSERT" mark, then turn it clockwise until the handle of the sieve holder 17 is facing the front ("I" mark).

5) Place one (or two) cup(s) under the sieve holder openings. We recommend that you rinse the cups out with hot water beforehand, so that the espresso does not cool so quickly. You can place the cups onto the storage space ⑥.

6) As soon as the "Espresso" control lamp 15 lights up continuously, press the "Espresso" button 3. The espresso flows into the cup(s).

WARNING!

Never remove the sieve holder ⑱ while the espresso is coming out!

The resulting spray of hot espresso would lead to injury!

▶ Always press the "Espresso" button 📄 3 again to stop the espresso output before removing the portafilter 18

7) Once the cups are filled up to the required amount (about 20 ml per cup), press the "Espresso" button 📄 to stop the water being pumped through.

You can now drink the espresso.

8) Switch the appliance off with the on/off switch ① ⏻.

(i) Note:

▶ If the "Espresso" 3 or "Steam" 4 buttons are not pressed for about 30 minutes, the appliance switches off automatically.

9) After every use, remove the used espresso powder from the espresso sieve 19 20. Remove the sieve holder 18 from the appliance. Now empty the espresso sieve 19 20 by turning the portafilter 18 upside down and tapping out the espresso powder. Always dispose of the espresso powder in an environmentally friendly manner, e.g. with the organic waste.

i Note:

▶ Clean the hot water shower ^14 (the hot water comes out of this) after each use. See also the section "Cleaning and Care".

▶ Empty the drip tray ⑫ regularly, at the latest when the float ⑬ is visible in the hole of the drip grille ⑪.

Preparing cappuccino

WARNING!

Be careful when working with steam for the milk froth production!

The hot steam or hot splashes can lead to injuries!

▶ Always operate the steam control ⑦ slowly.

1) Fill a container for frothing (preferably made of stainless steel) to one third with cold milk.

2) Ensure that the steam control ⑦ is closed (turn it as far as it will go in the direction “=”).

3) Push the milk frother ⑩ out to the side. Always hold it by the handle ⑧.

4) Press the "Steam" button 🎨 ④. Wait until the "Steam" control lamp ⑤ lights up continuously.

5) Hold an empty container under the milk frother ⑩. Slowly turn the steam control ⑦ in the direction “+”. Pressurised water/spray comes from the nozzle. This cleans the nozzle and the water circuit inside the appliance.

6) Wait 15 seconds and turn the steam control towards "—" until no more steam comes out of the nozzle. Pour the water in the container away.

7) Now hold the frothing container in your hand to feel the milk temperature and guide the nozzle of the milk frother ⑩ gently into the milk. Hold the frothing container at a slight angle.

8) Slowly turn the steam control ⑦ in the direction “+”.

9) Move the frothing container around in a circular motion while keeping the tip of the nozzle under the surface of the milk: deep enough that the milk does not spray out, but shallow enough to create a thick froth. Done properly, a deep buzzing sound is audible.

10) As the milk froth rises, push the nozzle deeper into the milk to froth up the next "layer" and to avoid a burnt taste in the froth.

11) Finally, insert the nozzle completely and close the steam control ⑦ approximately halfway, so that the milk is heated. Hold the frothing container at a slight angle, so that the milk gently swirls around while it is being stirred with the nozzle.

12) Once the milk froth has reached the desired consistency and temperature, turn the steam control ⑦ 🏠 to off (up to the stop in the direction of the “-”).

13) Now you can remove the nozzle from the milk.

14) Proceed as described in the section "Cleaning the milk frother".

(i) Note:

For cappuccino, always use bigger cups than for espresso because frothed milk will be added.

15) To prepare cappuccino, proceed exactly as you would for espresso (see section "Preparing espresso"; preheating is no longer necessary). Allow the water to flow through for about twice as long as an espresso (about 40 ml).

i Note:

The "Espresso" control lamp 15 may flash rapidly, if you press the "Espresso" button 3 directly after preparing frothed milk. This means that the appliance is too hot to prepare a perfect espresso. You can either continue making an espresso anyway or allow the appliance to cool down. As soon as the "Espresso" control lamp 15 lights up continuously, the optimum temperature range for espresso has been reached again.

16) Switch the appliance off with the On/Off switch ① ⏻.

(i) Note:

▶ If the "Espresso" 3 or "Steam" 4 buttons are not pressed for about 30 minutes, the appliance switches off automatically.

17) Now add the frothed milk into the previously prepared espresso. The cappuccino is now ready. You can add sugar or sprinkle it with cocoa powder according to taste.

i Note:

▶ Always clean the milk frother 10 after every use. See also the section "Cleaning and Care".

Tips for the perfect espresso

One of the most important factors for making a good espresso is the so-called extraction time or flow time – in other words the duration of contact between coffee powder and hot water until the finished coffee has flowed into the cup.

The extraction time depends chiefly on the quantity and grind of the coffee powder as well as its compactness. The finer and more compact the coffee powder, the more slowly the water runs through it.

However, you can adjust the extraction time yourself if you feel that the espresso does not taste or look as it should.

If the crema is very light, has little consistency and dissolves quickly, the espresso has gone through too quickly; this is called under-extraction. The espresso tastes sour and watery, and the aroma does not develop fully.

This is usually due to too small a quantity of coffee powder, which may also be ground too coarsely or not compacted firmly enough.

If the crema is very dark and interspersed with light spots in the middle or has a hole, the coffee has been flowing too long. This is called over-extraction. The espresso tastes bitter. The cause is usually that the coffee powder is too finely ground or you have used too much coffee powder. If neither of these is the case, the coffee powder has been compacted too firmly.

■ Use only espresso coffee powder: it is usually more finely ground and also more strongly roasted. Ideally, you should use around 7 g of ground coffee for one cup of espresso coffee. Do not overfill the sieve. Compact the coffee powder in the sieve using the tamper of the measuring spoon 21 without compacting the coffee powder too firmly.

■ Experiment until you find the optimal balance of all factors.

Tips for the milk froth

■ Generally, any type of milk can be frothed, including soy and rice milk. However, some types of milk can only be frothed to a certain extent.

■ Low fat or skimmed milk does not burn as easily as whole milk, however, a too low fat content adds to the risk that the milk will not be well frothed. Therefore use a milk with a fat content of 3.5% or 1.5%, if possible.

■ Well-cooled milk can be better frothed than less cold. For the best results, use milk at a temperature of about 7^ C.

- Do not froth the milk a second time, otherwise it may burn.

- Allow frothed milk to stand for about 30 seconds before you pour it onto the espresso. This allows the larger bubbles to burst; the still liquid milk sinks to the bottom. You can then pour the fine froth onto the espresso.

Drawing hot water

You can also use the milk frother 10 to draw hot water; for example, to dilute a coffee (café americano) or prepare tea.

1) Switch the appliance on using the On/Off switch ① ⏻. The operating lamp ⑯ lights up. The "Espresso" control lamp ⑮ flashes. Make sure that the steam control ⑰ is turned in the direction of the "-" as far as the stop.

Wait until the pointer of the temperature indicator ② is approximately half way between 80°C and "☐" and the "Espresso" control lamp ⑮ lights up continuously.

2) Hold a heat-resistant container under the milk frother ⑩.

3) Turn the steam control ⑦ at least half way towards "+".

4) Press the "Steam" button 🎨 ④ two times. Hot water will come out of the milk frother ⑩.

5) Press the "Steam" button 🎨 ④ again to stop the flow of hot water.

6) Close the steam control ⑦ (turn it as far as it will go in the direction of the “-” symbol).

Cleaning and care

WARNING!

▶ Always remove the plug from the mains power socket before you clean the appliance. Risk of electric shock!

▶ Always allow the appliance to cool down before cleaning it. Risk of burns!

Never immerse the appliance in water or other liquids! Risk of electric shock!

ATTENTION!

▶ To avoid damage, never use abrasive, aggressive or chemical cleaning agents to clean the surfaces of the appliance.

Cleaning the milk frother

1) Place an empty container under the milk frother ⑩.

2) Immediately after use, turn the steam control ⑦ to the "4" position and allow the steam to escape for a few seconds.

3) Turn the steam control ⑦ off (as far as it will go in the direction “-”), switch the appliance off and remove the plug from the mains power socket.

4) Allow the nozzle to cool down.

5) Pull the casing of the milk frother 10 off (Figure 4) and clean it thoroughly in warm water.

6) Wipe the nozzle under the casing with a damp cloth. If necessary, add a little mild detergent onto the cloth. After cleaning with detergent, always wipe off with a cloth moistened with clean water. Ensure that there is no detergent residue left on the nozzle.

7) Push the casing back onto the nozzle (Figure 4).

Technical line drawing of a mechanical assembly with a lever and shaft (no text or symbols)

Figure 4

Cleaning the hot water shower

Clean the hot water shower 14 after each use:

1) After you have prepared the espresso/cappuccino and removed the sieve holder ⑱, wipe the entire surface of the hot water shower ⑲ with a moistened cloth to remove all powder residues.

2) Replace the sieve holder 18 without the espresso filters 19 20.

3) Place an empty cup under the portafilter 18 and press the "Espresso" button 3. Water flows out of the hot water shower 14 rinsing out the remaining powder residue.

4) After about 20 seconds, press the "Espresso" button 📋 ③ again and switch the appliance off with the On/Off switch ①

5) Remove the sieve holder 18 again.

Cleaning the accessories

1) Clean the sieve holder ⑱, the two espresso sieves ⑲ ⑳, water tank ⑴, the measuring spoon ㉕ and the drip grille ⑷ in warm water.

(i) Note:

▶ If you put detergent into the water, it may effect the taste of the espresso. If the stains can only be removed with detergent, always rinse the items afterwards with lots of clean water.

2) Dry all parts well.

i Note:

The two espresso sieves 19 20, the measuring spoon 21 and the drip tray 11 are dishwasher-safe.

Cleaning the appliance

Clean the appliance with a moist cloth. If necessary, use a little detergent on the cloth.

Ensure that the appliance is completely dry before the next use.

Descaling the appliance

ATTENTION!

▶ Do not generate steam when the descaler solution is in the water tank ⑨!

The appliance has a descaling reminder function: After 500 uses, the three control lamps ⑤

15 16 all flash rapidly 5 times at the same time to remind you that the appliance needs to be descaled. If you do not descale the appliance immediately, the control lamps 5 15 16 will start flashing again the next time you switch the appliance on. If you still have not descaled the appliance after switching it on for the third time, the reminder function stops.

Proceed as follows to decalcify the appliance:

1) Add commercial liquid descaler for espresso machines to the water tank ⑨. Follow the manufacturer's instructions for the correct amount.

2) Fill the water tank ⑨ up to the Max mark with water and replace the tank in the appliance.

3) Switch on the appliance using the On/Off switch ① ⏻. Make sure the steam control ⑦ 🤒 is shut off.

4) Insert the sieve holder 18 without any espresso sieve 19 20 into the appliance.

5) Place 2 cups or a container capable of holding at least 250 ml under the sieve holder openings.

6) As soon as the "Espresso" control lamp 15 lights up continuously, press the "Espresso" button 3.

Allow around 250 ml (around 2 cups) of descaler solution to run through and then stop the process by pressing the "Espresso" button ☐③ again. Carefully pour out the used descaler solution.

7) Allow the descaler to act for approx. 1 minute.

8) Repeat steps 6 to 7 three more times. Empty the water tank ⑨ completely the last time.

9) Place a sufficiently large container (at least 1 litre) under the sieve holder openings.

10) Rinse out the water tank ⑨ with fresh water and fill it with fresh water up to the Max mark.

11) As soon as the "Espresso" control lamp ⑮ lights up continuously, press the "Espresso" button ⑦.

Allow the water to run through completely. Carefully pour out this water.

12) Repeat steps 10 to 11 once and then turn off the appliance.

13) After descaling, wipe off the appliance with a damp cloth to remove any splashes of the descaler solution. Ensure that the appliance is completely dry before the next use.

You can also order suitable descaler from our customer service (see section "Ordering replacement parts").

Ordering replacement

parts

You can order replacement parts for this product on the Internet at www.kompernass.com.

QR code image containing encoded data, no visible human-readable text

Scan the QR code with your smartphone/tablet. You can use this QR code to go directly to our website to view and order the available spare parts.

i Note:

▶ If you have problems with your online order, you can contact our service centre by phone or e-mail.
▶ Always quote the article number (IAN) 471973_2410/482189_2410/482190_2410 in your order.
▶ Please note that online ordering of replacement parts is not possible for all countries.

Troubleshooting

Malfunction Cause Solution
The espresso no longer flows out.	· The espresso powder is too moist and/or compressed too tightly.	· Re-prepare the espresso without compressing the powder as firmly; if necessary, use new powder.
	· No water in the water tank 9.	· Fill the water tank 9 with water.
	· The holes of the sieve holder openings are blocked.	· Clean the sieve holder 18.
The espresso drips over the edges of the sieve holder 18, not from the openings.	· The sieve holder 18 is not correctly inserted.	· Insert the sieve holder 18 correctly.
	· The sieve holder openings are blocked.	· Clean the sieve holder 18.
	· There are espresso powder residues on the edges of the sieve holder 18.	· Clean the espresso powder residues from the edges of the sieve holder 18.
The espresso is cold.	· The appliance was not preheated.	· Preheat the appliance.
	· The "Espresso" control lamp 15 has not yet lit up continuously.	· Wait until the "Espresso" control lamp 15 lights up continuously.
	· The cups were not pre-warmed.	· Pre-warm the cups.
The pump is unusually noisy.	· The water tank 9 is empty.	· Fill the water tank 9 with water.
The crema is too light (the espresso runs out of the sieve holder 18 quickly).	Not enough espresso powder. •	Use more espresso powder.
	The espresso powder is too coarsely ground.	Use only espresso powder spe- cially manufactured for espresso.
The crema is too dark (the espresso runs out of the sieve carrier 18 slowly).	Too much espresso powder. • Use less espresso powder.
	The powder is too finely ground or moist.	Use only espresso powder spe- cially manufactured for espresso.
	The sieve 19 20 is blocked.	Clean the sieve 19 20.
The milk does not froth.	The milk is not cold enough. • Use milk from the refrigerator.
	The milk frother 10 is dirty.	Clean the milk frother 10.
The pump stops during operation, the "Espresso" control lamp 15 flashes.	The pump stops after about 3 minutes of operation to prevent overheating.	Allow the appliance to cool down before you use it again.
All lamps 5 15 16 flash slowly simultaneously.	In operation: The temperature is too high for the preparation of a perfect espresso.	Wait until the appliance has cooled down and the control lamp "Espresso" 15 lights up continuously.
All lamps 5 15 16 flash 5 times quickly.	When switching on the appliance: Reminder function for descaling.	Descale the appliance as de- scribed in the section "Descaling the appliance".

Disposal

Applies only to France:

The product, its packaging and the operating instructions are recyclable. They

are subject to an extended manufacturer responsibility and will be collected separately.

Disposal of the appliance

Two identical line diagrams of a trash bin with crossed and unbroken sections, no text or symbols present.

The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots

or disposal companies.

The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

If your old appliance has stored any personal data, you are responsible for deleting it yourself before returning it.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

Disposal of the packaging

The packaging materials have been selected for their environmental friendliness and ease of disposal and are therefore recyclable.

Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal, if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: plastics, 20–22: paper and cardboard, 80–98: composites.

Applies only to Spain:

The packaging contains paper and/or cardboard components.

The packaging contains plastic and/or metal components.

KompernassHandels GmbH warranty

Dear Customer,

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN) 471973_2410/482189_2410/482190_2410 available as proof of purchase.
- You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

- You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 471973_2410/482189_2410/482190_2410.

Service

GB Service Great Britain Tel.: [phone] E-Mail: [e-mail]
IE ServiceIreland Tel.: [phone] E-Mail: [e-mail]

IAN 471973_2410

IAN 482189_2410

IAN 482190_2410

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhaltsverzeichnis

Einleitung 18

Diagram of two circular devices connected by a cable, with one device emitting a droplet (no text or symbols)

Abb. 2

Diagram of a circular mechanical component with dotted fill and directional arrow (no text or symbols)

Abb. 3

i Hinweis:

Technical line drawing of a mechanical assembly with a lever and shaft (no text or symbols)

Abb. 4

QR code image containing encoded data, no visible human-readable text

Two identical diagrams of a trash bin with no visible text or symbols, crossed by diagonal lines (no text or symbols present)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Table des matières

Introduction 38

Usage conforme 38

Diagram of two circular gauges with dotted patterns connected by a pointer, mounted on a base (no text or symbols)

Figure 2

Diagram of a circular device with a dotted pattern and directional arrow, no text or symbols present

Figure 3

i Remarque :

Technical line drawing of a mechanical assembly with a lever and shaft (no text or symbols)

Figure 4

QR code image containing encoded data, no visible human-readable text

Two identical diagrams of a trash bin with diagonal lines crossing, no text or symbols present.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Inhoud

Inleiding 60

⚠ WAARSCHUWING! LETSELGEVAAR!

Diagram of two circular devices connected by a cable, with one device emitting particles and the other emitting a droplet (no text or symbols)

Afbeelding 2

Diagram of a circular mechanical component with dotted fill and directional arrow indicating rotation (no text or symbols)

Afbeelding 3

i Opmerking:

Technical line drawing of a mechanical assembly with a lever and shaft (no text or symbols)

Afbeelding 4

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

Obsah

Úvod....78

! POZOR! HMOTNÉ ŠKODY!

Diagram of two circular objects connected by a line, with one being lifted and the other unshipped (no text or symbols)

Obrázek 2

Diagram of a circular device with dotted pattern and arrow indicating rotation (no text or symbols)

Obrázek 3

i Upozornění:

Technical line drawing of a mechanical assembly with a lever and shaft (no text or symbols)

Obrázek 4

QR code image containing encoded data, no visible human-readable text

Two identical diagrams of a trash bin with diagonal lines crossing, no text or symbols present.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NĚMECKO

www.kompernass.com

Spis treści

W step 96

Diagram of two circular devices connected by a cable, with one device emitting particles and the other emitting powder (no text or symbols)

Rysunek 2

Diagram of a circular mechanical component with dotted fill and directional arrow indicating rotation (no text or symbols)

Rysunek 3

i Wskazówka:

Technical line drawing of a mechanical assembly with a lever and shaft (no text or symbols)

Rysunek 4

QR code image containing encoded data, no visible human-readable text

Two identical line diagrams of a trash bin with crossed and unmarked sections, no text or symbols present.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

Obsah

Úvod....114

Diagram of two circular objects connected by a line, with one being lifted and the other unshipped (no text or symbols)

Obrázok 2

Diagram of a circular device with dotted pattern and arrow indicating rotation (no text or symbols)

Obrázok 3

i Upozornenie:

Technical line drawing of a mechanical assembly with pipes and a shaft, showing a downward force arrow (no text or symbols)

Obrázok 4

QR code image containing encoded data, no visible human-readable text

Two identical diagrams of a trash bin with diagonal lines crossing, no text or symbols present.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

Índice

Introducción....132

Uso previsto 132

Diagram of two circular gauges with dotted patterns connected by a pointer, mounted on a base (no text or symbols)

Figura 2

Diagram of a circular device with dotted pattern and arrow indicating rotation (no text or symbols)

Figura 3

i Indicación:

Technical line drawing of a mechanical assembly with a lever and shaft (no text or symbols)

Figura 4

QR code image containing encoded data, no visible human-readable text

Two identical line diagrams of a trash bin with diagonal lines crossing each other, no text or symbols present.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALEMANIA

www.kompernass.com

Indholdsfortegnelse

Introduktion 150

Anvendelsesområde 150

Diagram of two circular gauges with dotted patterns connected by a connecting rod, no text or symbols present

figur 2

Diagram of a circular device with dotted pattern and directional arrow, no text or symbols present

figur 3

i Bemærk:

Technical line drawing of a mechanical assembly with a lever and shaft (no text or symbols)

Figur 4

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.com

Indice

Introduzione....166

Uso conforme 166

Diagram of two circular devices connected by a pointer, with one device emitting particles (no text or symbols)

Figura 2

Diagram of a circular device with dotted pattern and arrow indicating rotation (no text or symbols)

Figura 3

i Nota:

Technical line drawing of a mechanical assembly with a lever and shaft (no text or symbols)

Figura 4

QR code image containing encoded data, no visible human-readable text

Two identical diagrams of a trash bin with crossed and unbroken cross symbols, no text or labels present.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

Tartalomjegyzék

Bevezető 184

Diagram of two circular devices connected by a pointer, with one device emitting particles (no text or symbols)

1. ábra

Diagram of a circular device with a dotted pattern and an arrow indicating rotation (no text or symbols)

1. ábra

i Tudnivaló:

Technical line drawing of a mechanical assembly with a lever and lever mechanism (no text or symbols)

1. ábra

QR code image containing encoded data, no visible human-readable text

Two identical diagrams of a trash bin with no visible text or symbols, each containing a crossed-out box and a black rectangular base (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Last Information Update · Stand der Informationen · Version des informations

Stand van de informatie · Stav informací · Stan informacji · Stav informácií

Estado de las informaciones · Tilstand af information · Versione delle informazioni
