USER MANUAL ST3 Pro NAVEE

1. Safety Instructions

Original instructions

IMPORTANT! Please read carefully before using the product and keep for future reference. For detailed e-manual, please visit www.naveetech.com

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

This appliance is intended for riders older than 8 years and persons with physical and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

The appliance is only to be used with the power supply unit provided with the appliance.

Before riding, please wear helmets, hand/wrist pads/knee pads, elbow pads, and other protective gear at all times.

The scooter shall be used by one person only. Obligation to always wear shoes. Do not divert the use of the vehicle.

his product is for personal riding only and is not intended for acrobatic or stunt use.

The product is recommended for riders above age of 16 and below age of 50. People who are not suitable for riding this product include: (1) persons under the influence of alcohol or drugs, (2) persons unable to engage in strenuous physical activities due to health or physical conditions, (3) persons who are incapable of keeping their balance or who cannot keep their balance due to impaired motor skills, (4) persons whose size exceeds the weight limit, (5) women who are pregnant, (6) persons who suffer from visual and/or hearing impairments.

Comply with local laws and regulations when riding this product. Do not ride where prohibited by local laws. When riding in countries and regions where there are no relevant national standards and regulations for

electric scooters, please be sure to strictly abide by the safety requirements for drivers in this operation manual. SPACEWALKER PTE. LTD. will not bear any direct responsibility and joint and several liability for all property, personal losses, accidents, legal disputes, and all other adverse events that cause conflicts of interest caused by the use of behaviors in violation of the instructions for use.

Do not ride in traffic lanes or residential areas where vehicles and pedestrians are both allowed. When passing through a place designated for pedestrians who are entitled to the right-of-way laws like crosswalk, please get off to walk along with the scooter.

Do not choose places where children, pedestrians, pets, vehicles, bicycles or other obstacles and potential dangers may appear for your first ride.

Required preparations for using this product include: ensuring the steering system is properly adjusted, that all connected accessories (such as the folding system) are properly tightened and undamaged, and that the brakes and wheels are in good condition.

- Perform a basic inspection of the electric scooter before each ride. If there are abnormal conditions such as loose parts, low battery alerts, flat tires or excessive wear of tires, strange sounds, malfunctions and other abnormal conditions, stop riding immediately and call for professional support.

Take the time to learn the basics of the practice to avoid any serious accident that can take place in the first months. Information on practice and safe use (can be found on the website: www.naveetech.com)

- To ride safely, you must be able to clearly see what is in front of you and you must be clearly visible to others.

- Do not ride in bad weather, low visibility, or after intense physical exertion. - Do turn on the headlight and slow down the speed when you ride at dark.

- Make sure that the kickstand is positioned on a flat surface and the kick scooter is stable enough to stand alone before leaving it.

This electric scooter is a leisure device. However, when entering a public area, it will be considered a means of transportation and subject to possible safety risks for all means of transportation. Riding in strict accordance with the instructions in this manual will protect you and others to the greatest extent.

- The user should check the limits of use in accordance with the local regulations. Ride the scooter on the roads or areas permitted by local regulations and laws and park it in the areas permitted. If the local regulations and laws have different provisions on the maximum speed, the local regulations and laws will prevail. Please respect and follow the road safety and vehicle rules.

- Respect pedestrians' Right of Way. Try not to startle them while driving, especially children. When you ride from behind pedestrians, ring your bell to give them a heads-up and slow your scooter down to pass from their left, and keep to the right at a low speed while riding across them (applicable to countries where vehicles drive on the right). When you drive across pedestrians, keep the lowest speed or getting off the vehicle.

- In any case, anticipate your trajectory and your speed while respecting the code of the road, the code of the sidewalk and the most vulnerable. Notify your presence when approaching a pedestrian or cyclist when you are not seen or heard. Cross the protected passages while walking. Cross the protected passages while walking. Avoid high traffic areas or overcrowded areas.

- Riding with high speed or a speed that is not appropriate or adequate for the situation (bad weather conditions, bad surface conditions, or the like) may lead into a potential loss of stability or loss of control. To reduce any risk, you must follow all instructions in this manual. Be careful when mounting and dismantling the product, it may fall and cause injury.

Traffic in the city has many obstacles to cross such as curbs or steps. It is recommended to avoid obstacle jumps. It is important to anticipate and adapt your trajectory and speed to those of a pedestrian before crossing these obstacles. It is also recommended to get out of the vehicle when these obstacles become dangerous due to their shape, height or slippage.

Do not lend your scooter to whoever does not know the operations. Before lending the electric scooter to others, please make sure that the rider has read this instruction manual and watched the instruction video, and understood the basic operation. Remind riders to wear safety protection correctly to ensure the safety of riders.

- Contact your seller for appropriate training organizations.

· In all cases, take care of yourself and others.

- Any load attached to the handlebar will affect the stability of the vehicle.

- Do not touch the brake system, it could cause injuries due to sharp edges. The brake may become hot in use. Do not touch after use.

The A-weighted emission sound pressure level is less than 70 dB(A).

The mechanical vibrations transmitted by KickScooter are less than 2.5 m/s ^2 .

For a better riding experience, it is recommended to carry out a regular maintenance of the product.

Eliminate any sharp edges caused by use.

Accessories and any additional items which are not approved by the manufacturer shall not be used.

Regular maintenance of the vehicle is a factor of safety.

The self-tightening nuts as well as the other self-tightening fastenings may lose their efficiency and that they may need to be retightened.

Regularly check the tightening of the various bolted elements, in particular the wheel axles, the folding system, the steering system and the brake shaft.

Do not modify or transform the vehicle, including the steering tube and sleeve, stem, folding mechanism and rear brake.

Do not make any modifications that are not noted in the instructions.

Make sure the scooter is turned off when being transported and kept in its original packaging if possible.

In order to avoid accidental injuries such as electric shock and fire caused by improper use, please read the instructions carefully before use, and keep them properly for future reference.

Please use this product in accordance with the instructions in the User Manual. Users are responsible for any loss or damage arising from improper use of this product.

Power-off the vehicle during charging, or into a certain nonoperational mode.

Do not charge if the charge port or charge cable is wet. Read this manual carefully before charging.

Do not charge the scooter at an ambient temperature above 40°C or below 0°C.

Please keep a safe distance when the scooter is driving on a level/no slope road. The braking distance will increase in wet weather.

The shock absorption of this product is not adjustable (if applicable).

The appliance is not intended for use at elevations greater than 2000 m above sea level.

The appliance shall be disconnected from its power source during service and when replacing parts.

The external flexible cable or cord of this transformer cannot be replaced; if the cord is damaged, the transformer shall be scrapped.

If the external flexible cable or cord of this transformer is damaged, it shall be replaced by the manufacturer or their service agent or a similarly qualified person in order to avoid a hazard.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This product contains batteries that can only be replaced by qualified technicians or after-sales service

This appliance contains batteries that are only replaceable by skilled persons.

WARNING! For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance. Do not use a battery charger from any other product. Keep a safe

distance from the surrounding combustibles when charging, the vehicle must be placed in a well-ventilated area.

WARNING! Do not use any third-party battery or battery charger. Use only with NBW54D601D3D supply unit.

- WARNING! Keep plastic covering away from children to avoid suffocation.

WARNING! Never use the product close to a water source.

WARNING! Stop using the product when damaged.

WARNING! As with any mechanical component, a vehicle is subject to high stresses and wear. The various materials and components may react differently to wear or fatigue. If the expected service life for a component has been exceeded, it may break suddenly, therefore risking causing injuries to the user. Cracks, scratches and discoloration in the areas subject to high stresses indicate that the component has exceeded its service life and please contact an authorized or a specialized repairer.

Watch out for hand crush and pinch points hazards in the following positions during use:

1. Between the handlebar and the stem when installing the handlebar.
2. Openings on the wheels.
3. Between the front mudguard and the deck.
4. Between the quick release lever and the safety lock, and between the folding joint and the stem when folding or unfolding.
5. Between the mudguards and the wheels.

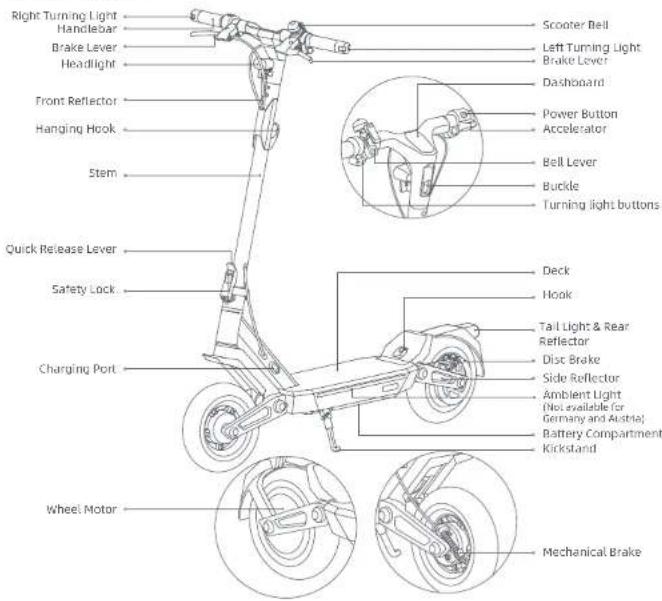

2. Product Overview

Electric Scooter

Right Turning Light Handlebar Brake Lever Headlight Front Reflector Hanging Hook Stem Quick Release Lever Safety Lock Charging Port Wheel Motor Scooter Bell Left Turning Light Brake Lever Dashboard Power Button Accelerator Bell Lever Buckle Turning light buttons Deck Hook Tail Light & Rear Reflector Disc Brake Side Reflector Ambient Light (Not available for Germany and Aisle) Battery Compartment Kickstand Mechanical Brake

Power on/off

Diagram of a robotic arm with a highlighted control panel (no text or symbols)

Press the button (to turn the scooter on, and hold the button for 2 to 3 seconds to turn the scooter off. When the scooter is on, press twice to change riding modes.)

Dashboard

① ② ③ ④ ⑤ ⑥ ⑦ mph km/h 30 17 ⑩ ⑤ ⑥

① Riding Modes: is for walking mode, and its maximum speed is 6 km/h. D is for standard mode. S is for sport mode.
② Speedometer: It displays the current speed when the scooter is working. When the scooter has an issue, it displays an error code. When the scooter is charging, it displays the current battery level.

③ Battery Level: The battery power is indicated by 5 bars, each representing approximately 20% of a full battery.
③ Light: When the scooter is on, short press the power button to turn the front or rear lights on or off. Short press the power button twice to switch modes. These short presses of the power button will not turn off the scooter. Alternatively, you can enable the auto-sensing light function via the APP. During the ride, the headlight and taillight will turn on/off automatically based on ambient light brightness.

Notes:

- After activating the auto-sensing light function, if you manually turn the light on or off, this function will temporarily deactivate. You will need to restart the electric scooter for it to take effect.

* If the ambient light function is enabled in the app, the ambient lights on both sides of the scooter will turn on or off along with the front light and the taillight (Not available for Germany and Austria).

⑤ Turning Indicating: When the scooter is on, press the left or right turning button, then the corresponding turning light and the indicator on the control panel will blink. Meanwhile, the buzzer will respond at the same frequency. Press the button again to turn off the turning light.
TCS anti-slip reminder: When the TCS (traction control system) anti-slip function is enabled, the scooter can prevent the tires from slipping excessively to maintain stability during operations such as starting, accelerating, or turning. The TCS anti-slip function is enabled when 是 is on, and disabled when 否 is off. This function can be enabled or disabled via the NAVEE app.
⑦ Bluetooth: The Bluetooth icon is always on, indicating that the scooter has been successfully connected to the mobile device. After connecting the Bluetooth, enable the Bluetooth proximity unlock function in the APP, turn the scooter off first before locking, if the mobile phone is far away from the scooter, the motor will automatically lock, and it will remain locked when turned on again, if the mobile phone is close to the scooter, squeeze any brake, and the motor will automatically unlock.

Note: Locking the scooter will consume the scooter's power, please use this function wisely.

⑥ Temperature Warning: If the battery temperature is too high or too low, the thermometer icon will be on. Use or charge the scooter after its battery temperature returns to the normal operating range.
⑤ Error Notification: When the wrench icon displays red, it indicates that the scooter has an error.
⑩ Lock: When the icon lights up, it indicates that the scooter is locked. You can lock/unlock the scooter via the NAVEE app.

3. Care & Maintenance

Cleaning

Before cleaning the scooter, you must turn off the power, unplug the charging cables and close the charging cover tightly.
Wipe the main chassis with a soft damp cloth, the hard-to-remove dirt can be scrubbed with a toothbrush. Afterwards, wipe all areas with a dry cloth.

WARNING!

• Do not wash the scooter with a high-pressure water spray.
• Do not clean the scooter with corrosive cleaner, which will damage the external and internal structure of the scooter.

Battery

Always charge before exhausting the battery to prolong the battery's lifespan.

When riding, storing or charging, do not exceed the specified temperature limit (refer to specifications), failure to follow instructions for use, storage or charging may result in battery damage, failure to charge and void warranty. The fully charged scooter has an approximate standby time of 120-180 days. If it is not used for a long time, it should be charged every 60 days. Please pay attention to the standby time to prevent irreversible damage to the battery caused by not charging.

WARNING!

- Do not use battery packs of other models or brands, as there may be a safety risk.

• Only use the original battery charger to avoid potential damage or fire.
• If the battery is damaged or soaked with water, do not charge or continue to use it.
  Do not remove the battery. Removing the battery is complicated, and improper operation may affect the operation of the scooter.

Storage

If the scooter will not be used for an extended period, fully charge it, then turn it off and store it in a cool, dry place. Make sure the scooter is turned off when being transported and kept in its original packaging if possible.

WARNING!

• Please do not leave the scooter under hot sun or severely humid place for extended periods of time.
• Please do not place the scooter near flammable materials.
• This product contains a built-in lithium battery and must be transported only when permitted by local laws and regulations.

Environmental Instructions

The scooter contains a rechargeable lithium-ion battery pack, and improper disposal of these batteries will cause harm to the environment. Follow the steps below to remove the batteries before disposing of the scooter and discard the batteries properly:

1. Before removing the batteries, it is recommended to fully deplete them and ensure that the scooter is disconnected from the power supply. Next, unscrew the bottom cover of the scooter to remove it, and remove the battery pack retaining bracket.
2. Unplug the battery connector, and then remove the batteries. Do not damage the battery case to avoid any risk of injuries. Do not use the battery if it is damaged, has a strange odor, emits smoke, or gets overheated. Keep a leaking battery away from other objects.
3. Discard the removed batteries at a professional recycling facility.

Scooter Maintenance Schedule (Recommended):
Maintaining the scooter regularly can help keep the scooter neat and in good condition, avoid safety hazards, minimize breakdowns, slow down the deterioration of the scooter, and extend the scooter's service life.

Item	Service Object	Actions	Every month	Every 3 months	Every 500 km/6 months	Every 1000 km/1 year	Every 10000 km/3 years
Tires	Tire Tread Wear	Check whether the tire is cracked, deformed, worn, etc.			111
Screws	Handlebar Assembly Screws	Tighten the screw that connects the handlebar assembly with the stem assembly (with the recommended torque of 5.0 ± 0.5 N·m).		1111
		Tighten the accelerator screw (with the recommended torque of 2.0 ± 0.1 N·m).
		Tighten the brake lever screw (with the recommended torque of 3.5 ± 0.3 N·m).
	Disc Brake Caliper	Tighten the screw that fixes the disc brake caliper (with the recommended torque of 7.0 ± 0.5 N·m).			111

Item	Service Object	Actions	Every month	Every 3 months	Every 500 km/6 months	Every 1000 km/1 year	Every 10000 km/3 years
Functions	Brake Adjustment	Adjust the Disc Brake before adjusting, get yourself a 4 mm wrench (prepared by the user) and make sure the scooter is turned off and not being changed. During adjusting, pull the end of the brake cable to make the cable light. If the brake is too tight, use the tool to loosen the screw by turning it counterclockwise, pull the disc brake rocker arm outwards, and then tighten the screw. If the brake is too loose, use the tool to loosen the screw by turning it counterclockwise, push the disc brake rocker arm forwards, and then tighten the screw.			√√√
		Adjust the Mechanical Brake Before adjusting, get yourself a 14 mm wrench (prepared by the user) and make sure the scooter is turned off and not being charged. When the brake is too light, use the tool to turn the nut on the screw rod counterclockwise, so as to slightly shorten the brake cable's exposed bottom part. When the brake is too loose, use the tool to turn the nut on the screw rod clockwise, so as to slightly lengthen the brake cable's exposed bottom part.			√√√
	Charging	Charge the scooter at a suitable temperature. The indicator on the battery charger is red when the scooter is charging, and turns green when the scooter is fully charged. The control panel will show the charging status simultaneously during charging.			√√√
	Steering	Turn the handlebar 60° to the left and right to make sure the turning angle is correct and the steering is free from resistance and stagnation.				√	√
Important Components	Battery Assembly	Fully charge the scooter before leaving it unused for a long time, and turn it on to charge every 60 days.					√

wheels, brake pads and other vulnerable parts are worn or damaged and need to be replaced, please contact the after-sales service in time.

To find a qualified service shop, contact us via [e-mail]/www.naveetech.com

1. Specifications

Product	Name NAVER Electric Scooter
	Model ST3 Pro-E		ST3 Pro-D	ST3 Pro-IT
Dimensions	Vehicle: L × W × H (mm)[1]	1200 × 600 × 1205
	After Folding: L × W × H (mm) 1200 × 600 × 598
Net Weight Vehicle	Net Weight (kg) 25.3
Rider	Load Range (kg) 25-120
	Age (years) 16-50
	Body Length (cm) 120-280
Assembled Bicycle Scooter	Max. Speed (km/h) 25 20 20
	General Range (km)[2]	Approx. 75
	Max. Climbing Angle (°C) Approx. 28
	Suitable Surfaces	Cement or asphalt road, with benches of less than 1 cm or crevices narrower than 0 cm
	Operating Temperature (°C)	-10 to 40
	Storage Temperature (°C)	30 to 45
	IP Rating	IPKS
	Charging Time (h)	Approx. 10
Battery Pack	Model 1234L~ 80mA
	Nominal Voltage (VDC)	46.8
	Max. Charge Voltage (VDC)	54.6
	Rated Energy (Wh)	595.7
	Intelligent Battery Management System	Over-heating, short circuit, over current, over discharge, and over-charge protection
	Normal Changing Temperature Range (°C)	0 to 40
	Rated Capacity (W)	12.75
Wheel Motor	Rated Power (kW; W)	0.6; 600	0.45; 450	0.5; 500
Battery Charger	Model [3]	NBWS-4D601D30
	Output Power (kW; W)	0.07; 70
	Input	100-240 V~ 50-50 Hz
	Max. Output Voltage (VDC)	54.6
	Rated Output (VDC; A)	53.6; 1.3
Tire	Front & Rock Tires 10 inch Self-healing tubeloss tires
Hanging Hook	Max. Load (kg)	5
Bluetooth	Frequency Band (s)	2.4000 2.4825 GHz
	Max. IP Power (dBm)	8

[1] Vehicle height: From the ground to the top of the scooter.
[2] General range: Measured when there is no wind and at 25°C, the scooter is fully charged to ride at a constant speed of 15 km/h on a flat surface with a load of 75 kg.
[3] To recharge the battery, only use the battery charger provided in the package. Please see battery charger parameters in Specifications.

5. Certification

Restriction of Hazardous Substances Directive (RoHS)

This SPACEWALKER PTE, LTD. product, with Included parts (cables, cords, and so on) meets the restriction of the use of certain hazardous substances in electrical and electronic equipment 2011/65/EU Annex II and its amendment Directive (EU) 2015/863.

EU Declaration of Conformity

This device meets the EU requirements on the limitation of exposure of the general public to electromagnetic fields by way of health protection. Hereby, SPACEWALKER PTE. LTD. declares that the radio equipment type: [ST3 Pro-E], [ST3 Pro-D] and [ST3 Pro-IT] are in compliance with Directive 2014/53/EU and 2006/42/EC. The full text of the EU declaration of conformity is available at the following internet address: www.naveetech.com

European Union Compliance Statement

Battery recycling information for the European Union

Batteries or packaging for batteries are labeled in accordance with European Directive 2006/66/EC and amendment 2013/55/EU concerning batteries and accumulators and waste batteries and accumulators. The Directive determines the framework for the return and recycling of used batteries and accumulators as applicable throughout the European Union. This label is applied to various batteries to indicate that the battery is not to be thrown away, but rather reclaimed upon end of life per this Directive.

In accordance with the European Directive 2006/66/EC and amendment 2013/56/EU, batteries and accumulators are labeled to indicate that they are to be collected separately and recycled at end of life. The label on the battery may also include a chemical symbol for the metal concerned in the battery (Pb for lead, Hg for mercury, and Cd for cadmium). Users of batteries and accumulators must not dispose of batteries and accumulators as unsorted municipal waste, but use the collection framework available to customers for the return, recycling, and treatment of batteries and accumulators. Customer participation is important to minimize any potential effects of batteries and accumulators on the environment and human health due to the potential presence of hazardous substances.

Before placing electrical and electronic equipment (EEE) in the waste collection stream or in waste collection facilities, the end user of equipment containing batteries and/or accumulators must remove those batteries and accumulators for separate collection.

Waste Electrical and Electronic Equipment (WEEE) Directive

All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handling over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points.

Safety Warning

Danger! Read user manual before use.

WARNING Read carefully and keep for future reference.

WARNING Hot Surface

Do not expose to moisture

SMPS incorporating a short-circuit-proof safety isolating transformer(inherently or non-inherently)

SMPS (Switch mode power supply unit)

Time-lag miniature fuse-link where X is the symbol for the time/current characteristic as given in IEC 60127

Audible warning to alert people (Not for DE & IT version.)

WARNING For indoor use only (for the charger).

WARNING Class II appliance

WARNING Sharp Edges

The charger intended for use at altitudes not exceeding 5000m.

Turning IndicatorLight

Direct current

Alternating current

Polarity of the charger output, center positive

Battery Charger

WARNING

1. The charger is designed for indoor use only. Do not expose it to rain or snow.
2. Do not use for non-rechargeable batteries, as they can overheat and break.
3. Misuse other types of batteries may burst causing personal injury and damage.
4. Do not incinerate, disassemble or short circuit batteries.
5. If the performance of the batteries decrease substantially, it is time to replace the batteries.

6. Store the charger in a cool and dry place when not in use.

7. Disconnect the supply before making or breaking the connections to the battery.

8. Explosive gases. Prevent flames and sparks. Provide adequate ventilation during charging.

9. During charging, the battery must be plated in a Well Ventilated area.

10. Keep electrical appliances out of reach from Children or infirm persons. Do not let them use the appliances without supervision.

11. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

12. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

13. The external flexible cable or cord of this transformer cannot be replaced; if the cord is damaged, the transformer shall be scrapped.

14. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

Charging instructions

1. Connect the charger directly to a power source. Never use extension cords.

2. The charger can only charge Lithium-ion battery NBW540601D3D.

3. Avoid reverse charging.

4. The chargers are not intended to charge automobile batteries.

detachable power supply part

EN

Battery Pack

WARNING

1. Do not dismantle, open or shred secondary cells or batteries.
2. Keep batteries out of the reach of children Battery usage by children should be supervised. Especially keep small batteries out of reach of small children.
3. Seek medical advice immediately if a cell or a battery has been swallowed.
4. Do not expose cells or batteries to heat or fire. Avoid storage in direct sunlight.
5. Do not short-circuit a cell or a battery. Do not store cells or batteries haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by other metal objects.
6. Do not remove a cell or battery from its original packaging until required for use.
7. Do not subject cells or batteries to mechanical shock.
8. In the event of a cell leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
9. Do not use any charger other than that specifically provided for use with the equipment.
10. Observe the plus (+) and minus (-) marks on the cell, battery and equipment and ensure correct use.
11. Do not use any cell or battery which is not designed for use with the equipment.
12. Do not mix cells of different manufacture, capacity, size or type within a device.
13. Always purchase the battery recommended by the device manufacturer for the equipment.
14. Keep cells and batteries clean and dry.
15. Wipe the cell or battery terminals with a clean dry cloth if they become dirty.
16. Secondary cells and batteries need to be charged before use. Always use the correct charger and refer to the manufacturer's instructions or equipment manual for proper charging instructions.
17. Do not leave a battery on prolonged charge when not in use.
18. After extended periods of storage, it may be necessary to charge and discharge the cells or batteries several times to obtain maximum performance.
19. Retain the original product literature for future reference.
20. Use the cell or battery only in the application for which it was intended.
21. When possible, remove the battery from the equipment when not in use.
22. Dispose of properly.

Diagram of a robotic arm with a control panel and indicator lights, no text or symbols present

(3,0 = 0,5 N·m)

≤30% + ≈30 ⏻ =

Technical diagram of an electric scooter with labeled parts and directional arrows indicating motion or assembly.

Line drawing of a scooter with an inset showing the dashboard and steering wheel (no text or symbols)

Line drawing of two identical figures standing upright, each holding a motorcycle (no text or symbols)

Line drawing of a person riding a scooter with an inset showing a car interior view (no text or symbols)

Produit : NAVEE Electric Scooter Modèle : GT3-E, GT3-P, GT3-D, GT3-IT, GT3-S, GT3 Pro-E, GT3 Pro-R, GT3 Pro-D, GT3 Pro-IT, GT3 Pro-S, GT3 Max-E, GT3 Max-P, GT3 Max-D, GT3 Max-IT, GT3 Max-S, ST3-E, ST3-P, ST3-D, ST3-IT, ST3-S, ST3 Pro-E, ST3 Pro-P, ST3 Pro-D, ST3 Pro-IT, ST3 Pro-S

T2401XXXXXXXXXXX, T2402XXXXXXXXXXX, T2403XXXXXXXXXXX, T2418XXXXXXXXXXX, T2345XXXXXXXXXXX (X represents any number from 0-9 or any letter from A to Z except 0 and 1.)

Directive Machines (MD) (2006/42/CE)

IEC 62321-5-2013, IEC 62321-4.2013;47:2017,

IEC 62321-5.2013, IEC 62321-6.2019, IEC 67321-7.2017, IEC 62321-8:7027

LCIF China Company Limited.

LCIE China Company Limited.

LCLE China Company Limited.

Zhejiang Novi Total Quality Assurance Co., Ltd.

Wentao Shi. Certificate Engineer

Diagram showing a device with a highlighted 'ID' button and control panel, likely illustrating a device control or status.

Diagram of a robotic device with a highlighted control panel (no text or symbols)

Diagram showing a mechanical device with a 3D button labeled '3D' and an icon of a switch.

Diagram of a bicycle suspension system with a D button and control panel (no text or symbols)

Manufacturer's Limited Warranty Card

This is the manufacturer's limited warranty ("Limited Warranty") for all Navce Electric Scooters for consumers. This Limited Warranty describes the service available to you in the event your Product requires warranty service, and you may have additional protections under your local laws.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE RIGHTS WHICH VARY FROM COUNTRY TO COUNTRY AND STATE TO STATE.

This sheet and the original purchase receipt for the purchase of your Product are the documents defining the Limited Warranty. Please retain this document and the original purchase receipt to preserve your warranty service.

When purchasing the product, we recommend that you clearly fill in the following information and affix the sales seal to protect your legitimate rights and interests;

Product Purchase Information	Customer Name Email
	Contact Number		Purchase Channel
	Product Model Purchase Date
	Product 504 Invoice Number

Manufacturer's Limited Warranty Card

Contact Us

Service Email: [e-mail]

For more information about products and services, please visit the NAVEE official website: https://service.naveetech.com/ You can view product technical support videos and find local service center & detail warranty policy through the website.

During the after-sales service process, customers may need to provide this warranty card, proof of purchase and relevant information of the consignee. NAVEE will ensure that the relevant information provided by the customer is only used to provide services to the customer.

For more information & after-sales support, contact us via [e-mail]/www.naveetech.com

Manufactured by: SPACEWALKER PTE. LTD.

Address: 60 PAYA LEBAR ROAD #07-54 PAYA LEBAR SQUARE SINGAPORE (409051)

E-mail: [e-mail]

Made in China

Original instructions 40150500000628-EU
