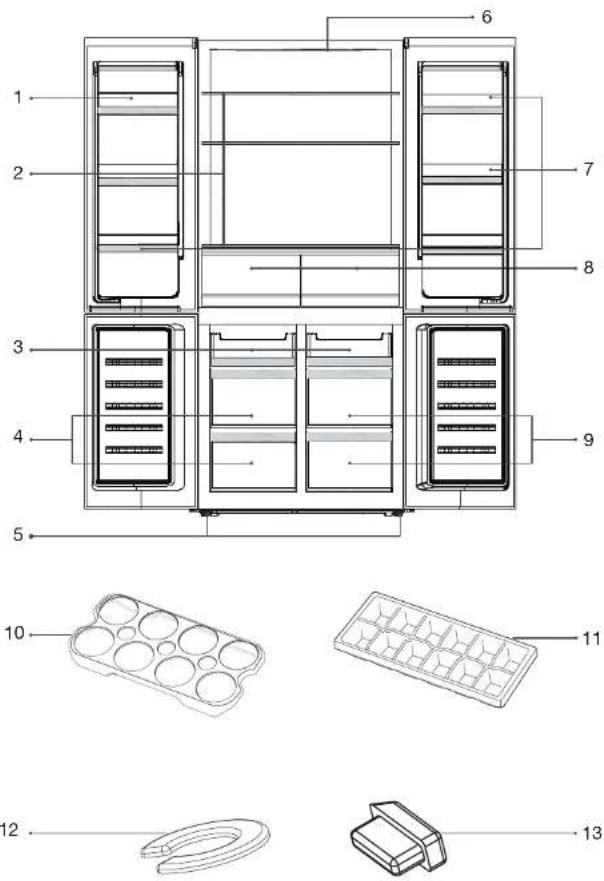

1	Balconnets de porte du réfrigérateur	Fridge door shelves	Kühlschrank-Türablagen	Deurvakken voor koelkast
2	Clayettes en verre amovibles du réfrigérateur	Removable glass shelves in fridge	Herausnehmbare Glasböden im Kühlschrank	Uitneembare glazen legplanken in koelkast
3	Plateaux coulissants	Sliding trays	Herausziehbare Ablagen	Schuifi aden
4	Tiroirs de congélation	Freezing drawers	Gefrierschrank-Schubladen	Vriesladen
5	Pieds de mise à niveau réglables	Adjustable levelling feet	Verstellbare Nivellierfüße	Verstelbare stelvoetjes
6	Lampe LED LED light	LED-Leuchte Ledverlichting
7	Balconnets de porte du réfrigérateur	Fridge door shelves	Kühlschrank-Türablagen	Deurvakken voor koelkast
8	Bacs à légumes Crispers	Gemüsefach Groenteladen
9	Tiroirs convertibles	Convertible drawers	Umwandelbare Schubladen	Flexibele laden
10	Bac à œufs Egg tray	Eierhalter Eierrekje
11	Bac à glaçons Ice tray	Eiswürfelschale	IJsblokjesbakje
12	Rondelle de type C (3)	C type washer (3)	Unterlegscheibe Typ C (3)	C-type ring (3)
13	Bloc en caoutchouc (2)	Rubber block (2)	Gummiblock (2)	Rubber blokje (2)

1930mm 6.5mm 20mm 10mm 10mm

102mm 130° 140mm

Mise à niveau

Technical line drawing of a dual-panel cabinet or enclosure structure (no text or symbols)

Diagram showing a refrigerator with an upward arrow and a hand holding a tool, alongside a magnified view of the interior mechanism.

Blocs en caoutchouc

Technical line drawing of a mechanical component with internal channels and an oval detail view (no text or symbols)

Clayettes amovibles

7- Mode Super Congélation (I ^*

Technical diagram of a refrigerator interior with numbered compartments and storage areas

Thank you for purchasing an Essentiel b branded product. We pay particular attention to the RELIABILITY, EASE OF USE and DESIGN of our products and we hope you will be completely satisfied with your new upright multi-door fridge freezer.

Unpacking

• Remove the shipping box.
• Check that the appliance has not been damaged during transport. Do not plug in a damaged appliance under any circumstances! If the appliance is damaged, please contact your retailer.
• Remove all tapes and packaging materials on the inside and outside of the appliance, including the handle parts that are stored inside the refrigerator boxes.

Before first use

• Clean the inside of the appliance with lukewarm water with a little white wine vinegar added to it. Do not use soap or detergent as the odour may linger. After cleaning, completely dry the appliance.
• You can use white spirit to remove any remaining adhesive from the outside of the appliance.
• To clean the appliance, always turn it off and unplug it, or remove the fuses or flip the circuit breaker to the off position.

Installation

Installation location

WARNING: To avoid any risk due to the instability of the appliance, it must be secured as per the instructions.

• Place your refrigerator on a stable, level surface. Your appliance will be heavy when loaded with food: it must, therefore, be placed on a strong, solid floor.

• The appliance must be installed in a dry, well-ventilated room at room temperature (10°C minimum and 38°C maximum).
  • The appliance should not be exposed to direct sunlight.
  • The appliance must not be exposed to rain.
  • The appliance must not be installed next to a radiator, a stove or any other heat source.

• The appliance's energy consumption and efficient operation are affected by the room temperature.
  • The appliance must be installed in such a way that the power point is accessible.

• After installing it, make sure that it is not resting on its power cord.

Before plugging the appliance into the mains socket for the first time, please let the appliance rest for two hours if the appliance was transported in an upright position, or 24 hours if the appliance was transported in the horizontal position. This is to allow the refrigerant gas to go back down into the compressor. Failure to comply with this waiting period may damage the compressor.

Climate class

Only install the appliance in a location where the room temperature matches the climate class for which it was designed (see table below).

The climate class is on the rating plate located inside the appliance.

The table below shows the correct room temperature for each climate class:

Climate class Room temperature

SN from +10 to +32 °C

N from +16 to +32 °C

ST from +16 to +38 °C

T from +16 to +43 °C

Your refrigerator ERMVE190-90hov1 is rated "SN/N/ST". If the room temperature is below or above the rated room temperature, the performance of your refrigerator may be affected, and your food may spoil.

Suffi cient ventilation

• The refrigerator is not intended to be used as a built-in appliance and ideally it should not be positioned directly under a cabinet.
- Make sure that air can circulate freely around the appliance to ensure that it can work properly (see figure below).
- The space above the refrigerator and to the rear should be more than 50 mm and at least 50 mm on both sides to facilitate heat dissipation.
• Make sure you leave enough space for the door to open.
- If your appliance is to be installed next to another refrigerator or freezer, make sure the appliances are not touching each other. This is to prevent condensation from forming on the outside.

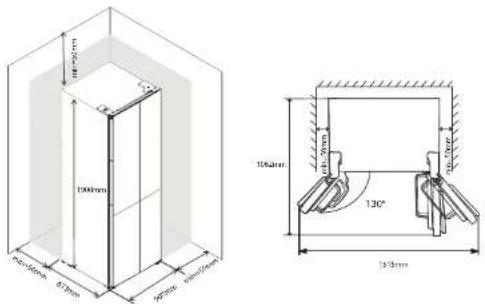

100mm 100mm 80mm 60mm 100mm 130° 150mm

Levelling

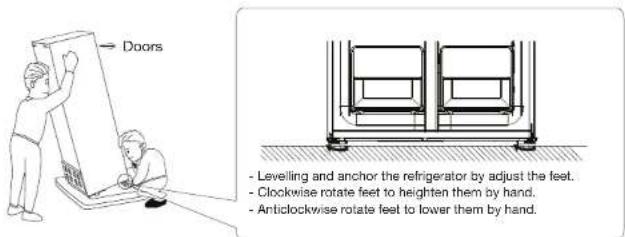

For vibration-free operation, the appliance needs to be in a level position. To do this, adjust the adjustable front feet to properly balance the appliance.

Doors - Levelling and anchor the refrigerator by adjust the feet. - Clockwise rotate feet to heighten them by hand. - Anticlockwise rotate feet to lower them by hand.

Level doors

After transportation or door shelves are loaded with food or beverage, the upper two doors may not be aligned. There are 3 C type washers which are used to adjust the doors. Follow below process to level the doors.

1. Before levelling the doors, check alignment of the doors to make sure the appliance is levelled on a fl at surface.
2. If the top of the upper two doors do not look levelled, slightly lift the lower door and insert a pieces of the C type washer, using a clamp, between the bottom of the door and the middle hinge.

Diagram showing a refrigerator with upward arrow and a close-up of a person using a tool, illustrating the process of lifting or removing a device.

Rubber blocks

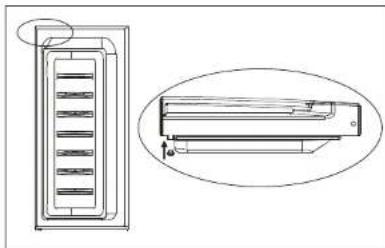

There is one rubber block on each door. They function as spring to relieve impact when door closes.

Do not pull the rubber blocks. If a rubber block is absent from the doors, replace one from the package included and insert it into the designated hole of the door.

Technical line drawing of a mechanical component with an inset view showing internal structure (no text or symbols)

Removable shelves

The walls of the refrigerator are equipped with a series of runners allowing you to position the shelves according to your needs. You can remove the shelves for easy cleaning.

Door shelves

The fridge compartment and freezer compartment both have door shelves. They are intended for the storage of eggs, condiments, canned drinks, etc. Do not place too many heavy objects in the door shelves.

You can remove the door shelves for cleaning. Gradually lift the shelf upwards until it comes free. After cleaning, reposition it as required.

Use

Getting started

- Before plugging the appliance into the mains socket for the first time, please let the appliance to rest for two hours if it was transported in an upright position, or 24 hours if it was transported in a horizontal position. This is to allow the refrigerant gas to go back down into the compressor. Failure to comply with this waiting period may damage the compressor.

• Plug the appliance into a mains socket.
• Wait at least two hours before placing food in the appliance to ensure that the correct temperature has been reached inside the refrigerator.

Description and use of the control panel

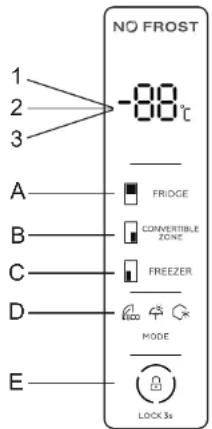

NO FROST -80°C 1 2 3 A FRIDGE B CONVERTIBLE ZONE C FREEZER D MODE E LOCK 3s

1. Temperature of fridge compartment indicator
2. Temperature of freezer compartment indicator
3. Temperature of convertible compartment indicator
   A. FRIDGE - fridge temperature setting button
   B. CONVERTIBLE ZONE - convertible zone temperature setting button
   C. FREEZER - freezer temperature setting button
   D. MODE - mode setting button (ECO/Holiday/Super freezing)
   E. LOCK 3s - locking/unlocking button

When you plug in the refrigerator, the indicators on the control panel will light up and the fridge is automatically on. For the first connection, the default temperature is set to 4 °C for the fridge,

-18 °C for the freezer and convertible zone. Thereafter, each time you restart the refrigerator, it will operate according to the temperature set before the last power off. The appliance will be automatically locked in 25 seconds after the last button pressed. After locking, the light of the panel would be out in 120 seconds after the last button pressed.

1- Temperature control – Fridge

FRIDGE

Set the temperature:

• Press the FRIDGE button on the control panel repeatedly to reach your desired temperature. Each press toggles between 2 °C, 3 °C, 4 °C, 5 °C, 6 °C, 7 °C, 8 °C or -- (Off).
• The LED of the selected temperature will display. The temperature change will take effect 5 seconds after the setting is selected.
  • We recommend setting the temperature to 4 °C when starting up your appliance.
  Shut off the fridge compartment:
• Press the FRIDGE button repeatedly until - - (Off) shows. The indicator light flashes for 5 seconds and the selection is set. The fridge compartment will stop refrigerating.

2- Temperature control - Freezer

FREEZER

Set the temperature:

• Press the FREEZER button on the control panel repeatedly to reach your desired temperature. Each press toggles between -14^ , -15^ , -16^ , -17^ , -18^ , -19^ , -20^ , -21^ or -22^ .
• The LED of the selected temperature will display. The temperature change will take effect 5 seconds after the setting is selected.

3- Temperature control - Convertible zone

CONVERTIBLE ZONE

Set the temperature:

• Press the CONVERTIBLE ZONE button on the control panel repeatedly to reach your desired temperature. Each press toggles between the range of 5 °C to -20 °C or - - (Off).
• The LED of the selected temperature will display. The temperature change will take effect 5 seconds after the setting is selected.
  Shut off the convertible compartment:
• Press the CONVERTIBLE ZONE button repeatedly until •• (Off) shows. The indicator light flashes for 5 seconds and the selection is set. The convertible compartment will stop refrigerating.

4- Control panel lock mode

Lock the control panel:

• While the control panel is unlocked, long press the lock button ( 6 ) for 3 seconds to lock the control panel. You hear a beep when the panel is locked. The lock indicator turns on.
  Unlock the control panel:
• While the control panel is locked, long press the lock button ( ) for 3 seconds to unlock the control panel. You hear a beep when the panel is unlocked. The lock indicator turns off.
  NOTE: If there is no button pressed within 25 seconds, the control panel will be locked automatically.

5- ECO mode (ECO

Set ECO mode:

- Press MODE button to choose ECO mode. The ECO icon light turns steady on after flashing for 5 seconds. The temperatures of the fridge and freezer are set according the following temperature.

Ambient temperature (T)	T≤13 °C 13 °C
Fridge temperature	3 °C 4 °C	5 °C 6 °C 8 °C
Freezer temperature	-18 °C -18 °C	-18 °C -16 °C	-15 °C

NOTE: The FRIDGE and FREEZER will not work in ECO mode. The temperature of the convertible zone can be adjusted freely by operating the convertible zone temperature setting.

Exit ECO mode:

- Press MODE button to exit. Each press of the MODE button will toggle between ECO mode, Holiday mode and Super freezing mode.

6- Holiday mode (K)

Set holiday mode:

• Press MODE button to choose holiday mode. The icon light turns steady on after flashing for 5 seconds.
• Temperature of the fridge compartment will be fixed at 17 °C. The FRIDGE button will be locked and the temperature cannot be changed.
• Temperature of freezer compartment and convertible compartment can be adjusted freely. Exit holiday mode:
• Press MODE button to exit holiday mode.

7- Super freezing mode (

Set super freezing mode:

• Press MODE button to choose super freezing mode. The icon light turns steady on after flashing for 5 seconds.
• Temperature of the freezer compartment will be fixed at -25 °C. The FREEZER button will be locked and the temperature cannot be changed.
• Temperature of fridge compartment and convertible compartment can be adjusted freely.

Exit super freezing mode:

• Press MODE button to exit super freezing mode.
• After the refrigerator operates in super freezing mode for 50 hours, it will exit mode automatically.

8- Door open alarm

If the fridge (upper) door keeps open for 60 seconds, periodical alarm will be triggered and give off alarm sound until the door is closed.

9- Multi-temperature zones

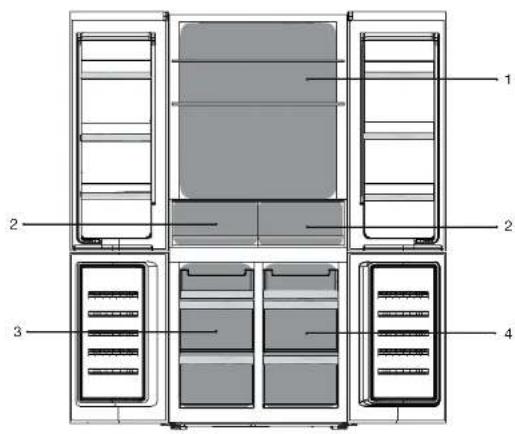

Technical diagram of a refrigerator internal structure with numbered components

1. Fridge: 2 °C \~ 8 °C or Off
2. Temperature can be adjusted via the control panel.
3. Crispers: 2 °C - 8 °C
4. Freezer: -22 °C \~ -14 °C
5. Temperature can be adjusted via the control panel.
6. Convertible zone: -20 °C \~ 5 °C
7. Temperature can be adjusted via the control panel.

Practical tips for use

Daily use

Store different types of food in different compartments according to the below table.

Fridge/freezer compartments Type of food

Door shelves of fridge compartment	Food with natural preservatives, such as jams, juices, drinks, condiments.Do not store perishable foods.
Crisper drawer (salad drawer)	Fruits, herbs and vegetables should be stored separately in the crisper bin.Do not store bananas, onions, potatoes, garlic in the refrigerator.
Fridge shelf	Dairy products, eggs, cakes, pasta, pizza.Food that do not need cooking, such as ready-to-eat foods, deli meats, leftovers.
Convertible compartment	-20^ 5^ , wide range variable temperature. 3^ 5^ : fresh fruit, vegetables. 0^ 2^ : drinks, beer, red wine, delicacies. -7^ -1^ : chilling foods for short-term storage, such as raw meat, fi sh, seafood, dumplings. -20^ -8^ : chilling foods for long-term storage, such as raw meat, fi sh, seafood, dumplings.
Freezer compartment	Foods for long-term storage.Seafood, fi sh, meat, dumplings, forzen baked goods.

Temperature setting recommendation

Temperature Setting Recommendation

Environment Temperature Temperature Setting
Summer(Above 38 °C)		Fridge set on 2 °C
		Freezer set on -20 °C
Normal		Fridge set on 4 °C
		Freezer set on -18 °C
Winter(Below 16 °C)		Fridge set on 5 °C
		Freezer set on -18 °C

NOTES:

• Information above give users recommendation of temperature setting.
- Setting high temperatures can easily lead to food waste.

Storage and energy saving tips

• Do not put hot food or evaporating liquids inside the refrigerator. Wait for anything cooked to cool completely before storing it (for example: soup).
  • Always pack products to prevent different foods from contaminating each other.
• Store only fresh foods, cleaned and wrapped in appropriate food packaging or containers.
• Never cover the shelves with paper or plastic sheets. Arrange food so that air can circulate freely around it.
  • Make sure that the food does not touch the walls of the appliance, especially the back wall.
• Do not leave the door open for a long time because hot air will enter the refrigerator and the cold air inside will escape, thereby wasting energy.

• In the event of a power cut, do not open the door.
- Make sure there are no obstructions preventing the door from closing properly.
- Do not set the temperature to a colder temperature than necessary.

Cleaning

Unplug the appliance before you clean it.

We recommend that you regularly clean and disinfect your appliance.

1. Remove the fresh food from the refrigerator. Wrap it up and store it in a cool place.
2. Clean the appliance and accessories inside with a soft (non-abrasive) sponge dipped in a solution of bicarbonate of soda and warm water or soapy, lukewarm water. Remove the door shelves by lifting them upwards. Do not forget to clean the door seals.
3. After cleaning, rinse with clean water and dry the parts thoroughly with a soft cloth.

4. Once everything is dry, reassemble the refrigerator. Put the door shelves back by sliding them in from the top.

5. Never clean the appliance with a steam cleaner. The moisture generate can accumulate on the electrical components and could expose users to the risk of an electric shock! Hot steam can also damage parts made with plastic.

6. Never use abrasive or caustic products, or sponges with scouring pads to clean the inside or outside of your appliance.
7. Do not use hot water to clean the glass shelves if they are cold. There is a risk that the glass will shatter because of the sudden change in temperature which could cause injury and serious damage.
   • IMPORTANT: Never put oil or oily dishes in the refrigerator in open containers as the fatty substances can damage the plastic surfaces of the refrigerator. If you spill or splash oil on the plastic surfaces, clean it up and immediately wash the affected parts with hot water.

Troubleshooting guide

Malfunctions

If the appliance malfunctions, it may be due to a minor problem that you can rectify by following the instructions below. Before you call in a technician, you should carry out the following checks:

Problem Check
Your refrigerator is not working.	The appliance is plugged in.Your main circuit breaker has not tripped.The appliance is plugged into a suitable socket.To check, plug a different appliance into the socket in question.
Your refrigerator is not working effectively.	You have not overfliled it.The door has been shut properly.The condenser is not covered in dust.The temperature is not too high and adjust as necessary to a cooler setting.The appliance is not near a heat source.Ensure the appliance is well-ventilated, for example, the gaps at the back and around the sides are large enough.
Your appliance is too cold.	The refrigerator is in power cool mode.The temperature is too low and adjust as necessary to a warmer setting.
Your appliance is noisy. The cooling gas that circulates in the refrigeration system can sometimes make small noises, even when the compressor is not operating. Do not be concerned, this is completely normal. If you hear a different noise, check:The appliance is levelled.Nothing is touching the rear of the appliance.The contents of the appliance are not vibrating.

If this does not solve your specific problem, please contact your retail store service desk and do not attempt to make repairs yourself.

Your refrigerator should only be repaired by qualified maintenance technicians. Poorly done repairs can be dangerous for the user and are not covered by the warranty.

Noises in operation

The appliance may make the following noises when operating normally:

• Crackling: Noise produced during automatic defrosting. It may also be produced when the refrigerator is in the cooling or warming phase and is due to expansion of the appliance materials.
• Clicking: Noise produced when the thermostat switches the compressor on or off.
• Compressor noise, humming: Normal motor noise. This noise indicates that the compressor is working normally. When the compressor cuts in, the noise can rise slightly for a brief moment.
• Bubbling or gurgling: Noise produced when the refrigerant fluid flows through the coils inside the system.
• Running water: Normal noise produced when the water flows out of the evaporation container during defrosting. This noise may also be audible inside the appliance during defrosting.

If you are going to be away or the appliance is not going to be used for a long period

• Unplug, empty and clean the appliance.
• Keep the door ajar when the appliance is unplugged and unused.

Interior light

Your appliance has LED lighting. This type of lighting is designed to last much longer than conventional light bulbs. Contact your retail store service desk if your refrigerator lighting develops a fault.

This product contains a light source of energy efficiency class 'F'. The light bulb in this product is replaceable only by qualified engineers.

INFORMATION ENERG SUPPLIER'S NAME CODE: ENTERIOR → (°) A A You can find information on the models as recorded in the product database on the following website by searching for your model (*), which is specified on the energy label: https://eprel.ec.europa.eu/

The spare parts for the appliance shall remain available for 10 years.

Link to the manufacturer's website where the information referred to in point 4 a) of the appendix to the Commission Regulation (EU) 2019/2019 can be found: https://www.boulanger.com/info/assistance/

100mm 20mm 50mm 60mm 70mm 80mm 90mm 100mm

100mm 130° 150mm

Nivellierung

Pure technical line drawing of a mechanical frame or support structure without any text, numbers, or symbols

Diagram showing a refrigerator with an upward arrow and a hand holding a tool, alongside a schematic of a hand operating the door.

Gummiblöcke

Technical line drawing of a mechanical component with an inset view showing internal structure (no text or symbols)

Technical diagram of a refrigerator interior with numbered compartments and storage areas

100mm 150mm 200mm 300mm 400mm 500mm 600mm 700mm 800mm 900mm 100mm 110mm 120° 130°

Waterpas zetten

Diagram showing a refrigerator with upward movement and a hand holding a tool, alongside an oval diagram illustrating the process.

Rubber blokjes

Technical line drawing of a mechanical component with internal channels and an inset view showing a shaft assembly (no text or symbols)

Technical diagram of a refrigerator internal structure with numbered components

All information, designs, drawings and pictures in this document are the property of SOURCING & CREATION. SOURCING & CREATION reserves all rights to its brands, designs and information. Any copy and reproduction through any means shall be deemed and considered as counterfeiting.

Protection of the environment

This symbol attached to the product means that it is an appliance whose disposal is subject to the directive on waste from electrical and electronic equipment (WEEE). This appliance may not in any way be treated as household waste and must be subject to a specific type of removal for this type of waste. Recycling and recovery systems are available in your area (waste removal) and by distributors.

By taking your appliance at its end of life to a recycling facility, you will contribute to environmental conservation and prevent any harm to your health.

Umweltschutz

\* Tested in our laboratories

Warranty valid from the date of purchase (receipt as proof of purchase). This warranty does not cover defects or damage caused by improper set up, incorrect use, or normal wear and tear of this product.

\* In unseren Labors getestet

Ref. ERMVE190-90hov1

SERVICE RELATION CLIENTS /

Customer Relations Department /

Kundenservice / Klantenafdeling

Avenue de la Motte

CS 80137

59811 Lesquin cedex

FABRIQUÉ EN R.P.C. / Made in China /
